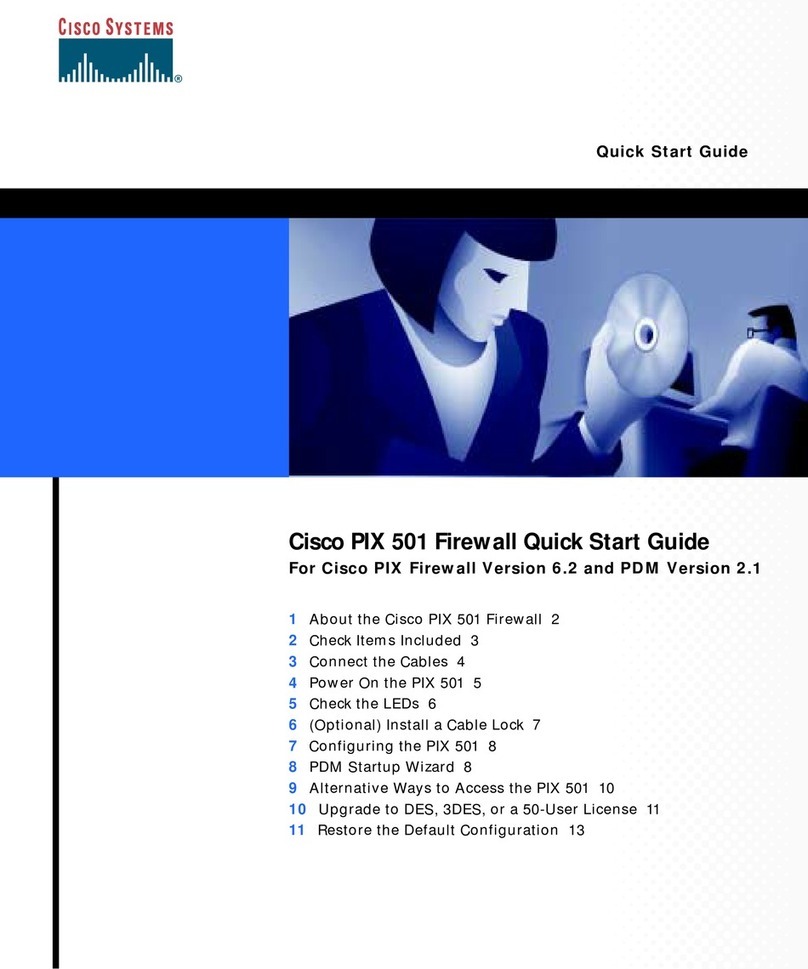

Cisco PIX 501 - Security Appliance User manual

Quick Start Guide
Cisco PIX 501 Firewall Quick Start Guide
For Cisco PIX Firewall Version 6.2 and PDM Version 2.1
1About the Cisco PIX 501 Firewall 2
2Check Items Included 3
3Connect the Cables 4
4Power On the PIX 501 5
5Check the LEDs 6
6(Optional) Install a Cable Lock 7
7Configuring the PIX 501 8
8PDM Startup Wizard 8
9Alternative Ways to Access the PIX 501 10
10 Upgrade to DES, 3DES, or a 50-User License 11
11 Restore the Default Configuration 13

2
1About the Cisco PIX 501 Firewall
The PIX 501 delivers enterprise-class security for small
offices and telecommuters in a reliable, plug-and-play
security appliance. Ideal for securing high-speed “always
on” broadband environments, the PIX 501, part of the
market-leading Cisco PIX Firewall Series, provides robust
security capabilities, small office networking features, and
powerful remote management capabilities in a compact,
all-in-one solution:
•Stateful inspection security based on state-of-the-art Adaptive Security Algorithm (ASA)
•Supports over 100 predefined applications, services, and protocols for flexible access control
•Virtual Private Networking (VPN) for secure remote network access using IKE/IPSec standards
•Intrusion protection from over 55 different network-based attacks
•URL filtering of outbound web traffic via industry-leading, third-party URL filtering products
•Integrated switch allows multiple users to share a single broadband connection
POWER
VPN TUNNEL
L
1
1234
CISCO PIX 501
FIREWALL
H
ar
d
ware
F
eatures
•Compact, desktop chassis
•External power supply
•133-MHz processor
•16-MB RAM, 8-MB Flash memory
•1 10BaseT Ethernet port (half duplex) for an
outside connection to the Internet (port 0)
•Integrated 4-port 10/100-Mbps Ethernet
switch for inside private LAN
(ports 1 through 4)
•Serial console port for administrative access
•Security lock slot for added physical security
•Front panel LEDs for appliance and link
status
•10-Mbps cleartext firewall throughput
•3-Mbps VPN throughput (3DES/SHA1)
S
o
f
tware
F
eatures
•Supports PIX Firewall version 6.1 (and
higher), a secure, purpose-built embedded
operating system
•Includes plug-and-play default configuration
for simplified installation
•Includes Cisco PIX Device Manager (PDM)
for intuitive, web-based administration of
PIX Firewalls
•Supports up to 10 active hosts (an active
host is one that has passed traffic through
the PIX in the last xlate timeout seconds, or
has reserved an authentication connection);
up to 50 users with optional 50-user license
•Internal DHCP server supports up to
32 DHCP address leases; up to 128 with
optional 50-user license
•Supports up to 5 remote access, or
site-to-site, VPN peers

3
2Check Items Included
POWER
43210CONSOLE
3.3V 4.5A
PIX 501
Quick Start
Guide
Safety and
Compliance
Guide
PIX 501
PC terminal adapter
(74-0495-01)
Documentation
Cable
(US shown)
(72-0259)
Power supply
(341-0008-01)
Blue console cable
(72-1259-01)
Yellow Ethernet cable
(72-1482-01)
Orange Ethernet
Crossover cable
(72-3515-01)
Cisco PIX
Firewall
Product CD

4
3Connect the Cables
Follow these steps to connect the cables:
Step 1 Place the chassis on a flat, stable surface. The chassis is not rack mountable.
Step 2 Connect Port 0, the outside Ethernet port, to the public network:
a. Use the yellow Ethernet cable (72-1482-01) to connect the device to a switch or hub.
b. Use the orange Ethernet cable (72-3515-01) to connect the device to a cable/DSL/ISDN
modem.
Step 3 Connect your PC or other network devices with an Ethernet cable (not provided) to one of
the four switched inside ports (numbered 1 through 4).
POWER
43210CONSOLE
3.3V4.5A
Computer or other
network device
Power
adapter
DSL/Cable/ISDN
modem
Orange
Ethernet
cable
Yellow
Ethernet
cable
PIX 501
Internet
61277
a
ptop computer
Printer

5
Note Make sure that one of the PCs has TCP/IP installed and is configured to obtain an IP
address automatically through DHCP. This allows the PC to communicate with the
PIX 501 and the Internet as well as run the PDM Startup Wizard.
4Power On the PIX 501
Follow these steps to power on the PIX Firewall:
Step 1 Connect the small, round connector of the power supply cable to the power connector on the
rear panel.
Step 2 Connect the AC power connector of the power supply input cable to an electrical outlet.
Note The PIX 501 does not have a power switch. Completing Step 2 powers on the device.
POWER
43210CONSOLE
3.3V 4.5A
71331
Power supply
Cisco PIX 501

6
5Check the LEDs
The LINK/ACT LED indicators on the front panel of the PIX Firewall are normally solid green when
a link is established and flashing green when the ports are active. Each inside Ethernet interface
(1 through 4) has two LEDs to indicate the operating speed and that the physical link is established.
Note If all LEDs are operating as expected (see Table 1), this concludes the hardware installation. The
pages that follow include instructions on running PDM and additional optional procedures.
Table 1 PIX 501 LEDs
LED State Description
POWER Green The device is powered on.
Off The device is powered off.
LINK/ACT Flashing
green
Network activity, such as Internet access, is present.
Green The correct cable is in use, and the connected equipment has power.
Off No link is established.
Tip If the LINK/ACT LED does not light up, you might be using the
wrong type of cable. Try replacing the yellow (straight-through)
Ethernet cable with the orange (crossover) Ethernet cable.
VPN TUNNEL Green One or more IKE/IPSec VPN tunnels are active.
Off No VPN tunnels are active. The default configuration does not include
VPN. Thus, the VPN tunnel LED will only be enabled if VPN is added to
your configuration and a VPN tunnel is then established. Also, the LED
does not light up when PPTP/L2TP tunnels are established.
100 MBPS Green The interface is autonegotiated at 100-Mbps half or full duplex.
Flashing
green
The interface is functioning at 10-Mbps half or full duplex.
POWER
VPN TUNNEL
LINK/ACT
100 MBPS
1234
CISCO PIX 501
FIREWALL
61392
0

7
6(Optional) Install a Cable Lock
The PIX 501 includes a slot that accepts standard desktop cable locks to provide physical security for
small portable equipment, such as a laptop computer. The cable lock is not included.
Follow these steps to install a cable lock:
Step 1 Attach the cable lock (not included) to the lock slot on the back panel of the PIX 501.
Step 2 Follow the directions from the manufacturer for attaching the other end of the device for
securing the PIX Firewall.
POWER
43210CONSOLE
3.3V 4.5A
61394
Lock slot
Cable lock
(not included)
Cisco PIX 501

8
7Configuring the PIX 501
The PIX 501 comes with a factory default configuration that meets the needs of most broadband
networking environments. The factory default configuration on the PIX 501 protects your inside
network from any unsolicited traffic. It is configured to use DHCP on the outside interface to acquire its
IP address. A default DHCP server address pool is included for hosts on the inside interface.
PDM contains a Startup Wizard that lets you easily change settings to suit your needs.
Instances in which it might be necessary to change or make additional changes to the default
configuration include the following:
•To create administrative and Telnet passwords
Note We highly recommend that you change the administrative and Telnet passwords from their
default settings to secure the administration of your PIX Firewall.
•To configure Point-to-Point Protocol over Ethernet (PPPoE) or a static IP address for an outside
interface
•To configure VPN and Auto Update features
8PDM Startup Wizard
The PIX 501 contains an integrated configuration
utility called Cisco PIX Device Manager (PDM). PDM
is a web browser-based configuration tool designed to
help you set up, configure, and monitor the
PIX Firewall. PDM is preinstalled on the PIX 501.
To access PDM, make sure JavaScript and Java are
enabled in your web browser. For best performance,
we recommend that you use Microsoft Internet
Explorer 5.5 or a higher release. Refer to the Cisco
PIX Device Manager Installation Guide for more
information on the operating system and Web
browser environments supported by PDM.

9
PDM version 2.0 and higher releases include a Startup Wizard for initial configuration. Follow these steps
to load PDM and use the Startup Wizard:
Step 1 Use an Ethernet cable to connect your PC to one of the four switched inside ports (numbered
1 through 4) on the rear panel of the PIX Firewall.
Step 2 Configure your PC to use DHCP (to receive an IP address automatically from the
PIX Firewall) or assign a static IP address to your PC by selecting an address out of the
192.168.1.0 network.
Note The inside interface of the PIX Firewall is assigned 192.168.1.1, so choose a different
IP address.
Step 3 Check the LINK LED to verify that your PC has basic connectivity to the PIX Firewall on one
of the inside ports (1 through 4). When connectivity occurs, the LINK LED on the front panel
of the PIX Firewall lights up solid green.
Step 4 To access the Startup Wizard, use a PC connected to one of the PIX Firewall switch ports and enter
the URL https://192.168.1.1/startup.html into your browser.
Note It is very important to enter the “s” in “https://192.168.1.1,” which indicates
a secure connection. If you enter “http://192.168.1.1” without the “s” in
“https,” you cannot access the PIX Firewall.
Step 5 Accept the certificates and follow the instructions in the Startup Wizard. For online help, click
the Help button at the bottom of the Startup Wizard window.

10
9Alternative Ways to Access the PIX 501
You can use a serial terminal emulator from a PC or workstation connected to the Console port for
local administrative access.
You can also use PDM or a console to configure Telnet access to the PIX Firewall. By default, Telnet
access is not permitted. To Telnet to the PIX Firewall from the outside perimeter of the firewall,
configure an outside IP address and IPSec for a secure Telnet session. For more information, refer to
the Cisco PIX Firewall and VPN Configuration Guide.
Follow these steps to connect a console for local administrative access:
Step 1 Plug one end of the console cable adapter (29-0810-01) into a standard 9-pin PC serial port.
Step 2 Plug one end of the blue console cable (72-1259-01) into the console cable adapter.
Step 3 Plug the other end of the blue console cable into the Console port.
Step 4 Configure the PC terminal emulation software or terminal for 9600 baud, 8 data bits, no
parity, and 1 stop bit.
Refer to the Cisco PIX Firewall and VPN Configuration Guide for information about how to use the
command-line interface (CLI).
61391
POWER
43210CONSOLE
3.3V 4.5A
PC terminal adapter
(74-0495-01)
Blue console cable Cisco PIX 501
