Updated: June 24, 2017
Cisco Aironet Power Injector (AIR-PWRINJ5) Installation Guide
Table of Contents
Cisco Aironet Power Injector (AIR-PWRINJ5) Installation Guide
Preface
Cisco Aironet Power Injector
Unpacking the Power Injector
Additional Requirements
Installing the Power Injector
Mounting Instructions
Using the Mounting Tabs
Specications

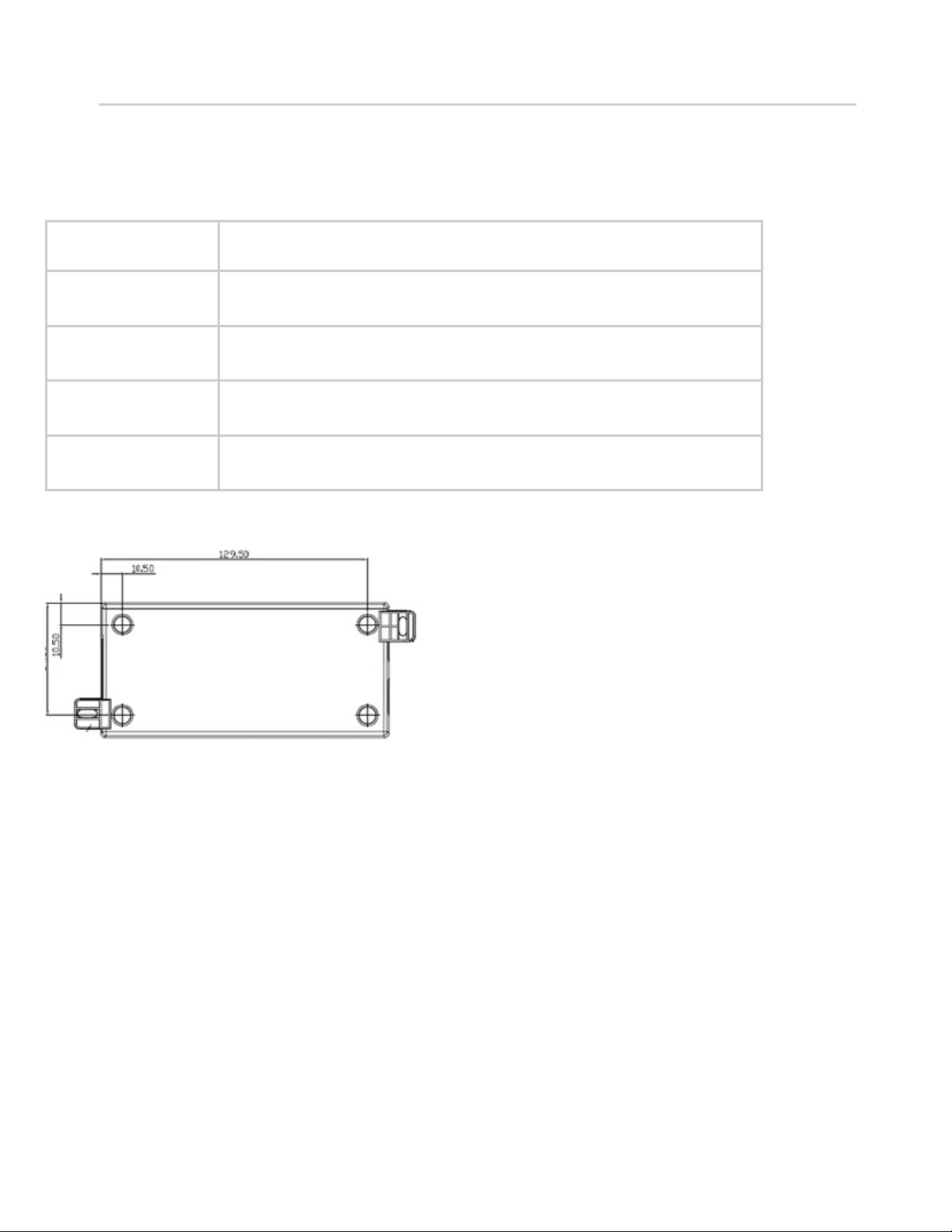

Mechanicals
Regulatory Information
Applicable Standards
Cisco Aironet Power Injector (AIR-PWRINJ5) Installation Guide
Preface
The Cisco Aironet Power Injector (AIR-PWRINJ5) increases wireless LAN deployment exibility of Cisco
Aironet Access Points by providing an alternative powering option to local power, inline power-capable
multiport switches, and multiport power patch panels.
The single-port Cisco Aironet Power Injector provides 802.3af power and data signal, sending both to the
Cisco Aironet Access Point.
The power injectors provide up to 15.4 W over the unused wire pairs of a Category 5 or better Ethernet
cable, supplying enough power for a distance of 328 ft. (100 m) on the Cisco Aironet 1040, 1140, 1260,
2600, and 3500 Series Access Points. While it can also support the Cisco Aironet Series 3600 Access Points
when modules are not being used, it is recommended to use the AIR-PWRINJ4= power injector instead for
the 3600 series, as it has sucient power to supply to the AP and any installed modules.
This guide covers the following Cisco Aironet Power Injector:
Cisco Aironet Power Injector (AIR-PWRINJ5)
Cisco Aironet Power Injector
The Cisco Aironet Power Injector provides both power and data to a connected Cisco Aironet Access Point.
The device serves the following functions:
It provides Category 5 or better Ethernet media to the access point.

11/25/2019 Cisco Aironet Power Injector (AIR-PWRINJ5) Installation Guide - Cisco
https://www.cisco.com/c/en/us/td/docs/wireless/power/quick/guide/pwrinj5.html 2/6
It uses wires in an Ethernet cable to supply inline 15.4 W power to an access point. The power injector
provides an easy and economical way to provide data and power to an access point located in areas
where power is not available.
The power injector is used with the following Cisco Aironet Series Access Points:
1040 series access points
1140 series access points
1260 series access points
1600 series access points
2600 series access points
3500 series access points
A Category 5 or better Ethernet cable connects the injector to a 10/100/1000 Ethernet switch, hub, or
network, and another cable carries power and data to the access point's WAN Ethernet port. The power
injector’s built-in power supply has a C14 connector that connects to a wall outlet or power strip. The power
injector connects to a wall outlet or power strip.
Caution To avoid overheating and possible failure, do not stack or tie together (bundle) the power injector
and its AC power cable.
Figure 1 shows the key features of the power injector.
Figure 1 Cisco Aironet Power Injector (AIR-PWRINJ5) Features



1
Status LED
3
AP Connector Port
2
Switch Connector Port
4
C14 Power Connector
The Status LED indicates the following system status events:

11/25/2019 Cisco Aironet Power Injector (AIR-PWRINJ5) Installation Guide - Cisco
https://www.cisco.com/c/en/us/td/docs/wireless/power/quick/guide/pwrinj5.html 3/6
AC Power - The LED blinks green at approximately 1.5 times per second to indicate that the Power
Injector is powered ON and ready for connection.
AP Power - The LED lights solid green to indicate that a valid IEEE 802.3af load (AP) is detected and
powered ON.
Invalid load connected or Fault: The LED rapidly blinks green at 10 times per second to an invalid load
connected or a Fault. In these conditions the AP has not been powered on. This occurs for 2 seconds for
normal error delay, and the detection process will automatically start again after 2.2 seconds unless there
is a “restart after disconnect condition” set during the initial conguration.
Figure 2 shows a typical installation scenario.
Figure 2 Power Injector AIR-PWRINJ5 Installation Scenario

Unpacking the Power Injector
The typical power injector package contains the following items:
Power injector
Power cord
URL Pointer Card and China RoHS Statement
If any item is missing or damaged, contact your Cisco representative or reseller.
Additional Requirements
Use the power cord that shipped with your power injector to supply power for the injector. If you install the
access point in an environmental air space such as above a suspended ceiling, check national and local
safety codes to make sure that the Ethernet cable you connect to the unit meets applicable standards.
Note The AIR-PWRINJ5 is not plenum and should not be installed in the plenum airspace.

11/25/2019 Cisco Aironet Power Injector (AIR-PWRINJ5) Installation Guide - Cisco
https://www.cisco.com/c/en/us/td/docs/wireless/power/quick/guide/pwrinj5.html 4/6
Note The maximum distance that is supported for in-line power is 328 ft. (100 m), including the length of
the 6.5-ft. (2-m) Ethernet cable provided with the power injector.
Installing the Power Injector
Follow these steps to install the power injector:
1. Plug a Category-5 Ethernet cable into the port on the power injector labeled AP.
2. Plug the other end of the Ethernet cable into the WAN uplink Ethernet port of the access point.
3. Plug a Category-5 Ethernet cable into the port on the power injector labeled Switch.
4. Plug the other end of the Ethernet cable into your 10/100/1000 Ethernet switch, hub, or network.
5. When power is applied, the Status LED blinks green at approximately 1.5 times per second. When the
AP is detected, the Status LED glows solid green. If the power injector is connected incorrectly, the Status
LED blinks green at 10 times per second.
6. Secure the power injector by mounting it to a vertical or horizontal surface using the mounting keyholes
on the bottom of the unit.
Mounting Instructions
You can mount the power injector to most vertical or horizontal surfaces using the mounting tabs on the top
right and bottom left of the unit.
Using the Mounting Tabs
To mount the power injector to a vertical or horizontal surface using the mounting tabs, you will need the
following parts and tools:
Two #6 plastic wall anchors if mounting to a drywall surface
Two #6 x 1-in. (2.5 cm) sheet-metal screws
A drill and a 3/16-in (0.48-cm) drill bit
A Phillips head screw driver
A small hammer
Follow these steps to mount the power injector:
1. Using the holes in the power injector mounting tabs as a template, mark the locations on the surface
where you will drill the holes for the wall anchors or screws.
2. Drill a 3/16-in. (4.7-mm) hole at each marked location.
3. If you are using #6 wall anchors, use a hammer to install them in the holes.
4. Hold the power injector to the wall and align the mounting tabs on the power injector with the screw
holes.
5. Insert the #6 screws through the mounting tabs and into the holes in the wall or surface.
6. Use a Phillips head screwdriver to drive the screws into the surface.

11/25/2019 Cisco Aironet Power Injector (AIR-PWRINJ5) Installation Guide - Cisco
https://www.cisco.com/c/en/us/td/docs/wireless/power/quick/guide/pwrinj5.html 5/6
Note If the power injector is not securely fastened, continue making small adjustments until you are
satised.
Specications
This table lists specications for the power injectors:
Specication
AIR-PWRINJ5=AIR-PWRINJ5=
Electrical
802.3af compliant 15.4 W power
Connectors
2 RJ-45 10/100/1000 (Cat 5 or better Ethernet cable)
Dimensions (L, W, H)
165 mm x 65 mm x 36 mm (6.5 in x 2.6 in x 1.4 in)
Stacking restrictions
Do not stack. Do not bundle the power injector and AC power cable.
Mechanicals
Regulatory Information
The following information is for FCC compliance of Class B devices:
The equipment described in this manual generates and may radiate radio-frequency energy. If it is not
installed in accordance with Cisco’s installation instructions, it may cause interference with radio and
television reception. This equipment has been tested and found to comply with the limits for a Class B digital
device in accordance with the specications in part 15 of the FCC rules. These specications are designed
to provide reasonable protection against such interference in a residential installation. However, there is no
guarantee that interference will not occur in a particular installation.
Modifying the equipment without Cisco’s written authorization may result in the equipment no longer
complying with FCC requirements for Class A or Class B digital devices. In that event, your right to use the
equipment may be limited by FCC regulations, and you may be required to correct any interference to radio
or television communications at your own expense.
You can determine whether your equipment is causing interference by turning it o. If the interference stops,
it was probably caused by the Cisco equipment or one of its peripheral devices. If the equipment causes

11/25/2019 Cisco Aironet Power Injector (AIR-PWRINJ5) Installation Guide - Cisco
https://www.cisco.com/c/en/us/td/docs/wireless/power/quick/guide/pwrinj5.html 6/6
© 2019 Cisco and/or its aliates. All rights reserved.
interference to radio or television reception, try to correct the interference by using one or more of the
following measures:
Turn the television or radio antenna until the interference stops.
Move the equipment to one side or the other of the television or radio.
Move the equipment farther away from the television or radio.
Plug the equipment into an outlet that is on a dierent circuit from the television or radio. (That is, make
certain the equipment and the television or radio are on circuits controlled by dierent circuit breakers or
fuses.)
Modications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate
your authority to operate the product.
Applicable Standards
Except where indicated, the Cisco Aironet Power Injector (AIR-PWRINJ5) meets the following standards:
FCC Part 15.107 and 15.109 Class B
ICES-003 Class B (Canada)
AS/NZS 3548 Class B
VCCI Class B
EN 301.489-1 and 17
EN 55022
EN 55024
EN 60950
UL 60950
CSA C22.2 No. 60950
IEC 60950
