Cisco SLM224G4S Instruction Manual

Cisco Small Business
SLM Smart Switches
ADMINISTRATION
GUIDE

© 2009 Cisco Systems, Inc. All rights reserved. OL-20245-01
CCDE, CCENT, CCSI, Cisco Eos, Cisco HealthPresence, Cisco Ironport, the Cisco logo, Cisco Lumin, Cisco Nexus, Cisco Nurse Connect,
Cisco Stackpower, Cisco StadiumVision, Cisco TelePresence, Cisco Unified Computing System, Cisco WebEx, DCE, Flip Channels, Flip for
Good, Flip Mino, Flip Video, Flip Video (Design), Flipshare (Design), Flip Ultra, and Welcome to the Human Network are trademarks;
Changing the Way We Work, Live, Play, and Learn, Cisco Store, and Flip Gift Card are service marks; and Access Registrar, Aironet,
AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified
Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Collaboration
Without Limitation, EtherFast, EtherSwitch, Event Center, Fast Step, Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet
Quotient, IOS, iPhone, iQuick Study, IronPort, the IronPort logo, LightStream, Linksys, MediaTone, MeetingPlace, MeetingPlace Chime
Sound, MGX, Networkers, Networking Academy, Network Registrar, PCNow, PIX, PowerPanels, ProConnect, ScriptShare, SenderBase,
SMARTnet, Spectrum Expert, StackWise, The Fastest Way to Increase Your Internet Quotient, TransPath, WebEx, and the WebEx logo are
registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.
All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not
imply a partnership relationship between Cisco and any other company. (0907R)

Contents
Cisco Small Business SLM Smart Switches Administration Guide 1
Contents
Chapter 1: Getting Started 1
Starting the Application 1
The About Window 2
Setup 3
Summary 3
Network Settings 5
Time 7
Chapter 2: Port Management 12

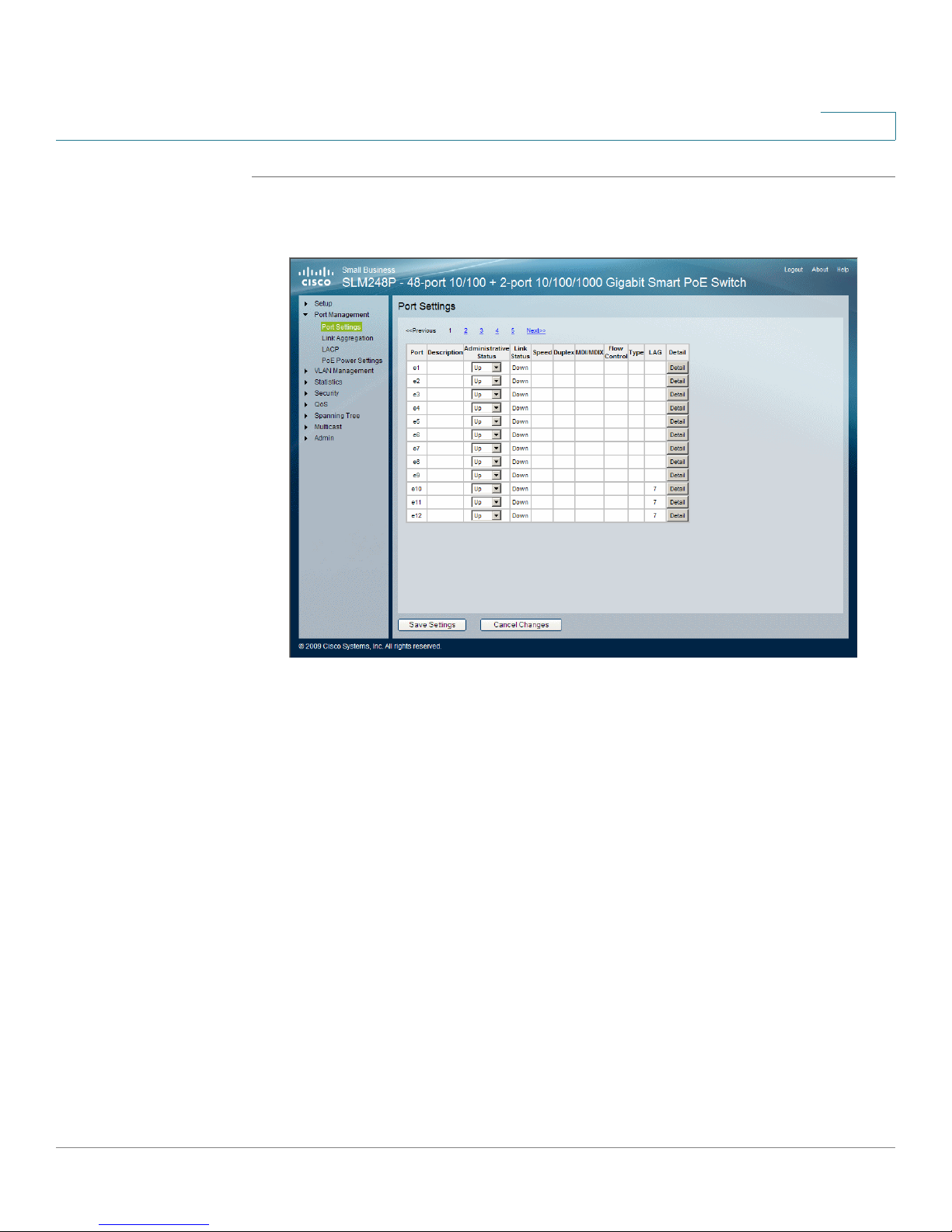

Port Settings 12
Link Aggregation 17
LACP 22
PoE Power Settings 23
Chapter 3: VLAN Management 25
Create VLAN 25
Port Setting 27
Port to VLAN 28
VLAN to Port 30
Chapter 4: Statistics 32
Interface Statistics 32
Chapter 5: Security 36
802.1x Settings 36
Port Security 38
IP Access List 41
Storm Control 42
RADIUS 44

Contents
Cisco Small Business SLM Smart Switches Administration Guide 2
Chapter 6: Quality of Service 46
CoS Settings 47
Queue Settings 49
DSCP Settings 51
Basic Mode 52
Chapter 7: Spanning Tree 54
STP Status 54
Global STP 56
STP Port Settings 58
Chapter 8: Multicast 62
IGMP Snooping 62
Bridge Multicast 64
Bridge Multicast Forward All 66
Chapter 9: Admin 68
User Authentication 68
Static Address 70
Dynamic Address 72
Port Mirroring 74
Save Configuration 75
Firmware Upgrade 77
Reboot 79
Factory Default 80
Logging 81
Memory Logs 82
Flash Logs 83
Defining Bonjour 84

Getting Started
Starting the Application
Cisco Small Business SLM Series Smart Switches Administration Guide 1
1
Getting Started
Thank you for choosing the Cisco Small Business Series Smart Gigabit Ethernet
Switch. The Smart Gigabit Ethernet Switches are cost-effective switching
solutions ideal for small businesses, the network edge, or workgroups within
larger organizations. These easy-to-install, high speed switches offer many of the
same Quality of Service and Security features found in more expensive full Layer 2
managed switches but without their complexity. The Smart Switches offer the
following interfaces:
•The SLM2024 and SLM2048 offer twenty four (24) or forty eight (48)
Gigabit copper ports, with two (2) shared copper or optical (SFP) uplink
interfaces for connecting the switch to the core network.
•The SLM224G, SLM224P, SLM248G, and SLM248P offer twenty four (24) or
forty eight (48) 10/100 copper ports, with two (2) shared Gigabit copper or
optical (SFP) uplink interfaces for connecting the switch to the core
network.
The Smart Switch’s simplified user interface is an intuitive management tool
enabling you to quickly utilize the comprehensive feature-set of the switch,
resulting in a better optimized network. The user interface is a web based
application that uses Microsoft Internet Explorer 6.0 or later, or Firefox 5.0 or later.
Starting the Application
To open the User Interface:
STEP 1 Open a web browser.
NOTE The default IP address is 192.168.1.254. If you have changed the IP address
or are using DHCP to assign it, enter the new IP address instead. The
computer you use for configuration should be on the same subnet as the
Switch.

Getting Started
Starting the Application
Cisco Small Business SLM Series Smart Switches Administration Guide 2
1
STEP 2 Enter the device’s IP address in the address bar and press Enter. The Login
window opens:
Login window
When the
Login window initially loads, both the Username and Password fields
are empty. Enter a Username and Password and click Log In. The default user
name is admin. The default password is admin. Passwords are alpha-numeric and
case-sensitive.
While the system is verifying the login attempt, the Login Progress Indicator
appears. If the login attempt is successful, the Summary page opens.

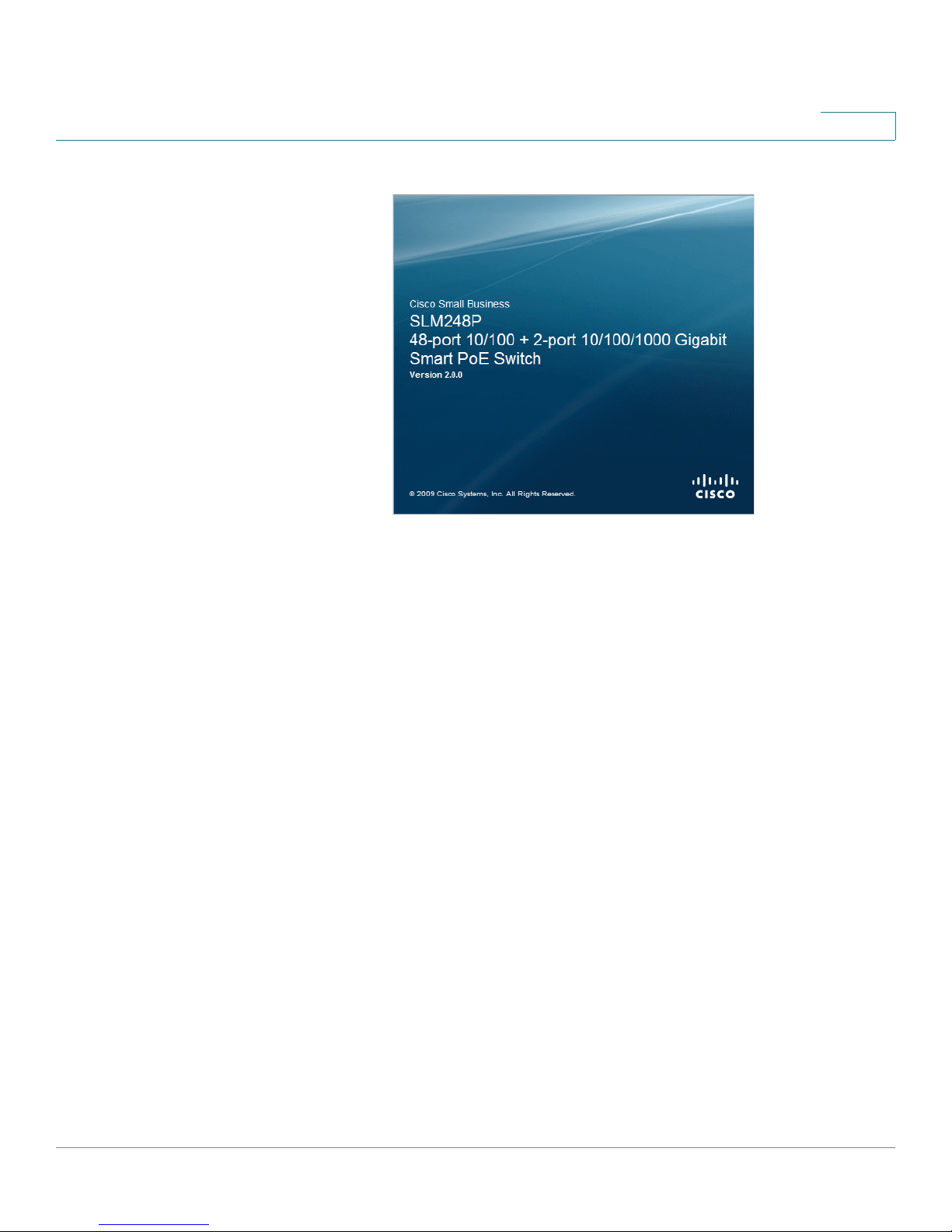

The About Window
Click About in the top right corner of any window to display the About window.
This window displays the device name and version number.

Getting Started
Setup
Cisco Small Business SLM Series Smart Switches Administration Guide 3
1
About
Setup
The Setup configuration options are as follows:
•Summary
•Network Settings
•Time
Summary
The Summary window displays general device information and parameters.
To open the Summary window:

Getting Started
Setup
Cisco Small Business SLM Series Smart Switches Administration Guide 4
1

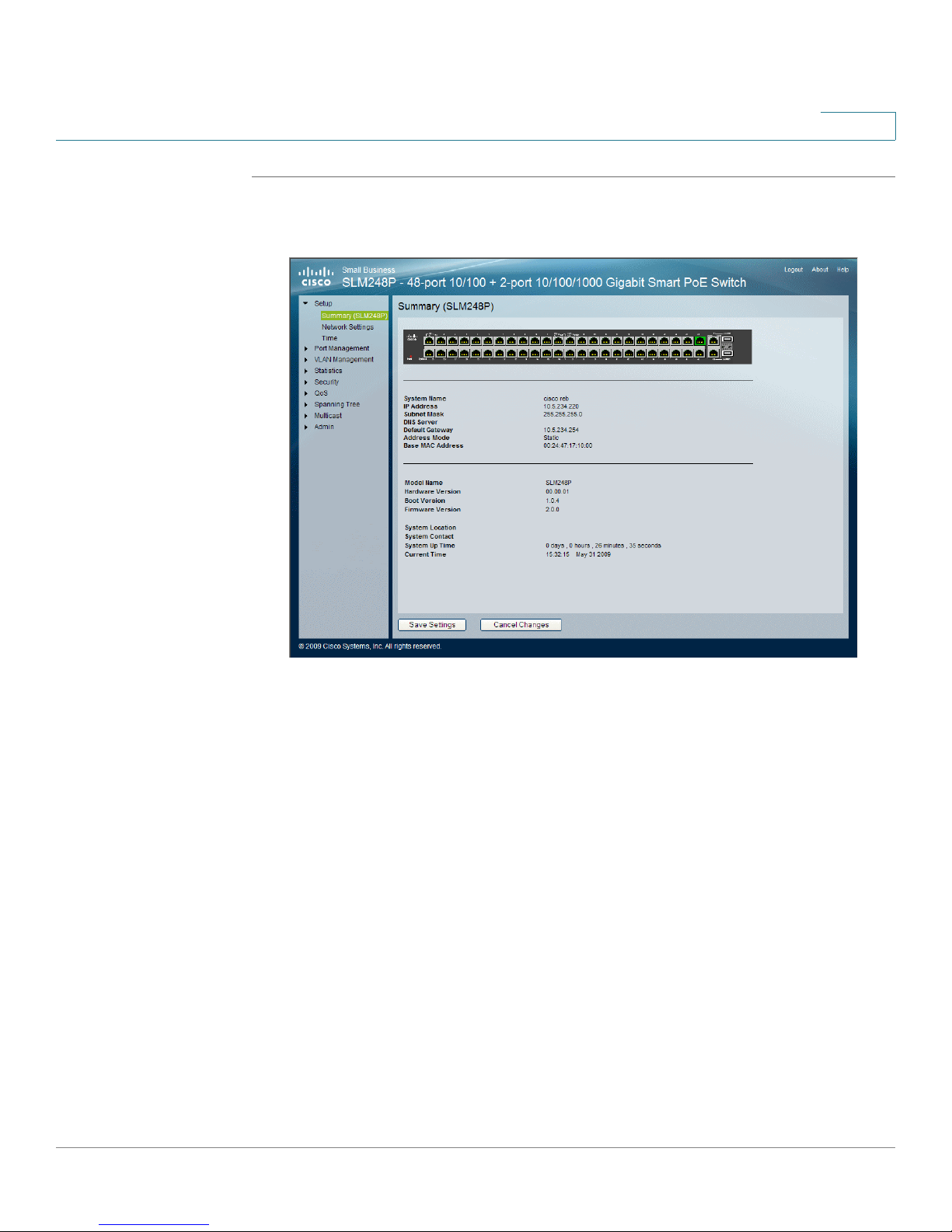

STEP 1 Click Setup > Summary. The Summary window appears:
Summary
The
Summary window contains the following fields:
•System Name — Displays the user-configured name of the system, which is
configured in the
Network Settings window.
•IP Address — Displays the device IP address.
•Subnet Mask — Displays the configured IP subnet mask.
•DNS Server — Displays the DNS server’s IP address.
•Default Gateway — Displays the device’s Gateway IP address.
•Address Mode — Displays the IP address mode using DHCP or Static. The
possible field values are:
- DHCP — Retrieves the IP addresses using DHCP.
- Static — The IP address is statically defined.
•Base MAC Address — Displays the device’s MAC address.

Getting Started
Setup
Cisco Small Business SLM Series Smart Switches Administration Guide 5
1
•Jumbo Frame — Enables Jumbo Frames on the device (packet size of up to
9k is supported).Jumbo Frames enable the transportation of data in fewer
frames. This ensures less overhead, lower processing time, and fewer
interruptions.
NOTE The Jumbo Frame Setting applies only to SLM2024 and SLM2048 Smart
Switches. Other Smart Switches do not support this feature.
The possible field values are:
- Enable — Switch will recognize and forward Jumbo Frames.
- Disable — Switch will not recognize or forward Jumbo Frames.
•Model Name — Displays the device model name.
•Hardware Version — Displays the hardware version number.
•Boot Version — Indicates the system boot version currently running on the
device.
•Firmware Version — Displays the firmware / software version.
•System Location — Displays the location where the system is currently
running.
•System Contact — Displays the name of the contact person.
•System Up Time — Displays the amount of time that has elapsed since the
last device reset. The system time is displayed in the following format:
Days, Hours, Minutes and Seconds. For example: 41 days, 2 hours, 22
minutes and 15 seconds.
•Current Time — Displays the current time and date.
Network Settings
The Network Settings window allows you to edit many of the fields on the
Summary window where they cannot be edited.
To open the
Network Settings window:

Getting Started
Setup
Cisco Small Business SLM Series Smart Switches Administration Guide 6
1
STEP 1 Click Setup > Network Settings. The Network Settings window appears:
Network Settings
The
Network Settings window contains the following fields:
•System Name — Defines the user-defined system name.
•System Location — Defines the user-defined system location, for example,
3rd floor.
•System Contact — Defines the user-defined system contact person.
•Base MAC Address — Displays the MAC address.
•Management VLAN — Selects the management VLAN. The default is 1.
•IP Address Mode — Retrieves the IP address mode using DHCP or Static.
The possible field values are:
- DHCP — Retrieves the IP addresses using DHCP.
- Static — The IP addresses are statically defined. If Static is selected the
IP Address, Subnet Mask, and Default Gateway fields are available.
•IP Address — Defines the system IP address.

Getting Started
Setup
Cisco Small Business SLM Series Smart Switches Administration Guide 7
1
•Subnet Mask — Defines the system IP address mask.
•Default Gateway —Defines the system IP default gateway.
•DNS Server — Defines the DNS server IP address.
STEP 2 Define the relevant fields.
STEP 3 Click Save Settings. The settings are modified, and the device is updated.

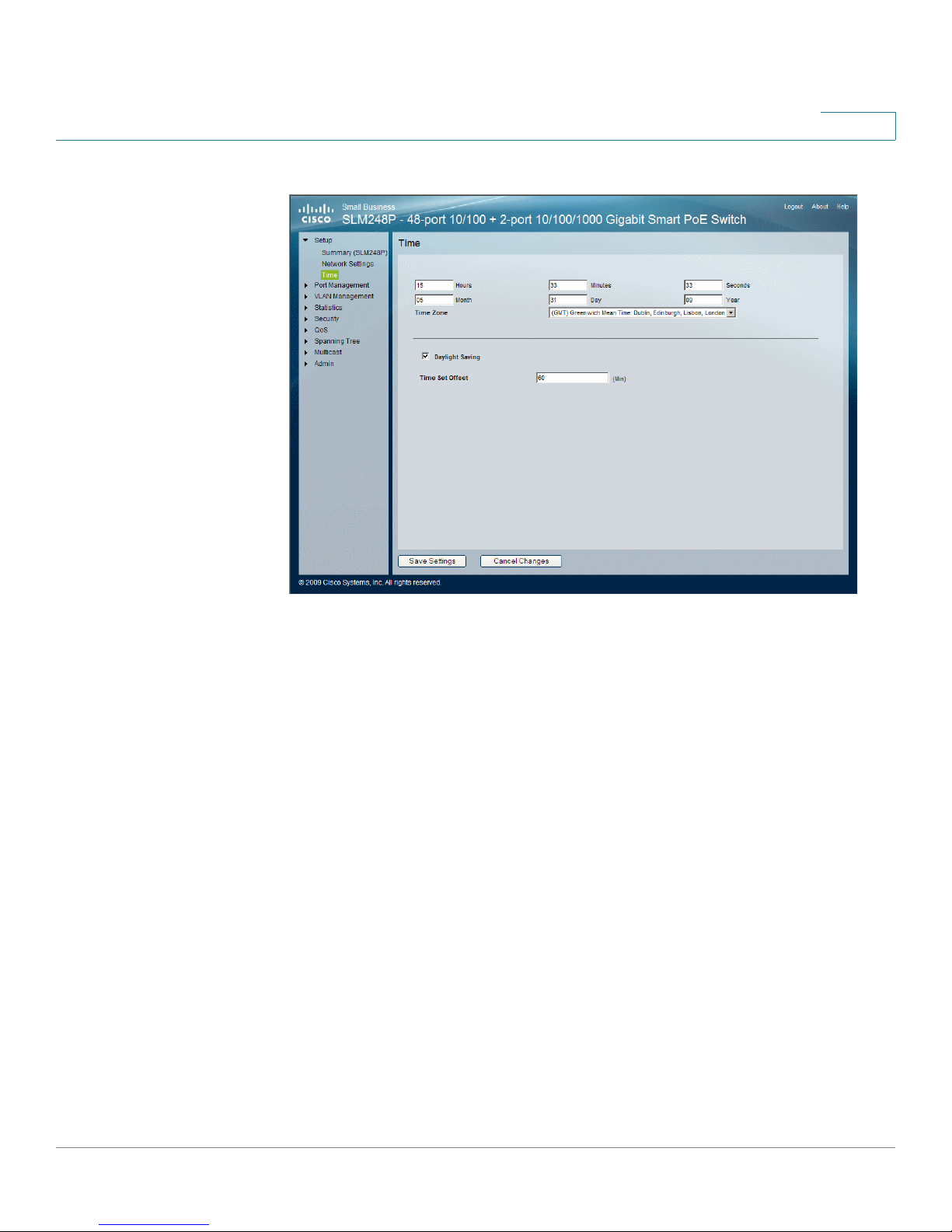

Time
The Time window contains fields for defining system time parameters for the local
device clock. Daylight Savings Time can be enabled on the device.
The following is a list of Daylight Time start and end times in specific countries:
•Albania — Last weekend of March until the last weekend of October.
•Australia — From the end of October until the end of March.
•Australia - Ta s m a n i a — From beginning of October until the end of March.
•Armenia — Last weekend of March until the last weekend of October.
•Austria — Last weekend of March until the last weekend of October.
•Bahamas — From April to October, in conjunction with U.S. summer hours.
•Belarus — Last weekend of March until the last weekend of October.
•Belgium — Last weekend of March until the last weekend of October.
•Brazil — From the 3rd Sunday in October until the 3rd Saturday in March.
During the period of Daylight Saving Time, Brazilian clocks go forward one
hour in most of the Brazilian southeast.
•Chile — The first Sunday in March or after 9th March. In addition, Easter
Island DST starts 9th March and ends the 12th October.
•China — China does not operate Daylight Saving Time.
•Canada — From the first Sunday in April until the last Sunday of October.
Daylight Saving Time is usually regulated by provincial and territorial
governments. Exceptions may exist in certain municipalities.
•Cuba — From the last Sunday of March to the last Sunday of October.

Getting Started
Setup
Cisco Small Business SLM Series Smart Switches Administration Guide 8
1
•Cyprus — Last weekend of March until the last weekend of October.
•Denmark — Last weekend of March until the last weekend of October.
•Egypt — Last Friday in April until the last Thursday in September.
•Estonia — Last weekend of March until the last weekend of October.
•Finland — Last weekend of March until the last weekend of October.
•France — Last weekend of March until the last weekend of October.
•Germany — Last weekend of March until the last weekend of October.
•Greece — Last weekend of March until the last weekend of October.
•Hungary — Last weekend of March until the last weekend of October.
•India — India does not operate Daylight Saving Time.
•Iran — From 1st Farvardin until the 1st Mehr.
•Iraq — From 1st April until 1st October.
•Ireland — Last weekend of March until the last weekend of October.
•Israel — Varies year-to-year.
•Italy — Last weekend of March until the last weekend of October.
•Japan — Japan does not operate Daylight Saving Time.
•Jordan — Last weekend of March until the last weekend of October.
•Latvia — Last weekend of March until the last weekend of October.
•Lebanon — Last weekend of March until the last weekend of October.
•Lithuania — Last weekend of March until the last weekend of October.
•Moldova — Last weekend of March until the last weekend of October.
•Montenegro — Last weekend of March until the last weekend of October.
•Netherlands — Last weekend of March until the last weekend of October.
•New Zealand — From the first Sunday in October until the first Sunday on or
after 15th March.
•Norway — Last weekend of March until the last weekend of October.
•Paraguay — From 6th April until 7th September.

Getting Started
Setup
Cisco Small Business SLM Series Smart Switches Administration Guide 9
1
•Poland — Last weekend of March until the last weekend of October.
•Portugal — Last weekend of March until the last weekend of October.
•Romania — Last weekend of March until the last weekend of October.
•Russia — Last weekend of March until the last weekend of October.
•Serbia — Last weekend of March until the last weekend of October.
•Slovak Republic — Last weekend of March until the last weekend of
October.
•South Africa — South Africa does not operate Daylight Saving Time.
•Spain — Last weekend of March until the last weekend of October.
•Sweden — Last weekend of March until the last weekend of October.
•Switzerland — Last weekend of March until the last weekend of October.
•Syria — From 31st March until 30th October.
•Ta i w a n — Taiwan does not operate Daylight Saving Time.
•Tu r ke y — Last weekend of March until the last weekend of October.
•United Kingdom — Last weekend of March until the last weekend of
October.
•United States of America — The US Daylight Saving Time changed in 2007
to start on second Sunday in March and end on first Sunday in November.
Please see http://aa.usno.navy.mil/faq/docs/daylight_time.php.
To open the
Time window:
STEP 1 Click Setup > Time. The Time window appears.

Getting Started
Setup
Cisco Small Business SLM Series Smart Switches Administration Guide 10
1
Time
The
Time window is divided into two configuration areas:
•Local Time
•Daylight Saving
Local Time
The Local Time area contains the following fields:
•Hours — Sets the hours.
•Minutes — Sets the minutes.
•Seconds — Sets the seconds.
•Month — Sets the month.
•Day — Sets the day.
•Yea r — Sets the year.
•Time Zone — Specifies the difference between Greenwich Mean Time
(GMT) and local time. For example, the Time Zone Offset for Paris is GMT
+1, while the local time in New York is GMT –5.

Getting Started
Setup
Cisco Small Business SLM Series Smart Switches Administration Guide 11
1
Daylight Saving
The Daylight Saving area contains the following fields:
•Daylight Saving — Enables the Daylight Savings Time (DST) on the device
based on the devices location.
•Time Set Offset — Specifies the amount of time for DST that can be set in
minutes. The default time is 60 minutes.
STEP 2 Define the relevant fields.
STEP 3 Click Save Settings. The settings are modified, and the device is updated.

Port Management
Port Settings
Cisco Small Business SLM Series Smart Switches Administration Guide 12
2
Port Management
The Port Management configuration options are as follows:
•Port Settings
•Link Aggregation
•LACP
•PoE Power Setting (in SLM224P and SLM248P only)
Port Settings
You use the Port Settings window to display the speed, duplex mode, and flow
control used on specific ports, or use to detect the connection settings used by
the attached device. Use the full-duplex mode on ports whenever possible to
double the throughput of switch connections. Flow control should also be enabled
to control network traffic during periods of congestion and prevent the loss of
packets when port buffer thresholds are exceeded. The Switch supports flow
control based on the IEEE 802.3x standard.
To open the
Port Settings window:

Port Management
Port Settings
Cisco Small Business SLM Series Smart Switches Administration Guide 13
2
STEP 1 Click Port Management > Port settings. The Port Settings window appears:
Port Settings
The
Port Settings window contains the following fields:
•Port — Displays the port number.
•Description — Displays the device port user-defined description.
•Administrative Status — Displays the port admin status. The possible field
values are:
- Up — Indicates the port is administratively enabled.
- Down — Indicates the port is currently administratively disabled.
•Link Status — Defines whether the port is currently operational or non-
operational. The possible field values are:
- Up — Indicates the port is currently operating.
- Down — Indicates the port is currently not operating.
•Speed — Displays the configured rate for the port. The port type
determines what speed setting options are available. Port speeds can only

Port Management
Port Settings
Cisco Small Business SLM Series Smart Switches Administration Guide 14
2
be configured when auto negotiation is disabled. The possible field values
are:
- 10 — Indicates the port is currently configured at 10 Mbps.
- 100 — Indicates the port is currently configured at 100 Mbps.
- 1000 — Indicates the port is currently configured at 1000 Mbps.
•Duplex — Displays the port duplex mode, can be either Full or Half. Full
indicates that the interface supports transmission between the device and
its link partner in both directions simultaneously. Half indicates that the
interface supports transmission between the device and the client in only
one direction at a time. The Duplex Mode field is configurable only when
auto negotiation is disabled, and the port speed is set to 10M or 100M. The
Duplex Mode field cannot be configured on LAGs.
•MDI / MDIX — Displays the Media Dependent Interface (MDI) / Media
Dependent Interface with Crossover (MDIX) status on the port. Hubs and
switches are deliberately wired the opposite of the way end stations are
wired, so that when a hub or switch is connected to an end station, a
straight through Ethernet cable can be used, and the pairs are matched up
properly. When two hubs or switches are connected to each other, or two
end stations are connected to each other, a crossover cable is used to
ensure that the correct pairs are connected. The possible field values are:
- MDIX — Use for hubs and switches.
- MDI — Use for end stations.
•Flow Control — Displays the flow control status on the port. Operates when
the port is in full duplex mode.
•Port Type — Displays the port type. The possible field values are:
- Copper — Indicates the port has a copper port connection and displays
the copper speed.
- Fiber — Indicates the port has a fiber optic port connection.
•LAG — Indicates in which LAG the port is a member.
The Detail button displays the
Port Configuration window.

Port Management
Port Settings
Cisco Small Business SLM Series Smart Switches Administration Guide 15
2
Port Configuration
•The Port Configuration window includes the following fields:
•Port — Displays the port number.
•Description — Defines the device port user-defined description.
•Port Type — Displays the port type. The possible field values are:
- Copper — Indicates the port has a copper port connection and displays
the copper speed.
- Fiber — Indicates the port has a fiber optic port connection. Both port
types run at speeds of 10, 100, and 1000.
•Admin Status — Enables or disables traffic forwarding through the port.
•Current Port Status — Displays the port connection status.
•Reactivate Suspended Port — Reactivates a port if the port has been
disabled through the locked port security option.
•Operational Status — Displays whether the port is currently operational or
non-operational.

Port Management
Port Settings
Cisco Small Business SLM Series Smart Switches Administration Guide 16
2
•Admin Speed — The configured rate for the port. The port type determines
what speed setting options are available. The auto negotiation should be
disabled before setting the speed manually.
•Current Port Speed — Displays the current port speed.
•Admin Duplex — The port duplex mode. Full indicates that the interface
supports transmission between the device and the client configured in both
directions simultaneously. Half indicates that the interface supports
transmission between the device and the client in only one direction at a
time.
•Current Duplex Mode — Displays the port current duplex mode.
•Auto Negotiation — Enables Auto Negotiation on the port. Auto Negotiation
is a protocol between two link partners that enables a port to advertise its
transmission rate, duplex mode and flow control abilities to its partner.
•Current Auto Negotiation — Displays the Auto Negotiation status on the
port.
•Admin Advertisement — Specifies the capabilities to be advertised by the
port. The possible field values are:
- Max Capability — Indicates that all port speeds and Duplex mode
settings will be advertised and accepted.
- 10 Half — Indicates that the port is advertising a 10 mbps speed and
half Duplex mode setting.
- 10 Full — Indicates that the port is advertising a 10 mbps speed and full
Duplex mode setting.
- 100 Half — Indicates that the port is advertising a 100 mbps speed and
half Duplex mode setting.
- 100 Full — Indicates that the port is advertising a 100 mbps speed and
full Duplex mode setting.
- 1000 Full — Indicates that the port is advertising a 1000 mbps speed
and full Duplex mode setting.
•Current Advertisement — The port advertises its capabilities to its
neighbor port to start the negotiation process. The possible field values are
those specified in the Admin Advertisement field.
