OWNER'S MANUAL
175 lb. HD LAUNDRY DRYER
Cissell Manufacturing Co.
831 S. First St. - P.O.Box 32270 - Louisville, Ky. - 40232-2270
Tel: [phone] - Fax: [phone] -
Sales Fax: [phone] - Service/Parts Fax: [phone]
THIS MANUAL MUST BE GIVEN TO THE EQUIPMENT OWNER
MAN 175lb 2/03
HD175
Gas: Natural and LP
Steam

Page 2
IMPORTANTNOTICESPLEASEREAD
For optimum efficiency and safety, we recommend that you read the manual before operating the equipment. Store this manual in a
file or binder and keep for future reference.
WARNING: For your safety, the information in this manual must be followed to minimize
the risk of fire or explosion or to prevent property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or
any other appliance.
- WHAT TO DO IF YOU SMELL GAS
 Do not try to light any appliance.
 Do not touch any electrical switch; do not use any phone in your building.
 Clear the room, building or area of all occupants.
 Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
 If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
WARNING: In the event the user smells gas odor, instructions on what to do must be posted in a
prominent location. This information can be obtained from the local gas supplier.
WARNING: Wear safety shoes to prevent injuries.
WARNING: Purchaser must post the following notice in a prominent location:
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WARNING: A clothes dryer produces combustible lint and should be exhausted outside the
building. The dryer and the area around the dryer should be kept free of lint.
WARNING: Be safe, before servicing machine, the main power should be shut off.

Page 3
WARNING: To avoid fire hazard, do not dry articles containing foam rubber or similar texture materials.
Do not put into this dryer flammable items such as baby bed mattresses, throw rugs,undergarments
(brassieres, etc.) and other items which use rubber as padding or backing. Rubber easily oxidizes causing
excessive heat and possible fire. These items should be air dried.
WARNING: Synthetic solvent fumes from drycleaning machines create acids when drawn through the
dryer. These fumes cause rusting of painted parts, pitting of bright or plated parts, and completely
removes the zinc from galvanized parts, such as the tumbler basket. If drycleaning machines are in the
same area as the tumbler, the tumbler's make-up air must come from a source free of solvent fumes.
WARNING: Do not operate without guards in place.
WARNING: Check the lint trap often and clean as needed but at least a minimum of once per day.
WARNING: Alterations to equipment may not be carried out without consulting with the factory and
only by a qualified engineer or technician. Only Manufacturer parts may be used.
WARNING: Remove clothes from dryer as soon as it stops. This keeps wrinkles from setting in and
reduces the possibility of spontaneous combustion.
WARNING: Be safe - shut main electrical power and gas supply off externally before attempting
service.
WARNING: Never use drycleaning solvents, gasoline, kerosene, or other flammable liquids in the dryer.
FIRE AND EXPLOSION WILL OCCUR. NEVER PUT FABRICS TREATED WITH THESE LIQUIDS
INTO THE DRYER. NEVER USE THESE LIQUIDS NEAR THE DRYER..
WARNING: Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking
oils may contribute to a chemical reaction that could cause a load to catch fire.
WARNING: Never let children play near or operate the dryer. Serious injury could occur if a child
should crawl inside and the dryer is turned on.
WARNING: Never tumble fiberglass materials in the dryer unless the labels say they are machine
dryable. Glass fibers break and can remain in the dryer. These fibers cause skin irritation if they
become mixed with other fabrics.
WARNING: Before operating gas ignition system - purge air from natural gas or propane gas lines
per manufacturers instructions.
WARNING: To reduce the risk of electric shock, disconnect this appliance from the power supply
before attempting any user maintenance other than cleaning the lint trap. Turning the controls to the
OFF position does not disconnect this appliance from the power supply.

Page 4
AVERTISSEMENT. Assurez-vous de bien
suivre les instructions donnees dans cette
notice pour reduire au minimum le risque
dincendie ou dexplosion ou pour eviter tuot
dommage materiel, toute blessure ou la mort.
__ Ne pas entreposer ni utiliser dessence ni
dautres vapeurs ou liquides inflammables dans
le voisinage de cet appareil ou de tout autre
apparell.
__ QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ:
Ne pas tenter dallumer dapparell.
 Ne touchez a aucun interrupteur. Ne pas
vous servir des telephones se trouvant dans
le batiment ou vous vous trouvez.
 Evacuez la piece, le batiment ou la zone.
Appelez immediatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions
du fournisseur.
Si vous ne pouvez rejoindre le fournisseur
de gaz, appelez le service des incendies.
__ linstallation et lentretien doivent etre assures
par un installateur ou un service dentretien
qualifie ou par le fournisseur de gaz.
ATTENTION: LACHETEUR DOIT PLACER LAVERTISSEMENT
SUIVANT DANS UN ENDROIT CLAIR ET VISIBLE:
ATTENTION: LACHETEUR DOIT PLACER LAVERTISSEMENT
SUIVANT DANS UN ENDROIT CLAIR ET VISIBLE:
POUR VOTRE SECURITE
Ne pas entreposer ni utiliser d essence
ni dautres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de tout autre appareil.

Page 5
CISSELLDRYERWARRANTY
The Cissell Manufacturing Company (Cissell) warrants all new equipment (and the original parts thereof) to be free from
defects in material or workmanship for a period of three (3) years from the date of sale thereof to an original purchaser for
use, except as hereinafter provided. With respect to non-durable parts normally requiring replacement in less than three (3)
years due to normal wear and tear, and with respect to all new repair or replacement parts for Cissell equipment for which
the three (3) year warranty period has expired, or for all new repair or replacement parts for equipment other than Cissell
equipment, the warranty period is limited to ninety (90) days from date of sale. The warranty period on each new replacement
part furnished by Cissell in fulfillment of the warranty on new equipment or parts shall be for the unexpired portion of the
original warranty period on the part replaced.
With respect to electric motors, coin meters and other accessories furnished with the new equipment, but not manufactured
by Cissell, the warranty is limited to that provided by the respective manufacturer.
Cissells total liability arising out of the manufacture and sale of new equipment and parts, whether under the warranty or
caused by Cissells negligence or otherwise, shall be limited to Cissell repairing or replacing, at its option, any defective
equipment or part returned f.o.b. Cissells factory, transportation prepaid, within the applicable warranty period and found
by Cissell to have been defective, and in no event shall Cissell be liable for damages of any kind, whether for any injury to
persons or property or for any special or consequential damages. The liability of Cissell does not include furnishing (or
paying for) any labor such as that required to service, remove or install; to diagnose troubles; to adjust, remove or replace
defective equipment or a part; nor does it include any responsibility for transportation expense which is involved therein.
The warranty of Cissell is contingent upon installation and use of its equipment under normal operating conditions. The
warranty is void on equipment or parts; that have been subjected to misuse, accident, or negligent damage; operated under
loads, pressures, speeds, electrical connections, plumbing, or conditions other than those specified by Cissell; operated
or repaired with other than genuine Cissell replacement parts; damaged by fire, flood, vandalism, or such other causes
beyond the control of Cissell; altered or repaired in any way that effects the reliability or detracts from its performance,
or; which have had the identification plate, or serial number, altered, defaced, or removed.
No defective equipment or part may be returned to Cissell for repair or replacement without prior written authorization
from Cissell. Charges for unauthorized repairs will not be accepted or paid by Cissell.
CISSELL MAKES NO OTHER EXPRESSED OR IMPLIED WARRANTY, STATUTORY OR OTHERWISE,
CONCERNING THE EQUIPMENT OR PARTS INCLUDING, WITHOUT LIMITATION, A WARRANTY OF
FITNESS FOR A PARTICULAR PURPOSE, OR A WARRANTY OF MERCHANTABILITY. THE
WARRANTIES GIVEN ABOVE ARE EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED
OR IMPLIED. CISSELL NEITHER ASSUMES, NOR AUTHORIZES ANY PERSON TO ASSUME FOR IT,
ANY OTHER WARRANTY OR LIABILITY IN CONNECTION WITH THE MANUFACTURE, USE OR SALE OF
ITS EQUIPMENT OR PARTS.
For warranty service, contact the Distributor from whom the Cissell equipment or part was purchased. If the Distributor
cannot be reached, contact Cissell.
IDENTIFICATIONNAMEPLATE
The Identification Nameplate is located on the rear wall of the dryer. It contains the dryer serial number, product number, model
number, electrical specifications and other important data that may be needed when servicing and ordering parts, wiring diagrams,
etc. Do not remove this nameplate.

Page 6
TABLEOF CONTENTS
175 LB. LAUNDRY DRYER
PAGE
Model Numbers & Company Address................................................................................. 1
ImportantNotices ............................................................................................................. 2-4
DryerWarranty ................................................................................................................... 5
Table of Contents ................................................................................................................ 6
Warnings, CautionaryNotes and Symbols........................................................................ 7-8
Unpackingand GeneralInstallation ................................................................................ 9-10
Dryer Specifications .................................................................................................... 11-17
Main Drive Motor List ...................................................................................................... 18
Gas Pipe Size Chart .......................................................................................................... 19
Gas Piping Installation ................................................................................................. 20-21
SteamPipingInstallation .............................................................................................. 22-23
Dryer Installation with Multiple Exhaust...................................................................... 24-26
Dryer Installation with Separate Exhaust .......................................................................... 27
ExhaustandVenting .......................................................................................................... 28
LinkBelts .......................................................................................................................... 29
Rules for Safe Operation of Your Dryer ...................................................................... 30-31
Service Savers ..................................................................................................................32
TroubleshootingCharts ................................................................................................ 33-37
Two Timer Models ...................................................................................................... 38-39
Direct Spark Ignition Operation ................................................................................... 40-41
GeneralMaintenance.................................................................................................... 42-43
Shimming the Basket and Spider Assembly.................................................................. 44-46
AirSwitch Adjustment ...................................................................................................... 47
Pulley and Belt Maintenance ............................................................................................. 48
Front of Dryer - Parts ........................................................................................................ 49
Rear of Dryer - Parts .................................................................................................... 50-51
Front Panel and Door Assembly........................................................................................ 52
Lint Door Assembly........................................................................................................... 53
DMP Control Assembly .................................................................................................... 54
Two Timer Control Box Assembly .............................................................................. 55-56
PROHC Control Panel Assembly ...................................................................................... 57
DMP Sensor Assembly ..................................................................................................... 58
Two Timer Sensor Assembly ............................................................................................ 59
PRO Sensor Assembly ...................................................................................................... 60
PROHC Sensor Assembly ................................................................................................. 61
FanAssembly ....................................................................................................................62
Basket/Spider Assembly ................................................................................................... 63
Reversing Control Panel Assembly ................................................................................... 64
GasBonnet Assembly ....................................................................................................... 65
SteamBonnetAssembly .................................................................................................... 66
Air Switch Assembly ........................................................................................................ 67
Parts- Temperature Assembly ........................................................................................... 68
OrificeInformation............................................................................................................ 69
Ordering Overload Heaters for Overload Relays ........................................................ 70-71
MinimumDryerMake-upAirRequirements ..................................................................... 72
Recommended Spare Parts

Page 7
SYMBOLS
The following symbols are used in this manual and/or on the machine.
Symbol Description
NOTE!
Hot! Do Not Touch
Heib! Nicht Beruhren
Haute temperature! Ne pas toucher
Caliente! no tocar
Heet! Niet Aanraken
dangerous voltage
tension dangereuse
Gafahrliche elektrische Spannung
tension peligrosa
on
marche
Ein
conectado
off
arrêt
Aus
desconectado
start
demarrage
Start
arranque de un movimiento
emission of heat in general
êmission de chaleur en general
Warmeabgabe allgemein
emisión de calor
cooling
refroidissement
Kuhlen
enfriamiento

Page 8
SYMBOLS
The following symbols are used in this manual and/or on the machine.
Symbol Description
rotation in two directions
rotation dans les deux sens
Drehbewigung in zwei Richtungen
movimiento rotativo en los dos sentidos
direction of rotation
sens de mouvement continu de rotation
Drehbewegung in Pfeilrichtung
movimiento giratorio o rotatorio
en el sentido de la flecha
End of Cycle
caution
attention
Achtung
atencion; precaucion

Page 9
Unpacking/General Installation (All Dryers)
This dryer is packed in a large (heavy-duty) protective wooden crate.
Upon arrival of the equipment, any damage in shipment should be reported to
the carrier immediately.
Upon determining permanent location of a unit, care should be taken in
movement and placement of equipment. To move dryer through doorways, you
may need to remove the top of the machine. Follow instructions for disas-
sembling.
See outline clearance diagrams for correct dimensions.
Remove all packing material such as: tape, manuals, skid, etc.
Check voltage and amperes on rating plate before installing the dryer.
Leveling: Use spirit level on top of dryer. The use of shims are acceptable for
this procedure.
IMPORTANT
Before installing or operating this dryer, thoroughly read the
owner's manual for correct instructions concerning electric
connections, exhaust ducting, gas piping, steam connections,
make-up air, etc.
IMPORTANT
Read the warnings in this manual.
IMPORTANT
Do not install this dryer in an area where it will be exposed to
water and/or weather.
IMPORTANT
Failure to follow these instructions and warnings may create a
safety hazard and may affect the warranty.
IMPORTANT
Follow all local codes.
IMPORTANT
If you have any installation questions, consult the factory
Service Department.
UNPACKING
GENERAL
INSTALLATION
(ALL DRYERS)

Page 10
General Installation (All Dryers)
Position dryer for the least amount of exhaust piping and elbows,
and allow free access to the rear of dryer for future servicing of
belts, pulleys and motors. Installation clearance from all
combustable material for gas dryers is 24 ceiling clearance, 24
rear clearance, and 0 side clearance. Installation clearance from
all combustable material for steam dryers is 24 ceiling clearance,
24 rear clearance, and 0 side clearance.
Before operating dryer, open basket door and remove blocking
between front panel and basket. Read the instruction tags, owner's
manual, warnings, etc.
The dryer is so designed that when an operator opens the dryer
door, the basket and exhaust fan stop. Hot, dry air is properly and
effectively moved through the basket and exhausted through a lint
trap to the venting and eventually to the atmosphere. The lint
accumulates in the collector and should be removed as needed,
minimum once daily.
IMPORTANT
Provide adequate clearance for air openings into the combustion
chamber.
Replacement parts for this dryer are available from your distributor
or by contacting the factory at the address or phone number printed
on the cover of this manual.
WARNING Unit is heavy!
NOTE
The gas installation must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code, ANSI
Z223.1 or the CAN/CGA-B149, Installation Codes.
GENERAL
INSTALLATION
(ALL DRYERS)
GENERAL
IMPORTANT
REPLACEMENT PARTS

Page 11
175 LB. GAS DRYER SPECIFICATIONS (ILLUSTRATION)
ALL DIMENSIONS ARE +/- 1/4 (6.4 MM) AND ARE SUBJECT TO CHANGE WITHOUT NO-
TICE
REAR VIEW

Page 12
175 LB GAS DRYER SPECIFICATIONS (ILLUSTRATION)
REAR VIEW DIMENSIONS
REAR COVER
NOT SHOWN
TOP VIEW DIMENSIONS
ALL DIMENSIONS ARE +/- 1/4 (6.4 MM) AND ARE SUBJECT TO CHANGE WITHOUT NO-
TICE

Page 13

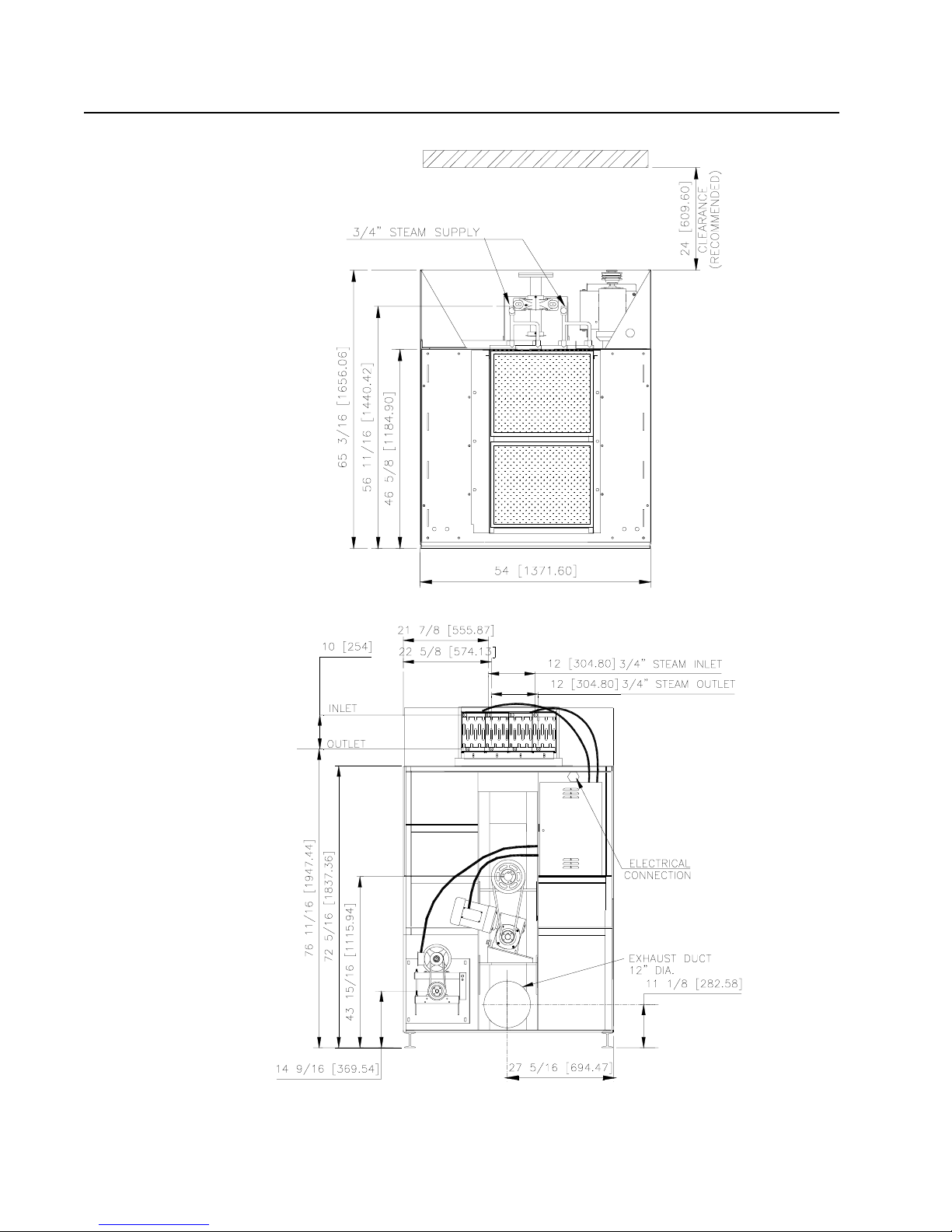

175 LB. STEAM DRYER SPECIFICATIONS (ILLUSTRATION)
ALL DIMENSIONS ARE +/- 1/4 (6.4 MM) AND ARE SUBJECT TO CHANGE WITHOUT NO-
TICE
REAR VIEW

Page 14
175 LB. STEAM DRYER SPECIFICATIONS (ILLUSTRATION)
ALL DIMENSIONS ARE +/- 1/4 (6.4 MM) AND ARE SUBJECT TO CHANGE WITHOUT NO-
TICE
TOP VIEW DIMENSIONS
REAR VIEW DIMENSIONS
REAR COVER
NOT SHOWN

Page 15
Basket Capacity .........................................175 lb (79 kg) Dryweight
Electrical Specifications ..........................208-240/60/3, 480/60/3,
220-380/50/3
Motor Size: Basket ..................................2 Hp (1.49 kW)
Motor Size: Fan .......................................5 Hp (3.73 kW)
Floor Space ...............................................89 H x 54 W x 65 D
...................................................................(2261 x 1372 x 1651 mm)
Door Opening............................................31-1/4 (794 mm)
Basket ........................................................52 dia. x 42 deep
................................................................... (1321 x 1067 mm)
Basket RPM: Reversing...........................30 rpm (w/ 3.2 reversals per minute)
Non-Reversing ..........................................30 rpm
Exhaust Duct .............................................12 (3048 mm) dia.
Maximum Air Displacement .................... 2,780 cfm (4726 m3/h)
Recomm. Oper. Range..............................2,300 cfm (3910 m3/h)
Gas/Elec. Net Weight ...............................2,075 lb (941 kg)
Steam Net Weight .....................................2,205 lb (1000 kg)
Gas/Elec.Shipping Weight........................2,225 lb (1009 kg)
Steam Shipping Weight ............................2,355 lb ( 1068 kg)
Shipping Dimensions ................................89 1/2 H x 58 W x 77 3/4 D
(2273 x 1473 x 1962 mm)
Crating Volume ......................................... 232 ft³ ( 6.57m³)
Gas Supply.................................................1 1/4 (DN32) pipe connection
(1 1/4 SPT)
Input Rating ............................................... 450,000 Btu/h
(113,000 kcal/h)
Recommended Make-up Air.....................4.0 sq. ft. (576 sq. in.,
3,744 sq. cm)
Specifications for 175 lb. Gas Heated Dryer
GENERAL
SPECIFICATIONS FOR
175 lb. GAS HEATED
DRYERS

Page 16
Basket Capacity .........................................175 lb (79 kg)
Electrical Specifications ..........................208-240/60/3, 480/60/3,
220-380/50/3
Motor Size: Basket ..................................2 Hp (1.49 kW)
Motor Size: Fan .......................................5 Hp (3.73 kW)
Floor Space ...............................................89 H x 54W x 65 D
( 2261 x 1372 x 1651 mm)
Door Opening............................................31-1/4 (794 mm)
Basket ........................................................52 dia. x 42 deep (51.6 cu. ft.)
(1321 x 1067 mm, 1461liter)
Basket RPM: Reversing...........................30 rpm (w/ 3.2 reversals
per minute)
Non-Reversing ..........................................30 rpm
Exhaust Duct .............................................12 (3048 mm) dia.
Maximum Air Displacement .................... 2780 cfm ( 4726 m³/h)
Recomm. Oper. Range.............................. 2300 cfm (3910 m³/h)
Net Weight ................................................ 1800 lb (816 kg)
Shipping Weight ........................................ 1950 lb (885 kg)
Shipping Dimensions ................................89 1/2 H x 58 W x 77 3/4 D
...................................................................(2273 x 1473 x 1962 mm)
Crating Volume ......................................... 232 ft³ ( 6.57 m³)
Input Rating ............................................... 12.5 BHP ( 105,588 kcal/h)
Pressure .................................................... 125 psi max
Steam Supply Connection.........................3/4 SPT (DN20)
Steam Return Connection .........................3/4 SPT (DN20)
Specifications for 175 lb. Steam Heated Dryer
GENERAL
SPECIFICATIONS FOR
175 lb. STEAM HEATED
DRYERS

Page 17
175 lb. Steam Heated Laundry Dryers - Specifications
Dryers must be electrically grounded by a separate #14 or larger
green wire from the grounding terminal within the service connection
box to a cold water pipe. In all cases, the grounding method must
comply with local electrical code requirements; or in the absence of
local codes, with the National Electrical Code, ANSI/NFPA 70 or
the Canadian Electrical Code, CA C22.1.
See wiring diagram furnished with dryer. Your dryer is completely
wired at the factory and it is only necessary for the electrician to
connect the power leads to the wire connectors with the service
connection box on the rear of the dryer. Do not connect the dryer to
any voltage or current other than that specified on the dryer rating
plate. (Wiring diagram is located on rear wall of dryer.)
All panels must be in position before operation of dryer.
CAUTION: Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper operation.
Attention. Lors des opérations dentretien des commandes,
ètiqueter tous les fils avant de les dèconnecter. Toute erreur de
câblage peut être une source de danger et de panne.
ELECTRICAL
CONNECTIONS
(ALL DRYERS)
(ILLUSTRATION)
GROUNDING
INSTRUCTIONS

Page 18
Main Drive Motors
Motor No. Voltage Hz. Phase HP Amps RPM B/F
MTR290 208/240 60 3 2 6.2 - 6.0 1725 Basket
MTR290 480 60 3 2 3.0 1725 Basket
MTR296 380 60 3 2 4.2 - 4.6 1725 Basket
MTR292 220/380 50 3 2 6.4/3.7 1425 Basket
MTR292 240/415 50 3 2 6.4/3.7 1425 Basket
MTR309 208/240 60 3 5 13.0 3450 Fan
MTR291 480 60 3 5 7.1 1725 Fan
MTR298 240 50 3 5 8.4 1425 Fan
MTR298 380 60 3 5 17.2 - 16.8 1725 Fan
MTR293 220/380 50 3 5 6.05/12.1 1425 Fan
MTR293 240/415 50 3 5 6.05/12.1 1425 Fan

Page 19
Gas Pipe Size Chart
TOTAL BTU/HR
(for LP Gas correct
total BTU/HR below by
multiplying by .6)
TOTAL
KCAL
HOUR
GAS PIPE SIZE FOR 1000 BTU (250 KCAL) NATURAL GAS
AT 7 (17.8 CM) W.C. PRESSURE
In figuring total length of pipe, make allowance for tees and elbows.
(150 ft.)
45,72 m
(125 ft.)
38,1 m
(100 ft.)
30,48 m
(75 ft.)
22,86 m
(50 ft.)
15,24 m
(25 ft.)
7,62 m
60,000
80,000
100,000
120,000
140,000
160,000
180,000
200,000
300,000
400,000
500,000
600,000
700,000
800,000
900,000
1,000,000
1,100,000
1,200,000
1,300,000
1,400,000
1,500,000
1,600,000
1,700,000
1,800,000
1,900,000
2,000,000
2,200,000
2,400,000
2,600,000
2,800,000
3,000,000
3,200,000
3,400,000
3,600,000
3,800,000
4,000,000
15000
20000
25200
30200
35200
40300
45300
50400
75600
100800
126000
151200
176400
202000
230000
250000
270000
300000
330000
350000
380000
400000
430000
450000
480000
504000
550000
605000
650000
705000
750000
806000
850000
907000
960000
1000000
3/4
3/4
3/4
3/4
3/4
3/4
1
1
1
1 1/4
1 1/4
1 1/2
1 1/2
1 1/2
2
2
2
2
2
2
2
2
2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
3
3
3
3
3
3/4
3/4
3/4
1
1
1
1
1
1 1/4
1 1/4
1 1/2
1 1/2
2
2
2
2
2
2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
3
3
3
3
3
3
3 1/2
3 1/2
3 1/2
3 1/2
3/4
3/4
1
1
1
1
1
1 1/4
1 1/4
1 1/2
1 1/2
2
2
2
2
2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
3
3
3
3
3
3
3
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
3/4
1
1
1
1
1 1/4
1 1/4
1 1/4
1 1/2
1 1/2
2
2
2
2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
3
3
3
3
3
3
3
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
4
4
3/4
1
1
1
1
1 1/4
1 1/4
1 1/4
1 1/2
1 1/2
2
2
2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
3
3
3
3
3
3
3
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
4
4
4
4
3/4
1
1
1
1 1/4
1 1/4
1 1/4
1 1/2
1 1/2
2
2
2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
3
3
3
3
3
3
3
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
4
4
4
4
4
4

Page 20

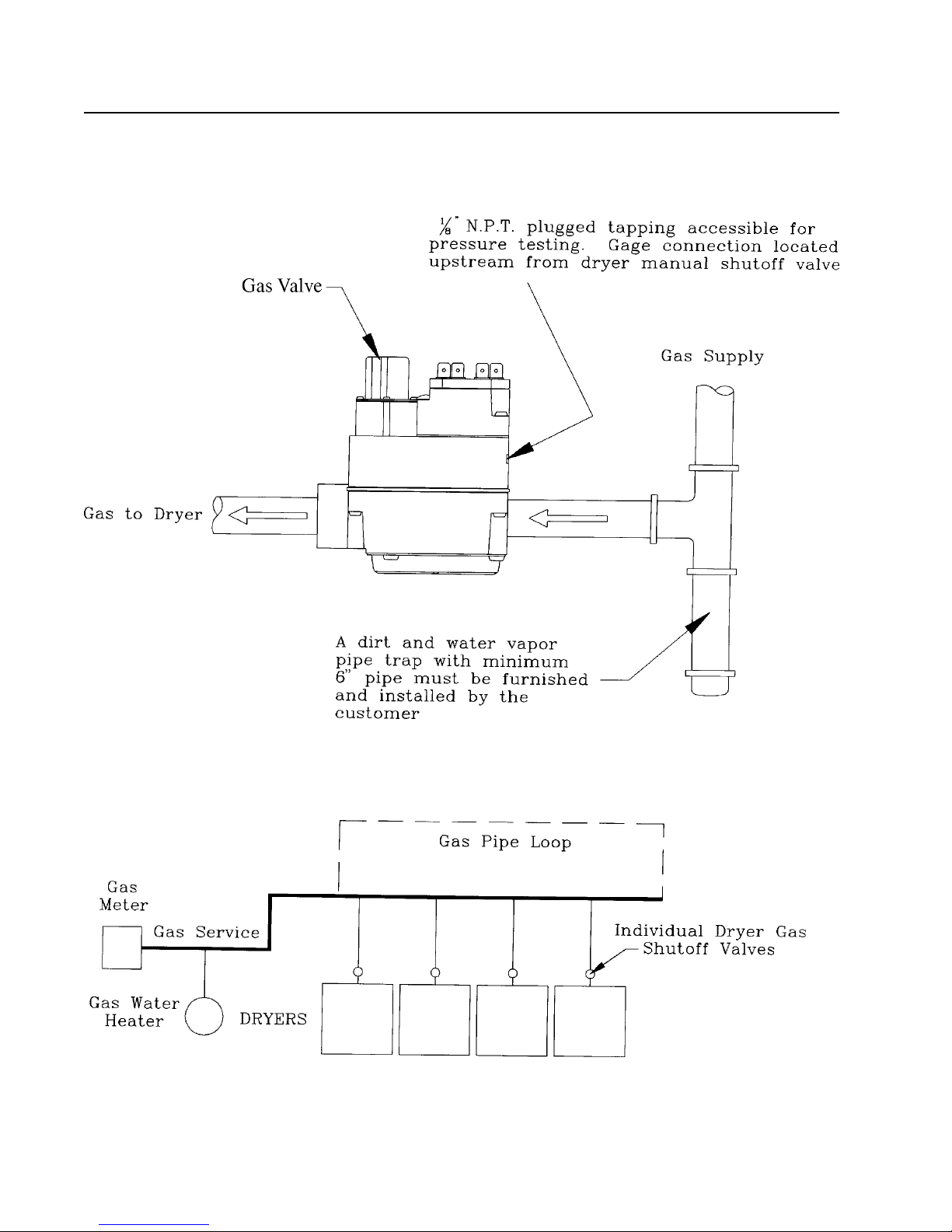

Gas Piping Installation (Illustration)
