Cissell SHIRTFOLDER User manual

Manual Shirt Folder
Owners manual
US HEADQUARTERS
831 SOUTH FIRST ST. PHONE: [phone]
P.O. BOX 32270 FAX: [phone]
LOUISVILLE, KY. 40232-2270
MANSF (5791) 3/00
CSF100

WARRANTY
Cissell Manufacturing Company (Cissell) warrants all new equipment (and the original parts thereof) to be
free from defects in material or workmanship for a period of one (1) year from the date of sale thereof to an original
purchaser for use, except as hereinafter provided. With respect to non-durable parts normally requiring replacement in
less than one (1) year due to normal wear and tear, including but not limited to, cloth goods, valve discs, hoses and iron
cords, and with respect to all new repair or replacement parts for Cissell equipment for which the one (1) year warranty
period has expired or for all new repair or replacement parts for equipment other than Cissell equipment, the warranty
period is limited to ninety (90) days from date of sale. The warranty period on each new replacement part furnished by
Cissell in fulfillment of the warranty on new equipment or parts shall be for the unexpired portion of the original
warranty period on the part replaced.
With respect to electric motors, coin meters and other accessories furnished with the new equipment, but not manu-
factured by Cissell, the warranty is limited to that provided by the respective manufacturer.
Cissells total liability arising out of the manufacture and sale of new equipment and parts, whether under the warranty
or caused by Cissells negligence or otherwise, shall be limited to Cissell repairing or replacing, at its option, any
defective equipment or part returned f.o.b. to Cissells factory, transportation prepaid, within the applicable warranty
period and found by Cissell to have been defective, and in no event shall Cissell be liable for damages of any kind,
whether for any injury to persons or property or for any special or consequential damages. The liability of Cissell does
not include furnishing (or paying for) any labor such as that required to service, remove or install; to diagnose troubles;
to adjust, remove or replace defective equipment or a part; nor does it include any responsibility for transportation
expense which is involved therein.
The warranty of Cissell is contingent upon installation and use of its equipment under normal operating conditions.
The warranty is void on equipment or parts that have been subjected to misuse, accident or negligent damage; operated
under loads, pressures, speeds, electrical connections, plumbing, or conditions other than those specified by Cissell;
operated or repaired with other than genuine Cissell replacement parts; damaged by fire, flood, vandalism, or such
other causes beyond the control of Cissell; altered or repaired in anyway that affects the reliability or detracts from its
performance; or which have had the identification plate or serial number altered, effaced or removed.
No defective equipment or part may be returned to Cissell for repair or replacement without prior written authorization
from Cissell. Charges for unauthorized repairs will not be accepted or paid by Cissell.
CISSELL MAKES NO OTHER EXPRESSED OR IMPLIED WARRANTY, STATUTORY OR OTHERWISE, CONCERN-
ING THE EQUIPMENT OR PARTS INCLUDING, WITHOUT LIMITATION,AWARRANTY OF FITNESS FORA
PARTICULAR PURPOSE, ORAWARRANTY OF MERCHANTABILITY. THE WARRANTIES GIVEN ABOVEARE
EXPRESSLYIN LIEU OFALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. CISSELL NEITHERASSUMES
NORAUTHORIZESANY PERSON TOASSUME FOR ITANY OTHER WARRANTYOR LIABILITY IN CONNEC-
TION WITH THE MANUFACTURE, USE OR SALE OF ITS EQUIPMENT OR PARTS.
For warranty service, contact the Distributor from whom the Cissell equipment or part was purchased. If the Distribu-
tor cannot be reached, contact Cissell.
Page 2

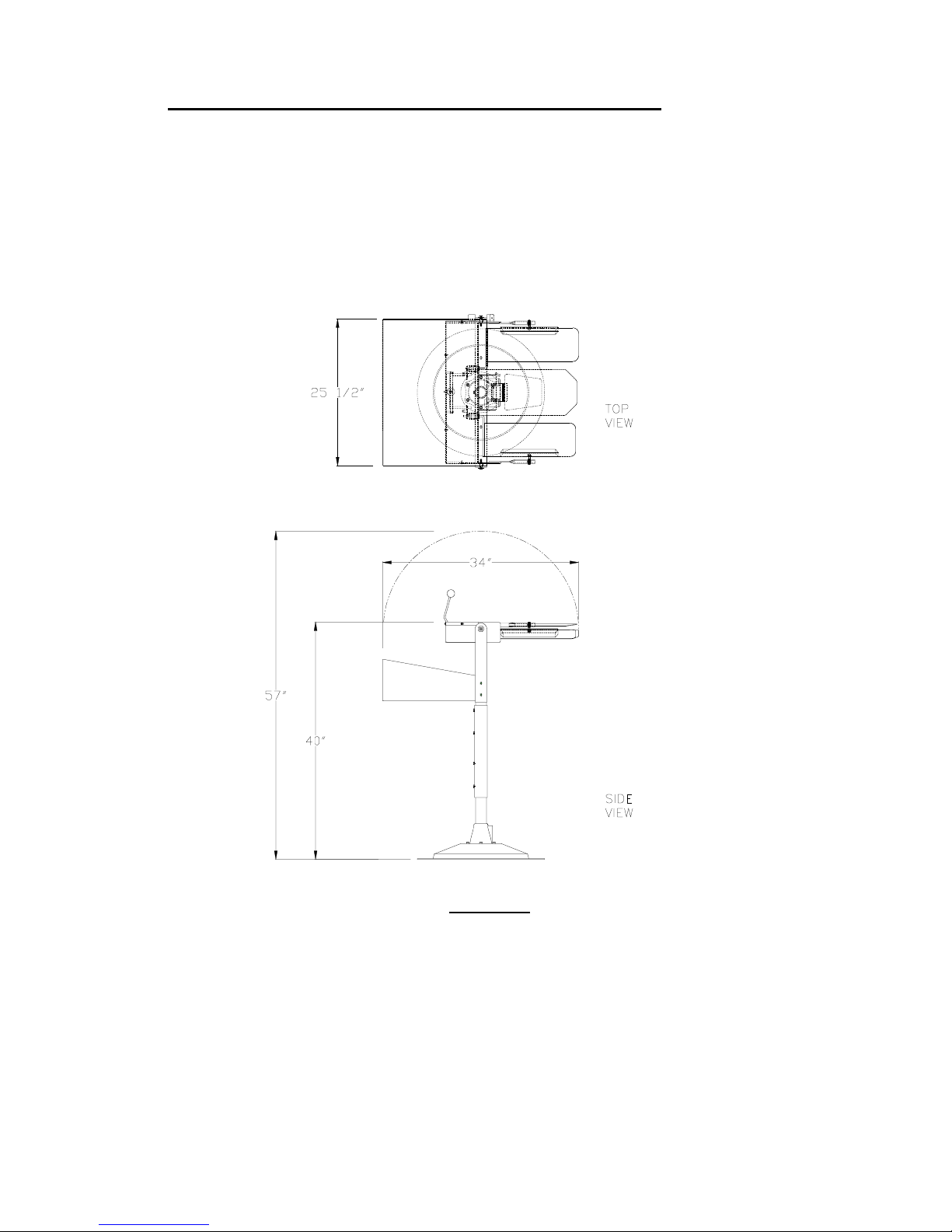

SPECIFICATIONS - MODEL CSF100
Width, Overall 27" (69 cm)
Depth, Overall 34" ( 87 cm)
Height, Overall 56" (143 cm)
Net Weight 77 lbs. (35 kg)
Domestic Shipping Weight (approx.) 87 lbs. (40 kg)
TESTING
The Cissell Manual Shirt Folders are manufactured and tested to the highest standards.
This Shirt Folder has been tested in the Cissell factory to determine that it is safe and in working
order.
Page 3

TABLE OF CONTENTS
CSF100
PAGE
Warranty: 2
Specifications: 3
Testing: 3
Table of Contents: 4
Shirt FolderAssembly Part Numbers:
MainAssembly 5
BaseAssembly 6
UpperAssembly 7
Page 4

Page 5
MAIN ASSEMBLY:

BASE ASSEMBLY:
Page 6
SYM. PART NO. DESCRIPTION
1 C121 Base
2 C122 Hub
3 SFD141 Bsae Pipe and Collar
4 SFD140 Base Head Weldment
5 SFD100 Weldment, Head Unit
6 TU3246 Screw, 3/8-16 x 1
7 TU3282 Set Screw
8 SFD106 Shoulder Bolt
9 IB140 Washer, Flat
10 SFD107 Spacer
11 TU3400 Nut
12 TU3549 Rubber Bumper
13 TU8694 Screw
14 SB-00906-0 Nut
15 TU2814 Lockwasher

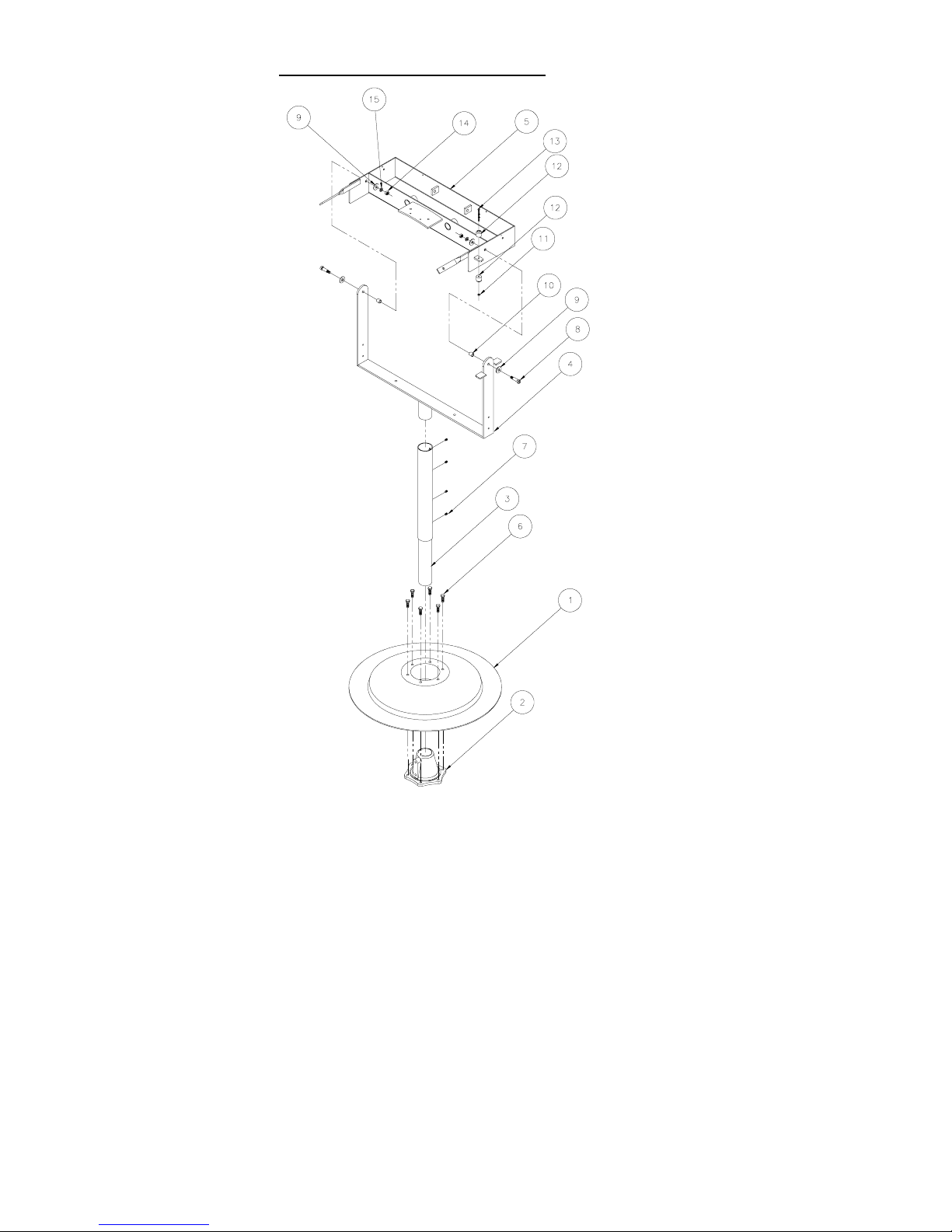

UPPER ASSEMBLY:
Page 7

Page 8
WIRING SCHEMATIC: AGC65 240V/60/3

WIRING SCHEMATIC: AGC64 240V/60/1
Page 9

Page 10
LADDER DIAGRAM: AGC65 240V/60/3

LADDER DIAGRAM: AGC64 240V/60/1
Page 11
