Citizen CH605 User manual

1401

Contents
................
01....... Blood Pressure Monitor Intended Use
02....... 1. What is blood pressure ?
02....... 2. Why is it useful to measure blood
pressure at home ?
.......... A. WHO blood pressure classications
.......... B. Variations in blood pressure
04....... 3. Important information before use of the
unit
06....... 4. Device description
.......... A. Name of the parts
.......... B. Description of display symbols
08....... 5. Changing Batteries
08....... 6. Attaching pressure cuff
09....... 7. Correct measurement position
A

Contents
................
10....... 8. Description of display marks.
11....... 9. How to measure.
.......... A. Inserting batteries in position.
.......... B. Steps to take blood pressure
measurement.
.......... C. Storing recalling and erasing
measurement data.
.......... D. To change batteries.
14....... 10. Maintenance.
14....... 11. Safe-keeping.
14....... 12. To prevent malfunction.
15....... 13. Warning.
16....... 14. Specications.
17....... Note
B

MEDICAL DISCLAIMER
This manual and product are not meant to be a
substitute for advice provided by your doctor or other
medical professional.
You are not to use the information contained herein,
or this product for diagnosing or treating a health
problem or prescribing any medication. If you have or
suspect that you have a medical problem, promptly
consult your healthcare provider.
Measures human's Systolic blood pressure, Diastolic blood
pressure and heart rate on wrist by oscillometric measurement
method.
The device is designed for home use and recommended for
use by adults aged 18 years and older with wrist circumference
ranging 135 ~ 195 mm.
Blood Pressure Monitor Intended Use:
1

Blood pressure is a measurement of the force of blood owing
against the walls of the arteries. Arterial blood pressure is
constantly changing during the course of the cardiac cycle.
The highest pressure in the cycle is called the systolic blood
pressure, the lowest is the diastolic blood pressure. Both
pressure readings, the systolic and the diastolic are necessary
to enable a physician to evaluate the status of a patient's blood
pressure. Many factors such as physical activity, anxiety or the
time of day, can inuence your blood pressure. Blood pressure
is typically low in the morning and increases from the afternoon
to the evening. It is lower in the summer and higher in the
winter.
1. What is blood pressure ?
Having one's blood pressure measured by a doctor in a
hospital or a clinic, and a group health checks, tend to stimulate
nervousness in the subject and may even create high blood
pressure. Also varies blood pressure in accordance with a
variety of conditions and so judgment is not possible on the
basis of a single measurement.
The blood pressure measured rst thing in the morning after
getting up, before taking any food and with the subject still, is
known as the fundamental blood pressure. In practice it is rather
difcult to record the fundamental blood pressure, but to come
2. Why is it useful to measure blood pressure
at home ?
2

as near as possible to measuring the blood pressure in an
environment that is close to this, is why it is useful to take the
measurement at home.
A. WHO blood pressure classications
Standards for assessment
of high or low blood
pressure without regard to
age, have been established
by the World Health
Organization (WHO),
as shown in the chart.
90
85
140130
* Figure No.1
B. Variations in blood pressure
The graph below illustrated
the variations in blood
pressure over a whole day
with measurement taken
every ve minutes.
* Figure No.2
Individual blood pressures vary greatly both on a daily and a
seasonal basis. These variations are even more pronounced
in hyper tense patients. Normally the blood pressure rises
while at work and is at its lowest during sleeping period.
(hyper tense: means a person who has high blood
pressure symptom.)
3

The thick line represents sleep. The rise in blood pressure at 4 PM (A in
the graph) and 12 PM (B in the graph) correspond to an attack of pain.
Please rest for at least 5~10 minutes before taking the measurement.
To allow your blood vessels to return to the condition prior to taking the
measurement, please wait at least 3~5 minutes between measurements.
You may need to adjust the wait time according to your personal
physiological situation.
If you have one of the circulatory problems as arteriosclerosis,
diabetes, liver disease, kidney disease, severe hypertension, peripheral
circulation......, please consult your doctor or healthcare professional
before using the devices.
Wait 30 ~ 45 minutes before measurement if you’ve just consumed
caffeinated beverages or smoked cigarettes.
Blood pressure measurements should be interpreted by a physician or
trained health professional who is familiar with your medical history. By
using the unit regularly and recording the results for your physician to
interpret, you keep your physician informed of the continuing trends in
your blood pressure.
Wind the cuff snugly around your wrist and the cuff must be at the same
level as your heart.
Do not vibrate the unit during measurement, or the proper measurement
will not be achieved.
Perform measurement quietly in a relaxed position.
Do not wind the cuff over jacket or sweater sleeve, or measurement
cannot be done.
3. Important information before use of the unit
4

Keep in mind, that blood pressure naturally varies from time to time
throughout the day and also is affected by lots of different factors such
as smoking, alcohol consumption, medication and physical activity.
People with a condition that causes circulatory problems (diabetes,
kidney disease, arteriosclerosis or poor peripheral circulation) may get
lower readings with this monitor that with a blood pressure monitor that
is used on the upper arm. Please consult your physician to determine if
your wrist blood pressure accurately reects your actual blood pressure.
Blood pressure measurement determine with the unit are equivalent
to those obtained by a trained observer using the cuff / stethoscope
auscultation method. Within the limits prescribed by the American
National Standard for Electronic or Automated Sphygmomanometers.
This product is not suitable for pregnant women.
5
*Attention!
1. Do not use the device on infants, children, or those who cannot
express their own intention.
2. Over high frequency measurements may result in blood ow
interference, which is likely to cause uncomfortable sensations, such
as partial subcutaneous hemorrhage, or temporary numbness to your
wrist. In general, these symptoms should not last long. However, if you
do not recover in time, please seek your medical practitioners for help.

A. Name of the parts
4. Device description:
6
LCD DISPLAY
START/STOP
BUTTON
RECALL MEMORY
BUTTON
WRIST CUFF
CARRYING CASE
ALKALINE BATTERY
UM-4 (AAA) LR03 1.5 V x 2
* Figure No.3

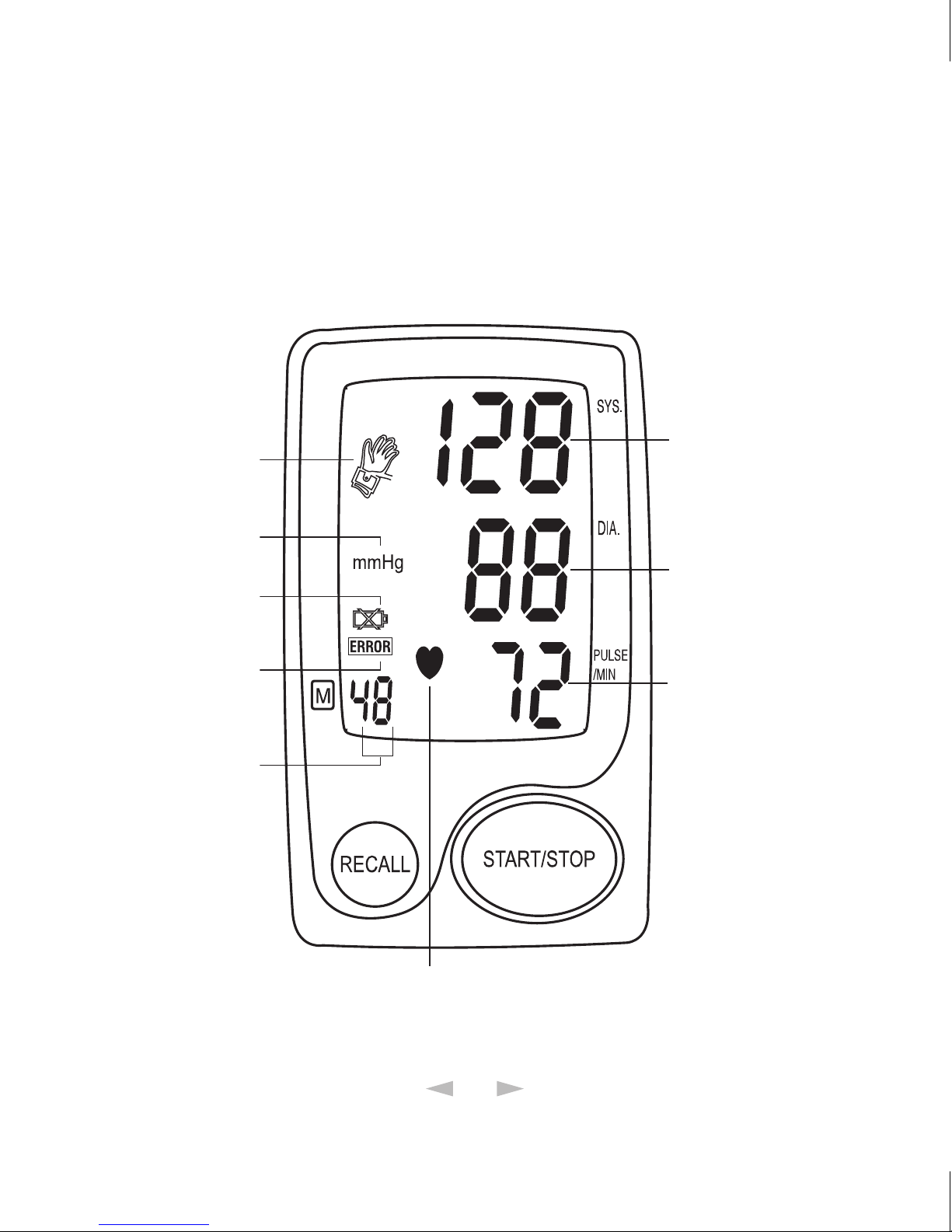

B. Description of display symbols
7
MEASURING
PULSE SYMBOL
BLOOD PRESSURE
UNIT
BATTERY
WEAK DISPLAY
ERROR SYMBOL
MEMORY RECORD
SYSTOLIC RATE
DIASTOLIC RATE
HEART RATE

Remove the battery cover at the left side of the unit and insert
batteries into the battery compartment in accordance with
ribbon strip as shown, taking extreme care that the polarities +
and - are observed.
Important notice: to take the batteries out easily, just pull the
ribbon strip for help.
5. Changing batteries
A. Wrap the pressure cuff around the wrist.
a. the display of the unit should be
placed on the palm side of the wrist.
b. the wrist should be bare.
6. Attaching pressure cuff
* Figure No.5
8
mmHg mmHg mmHg
Remove the battery cover and insert 2 AAA LR03 alkaline
batteries into the battery compartment as shown.
* Figure No.4

B. Fasten the pressure cuff snugly.
a. do not pull strongly on the pressure
cuff.
b. do not make the pressure cuff too
tight.
C. Leave approximately10 mm between
the cuff and the bottom of your hand
palm.
* Figure No.5-1
*Figure No. 5-2
It is extremely important for the measured values, that the cuff
is at the same height of the heart.
Higher or deeper position will give deviations from the true
value.
7. Correct measurement position
Measurement while sitting down:
a. Place your elbow on a table or other object
(such as our carry case).
b. Use the armrest to position the arm so that
the pressure cuff is at the same height as
the heart.
c. Relax your hand with the palm facing up. * Figure No.6
9
0.4 inch (10 mm)
5.3 ~ 7.7 inch
(135 ~ 195 mm)
10 mm
135 ~ 195 mm

Display mark

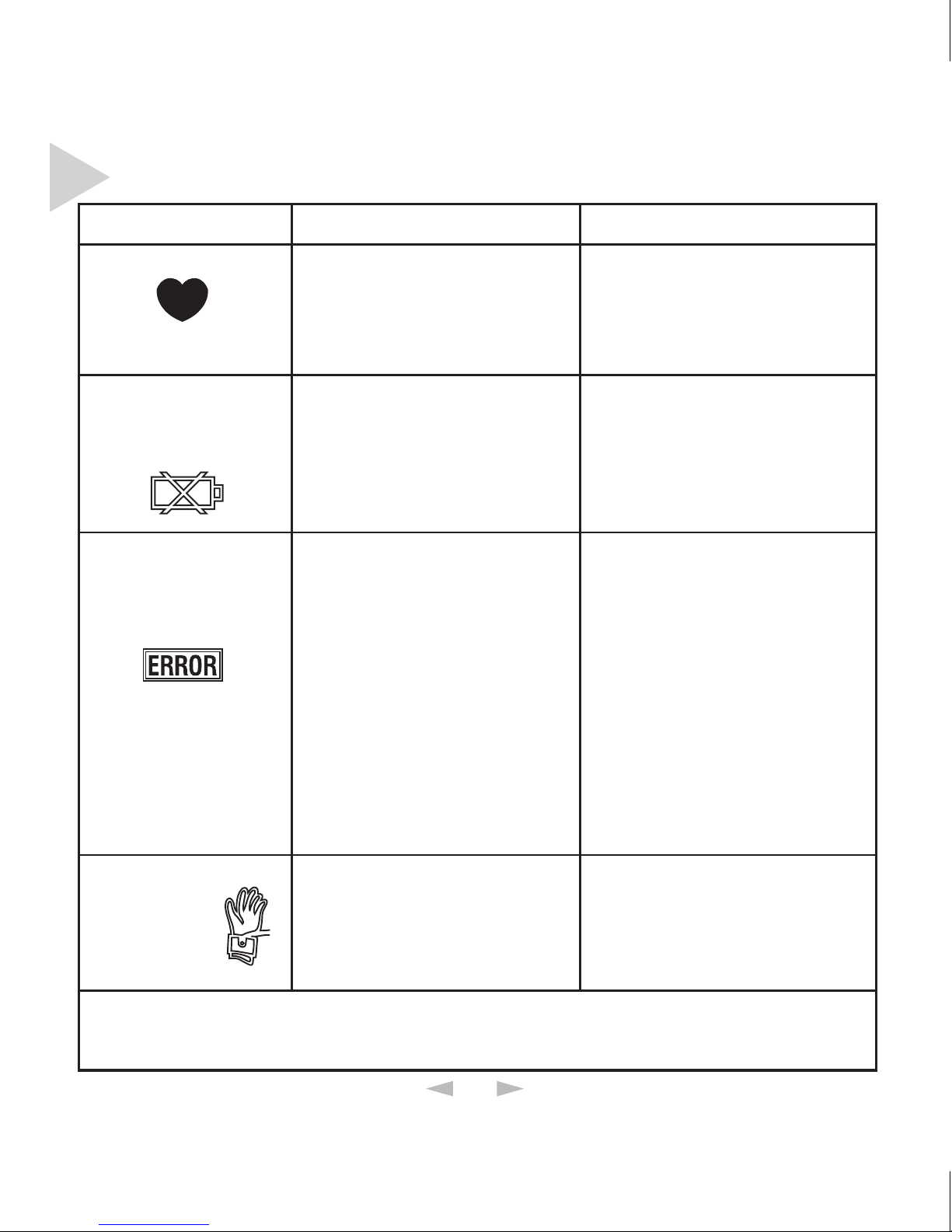

8. Description of display marks
Mark appears in the
measurement condition
and ashes when pulse
is detected.
Condition/Cause Corrective action
Replace
batteries
Measuring
error
Measuring
blood
pressure
symbol
Appears when the
battery voltage is
excessively low.
Appears when the
accurate blood
pressure could not be
obtained accurately.
Appears all the time
till the measurement
being completed.
Measurements in
progress remain quiet.
Replace all two batteries
by new ones.Insert
the batteries at correct
positions beware of the
+/- directions.
Press "START/STOP"
button again and re-
measure. Or check
cuff if wrapped at the
wrist or according to
instructions. Check
palm if exerting effort.
Check if talking
or moving during
measurement. Check
if posture is incorrect.
10
Note: If "EP" appears on the display, just return the device to
your local distributor or importer.

a. Open battery cover.
b. Refer to the picture in positioning batteries. (Figure No.4)
c. All LCD segments appear on the display in 3 seconds.
d. Display 1month 1 date, 12 hour 0 minute.
9. How to measure
A. Inserting batteries in position:
a. Wrap the cuff around the wrist (Refer to Wrapping of Wrist
cuff as Figure No. 5)
b. Sit upright on the chair to have correct posture. (Refer to
Correct Posture in Taking Blood Pressure as (Figure No. 6)
c. Press" START/STOP "button. All elements display '888'
in 3 seconds. Afterward, displays the updated time. The
measuring blood pressure symbol will ash on the display
and then the air pressure will automatically pump up to
195 mmHg. If blood pressure tends to be on the high
level, the air pressure will automatically increase to the
required level for measurement.
* Do not move or talk in the midst of taking blood pressure
measurement.
d. After the air pressure is increased, it will slowly decrease.
When the pulse rate is detected, HEART RATE symbol
will start ashing.
B. Steps to take blood pressure measurement:
11

C. Storing, recalling and erasing measurement data:
a. Storing data:
After each blood pressure measurement, the Systolic rate,
diastolic rate, heart rate and the time & date of specic day
will be automatically stored. The memory holds the latest
48 measurement data. If more than 48 measurements, the
memory will automatically clear out the earliest data.
b. Recalling data:
(1) Pressing "RECALL" button at normal time, nothing will
appear on the display if there is no data in the memory.
If there is data in the memory, the latest recorded set of
measurement which are the Systolic rate, Diastolic rate,
heart rate, including the recording time and date, will
appear and lasting on the display for 1 minute. (60 sec)
12
e. After taking blood pressure measurement, the Systolic
rate, Diastolic rate and heart rate will be on the display for
1 minute.
f. The device switches off automatically after 1 minute.
*Note!
• If the cuff does not stop inating, remove the cuff at once.
• To interrupt the measurement, you may press the
START/STOP button. The cuff will deate immediately
after a button is pressed.

D. To change batteries:
When " " show up on the display, the battery is weak.
Change the batteries or it will not be possible to take blood
pressure measurement.
All batteries used must be the same type. Do not mix
alkaline, standard(carbon-zinc) or rechargeable (cadmium)
batteries.
Do not mix old and new batteries.
(2) Press " RECALL " button to read the next line of stored
data. The data called up on the display is numbered
accordingly. After reading the recalled data as rotator
48-set of the stored data, press " RECALL " to switch
to normal time.
(3) To discontinue in the midst of reading of the data,
press "START/STOP" button.
c. Erasing data:
(1). Take out the batteries and then rell 2 pcs batteries
again.
(2). Press "RECALL" button, no data should show up on
the screen.
13

Use a piece of cloth with water or mild cleansing agent to
clean the case and then use a piece of dry cloth to wipe it dry.
Do not use gas or any strong cleansers in cleaning.
When the unit is not to be used for a long time, remove the
batteries. (Leaking of battery liquid can cause trouble)
10.MAINTENANCE:
Always keep the unit in the carrying case after its use.
Do not put the item directly under the sunlight, in high
temperature, or humid and dusty places.
Do not store the device in extremely low (less than –25 °C)
and high (more than 70 °C) temperature, nor in a place its
humidity exceeds 93% R.H.
11.SAFE-KEEPING:
Do not in any way twist the wrist cuff.
Do not start the air pressure when the wrist cuff is not
wrapped around the wrist.
Do not attempt to disassemble or change any parts of the
monitor including wrist cuff.
Do not drop the product or put it through strong impact.
12.TO PREVENT MALFUNCTION:
14

The device measures the blood pressure of adult only.
The device is not supposed to be used if your wrist has any
wound or injury.
In the event of the cuff pumping up and not stopping, please
open the cuff at once.
To ensure precise measurement reading, recalibration of
the device is recommended after 2 years from the date of
purchase. Shipping plus handling cost and recalibration
service fee shall be charged accordingly.
13.WARNING:
15
Limited Warranty
This device is warranted to be free from manufacturing
defects for a period of 1 year from the date of purchase.
Within the warranty period, should there be any
manufacturing defect found and repair is needed, please
contact your local distributor accordingly.
Please note warranty does not cover damage caused by,
including but not limited to: misuse or abuse; accident;
the attachment of any unauthorized accessory; alteration
to the product; improper installation; unauthorized repair
or modication; improper use of electrical/ power supply;
dropped product; failure to follow required maintenance and
safe-keeping; transportation damage.

Model Number
Method of Measurement
Range of Measurement
Accuracy
Ination
Deation of Pressure
Exhaust
Display
Sets of Memory
Unit Dimension
Unit Weight
Cuff Size
Storage/ Transportation
Environment
Operation Environment
Power Supply
Battery Life
Accessories
14.SPECIFICATIONS:
:CH605
:Oscillometric
:Pressure 0 ~ 300 mmHg
pulse 40 ~ 199 beats/minute
:Pressure +/- 3 mmHg,
Pulse +/- 5%
:Automatic ination (Air Pump)
:Automatic air release control valve
:Automatic exhaust valve
:Liquid Crystal Digital Display
:48 set
:L70 x W72 x H29 mm
:Approx. 130 g including batteries
:Wrist circumference approx. 135 ~ 195 mm
Temperature: -25 °C ~ 70 °C
Humidity: ≤ 93 % R.H.
Temperature: 5 °C ~ 40 °C
Humidity: 15 % ~ 93 % R.H.
:2 x AAA LR03 (1.5 V) Alkaline battery
:Approx. 250 times measurement
:Carrying case, instruction manual
2 pcs AAA LR03 battery
These specications are subject to change without notice for
purpose of improvement.
16
