Citizen JCTV2110 User manual

CITIZEN ELECTRONICS
TORONTO CANADA
THE TOLL FREE CITIZEN HELPLINE IS 1-800-663-5954
CALL US IF YOU HAVE ANY PROBLEMS OR QUESTIONS
WITH YOUR NEW PRODUCT
9am - 5pm (TORONTO TIME) MONDAY TO FRIDAY
CITIZEN
JCTV2110
®
Operating Manual
Read these instructions carefully before
using your television. If you follow the
instructions, your television will provide
you with many years of good service.
Please save these instructions
21” SUPER FLAT STEREO TV
INTRODUCTION
CONNECTIONS
MENU OVERVIEW
BASIC TV OPERATION
SETTINGSAND ADJUST
TROUBLESHOOTING
TION
IONS
IEW
TION
MENTS
TING
SPECIFICATIONS
PACKING LIST
IONS
LIST
6
10
12
14
17
31
33

CAUTION:
Read all of these instructions. Save these instructions for later use. Follow all warnings and
instructions marked on the audio equipment.
IMPORTANT SAFETY INSTRUCTIONS
1
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION: TOREDUCE THE RISK OF
ELECTRICAL SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SER VICING TO
QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN.
The exclamation point within an equilateral triangle is intended to alert the to the
presence of important operating and maintenance (servicing) instructions in the
user
literature accompanying the appliance.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated dangerous voltage within the product s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
WARNING: TO
REDUCE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.

PROTECTION AND LOCATION OF YOUR SET
•Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc..
•Never expose the set to rain or water.If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
Choose a place where light (artificial or sunlight) does not shine directly on the screen.
Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
•Never cover the slots or openings with cloth or other material.
•Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc..
•Never place the set near or over a radiator or heat register.
•Never place the set in a enclosure, unless proper ventilation is provided.
If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
Note to CATV system installer: (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits.When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
built-in
2
s
installer
•
•
1.
2.
3.
4.
PROTECTION AND LOCATION OF YOUR SET
1.
2.
.
3
.
4

OPERATION OF YOUR SET
This television set should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
If your television is to remain unused for an extended period of time, turn the set off and unplug it from the power
outlet.
IF THE SET DOES NOT OPERATE PROPERLY
If you are unable to restore normal operation by following the detailed procedure in your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off.If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
FOR SERVICE AND MODIFICATION
Do not use attachments not recommended by the television set manufacturer as they may cause hazards.
When replacement parts are required, be sure the service technician has used replacement parts specified
by the manufacturer that have the same characteristics as the original parts.Unauthorized substitutions
may result in fire, electric shock, or other hazards.
Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
3
1.
2.
3.
1.
2.
3.
1.
2.
3.

TABLE OF CONTENTS
1
INTRODUCTION
1.1 FEATURES......................................................................................................................................
1.2 DESCRIPTION OF CONTROLS & CONNECTORS.........................................
1.2.1 FRONT PANEL.................................................................................................................
1.2.2 SIDE/REAR AV TERMINAL...................................................................................
1.2.3 REMOTE CONTROL..................................................................................................
1.3 REMOTE CONTROL OPERATION...................................................................... .........
1.3.1 INSTALLING BATTERIES........................................................................................
1.3.2 EFFECTIVELY USING THE REMOTE CONTROL...............................
1
CONNECTIONS
2.1 INSTALLATION OF ANTENNA.........................................................................................
2.2 POWER CONNECTION..........................................................................................................
2.3 EXTERNAL CONNECTION.................................................................................................
1
MENU OVERVIEW
3.1 MAP OF THE ON-SCREEN MENU................................................................................
3.2 MAP OF THE PARENTAL CONTROL MENU.......................................................
1
BASIC TV OPERATION
4.1 TURN ON THE TV......................................................................................................................
4.2 TURN OFF THE TV..................................................................................................................
4.3 TV/AV SELECTION.....................................................................................................................
4.4 SELECT CHANNEL....................................................................................................................
4.4.1 DIGIT KEYS........................................................................................................................
4.4.2 CHANNEL DOWN/UP BUTTON .....................................................................
4.5 VOLUME ADJUSTMENT.......................................................................................................
4.6 SOUND MUTE................................................................................................................................
4.7 QUICK PICTURE ADJUSTMENT...................................................................................
4.8 STATUS DISPLAY......................................................................................................................
4
6
7
7
7
8
9
9
9
10
10
11
12
13
14
14
14
14
14
14
15
15
15
16
4.9 SLEEP TIMER............................................................................................................................... 16

1
SETTINGS AND ADJUSTMENTS
5.1 AUTO MEMORY..........................................................................................................................
5.2 MANUAL TUNE...........................................................................................................................
5.3 FINE TUNE........................................................................ ....................................................... ......
5.4 TV/CATV SELECTION............................................................................................................
5.5 ADD/ERASE FUNCTION.....................................................................................................
5.6 PICTURE ADJUSTMENT....................................................................................................
5.7 BLUE BACK..................................................................................................................................
5.8 CHANNEL LOCK......................................................................................................................
5.9 TIMER................................................................................................................................................
5.9.1 ON TIMER...........................................................................................................................
5.9.2 OFF TIMER........................................................................................................................
5.9.3 CLOCK SET......................................................................................................................
5.11 CHILD LOCK.................................................................................................................................
5.10 LANGUAGE...................................................................................................................................
5.12 CLOSED CAPTION..................................................................................................................
5.12.1 CAPTION MODE.........................................................................................................
5.12.2 TEXT MODE..................................................................................................................
5.12.3 CLOSED CAPTION SELECTION..................................................................
5.13 PARENTAL CONTROL SET UP.....................................................................................
5.13.1 PASSWORD DELETION AND RENEWAL.............................................
5.13.2 MPAA RATING SET UP.........................................................................................
5.13.3 TV RATING SET UP...............................................................................................
5.13.4 CANADIAN ENGLISH LANGUAGE RATING SET UP..................
5.13.5 CANADIAN FRENCH LANGUAGE RATING SET UP...................
5.13.6 MAKE PARENTAL CONTROL ACTIVE...................................................
1
TROUBLESHOOTING
6.1 PICTURE PROBLEMS..........................................................................................................
6.2 OPERATION PROBLEMS...................................................................................................
1
SPECIFICATIONS/PACKING LIST
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
24
24
25
25
26
27
28
29
30
31
32
7.1 SPECIFICATIONS.......................................................................................................................
7.2 PACKING LIST............................................................................................................................
33
33
5
WARRANTY INFORMATION........................................................................................................ 34

After 15 min with no Signal
1
1. INTRODUCTION
1.1 FEATURES
TINTED BRIGHT BLACK PICTURE TUBE
Dynamically boosts the black level in the dark areas of the picture according to picture content.
Increases shadow detail without compromising overall picture contrast.
BLUE BACK FUNCTION
The BLUE BACK feature displays a solid blue screen when a channel is selected that has no
signal.
4 PICTURE SETTINGS
The picture this television produces can be personalized to produce the optimum display
quality.
4 LANGUAGE OSD
This television can display the menu in four languages: English, French, Portuguese and
Spanish.
SLEEP TIMER
Lets the user watch television for a preset amount of time before the unit goes into standby
mode. This television can be programmed up to 120 minutes. (10 minutes intervals).
V-CHIP & CHILD LOCK
Allows parents to restrict viewing of certain channels containing content they deem inappropriate.
CLOSED CAPTION DECODER
This television is equipped with a Closed Caption Decoder that enables the set to print the
audio portion of a television program on the screen, similar to subtitles. Please check your
local listings for program broadcasts that have been closed captioned.
FULL FUNCTION REMOTE CONTROL
This television can be fully operated and programmed using the supplied remote control.
181 CHANNEL SELECTION All VHF/UHF channels plus up to125 cable channels.
PLL FREQUENCY SYNTHESIZED TUNING
The latest PLL frequency synthesized electronic tuning system provides free and easy
channel selection, and lets you tune directly to any channel using the channel number
buttons on the remote handset.
Audio/Video Inputs/Outputs
RCA-type AV Inputs: Side AV (Video 2), Rear AV (Video 1), One RCA-type AV Output.Two
AUTO OFF
1INTRODUCTION1.1
JCTV2110
S-VIDEO
S-Video connections transmit the black & white and colour portions of the video signal on 2
individual sets ofwires within a single cable. This offers superior colour and detail
reproduction over conventional video connections.
6

2 13
9 9
45678
1.2 DESCRIPTION OF CONTROL KEYS & CONNECTORS
1.2.1 FRONT PANEL
1. 75 OHMANTENNA INPUT
2. AUDIO/VIDEO OUT(AV OUTPUT)
3. AUDIO/VIDEO INPUT1(AV INPUT)
5. AUDIO/VIDEO SIDEIN 2 (AV INPUT)
4. S-VIDEO
1.2.2 SIDE/REAR AV TERMINAL
4.
1. POWER BUTTON
To turn ON/OFF the TV set.
2. STANDBY INDICATOR
Lights when TV is in the STANDBY mode.
3. REMOTE SENSOR
To receive the infra-red signals from remote
handset.
CHANNEL ( / ) BUTTONS
Select channel number cyclically.
To select items in sub-menu.
To decrease/increase the sound volume and the
picture setting level.
Channel searching upward/downward in MANUAL
TUNE and FINE TUNE menu.
8.
7.
9. SPEAKERS
TV/AV BUTTON
To switch between TV channel and AV Inputs.
6. MENU BUTTON
To display the main menu on the TV screen.
DISPLAY BUTTONS
Todisplay the current channel number, color
system .
5VOLUME/PICTURE CONTROL (/)
BUTTONS
.
To turn on the TV when it is in standby mode.
INTRODUCTION1.2/1.2.1/1.2.2
7
VIDEO AUDIO
1
2
35
4
REAR TERMINAL SIDE AV
JCTV2110
NOTE:
The S-Video (4) and Composite Video(3) inputs both share the AV1 input setting. When
an S-Video and Composite Video (yellow) cable are both connected at the same time, the
S-Video cable takeprecedence over the Composite Video cable.

1.2.3 REMOTE CONTROL
Description of Remote Control Keys.
STANDBY BUTTON
To turn the unit onor off.
0-9 KEYPAD
To select channel number.
Press twodigits to directly access the
desired channel.
Remember to press 0before a single
digit when the channel number you want
to select is less than 10.
1-- KEY
In the CATVmode, if the channel number
you select is from 100 to 125, press this
key before entering the last two digits of
the channel number.
MUTE BUTTON
temporarily. Restore it by pressing once
again.
1.
2.
3.
4.
Press to turn off the sound of the TV
SLEEP BUTTON
Set the sleep timer from120 to 10 minutes
by pressing the SLEEP button repeatedly.
Todisplay the remaining time, press the
SLEEP button once.
Tocancel the sleep timer, press the SLEEP
button until OFF appears.
ANA BUTTON
Cyclically selects the picture settings:
DYNAMIC, STANDARD, MILD and MEMORY.
6.
9.
10.
DISPLAY BUTTON
Press to display the current program number,
colour system.
5.
7.
8.
TV/AV BUTTON
To switch between the TV program and
AV input source.
CHANNEL ( / ) BUTTON
To cyclically select the channel number.
To select the item in sub-menu.
VOLUME/PICTURE CONTROL( / )
BUTTONS
To decrease/increase the sound volume and
picture setting level.
In MANUAL TUNE and FINE TUNE menu,
search channel upward or downward.
MENU BUTTON
Press to display the main menu.
Press to go back to the previows menu.
11.
12.
13.
V
V
C
C
Press to exit the menu display.
CHANNEL
LOCK
1
2
3
11
4
STANDBY MUTE
SLEEP
DISPLAY
SKIP
1- -
TV/AV
ANA
1 2 3
6
5
4
78 9
0
12
8
13
9
6
5
EXIT
MENU VV
PP
P
7
P
C
C
V
V
10
11
CHILD
LOCK
14
SKIP BUTTON
Toskip the channel you don t want.
,
CHILD LOCK
Tolock/unlock the panel keys.
CHANNEL LOCK BUTTON
Tolock/unlock the tuning sub-menu.
14.
INTRODUCTION1.2.3
8
12
JCTV2110

1
INTRODUCTION 1.3/1.3.1/1.3.2
9
JCTV2110
1.3 REMOTE CONTROL OPERATION

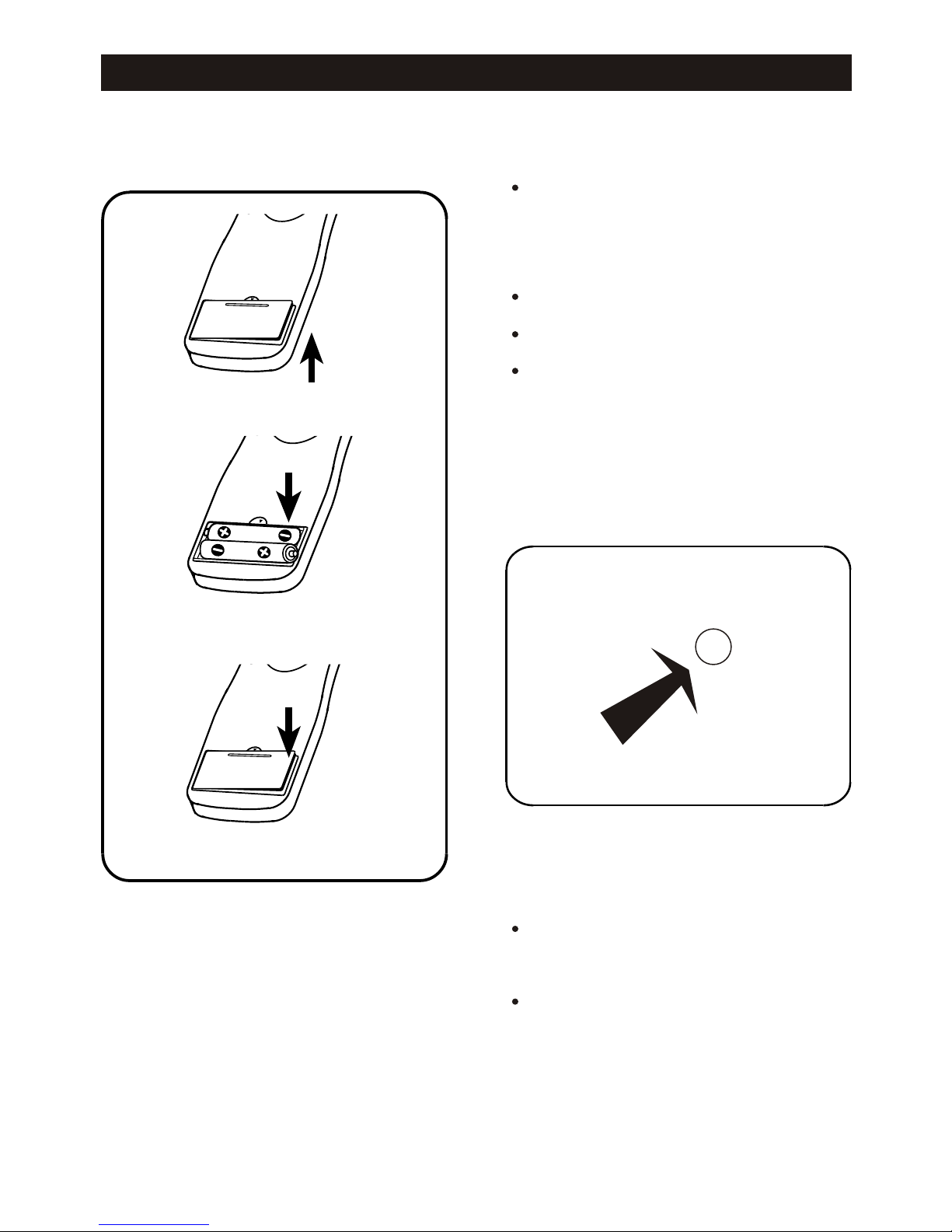

1.3.1 INSTALLING BATTERIES NOTES:
The lifetime of the batteries may last up
to one year, depending on how often the
remote control is used. For the best
performance, the batteries should be
replaced on a yearly basis, or when
remote operation becomeserratic.
Be sure to place the batteries in the
correct direction as shown left.
Do not mix old and new batteries, or
different types.
Old batteries may leak and damage the
remote control. Always remove
batteries as soonas they become weak.
1.3.2 EFFECTIVELY USING THE
REMOTE CONTROL
Point the remote toward the infra-red
remote sensor on the main unit as shown
above.
NOTES:
If direct sunlight, incandescent light, or
any other strong light sources hit the
remote control, the remote control may
not operate properly.
If there is an obstacle between the main
unit and the remote control, the remote
control signal maynot be received.
1. Open the battery compartment cover.
2. Install two size AA batteries in correct
direction.
3. Close the battery cover.
SENSOR

2. CONNECTIONS
CONNECTIONS2.1/2.2
10
JCTV2110
2.1 INSTALLATION OF ANTENNA
Connect the 75 coaxial cable from the antenna to the antenna jack on the rear panel, as shown above.
NOTES:
•For better reception, especially in outlying area or where ghost or interference happens, an external
roof-mounted antenna is recommended.
•For UHF TV reception, use the specified UHF antenna. Consult the local sale dealer.
•When using 300 OHM flat cable, a 300 OHM -75 OHM adapter should be adopted for a proper
connection to the antenna jack.
2.2 POWER CONNECTION
NOTE:
When you disconnect the power supply cord, pull it out by the plug. Never pull the cord itself.
Insert the polarized AC plug into a standard 120V, 60Hz power outlet. If the polarized(one blade
is wider than the other) AC plug does not fit into the non-polarized outlet, do NOT attempt to file
or cut the blade. Contact an electrician to replace your obsolete outlet.
VHF TV ANTENNA
UHF TV ANTENNA
75
75
COAXIAL CABLE
300 FLAT CABLE
ADAPTOR
TO TV ANTENNA JACK
300

VIDEO AUDIO
REAR AV SIDE AV IN

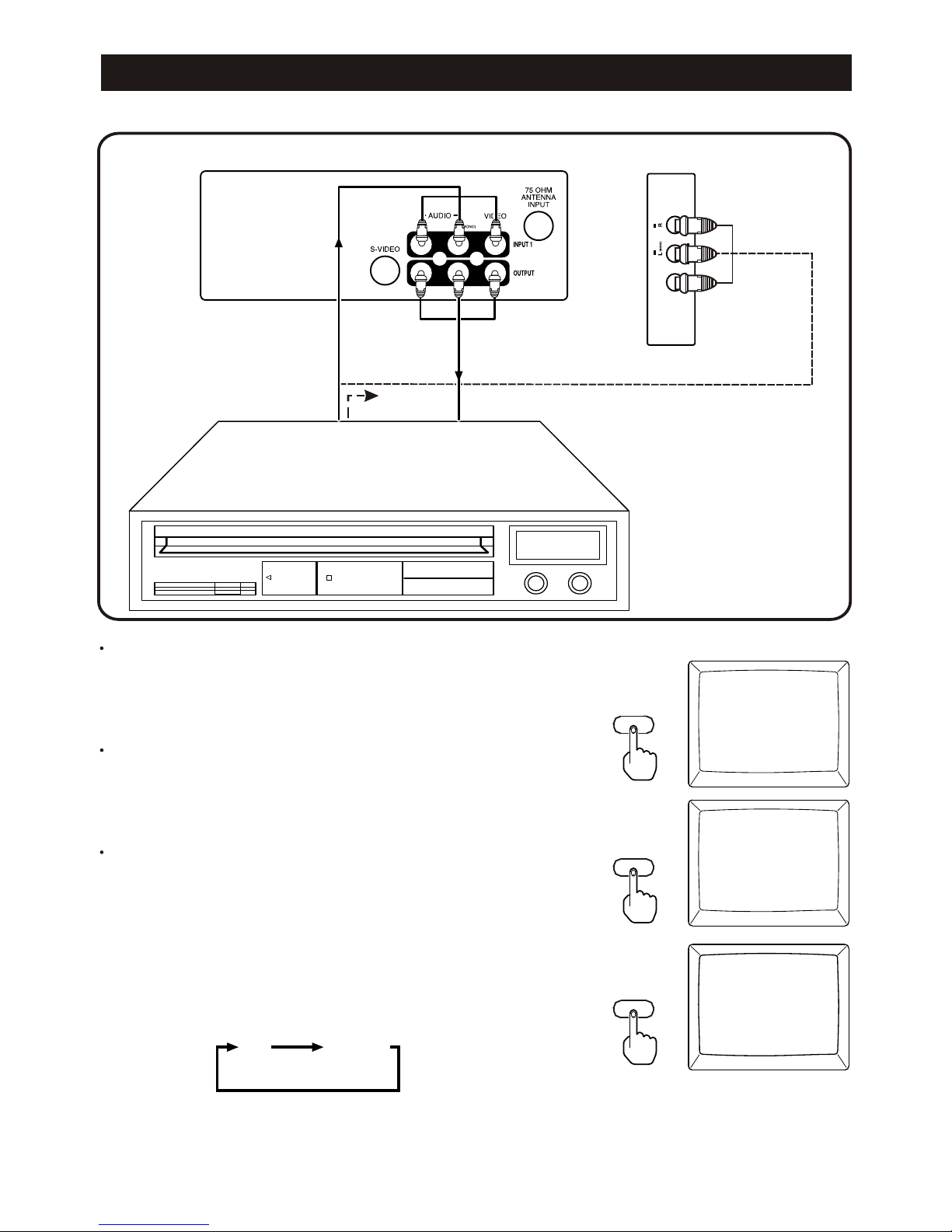

2.3 EXTERNAL CONNECTION
xxxxxxxx xxxxxxxx
xxxxxxxx
xxxxxxxxxxxx
xxxxxxxx
xxxxxxxx
||||||||||||||||||||
xxxxxxxxxxxxxx
VCR/AV RECEIVER/DVD
TV/AV
VIDEO1
VIDEO2
TV
The AUDIO/VIDEO input terminals on the front
panel (if provided) and rear terminals can be
connected to VCR AV, LD player, VCD player
or the satellite receiver/decoder output
terminals.
The AUDIO/VIDEO output can be connected
to other TV monitor or VCR for video
monitoring or recording.(Video 1 for back AV
signal input / output while Video 2 for side AV
signal input if side AV terminal is provided.)
To switch between Video 1, Video 2 and TV
mode by pressing TV/AV button on front panel
or on remote control handset.
Note : (1) When side AV terminal is not
provided or there is only one AV
input on the rear terminal. The
cycle will be.
(2) The existing of side AV terminal
depends on model type.
TV VIDEO
TV/AV
TV/AV
AUTO
AUTO
1
CONNECTIONS 2.3
11
AV IN
AVOUT
LR
JCTV2110

STEP MENU STEP MENU STEP MENU
THE FIRST THE SECOND THE THIRD
DISPLAY OFF/ON
MODE
C.C./TEXT/C.MUTE
CHANNEL 1/2/3/4
PIC.
SET
TUN.
COLOR
BRIGHTNESS
SHARPNESS
TINT
BLUE BACK
CLOSED CAPTION
PARENTAL CONTROL (NOTE:PLEASE SEE NEXT PAGE)
TIMER
LANGUAGE
CHILD LOCK
CHANNEL
TV/CATV
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
ON/OFF
50
50
50
0
2
TV/CATV
ADD/ERASE
UP/DOWN
0
ENGLISH
FRANCAIS
PORTUGUES
ESPANOL
ON/OFF
OFF TIMER
ON TIMER
CLOCK SET
AM 12:00
OFF/ONCE/DAILY
AM 12:00
CHANNEL 2
TV/CATV TV/CATV
OFF/ONCE/DAILY
AM 12:00
CONTRAST
50
TV 2
AUTO MEMORY
STOP
STEP MENU
THE FOURTH

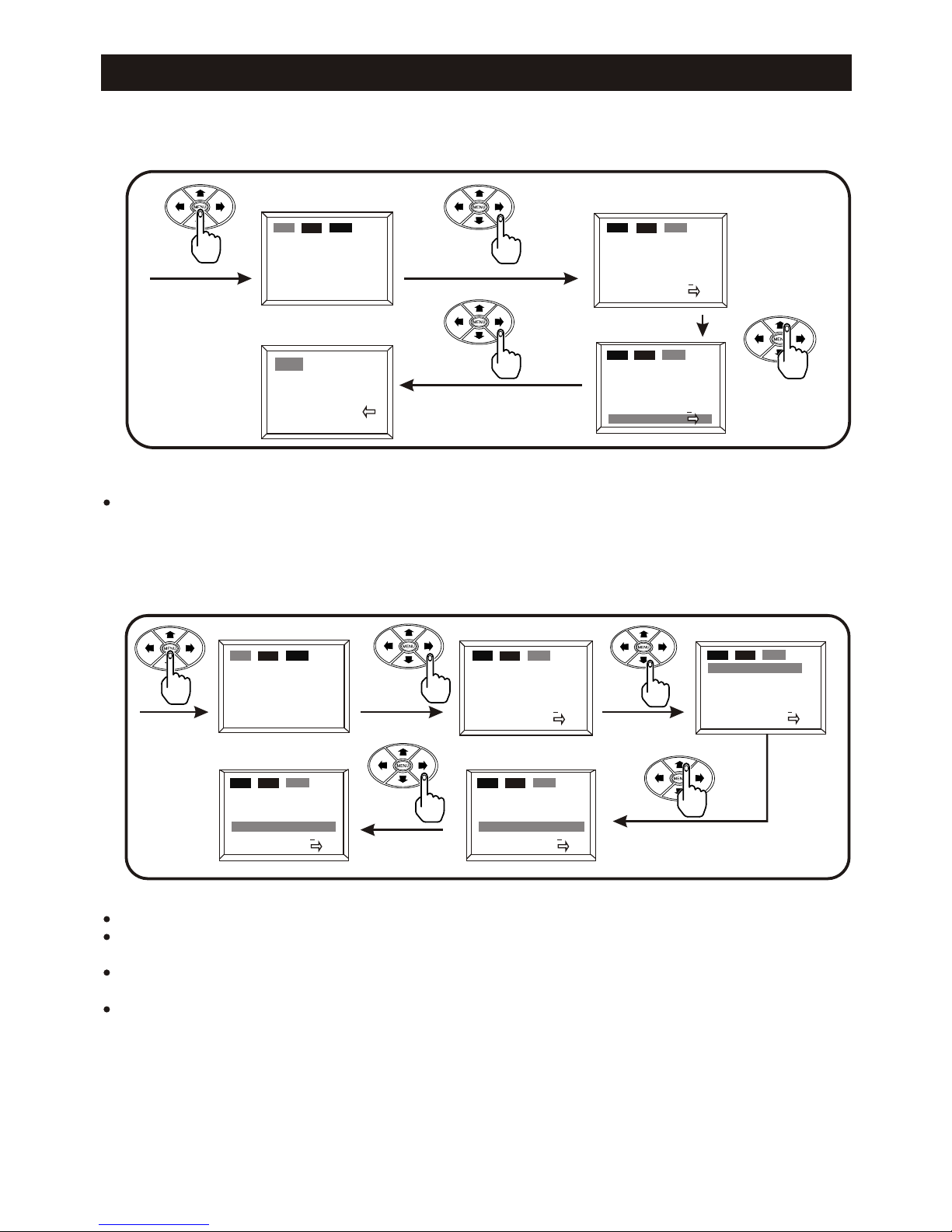

Within the on screen menu, almost all of the functions and adjustments for this television can be
achieved. The MENU button is used to access the main menu or go back to the previous screen.
Pressing the MENU button in the first screen of the main menu, or the PICT button at any time, will
exit the menu.
Use the PROGRAM UP/DOWN buttons on the TV or remote control to scroll through the items in the menu.
Use the VOLUME UP/DOWN buttons on the TV or remote control to change the settings or status of the
selected item and to enter the submenu for each.
NOTE:
Some keys on the remote control have the same functions as those in the menu. They can be
used on their own or to compliment the on screen display.
3. MENU OVERVIEW
3.1 MAP OF THE ON-SCREEN MENU
MENU OVERVIEW3.1
12
JCTV2110

STEP MENU STEP MENU
THE THIRD THE FOURTH
STEP MENU
THE FIFTH
ENTER SECRET CODE:
_ _ _ _
MPAA RATING
N/A
G
PG
PG-13
R
NC-17
X
TV PARENTAL
GUIDELINES
NONE
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
F V S L D
CONTENT
TV-Y
TV-Y7 FANTASY V
VIEW
TV-G VIOLENCE
-------
TV-PG SEXUAL
TV-14 LANGUAGE
TV-MA DIALOG
VIEW
VIEW
-------
CANADIAN
ENGLISH
RATING
C
C8+
G
PG
14+
18+
E
CANADIAN
FRENCH
RATING
E
G
8ans+
13ans+
16ans+
18ans+
BLOCK ON/OFF
3.2 MAP OF THE PARENTAL CONTROL MENU
1
MENU OVERVIEW 3.2
13
JCTV2110

4. BASIC TV OPERATION
V
V
C
C
CATV 1- -
BASIC TV OPERATION4.1/4.2/4.3/4.4/4.4.1/4.4.2
14
Press once to turn on TV set.
POWER
Press once to turn on TV set.
POWER
JCTV2110
DISPLAY TV/AV MENU CH.
VOL.
²Ë
Press the TV/AV button on the main unit or
remote handset to cyclically select the
signal input source as follows:
1-99 channel selection: press two digit
keys to directly access thedesired channel.
Remember to press 0 key before a single
digit when the desired channel number is
less than 10.
100-125 channel selection: In CATVmode,
if the channel number you select is from 100
to 125, press 1-- key before entering the
channel number.
4.4.2 CHANNEL DOWN/UP BUTTON
When the TV is on, press STANDBY button
on the remote handset to switch the TV to
standby mode. When you will not watch TV
in a short time, turning TV off in such a way
will consume less power and make it easy
for you toturn on theTV next timesimply by
pressing the STANDBY button once more.
You also can press the POWER button on
the main unit to turn off the TV directly.
Press CHANNEL DOWN/UP button on the
main unit or remote handset to go through
the preset channels cyclically.
4.4.1 DIGIT KEYS
Make sure you plug the AC cord into an AC
outlet and connect the equipment correctly.
Press the POWER button once on the main
unit to turn on the TV (normal watching TV). If
the TV set is in standby mode, the STANDBY
indicator lights up. Press STANDBY button on
the remote handset to turn on the TV.
The indicator is darker in ON mode than in
STANDBY mode.
4.1 TURN ON THE TV
4.2 TURN OFF THE TV
4.3 TV/AV SELECTION
4.4 SELECT CHANNEL
TV VIDEO1 VIDEO2
DISPLAY TV/AV MENU VOL.
²Ë
CH.

MUTE
DYNAMIC
VOLUME 40
1
BASIC TV OPERATION 4.5/4.6/4.7
15
JCTV2110
4.5 VOLUME ADJUSTMENT
Press VOLUME DOWN/UP button on the main unit or remote handset to increase or
decrease volume. When the TV is set to MUTE, press VOLUME UP button, the volume
will increase from the former setting, and the mute function is dismissed; press VOLUME
DOWN button, volume will decrease from the former and the mute function is
dismissed too.
setting
Press MUTE button on the remote handset
to temporarily turn off the sound of TV, press
the same button again to restore the sound.
4.6 SOUND MUTE
By pressing the ANA button on the remote
handset, picture setting can be changed to
DYNAMIC - STANDARD - MILD - MEMORY
cyclically to yourfavourable picture.
4.7 QUICK PICTURE ADJUSTMENT
NOTE:
DYNAMIC, STANDARD & MILD are factory
defaults, while the picture setting of
MEMORY can be set bythe user.
STANDARD MILD MEMORYDYNAMIC
DISPLAY TV/AV MENU VOL.
²Ë
CH.
V
V
C
C
²Ë

AUTO
TV 18
4.9 SLEEP TIMER
The maximum setting of sleep timer is 120 minutes in 10 minutes decrement.
To display the current program number, colour system.
status information on the screen.
DISPLAY
SLEEP
SLEEP
SLEEP
SLEEP
(1) (2)
SLEEP
(13) (12)
(3)
(11)
SLEEP : OFF SLEEP : 120 MIN. SLEEP : 110 MIN.
SLEEP : 30 MIN.SLEEP : 20 MIN.
SLEEP : 10 MIN.
( Times)
SLEEP
8
4.8 STATUS DISPLAY
BASIC TV OPERATION4.8/4.9
16
JCTV2110

5. SETTING AND ADJUSTMENT
5.1 AUTO MEMORY
SELECT TUNE MENU
2
TV
ADD
UP
+0
CHANNEL
TV/CATV
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
SELECT AUTO MEMORY
START AUTO SEARCHING
TV 2
AUTO MEMORY
STOP
5.2 MANUAL TUNE
2
TV
ADD
UP
+0
CHANNEL
TV/CATV
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
2
TV
ADD
UP
+0
CHANNEL
TV/CATV
ADD/ERASE
FINE
AUTO MEMORY
MANUAL
START SEARCHING
DISPLAY MAIN MENU ENTER TUNE MENU
ENTRY
SELECT TUNE MENU
SELECT MANUAL
DISPLAY MAIN MENU
PIC. SET TUN.
PIC. SET TUN.
3
TV
ERASE
UP
CHANNEL
TV/CATV
ADD/ERASE
FINE
AUTO MEMORY
MANUAL
PIC. SET TUN.
PIC. SET TUN.
PIC. SET TUN.
50
50
50
50
0
ON
COLOR
BRIGHTNESS
CONTRAST
SHARPNESS
TINT
BLUE BACK
(X2)
PIC. SET TUN.
2
TV
ADD
UP
+0
CHANNEL
TV/CATV
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
PIC. SET TUN.
50
50
50
50
0
ON
COLOR
BRIGHTNESS
CONTRAST
SHARPNESS
TINT
BLUE BACK
(X2)
PIC. SET TUN.
2
TV
ADD
UP
+0
CHANNEL
TV/CATV
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
AUTO MEMORY
TUN.
+0
1
SETTINGS AND ADJUSTMENTS 5.1/5.2
17
JCTV2110
NOTE:
Selecting AUTO MEMORY will prompt the TV to scroll through and store all of the channels
that have a good reception. This will allow you to skip over any channels that are not received
by your set.
When an availablechannel is found, it will change to ADD status.
Channel searching direction can be both upward or downward. This can be chosen by
pressing VOLUME UPor VOLUME DOWN button to start the search.
To stop manual searching, press VOLUME DOWN button when searching upward, or press
VOLUME UP buttonwhen searching downward.
When channel searching is completed, press TV/AV button to quit menu, or MENU will quit
after a fewseconds without further action.
NOTES:
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C

5.3 FINE TUNE
2
TV
ADD
UP
+0
CHANNEL
TV/CATV
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
DISPLAY MAIN MENU ENTER TUNE MENU
ENTRY
SELECT TUNE MENU
2
ADD
UP
+0
TV
CHANNEL
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
TV/CATV
SELECT TV/CATVCHOOSE CATV / TV
PIC. SET TUN.
PIC. SET TUN.
2
ADD
UP
+0
CATV
CHANNEL
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
TV/CATV
PIC. SET TUN.
PIC. SET TUN.
50
50
50
50
0
ON
COLOR
BRIGHTNESS
CONTRAST
SHARPNESS
TINT
BLUE BACK
(X2)
PIC. SET TUN.
2
TV
ADD
UP
+0
CHANNEL
TV/CATV
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
2
TV
ADD
UP
+0
CHANNEL
TV/CATV
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
2
TV
ADD
UP
+0
CHANNEL
TV/CATV
ADD/ERASE
MANUAL
AUTO MEMORY
FINE
2
TV
ADD
UP
+1
CHANNEL
TV/CATV
ADD/ERASE
MANUAL
AUTO MEMORY
FINE
START FINE TUNING
ENTER TUNE MENU
ENTRY
SELECT TUNE MENU
SELECT FINE
PIC. SET TUN.
PIC. SET TUN.PIC. SET TUN.
PIC. SET TUN.
50
50
50
50
0
ON
COLOR
BRIGHTNESS
CONTRAST
SHARPNESS
TINT
BLUE BACK
(X2)
PIC. SET TUN.
2
TV
ADD
UP
+0
CHANNEL
TV/CATV
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
DISPLAY MAIN MENU
SETTINGS AND ADJUSTMENTS5.3/5.4
18
JCTV2110
NOTES:
During fine tuning, pressing VOLUME UP or DOWN button can tune the channel upward or
downward until thebest picture is achieved.
When fine tuning stops, the tuned channel position will be stored at that channel number
automatically.
When fine tuning is completed, press TV/AV button to quit menu, or menu will quit after a
few seconds withoutfurther action.
5.4 TV/CATV SELECTION
In addition to normal VHF and UHF channels, this television can receive up to 113 Cable TV
channels. To use this television with an antenna, set the TV/CATV menu option to TV mode.
When using this set with a Cable system, set the menu to CATV .
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C

2
ADD
UP
+0
TV
CHANNEL
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
TV/CATV
DISPLAY MAIN MENU ENTER TUNE MENU
ENTRY AND CHOOSE
TV/CATV
SELECT TUNE MENU
2
CATV
ADD
UP
+0
CHANNEL
TV/CATV
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
SELECT TV /CATV
2
ADD
UP
+0
CATV
CHANNEL
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
TV/CATV
CHOOSE CHANNEL
SELECT CHANNEL NO.
YOU WANT TO ADD /
ERASE.
7
CATV
ADD
UP
+0
CHANNEL
TV/CATV
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
7
CATV
UP
+0
ADD
CHANNEL
TV/CATV
MANUAL
FINE
AUTO MEMORY
ADD/ERASE
CHOOSE ADD/ERASE
7
CATV
UP
+0
ERASE
CHANNEL
TV/CATV
MANUAL
FINE
AUTO MEMORY
ADD/ERASE
CHANGE THE STATUS
ADD / ERASE
5.6 PICTURE ADJUSTMENT
DISPLAY MAIN MENU ENTER PICTURE
MENU ENTRY
SELECT THE ITEM
YOU WANT TO
ADJUST
PRESS VOLUME UP/DOWN BUTTON TO ADJUST THE SETTING
COLOR
BRIGHTNESS
CONTRAST
TINT
BLUE BACK
SHARPNESS
50
50
50
0
ON
50
COLOR
BRIGHTNESS
CONTRAST
TINT
BLUE BACK
SHARPNESS
50
50
50
0
ON
69
PIC. SET TUN.
PIC. SET TUN.PIC. SET TUN. PIC. SET TUN.
PIC. SET TUN.PIC. SET TUN.
COLOR
BRIGHTNESS
CONTRAST
SHARPNESS
TINT
BLUE BACK
50
50
50
50
0
ON
PIC. SET TUN.
COLOR
BRIGHTNESS
CONTRAST
SHARPNESS
TINT
BLUE BACK
50
50
50
50
0
ON
PIC. SET TUN.
PIC. SET TUN.PIC. SET TUN.
PIC. SET TUN.
50
50
50
50
0
ON
COLOR
BRIGHTNESS
CONTRAST
SHARPNESS
TINT
BLUE BACK
(X2)
PIC. SET TUN.
2
TV
ADD
UP
+0
CHANNEL
TV/CATV
ADD/ERASE
MANUAL
FINE
AUTO MEMORY
1
SETTINGS AND ADJUSTMENTS 5.5/5.6
19
JCTV2110
5.5 ADD/ERASE FUNCTION
This television is equipped with a channel memory feature which allows channels to be skipped
to or over. The wanted and unwanted channels must be programmed into the television s memory.
To do this, follow the direction below.
NOTE:
Adjust the level of COLOR, BRIGHTNESS, SHARPNESS and TINT to get the most
favourable picture.
COLOR : Thesaturation of colour, i.e. thestronger or weakercolour of picture.
BRIGHTNESS : Adjust for picture background level, i.e. the total brightness of picture.
CONTRAST : Adjust for black to white ratio of the picture.
SHARPNESS : Adjust for details level of picture.
TINT : Adjust for colour tone when watching NTSC picture.
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
V
V
C
C
