Citizen LT1960 User manual

1
CONTENTS
CONTENTS.......................................................................................................................................1
Safety Instructions..............................................................................................................................2
Important Safety Instructions:............................................................................................................2
1. INTRODUCTION .........................................................................................................................5
Product Description....................................................................................................................5
Product Features.........................................................................................................................5
Package Contents.......................................................................................................................6
2. SYSTEM SETUP...........................................................................................................................7
Top Panel & Remote Control Function......................................................................................7
Remote Control Buttons.............................................................................................................8
Remote Control Battery Installation / Removal.........................................................................8
Remote control operating instruction.........................................................................................9
Input/Output Signal Connections...............................................................................................9
Connecting TV Cable and earphone................................................................................10
Connecting to AV-terminal equipment.............................................................................10

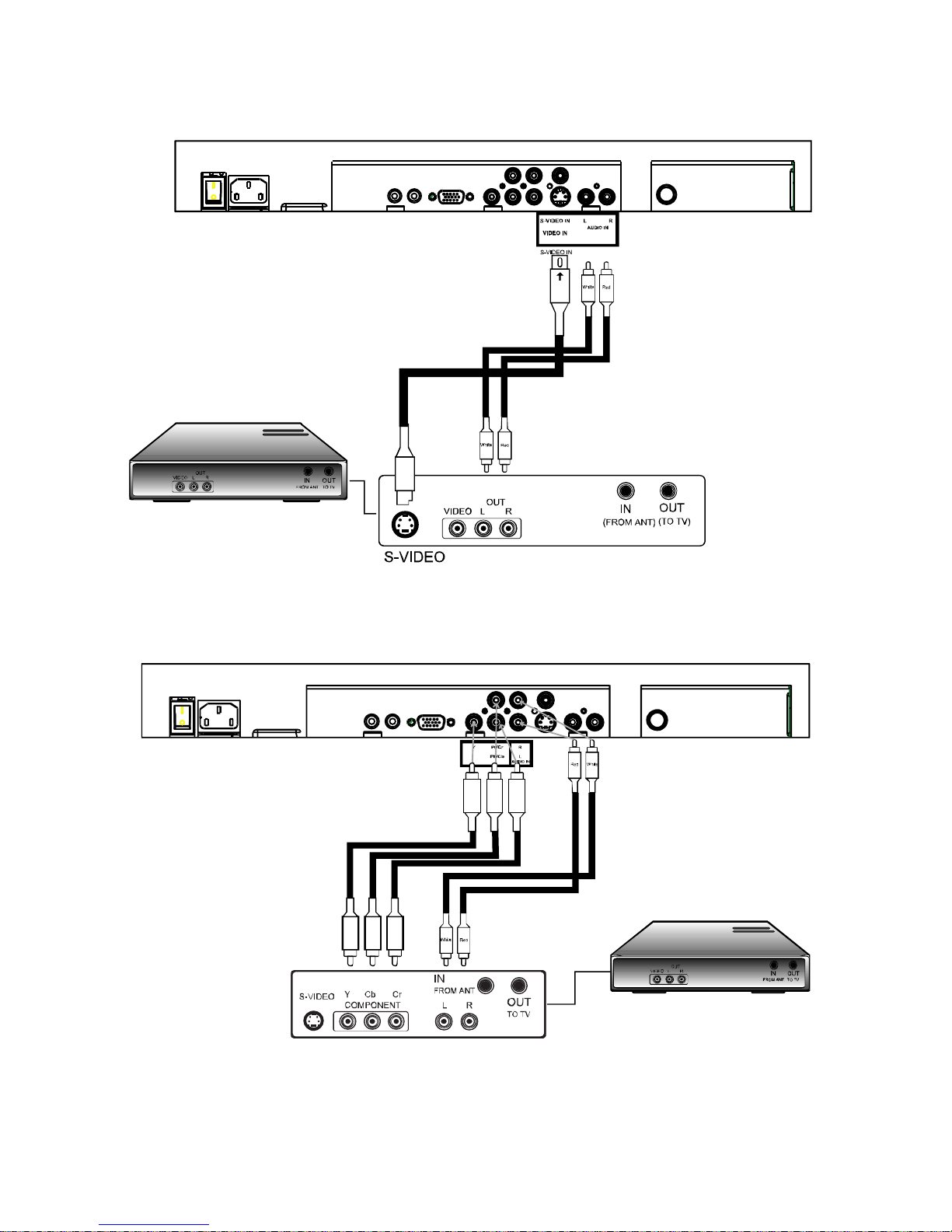

Connecting to S-Video terminal equipment.....................................................................11
Connecting to YCbCr/YPbPr terminal equipment...........................................................11
Connecting to 15-PIN VGAfrom a PC............................................................................12
3. ON SCREEN DISPLAY OPERATING INSTRUCTIONS.........................................................12
TV and AV Operating Instructions...........................................................................................12
Using the LCD as a Computer Monitor...................................................................................22
4. REFERENCE...............................................................................................................................25
About VChip Control...............................................................................................................25
MPAA option ...........................................................................................................................26
PC Display Modes ...................................................................................................................26
Cleaning LCD Monitor............................................................................................................26
Troubleshooting .......................................................................................................................27
5. APPENDIX..................................................................................................................................28
Specifications:..........................................................................................................................28
6. WARRANTY...............................................................................................................................29

Safety Instructions
The Lightning flash with the arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of un-insulated "DANGEROUS
VOLTAGE " within the product's enclosure that may be of sufficient
magnitude to constitute a risk or electric shock to persons.
The Exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing
instructions in the literature accompanying the product).
Important Safety Instructions:
Read Instructions - All the safety and operating instructions should be read before the
product is operated.
Retain Instructions - The safety and operating instructions should be retained for future
references.
Heed Warnings - All Warnings on the product and in the operation instructions should be
adhered to.
Follow Instructions - All Operating and user instructions should be followed.
Cleaning - Unplug this product from the wall outlet before cleaning. DO NOT use liquid
cleaners or aerosol cleaners. Use damp Cloth for cleaning.
Attachments - DO NOT use attachments not recommended by the product manufacturer
they may cause hazards.
Keep Away From Heated Areas – Do not place the LCD TV near heat; for example, near
a radiator, stove, or other heating device.
Water - DO NOT use this product near water. For example: Avoid placing it near bathtub,
washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.
2
Cabinet Slots - NEVER push objects or any kind into the unit through the cabinet slots as
they may touch dangerous voltage points or short out parts that could result in a fire or
electric shock. NEVER spill liquid of any kind on the product.

3
Important Safety Instructions Continued
Ventilation - DO NOT block any ventilation openings. Install in accordance with
manufacture's instructions. Slots and openings in the cabinet and the back and bottom are
provided for ventilation, and to ensure reliable operation of the product and to protect it
from Overheating. These openings must NOT be blocked or covered. There should be at
least 10cm of space from these openings. The openings should never be blocked by
placing the unit on a bed, rug or other similar surface.
This product should NOT be placed in a built-in installation such as a bookcase unless
proper ventilation is provided.
Grounding or Polarization - This product may be equipped with a polarized alternating
current line plug (a plug having one blade wider then the other). This plug will fit the power
outlet only one way. This is a safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to
replace your obsolete outlet.
DO NOT defeat the safety purpose of the polarized plug.
Power Cord Protection - Power supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against them. Pay particular attention
to cords at plugs, convenience receptacles, and the point where they exit from the product.
Power Sources - This product should be operated only from the type of power source
indicated on. the rear panel. If you are not sure of the type of power supply to your home
consult your product dealer or local power company.
Lightning - For added protection for this product during a lightning storm, or when it is left
unattended and unused for a long period of time, unplug it from the outlet and disconnect
the antenna or cable system. This will prevent damage to the product due to lightning and
power-line surges.
Power Lines - An outside antenna system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or where it can fall into such
power lines or circuits.
When installing an outside antenna system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them might be fatal.
Overload - DO NOT overload wall outlets, extension cords or integral convenience
receptacles as this can result in a risk of fire or electric shock.

4
Important Safety Instructions Continued
Damages Requiring Service - Unplug this product from the wall outlet and refer servicing
to qualified service personnel under the following conditions :
1.When the power-supply cord or plug is damaged.
2.If liquid has been spilled, or objects have fallen into the product.
3.If the product has been exposed to rain or water.
4.If the product does not operate normally after following the operating instructions.
Adjust only those controls that are covered by the operating instructions as an improper
adjustment of other controls may result in damage and will often require extensive work
by a qualified technician to restore the product to its normal operation.
5.If the product has been dropped or damaged in any way.
6.When the product exhibits a distinct change in performance - this indicates a need for
service.
Replacement parts - When replacement parts are required, be sure the service
technician has used replacement parts specified by the manufacturer or have the same
characteristics as the original part.
UNAUTHORIZED substitution may result in fire, electric shock or other hazards.
Safety Check - Upon completion of any service or repair to this product, ask the service
technician to perform safety checks to determine that the product is in proper operating
condition.
Heat - The Product should be situated away from heat source such as radiators, heat
registers, stoves or other products (including amplifiers) that produce heat.
Mounting - DO NOT place this product on an unstable cart, stand, tripod, bracket, or
table.
The product may fall, causing serious injury to a child or adult, and serious damage to the
product. Use only with a cart, stand, tripod, bracket, or table recommended by the
manufacturer or sold with the product. Any mounting of this product should follow the
manufacture's instructions, and should use a mounting accessory recommended by the
manufacturer.
Operate - Do not apply excessive force to operate the switch, control key and connector.
Disconnect the power plug from the AC outlet before you move the unit.
Screen care - Do not touch the screen directly with your fingers. You may damage the
screen, oil from your skin is difficult to remove.
Do not apply pressure to screen. The LCD is very delicate.
Installation - Please install the LCD in a cool, dry and clean area, avoid heat, or excessive
vibration, dust, humidity, extreme cold and magnetic devices.
Recycling - This product utilizes tin-lead solder, and has a fluorescent lamp containing a
small amount of mercury. Disposal of these materials may be regulated in your community
due to environmental considerations. For disposal or recycling information please contact
you local authorities, or the Electronics Industries Alliance: http://www.eiae.org/

5
1. INTRODUCTION
Product Description
Thank you for choosing the LCD Color TV/Monitor and for your continued support and use
of our products.
The LCD combines the features of a TV/MONITOR with a THIN FILM TRANSISTOR liquid
crystal display (TFT-LCD).This new generation of TFT-LCD incorporates a high quality
display in a lightweight module.
As such the unit has power-saving capabilities and emits no X-ray radiation. There are
many benefits from this TFT-LCD namely comfort, safety, and environmental protection.
The LCD features a color-active matrix, Thin-Film-Transistor (TFT) Liquid Crystal Display
(LCD) to provide superior display performance. A maximum resolution of 1280×1024
SXGA for displaying complex graphics and high definition images. Other outstanding
features include freedom from video oscillations and selection of various choices of digital
video and audio signal inputs.
You will get the feeling that the large-sized surface of operation with the high-quality stereo
speakers and remote high-level amplifiers connections, provides a coherent,
top-of-the-line Audio and Video systems for viewing pleasure. In addition the TFT-LCD
display allows On Screen Display (OSD) functions that can operate from the convenience
of a remote control.
Product Features
●Wide viewing angel: Horizontal 160°/Vertical 160°(CR>=10)
●High brightness (250 nits, Typ)
●High contrast ratio (800:1, Typ)
●Fast response time 20 ms (Typ)
● SXGA (1280x1024 pixels) resolution
● 16.7 millions colors
●Auto-tune image optimization for VGA
●2D De-interlace function
●Support YCbCr/YPbPr up to 1080i, 720P.
●Easy access top keypad controls (Menu, Volume up/down, CH up/down, Power)
●Built-in audio amplifier (2W×2)
●Bundled 2W(max) x 2 stereo speaker
●Wall-mountable design.

Package Contents
Please check the LCD TV package to make sure it contains the following items:
Power cord
User manual
AAA size x 2
Batteries (for remote control) Remote Control
6

2. SYSTEM SETUP
Top Panel & Remote Control Function
7 8
1 2 3 4 5 6
1. VOL - Decrease Volume / Left navigation key
2. MENU
a. ENTER –Confirm Function
b. MENU –Display Main Menu
3. VOL + Increase volume / Right navigation key
4. Power Power standby on or off
5. CH - Decrease TV channel / Down navigation key
6. CH + Increase TV channel/Up navigation key
7. IR IR sensor
8. LED Red－Stand by。
Green－On。
7

Remote Control Buttons
No Key name Description Remote Control Unit
1 MUTE Turn off volume
2 POWER Power standby on or off
3 NUMBER To select items
4 CH+ Increase TV channel/Up navigation key
5 VOL + Increase volume/Right navigation key
6 ENTER Confirm Function
7 TV/VIDEO Change maindisplay to TV, AV, SV, PC,
CVI
8 SLEEP Set timer to turn off the machine
(30/60/90/120/OFF min)
9 INFO To show Channel information and Input
signal’s source
10 CH- Decrease TV channel/Down navigation key
11 MENU Display Main Menu
12 VOL- Decrease Volume/ Left navigation key
13 MTS Select audio Sub/Stereo/Mono in TV mode
Remote Control Battery Installation / Removal
Change the batteries if the remote control doesn't operate.
8
KEYS

CAUTION !!
Avoid damaging the Remote Control by:
Applying excessive pressure when pressing buttons
Exposing to extreme Low or High temperatures
Exposing to excessive moisture
Remote control operating instruction
The remote control transmission consists of an infrared signal (IR)
Make sure the line-of-sight between remote control and LCD TV is clear of objects that
could interferes with the remote IR signal.
Always point the remote control directly to the LCD TV sensor.
Input/Output Signal Connections
1 POWER SWITCH
2 POWER AC INPUT
3 EARPHONE OUTPUT
4 PC AUDIO IN
5 PC VGA INPUT
6 YCbCr/ YPbPr INPUT
LEFT AUDIO INPUT FOR YCbCr/ YPbPr
7
RIGHT AUDIO INPUT FOR YCbCr/ YPbPr
8 VIDEO INPUT
9 S-VIDEO INPUT
LEFT AUDIO INPUT FOR AV AND S-VIDEO
10
RIGHT AUDIO INPUT FOR AV AND S-VIDEO
11 ANT. CABLE INPUT
9

Connecting TV Cable and earphone
Connecting to AV-terminal equipment
10

Connecting to S-Video terminal equipment
Connecting to YCbCr/YPbPr terminal equipment
11

Connecting to 15-PIN VGA from a PC
3. ON SCREEN DISPLAY OPERATING INSTRUCTIONS
TV and AV Operating Instructions
Press the Menu button to display the following Main Menu：
MAIN DISPLAY Operating Instructions
This session is used to Choose Input Source.
Level1 Level2 Level3 / Function
Main Menu Main Disp
Main Disp TV 1. TV - TV Input Signal
Image Setup AV 2. AV Input Signal
Audio Setup S－Video 3. S－VIDEO Input Signal
PC Setup PC 4. PC - Computer Input Signal
TV Setup CVI 5. CVI - Component Video Input Signal
Language
Press
【Enter】
Return 6. Return - Back to Main Menu
Recall
Quit
NOTE:
Use the ▲and ▼to move between the options,
Press the Menu button again to select.
12

13
Image Setup Operating Instructions – Brightness
This session is used to adjust brightness of screen picture.
Level1 Level2 Level3 / Function
Main Menu Image Setup
Main Disp Brightness
Image Setup Contrast
Audio Setup Sharpness
Press
【Enter】
50
It will show the progress bar
at screen foot.
PC Setup Tint
TV Setup Color
Use the eand fto adjust.
Press enter for return.
Language
Press
【Enter】
Return
Recall
Quit
NOTE:
Use the ▲and ▼to move between the options,
Press the Menu button again to select.
★All values on the gauge bar only for reference. For actual values please refer to factory defaults.
Image Setup Operating Instructions – Contrast
This session is used to adjust contrast of screen picture.
Level1 Level2 Level3 / Function
Main Menu Image Setup
Main Disp Brightness
Image Setup Contrast
Audio Setup Sharpness
Press
【Enter】
50
It will show the progress bar
at screen foot.
PC Setup Tint
TV Setup Color
Use the eand fto adjust.
Press enter for return.
Language
Press
【Enter】
Return
Recall
Quit
NOTE:
Use the ▲and ▼to move between the options,
Press the Menu button again to select.
★All values on the gauge bar only for reference. For actual values please refer to factory defaults.

14
Image Setup Operating Instructions – Sharpness
This session is used to adjust sharpness of screen picture.
Level1 Level2 Level3 / Function
Main Menu Image Setup
Main Disp Brightness
Image Setup Contrast
Audio Setup Sharpness
Press
【Enter】
1
It will show the progress bar
at screen foot.
PC Setup Tint
TV Setup Color
Use the eand fto adjust.
Press enter for return.
Language
Press
【Enter】
Return
Recall
Quit
NOTE:
Use the ▲and ▼to move between the options,
Press the Menu button again to select.
★All values on the gauge bar only for reference. For actual values please refer to factory defaults.
Image Setup Operating Instructions – Tint
This session is used to adjust TINT of screen picture.
Level1 Level2 Level3 / Function
Main Menu Image Setup
Main Disp Brightness
Image Setup Contrast
Audio Setup Sharpness
Press
【Enter】
0
It will show the progress bar
at screen foot.
PC Setup Tint
TV Setup Color
Use the eand fto adjust.
Press enter for return.
Language
Press
【Enter】
Return
Recall
Quit
NOTE:
Use the ▲and ▼to move between the options,
Press the Menu button again to select.
★All values on the gauge bar only for reference. For actual values please refer to factory defaults.

15
Image Setup Operating Instructions – Color
This session is used to adjust Color of screen picture.
Level1 Level2 Level3 / Function
Main Menu Image Setup
Main Disp Brightness
Image Setup Contrast
Audio Setup Sharpness
Press
【Enter】
50
It will show the progress bar
at screen foot.
PC Setup TINT
TV Setup Color
Use the eand fto adjust.
Press enter for return.
Language
Press
【Enter】
Return
Recall
Quit
NOTE:
Use the ▲and ▼to move between the options,
Press the Menu button again to select.
★All values on the gauge bar only for reference. For actual values please refer to factory defaults.
AUDIO Operating Instructions – Treble
This session is used to adjust Treble of audio.
Level1 Level2 Level3 / Function
Main Menu Audio Setup
Main Disp Treble
Image Setup Bass
Audio Setup Balance
Press
【Enter】
3
It will show the progress bar
at screen foot.
PC Setup Return
TV Setup
Use the eand fto adjust.
Press enter for return.
Language
Press
【Enter】
Recall
Quit
NOTE:
Use the ▲and ▼to move between the options,
Press the Menu button again to select.
★All values on the gauge bar only for reference. For actual values please refer to factory defaults.

16
AUDIO Operating Instructions – Bass
This session is used to adjust Bass of audio.
Level1 Level2 Level3 / Function
Main Menu Audio Setup
Main Disp Treble
Image Setup Bass
Audio Setup Balance
Press
【Enter】
1
It will show the progress bar
at screen foot.
PC Setup Return
TV Setup
Use the eand fto adjust.
Press enter for return.
Language
Press
【Enter】
Recall
Quit
NOTE:
Use the ▲and ▼to move between the options,
Press the Menu button again to select.
★All values on the gauge bar only for reference. For actual values please refer to factory defaults.
AUDIO Operating Instructions – Balance
This session is used to adjust Balance of audio.
Level1 Level2 Level3 / Function
Main Menu Audio Setup
Main Disp Treble
Image Setup Bass
Audio Setup Balance
Press
【Enter】
0
It will show the progress bar
at screen foot.
PC Setup Return
TV Setup
Use the eand fto adjust.
Press enter for return.
Language
Press
【Enter】
Recall
Quit
NOTE:
Use the ▲and ▼to move between the options,
Press the Menu button again to select.
★All values on the gauge bar only for reference. For actual values please refer to factory defaults.

17
TV Setup Operating Instructions – AIR CATV
This session is used to select TV source.
Level1 Level2 Level3 / Function
Main Menu TV Setup
Main Disp AIR CATV
Image Setup Auto Program
Audio Setup Add Erase CH
Press
【Enter】
AIRTV CATV
It will show 2 options at
screen foot.
PC Setup Close Caption
TV Setup VChip Control
Use the eand fto select.
Press enter for confirm.
Language System Setup
P. S : AIRTV means Antenna.
Recall
Press
【Enter】
Return CATV means Cable TV.
Quit
NOTE:
Use the ▲and ▼to move between the options,
Press the Menu button again to select.
TV Setup Operating Instructions – Auto Program
This session is used to scan TV channel and memory.
Level1 Level2 Level3 / Function
Main Menu TV Setup
Main Disp AIR CATV
Image Setup Auto Program
Audio Setup Add Erase CH
Press
【Enter】
No Yes
It will show 2 options at screen
foot..
PC Setup Close Caption
TV Setup VChip Control
Use the eand fto select.
Press enter for confirm.
Language System Setup
P. S : “No” means return.
Recall
Press
【Enter】
Return “Yes” means scan and memory.
Quit
NOTE:
Use the ▲and ▼to move between the options,
Press the Menu button again to select.

18
TV Setup Operating Instructions – Add Erase CH
This session is used to erase TV channel.
Level1 Level2 Level3 / Function
Main Menu TV Setup
Main Disp AIR CATV
Image Setup Auto Program
Audio Setup Add Erase CH
Press
【Enter】
Add Erase Exit.
It will show 3 options at
screen foot.
PC Setup Close Caption
TV Setup VChip Control
Use the eand fto select.
Press enter for confirm.
Language System Setup
Recall
Press
【Enter】
Return
Quit
NOTE:
Use the ▲and ▼to move between the options,
Press the Menu button again to select.
TV Setup Operating Instructions – Close Caption
This session is used to select close caption option.
Level1 Level2 Level3 / Function
Main Menu TV Setup
Main Disp AIR CATV
Image Setup Program
Audio Setup Add Erase CH
PC Setup Close Caption
TV Setup VChip Control
Language System Setup
Recall
Press
【Enter】
Return
Press
【Enter】
Quit P. S :
It will show 1 option only at
screen foot. But you can
change setting between
flowing options.
Off→CC1→CC2→CC3→CC4→
TT1→TT2→TT3→TT4
Press enter to select.
NOTE:
Use the ▲and ▼to move between the options,
Press the Menu button again to select.

19
TV Setup Operating Instructions – VChip Control
This session is used to set VChip Control option.
Level1 Level2 Level3 / Function
Main Menu TV Setup VChip Control
Main Disp AIR CATV Set password
Image Setup Program VChip Lock
Audio Setup Add Erase CH
Press
【Enter】
Class Option
PC Setup Close Caption MPAA Option
TV Setup VChip Control Return
Language System Setup
Recall
Press
【Enter】
Return
Quit
NOTE:
Use the ▲and ▼to move between the options,
Press the Menu button again to select.
When you select this option, system will
request password for entry.( default code
is 3308) - Above function will explain at
flowing session.
TV Setup Operating Instructions – VChip Control – Set password
This session is used to re-set VChip Control password.
Level3 Level4 / Function
VChip Control
Set password SET PASSWORD
VChip Lock - - - -
Class Option
Press
【Enter】
MPAA Option
Re-set password - Input the
four digits Parent Control
Password and Confirm using
the Enter Button.
Return
NOTE:
Use the ▲and ▼to move between the options,
Press the Menu button again to select.
TV Setup Operating Instructions – VChip Control – VChip Lock
This session is used to set VChip Control on or off.
Level3 Level4 / Function
VChip Control
Set password
VChip Lock
Class Option
Press
【Enter】
Off On
It will show 2 options at screen
foot..
MPAA Option
Return
Use the eand fto select. Press
enter for confirm.
NOTE:
Use the ▲and ▼to move between the options, Press the Menu button again to select.
