Citizen Eco-Drive E16 Series User manual

CAUTION Repairs
Model No.BN0＊
Cal.E16＊
CTZ-B8088 ⑦
CTZ-B8088 Cal.E16
＊INSTRUCTION MANUAL
All repairs performed on this watch, with the exception of repair of the band, are to beperformed at CITIZEN.
This is because special technologies and equipment are required to perform repairs, inspections and
adjustments. Please make requests for repairs to Citizen Service Center when having your watch repaired.
ATTENTION Réparations
Toute réparation de cette montre, à l’exception de celle du bracelet, doit être effectuée par CITIZEN. Des
technologies et un équipement spéciaux sont nécessaires pour effectuer les réparations, les contrôles et les
réglages. Consultez le service après-vente CITIZEN le plus proche pour toute réparation.
Todos os consertos realizados neste relógio, com a exceção do conserto da pulseira, devem ser realizados na
CITIZEN. A razão para isso é que tecnologias e equipamentos especiais são necessários para realizar os
consertos, inspeções e ajustes. Solicite os consertos a um centro de serviço da Citizen.
Todas las reparaciones en este reloj, con la excepción de la reparación de la correa, son realizados en CITIZEN.
Esto es debido a que se requieren de tecnologías y equipo especiales para realizar las reparaciones, inspecciones y
ajustes. Realice las solicitudes para las reparaciones al Centro de Servicio Citizen cuando haga reparar su reloj.
VORSICHT Reparaturen
Alle Reparaturen an dieser Armbanduhr, mit Ausnahme der Reparatur des Bandes, sind von CITIZEN
auszuführen. Der Grund dafür ist, dass spezielle Technologien und Ausrüstungen für die Ausführung der
Reparaturen, Inspektionen und Einstellungen erforderlich sind. Bitte wenden Sie sich für Reparaturen an den
nächsten CITIZEN-Kundendienst, falls Reparaturen an Ihrer Armbanduhr erforderlich werden sollten.
PRECAUCIÓN
Reparaciones
PRECAUÇÕES Consertos
Tutte le riparazioni da eseguirsi su questo orologio, eccetto la riparazione del cinturino, devono essere
eseguite dalla CITIZEN. Questo a motivo che, per eseguire riparazioni, ispezioni e regolazioni, si richiedono
speciali tecnologie ed apparecchiature. Quando dovete riparare il vostro orologio, si prega di effettuarne
richiesta al Centro di assistenza Citizen.
ATTENZIONE Riparazioni
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
PORTUGUÊS
中文（繁体字）
B8088-7

CAUTION Repairs
Model No.BN0＊
Cal.E16＊
CTZ-B8088 ⑦
CTZ-B8088 Cal.E16
＊INSTRUCTION MANUAL
All repairs performed on this watch, with the exception of repair of the band, are to beperformed at CITIZEN.
This is because special technologies and equipment are required to perform repairs, inspections and
adjustments. Please make requests for repairs to Citizen Service Center when having your watch repaired.
ATTENTION Réparations
Toute réparation de cette montre, à l’exception de celle du bracelet, doit être effectuée par CITIZEN. Des
technologies et un équipement spéciaux sont nécessaires pour effectuer les réparations, les contrôles et les
réglages. Consultez le service après-vente CITIZEN le plus proche pour toute réparation.
Todos os consertos realizados neste relógio, com a exceção do conserto da pulseira, devem ser realizados na
CITIZEN. A razão para isso é que tecnologias e equipamentos especiais são necessários para realizar os
consertos, inspeções e ajustes. Solicite os consertos a um centro de serviço da Citizen.
Todas las reparaciones en este reloj, con la excepción de la reparación de la correa, son realizados en CITIZEN.
Esto es debido a que se requieren de tecnologías y equipo especiales para realizar las reparaciones, inspecciones y
ajustes. Realice las solicitudes para las reparaciones al Centro de Servicio Citizen cuando haga reparar su reloj.
VORSICHT Reparaturen
Alle Reparaturen an dieser Armbanduhr, mit Ausnahme der Reparatur des Bandes, sind von CITIZEN
auszuführen. Der Grund dafür ist, dass spezielle Technologien und Ausrüstungen für die Ausführung der
Reparaturen, Inspektionen und Einstellungen erforderlich sind. Bitte wenden Sie sich für Reparaturen an den
nächsten CITIZEN-Kundendienst, falls Reparaturen an Ihrer Armbanduhr erforderlich werden sollten.
PRECAUCIÓN
Reparaciones
PRECAUÇÕES Consertos
Tutte le riparazioni da eseguirsi su questo orologio, eccetto la riparazione del cinturino, devono essere
eseguite dalla CITIZEN. Questo a motivo che, per eseguire riparazioni, ispezioni e regolazioni, si richiedono
speciali tecnologie ed apparecchiature. Quando dovete riparare il vostro orologio, si prega di effettuarne
richiesta al Centro di assistenza Citizen.
ATTENZIONE Riparazioni
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
PORTUGUÊS
中文（繁体字）
B8088-7

CAUTION Repairs
Model No.BN0＊
Cal.E16＊
CTZ-B8088 ⑦
CTZ-B8088 Cal.E16
＊INSTRUCTION MANUAL
All repairs performed on this watch, with the exception of repair of the band, are to beperformed at CITIZEN.
This is because special technologies and equipment are required to perform repairs, inspections and
adjustments. Please make requests for repairs to Citizen Service Center when having your watch repaired.
ATTENTION Réparations
Toute réparation de cette montre, à l’exception de celle du bracelet, doit être effectuée par CITIZEN. Des
technologies et un équipement spéciaux sont nécessaires pour effectuer les réparations, les contrôles et les
réglages. Consultez le service après-vente CITIZEN le plus proche pour toute réparation.
Todos os consertos realizados neste relógio, com a exceção do conserto da pulseira, devem ser realizados na
CITIZEN. A razão para isso é que tecnologias e equipamentos especiais são necessários para realizar os
consertos, inspeções e ajustes. Solicite os consertos a um centro de serviço da Citizen.
Todas las reparaciones en este reloj, con la excepción de la reparación de la correa, son realizados en CITIZEN.
Esto es debido a que se requieren de tecnologías y equipo especiales para realizar las reparaciones, inspecciones y
ajustes. Realice las solicitudes para las reparaciones al Centro de Servicio Citizen cuando haga reparar su reloj.
VORSICHT Reparaturen
Alle Reparaturen an dieser Armbanduhr, mit Ausnahme der Reparatur des Bandes, sind von CITIZEN
auszuführen. Der Grund dafür ist, dass spezielle Technologien und Ausrüstungen für die Ausführung der
Reparaturen, Inspektionen und Einstellungen erforderlich sind. Bitte wenden Sie sich für Reparaturen an den
nächsten CITIZEN-Kundendienst, falls Reparaturen an Ihrer Armbanduhr erforderlich werden sollten.
PRECAUCIÓN
Reparaciones
PRECAUÇÕES Consertos
Tutte le riparazioni da eseguirsi su questo orologio, eccetto la riparazione del cinturino, devono essere
eseguite dalla CITIZEN. Questo a motivo che, per eseguire riparazioni, ispezioni e regolazioni, si richiedono
speciali tecnologie ed apparecchiature. Quando dovete riparare il vostro orologio, si prega di effettuarne
richiesta al Centro di assistenza Citizen.
ATTENZIONE Riparazioni
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
PORTUGUÊS
中文（繁体字）
B8088-7

1
CONTENTS
A. BEFORE USING .........................................................................................2
B. SETTING THE TIME AND CALENDAR ......................................................3
C. FUNCTIONS OF SOLAR POWERED WATCH ...........................................6
Insufficient Charge Warning Function..........................................................7
Quick Start Function ....................................................................................7
Overcharge Prevention Function .................................................................7
D. CARE AND HANDLING DURING CHARGING ..........................................8
E. ABOUT THE RECHARGEABLE CELL ......................................................9
F. TIME REQUIRED FOR CHARGING.........................................................10
G. IN THESE CASES .....................................................................................12
H. DO NOT USING THIS WATCH WHILE DIVING WHEN.............................14
I. WHEN USING FOR DIVING .....................................................................15
J. USING THE ROTATING BEZEL................................................................18
K. PRECAUTIONS ........................................................................................20
L. SPECIFICATIONS.....................................................................................26

2
A. BEFORE USING
This watch is not powered by a conventional battery, but is powered by converting light
to electrical energy.
Once fully charged, the watch will continue to run for approximately 6 months without
additional charging. We do recommend exposing your watch to light every day to
ensure optimum performance. Always be sure to recharge the watch before it stops.
Your watch features an Overcharge Prevention Function so there is no need to worry
about overcharging your watch.
A special rechargeable cell is used to store electrical energy. This special cell does not
require replacement and is a clean energy unit that does not use any toxic substances.
Before using, be sure to fully charge your watch by exposing it to light.
(See “F. Time required for charging”, for charge time reference)

B. SETTING THE TIME AND CALENDAR

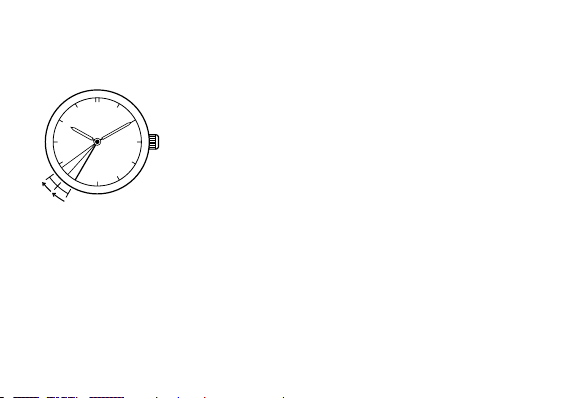

Time-setting position
Crown
Solar cell
Normal position
[1] Three-hand models without calendar display
* If your watch has a screw-type crown, lift up the crown to loosen it before operation.
Be sure to press the crown down firmly after operation.
■Setting the time
1. Stop the second hand by pulling out the crown.
2. Turn the crown to set the time.
3. After setting the time, firmly push the crown back into its normal position.
3

4
Time
setting
position
Time
setting
position
Calendar setting
position
Crown
Date
Solar cell
Normal position

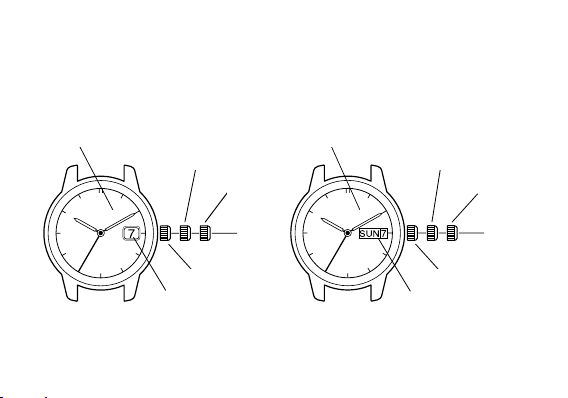

[2] Models with calendar (date and weekday) display
* If your watch has a screw-type crown, lift up the crown to loosen it before operation.
Be sure to press the crown down firmly after operation.
[Date display models] [Date, day of the week
display models]
Solar cell
Crown
Date, day of the week
Normal position
Calendar setting
position

5
■Setting the time
1. Stop the second hand by pulling the crown out to the 2nd click (time setting position).
2. Turn the crown to set the time.
3. The watch will start after the crown is firmly pushed back into its normal position.
■Setting the calendar
1. Pull the crown out to the 1st click (calendar setting position).
2. Set the desired date by turning the crown counterclockwise.
3. Set the desired day of the week by turning the crown clockwise.
• Inthecaseofdatedisplaymodels,turningthecrownclockwisewillresultintheloose
play of the crown.
4. After you have set the calendar, be sure to press the crown back to its normal position.
• Donotadjustthecalendarwhenthewatchisreadingasbelow.Otherwisethecalendar
may not change correctly.
*Datedisplaymodels.....between9:00pmand1:00am
*Date,dayoftheweekdisplaymodels.....between9:00pmand4:00am

6
C. FUNCTIONS OF SOLAR POWERED WATCH
If the charge becomes insufficient, a warning function will operate and the display
changes, as below.

7

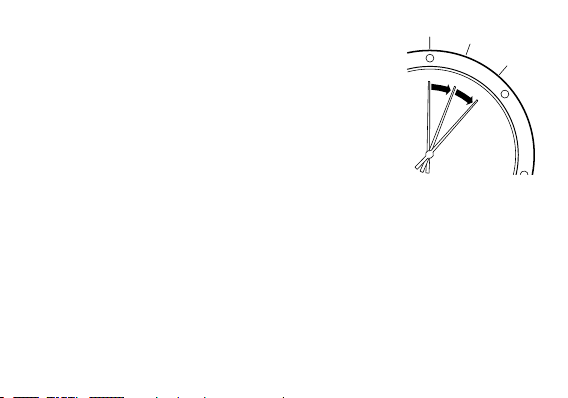

The second hand changes to a two second
interval movement to indicate insufficient recharging.
Even in such a case, the watch keeps correct time, but about 4
days after the two second interval movement begins, the
watch will stop.
After exposing the watch to light, recharging takes place and
the watch returns to one second interval movement.
Two second interval
movement
2 sec
2 sec
■Quick Start Function
The watch will stop if it is completely discharged.
It will begin to operate soon after it is exposed to light.
(However, the time to start may vary according to the brightness of the light.)
■Overcharge Prevention Function
You can recharge your watch without worry.
Once the special rechargeable cell is fully charged, the overcharge prevention function
comes into operation and prevents over-charging of the rechargeable cell.
■Insufficient Charge Warning Function

8
D. CARE AND HANDLING DURING CHARGING
■Notes on Use
To maintain optimal performance, be sure to expose your watch to light regularly.
Please note that if you wear long sleeves, your watch may be hidden from light and
may result in insufficient charging. As such, additional exposure to light may be
necessary.
• Whenyoutakeyourwatchoff,besuretoplaceitinasbrightanareaaspossible.
■Notes on recharging
• Avoidrechargingyourwatchinareasofhightemperatures(overabout60°C/
140°F),otherwisethesensitivecomponentsofthewatchmaybecomedamaged.
(e.g.) Incandescent lights generate heat sufficient to damage your watch. Be sure to
keepthewatchatleast50cm(20inches)awayfromthebulbsonodamage
occurs. We do not recommend the use of Halogen bulbs for recharging.
Never place your watch on the dashboard or rear deck of a vehicle as the heat
generated in these areas can damage your watch.

9
E. ABOUT THE RECHARGEABLE CELL
Unlike ordinary watches, the special rechargeable cell used in your watch does not
need regular replacement. This is a clean energy cell that will last the life of the
watch.
CAUTION:
The energy cell should last the life of the watch. Never allow anyone other than an
AuthorizedServiceCentertoreplacethiscell.Themovementisdesignedtooperate
with only the original rechargeable cell. If an alternate cell is installed, such as a
conventional battery, the battery may become overcharged resulting in damage to the
movementand/orburstingofthecell,whichcouldcauseinjurytotheuser.

10

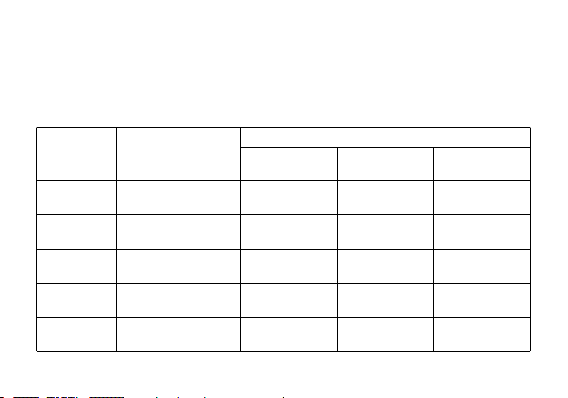

F. TIME REQUIRED FOR CHARGING
Time required for recharging may vary according to the design of the watch (color of
the dial, etc) and operating environment. The following table will serve as an
approximatereference:(Tableofrecharging)
Illuminance
(lx)
500
Environment
Inside an ordinary
office
Time required
From the stop state to the
one second movement
50 hours
One day
usage
4 hours
Empty to full
-------
1000
60-70cm (24-28in.) under
a fluorescent light (30W)
25 hours 2 hours -------
3000
20cm (8in.) under a
fluorescent light (30W)
7 hours 40 minutes 120 hours
10000 Exterior, cloudy 2 hours 11 minutes 35 hours
100000 Exterior, summer,
sunny 17 minutes 2 minutes 11 hours

11
* The recharging time is the time the watch is continuously exposed to direct light.
Full recharging time. . . . Time required to fully charge when the watch has completely
stopped.
One day usage . . . . . . . . Time required to charge the watch sufficient for one-day use
with one-second interval operation.
(Empty to full)
CAUTION:
When recharging the watch after it is completely in the stop state, be sure to pull out the
crown to the time setting position.
After recharging, set the time and push the crown firmly back into its normal position.

12
G. IN THESE CASES
[If the watch warns that the energy is running short]
The second hand starts moving at two second intervals in
order to warn that the watch will stop functioning after about
1 week. (Insufficient Charge Warning Function)
In such a case, expose your watch to light for a while to
cancel the warning. (The second hand returns to moving at
one second intervals when the energy is recharged.)
If the watch is left short of energy, it will stop functioning
after 4 days or so.
Two second
interval movement

13
[If the watch warns you to set the time.]
When the watch that has stopped is exposed to light, the
second hand starts two second interval movement (Quick
Start Function). The time elapsed before the second hand
starts moving depends on the illuminance of the light.
Even so, the second hand continues the two second interval
movement to tell you that the watch indicates an incorrect
time because it had stopped.
In such a case, set the hands to the correct time.
* If the watch is insufficiently exposed to light, the second
hand will soon switch to moving at two second intervals in
order to warn that the energy is running short.
Two second
interval movement

14
H. DO NOT USING THIS WATCH WHILE
DIVING WHEN...
PROHIBITED
Donotuseyourwatchwhiledivingwhenthefollowingoccur.
•Theinsufficientrechargingwarningfeatureisactivated.Asthebatteryapproachesthe
end of its life, the second hand begins to move in 2 second increments. (When this
happens, expose the watch to light so that it recharges and the second hand returns to
normal movement. )
•Thewatchstopsorexhibitsanyabnormaloperation.

15
I. WHEN USING FOR DIVING
Precautions when Using during Diving:
* When using a diver's watch, please make sure that you have received the
proper education and training for various types of diving, and observe all
rules.
* Please make sure to use the watch properly based on a thorough
understanding of watch handling and precautions. Please note that
failure to operate the watch in a manner not described in the user's
manual may prevent the watch from functioning properly.

16
<Before Diving>
* Please make sure that the crown is pushed in firmly and the screw is securely
tightened.
* Please check that the band is securely attached to the watch.
* Please confirm that there are no cracks, scratches, chips or other abnormalities in
the band and glass.
* Please check that the rotating bezel rotates properly.
* Please check that the time and date are set correctly.
* Please check that the second hand is moving properly.
If the second hand is moving at two-second intervals, this means that the watch is
not sufficiently charged. Sufficiently charge the watch when this occurs.
<During Diving>
* Never attempt to turn or pull out the crown underwater. This can cause defective
water resistance or other malfunction.
*Becarefultoavoidbumpingyourwatchonhardobjectssuchasdivingequipment
or rocks.

17
<After Diving>
*Completelywashoffanyseawater,mudorsandadheredtothewatchwithpure
water after checking that the crown and screw are tightened. Wipe off any excess
moisture with a dry cloth.
