CKD M4G Series User manual

SM-P00121-A
Instruction Manual
Manifold
M4G Series
MN4G Series
Serial Transmission Type
N4G*R-T8D**
(4GR-OPP7-*D-*)
【
Compatible with DeviceNet
】
●
Please read this instruction manual
thoroughly before using the product.
●
In particular, carefully read the contents
related to safety.
●
Retain this instruction manual with the
product for further consultation whenever
necessary.
CKD Corporation

[SM-P00121-A]
―
1
―
Safety precautions
When designing and manufacturing devices using CKD products, the manufacturer is obligated
to ensure that the safety of the mechanism, pneumatic control circuit and/or fluid control circuit
and the system that runs the electrical controls are secured.
It is important to select, use, handle and maintain CKD products appropriately to ensure their
safe usage.
Observe warnings and precautions to ensure device safety. Check that device safety is ensured,
and manufacture a safe device.
1. This product is designed and manufactured as a general industrial
machine part. It must be handled by an operator having sufficient
knowledge and experience.
2. Use this product in accordance with specifications.
This product must be used within its stated specifications. In addition, never modify or
additionally machine this product. This product is intended for use in general industrial
machinery, equipment or parts. It is not intended for use outdoors (except for products
with outdoor specifications) or for use under the following conditions or environments.
(Note that this product can be used when CKD is consulted prior to its usage and the
customer consents to CKD product specifications. The customer should provide safety
measures to avoid dangers in the event of problems.)
Not intended for following applications:
(1) Use for applications requiring safety, including nuclear energy, railways, aircraft, marine vessels, vehicles,
medical devices, devices or applications in contact with beverages or foodstuffs, amusement devices,
emergency cutoff circuits, press machines, brake circuits, or safety devices or applications.
(2) Use for applications where life or assets could be significantly affected, and special safety measures are
required.
3. Observe organization standards and regulations, etc., related to the safety
of the device design and control, etc.
ISO4414, JIS B 8370 (General rules for pneumatic systems)
JFPS2008 (Principles for pneumatic cylinder selection and use)
Including the High Pressure Gas Safety Act, Industrial Safety and Health Act, other
safety rules, organization standards and regulations, etc.
4. Do not handle, pipe, or remove devices before confirming safety.
(1) Inspect and service the machine and devices after confirming safety of the entire
system related to this product.
(2) Note that there may be hot or charged sections even after operation is stopped.
(3) When inspecting or servicing the device, turn OFF the energy source (air supply or
fluid supply), and turn OFF power to the facility. Discharge any compressed air from
the system, and pay enough attention to possible water leakage and leakage of
electricity.
(4) When starting or restarting a machine or device that incorporates pneumatic
components, make sure to secure system safety, such as pop-out prevention
measures.
5. Observe the warnings and cautions on the following pages to prevent
accidents.
Warning

[SM-P00121-A]
−
2
−
■
Precautions are ranked as “DANGER”, “WARNING”, and “CAUTION” in
this section.
In the case where the product operation is mishandled and/or
when the urgency of a dangerous situation is high, it may lead
to fatalities or serious injuries.
A dangerous situation may occur if handling is mistaken,
leading to fatal or serious injuries
.
A dangerous situation may occur if handling is mistaken,
leading to minor injuries or property damage.
Note that some items indicated with “CAUTION” may lead to serious results depending
on the conditions.
All items contain important information and must be observed.
Limited warranty and disclaimer
Warranty period
This warranty is valid for one (1) year after delivery to the customer’s designated site.
Scope of warranty
In case any defect clearly attributable to CKD is found during the warranty period, CKD
shall, at its own discretion, repair the defect or replace the relevant product in whole or
in part and at no cost, according to its own judgment.
Note that the following failures are excluded from the warranty scope:
(1) Failures due to use outside the conditions and environments set forth in the catalog
or these specifications.
(2) Failures resulting from factors other than this product
(3) Failures caused by improper use of the product.
(4) Failures resulting from modifications or repairs made without CKD consent.
(5) Failures caused by matters that could not be predicted with the technologies in
practice when the product was delivered.
(6)Failures resulting from natural disasters or accidents for which CKD is not liable.
The warranty covers the actual delivered product, as a single unit, and does not
cover any damages resulting from losses induced by malfunctions in the delivered
product.
Compatibility check
The customer is responsible for confirming the compatibility of CKD products with the
customer’s systems, machines and equipment.
WARNING:
CAUTION:
DANGER:

[SM-P00121-A]
―
3
―
If the product must be used under conditions that are different from the specified
conditions or if the product is to be used for a special application, consult CKD
before utilizing the product.
Before performing maintenance, turn off the power, cut off the compressed air
supply, and make sure there is no residual pressure.
Before increasing or decreasing the number of stations (valves) on the manifold,
turn off the power and release pressure.
Before disassembling or assembling the manifold, read this instruction manual
carefully with full understanding of its content.
Before performing electrical wiring, read this instruction manual carefully with full
understanding of its content.
Regularly perform daily and periodic inspections to correctly maintain product
performance.
Confirm the working voltage and polarity before wiring and turning the power ON.
Do not touch the electrical wiring connections (exposed live parts); as there is a risk
of electric shock. During wiring, keep the power OFF. Also, do not touch these live
parts with wet hands.
Before using the serial transmission slave unit, read the manual for the applicable
communication system carefully with full understanding of its content.
System components such as valves and cylinders could malfunction if the serial
transmission slave unit address setting is incorrect. Always check the address
setting before starting use.
This product does not meet the surge immunity requirements specified in
EN61000-4-5 for CE marking. Please provide appropriate protective measures on
the device side.
The valve status lamp may flicker momentarily when the valve power of the slave
unit turns ON (i.e., when the power voltage starts to rise). This will not cause the
valve itself to turn ON or OFF.
CAUTION:
WARNING:

[SM-P00121-A]
−
4
−
TABLE OF CONTENTS
N4G*R-T8D**
Serial Transmission Type
Instruction Manual No. SM-P00121-A
1. PRODUCT  5
1.1 General outline of the system  5
1.2 Network structure  6
1.3 Specifications 7
1.4 Parts of slave unit  9
1.5 Switches and LED indicators 10
2. PRECAUTIONS 12
3. OPERATION 13
3.1 Switch settings  13
3.2 Settings by Explicit Message  14
3.3
Correspondence between the slave unit output No. and PLC memory address No.  15
3.4 Programming 18
3.5 Device profile 19
3.6 Network configuration with EDS (Electronic Data Sheet) file 23
4. INSTALLATION  24
4.1 Connecting and wiring to the network connector socket  25
4.2 Connecting and wiring to the valve power socket  27
5. MAINTENANCE  29
5.1 Removing the slave unit  29
5.2 Mounting the slave unit  29
5.3 Troubleshooting 31
5.4 Maintenance of the device  32
6. APPENDIX (EDS FILE)  33
6.1 OPP7-1D
（
T8D1
）
 33
6.2 OPP7-2D
（
T8D2
）
 34
6.3 OPP7-1D-P
（
T8DP1
）
 35
6.4 OPP7-2D-P
（
T8DP2
）
 36

[SM-P00121-A]
―
5
―
1
PRODUCT
1. PRODUCT
1.1 General outline of the system
1) N4G*R-T8D**
The N4G*R-T8D** is a slave unit for 4G series which can establish connection to the DeviceNet
open field network system managed by Open DeviceNet Vendor Association, Inc. (or ODVA).
The N4G*R-T8D** slave unit has the following features:
(1) It is connected to the PLC with only a DeviceNet cable, allowing a significant reduction of
man-hours in wiring.
(2) It has separate power supplies for the network and the valve, ensuring ease of maintenance.
(3)When a communication error occurs, the slave unit output state can be set either hold or clear,
ON or OFF with a HC switch. With software setting mode, Explicit Message allows operation
being set for every one point at a communication error.
(4) The slave unit is mounted by inserting it into a slot on the manifold block and secured with just
one screw, allowing reduction of man-hours in maintenance.
(5) The slave unit is available in +COM or -COM output types and 16 or 32 output points, allowing
for use in a wide variety of applications.
2) DeviceNet
DeviceNet is a multi-bit, multi-vendor network that combines controls and data on a
machine/line-control level.
It is maintained and managed by ODVA (Open DeviceNet Vendor Association, Inc).
Note: Before using this slave unit, thoroughly read all relevant users’ manuals.
This instruction manual mainly describes N4G*R-T8D**.
For information on the master unit and slave units to be connected to the system, read the
manuals provided by their manufacturers.
For information on the manifold solenoid valves, read this instruction manual as well as the
manuals provided with the solenoid valves to fully understand their functions and
performance for their proper operation.
If you have any questions concerning the DeviceNet system, refer to the following website run by ODVA:
ODVA (Open DeviceNet Vendor Association, Inc)
Website: http://www.odva.org.

[SM-P00121-A]
−
6
−
1
PRODUCT
1.2 Network structure
DeviceNet system chiefly consists of PLC, master unit, N4G*R-T8D*** mounted manifold solenoid
valve, and peripheral equipment.
1) PLC and master unit combination examples
PLC Manufacturer Compatible PLC Master unit model
OMRON Corporation
NJ Series
CJ1W-DRM21
CJ Series
CS1 Series CS1W-DRM21
Rockwell Automation Inc. 1756-L75 1756-DNB
Other DeviceNet compatible master units

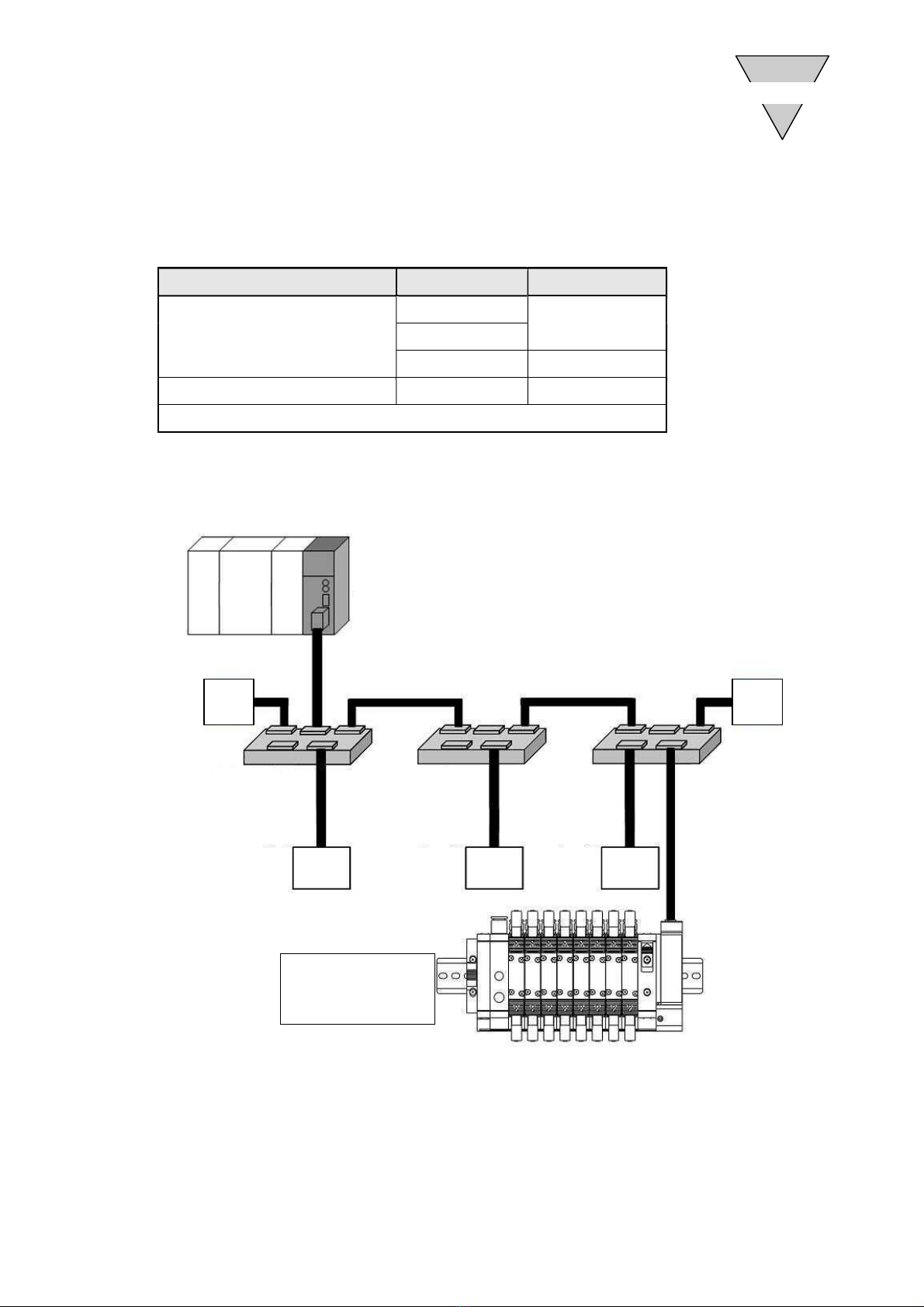

2) Fundamental structure of the system
Master unit … This device requests to open connection and controls slave units (devices)
Tap …......... This device is used for branching point (connection)
N4G*R-T8D**
Mounted manifold
solenoid valve
PLC
Master Unit
DeviceNet System
ABSODEX
(DD) Driver
Terminating
Resistance
Sensor
Terminal
Analog
Terminal
Tap Tap
Tap
Terminating
Resistance

[SM-P00121-A]
―
7
―
1
PRODUCT
1.3 Specifications
1) Communication specifications
Item Specifications
Communication protocol DeviceNet compliant
Baud rate 125kbps /250kbps /500kbps /automatic setting
Transmission media
（
Network cable
）
Special 5-wire cable for DeviceNet
（
2 signal lines, 2 power lines, 1 shielded line
）
Communication distances
Baud rate Network length Branch line
length
Total branch line
length
125kbps 500m max.*1 6m max. 156m max.
250kbps 250m max.*1 6m max. 78m max.
500kbps 100m max.*1 6m max. 39m max.
Communication power
supply 11.0 VDC to 25.0 VDC
Error control CRC error check
Note (1*): These are for thick cables. Keep the maximum length to 100m or less when using thin cables.
CAUTION:
Baud rate must correspond to the connecting DeviceNet unit. If they do not
correspond, communication will become unstable and a link may not be
established correctly.
Upon selecting the network cable, consider the ambient conditions such as
noise and temperature.

[SM-P00121-A]
−
8
−
1
PRODUCT
2) N4G*R-T8D*** specifications
Always operate this slave unit within its product specifications.
Item Specifications
Model No. N4G*R-T8D1 N4G*R-T8D2 N4G*R-T8DP1 N4G*R-T8DP2
Communication power
supply voltage 11.0 VDC to 25.0 VDC
Communication power
supply current
consumption
70mA or less
（
at 24.0 VDC with all points ON
）
Valve power supply
voltage 22.8 VDC to 26.4 VDC
（
24VDC +10%, -5%
）
Valve power current
consumption
15mA or less （ with all points OFF ）
40mA or less
（
with all points ON and without load
）
Output type +COM (NPN) -COM (PNP
）
Number of output points 16 32 16 32
Nord address setting Switch (hardware) setting / software setting
Output setting when
communication error
occurs
*1
Hold
（
maintains final output of all points
）
/ Clear
（
clears outputs of all points
）
*
２
Insulation resistance 30 M or more with 500 VDC between external terminals and case
Withstand voltage 500 VAC for 1 minute between external terminals and case
Noise immunity 1000 Vp-p Pulse duration: 1 s
Shock resistance 294.0m/s
2
in 3 directions, 3 times each
Storage temperature -20
℃
to 70
℃
Storage humidity 30 to 85%RH
（
no dew condensation
）
Ambient temperature -5 to 55
℃
Ambient humidity 30 to 85%RH
（
no dew condensation
）
Ambient atmosphere No corrosive gas
Communication protocol DeviceNet compliant
Baud rate 125kbps /250kbps /500kbps /automatic setting /software setting
Output isolation type Photocoupler isolation
Max. load current 40mA per output point
Leakage current 0.1mA or less
Residual voltage 0.5V or less
Fuse rating Communication power supply: 24V, 1A / Valve power 24V, 3A
（
both fuses are not replaceable
）
Status indicator LED (communication status, communication power supply and valve power
statuses
*2
)
Number of occupied
stations 1 station
Degree of protection IP20
Vibration
proof
Durability 10Hz to 150Hz to 10Hz, 1 octave/min, 15 sweeps each in X, Y, Z directions at
half-amplitude of 0.75 mm or acceleration of 98.0 m/s
2
, whichever is smaller
Malfunction 10Hz to 150Hz to 10Hz, 1 octave/min, 4 sweeps each in X, Y, Z directions at
half-amplitude of 0.5 mm or acceleration of 68.6 m/s
2
, whichever is smaller
*1. In software setting mode, output setting can be made for each output point.
*2. Power status can be monitored only when the voltage within the specified range is supplied to communication
power supply.

[SM-P00121-A]
―
9
―
1
PRODUCT

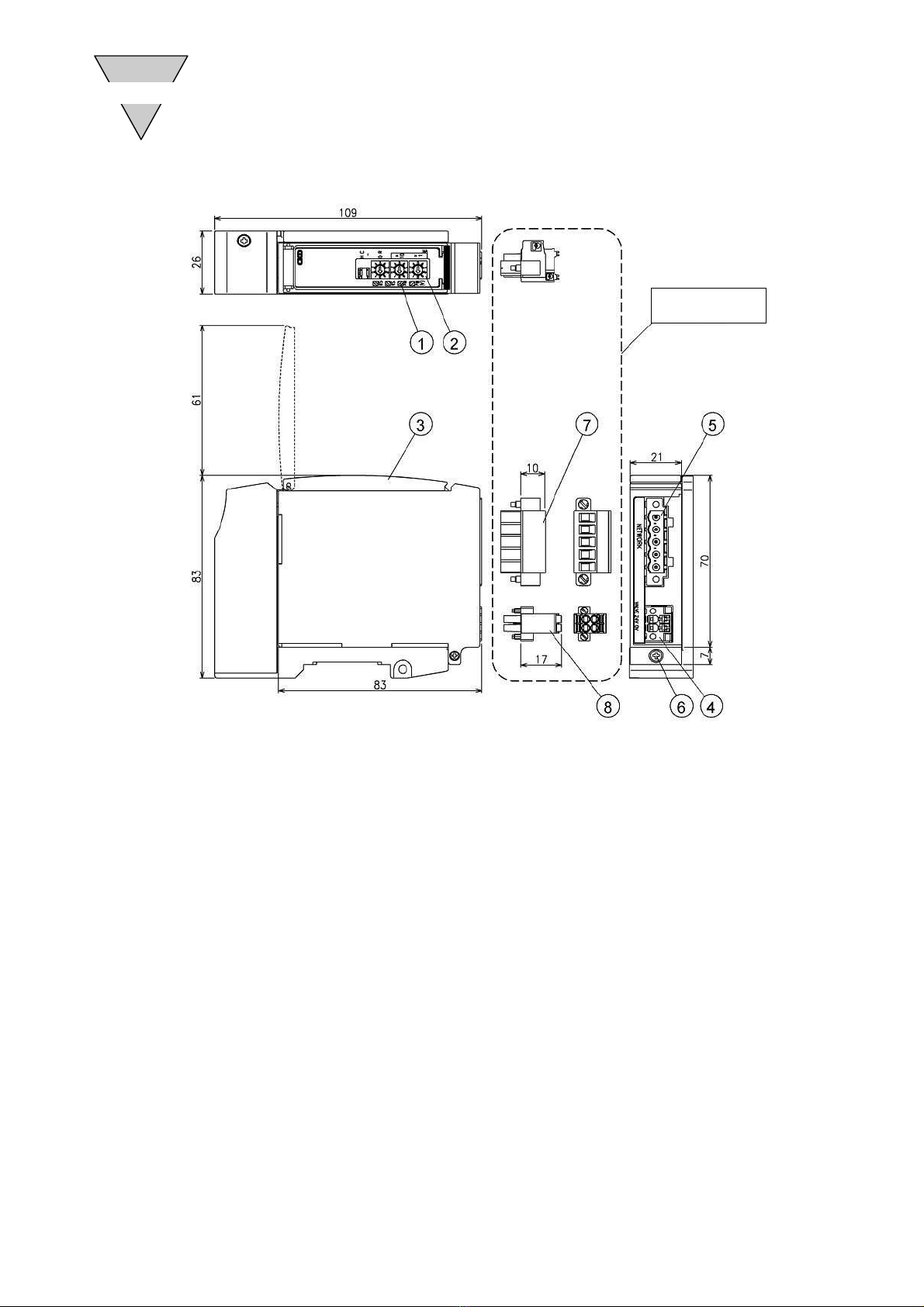

1.4 Parts of slave unit
①
Status monitoring light
Indicates slave unit status and network status by LEDs.
②
Switches
Sets the output at a communication error, the slave unit nord address, and baud rate.
③
Cover
Protects the status monitoring lights and the switches.
④
S
ocket for powering the unit/ valve
Connects the plug for powering the unit/ valve (included in the unit).
⑤
Network connector socket
Connects the network connector plug (included in the unit).
⑥
Mounting screw (M2.5 tapping screw)
Secures the slave unit to the connecting block.
[Accessories]
⑦
Network connector plug (included in the unit)
Connects network cable (special for DeviceNet).
⑧
Plug for powering the unit/valve (included in the unit)
Connects power cable to the unit/valve (24 VDC).
Accessories

[SM-P00121-A]
−
10
−
1
PRODUCT
1.5 Switches and LED indicators
CAUTION:
Discharge static electricity that has built up on your body before touching the
slave unit. Otherwise, static electricity can cause damage to the slave unit.

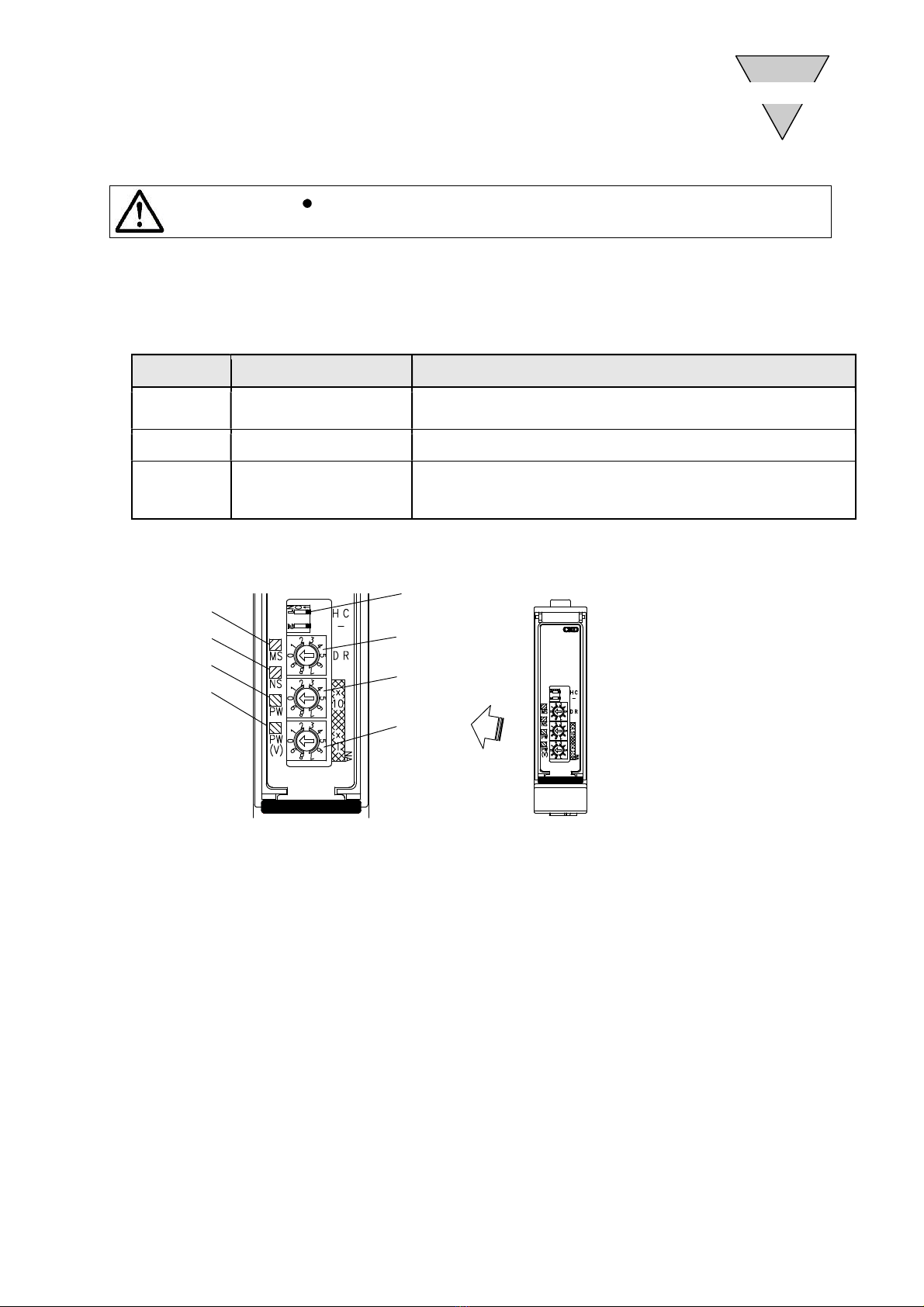

1) Switches
The switches are used to set the output mode at a communication error, the slave unit nord address,
and the baud rate. The slave unit functions according to the output mode at a communication error,
and the nord address at power-up.
Marking Name of Switch Purpose
SW1 – No.1 HC [Output mode setting] Use to specify whether to hold (H) or clear (C) the output status at a
communication error.
SW2 DR [Baud rate setting] Use to specify the baud rate to the master unit.
SW3, SW4 NA ×10, ×1
[Node address setting]
Use to set the NA part of the nord address to a value between 0 and
63. Tens place digit is set with the SW3 (X 10) switch and ones place
digit is set with the SW4 (X 1) switch.
Note: The SW1-No.2 switch is not used.
SW4
MS LED
NS LED
PW
LED
SW3
SW2
SW1
PW (V)
LED

[SM-P00121-A]
―
11
―
1
PRODUCT
2) LED Indicators for module status (MS) and network status (NS)
These LEDs indicate slave unit status and network status. See table below for their descriptions.
MS LED NS LED Status Comments
ON
(green)
ON
(green)
I/O
communications in
progress
I/O data is being
communicated between
master and slave unit.
Operating normally.
ON
(green) OFF
Node address
duplication
checking
Waiting for node
address
duplication checking at
master to be completed.
In case the certain slave unit is in this condition,
restart the slave unit after checking if the baud rate is the
same as master unit.
ON
(green)
Flashing
(green) Connection waiting
Waiting for connection
establishment from the
master.
ON (red) OFF Watchdog timer
error
Watchdog timer error
occurred in the slave
unit.
Replace the slave unit.
Flashing
(red)
ON
(green)
Switch setting
change during I/O
communications
Rotary and DIP switch
setting during I/O
communications had
been changed.
Switch setting had been changed during I/O communications.
Put back the switch to the former position or update the slave
unit setting by restarting.
MS LED will then become green from red flashing.
Flashing
(red) OFF Improper switch
setting
Rotary switch setting is
not correct. Restart the slave unit after checking the switch setting.
ON
(green) ON (red) Duplicate nord address
Nord address is
duplicated.
After re-setting the node address to avoid duplicate, restart
the slave unit.
ON
(green) ON (red) Busoff error
Busoff (communications
stop status by multiple
data error) error
occurred.
Check the following and restart the slave unit.
- Same baud rates for master and slave unit.
- Proper cable lengths (trunk and branch lines)
- Broken or loose cables
- Both ends only terminating resistors at the trunk line
- Excessive noise
ON
(green)
Flashing
(red)
Communication
time out
OFF OFF No communication
power supply
After checking both nord address and baud rate are set
properly, supply the communication power supply.
3) Power LED (PW) Indicators
Valve LED
PW(V)
Purpose
ON (green) Communication power supply is ON.
OFF Communication power supply is OFF.
4) Valve LED (PW(V)) Indicators
Valve LED
PW(V)
Purpose
ON (green) Valve power supply is ON.
OFF Valve power supply is OFF.

[SM-P00121-A]
−
12
−
2
PRECAUTIONS
2. PRECAUTIONS
To correspond to the requirements of the relevant EC Directive, use AC/DC adapter (e.g., switching power
supplies) complying with EMC standards for the valve and communication power supplies.
Before turning the power ON or OFF, ensure the safety of the surroundings as the components in the system,
including the valve (cylinder), may move unexpectedly.
Refer to the user’s manual provided with the master unit concerning the communication delay time.
The transmission delay within the entire system depends on the scan time achieved by the PLC and on
other devices included in the system.
Solenoid valve response time varies by the model. Refer to the valve specification for the delay in
response time.
The time it takes for the solenoid valve to turn OFF is delayed by approximately 20 msecs since there is a
surge absorbing circuit incorporated in the slave unit.
Make sure the power cables and network cables are connected according to the specifications to avoid
any incorrect wiring.
Do not subject the power cables and network cables to tension and impact.
Before turning the power ON, make sure that all cables and connectors are connected firmly.
Never attempt to disassemble, modify, and/or repair the slave unit. Doing so may result in failure or
malfunction of the slave unit.
Do not drop, apply unusual vibration or impact the unit as the inside of the slave unit is a precision
construction.
Do not connect or disconnect any connectors while the power is being supplied. Doing so may result in
failure or malfunction.
Mold and rust can develop on the product if it is exposed to high humidity during transportation. Include
moisture absorbers and tightly seal the package.
Install the slave unit at least 200 mm away from high-voltage cables and power lines, or lay the
high-voltage cables and power lines in grounded metal tubings.

[SM-P00121-A]
―
13
―
3
OPERATION
3. OPERATION

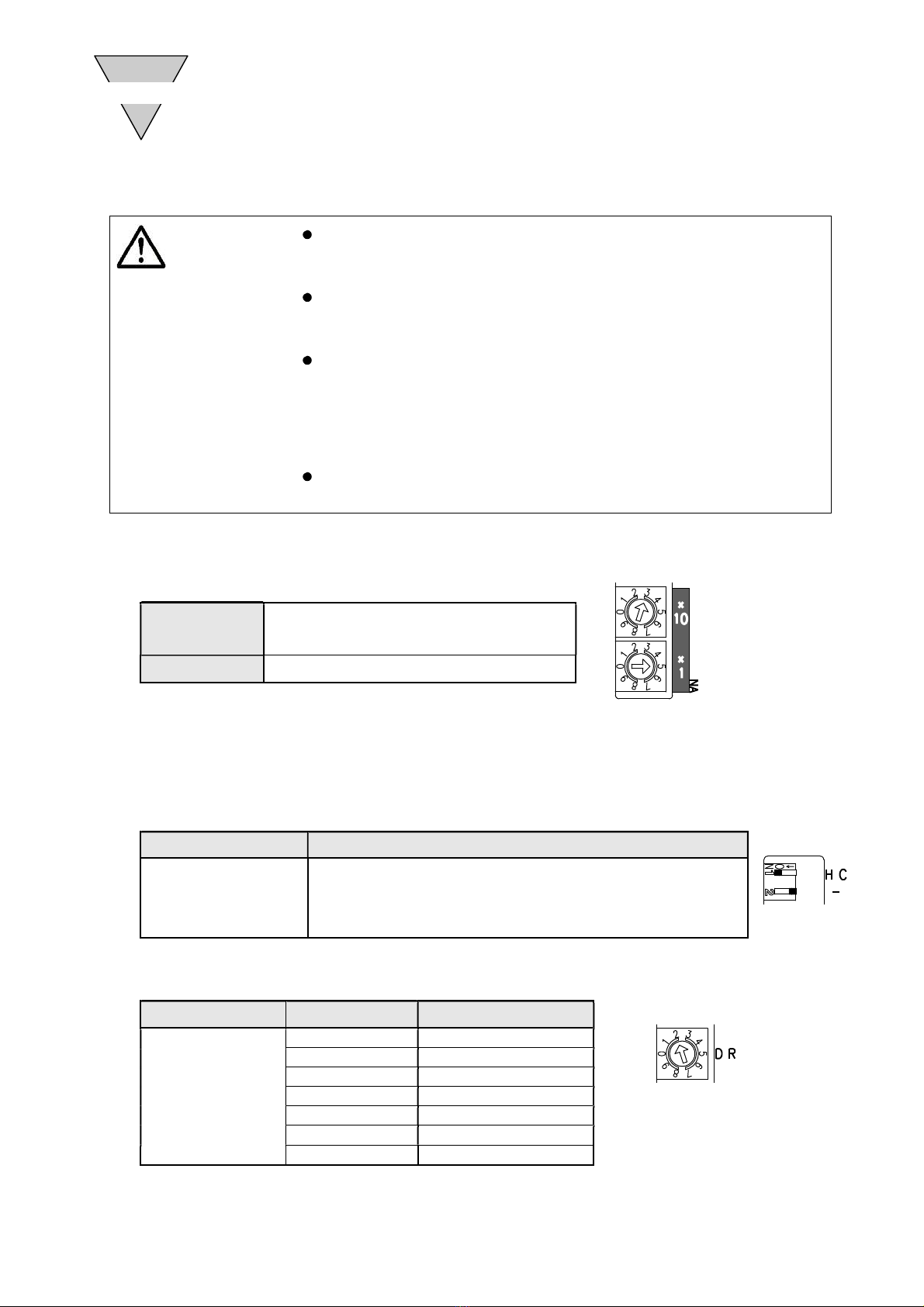

3.1 Switch settings
CAUTION:
Discharge static electricity that has built up on your body before touching
the slave unit. Otherwise, static electricity can cause damage to the slave
unit.
The slave unit will not identify the setting if the power is supplied. Make
sure the power of communication is turned OFF upon setting as they are
read into the unit only at power-up.
The cover on the slave unit is an easy-to-open one that requires only one
finger to flip it open. Keep the cover closed at all times except when
setting the switches. Otherwise, foreign matter may enter into the internal
circuit and cause unexpected failure, or the cover itself may get damaged.
Be extremely careful not to allow any foreign matter to enter the slave unit
when setting the switches.
Be sure not to touch the internal circuit board when setting the switches
as they are precisely built and can be damaged if mishandled.
1) Node address setting (hardware setting mode: enable when DR switch is set 0, 1, 2, or 4)
Note: With the software setting mode (DR switch is set 5), the value of node address switch is
disabled.
Name of switch
NA [node address]
×10: Sets tens place digit of the address
×1: Sets ones place digit of the address
Setting range
0 to 63 (
in decimal
)
Node address is read into memory at power-up.
Duplicate node address cannot be assigned.
2) Output mode setting (hardware setting mode: enable when DR switch is set 0, 1, 2, or 4)
Set output data at a communication error.
Note: With the software setting mode (DR switch is set 5), the value of output mode setting switch
is disabled.
Name of switch Purpose
HC
（
Output mode setting
）
Ssts the output status at a communication error (such as bus
line error or timeout).
OFF:
Clear mode
ON(being slid in the direction of the arrow):
Hold mode
3) Baud rate setting
Set baud rate. With the DR switch setting to 5, software setting mode is toggleable.
Name of switch DR switch setting Baud rate
DR
（
Setting baud rate
）
0 125kbps
1 250kbps
2 500kbps
3 unable
4 Auto setting
5 Software setting mode
6 to 9 unable
Note: With the DR
switch
setting to 5(software setting mode), both output mode setting HC (SW1) and
node address setting NA (SW3, SW4) are disabled.
[Example] Baud rate: 250kbps
[Example] Node address: 35

[SM-P00121-A]
−
14
−
3
OPERATION
3.2 Settings by Explicit Message
Using the Explicit Message enables
the items of s
etting below with this slave unit.
1) MAC ID (node address): Possible with the software setting mode only (DR switch is set 5)
Set node address. After sending message, the slave unit is reset and the node address is applied.
(NA switch setting is ignored)
2) Quick Connect
Class Instance Attribute Value
0x03
(DeviceNet) 0x01 0x10 0
：
disable
1
：
enable
Note: Check if the
node
address is not duplicated in the same network before the setting.
3) Fault Action: Possible with the software setting mode only (DR switch is set 5)
Set whether output the Fault Value or hold the last output status when error occurs.
Class Instance Attribute Value
0x09
(Discrete Output Point) 0x01 to 0x20 0x05 0
：
Fault Value set value
1
：
hold output
4) Fault Value: Possible with the software setting mode only (DR switch is set 5)
S
et output status when communications error occurs.
Class Instance Attribute Value
0x09
(Discrete Output Point) 0x01 to 0x20 0x06 0
：
output OFF
1
：
output ON
Class Instance Attribute Value
0x03
(DeviceNet) 0x01 0x01 0 to 63

[SM-P00121-A]
―
15
―
3
OPERATION
3.3 Correspondence between the slave unit output No. and PLC memory address No.
1) PLC memory address correspondence tables
◆
N4G*R-T8D*1
 （
16-point output specification
）
PLC allocated
memory address
Output Bit 00-15
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
Slave unit
output
No.
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Solenoid output
No.
s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12 s13 s14 s15 s16
◆
N4G*R-T8D*2
 （
32-point output specification
）
PLC allocated
memory address
Output Bit 00-15 Output Bit 16-31
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Slave unit
output
No.
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Solenoid output
No.
s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12 s13 s14 s15 s16 s17 s18 s19 s20 s21 s22 s23 s24 s25 s26 s27 s28 s29 s30 s31 s32
The tables below describe the correspondence using PLC manufactured by OMRON Corporation
as a typical example.

[SM-P00121-A]
−
16
−
3
OPERATION

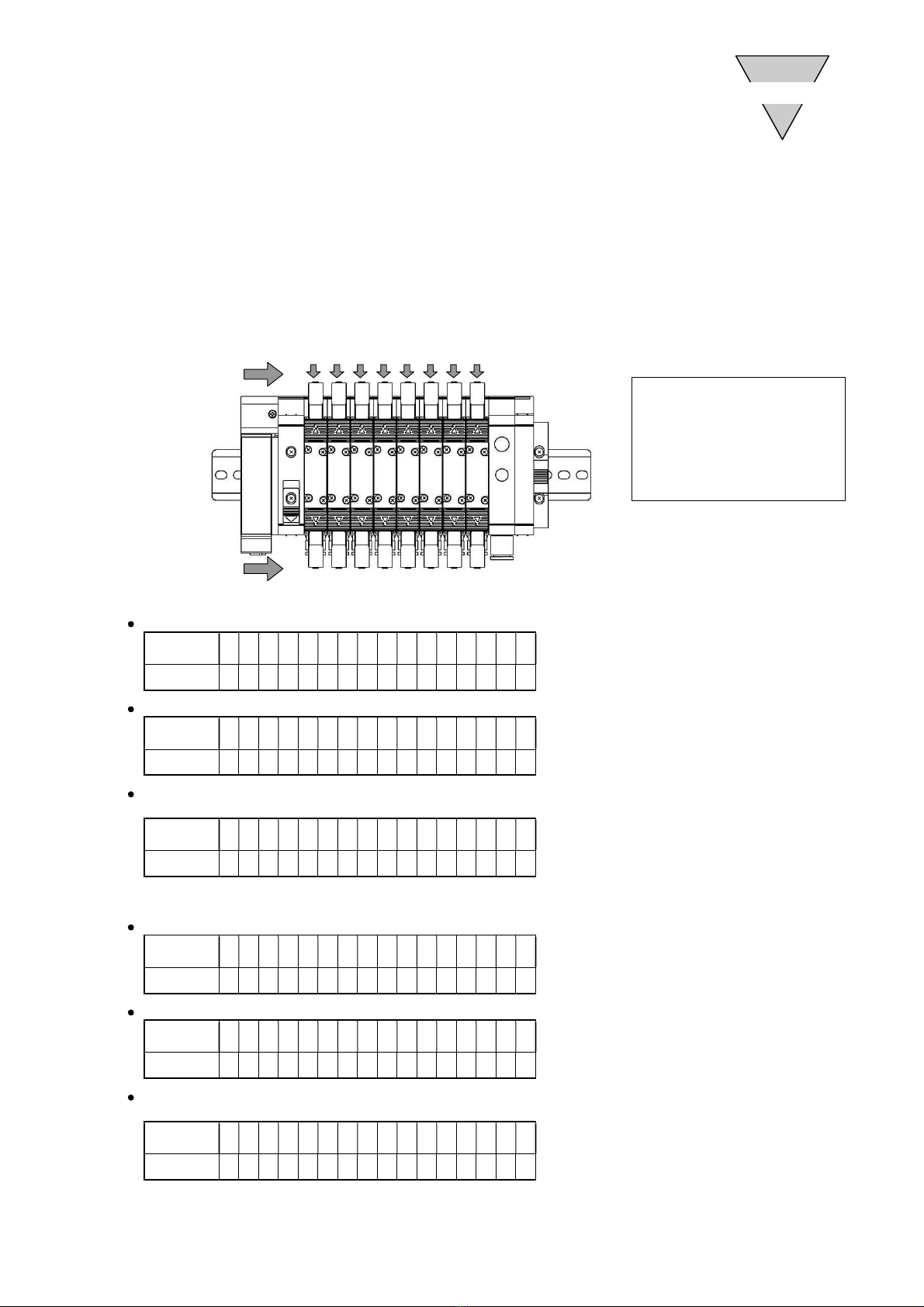

2) Examples of Valve No. assignments corresponding to the slave unit T8D* solenoid output No
The valve No. 1a, 1b, 2a, 2b, … indicate the station numbers such as station No.1, station No.2,
and so on; while the alphabets ‘a’ and ‘b’ mean, respectively, the solenoid on the a-side and the
solenoid on the b-side of the “double-solenoid type” valve. Manifold is numbered from left side
facing toward piping port. The appearance and the maximum number of stations will vary
depending on the valve model.
◆
N4G*R-T8D*1
 （
16-point output specification
）
[Standard wiring]
When all valves mounted on the manifold are single solenoids:
Solenoid
output No.
s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12 s13 s14 s15 s16
Valve No.
1a 2a 3a 4a 5a 6a 7a 8a 9a 10a 11a 12a 13a 14a 15a 16a
When all valves mounted on the manifold are double solenoids:
Solenoid
output No.
s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12 s13 s14 s15 s16
Valve No.
1a 1b 2a 2b 3a 3b 4a 4b 5a 5b 6a 6b 7a 7b 8a 8b
When both single and double solenoids valves are mounted on
the manifold (an example is shown above):
Solenoid
output No.
s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12 s13 s14 s15 s16
Valve No.
1a 2a 3a 3b 4a 4b 5a 6a 7a 7b 8a 9a 10a 10b 11a 11b
[Double wiring]
(Note: “B” indicates a blank station)
When all valves mounted on the manifold are single solenoids:
Solenoid
output No.
s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12 s13 s14 s15 s16
Valve No.
1a
B
2a
B
3a
B
4a
B
5a
B
6a
B
7a
B
8a
B
When all valves mounted on the manifold are double solenoids:
Solenoid
output No.
s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12 s13 s14 s15 s16
Valve No.
1a 1b 2a 2b 3a 3b 4a 4b 5a 5b 6a 6b 7a 7b 8a 8b
When both single and double solenoids valves are mounted on
the manifold (an example is shown above):
Solenoid
output No.
s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12 s13 s14 s15 s16
Valve No.
1a
B
2a
B
3a 3b 4a 4b 5a
B
6a
B
7a 7b 8a
B
Manifold No.
Note: The figure is an example
of double-solenoid type valves
mounting 8 stations on the
manifold. There is no solenoid
on the b-side for
single-solenoid type.
No.1
No.2
No.3
No.4
No.5
No.6
No.7
No.8
A side
B side

[SM-P00121-A]
―
17
―
3
OPERATION
◆
N4G*R-T8D*2
 （
32-point output specification
）
[Standard wiring]
When all valves mounted on the manifold are single-solenoid types:
Solenoid
output No.
s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12 s13 s14 s15 s16 s17 s18 s19 s20 s21 s22 s23 s24 s25 s26 s27 s28 s29 s30 s31 s32
Valve No.
1a 2a 3a 4a 5a 6a 7a 8a 9a 10a 11a 12a 13a 14a 15a 16a 17a 18a 19a 20a 21a 22a 23a 24a 25a 26a 27a 28a 29a 30a 31a 32a
When all valves mounted on the manifold are double-solenoid types:
Solenoid
output No.
s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12 s13 s14 s15 s16 s17 s18 s19 s20 s21 s22 s23 s24 s25 s26 s27 s28 s29 s30 s31 s32
Valve No.
1a 1b 2a 2b 3a 3b 4a 4b 5a 5b 6a 6b 7a 7b 8a 8b 9a 9b 10a 10b 11a 11b 12a 12b 13a 13b 14a 14b 15a 15b 16a 16b
When both single and double solenoids valves are mounted on the manifold (an example is shown above):
Solenoid
output No.
s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12 s13 s14 s15 s16 s17 s18 s19 s20 s21 s22 s23 s24 s25 s26 s27 s28 s29 s30 s31 s32
Valve No.
1a 2a 3a 3b 4a 4b 5a 6a 7a 7b 8a 9a 10a 10b 11a 11b 12a 13a 14a 14b 15a 15b 16a
[Double wiring]
(Note: “B” indicates a blank station)
When all valves mounted on the manifold are single-solenoid types:
Solenoid
output No.
s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12 s13 s14 s15 s16 s17 s18 s19 s20 s21 s22 s23 s24 s25 s26 s27 s28 s29 s30 s31 s32
Valve No.
1a
B
2a
B
3a
B
4a
B
5a
B
6a
B
7a
B
8a
B
9a
B
10a
B
11a
B
12a
B
13a
B
14a
B
15a
B
16a
B
When all valves mounted on the manifold are double-solenoid types:
Solenoid
output No.
s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12 s13 s14 s15 s16 s17 s18 s19 s20 s21 s22 s23 s24 s25 s26 s27 s28 s29 s30 s31 s32
Valve No.
1a 1b 2a 2b 3a 3b 4a 4b 5a 5b 6a 6b 7a 7b 8a 8b 9a 9b 10a 10b 11a 11b 12a 12b 13a 13b 14a 14b 15a 15b 16a 16b
When both single and double solenoids valves are mounted on the manifold (an example is shown above):
Solenoid
output No.
s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12 s13 s14 s15 s16 s17 s18 s19 s20 s21 s22 s23 s24 s25 s26 s27 s28 s29 s30 s31 s32
Valve No.
1a
B
2a
B
3a 3b 4a 4b 5a
B
6a
B
7a 7b 8a
B
9a
B
10a
B
11a 11b 12a 12b 13a
B
14a
B
15a 15b 16a
B
Note: The figure below is an
example of double-solenoid type
valves mounting 16 stations on the
manifold. There is no solenoid on
the b-side for single-solenoid type.
Manifold
No.
No.9
No.10
No.11
No.12
No.13
No.14
No.15
No.16
No.1
No.2
No.3
No.4
No.5
No.6
No.7
No.8
A side
B side

[SM-P00121-A]
−
18
−
3
OPERATION
3.4 Programming
This slave unit is treated as a slave unit device with 16 output points: T8D*1 and 32 output points:
T8D*2. There are 2 types of I/O data: output data transmitted from a master unit to a slave unit (with
16 output points: T8D*1 and 32 output points: T8D*2) and input data transmitted from a slave unit
device to a master unit.
This slave unit acts as an output device which transmits output data to valves after receiving it from
the master unit. Regardless of the model, the input data is transmitted to the master unit as 2 bytes of
reserved data.
When programming, refer to the PLC manufacturer’s manual, and to the tables shown below for I/O
mapping. The characteristics of this slave unit such as output status setting when error occurs, and
the +COM/-COM output specifications, have no relevance to the programming.
Output data mapping
I/O Points Output
data
Bit
T
8D
*2
T
8D
*1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
32
16
2bytes
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
−
4bytes
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Input data mapping
Input
data
Bit
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2bytes
Reserved data
Use the I/O Assembly instance for the DeviceNet connection configuration. And refer to the Instance
in the table below for the connection setting of this slave unit as pneumatic valves generally use this
instance.
I/O Assembly instance
Item Specifications
Model T8D1 T8D 2 T8DP1 T8DP2
Slave unit OPP7-1D OPP7-2D OPP7-1D-P OPP7-2D-P
Output data
Instance 35 (Dec) 37 (Dec) 35 (Dec) 37 (Dec)
Size 2 (bytes) 4 (bytes) 2 (bytes) 4 (bytes)

[SM-P00121-A]
―
19
―
3
OPERATION
3.5 Device profile and object implementation
1) Device profile
2) Object implementation
Identity Object (0x01)
Object class Attributes Not supported
Services Not supported
Object
instance
1
(0x01)
Attributes ID content
Explicit
Message
transmission
Value
Dec Hex - Get Set T8D1 T8D2 T8DP1 T8DP2
1 0x01 Vender ID Yes No 201(0xC9)
2 0x02 Device Type Yes No 27(0x1B) Pneumatic Valve(s)
3 0x03 Product Code Yes No 70 71 73 74
4 0x04 Revision Yes No 20.04 20.04 20.04 20.04
5 0x05 Status Yes No bit 0 only bit 0 only bit 0 only bit 0 only
6 0x06 Serial Number Yes No Unique for
each Unit
Unique for
each Unit
Unique for
each Unit
Unique for
each Unit
7 0x07 Product Name Yes No OPP7-1D OPP7-2D OPP7-1D-P OPP7-2D-P
Services
DeviceNet Services Parameter options
0
ｘ
05 Reset No
0
ｘ
0E Get_Attribute_Single Yes
Message Router Object (0x02)
Object class Attributes Not supported
Services Not supported
Object instance Attributes Not supported
Services Not supported
Vendor specific additions No
General device
data
Compatible with DeviceNet Specifications Volume One – Edition 3.21
Volume Three – Edition 1.14
Vendor name(ID) CKD Corporation (ID=0xC9)
Device/product type Pneumatic Valve(s)
Manual No. SM-P00121-A
Physical
conformance
data
Communication power supply current
consumption 70mA or less at 24.0 VDC
Connector style Open plug
Insulation at physical layer No
Supported indicators Module, Network
MAC ID setting Rotary switch
Default MAC ID 1
Baud rate setting Rotary switch
Supported baud rate 125kbps /250kbps /500kbps
Communication
data
Predefined Master/Slave connection set Group 2 Only Server
Dynamic connections support (UCMM) No
Explicit Message fragmentation support Yes
