claber Hydro 4 Technical specifications

Hydro 4
90829
In-built prefitted water timer valve box
USE AND INSTALLATION MANUAL


EN
55
Introduction .....................................................................................56
Reminders........................................................................................57
General specifications.......................................................................58
Fitting the battery.............................................................................60
Installation.......................................................................................63
Use..................................................................................................71
- guidelines on programming.........................................................74
- setting current day and time........................................................84
- programming watering................................................................86
- test/manual watering ..................................................................92
- Reset ..........................................................................................94
- enabling programmes A and B and setting to off .........................95
- Rain Sensor RF............................................................................97
Cleaning and maintenance...............................................................98
Diagnostics ....................................................................................100
Technical specifications ..................................................................102
Disposal (WEEE).............................................................................102
Guarantee conditions .....................................................................103
Declaration of conformity ...............................................................104
additional informationimportant note
Symbols adopted in the manual
Index

EN
56
Introduction
Our thanks for the confidence shown in purchasing this product. Please
read this instruction manual carefully before programming the device, and
keep it handy for future reference: each section will provide all the neces-
sary information on how to perform the single steps correctly.
This device has been designed and manufactured exclusively for the pro-
gramming of watering time by adults with experience and knowledge. Any
use other than that described in this manual is considered improper: the
manufacturer acknowledges no liability for damages arising from improper
use, which will also void the guarantee.

EN
57
Reminders
1. Use only two AAA (LR03)1.5V Alkaline new batteries, with an expiry date
exceeding one year. Follow the instructions of the battery manufacturer.
Do not power the water timer with sources other than those specified.
2. Replace the batteries at the beginning of each season.
3. During winter and/or when not in use, always remove the batteries and
store the water timer in a dry place at a temperature no lower than 3 °C.
4. Periodically, check the integrity of the seals fitted to the transparent cov-
er and to the cap of the battery housing.
5. Periodically, check that the electrical connections of the battery are firm
and secure.
6. Do not let water freeze inside the product. At the end of each season,
it is recommended that the manual valve upstream is closed and the
system is drained using the manual opening of the control module.
7. Make certain that children and animals cannot play with the water timer
or any of its parts.
8. It is good policy — when the water timer is put into operation for the
first time — to make certain that the programmes run correctly.
9. Avoid harsh tugging of hoses and fittings connected to the water timer.
10. Do not use the water timer with operating pressures lower than 0.2 bar
(2.9 psi) or higher than 12 bar (174 psi).
11. Do not fit the water timer inside buildings.
12. Do not use the water timer with chemicals or liquids other than water.
13. Do not submerge the timer in water or other liquids.
14. Do not let the housing and the internal parts of the water timer come
into contact with chemical agents (e.g. aggressive detergents, chlorine,
fertilizers, etc.).
15. When not programming, keep the cover of the valve box closed to
protect it from atmospheric agents and moisture.

EN
58
General specifications
The water timer allows you to easily set the time, watering run time and
date of four watering lines.
The programming of the water timer allows you to satisfy the requirements
of different plants according to their species and environment.
The water timer is powered by two AAA (LR03) 1.5V Alkaline batteries that
must be replaced at the start of each season and are sufficient, for at least,
the entire watering season.
• 3/4” threaded male water intake connector
• 3/4” threaded male line connector
• Power supply: 2 AAA (LR03) 1.5V Alkaline batteries
• Programmable lines: 4
• Watering frequency:
two watering programmes, Aand B, which ope-
rate independently from each other on one or more of the 4 lines
.
• Manual function pre-set at 5 minutes, for system testing and mainte-
nance which does not alter the chosen programmes.
• Rain sensor connection (Rain Sensor RF - optional)
• Flow rate for each individual valve:
0.2 bar 4,5 l/min
1 bar 16 l/min
2 bar 22 l/min
2.5 bar 25 l/min
3 bar 27 l/min
4 bar
31 l/min
5 bar 35 l/min

EN
59
General specifications
fig.1
Legend (
fig.1
):
1. 3/4” threaded male
tap water intake
connector
2. Hydro 4 Valve Box
3. Liquid Crystal Display
4. Back key
5. Enter key
6. Forward key
7. Cover fastening
screw
8. Washer or OR for
screw securing the
cover
9. Valve box cover
10. Lines 1-2-3-4: 3/4”
threaded male
connector
11. Seal for line closing
plug
12. Line closing plug
PROG
EXIT
LINE
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
SMTWTFS
LOWBATT
OK
ERR
1234%
14
15
3/4
M
3/4
M
8* 9
10 11* 12*
*
3 4 5 7*621

EN
60
In order to operate the water timer requires two AAA (LR03)1.5V Alkaline
batteries that must be replaced with two new charged batteries at the start
of each season and are sufficient for, at least the entire irrigation.
To install or replace the battery, proceed as follows (
fig.2
):
• Unscrew the two screws on the valve box cover (
1
), remove them (
2
)
and remove the cover (
3
).
• Unscrew the plastic cover on the water timer (
4
) and lift it up (
5
).
• Take out the water time (
6
)
.
• Unscrew the battery compartment plug
(
7
), take out the bat-
tery-holder (
8
), and if present, remove the drained batteries.
• Fit the new batteries in the holder, observing the correct polarity (
9
)
• Replace the battery-holder into its housing (10) and screw down the
plug checking that the seal is correctly placed in its seat (11).
• Insert the water timer into its seat (
12
), screw the cover back on (
13
),
close the valve box with its cover (
14
) and secure it using the designated
screws (
15
) (
16
)
Notes:
• Only use new AAA (LR03)1,5V Alkaline batteries
, with an expiry date
exceeding one year and that have never been used.
• Replace the batteries at the beginning of each season.
Fitting the battery

EN
61
Fitting the battery
fig.2
1
45
6
ONLY
ALKALINE
BATTERY
AAA
+
+
+
+
+
+
ONLY
ALKALINE
BATTERY
13
10
11
16
2
7
8
9
3
12
15
14
1.5V AAA
Alkaline
LR03

EN
62
When the batteries are first fitted the display shows the first page
with the current TIME/DAY, indicating as default 12:00 and
S
Sunday.
Check the time and the day and set the current time and day if incorrect,
please refer to section “
setting current day and time
” on page
84
.
For correct disposal of the drained batteries, use the designated col-
lection bins.
BATTERY CHARGE STATUS
LOW BATT
OK
S M T W T F S
To check whether the batteries need
replacing, look at the first page
with the current TIME/DAY and
refer to the following table:
STATUS MEANING
LOW BATT
not present
Batteries charged.
LOW BATT
present with
other symbols activated
Batteries almost drained, replace as
soon as possible.
LOW BATT
flashing without
any other symbols activated
The water timer is no longer working,
replace the batteries
Fitting the battery

EN
63
Installation
The valve box is to be installed outside, buried at ground level or resting on
the surface, ensuring that the cover opening is free so that the valve inside
the box can be programmed easily.
If installed below ground, do not place it in areas which are frequently wal-
ked over or passed over by mechanical means (eg. ride-on lawn mowers).
fig.3C
fig.3Bfig.3A

EN
64
Installation
If installing below ground, use a spade to make a hole of a sufficient size
to hold the valve box and tracks where the 4 watering line pipes will pass.
Place an even layer of shingle on the base of the hole and position the
valve box ensuring that it is stable and level (
fig.4
).
If installing above ground, rest the valve box on a stable and level surface,
ensuring that the pipes coming from the 4 watering lines do not obstruct
the passage of people or cause any risk of injury.
Once the valve box has been positioned, make the hydraulic connections as
indicated on the following pages: depending on individual requirements, it
is possible to connect the valve box with pipes of different diameters using
the specific fittings (not supplied). See solutions
A
,
B
,
C
fig.4

EN
65
Installation
A
16
mm
2
3
click
3
4
click
1
16
mm
16
mm
16
mm
B1
2
3

EN
66
Installation
Open the transparent
cover
of the water timer
and carry out a functional test by activating ma-
nual watering (please refer to section
test/manu-
al watering
on page
92
): if the test has a posi-
tive outcome, close the cover.
The control module is fully watertight
and will function even when under
water at a depth of up to one metre
(ingress protection IP 68).
To obtain product water tightness, the transparent cover must be scre-
wed down completely with the seal well positioned in its seat (
fig.5
part
1
).
25
mm 20
mm
20
mm
C

EN
67
Installation
• Do not use the water timer with chemicals or liquids
other than water.
• Do not use the water timer with operating pressures
lower than 0.2 bar (2.9 psi) or higher than 12 bar
(174 psi).
• Size the system on the basis of the flow rate of each
individual valve
1
Also close the valve box cover
fig.6
and, if installed below ground, fill the
hole with soil making sure that the
valve box cover is left free for inspec-
tion and programming activities.
fig.5
fig.6
0.2 bar 4,5 l/min
1 bar 16 l/min
2 bar 22 l/min
2.5 bar 25 l/min
3 bar 27 l/min
4 bar 31 l/min
5 bar 35 l/min

EN
68
Installation
8804*
8609*
8609*
8804*
8609*
9073*
91013*
A
16
mm
Installation drawing.
*parts not supplied,
to be purchased se-
parately.

EN
69
Installation
Installation drawing.
*parts not supplied, to be
purchased separately.

EN
70
Installation
Installation drawing.
*parts not supplied,
to be purchased se-
parately.

EN
71
Use
Line
12 3 4
It is possible to set up two watering programmes, Aand B, which op-
erate independently from each other on one or more of the 4 lines
12 3 4
.
Each watering Programme, Aor B, can be set to start watering on any day
of the week (WEEKLY SCHEDULE), up to 4 times a day (
1 2 3 4
START TIME) and for a maximum run time of 60 minutes for each line (
RUN TIME).
In the section
“USE - PROGRAMMING GUIDELINES”
on page
74
this
is explained in detail, while programming is explained in the section
“Use”
on page.
86.
Line
12 3 4
Line
12 3 4
Line
12 3 4

EN
72
Use
Start time 1
run time (min) run time (min)
run time (min)
Weekly schedule
(watering days)
Start time
(watering time)
1
time 05:00
1
Start time 2
2 3 4
Start time 1
1
time 21:00
Start time 3
5105
OFF
234
5105
Watering programme A
Start time 4
OFF OFF
3 4
Start time 3 Start time 4
OFF
2
Start time 2
OFF OFF
time 06:00
Watering programme B
OFFOFF
20
1234
1234
OFF
Sunday
Monday
AAA
B
Tuesday
Wednesday
Thursday
Friday
Saturday
S M T W T F S
Run time
(watering amount)
OFF
PROGRAMMING EXAMPLE
In the example, programme A starts watering at 5:00 (START TIME)
and at 21:00 (START TIME2): at these times the valves open in order
(RUN TIME: valve 1 for 5 minutes, valve 2 for 10 minutes, valve 3
for 5 minutes, valve 4 not used). The programme starts on Mondays,
Wednesdays, Fridays (WEEKLY SCHEDULE).
Programme B starts watering at 6:00 (START TIME): at this time only
valve 4 opens for 20 minutes (RUN TIME).
The programme only starts on Saturdays (WEEKLY SCHEDULE).
Other manuals for Hydro 4
1
Table of contents
Other claber Control Unit manuals
Popular Control Unit manuals by other brands

YASKAWA
YASKAWA FM 054 manual

Kohler

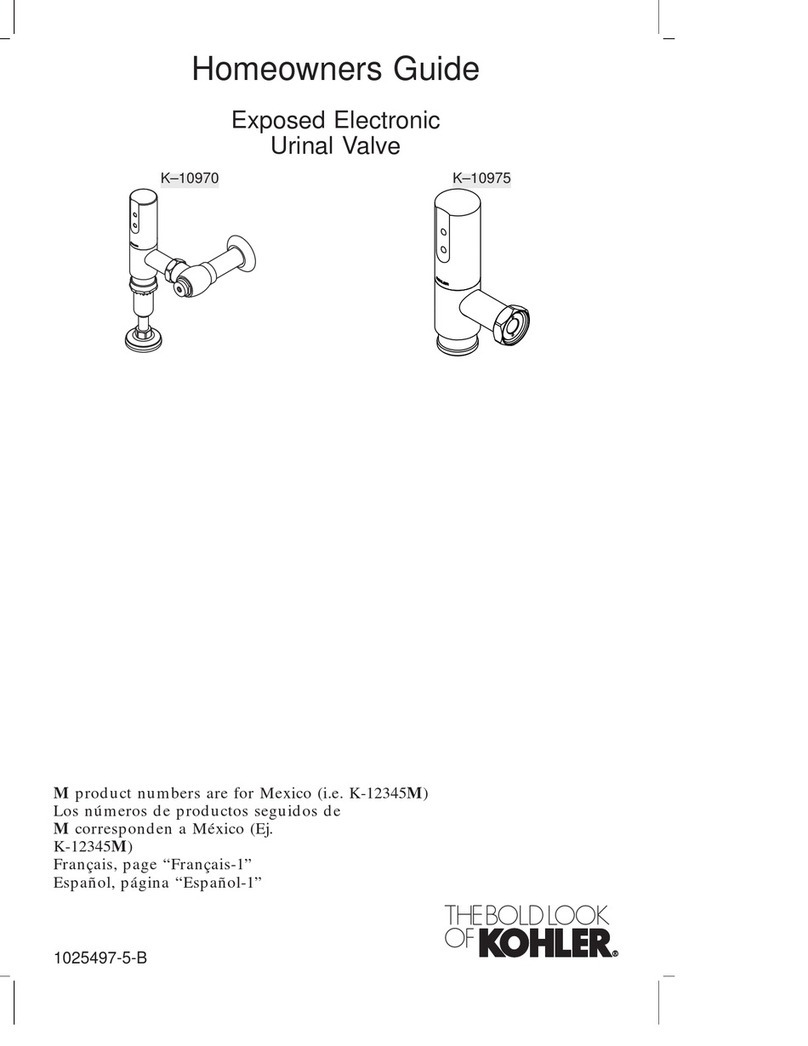

Kohler K-10970 Homeowner's guide

Honeywell
Honeywell HumidiPRO H6062A1000/U installation instructions

impro technologies
impro technologies HMW701-0-0-NN-XX installation manual

Dakota Digital

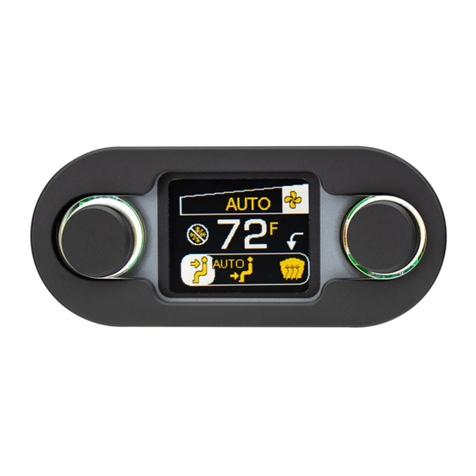

Dakota Digital DCC-4000 Installation and operator's manual

Jolywood
Jolywood HD108N installation manual
