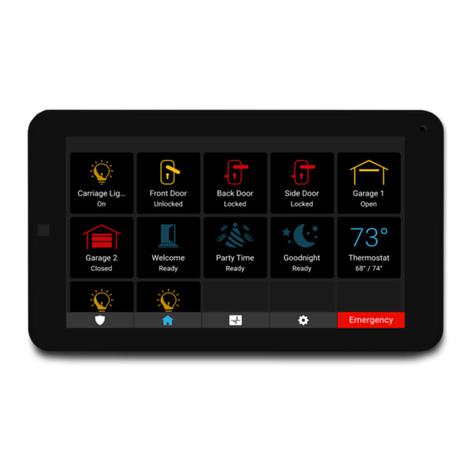

ClareHome Touch Panel
Quick Start Guide
Content
Introduction...1
Included...1
Installation options...2
Setting up the ClareHome Touch Panel...3
Customizing the panel space...7
Warranty Information...7
Support...7
Last modified: 01/30/19
Introduction
Thank you for choosing Clare Controls. In today’s competitive marketplace, we
can appreciate that you have many choices for your home automation needs.
This document is intended as a quick-start guide, not a full product guide. For
more information, view the full ClareHome Touch Panel Release Notes (DOC ID
1775).
Included
The following items are included with the ClareHome Touch Panel.
•1 × Power supply
•1 × Mounting bracket
•1 ×Tabletop stand
•2 × Stand grips
•2 × Base grips
•4 × Screws
•4 × Wall anchors

DOC ID - 1793 • Rev 01 2 / 7
Installation options
Select an installation option.
Installation option 1: Desktop
Option 1 uses the included panel tabletop stand.
To desktop mount the panel:
1. Insert the kickstand to the rear of the panel. The stand pops into place,
locking to the panel.
Note: There are 2 options for tabletop stand orientation. Each option results
in a different viewing angle.
Orientation 1: Insert the stand into the panel with the tail facing down,
creating a downward facing arc. This gives the panel a more forward-facing
view, close to a 60° angle.
Orientation 2: Insert the stand into the panel with the tail facing upward,
creating a curve upward. This gives the panel a more upward-facing view,
close to a 30° angle.
2. Slide a stand grip onto each slot on the stand.
(Optional) To prevent the panel from sliding, attach the included non-slip
base grips. Place one base grip on each corner of the panel.
3. Plug the included power supply into the rear of the Android panel.
4. Plug the opposite end of the power supply into an electrical outlet.
The tablet automatically powers up.
Installation option 2: Wall mounted
Option 2 requires the panel to be wall mounted. Use the included screws and
metal plate to mount the panel flush with the wall.
To wall mount the panel:
1. Place the mounting bracket against the wall, ensuring that it is in the desired
location and close to an outlet.
2. Using 2 of the included screws and a power drill, securely attach the bracket
to the wall.
3. Plug the included power supply into the rear of the ClareHome panel.
4. Slide the panel onto the mounting bracket.
5. Plug the opposite end of the power supply into an electrical outlet.
The tablet automatically powers up.

DOC ID - 1793 • Rev 01 3 / 7
Setting up the ClareHome Touch Panel
Once the panel is installed, connect the panel to the home’s Wi-Fi network.
To setup the panel:
1. Tap the screen.
–or –
Press the power button on the right-side of the panel.
ClareHome loads and the Viewing full screen pop-up displays.
2. Tap GOT IT.
3. Tap Allow to ensure that ClareHome has access to the device’s location.
Note: ClareHome uses the location of the device for timers and events.

DOC ID - 1793 • Rev 01 4 / 7
4. Tap Change to select your time zone.
5. Select your time zone.
6. Tap Select WiFi Network, and then select the Wi-Fi from the drop-down.

DOC ID - 1793 • Rev 01 5 / 7
7. Enter your Wi-Fi network’s password, and then tap OK.
8. Once you have selected your time zone and configured your Wi-Fi settings,
tap the Xin the top-left corner.
Note: If there is a firmware update available, a popup displays. Tap Ok, and
then the panel automatically updates. Continue with panel configuration.

DOC ID - 1793 • Rev 01 6 / 7
9. Tap your home’s project name.
10.Enter your ClareHome project’s PIN, and then tap Done.
Note: The default PIN is 1234.
You now have access to your project.

DOC ID - 1793 • Rev 01 7 / 7
Customizing the panel space
Once the panel is connected to the home’s Wi-Fi network, customize your space.
To add smart icons to your panel’s space:
1. Tap My Devices to view a list of all your devices categories.
2. Tap to select the device category, and then tap the Plus icon to add the
desired device to your panel’s space.
To add devices, configure Scenes, Schedules, Notifications, Automations, and
configure other ClareHome settings, see the full ClareHome Touch Panel
Release Notes (DOC ID 1775).
Warranty Information
Clare Controls offers a two (2) year limited warranty on original Clare Controls
components, from the date of shipment form Clares Controls.
Support
Dealer Support –contact Clare Technical Services at:
[email protected]
Homeowner Support –contact ClareCare
[email protected]
