Service Manual
Model
NISSAN Genuine (BOSE Type)
Cockpit Module
AM/FM Radio Stereo
6-CD Changer Deck
PN-2701B-B
(Genuine No. 28185 EH20A)
(Xanavi Genuine No. CD6K-1211U)
originalservicemanual.
DIFFERENCEFROMORIGINAL
This unit supports the 16-figure display of Satellite radio.
IC402 Audio CPU different.
Parts that have been described to this manual have changed
for the performance improvement.
MODEL
COMPONENTS
PN-2714B-B
1. Mainunit ----------- 1
2. Lock pin 966-0653-21 1
CAUTIONS
Use of controls,adjustment,or performance of procedures
other than those specified herein,may result in hazardous ra-
diationexposure.
Thecompact discplayer shouldnot beadjusted orrepaired by
anyone except properly qualified service personnel.
ORIGINALSERVICEMANUAL
This additional service manual is designed to be used
togetherwith ModelPN-2714B-A
Thismanualhasdescribedonly thedifferencepoint withthe
Originalmodel Manual No.
PN-2714B-A 298-6224-00
Look pin
NOTE
* IncasethatthemainunitortheCD
changermechanismistransported
for repair, the lock pin(966-0653-
21) must be set to fix the mecha-
nism assy.
* Wecannot supplyPWB withcom-
ponent parts in principle. When a
circuit on PWB has failure, please
repair it by component parts base. Parts which are not
mentionedin service manualare notsupplied.
* Thisproduct includes technologyowned by MicrosoftCor-
poration and cannot be used or distributed without a li-
censefromMSLGP.
* Specifications and design are subject to change without
notice for further improvement.
MANUFACTURED
.
DO NOT DROPWARNING
MOU N T S C R E W
M5 X 8 mm MA X
FREQUENCY RANGE
A M : 530 - 1710 kHz
F M : 87.75 - 107.9 MHz
This product includes technology owned by Microsoft Corporation and
cannot be used or distributed without a license from MSLGP.
THIS PRODUCTION COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J
APPLICABLE AT DATE OF MANUFACTURE.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES, OPE
RATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS; (1)
THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)
THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCL
UDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
28185 EH200
PN-2701B
CD6K-1210U
Model No.
Xanavi No.
NISSAN No.

PN-2701B-B -2-
EXPLANATIONOFIC
052-3188-83 M30853FHGP Audio CPU
Terminal Description
pin 1: CTRST : O : Contrast adjustment analogue output(DA).
pin 2: SPEED :IN: Speed Pulse input.
pin 3: EEP/ST DA :I/O:The serial data input/output for EEP and
Sub-tuner.
pin 4: EEP/ST CK : O : The serial clock output for EEP and Sub-
tuner.
pin 5: BU DET :IN: Backup detection signal input.
pin 6: GND : - : Ground.
pin 7: CN VSS :IN: Connect to VSS.
pin 8: ILL ON :IN: Illumination ON signal input.
pin 9: SYS ON : O : System ON signal output.
pin 10: RESET :IN: Reset signal input.
pin 11: X out : O : Crystal connection.
pin 12: VSS : - : Negative voltage supply.
pin 13: X IN :IN: Crystal connection.
pin 14: VDD : - : Positive voltage supply.
pin 15: NMI :IN: Connect to VDD.
pin 16: ACC IN :IN: ACC ON flag input.
pin 17: NC : O : Not in use.
pin 18: NC : O : Not in use.
pin 19: TB :IN: Time base input.
pin 20: NC : O : Not in use.
pin 21: M CAN RX :IN: M-CAN serial data input.
pin 22: M CAN TX : O : M-CAN serial data output.
pin 23: Power IC Stndb : O : The standby signal output to Power IC.
pin 24: BEEP/BUZ : O : BEEP out or the buz control.
pin 25: AMP ON : O : AMP ON signal output.
pin 26: DIMMER : O : PWM output.
pin 27: EEP/MT CK : O : The clock pulse output to EEP/Main-tuner.
pin 28: EEP/MT DA : O : The serial data output to EEP/Main-tuner.
pin 29: NDS TX : O : The serial data output for NDS.
pin 30: NDS RX :IN: The serial data input for NDS.
pin 31: NDS REQ 1 :IN: NDS request signal input.
pin 32: NDS CONT : O : NDS/Automatic-changer select.
pin 33: 1&6-CD TX : O : The serial data output for 1-CD & 6-CD-
Changer.
pin 34: 6-CD RX / CK :I/O:The serial data input for 6-CD-Changer. Or
clock pulse output for 1-CD.
pin 35: NDS REQ 2 :IN: NDS request signal input.
pin 36: NDS S-CHG : O : N-BUS audio signal select command out-
put.
pin 37: NC : O : Not in use.
pin 38: NC : O : Not in use.
pin 39: WRITE ONLY : - : WRITE ONLY.
pin 40: NC : O : Not in use.
pin 41: NC : O : Not in use.
pin 42: NC : O : Not in use.
pin 43: 1-CD RX :IN: The serial data input from 1-CD.
pin 44: 1&6-CD REQ :IN: The request signal input from 1-CD & 6-
CD-Changer.
pin 45: 1-CD CS : O : The chip select signal output.
pin 46: 1-CD WUP : O : The wakeup signal output.
pin 47: 1-CD RESET : O : The reset signal output.
pin 48: CD ON : O : CD ON signal output.
pin 49: Power IC Diag :IN: Power IC Diagnosis signal input.
pin 50: LCD ON : O : LCD ON signal output.
pin 51: KEY/LCD DO : O : Serial data output for KEY IC or LCD IC.
pin 52: KEY/LCD CLK : O : Clock output for KEY IC or LCD IC.
pin 53: KEY/LCD DI :IN: Serial data input for KEY IC or LCD IC.
pin 54: KEY/LCD CE : O : Chip Enable output for KEY IC or LCD IC.
pin 55: KEY/LCD S/R : O : KEY IC Standby output / LCD IC Reset
output.
pin 56: VOL-2 :IN: The volume pulse input.
pin 57: VOL-1 :IN: The volume pulse input.
pin 58: NC : O : Not in use.
pin 59: NC : O : Not in use.
pin 60: VDD : - : Positive voltage supply.
pin 61: POWER-ON : - : POWER-KEY.
pin 62: GND : - : Ground
pin 63: RTLY-VOL2/TH :IN: Rotary volume pulse input / temperature.
pin 64: RTLY-VOL1 :IN: Rotary volume pulse input.
pin 65: MD WP : O : MD wakeup, H = WAKE-UP, L = SLEEP.
pin 66: MD XCS : O : MD chip select , H = CS ON.
pin 67: MD XSCK : O : MD clock.
pin 68: CPU-MD : O : The serial data output to MD.
pin 69: MD RESET : O : L = RESET ON.
pin 70: MD XSRQ :IN: MD request.
pin 71: NC : O : Not in use.
pin 72: MD DI :IN: The serial data input from MD.
pin 73: MD LD/RDS CK:IN: MD loading start signal input, DISC load-
ing beginning of L. And RDS clock in-
put.
pin 74: MD ON/RDS DI : O : MD power supply control, H = Power ON.
pin 75: NC : O : Not in use. And RDS data input.
pin 76: ST/SD/TWEET :I/O:At AM station receiving, this port outputs
"L" by AM 900kHz receiving. At FM sta-
tion receiving, this port detects the ste-
reo signal. And at seeking or scanning,
this port detects the SD signal.
pin 77: DSP INT :IN: The interrupt command input from the
DSP IC.
pin 78: DSP RESET : O : Reset signal output to the DSP IC.
pin 79: S METER :IN: The input terminal of internal A/D convert-
er to monitor the radio field strength.
pin 80: PLL DI :IN: Serial data input from the PLL IC.
pin 81: VFM PLL CE : O : The chip enable signal output to the PLL
IC.
pin 82: VFM PLL DO : O: Serial data output to the PLL IC.
pin 83: VFM PLL CK : O : The clock pulse output to the PLL.
pin 84: VFM PLL DI :IN: Serial data input from the PLL IC.
pin 85: VFM SD :IN: Station detection signal input.
pin 86: VFM S METER :IN: The input terminal of internal A/D convert-
er to monitor the radio field strength.
pin 87: MD EJ/6-CD LD:IN: MD eject signal input. And 6-CD-Changer
loading start signal input.
pin 88: CD EJECT :IN: CD eject signal input.
pin 89: PLL CK :IN: PLL clock input.
pin 90: PLL DO : O : Serial data output to the PLL IC.
pin 91: PLL CE : O : The chip enable signal output to the PLL
IC.
pin 92: N REMO B :IN: The input terminal of internal ADC for N-
remote-controller signal.
pin 93: N REMO A :IN: The input terminal of internal ADC for N-
remote-controller signal.
pin 94: A GND : - : Analog ground.
pin 95: NC : O : Not in use.
pin 96: Vref : - : Reference voltage.
pin 97: A VCC : - : Positive voltage supply for the internal
analog section.
pin 98: DSP/PIC/RDS C:IN: The clock pulse input.
pin 99: DSP/PIC/RDS D:IN: The serial data input.
pin100: ANT ON : O : Antenna ON command output.

PN-2701B-B
-3-
1
2
5
5
5
6
6
6
8
7
10
7
7
11
11 9
9
9
7
13
14
12
3
9
4
9
9
9
9

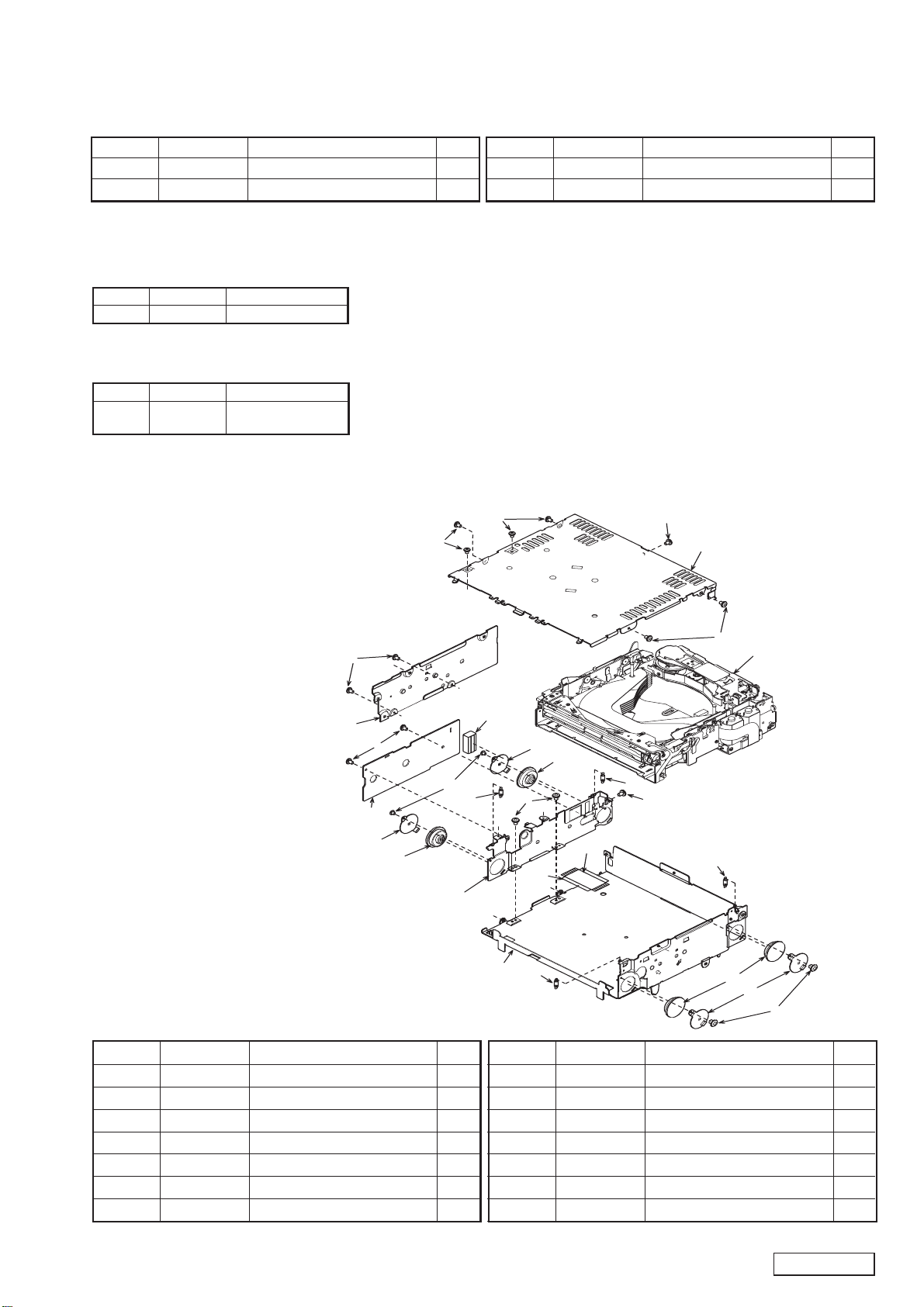

DEFFARENCEFROM ORIGINAL EXPLODEDVIEW/PARTS LIST
Main section
*Refer to the figure on page 9 of original manual.The following parts were changed.
8 880-1728K TUNERPACK 1
28 347-7359-01 EARTHSHEET 1
1 311-1864-24 LOWERCASE 1
2 331-3896-22 PWB-HOLDER 1
3 305-0334-20 SIDECASE 1
4 310-1741-28 UPPERCASE 1
5 629-0083-01 DAMPER 4
6 620-1086-20 DAMPER-H-PLT 4
7 750-3491-00 FL-SPRING 4
NO. PARTNO. DESCRIPTION Q'TY
NO. PARTNO. DESCRIPTION Q'TY 31 929-0731-81 CDCHANGERMODULE 1
36 286-6469-13 SETPLATE 1
EXPLODEDVIEW/PARTS LIST
CD changer module section:929-0731-81
8 ----------- CDPWB 1
9 716-1716-02 SCREW(M2x3) 14
10 HBS-561-100 FPC 1
11 716-3450-00 SCREW(M1.7x2) 4
12 ----------- CDCHANGERMECHANISM 1
13 347-6619-00 INSULATOR 1
14 345-8748-00 GASKET 1
NO. PARTNO. DESCRIPTION Q'TY NO. PARTNO. DESCRIPTION Q'TY
* No.12 : Refer to CD changer mechanism section.(page 4 - 6)
*Refer to the parts list on page 14 of original manual.The following parts were changed.
BL161 880-1728K TUNERPACK
REFNo. PART No. DESCRIPTION
Main PWB section(B2)
*Refer to the figure on page 14 and 15 of original manual.The following parts were changed.
IC402 052-3188-83 M30853FHGP
REFNo. PART No. DESCRIPTION
J801 074-3010-60 10PSOCKET
DIFFERENCE FROM ORIGINAL ELECTRICAL PARTS LIST
Switch PWB section(B1)

PN-2701B-B -4-
1
85
67
41
2
36
32
64
67
22
22
60
62
24
29
22
60
25
47
45
63
9
51
72
31
60
6
62
69
28
55
69
55
88
7
38
63
62
69
76
46
69
53
7
89
87
62
33
18
81
44
5
868
49
20
62
82
68
58
34
69
70
71
42
69
J3
K6
K1
K5
L1 L2
L3
L4
J3 J9
L5
L6 L7
L8
K7 K8
J4
J8
J4
J6
J5
J1
I1
J9
L5
L7
J5
J6
L6
L8
J7
J8
J2
I2
J7
K5
K6
K7 K8
X5
A28
A8
A14
A26
A18
A4
A3
B3
A19
A9
C1
A1 A2
O1 A5
F1
X1
X2
X3X4
A27
A10
A27
A15
A13 Q1 E6
T1 A17
A16
T2 E5
Q1
A26
A27
W1
O2
T4
X1
X2
X3
X4
Y1
Y3
Y2
Y4
S1
A30
E7
A6
O2
V1
O1
A13
M1
N1 N2
A12
A11
R1
U1
A7
A11
A12
N1N2 M1
E1
A29 P1
E4
A21
A20
A14
A22
A28
U1
R1
A25
E2
A23
A24
S1
A25
L1
L2
L3
L4
27
52
62
35
35
62
26
23
35
30
62
A21
A20
A22
W1
V1
A24
A23
69
69
54
54
43
69
19
E3
P1
69
K1
62
86

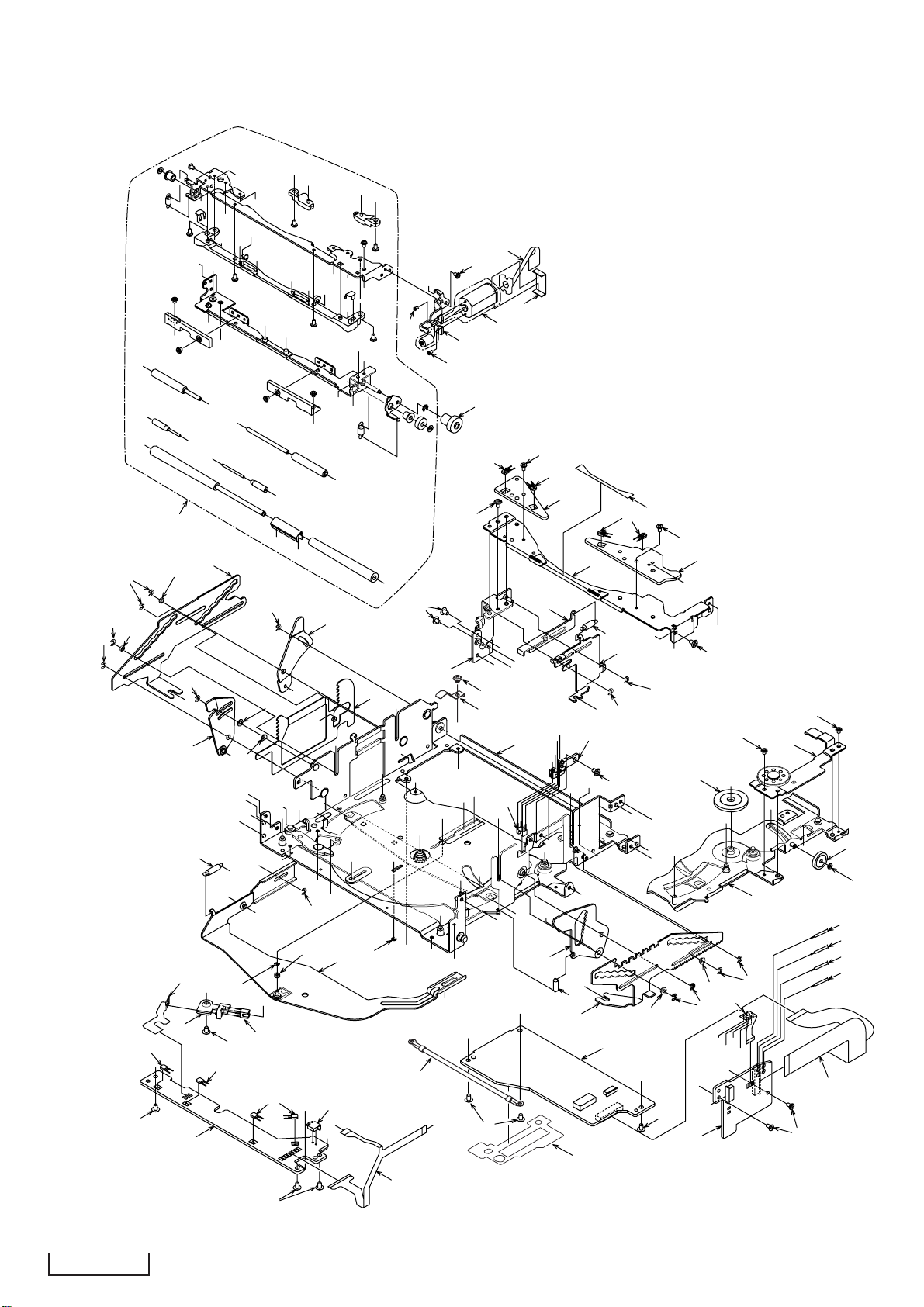

CD changer mechanism section
*Please see the parts list on page 6.

PN-2701B-B
-5-
63
50
17
12
59
79
63
50
40
61
48
77
66
56
83
84
75
39
4
65
80
73
57
73
16
74
57
64
15
14
37
13
62
62
78
10
21
3
62
11
B1
I1
J1
E3
E1
E4 E8
I2
J2
A7
A8 A29
T3
G1
G2
G1
H1
G2
F1
D1
E8
A18
A6
A30
H1
B4
A10
A9
X5
C2
E7 E6
E5
E2
D1
C3
B2
T3
A17
T1
T2
A16
T4
A15 B1 B2 B4
A1 A2 A19 B3 A3
A4
A5
C2
C3
C1
Y2
Y1
Y4
Y3

PN-2701B-B -6-
CD changer mechanism section
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
1 HBS-562-100 LOADINGUNIT 1
(WITHOUTMOTOR)
2 SMA-186-100 LOADING MOTOR ASSY 1
3 HBS-530-100 MOTOR PLATE SUB ASSY 1
4 HBS-531-104 DRIVEUNIT 1
5 ----------- DSPPWB 1
6 ----------- DRIVERPWB 1
7 966-1751-22 CHASSIS ASSY 1
8 966-0600-23 LOCK-P-RE-ASSY 1
9 966-0601-21 M-GEAR-P-ASSY 1
10 966-0602-26 DR-LINK-ASSY 1
11 966-0603-21 MODE-P-ASSY 1
12 966-0604-26 LOCK-PF-ASSY 1
13 966-0605-20 SHIFT-P-ASSY 1
14 966-0606-23 HLC-PLATE-ASSY 1
15 966-1788-22 COV-PLATE-ASSY 1
16 HBS-535-100 TOP-PLATE-ASSY 1
17 966-0652-24 DR-BASE-P-ASSY 1
18 966-0615-21 LOCK-L-RF-ASSY 1
19 966-0616-20 LOCK-L-LF-ASSY 1
20 966-0618-21 EJECT-B-ASSY 1
21 966-1742-20 DISC-HOL-ASSY 1
22 001-7042-00 DIODE(GL4800) 4
23 013-7414-50 DETECTORSWITCH 1
24 ----------- LED-L-PWB 1
25 ----------- LED-R-PWB 1
26 ----------- SENSORPWB 1
27 039-2009-00 PIM-FPC 1
(WITHOUTCOMPONENT)
28 039-2010-00 PIV-FPC 1
(WITHOUTCOMPONENT)
29 039-2011-01 LED-FPC 1
30 039-2012-00 SENSOR-FPC 1
31 039-2013-04 MOS-FPC 1
32 039-2014-01 L-MOTOR-FPC 1
(WITHOUTCOMPONENT)
33 051-5806-01 IC(GPIS93) 1
34 051-5806-02 IC(GPIS95) 1
35 060-0252-01 PHOTO-TR 4
36 347-6657-01 LO-COVERSHEET 1
37 620-1041-26 GEARPLATE 1
38 620-1042-20 M-GEAR-H 1
39 620-1056-22 HLR-PLATE-L 1
40 620-1580-20 HLR-PLATE-R 1
41 620-1576-20 LO-MOTOR-PLT 1
42 620-1066-20 LOCKLINK-LR 1
43 620-1067-21 SLIDEPLATE-L 1
44 620-1068-22 SLIDEPLATE-R 1
45 620-1071-21 EJECTARM 1
46 620-1072-20 EJECTPLATE 1
47 620-1577-20 FRONTPLATE 1
48 620-1083-20 FPC-PLATE 1
49 620-1090-20 GAPPLATE 1
50 620-1568-21 RATTLEPLATE-F 2
51 621-0640-20 V-GEAR-G 1
52 621-0641-21 PI-HOLDER-M 1
53 621-0656-21 PI-HOLDER-V 1
54 622-1622-20 SL-G-ROLLER 2
55 622-1623-00 SL-G-ROLLER-R 2
56 622-1648-23 DU-STP-SLEEVE 1
57 622-1650-23 COV-PLATEPIN-B 2
58 622-1651-00 LOCK-RE-ROLLER 1
59 622-1652-00 LOCK-PF-ROLLER 1
60 716-1866-50 SCREW(M1.7x3) 4
61 716-1873-00 SCREW(M2x1.6) 1
62 716-3449-00 SCREW(M2x3) 15
63 716-3450-00 SCREW(M1.7x2) 4
64 716-3451-01 SCREW(M1.7x2.5) 4
65 716-3459-01 SCREW(M1.7x5) 1
66 716-3466-53 SCREW(M2x6) 1
67 738-1422-1B PRECISIONSCREW 2
68 743-1200-10 E-RING 2
69 743-1500-10 E-RING 13
70 746-0624-00 WASHER 1
71 746-0712-23 WASHER 1
72 746-0761-00 WASHER 1
73 750-3478-01 TOP-P-SP-L 2
74 750-3479-01 TOP-P-SP-R 1
75 750-3480-01 DR-LOCK-SP 1
76 750-3483-00 EJECT-A-SPRING 1
77 750-3484-01 DR-BASE-SPRING 1
78 750-3485-01 TENSION-SP-L 1
79 750-3486-01 LO-TENSION-SP 1
80 750-3489-01 DRIVE-P-SPRING 1
81 750-3496-00 GAP-P-SPRINGR 1
82 750-3497-00 GAP-P-SPRINGL 1
83 750-6711-01 DU-STP-SPRING 1
84 750-6712-01 DR-LOCK-SP-B 1
85 621-0651-22 LOAD GEAR-A 1
86 347-7860-20 FPCCOVER 1
87 716-1850-01 SCREW 1
88 854-4348-01 EXTENSIONLEAD 1
89 620-1604-20 DR-PLATE-SCREW 1
*No.4 : Refer to the next Page.

PN-2701B-B
-7-
8
9
10
712
11
17
23
5
16
23
22
21
2
24 24
6
30
13
26
25
20
19
18
14
23
3
23
29
15
28
25
27
1
A1
B1
A2
A3 A1
A2
C1
A3
C1
4
B1
Drive unit section : Drive unit : HBS-531-104
NO. PARTNO. DESCRIPTION Q'TYNO. PARTNO. DESCRIPTION Q'TY
1 HBS-532-101 CLAMPER SUB ASSY 1
2 SMA-193-101 SPINDLEMOTORASSY 1
3 SMA-191-100 SLED MOTOR ASSY 1
4 HBS-515-103 LS-ASSY 1
5 620-1587-83 SH-SP-PLT 1
6 HBS-542-101 D-SHIFT-P-ASSY 1
7 969-0011-01 PICKUP-ASSY 1
8 013-7414-50 DETECTSWITCH 1
9 039-2015-02 P/U-FPC 1
10 039-2016-02 M/S-FPC 1
(WITHOUTCOMPONENT)
11 347-6632-00 PU-SHEET 1
12 620-1078-21 PUSHPLATE 1
13 620-1080-22 PU-GUIDEPLATE 1
14 620-1081-20 SCREWPUSH-PLT 1
15 966-0650-20 SPRING PLT ASSY 1
16 620-1730-81 SCREW-HOL-PLT 1
17 621-0670-20 LS-HOLDER-L 1
18 621-0673-20 D-GEAR A 1
19 621-0674-20 D-GEAR B 1
20 621-0675-20 D-GEAR C 1
21 621-0683-21 DU-STOPPER 1
22 716-3511-01 SCREW(M1.4x3) 2
23 716-3470-01 SCREW(M1.7x3) 5
24 738-1720-1H PRECISIONSCREW(M1.7x2) 2
25 738-2025-1H PRECISIONSCREW(M2x2.5) 2
26 716-3474-01 SCREW(M1.7x3) 2
27 743-1500-20 E-RING 1
28 750-3487-00 SHIFT-P-SPRING 1
29 750-3504-00 CLAMP-A-SPRING 1
30 966-0649-02 DRIVE PLT-ASSY 1
J801 074-3010-60 10PSOCKET

PN-2701B-B -8-
REFNo. PART No. DESCRIPTION REFNo. PART No. DESCRIPTION REFNo. PART No. DESCRIPTION
ELECTRICAL PARTS LIST(CD changer mechanism)
CD PWB section(B4)
R25 119-1031-15 1/10W 10k ohm
R26 119-4721-15 1/10W 4.7k ohm
R27 119-1031-15 1/10W 10k ohm
R28 119-1041-15 1/10W 100k ohm
R29 119-1041-15 1/10W 100k ohm
R31 119-4731-15 1/10W 47k ohm
R32 119-0000-05 1/10W 0 ohm JW
R35 119-0000-05 1/10W 0 ohm JW
R36 119-4731-15 1/10W 47k ohm
R37 119-4731-15 1/10W 47k ohm
R38 119-2231-15 1/10W 22k ohm
R39 119-2231-15 1/10W 22k ohm
R40 119-2231-15 1/10W 22k ohm
R41 119-4711-15 1/10W 470 ohm
R42 119-2231-15 1/10W 22k ohm
R43 119-2241-15 1/10W 220k ohm
R60 119-0000-05 1/10W 0 ohm JW
R530 119-4731-15 1/10W 47k ohm
R550 119-4731-15 1/10W 47k ohm
TM1 073-0768-90 TERMINAL
TM2 073-0766-90 TERMINAL
TM4 073-0766-90 TERMINAL
TM5 073-0766-90 TERMINAL
X1 060-1533-90 CSTCE10M0G52-R0
PWB 039-2532-20 PWB(WITHOUT
COMPONENT)
FW6GP
IC4 051-9402-78 BR93L56RFVM-W
IC5 051-3332-90 NJU7222U33
IC6 051-3293-90 BA033SFP-E2
J1 074-1189-95 45P
J3 074-1237-70 20P
P1 076-0478-55 PLUG
Q3 190-1162-00 2SA1162
Q4 198-3018-00 2SK3018
Q5 131-1188-50 2SB1188PQR
Q6 198-3018-00 2SK3018
Q7 125-2004-92 RN1402
125-2020-92 RN1402TE85L
Q8 125-2004-92 RN1402
125-2020-92 RN1402TE85L
Q9 125-0014-92 DTA114EK
125-0002-92 RN2402TE85L
Q53 193-0601-00 2SD601A
R2 119-2211-15 1/10W 220 ohm
R4 119-4731-15 1/10W 47k ohm
R8 119-4731-15 1/10W 47k ohm
R10 119-2211-15 1/10W 220 ohm
R13 119-1041-15 1/10W 100k ohm
R14 119-2221-15 1/10W 2.2k ohm
R15 119-1041-15 1/10W 100k ohm
R16 119-1021-15 1/10W 1k ohm
R20 119-4731-15 1/10W 47k ohm
R24 119-4731-15 1/10W 47k ohm
C1 168-4735-56 0.047uF Z
C2 168-4735-56 0.047uF Z
C4 168-1222-55 1200pF K
C5 163-2263-35 16V22uF
C6 168-1222-55 1200pF K
C12 168-1222-55 1200pF K
C15 168-1222-55 1200pF K
C16 163-2263-35 16V22uF
C18 168-1045-56 0.1uF Z
C19 166-1011-50 100pF CH
C21 168-1032-55 0.01uF K
C22 168-1045-56 0.1uF Z
C23 168-1045-56 0.1uF Z
C24 168-1032-55 0.01uF K
C25 163-1073-15 6.3V100uF
C26 178-1052-78 1uF
C27 168-1045-56 0.1uF Z
C28 042-0671-01 10V 47uF TA
C29 168-1045-56 0.1uF Z
C30 178-3342-78 0.33uF
C31 042-1673-00 10V 220uF
CCT4 050-0140-55 1/32W 2.2k ohmx4J
CCT5 050-0145-54 1/16W 47k ohm x4
CCT6 050-0145-53 1/16W 220k ohm x4
J
D2 001-2610-90 RB480KTL
IC2 051-5445-08 BD5227G-TR
IC3 052-5061-02 M30621MCM-
DSP PWB section(B5)
REFNo. PART No. DESCRIPTION REFNo. PART No. DESCRIPTION REFNo. PART No. DESCRIPTION
IC10 051-3315-90 TPS76316DBVR
IC11 051-7221-58 SN74AHC1G04
HDCKR
IC12 051-7525-08 SN74LVC2GU04
DCKR
IC13 051-7526-08 SN74LVC1G126
DCKR
J1 074-1201-65 15P
J2 074-1138-56 6P
J3 074-1059-76 26P
J4 074-1189-95 45P
J5 074-1201-60 10P
L2 010-3104-54 600ohm / 100MHz
L3 010-3104-54 600ohm / 100MHz
Q1 131-1188-50 2SB1188PQR
Q2 131-1188-50 2SB1188PQR
Q3 125-2004-92 RN1402
125-2020-92 RN1402TE85L
R1 033-1021-15 1/10W 1k ohm
R2 033-1021-15 1/10W 1k ohm
R3 033-3311-15 1/10W 330 ohm
R4 033-2211-15 1/10W 220 ohm
R5 033-2211-15 1/10W 220 ohm
R6 033-1021-15 1/10W 1k ohm
R7 033-1051-15 1/10W 1M ohm
R8 033-0000-05 1/10W 0 ohm
R10 033-5621-15 1/10W 5.6k ohm
R11 033-4731-15 1/10W 47k ohm
R12 119-3341-15 1/10W 330k ohm
R13 033-2231-15 1/10W 22k ohm
R14 033-2231-15 1/10W 22k ohm
R15 117-1001-15 1/8W 10 ohm
R16 033-5631-15 1/10W 56k ohm
R17 033-3331-15 1/10W 33k ohm
R18 033-6831-15 1/10W 68k ohm
R19 033-6831-15 1/10W 68k ohm
R20 033-1011-15 1/10W 100 ohm
R21 116-4711-15 1/4W 470 ohm
R22 117-1811-15 1/8W 180 ohm
R23 116-4711-15 1/4W 470 ohm
C44 046-6812-58 680pF
C45 168-1045-56 0.1uF Z
C46 168-1045-56 0.1uF Z
C47 042-0671-01 10V 47uF TA
C48 168-5632-78 16V 0.056uF
C49 168-1045-56 0.1uF Z
C50 168-1045-56 0.1uF Z
C51 168-1045-56 0.1uF Z
C53 168-1045-56 0.1uF Z
C54 042-0671-01 10V 47uF TA
C56 168-4712-55 470pF K
C57 046-1032-78 0.01uF
C58 168-4712-55 470pF K
C59 168-1045-56 0.1uF Z
C60 168-1045-56 0.1uF Z
C61 046-1032-78 0.01uF
C62 042-0671-01 10V 47uF TA
C63 046-1032-78 0.01uF
C64 168-1045-56 0.1uF Z
C65 045-1201-50 12pF
C66 046-1032-78 0.01uF
C67 046-1032-78 0.01uF
C68 168-1045-56 0.1uF Z
C69 045-1201-50 12pF
C101 046-1032-78 0.01uF
C102 046-1032-78 0.01uF
CCT1 050-0140-68 1/32W 3.3k ohm x4J
CCT4 050-0140-63 1/32W 47k ohm x4J
D1 001-0367-91 1SS226
D2 001-2610-90 RB480KTL
IC2 051-6399-00 TC94A15F
IC3 051-6060-08 BD7961FM-E2
IC4 051-7518-18 SN74LVC139APWR
IC5 052-5062-04 MBM29DL800BA-
90PFTN
IC6 051-7518-18 SN74LVC139APWR
IC7 051-9330-00 K4S641632F-TC60
IC8 051-7203-48 SN74LV74APW
IC9 051-6700-00 TMS320DA140
PGE160
C1 042-0671-01 10V 47uF TA
C2 168-4735-56 0.047uF Z
C3 046-4722-58 4700pF
C4 046-1032-78 0.01uF
C5 168-1045-56 0.1uF Z
C6 042-0671-01 10V 47uF TA
C7 168-1045-56 0.1uF Z
C8 168-1045-56 0.1uF Z
C9 045-1007-50 10pF
C10 168-1045-56 0.1uF Z
C11 045-1007-50 10pF
C12 168-1045-56 0.1uF Z
C13 042-0672-00 25V 47uF TA
C14 168-4735-56 0.047uF Z
C15 168-4735-56 0.047uF Z
C16 168-4735-56 0.047uF Z
C17 178-1052-78 1uF
C18 045-4701-50 47pF
C19 168-1045-56 0.1uF Z
C20 046-4712-58 470pF
C21 046-4712-58 470pF
C22 168-1045-56 0.1uF Z
C23 046-1532-78 0.015uF
C24 168-1045-56 0.1uF Z
C25 046-6822-58 6800pF
C26 046-1032-78 0.01uF
C28 046-1022-58 1000pF
C29 046-3332-78 0.033uF
C32 046-4722-58 4700pF
C33 046-1522-58 1500pF
C34 168-1045-56 0.1uF Z
C35 046-1532-78 0.015uF
C36 168-1045-56 0.1uF Z
C37 168-1045-56 0.1uF Z
C38 042-0671-01 10V 47uF TA
C39 178-1052-78 1uF
C40 045-6801-50 68pF
C41 168-1045-56 0.1uF Z
C42 178-1052-78 1uF
C43 042-0671-01 10V 47uF TA

Sensor PWB section(B6)
PIM-FPC section(B7)
Driver PWB section(B8)
PIV-FPC section(B9)
LED-L-PWB section(B10)
LED-R-PWB section(B11)
L-Motor-FPC section(B12)
To J3 of DSP PWB
(page 11)
LED-L-PWB(B10)LED-R-PWB(B11)
Driver PWB(B8)
PIV-FPC(B9)L-Motor-FPC(B12)
Sensor PWB(B6)
PIM-FPC(B7)
LED-FPC
Sensor
FPC
IC6
V-Sensor
Motor plate
sub ass'y M1
Loading motor
Motor plate
sub ass'y
Motor driver
PN-2701B-B
- 9 -
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
R101 033-1011-15 1/10W 100 ohm
R102 033-1011-15 1/10W 100 ohm
R103 033-1011-15 1/10W 100 ohm
R104 033-1011-15 1/10W 100 ohm
R105 033-1011-15 1/10W 100 ohm
R106 033-1011-15 1/10W 100 ohm
R107 033-4731-15 1/10W 47k ohm
R200 033-1051-15 1/10W 1M ohm
R201 033-1021-15 1/10W 1k ohm
R202 033-1021-15 1/10W 1k ohm
R220 033-4731-15 1/10W 47k ohm
R301 119-2231-15 1/10W 22k ohm
R302 119-3911-15 1/10W 390 ohm
X1 061-3534-90 16.92MHz
PWB 039-2531-20 PWB(WITHOUT
COMPONENT)
R41 033-1001-15 1/10W 10 ohm
R42 033-1001-15 1/10W 10 ohm
R45 033-1011-15 1/10W 100 ohm
R46 033-4731-15 1/10W 47k ohm
R47 033-4731-15 1/10W 47k ohm
R48 033-1011-15 1/10W 100 ohm
R49 033-0000-05 1/10W 0 ohm
R50 033-0000-05 1/10W 0 ohm
R51 033-8231-15 1/10W 82k ohm
R52 033-0000-05 1/10W 0 ohm
R53 033-4731-15 1/10W 47k ohm
R63 033-2231-15 1/10W 22k ohm
R64 033-2231-15 1/10W 22k ohm
R65 033-4731-15 1/10W 47k ohm
R66 033-4731-15 1/10W 47k ohm
R100 033-1011-15 1/10W 100 ohm
R24 033-2231-15 1/10W 22k ohm
R25 033-2231-15 1/10W 22k ohm
R26 033-2231-15 1/10W 22k ohm
R27 033-1011-15 1/10W 100 ohm
R28 033-4731-15 1/10W 47k ohm
R29 033-2231-15 1/10W 22k ohm
R30 033-4721-15 1/10W 4.7k ohm
R31 033-4721-15 1/10W 4.7k ohm
R32 033-4731-15 1/10W 47k ohm
R33 033-4731-15 1/10W 47k ohm
R35 033-4731-15 1/10W 47k ohm
R36 033-3311-15 1/10W 330 ohm
R37 033-4731-15 1/10W 47k ohm
R38 033-3311-15 1/10W 330 ohm
R39 033-2211-15 1/10W 220 ohm
R40 033-1011-15 1/10W 100 ohm
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
REF No. PART No. DESCRIPTION
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
REF No. PART No. DESCRIPTION
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
REF No. PART No. DESCRIPTION
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
Sensor PWB sction(B6)
PIM-FPC section(B7)
S1 013-7414-50 SPVG22
PWB 039-1956-00 PWB(WITHOUT
COMPONET)
PT3 060-0252-01 PT4850F
PT4 060-0252-01 PT4850F
PT5 060-0252-01 PT4850F
PT6 060-0252-01 PT4850F
IC5 051-5806-02 GPIS95
Driver PWB section(B8)
R3 032-0104-59 1/4W 2.2 ohm
S1 013-7412-50 SPVG21
PWB 039-2242-00 PWB(WITHOUT
COMPONET)
J1 074-1239-76 26P
J2 074-1100-59 9P
R1 033-1021-15 1/10W 1k ohm
R2 032-0104-59 1/4W 2.2 ohm
C1 168-1045-56 0.1uF
C2 163-1073-35 16V100uF
D1 001-0529-29 MA8051-M
IC1 051-6044-18 BA6920FP-Y
PIV-FPC section(B9)
IC6 051-5806-01 GPIS93
LED-L-PWB section(B10)
PWB 039-1954-20 PWB(WITHOUT
COMPONET)
LED3 001-7042-00 GL4800
LED4 001-7042-00 GL4800
LED-R-PWB section(B11)
LED5 001-7042-00 GL4800
LED6 001-7042-00 GL4800
PWB 039-1955-20 PWB(WITHOUT
COMPONET)
L-Motor-FPC section(B12)
M1 SMA-186-100 LOADING
M/S-FPC section(B13)
S2 013-7414-50 SPVG22M3 SMA-191-100 SLED
M2 SMA-193-102 SPINDLE
CIRCUIT DIAGRAM

- 10 -
To J4 of DSP PWB (page 12)
( Pin No. of J4) (1)
(45)
CCT4 2.2Kx4
IC3
M30621MCM
CCT5 47Kx4
CCT6
220Kx4
TM2
TM4
TM5
TM1
(Flash I/F)
To J203 of Main PWB
RB480KTL
CD PWB section(B4)
ACC-ON
ACC-OFF
B/U-ON Det
B/U Reduce Det
ACC-OFF
ACC-ON
B/U-ON Det
B/U Reduce Det
PN-2701B-B

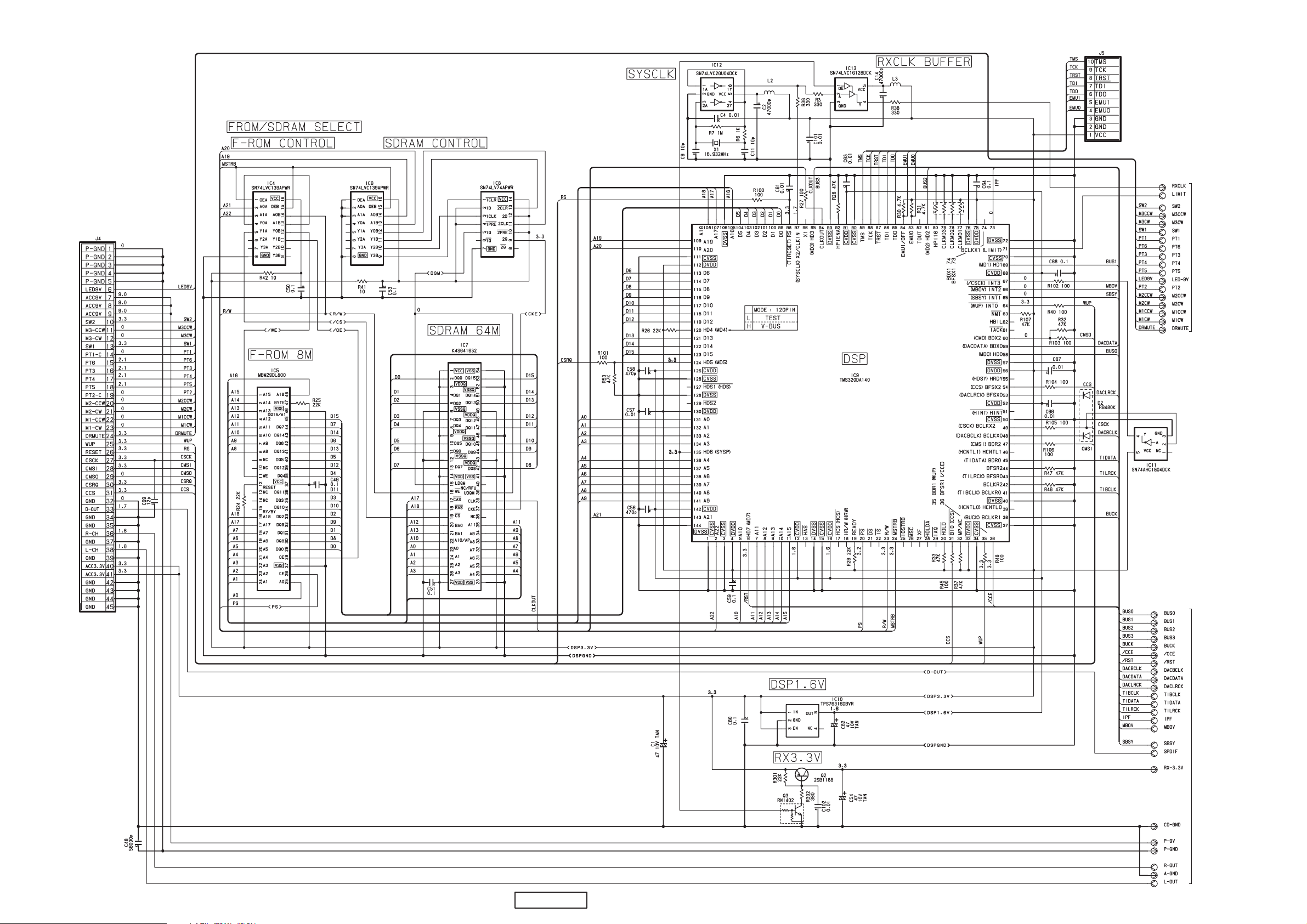

DSP PWB section(B5) 1/2
MS-FPC section(B13)
- 11 -
To J1 of Driver PWB
page 9
Pick up ass'y
Drive unit
M/S-FPC
(B13)
Pick up ass'y
Drive unit
To 2/2(page 12)
CCT1
3.3Kx4
To 2/2(page 12)
PN-2701B-B

- 12 -
To J1 of CD PWB
(page 10)
( Pin No. of J1)
(45)
(1)
DSP PWB section(B5) 2/2
CCT4 47Kx4
(JTAG TEST I/F)
To 1/2(page 11)
To 1/2(page 11)
PN-2701B-B

- 13 -
PRINTED WIRING BOARD
CD PWB section(B4)
DSP PWB section(B5)
Sensor PWB section(B6)
PIM-FPC section(B7)
Driver PWB section(B8)
PIV-FPC section(B9)
LED-L-PWB section(B10)
LED-R-PWB section(B11)
L-Motor-FPC section(B12)
M/S-FPC section(B13)
(FLASH I/F)
Motor plate sub ass'y
(HBS-530-100)
M2
Spindle motor ass'y
(SMA-193-101)
S2
Detect switch
M3
Sled motor ass'y
(SMA-191-100)
Pick up ass'y
(969-0011-01)
P/U-FPC
(039-2015-02)
IC5
GP1S95
(039-2016-02)
M1
Loading motor ass'y
(SMA-186-100)
Sensor-FPC
(039-2012-00)
Sensor PWB(B6)
CD PWB(B4)
LED-L-PWB(B10)
DSP PWB(B5)
LED-R-PWB(B11)
LED-FPC
(039-2011-01)
M/S-FPC(B13)
(039-2014-01)
L-Motor-FPC(B12)
(039-2010-00)
PIV-FPC(B9)
Driver PWB(B8)
(039-2009-00)
PIM-FPC(B7)
Drive unit
1
1
115
6
18
3619
1
1
127
54 28
7
14 8 8
16
9
18
169
14
1
1
1
1
1
1
1
PN-2701B-B
COMPONENT SIDE
Caution:
COMPONENT SIDE: Parts on the component side seen
from the component side are indicated.

- 14 -
CD PWB section(B4)
DSP PWB section(B5)
Sensor PWB section(B6)
PIM-FPC section(B7)
Driver PWB section(B8)
PIV-FPC section(B9)
LED-L-PWB section(B10)
LED-R-PWB section(B11)
L-Motor-FPC section(B12)
M/S-FPC section(B13)
Sensor PWB(B6)
MOS-FPC
(039-2013-04)
LED-L-PWB(B10)
LED-R-PWB(B11)
CD PWB(B4)
DSP PWB(B5)
Driver PWB(B8)
To J203 of Main PWB
1
25
51
75 76
100
50
1
JTAG(TEST)
1
1
45 1
126
45
24
4825
36
37
72
108
144
20
2140
41
60
61 80
1
120 1
FPC
(039-1957-01)
1
1
PN-2701B-B
SOLDER SIDE
Caution:
SOLDER SIDE: Parts on the solder side seen
from the solder side are indicated.
