Clarion PU-1569A-C User manual

-1- PU-1569A-C
PU-1582A-C/A-D
Published by Service Dept.
Printed in Japan
Model
Service Manual
ClarionCo.,Ltd.
ExportDivision -22-3,Shibuya 2-chome,Shibuyaku,Tokyo, 150Japan Tel: [phone]
ServiceDept.- 50kamitoda,Toda-shi,Saitama,335Japan Tel: [phone] FAX:[phone]-5603-00 Jul.1997 P
VOLKS WAGEN
Automobile Genuine
AM/FM Radio Cassette Stereo
PU-1569A-C
Genuine No. 1CO 035 180
Illumination：Red
PU-1582A-C
Genuine No. 1JO 035 180A
Illumination：Red
PU-1582A-D
Genuine No. 1JO 035 180
Illumination：Green
■SPECIFICATIONS
Radio section
Tuning system: PLL Frequency synthesizer system
Receive range: AM 530kHz to 1,710kHz
FM 87.9MHz to 107.9MHz
Intermediate frequency:
AM 450kHz
FM 10.7MHz
Quieting sensitivity:AM Less than 38dBμ(at 26dB S/N)
FM Less than 10dBμ(at 30dB S/N)
Separation: FM More than 26dB
Auto tuning stop sensitivity:
AM 42±3dBμ
FM 23±3dBμ
Tape section
Reproducting system:
4 track 2 program
2 channel stereo system
Wow and flutter: Less than 0.3％(W.R.M.S)
Separation: More than 40dB
Cross talk: More than 40dB
S/N ratio: Normal tape(120μs)
More than 48dB(DOLBY B NR OFF)
More than 56dB(DOLBY B NR ON)
Metal tape(70μs)
More than 50dB(DOLBY B NR OFF)
More than 58dB(DOLBY B NR ON)
FF/REW time: 120sec.(C-60)
( )
( )
Model
Model
( )
PU-1569A
PU-1582A
General
Output power: 40W×4(MAX)
Power supply voltage:
DC13.2V(10.8V to 15.6V)
Negative ground
Consumptive current:
Less than 10A(MAX)
Dimensions(mm): 179(W)×50(H)×159(D)
Weight: 1.3kg
※Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
※"DOLBY" and the double-D symbol are trademarks
of Dolby Laboratories Licensing Corporation.
※Specifications and design are subject to change with-
out notice for further improvement.
■COMPONENTS
PU-1569A-C/PU-1582A-C/PU-1582A-D
Main unit 1

-2-
PU-1569A-C
PU-1582A-C/A-D
■To engineers in charge of repair
or inspection of our products.
Before repair or inspection,make sure to fol-
low the instructions so that customers and
Engineers in charge of repair or inspection can
avoid suffering any risk or injury.
1. Use specified parts.
The system uses parts with special safety features
against fire and voltage.Use only parts with equiva-
lent characteristics when replacing them.
The use of unspecified parts shall be regarded as re-
modeling for which we shall not be liable.The onus of
product liability (PL) shall not be our responsibility in
cases where an accident or failure is as a result of
unspecified parts being used.
2. Place the parts and wiring back in their original posi-
tions after replacement or re-wiring.
For proper circuit construction,use of insulation
tubes,bonding,gaps to PWB,etc,is involved.The wir-
ing connection and routing to the PWB are specially
planned using clamps to keep away from heated and
high voltage parts.Ensure that they are placed back
in their original positions after repair or inspection.
If extended damage is caused due to negligence dur-
ing repair,the legal responsibility shall be with the re-
pairing company.
3. Check for safety after repair.
Check that the screws,parts and wires are put back
securely in their original position after repair.Ensure
for safety reasons there is no possibility of secondary
ploblems around the repaired spots.
If extended damage is caused due to negligence of
repair,the legal responsibility shall be with the repair-
ing company.
4. Caution in removal and making wiring connection to
the parts for the automobile.
Disconnect the battery terminal after turning the igni-
tion key off.If wrong wiring connections are made with
the battery connected, a short circuit and/or fire may
occur.If extensive damage is caused due to negligence
of repair,the legal responsibility shall be with the re-
pairing company.
5. Cautions regarding chips.
Do not reuse removed chips even when no abnormal-
ity is observed in their appearance.Always replace
them with new ones.(The chip parts include
resistors,capacitors,diodes,transistors,etc).The nega-
tive pole of tantalum capacitors is highly susceptible
to heat,so use special care when replacing them and
check the operation afterwards.
6. Cautions in handling flexible PWB
Before working with a soldering iron,make sure that
the iron tip temperature is around 270℃.Take care
not to apply the iron tip repeatedly(more than three
times)to the same patterns.Also take care not to ap-
ply the tip with force.
7. Turn the unit OFF during disassembly and parts
replacement.Recheck all work before you apply power
to the unit.
■COMPUTER ANTI-THEFT SYSTEM
This unit has a built-in Computer Anti-Theft
System(CATS) whitch makes the radio inoperative if
power to the unit is interrupted for any reason
whatsoever(including disconnection and reconnection of
the car battery).The radio will remain inoperative unless
you enter the correct CATS code number.
Release CATS
1. Press the power button to turn on the power.
("SAFE"appears on the display,and "1000" appears
3 seconds later.)
2. Press 1,2,3 or 4 button the number of times neces-
sary for the secret number(CATS code) and display
the code number.
3. Press the "MANUAL UP" or "SEEK UP" button more
than 2 seconds.
If the input code number is correct,the radio turn on.A
radio frequency appears on the display.
4. If the input code number is incorrect,"SAFE" flashes
on the display,and "1000" re-appears 3 seconds
later.Input the correct code number.and press the
"MANUAL UP" or "SEEK UP" button more than 2
seconds.

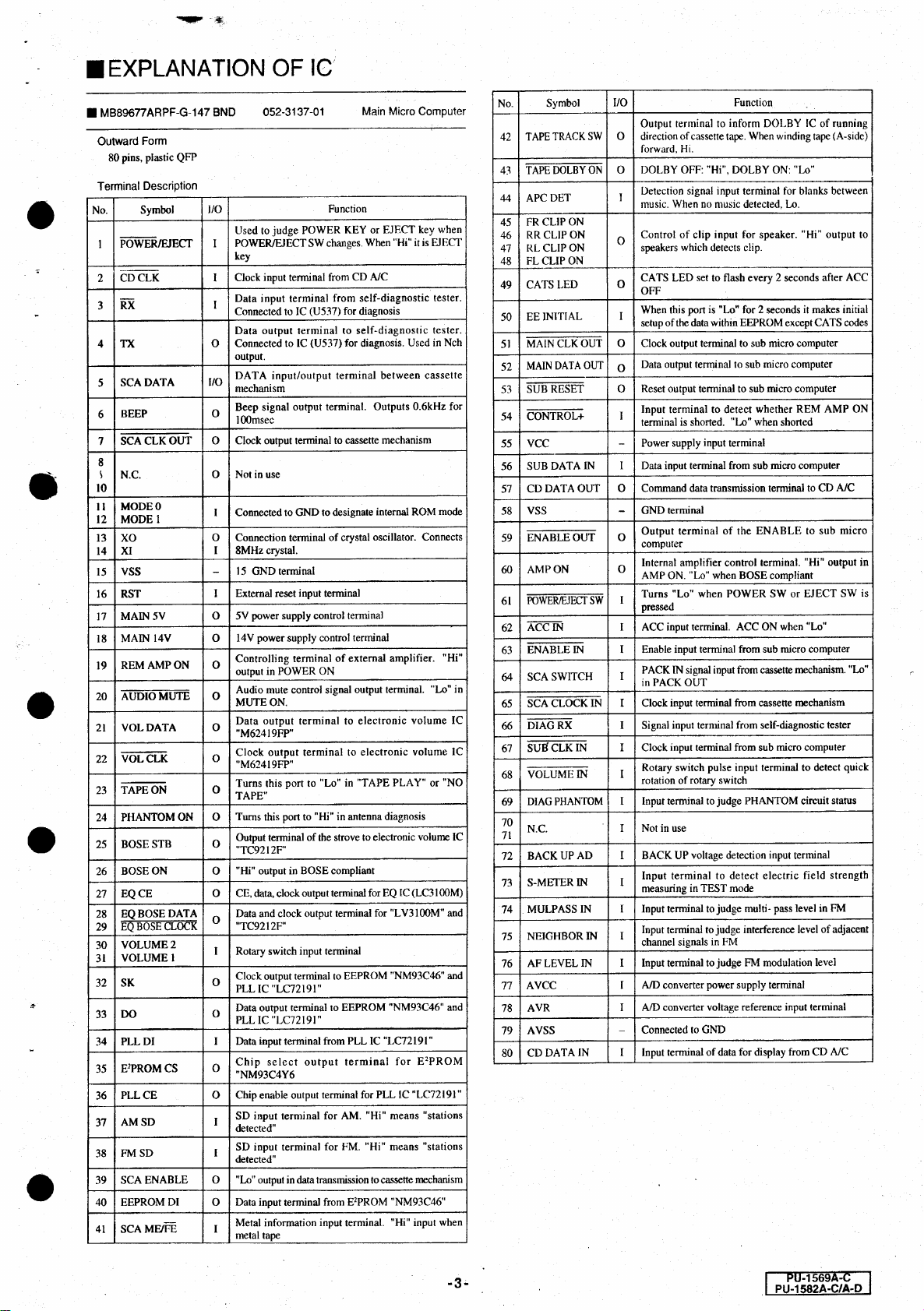

■ADJUSTMENTS
If you input an incorrect code number two times in
succession,it becomes impossible to input the code
for one hour.Wait one hour with the power on("SAFE"
remains on the display).After one hour,"1000" re-ap-
pears on the display.and input the correct code num-
ber.
Limiter
FM SD
AM SD
Dolby level
1. Input a 98.1MHz/65dBμ(1kHz 30％MOD) signal.
2. Set an output level to 0dB(=775mV) with main volume.
3. Adjust VR102 so that the output is −3±1dB when SSG output is set 7dBμ.
1. Connect TP101(＋5V) to TP100(RF-MUTE).
2. Input a 107.9MHz/21dBμ(1kHz 30％MOD) signal.
3. Adjust VR101 so that an output of TP102 is just hight level.
1. Connect TP101(＋5V) to TP100(RF-MUTE).
2. Input a 1000kHz/42dBμ(1kHz 30％MOD) signal.
3. Adjust VR100 so that an output of TP103 is just hight level.
1. Insert a Dolby level test tape(400Hz,200nWb/m).
2. Adjust VR600(L)/VR601(R) so that an output of TP600(L)/TP601(R) is
388mV±1dB.
SSG
Milli volt meter
SSG
Oscilloscope
SSG
Oscilloscope
Dolby level tape
Milli volt meter
Item Procedure Measuring
instrument

PU-1569A-C
PU-1582A-C/A-D PU-1569A-C PU-1582A-C/A-D

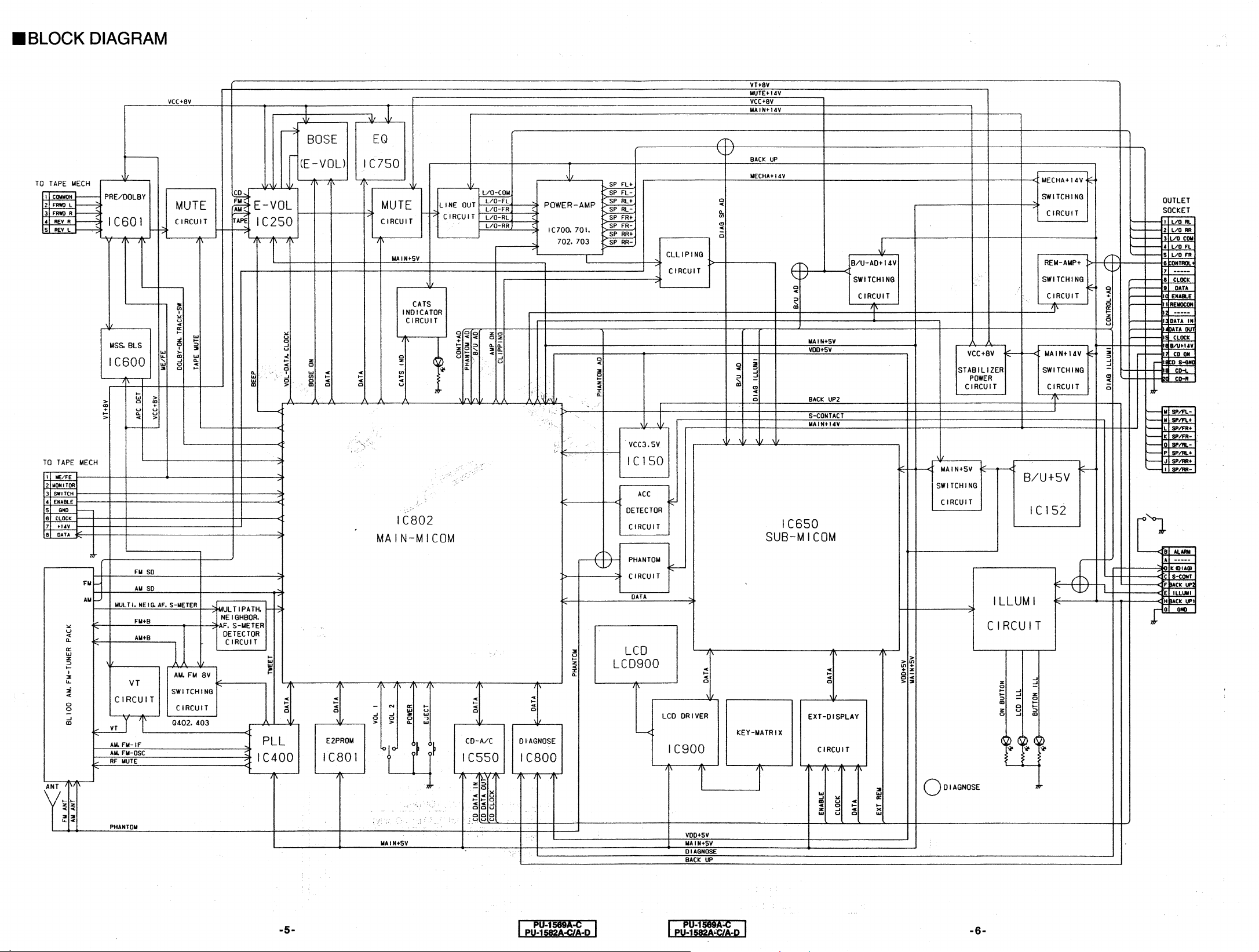

-7- -8-
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
■EXPLODED VIEW・PARTS LIST
Escutcheon section for PU-1569A-C
1 940-7791-03 ESCUTCHEON ASS'Y 1
1-1 320-0541-00 DUSTPROOF COVER 1
1-2 750-2309-01 SPRING 1
2 750-3234-01 LCD HOLDER 1
3 379-1089-40 INDICATOR 1
4 335-5521-00 REFLECTOR 1
5 335-5520-00 SPRING HOLDER 1
6 013-6302-01 SWITCH 26
7 039-0939-01 SWITCH PWB 1
8 076-0541-12 PLUG 1
9 016-0012-00 VARIABLE RESISTOR 1
10 716-0872-01 SCREW 10
11 074-0880-12 OUTLET SOCKET 1
12 074-1105-16 OUTLET SOCKET 1
13 335-3700-00 MINI-SADDLE 1
14 854-4298-30 EXTENSION LEAD 1
15 074-0880-09 OUTLET SOCKET 1
16 001-7031-04 RED LED 25
17 001-0412-19 RED DIODE 1
18 076-0541-09 PLUG 1
19 380-5402-00 KNOB 1
20 309-0689-01 FRONT PLATE 1
21 731-2608-80 TAPTIGHT 1
22 714-3006-81 MACHINE SCREW 2
23 347-5496-00 INSULATOR 1
24 382-4535-00 BUTTON(1〜6) 1
25 340-4323-00 SPACER 1
26 001-7035-00 BLUE LED 2
27 335-5522-01 ILLUMI PLATE 1
28 345-7971-00 CUSHION RUBBER 1
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
Escutcheon section for PU-1582A-C/A-D
1 940-7808-03 ESCUTCHEON ASS'Y 1
1-1 320-0545-00 DUSTPROOF COVER 1
1-2 750-2309-01 SPRING 1
2 380-5408-01 KNOB 1
3 331-2175-00 LCD HOLDER 1
4 379-1100-40 LCD 1
5 345-7951-00 RUBBER CONNECTOR 1
6 347-5500-00 SPACER 1
7 335-5490-00 REFLECTOR(A-C) 1
335-5562-00 REFLECTOR(A-D) 1
8 335-5489-00 ILLUMI PLATE(A-C only) 1
9 335-5506-00 LCD HOLDER(A-C) 1
335-5527-00 LCD HOLDER(A-D) 1
10 039-1009-00 SWITCH PWB(A-C) 1
039-1052-00 SWITCH PWB(A-D) 1
11 001-7025-00 RED DIODE 1
12 016-0012-01 VARIABLE RESISTOR 1
13 001-7031-04 RED LED(A-C) 25
001-7031-03 GREEN LED(A-D) 34
14 013-6302-01 SWITCH 23
15 074-1105-16 OUTLET SOCKET 1
16 001-7021-03 RED DIODE(A-C) 1
001-7021-00 GREEN DIODE(A-D) 1
17 001-7035-00 BLUE DIODE(A-C only) 2
18 335-5488-00 LED HOLDER(A-C only) 2
19 716-0872-01 PAD SCREW 7
20 309-0688-00 FRONT PLATE 1
21 731-2608-80 TAPTIGHT 3
22 331-2075-00 REMOVAL GUIDE(L) 1
23 331-2076-00 REMOVAL GUIDE(R) 1
24 353-0491-00 SHADE 1
25 345-7974-00 SHADE(A-C only) 1

-9- PU-1569A-C
PU-1582A-C/A-D

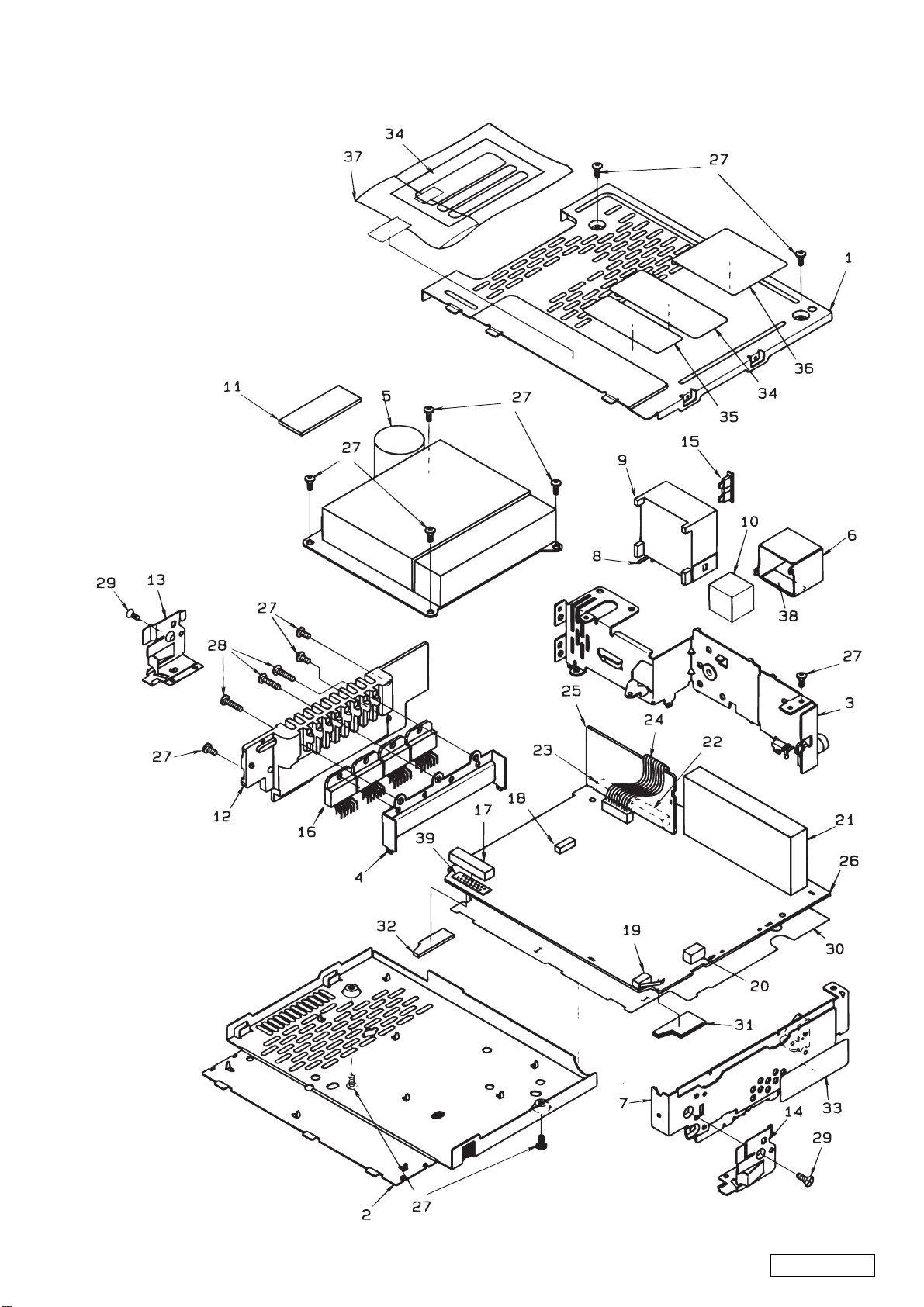

Main section
※Parts list on next page.

-10-
PU-1569A-C
PU-1582A-C/A-D
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
Note) Severaldifferentpartsofthesamereferencenumberarealternativeparts.
Oneofthosepartsisusedintheset.
1 303-0462-01 UPPER COVER 1
2 304-0448-00 LOWER COVER(PU1569A) 1
304-0447-00 LOWER COVER(PU1582A) 1
3 331-2072-00 REAR PLATE 1
4 331-2073-00 IC BRACKET 1
5 930-1006-00 TAPE MECH 1
6 331-2077-00 SHIELD CASE 1
7 331-2078-00 SIDE PLATE 1
8 331-2079-00 SOCKET HOLDER 1
9 074-1159-00 OUTLET SOCKET 1
10 009-0666-62 CHOKE 1
11 347-5477-00 INSULATOR 1
12 313-1687-01 HEAT SINK 1
13 750-3230-01 SIDE SPRING-L(PU1569A) 1
750-3233-01 SIDE SPRING-L(PU1582A) 1
14 750-3231-01 SIDE SPRING-R(PU1569A) 1
750-3232-01 SIDE SPRING-R(PU1582A) 1
15 060-0057-56 AUTO FUSE(10A) 1
16 051-2019-00 IC 4
17 076-0515-16 PLUG 1
18 074-1153-08 OUTLET SOCKET(8P) 1
19 013-7104-00 SWITCH(ALARM) 1
20 074-1154-05 OUTLET SOCKET(5P) 1
21 880-1953B TUNER PACK 1
22 076-0324-13 PLUG(13P) 1
23 076-0324-10 PLUG(10P) 1
24 854-4299-30 EXTENSION LEAD 1
25 039-0938-01 CONNECTOR PWB 1
26 039-0937-02 MAIN PWB 1
27 731-2608-80 TAPTIGHT 12
28 731-2612-87 TAPTIGHT 3
29 714-3006-40 MACHINE SCREW 2
30 347-5509-00 INSULATOR(PU1569A) 1
347-5529-00 INSULATOR(PU1582A) 1
31 347-5510-00 INSULATOR(PU1569A only) 1
32 347-5511-00 INSULATOR(PU1569A only) 1
33 286-8871-00 SETPLATE(PU1569AC) 1
286-8867-00 SETPLATE(PU1582AC) 1
286-8872-00 SETPLATE(PU1582AD) 1
34 290-6735-01 LABEL(PU1569AC) 1
290-6720-01 LABEL(PU1582AC) 1
290-6736-01 LABEL(PU1582AD) 1
35 290-6721-00 LABEL(DOLBY) 1
36 290-6722-00 LABEL(CONNECTION) 1
37 253-0380-01 POLY BAG 1
38 347-4068-00 SPACER 1
39 347-5592-00 PAPER 1
■ELECTRICAL PARTS LIST
Main PWB section
C 100 178-1042-78 0.1μF
C 101 176-2201-00 22pF CH
C 102 184-4773-22 10V470μF
C 106 183-1073-22 10V100μF
C 108 178-1032-78 0.01μF
C 109 178-2732-78 0.027μF
C 110 178-2732-78 0.027μF
C 111 178-5632-78 0.056μF
C 112 176-1011-00 100pF CH
C 113 176-1011-00 100pF CH
C 114 183-2253-62 50V2.2μF
C 115 183-2253-62 50V2.2μF
C 116 178-4732-78 0.047μF
C 117 176-2201-00 22pF CH
C 118 178-1032-78 0.01μF
C 150 178-1032-78 0.01μF
C 151 183-2253-62 50V2.2μF
C 153 042-0171-00 16V47μF
C 154 172-1031-11 0.01μF
C 155 172-1031-11 0.01μF
C 156 184-4763-51 35V47μF
C 157 183-1063-31 16V10μF
C 158 178-2232-78 0.022μF
C 159 178-1032-78 0.01μF
C 160 178-1032-78 0.01μF
C 200 178-2232-78 0.022μF
C 202 183-1063-31 16V10μF
C 203 178-3332-78 0.033μF
C 204 178-1042-78 0.1μF
C 250 183-1063-31 16V10μF
C 251 183-1063-31 16V10μF
C 252 178-4732-78 0.047μF
C 253 178-1032-78 0.01μF
C 254 178-1032-78 0.01μF
C 255 183-4753-51 35V4.7μF
C 256 183-4753-51 35V4.7μF
C 257 178-1042-78 0.1μF
C 258 178-1042-78 0.1μF
C 259 183-1063-31 16V10μF
C 260 183-1063-31 16V10μF
C 261 183-2253-61 50V2.2μF
C 262 183-2253-61 50V2.2μF
C 263 182-1073-13 6.3V100μF
C 269 178-1032-78 0.01μF
C 270 183-1063-31 16V10μF
C 271 183-1053-61 50V1μF
C 272 183-1053-61 50V1μF
C 273 183-1053-61 50V1μF
C 274 183-1053-61 50V1μF
C 277 178-1042-78 0.1μF
C 278 178-1032-78 0.01μF
C 279 183-1063-31 16V10μF
C 280 183-1063-31 16V10μF
C 300 178-1022-78 1000pF
C 301 178-1022-78 1000pF
C 302 178-3922-78 3900pF
C 303 178-6832-78 0.068μF
C 304 178-1022-78 1000pF
C 305 178-3322-78 3300pF
C 306 178-2232-78 0.022μF
C 307 178-1022-78 1000pF
C 308 183-1063-31 16V10μF
C 309 183-4763-11 6.3V47μF
C 310 178-2232-78 0.022μF
C 311 178-2232-78 0.022μF
C 312 178-1042-78 0.1μF
C 313 178-1042-78 0.1μF
C 314 183-4753-51 35V4.7μF
C 350 178-2212-78 220pF
C 351 178-1032-78 0.01μF
C 352 183-1063-31 16V10μF
C 353 183-1063-31 16V10μF
C 354 172-2241-11 0.22μF
C 355 172-1241-11 0.12μF
C 356 183-1063-31 16V10μF
C 357 183-1063-31 16V10μF
C 358 183-1063-31 16V10μF
C 359 182-2273-13 6.3V220μF
C 400 183-3353-61 50V3.3μF
C 401 178-1032-78 0.01μF
C 403 183-2263-11 6.3V22μF
C 404 178-1032-78 0.01μF
C 405 176-1501-00 15pF CH
C 406 176-1501-00 15pF CH
C 407 178-1022-78 1000pF
C 408 176-1007-00 10pF CH
C 409 176-1007-00 10pF CH
C 410 176-1007-00 10pF CH
C 450 178-1822-78 1800pF
C 451 178-1822-78 1800pF
C 452 178-1822-78 1800pF
C 453 178-1822-78 1800pF
C 500 183-1053-61 50V1μF
C 501 183-1053-61 50V1μF
C 502 183-1053-61 50V1μF
C 503 183-1053-61 50V1μF
C 504 176-2701-00 27pF CH
C 505 176-2701-00 27pF CH
C 506 176-2701-00 27pF CH
C 507 176-2701-00 27pF CH
C 508 183-2263-31 16V22μF
C 509 183-2263-31 16V22μF
C 510 183-1073-21 10V100μF
C 511 183-2263-31 16V22μF
C 512 183-2263-31 16V22μF
C 513 183-6863-22 10V68μF
C 514 183-6863-22 10V68μF
C 600 176-1007-00 10pF CH
C 601 178-4732-78 0.047μF
C 602 183-1073-12 6.3V100μF
C 603 178-5612-78 560pF
C 604 178-5612-78 560pF
C 605 178-5612-78 560pF
C 606 178-5612-78 560pF
C 608 183-1063-31 16V10μF
C 609 183-1063-31 16V10μF
C 610 178-1032-78 0.01μF

-11- PU-1569A-C
PU-1582A-C/A-D
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
C 611 178-1032-78 0.01μF
C 612 178-1542-78 0.15μF
C 613 183-2253-62 50V2.2μF
C 614 178-1532-78 0.015μF
C 615 178-1532-78 0.015μF
C 616 172-1041-11 0.1μF
C 617 172-1041-11 0.1μF
C 618 172-1041-11 0.1μF
C 619 178-4722-78 4700pF
C 620 178-4722-78 4700pF
C 621 172-1041-11 0.1μF
C 622 172-2241-11 0.22μF
C 623 172-2241-11 0.22μF
C 624 178-1042-78 0.1μF
C 625 183-1073-22 10V100μF
C 626 178-2232-78 0.022μF
C 627 178-4742-78 0.47μF
C 629 178-1032-78 0.01μF
C 631 178-4742-78 0.47μF
C 632 178-4742-78 0.47μF
C 633 183-1053-62 50V1μF
C 634 178-4742-78 0.47μF
C 635 178-4742-78 0.47μF
C 636 184-2273-22 10V220μF
C 650 178-1032-78 0.01μF
C 651 178-1032-78 0.01μF
C 652 183-1063-31 16V10μF
C 653 178-6822-78 6800pF
C 654 183-2253-61 50V2.2μF
C 655 178-4742-78 0.47μF
C 656 178-4742-78 0.47μF
C 657 178-4742-78 0.47μF
C 658 178-4742-78 0.47μF
C 659 178-4742-78 0.47μF
C 660 178-4742-78 0.47μF
C 661 178-4742-78 0.47μF
C 662 178-4742-78 0.47μF
C 665 178-2212-78 220pF
C 700 183-1543-62 50V0.15μF
C 701 183-1543-62 50V0.15μF
C 702 183-1543-62 50V0.15μF
C 703 183-1543-62 50V0.15μF
C 704 178-1022-78 1000pF
C 705 178-1022-78 1000pF
C 706 172-1041-11 0.1μF
C 707 172-1041-11 0.1μF
C 708 184-2283-32 16V2200μF
C 709 183-1063-31 16V10μF
C 710 183-1063-31 16V10μF
C 711 183-1053-61 50V1μF
C 712 183-1543-62 50V0.15μF
C 713 183-1543-62 50V0.15μF
C 714 183-1543-62 50V0.15μF
C 715 183-1543-62 50V0.15μF
C 716 178-1022-78 1000pF
C 717 178-1022-78 1000pF
C 718 172-1041-11 0.1μF
C 719 172-1041-11 0.1μF
C 720 184-2283-32 16V2200μF
C 721 183-1063-31 16V10μF
C 722 183-1063-31 16V10μF
C 750 172-4731-11 0.047μF
C 751 172-4731-11 0.047μF
C 752 172-4731-11 0.047μF
C 753 172-4731-11 0.047μF
C 754 173-4711-11 470pF J
C 755 173-4711-11 470pF J
C 756 173-4711-11 470pF J
C 757 183-1063-31 16V10μF
C 758 183-1063-31 16V10μF
C 759 183-1063-31 16V10μF
C 760 173-4711-11 470pF J
C 761 178-1032-78 0.01μF
C 762 183-1063-31 16V10μF
C 763 183-1063-31 16V10μF
C 764 183-1063-31 16V10μF
C 765 178-1032-78 0.01μF
C 766 183-1063-31 16V10μF
C 767 173-4711-11 470pF J
C 768 183-1063-31 16V10μF
C 769 182-2263-22 10V22μF
C 770 172-4731-11 0.047μF
C 771 172-4731-11 0.047μF
C 772 172-4731-11 0.047μF
C 773 172-4731-11 0.047μF
C 774 173-4711-11 470pF J
C 775 173-4711-11 470pF J
C 776 173-4711-11 470pF J
C 778 183-1063-31 16V10μF
C 801 178-1032-78 0.01μF
C 802 183-1063-31 16V10μF
C 803 178-1032-78 0.01μF
C 804 183-4763-31 16V47μF
C 805 183-1053-61 50V1μF
C 806 178-1032-78 0.01μF
C 807 183-1063-31 16V10μF
C 808 178-1032-78 0.01μF
C 809 178-4732-78 0.047μF
C 810 184-4773-12 6.3V470μF
C 811 178-4732-78 0.047μF
C 812 178-1022-78 1000pF
C 813 178-1032-78 0.01μF
C 814 178-1042-78 0.1μF
C 851 184-1083-32 16V1000μF
C 950 183-1073-22 10V100μF
C 951 184-4773-22 10V470μF
C 952 183-1073-22 10V100μF
C 953 184-4773-22 10V470μF
D 150 001-0330-00 1SS119
D 151 001-0376-69 MTZJ18B
D 153 001-0330-00 1SS119
D 154 001-0376-29 MTZJ5.1B
D 155 001-0330-00 1SS119
D 156 001-0466-00 S5688B
D 157 001-0330-00 1SS119
D 158 001-0376-29 MTZJ5.1B
D 159 001-0330-00 1SS119
D 160 001-0466-00 S5688B
D 161 001-0330-00 1SS119
D 162 001-0330-00 1SS119
D 201 001-0466-00 S5688B
D 202 001-0330-00 1SS119
D 203 001-0330-00 1SS119
D 206 001-0376-29 MTZJ5.1B
D 300 001-0330-00 1SS119
D 301 001-0330-00 1SS119
D 302 001-0330-00 1SS119
D 303 001-0330-00 1SS119
D 304 001-0330-00 1SS119
D 305 001-0330-00 1SS119
D 500 001-0528-36 MA8062-H
D 500 001-0574-36 DTZ6.2C
D 500 001-4300-36 HZU 6.2B3
D 600 001-0330-00 1SS119
D 650 001-0330-00 1SS119
D 651 001-0330-00 1SS119
D 652 001-0330-00 1SS119
D 657 001-0454-00 MA700
D 658 001-0330-00 1SS119
D 659 001-0330-00 1SS119
D 660 001-0330-00 1SS119
D 661 001-0330-00 1SS119
D 662 001-0330-00 1SS119
D 663 001-0330-00 1SS119
D 800 001-0466-00 S5688B
D 801 001-0376-38 MTZJ6.8B
D 809 001-0330-00 1SS119
D 810 001-0330-00 1SS119
D 850 001-0466-00 S5688B
D 851 001-0466-00 S5688B
D 852 001-0330-00 1SS119
D 853 001-0376-29 MTZJ5.1B
D 854 001-0330-00 1SS119
D 855 001-0330-00 1SS119
D 856 001-0376-49 MTZJ10A
D 856 001-0377-48 MA4091H
D 856 001-0400-48 HZS9.1JB3
D 857 001-0346-14 MTZJ T-77 3.0A
D 950 001-0376-47 MTZJ9.1B
D 950 001-0377-46 MA4091L
D 950 001-0400-46 HZS9.1JB1
D 951 001-0376-47 MTZJ9.1B
D 951 001-0377-46 MA4091L
D 951 001-0400-46 HZS9.1JB1
IC 150 051-5405-08 S-80723AN-DL-T1
IC 152 051-1834-00 LM2936
IC 200 051-1081-00 NJM082BM
IC 250 051-5008-00 M62419FP
IC 251 051-7102-08 TC4066BFSEL
IC 300 051-0556-01 NJM2058M
IC 350 051-1500-00 NJM2060M
IC 351 051-5009-00 TC9212F
IC 352 051-1500-00 NJM2060M
IC 400 051-1887-05 LC72191MHS
IC 500 051-1500-00 NJM2060M
IC 501 051-3015-00 NJM4580M
IC 550 051-1181-05 TC4584BF
IC 600 051-0620-00 LA2000C
IC 601 051-5201-00 TEA0675T
IC 650 052-3138-01 MB89625RPFM-G-
410BND
IC 700 051-2019-00 TDA7396
IC 701 051-2019-00 TDA7396
IC 702 051-2019-00 TDA7396
IC 703 051-2019-00 TDA7396
IC 750 051-5815-00 LC75280E
IC 800 051-5811-00 L9637D
IC 801 051-9400-18
IC 802 052-3137-01 MB89677ARPF-G-
147BND
L 100 010-2003-03 76μH
L 200 010-2330-16 4.7μH J
L 201 010-2334-00 8.2mH
L 300 010-2046-44 1mH
L 301 010-2046-44 1mH
L 400 010-2330-33 120μH J
L 650 010-2330-33 120μH J
Q 150 100-1162-00 2SA1162
Q 151 102-2412-00 2SC2412
Q 151 102-2712-00 2SC2712
Q 152 101-1243-00 2SB1243
Q 153 100-1162-00 2SA1162
Q 154 102-2412-00 2SC2412
Q 154 102-2712-00 2SC2712
Q 155 100-1431-00 2SA1431
Q 156 102-2412-00 2SC2412
Q 156 102-2712-00 2SC2712
Q 157 100-1431-00 2SA1431
Q 158 102-2412-00 2SC2412
Q 158 102-2712-00 2SC2712
Q 200 100-1162-00 2SA1162
Q 201 100-1162-00 2SA1162
Q 202 102-2412-00 2SC2412
Q 202 102-2712-00 2SC2712
Q 251 125-2020-03 DTC124EK
Q 252 125-2020-03 DTC124EK
Q 300 102-2412-00 2SC2412
Q 300 102-2712-00 2SC2712
Q 301 102-2412-00 2SC2412
Q 301 102-2712-00 2SC2712
Q 400 102-2712-51 2SC2712G.L
Q 401 102-2712-51 2SC2712G.L
Q 402 100-1297-00 2SA1297
Q 403 100-1162-00 2SA1162
Q 450 103-1306-00 2SD1306
Q 451 103-1306-00 2SD1306
Q 452 103-1306-00 2SD1306
Q 453 103-1306-00 2SD1306
Q 454 125-0001-02 UN2112
Q 454 125-0002-03 RN2403
Q 454 125-0014-03 DTA124EK
Q 455 125-0001-02 UN2112
Q 455 125-0002-03 RN2403
Q 455 125-0014-03 DTA124EK
Q 456 125-0001-02 UN2112
Q 456 125-0002-03 RN2403
Q 456 125-0014-03 DTA124EK
Q 457 125-0001-02 UN2112
Q 457 125-0002-03 RN2403
Q 457 125-0014-03 DTA124EK
Q 600 102-2412-00 2SC2412
Q 600 102-2712-00 2SC2712
Q 601 100-1431-00 2SA1431
Q 602 102-2412-00 2SC2412
Q 602 102-2712-00 2SC2712
Q 603 103-1306-00 2SD1306
Q 604 103-1306-00 2SD1306
Q 650 102-2412-00 2SC2412
Q 650 102-2712-00 2SC2712
Q 651 102-2412-00 2SC2412
Q 651 102-2712-00 2SC2712
Q 653 100-1162-00 2SA1162
Q 700 125-2004-02 RN1402
Q 700 125-2005-01 UN2211
Q 700 125-2020-02 DTC114EK

-12-
PU-1569A-C
PU-1582A-C/A-D
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
Q 701 125-2004-02 RN1402
Q 701 125-2005-01 UN2211
Q 701 125-2020-02 DTC114EK
Q 702 125-2004-02 RN1402
Q 702 125-2005-01 UN2211
Q 702 125-2020-02 DTC114EK
Q 703 125-2004-02 RN1402
Q 703 125-2005-01 UN2211
Q 703 125-2020-02 DTC114EK
Q 802 102-2412-00 2SC2412
Q 802 102-2712-00 2SC2712
Q 803 102-2412-00 2SC2412
Q 803 102-2712-00 2SC2712
Q 850 102-2412-00 2SC2412
Q 850 102-2712-00 2SC2712
Q 851 100-1297-00 2SA1297
Q 852 102-2412-00 2SC2412
Q 852 102-2712-00 2SC2712
Q 853 101-1434-00 2SD1434
Q 854 102-2412-00 2SC2412
Q 854 102-2712-00 2SC2712
Q 855 100-1297-00 2SA1297
Q 856 102-2412-00 2SC2412
Q 856 102-2712-00 2SC2712
Q 857 103-1858-00 2SD1858
Q 950 103-1858-00 2SD1858
Q 951 103-1858-00 2SD1858
Q 952 103-1858-00 2SD1858
Q 953 103-1858-00 2SD1858
R 100 117-8221-10 1/10W 8.2kΩ
R 101 117-4721-10 1/10W 4.7kΩ
R 102 117-4721-10 1/10W 4.7kΩ
R 103 117-1031-10 1/10W 10kΩ
R 104 117-2221-10 1/10W 2.2kΩ
R 105 117-3321-10 1/10W 3.3kΩ
R 106 117-3321-10 1/10W 3.3kΩ
R 107 117-8211-10 1/10W 820Ω
R 108 111-1091-91 1/4WS 1Ω
R 151 117-1541-10 1/10W 150kΩ
R 152 117-1051-10 1/10W 1MΩ
R 153 117-1841-10 1/10W 180kΩ
R 155 117-2231-10 1/10W 22kΩ
R 156 117-2231-10 1/10W 22kΩ
R 158 117-1021-10 1/10W 1kΩ
R 159 117-4731-10 1/10W 47kΩ
R 160 111-1001-81 1/2WS 10Ω
R 161 111-2201-91 1/4WS 22Ω
R 162 117-1031-10 1/10W 10kΩ
R 164 117-1031-10 1/10W 10kΩ
R 165 117-1521-10 1/10W 1.5kΩ
R 166 117-1831-10 1/10W 18kΩ
R 167 117-4721-10 1/10W 4.7kΩ
R 168 117-1021-10 1/10W 1kΩ
R 169 117-1031-10 1/10W 10kΩ
R 171 117-4721-10 1/10W 4.7kΩ
R 172 111-1821-91 1/4WS 1.8kΩ
R 173 117-2231-10 1/10W 22kΩ
R 174 117-4721-10 1/10W 4.7kΩ
R 176 117-2231-10 1/10W 22kΩ
R 177 111-2221-91 1/4WS 2.2kΩ
R 178 117-1011-10 1/10W 100Ω
R 200 117-1021-10 1/10W 1kΩ
R 201 117-4791-10 1/10W 4.7Ω
R 202 117-4791-10 1/10W 4.7Ω
R 203 117-1031-10 1/10W 10kΩ
R 204 117-1031-10 1/10W 10kΩ
R 206 117-1031-10 1/10W 10kΩ
R 207 117-1021-10 1/10W 1kΩ
R 208 117-5631-10 1/10W 56kΩ
R 209 117-1031-10 1/10W 10kΩ
R 210 117-1031-10 1/10W 10kΩ
R 211 117-1821-10 1/10W 1.8kΩ
R 212 117-4731-10 1/10W 47kΩ
R 213 117-6811-10 1/10W 680Ω
R 214 117-4731-10 1/10W 47kΩ
R 250 117-1541-10 1/10W 150kΩ
R 251 117-1541-10 1/10W 150kΩ
R 252 117-1051-10 1/10W 1MΩ
R 253 117-1051-10 1/10W 1MΩ
R 254 117-2231-10 1/10W 22kΩ
R 255 117-2231-10 1/10W 22kΩ
R 256 117-1031-10 1/10W 10kΩ
R 257 117-3331-10 1/10W 33kΩ
R 258 117-3331-10 1/10W 33kΩ
R 259 117-1031-10 1/10W 10kΩ
R 260 117-2731-10 1/10W 27kΩ
R 261 117-2731-10 1/10W 27kΩ
R 262 117-1231-10 1/10W 12kΩ
R 263 117-1231-10 1/10W 12kΩ
R 264 117-9131-10 1/10W 91kΩ
R 265 117-9131-10 1/10W 91kΩ
R 266 117-2221-10 1/10W 2.2kΩ
R 267 117-2221-10 1/10W 2.2kΩ
R 270 117-1031-10 1/10W 10kΩ
R 271 117-1031-10 1/10W 10kΩ
R 274 117-4741-10 1/10W 470kΩ
R 275 117-1841-10 1/10W 180kΩ
R 276 117-1031-10 1/10W 10kΩ
R 277 117-2231-10 1/10W 22kΩ
R 300 117-1031-10 1/10W 10kΩ
R 301 117-2241-10 1/10W 220kΩ
R 302 117-2241-10 1/10W 220kΩ
R 303 117-2211-10 1/10W 220Ω
R 304 117-4711-10 1/10W 470Ω
R 305 117-8221-10 1/10W 8.2kΩ
R 306 117-8221-10 1/10W 8.2kΩ
R 307 117-1031-10 1/10W 10kΩ
R 308 117-1231-10 1/10W 12kΩ
R 309 117-1241-10 1/10W 120kΩ
R 310 117-2231-10 1/10W 22kΩ
R 311 117-1041-10 1/10W 100kΩ
R 312 117-2231-10 1/10W 22kΩ
R 313 117-1041-10 1/10W 100kΩ
R 314 117-1041-10 1/10W 100kΩ
R 315 117-1041-10 1/10W 100kΩ
R 350 117-1541-10 1/10W 150kΩ
R 351 117-1541-10 1/10W 150kΩ
R 352 117-7521-10 1/10W 7.5kΩ
R 353 117-1241-10 1/10W 120kΩ
R 354 117-1241-10 1/10W 120kΩ
R 355 117-1021-10 1/10W 1kΩ
R 356 117-1031-10 1/10W 10kΩ
R 357 117-1031-10 1/10W 10kΩ
R 358 117-1031-10 1/10W 10kΩ
R 359 117-1031-10 1/10W 10kΩ
R 360 117-1031-10 1/10W 10kΩ
R 361 117-1031-10 1/10W 10kΩ
R 362 117-1031-10 1/10W 10kΩ
R 363 117-1031-10 1/10W 10kΩ
R 364 117-1031-10 1/10W 10kΩ
R 365 117-1031-10 1/10W 10kΩ
R 400 117-5621-10 1/10W 5.6kΩ
R 401 117-1021-10 1/10W 1kΩ
R 402 117-2231-10 1/10W 22kΩ
R 403 117-2231-10 1/10W 22kΩ
R 404 117-2221-10 1/10W 2.2kΩ
R 405 117-2221-10 1/10W 2.2kΩ
R 407 117-1021-10 1/10W 1kΩ
R 409 117-2221-10 1/10W 2.2kΩ
R 450 117-2231-10 1/10W 22kΩ
R 451 117-2231-10 1/10W 22kΩ
R 452 117-2231-10 1/10W 22kΩ
R 453 117-2231-10 1/10W 22kΩ
R 454 117-2221-10 1/10W 2.2kΩ
R 455 117-2221-10 1/10W 2.2kΩ
R 456 117-2221-10 1/10W 2.2kΩ
R 457 117-2221-10 1/10W 2.2kΩ
R 458 117-2221-10 1/10W 2.2kΩ
R 459 117-2221-10 1/10W 2.2kΩ
R 460 117-2221-10 1/10W 2.2kΩ
R 461 117-2221-10 1/10W 2.2kΩ
R 500 117-1001-10 1/10W 10Ω
R 501 117-1001-10 1/10W 10Ω
R 504 117-5621-10 1/10W 5.6kΩ
R 505 117-5631-10 1/10W 56kΩ
R 506 117-5631-10 1/10W 56kΩ
R 507 117-5621-10 1/10W 5.6kΩ
R 510 117-4731-10 1/10W 47kΩ
R 511 117-4731-10 1/10W 47kΩ
R 512 117-5621-10 1/10W 5.6kΩ
R 513 117-5631-10 1/10W 56kΩ
R 514 117-5631-10 1/10W 56kΩ
R 515 117-5621-10 1/10W 5.6kΩ
R 516 117-4731-10 1/10W 47kΩ
R 517 117-4731-10 1/10W 47kΩ
R 518 117-1001-10 1/10W 10Ω
R 519 117-1001-10 1/10W 10Ω
R 520 117-4721-10 1/10W 4.7kΩ
R 550 117-1051-10 1/10W 1MΩ
R 551 117-1051-10 1/10W 1MΩ
R 552 117-1541-10 1/10W 150kΩ
R 553 117-1021-10 1/10W 1kΩ
R 554 117-1541-10 1/10W 150kΩ
R 555 117-1021-10 1/10W 1kΩ
R 556 117-3321-10 1/10W 3.3kΩ
R 557 117-1021-10 1/10W 1kΩ
R 558 117-3321-10 1/10W 3.3kΩ
R 559 117-1021-10 1/10W 1kΩ
R 560 117-3321-10 1/10W 3.3kΩ
R 561 117-1021-10 1/10W 1kΩ
R 562 117-3321-10 1/10W 3.3kΩ
R 600 117-4731-10 1/10W 47kΩ
R 601 117-1041-10 1/10W 100kΩ
R 602 117-1521-10 1/10W 1.5kΩ
R 603 117-1041-10 1/10W 100kΩ
R 604 117-1831-10 1/10W 18kΩ
R 605 117-1041-10 1/10W 100kΩ
R 606 117-1041-10 1/10W 100kΩ
R 607 111-1521-91 1/4WS 1.5kΩ
R 608 117-1031-10 1/10W 10kΩ
R 609 117-1031-10 1/10W 10kΩ
R 610 117-4711-10 1/10W 470Ω
R 611 117-1841-10 1/10W 180kΩ
R 612 117-2431-10 1/10W 24kΩ
R 613 117-2431-10 1/10W 24kΩ
R 614 117-1841-10 1/10W 180kΩ
R 615 117-4711-10 1/10W 470Ω
R 616 117-3331-10 1/10W 33kΩ
R 617 117-1031-10 1/10W 10kΩ
R 618 117-3341-10 1/10W 330kΩ
R 619 117-8221-10 1/10W 8.2kΩ
R 620 117-3341-10 1/10W 330kΩ
R 621 117-3341-10 1/10W 330kΩ
R 622 117-1531-10 1/10W 15kΩ
R 623 117-8221-10 1/10W 8.2kΩ
R 624 117-2741-10 1/10W 270kΩ
R 625 117-2741-10 1/10W 270kΩ
R 626 117-8221-10 1/10W 8.2kΩ
R 627 117-1041-10 1/10W 100kΩ
R 628 117-1041-10 1/10W 100kΩ
R 629 117-5611-10 1/10W 560Ω
R 630 117-5611-10 1/10W 560Ω
R 631 117-1021-10 1/10W 1kΩ
R 632 117-1021-10 1/10W 1kΩ
R 633 117-1021-10 1/10W 1kΩ
R 634 117-4721-10 1/10W 4.7kΩ
R 635 117-2731-10 1/10W 27kΩ
R 636 117-2731-10 1/10W 27kΩ
R 650 116-3321-10 1/8W 3.3kΩ
R 651 117-4731-10 1/10W 47kΩ
R 652 117-4731-10 1/10W 47kΩ
R 653 117-4721-10 1/10W 4.7kΩ
R 654 117-4721-10 1/10W 4.7kΩ
R 655 117-2231-10 1/10W 22kΩ
R 656 117-4721-10 1/10W 4.7kΩ
R 657 117-4721-10 1/10W 4.7kΩ
R 658 117-1021-10 1/10W 1kΩ
R 659 117-3331-10 1/10W 33kΩ
R 660 117-1021-10 1/10W 1kΩ
R 661 116-3321-10 1/8W 3.3kΩ
R 662 117-4711-10 1/10W 470Ω
R 663 117-5131-10 1/10W 51kΩ
R 664 117-3331-10 1/10W 33kΩ
R 665 117-3331-10 1/10W 33kΩ
R 666 117-4731-10 1/10W 47kΩ
R 667 117-4731-10 1/10W 47kΩ
R 668 117-4731-10 1/10W 47kΩ
R 669 117-3331-10 1/10W 33kΩ
R 670 117-3331-10 1/10W 33kΩ
R 671 117-5621-10 1/10W 5.6kΩ
R 672 117-2231-10 1/10W 22kΩ
R 673 117-2731-10 1/10W 27kΩ
R 674 117-3331-10 1/10W 33kΩ
R 675 117-3331-10 1/10W 33kΩ
R 676 117-3331-10 1/10W 33kΩ
R 677 117-3331-10 1/10W 33kΩ
R 700 117-4721-10 1/10W 4.7kΩ
R 703 117-3331-10 1/10W 33kΩ
R 704 117-3331-10 1/10W 33kΩ
R 705 117-5131-10 1/10W 51kΩ
R 706 117-5131-10 1/10W 51kΩ
R 709 117-3331-10 1/10W 33kΩ
R 710 117-3331-10 1/10W 33kΩ
R 711 117-5131-10 1/10W 51kΩ
R 712 117-5131-10 1/10W 51kΩ

-13- PU-1569A-C
PU-1582A-C/A-D
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
R 800 117-1041-10 1/10W 100kΩ
R 801 117-4731-10 1/10W 47kΩ
R 802 117-3331-10 1/10W 33kΩ
R 803 117-1041-10 1/10W 100kΩ
R 804 117-1021-10 1/10W 1kΩ
R 805 111-2221-91 1/4WS 2.2kΩ
R 806 111-1531-91 1/4WS 15kΩ
R 807 117-5621-10 1/10W 5.6kΩ
R 808 117-1031-10 1/10W 10kΩ
R 809 117-1031-10 1/10W 10kΩ
R 810 117-4731-10 1/10W 47kΩ
R 811 117-1031-10 1/10W 10kΩ
R 812 117-4731-10 1/10W 47kΩ
R 813 117-4721-10 1/10W 4.7kΩ
R 814 117-4721-10 1/10W 4.7kΩ
R 815 117-1021-10 1/10W 1kΩ
R 816 117-6831-10 1/10W 68kΩ
R 817 117-1021-10 1/10W 1kΩ
R 818 117-1021-10 1/10W 1kΩ
R 819 117-1031-10 1/10W 10kΩ
R 820 117-1031-10 1/10W 10kΩ
R 821 117-2231-10 1/10W 22kΩ
R 822 117-4731-10 1/10W 47kΩ
R 824 117-4731-10 1/10W 47kΩ
R 825 117-4731-10 1/10W 47kΩ
R 828 117-1041-10 1/10W 100kΩ
R 830 117-1041-10 1/10W 100kΩ
R 831 117-1041-10 1/10W 100kΩ
R 832 117-1031-10 1/10W 10kΩ
R 837 117-1031-10 1/10W 10kΩ
R 838 117-4731-10 1/10W 47kΩ
R 841 117-4731-10 1/10W 47kΩ
R 843 117-1041-10 1/10W 100kΩ
R 844 117-4721-10 1/10W 4.7kΩ
R 845 117-4721-10 1/10W 4.7kΩ
R 846 117-4721-10 1/10W 4.7kΩ
R 847 117-4721-10 1/10W 4.7kΩ
R 850 117-2231-10 1/10W 22kΩ
R 851 117-1821-10 1/10W 1.8kΩ
R 852 117-1031-10 1/10W 10kΩ
R 853 117-2721-10 1/10W 2.7kΩ
R 854 117-1031-10 1/10W 10kΩ
R 855 117-1031-10 1/10W 10kΩ
R 856 117-1521-10 1/10W 1.5kΩ
R 857 117-1031-10 1/10W 10kΩ
R 858 117-4721-10 1/10W 4.7kΩ
R 859 117-2721-10 1/10W 2.7kΩ
R 860 117-1031-10 1/10W 10kΩ
R 861 114-2291-11 1W 2.2Ω
R 862 117-1031-10 1/10W 10kΩ
R 863 117-1021-10 1/10W 1kΩ
R 864 117-1031-10 1/10W 10kΩ
R 865 117-2231-10 1/10W 22kΩ
R 866 111-5611-91 1/4WS 560Ω
R 867 117-4731-10 1/10W 47kΩ
R 868 117-1031-10 1/10W 10kΩ
R 950 117-1091-10 1/10W 1Ω
R 951 117-1091-10 1/10W 1Ω
R 952 111-3311-91 1/4WS 330Ω
R 953 117-1091-10 1/10W 1Ω
R 954 117-1091-10 1/10W 1Ω
R 955 111-3311-91 1/4WS 330Ω
S 850 013-7104-00
SUP100 060-0122-20 DSP-141N-S00B
TH 150 002-0228-00
TH 151 002-0229-01
VR 100 012-5203-55 4.7kΩ
VR 101 012-5203-56 10kΩ
VR 102 012-5203-55 4.7kΩ
VR 600 012-5203-53 2.2kΩ
VR 601 012-5203-53 2.2kΩ
X 400 061-1066-00 7.2MHz
X 650 060-1025-90 8.0MHz
X 800 060-1025-90 8.0MHz
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
Connector PWB section
D 1001 001-0334-30 RL202
D 1002 001-0330-00 1SS119 F 1000 060-0057-06 10A TR 1001 009-0666-62 0.4mH
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
Switch PWB section for PU-1569A-C
C 900 178-1042-78 0.1μF
C 901 178-2232-78 0.022μF
C 902 178-2232-78 0.022μF
C 950 176-2201-00 22pF CH
C 951 176-2201-00 22pF CH
C 952 176-2201-00 22pF CH
C 953 176-2201-00 22pF CH
C 954 178-1032-78 0.01μF
C 955 178-1032-78 0.01μF
D 914 001-7031-04 VR-1112H-17
D 915 001-7031-04 VR-1112H-17
D 916 001-7031-04 VR-1112H-17
D 917 001-7031-04 VR-1112H-17
D 918 001-7031-04 VR-1112H-17
D 919 001-7031-04 VR-1112H-17
D 920 001-7031-04 VR-1112H-17
D 921 001-7031-04 VR-1112H-17
D 923 001-7031-04 VR-1112H-17
D 924 001-7031-04 VR-1112H-17
D 925 001-7031-04 VR-1112H-17
D 926 001-7031-04 VR-1112H-17
D 927 001-7031-04 VR-1112H-17
D 928 001-7031-04 VR-1112H-17
D 929 001-7031-04 VR-1112H-17
D 930 001-7031-04 VR-1112H-17
D 931 001-7031-04 VR-1112H-17
D 932 001-7031-04 VR-1112H-17
D 933 001-7031-04 VR-1112H-17
D 934 001-7031-04 VR-1112H-17
D 935 001-7031-04 VR-1112H-17
D 936 001-7031-04 VR-1112H-17
D 937 001-7031-04 VR-1112H-17
D 938 001-7031-04 VR-1112H-17
D 939 001-0528-31 MA8056-L
D 939 001-0574-31 DTZ5.6A
D 939 001-4300-31 HZU 5.6B1
D 940 001-0528-31 MA8056-L
D 940 001-0574-31 DTZ5.6A
D 940 001-4300-31 HZU 5.6B1
D 943 001-0516-00 MA111
D 944 001-0516-00 MA111
D 945 001-0516-00 MA111
D 946 001-0516-00 MA111
D 947 001-0516-00 MA111
D 948 001-0516-00 MA111
D 949 001-0412-19 GL-3TR8
D 950 001-0516-00 MA111
D 951 001-0516-00 MA111
D 1000 001-7035-00 LB3336-N
D 1001 001-7035-00 LB3336-N
D 1002 001-7031-04 VR-1112H-17
IC 900 051-6001-01 μPD16431AGC-7ET
R 914 117-1221-10 1/10W 1.2kΩ
R 915 117-1221-10 1/10W 1.2kΩ
R 916 117-1221-10 1/10W 1.2kΩ
R 917 117-1221-10 1/10W 1.2kΩ
R 918 117-1521-10 1/10W 1.5kΩ
R 919 117-1821-10 1/10W 1.8kΩ
R 920 117-1521-10 1/10W 1.5kΩ
R 921 117-1031-10 1/10W 10kΩ
R 922 117-1821-10 1/10W 1.8kΩ
R 923 117-1041-10 1/10W 100kΩ
R 924 117-1521-10 1/10W 1.5kΩ
R 925 117-1521-10 1/10W 1.5kΩ
R 926 117-1031-10 1/10W 10kΩ
R 927 117-2721-10 1/10W 2.7kΩ
R 928 117-2721-10 1/10W 2.7kΩ
R 929 117-1221-10 1/10W 1.2kΩ
R 930 117-1221-10 1/10W 1.2kΩ
R 931 117-1221-10 1/10W 1.2kΩ
R 932 117-1221-10 1/10W 1.2kΩ
R 933 117-1221-10 1/10W 1.2kΩ
R 934 117-1221-10 1/10W 1.2kΩ
R 935 117-2221-10 1/10W 2.2kΩ
R 936 117-2221-10 1/10W 2.2kΩ
R 950 117-2221-10 1/10W 2.2kΩ
R 951 117-2221-10 1/10W 2.2kΩ
R 952 117-2221-10 1/10W 2.2kΩ
R 953 117-2221-10 1/10W 2.2kΩ
R 1000 117-1521-10 1/10W 1.5kΩ
R 1001 117-1521-10 1/10W 1.5kΩ
R 1002 117-1821-10 1/10W 1.8kΩ
R 1003 117-1521-10 1/10W 1.5kΩ
R 1004 117-1521-10 1/10W 1.5kΩ
R 1005 117-1821-10 1/10W 1.8kΩ
S 900 013-6302-01 SKQMAL
S 901 013-6302-01 SKQMAL
S 902 013-6302-01 SKQMAL
S 903 013-6302-01 SKQMAL
S 904 013-6302-01 SKQMAL
S 905 013-6302-01 SKQMAL
S 906 013-6302-01 SKQMAL
S 907 013-6302-01 SKQMAL
S 908 013-6302-01 SKQMAL
S 909 013-6302-01 SKQMAL
S 910 013-6302-01 SKQMAL
S 911 013-6302-01 SKQMAL
S 912 013-6302-01 SKQMAL
S 913 013-6302-01 SKQMAL
S 914 013-6302-01 SKQMAL
S 915 013-6302-01 SKQMAL
S 916 013-6302-01 SKQMAL
S 917 013-6302-01 SKQMAL
S 918 013-6302-01 SKQMAL
S 919 013-6302-01 SKQMAL
S 920 013-6302-01 SKQMAL
S 921 013-6302-01 SKQMAL
S 922 013-6302-01 SKQMAL
S 923 013-6302-01 SKQMAL
S 924 013-6302-01 SKQMAL
S 925 013-6302-01 SKQMAL
VR 900 016-0012-00
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
C 900 178-1042-78 0.1μF
C 901 178-2232-78 0.022μF
C 902 178-2232-78 0.022μF
C 903 178-1032-78 0.01μF
C 904 178-1032-78 0.01μF
C 905 176-2201-00 22pF CH
C 906 176-2201-00 22pF CH
C 907 176-2201-00 22pF CH
C 908 176-2201-00 22pF CH
D 914 001-7031-04 VR-1112H-17
D 915 001-7031-04 VR-1112H-17
D 916 001-7031-04 VR-1112H-17
D 917 001-7031-04 VR-1112H-17
D 918 001-7031-04 VR-1112H-17
D 919 001-7031-04 VR-1112H-17
D 920 001-7031-04 VR-1112H-17
D 921 001-7031-04 VR-1112H-17
D 922 001-7031-04 VR-1112H-17
D 923 001-7031-04 VR-1112H-17
D 924 001-7031-04 VR-1112H-17
D 925 001-7031-04 VR-1112H-17
Switch PWB section for PU-1582A-C

-14-
PU-1569A-C
PU-1582A-C/A-D
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
D 926 001-7031-04 VR-1112H-17
D 927 001-7031-04 VR-1112H-17
D 928 001-7031-04 VR-1112H-17
D 929 001-7031-04 VR-1112H-17
D 930 001-7031-04 VR-1112H-17
D 931 001-7031-04 VR-1112H-17
D 932 001-7031-04 VR-1112H-17
D 933 001-7031-04 VR-1112H-17
D 935 001-7031-04 VR-1112H-17
D 936 001-7031-04 VR-1112H-17
D 938 001-7031-04 VR-1112H-17
D 939 001-7031-04 VR-1112H-17
D 940 001-7031-04 VR-1112H-17
D 941 001-7021-03 VR1101F
D 943 001-0516-00 MA111
D 944 001-0516-00 MA111
D 945 001-0516-00 MA111
D 946 001-0516-00 MA111
D 947 001-0516-00 MA111
D 948 001-0516-00 MA111
D 949 001-7025-00 SLP-144B-51
D 950 001-0516-00 MA111
D 951 001-0516-00 MA111
D 952 001-0528-31 MA8056-L
D 952 001-0574-31 DTZ5.6A
D 952 001-4300-31 HZU 5.6B1
D 953 001-0528-31 MA8056-L
D 953 001-0574-31 DTZ5.6A
D 953 001-4300-31 HZU 5.6B1
D 990 001-7035-00 LB3336-N
D 991 001-7035-00 LB3336-N
IC 900 051-6001-01 μPD16431AGC-7ET
R 914 117-1221-10 1/10W 1.2kΩ
R 915 117-1221-10 1/10W 1.2kΩ
R 916 117-1521-10 1/10W 1.5kΩ
R 917 117-1521-10 1/10W 1.5kΩ
R 918 117-1521-10 1/10W 1.5kΩ
R 919 117-1521-10 1/10W 1.5kΩ
R 920 117-1221-10 1/10W 1.2kΩ
R 921 117-1031-10 1/10W 10kΩ
R 922 117-1221-10 1/10W 1.2kΩ
R 923 117-1041-10 1/10W 100kΩ
R 924 117-1221-10 1/10W 1.2kΩ
R 925 117-1221-10 1/10W 1.2kΩ
R 926 117-1031-10 1/10W 10kΩ
R 927 117-1221-10 1/10W 1.2kΩ
R 928 117-1221-10 1/10W 1.2kΩ
R 929 117-1521-10 1/10W 1.5kΩ
R 930 117-1521-10 1/10W 1.5kΩ
R 931 117-1821-10 1/10W 1.8kΩ
R 932 117-1821-10 1/10W 1.8kΩ
R 933 117-1821-10 1/10W 1.8kΩ
R 934 117-2221-10 1/10W 2.2kΩ
R 935 117-1521-10 1/10W 1.5kΩ
R 936 117-1521-10 1/10W 1.5kΩ
R 937 117-2221-10 1/10W 2.2kΩ
R 938 117-2221-10 1/10W 2.2kΩ
R 939 117-1521-10 1/10W 1.5kΩ
R 940 117-2221-10 1/10W 2.2kΩ
R 941 117-2221-10 1/10W 2.2kΩ
R 942 117-2221-10 1/10W 2.2kΩ
R 943 117-2221-10 1/10W 2.2kΩ
R 990 117-1821-10 1/10W 1.8kΩ
R 991 117-1521-10 1/10W 1.5kΩ
R 992 117-1821-10 1/10W 1.8kΩ
R 993 117-1821-10 1/10W 1.8kΩ
R 994 117-1521-10 1/10W 1.5kΩ
R 995 117-1821-10 1/10W 1.8kΩ
S 900 013-6302-01 SKQMAL
S 901 013-6302-01 SKQMAL
S 902 013-6302-01 SKQMAL
S 903 013-6302-01 SKQMAL
S 905 013-6302-01 SKQMAL
S 906 013-6302-01 SKQMAL
S 907 013-6302-01 SKQMAL
S 908 013-6302-01 SKQMAL
S 909 013-6302-01 SKQMAL
S 912 013-6302-01 SKQMAL
S 913 013-6302-01 SKQMAL
S 914 013-6302-01 SKQMAL
S 915 013-6302-01 SKQMAL
S 916 013-6302-01 SKQMAL
S 917 013-6302-01 SKQMAL
S 918 013-6302-01 SKQMAL
S 919 013-6302-01 SKQMAL
S 920 013-6302-01 SKQMAL
S 921 013-6302-01 SKQMAL
S 922 013-6302-01 SKQMAL
S 923 013-6302-01 SKQMAL
S 924 013-6302-01 SKQMAL
S 925 013-6302-01 SKQMAL
VR 900 016-0012-01
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
C 900 178-1042-78 0.1μF
C 901 178-2232-78 0.022μF
C 902 178-2232-78 0.022μF
C 903 178-1032-78 0.01μF
C 904 178-1032-78 0.01μF
D 900 001-7031-03 BG1112H-650
D 901 001-7031-03 BG1112H-650
D 902 001-7031-03 BG1112H-650
D 903 001-7031-03 BG1112H-650
D 904 001-7031-03 BG1112H-650
D 905 001-7031-03 BG1112H-650
D 906 001-7031-03 BG1112H-650
D 907 001-7031-03 BG1112H-650
D 908 001-7031-03 BG1112H-650
D 909 001-7031-03 BG1112H-650
D 910 001-7031-03 BG1112H-650
D 911 001-7031-03 BG1112H-650
D 912 001-7031-03 BG1112H-650
D 913 001-7031-03 BG1112H-650
D 914 001-7031-03 BG1112H-650
D 915 001-7031-03 BG1112H-650
D 916 001-7031-03 BG1112H-650
D 917 001-7031-03 BG1112H-650
D 918 001-7031-03 BG1112H-650
D 919 001-7031-03 BG1112H-650
D 920 001-7031-03 BG1112H-650
D 921 001-7031-03 BG1112H-650
D 922 001-7034-00 BG1102W-640
D 923 001-7034-00 BG1102W-640
D 924 001-7034-00 BG1102W-640
D 925 001-7034-00 BG1102W-640
D 926 001-7034-00 BG1102W-640
D 927 001-7034-00 BG1102W-640
D 928 001-7031-03 BG1112H-650
D 929 001-7031-03 BG1112H-650
D 930 001-7031-03 BG1112H-650
D 931 001-7031-03 BG1112H-650
D 932 001-7031-03 BG1112H-650
D 933 001-7031-03 BG1112H-650
D 935 001-7031-03 BG1112H-650
D 936 001-7031-03 BG1112H-650
D 938 001-7031-03 BG1112H-650
D 939 001-7031-03 BG1112H-650
D 940 001-7031-03 BG1112H-650
D 941 001-7021-00 BG1101F
D 943 001-0516-00 MA111
D 944 001-0516-00 MA111
D 945 001-0516-00 MA111
D 946 001-0516-00 MA111
D 947 001-0516-00 MA111
D 948 001-0516-00 MA111
D 949 001-7025-00 SLP-144B-51
D 950 001-0516-00 MA111
D 951 001-0516-00 MA111
D 954 001-7031-03 BG1112H-650
D 980 001-0516-00 MA111
D 981 001-0516-00 MA111
D 982 001-0516-00 MA111
D 983 001-0516-00 MA111
D 984 001-0516-00 MA111
D 985 001-0516-00 MA111
D 986 001-0516-00 MA111
D 987 001-0516-00 MA111
IC 900 051-6001-01 μPD16431AGC-7ET
R 900 117-1021-10 1/10W 1kΩ
R 901 117-1021-10 1/10W 1kΩ
R 902 117-1021-10 1/10W 1kΩ
R 903 117-1021-10 1/10W 1kΩ
R 904 117-1021-10 1/10W 1kΩ
R 905 117-1021-10 1/10W 1kΩ
R 906 117-1021-10 1/10W 1kΩ
R 907 117-1021-10 1/10W 1kΩ
R 908 117-1021-10 1/10W 1kΩ
R 909 117-1021-10 1/10W 1kΩ
R 910 117-1021-10 1/10W 1kΩ
R 911 117-1021-10 1/10W 1kΩ
R 912 117-1021-10 1/10W 1kΩ
R 913 117-1021-10 1/10W 1kΩ
R 914 117-1521-10 1/10W 1.5kΩ
R 915 117-1521-10 1/10W 1.5kΩ
R 916 117-1521-10 1/10W 1.5kΩ
R 917 117-1521-10 1/10W 1.5kΩ
R 918 117-1521-10 1/10W 1.5kΩ
R 919 117-1521-10 1/10W 1.5kΩ
R 920 117-1521-10 1/10W 1.5kΩ
R 921 117-1031-10 1/10W 10kΩ
R 922 117-1521-10 1/10W 1.5kΩ
R 923 117-1041-10 1/10W 100kΩ
R 924 117-1521-10 1/10W 1.5kΩ
R 925 117-1821-10 1/10W 1.8kΩ
R 926 117-1031-10 1/10W 10kΩ
R 927 117-1821-10 1/10W 1.8kΩ
R 928 117-1821-10 1/10W 1.8kΩ
R 929 117-1521-10 1/10W 1.5kΩ
R 930 117-1521-10 1/10W 1.5kΩ
R 931 117-1521-10 1/10W 1.5kΩ
R 932 117-1521-10 1/10W 1.5kΩ
R 933 117-1521-10 1/10W 1.5kΩ
Switch PWB section for PU-1582A-D
R 934 117-1521-10 1/10W 1.5kΩ
R 935 117-1521-10 1/10W 1.5kΩ
R 936 117-1521-10 1/10W 1.5kΩ
R 937 117-1521-10 1/10W 1.5kΩ
R 938 117-1521-10 1/10W 1.5kΩ
R 939 117-1521-10 1/10W 1.5kΩ
R 944 117-1521-10 1/10W 1.5kΩ
R 945 117-1521-10 1/10W 1.5kΩ
R 946 117-1521-10 1/10W 1.5kΩ
R 947 117-1521-10 1/10W 1.5kΩ
R 948 117-1521-10 1/10W 1.5kΩ
R 949 117-1521-10 1/10W 1.5kΩ
R 950 117-1521-10 1/10W 1.5kΩ
R 951 117-1521-10 1/10W 1.5kΩ
R 952 117-1521-10 1/10W 1.5kΩ
R 953 117-1521-10 1/10W 1.5kΩ
R 954 117-1221-10 1/10W 1.2kΩ
R 955 117-1221-10 1/10W 1.2kΩ
R 956 117-1821-10 1/10W 1.8kΩ
R 957 117-1821-10 1/10W 1.8kΩ
R 958 117-1821-10 1/10W 1.8kΩ
R 959 117-1221-10 1/10W 1.2kΩ
R 960 117-1221-10 1/10W 1.2kΩ
S 900 013-6302-01 SKQMAL
S 901 013-6302-01 SKQMAL
S 902 013-6302-01 SKQMAL
S 903 013-6302-01 SKQMAL
S 905 013-6302-01 SKQMAL
S 906 013-6302-01 SKQMAL
S 907 013-6302-01 SKQMAL
S 908 013-6302-01 SKQMAL
S 909 013-6302-01 SKQMAL
S 912 013-6302-01 SKQMAL
S 913 013-6302-01 SKQMAL
S 914 013-6302-01 SKQMAL
S 915 013-6302-01 SKQMAL
S 916 013-6302-01 SKQMAL
S 917 013-6302-01 SKQMAL
S 918 013-6302-01 SKQMAL
S 919 013-6302-01 SKQMAL
S 920 013-6302-01 SKQMAL
S 921 013-6302-01 SKQMAL
S 922 013-6302-01 SKQMAL
S 923 013-6302-01 SKQMAL
S 924 013-6302-01 SKQMAL
S 925 013-6302-01 SKQMAL
VR 900 016-0012-01
