Clarion PN-2701B-A User manual

PN-2701B-A
PN-2702B-A
-1-
Published by Service Dept.
Printed in Japan
Clarion Co., Ltd.
50Kamitoda,Toda-shi,Saitama335-8511Japan
ServiceDept.: 5-66Azuma,Kitamoto-shi,Saitama364-0007Japan
Tel:[phone] FAX: [phone]
298-6225-00 Feb.2005
Service Manual
Model
Model
NISSAN Genuine (BOSE Type)
Cockpit Module
AM/FM Radio Stereo
6-CD Changer Deck
PN-2701B-A
(Genuine No. 28185 EH200)
(Xanavi Genuine No. CD6K-1210U)
PN-2702B-A
(Genuine No. 28185 EH500)
(Xanavi Genuine No. CD6K-1600C)
DIFFERENCE FEATURE LIST CD section
Disc: 12cm Disc
Format: CD-DA, MP3, WMA
MP3 Sampling rate: MPEG1; 32kHz, 44.1kHz, 48kHz
MPEG2; 16kHz, 22.05kHz, 24kHz
MPEG3; 8kHz, 11.025kHz, 12kHz
MP3 Bit rate: MPEG1; 48k to 320kbps/VBR
MPEG2; 24k to 160kbps/VBR
MPEG3; 24k to 160kbps/VBR
WMA Bit rate: 64k to 192kbps
Logical Format: ISO9660 level1, 2
Romeo or Joliet
Separation: More than 60dB(20kHz L.P.F.)
S/N ratio: More than 80dB(20kHz, JIS-A)
Disortion: Less tahn 0.1%(20kHz, L.P.F.)
General
Load impedance: 300 ohm / 2ch
Power output: 3.6V x 2ch
Power supply voltage: DC13.2V(10.8V to 15.6V)
Negative ground
Back-up consumption: Less than 0.3mA
Dimensions(mm): 182(W) x 100(H) x 167(D)
Weight: Approx. 2.4kg
* Specifications and design are subject to change without
notice for further improvement.
COMPONENTS
PN-2701B-A / PN-2702B-A
Main unit ----------- 1
PN-2701B-A North America
PN-2702B-A China
SPECIFICATIONS
Radio section
Tuning system: PLL frequency synthesizer system
PN-2701B-A AM 530kHz to 1,710kHz
FM 87.75Hz to 107.9MHz
PN-2702B-A AM 531kHz to 1,602kHz
FM 87.5Hz to 108.0MHz
Intermediate frequency:AM 450kHz
FM 10.7MHz
Quieting sensitivity: AM Less than 37dBu(at 20dB S/N)
FM Less than 15dBu
(at 30dB S/N : MAIN ANT)
FM Less than 15dBu
(at 30dB S/N : SUB ANT)
Separation: FM 22 +5/-7 dB(1kHz)
S/N ratio: AM More than 40dB
FM More than 50dB
Model No. Destination

PN-2701B-A
PN-2702B-A -2-
NOTE
* This unit is used the special adjustment jig for measur-
ing and operation.
* In case that the main unit or the CD changer module is
transported for repair, the lock pin(966-0653-01) must
be set to fix the mechanism assy.
CAUTIONS
Use of controls,adjustment,or performance of procedures
other than those specified herein,may result in hazardous
radiation exposure.
The compact disc player should not be adjusted or repaired
by anyone except properly qualified service personnel.
(for PN-2701B-A)
* This product includes technology owned by Microsoft
Corporation and cannot be used or distributed without a
license from MSLGP.
* We cannot supply PWB with component parts in prin-
ciple. When a circuit on PWB has failure, please repair
it by component parts base. Parts which are not men-
tioned in service manual are not supplied.
Top view
To engineers in charge of repair or
inspection of our products.
Before repair or inspection, make sure to follow the
instructions so that customers and Engineers in
charge of repair or inspection can avoid suffering
any risk or injury.
1. Use specified parts.
The system uses parts with special safety features against
fire and voltage. Use only parts with equivalent character-
istics when replacing them.
The use of unspecified parts shall be regarded as remod-
eling for which we shall not be liable. The onus of product
liability (PL) shall not be our responsibility in cases where
an accident or failure is as a result of unspecified parts
being used.
2. Place the parts and wiring back in their original positions
after replacement or re-wiring.
For proper circuit construction, use of insulation tubes,
bonding, gaps to PWB, etc, is involved. The wiring con-
nection and routing to the PWB are specially planned us-
ing clamps to keep away from heated and high voltage
parts. Ensure that they are placed back in their original
positions after repair or inspection.
If extended damage is caused due to negligence during
repair, the legal responsibility shall be with the repairing
company.
3. Check for safety after repair.
Check that the screws, parts and wires are put back se-
curely in their original position after repair. Ensure for safety
reasons there is no possibility of secondary ploblems
around the repaired spots.
If extended damage is caused due to negligence of repair,
the legal responsibility shall be with the repairing company.
4. Caution in removal and making wiring connection to the
parts for the automobile.
Disconnect the battery terminal after turning the ignition
key off. If wrong wiring connections are made with the
battery connected, a short circuit and/or fire may occur. If
extensive damage is caused due to negligence of repair,
the legal responsibility shall be with the repairing company.
5. Cautions regarding chips.
Do not reuse removed chips even when no abnormality is
observed in their appearance. Always replace them with
new ones. (The chip parts include resistors, capacitors,
diodes, transistors, etc). The negative pole of tantalum
capacitors is highly susceptible to heat, so use special care
when replacing them and check the operation afterwards.
6. Cautions in handling flexible PWB
Before working with a soldering iron, make sure that the
iron tip temperature is around 270 . Take care not to ap-
ply the iron tip repeatedly(more than three times)to the
same patterns. Also take care not to apply the tip with force.
7. Turn the unit OFF during disassembly and parts replace-
ment. Recheck all work before you apply power to the unit.
8. Cautions in checking that the optical pickup lights up.
The laser is focused on the disc reflection surface through
the lens of the optical pickup. When checking that the la-
ser optical diode lights up, keep your eyes more than 30cms
away from the lens. Prolonged viewing of the laser within
30cms may damage your eyesight.
9. Cautions in handling the optical pickup
The laser diode of the optical pickup can be damaged by
electrostatic charge caused by your clothes and body. Make
sure to avoid electrostatic charges on your clothes or body,
or discharge static electricity before handling the optical
pickup.
9-1. Laser diode
The laser diode terminals are shorted for transporta-
tion in order to prevent electrostatic damage. After
replacement, open the shorted circuit. When
removing the pickup from the mechanism, short
the terminals by soldering them to prevent this
damage.

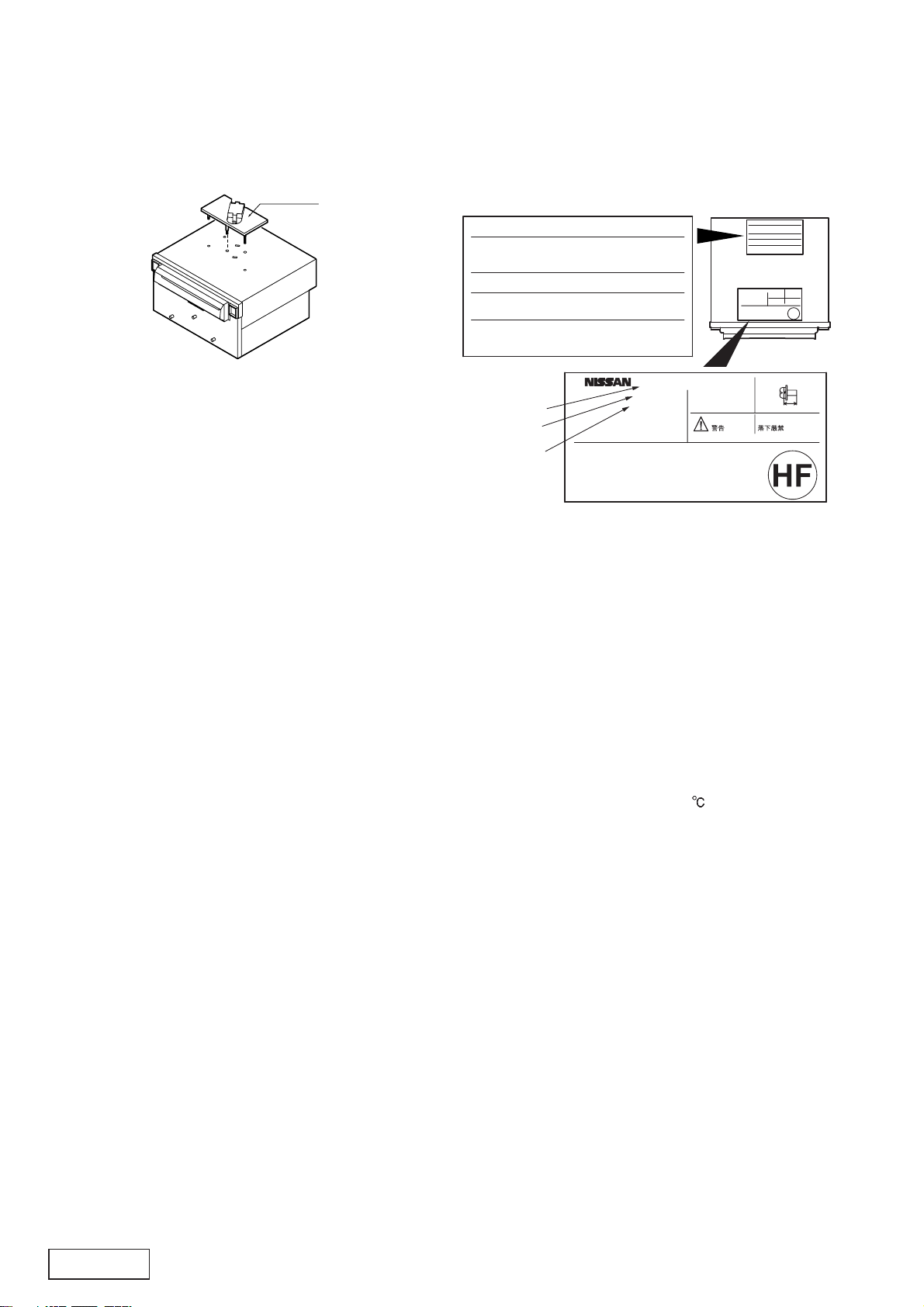

Lock pin
966-0653-01
MANUFACTURED
.
DO NOT DROPWARNING
MOU N T S C RE W
M5 X 8 mm MA X
FREQUENCY RANGE
A M : 530 - 1710 kHz
F M : 87.75 - 107.9 MHz
This product includes technology owned by Microsoft Corporation and
cannot be used or distributed without a license from MSLGP.
THIS PRODUCTION COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J
APPLICABLE AT DATE OF MANUFACTURE.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES, OPE
RATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS; (1)
THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)
THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCL
UDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
28185 EH200
PN-2701B
CD6K-1210U
Model No.
Xanavi No.
NISSAN No.

PN-2701B-A
PN-2702B-A
-3-
9-2. Actuator
The actuator has a powerful magnetic circuit. If a
magnetic material is put close to it. Its character-
istics will change. Ensure that no foreign substances
enter through the ventilation slots in the cover.

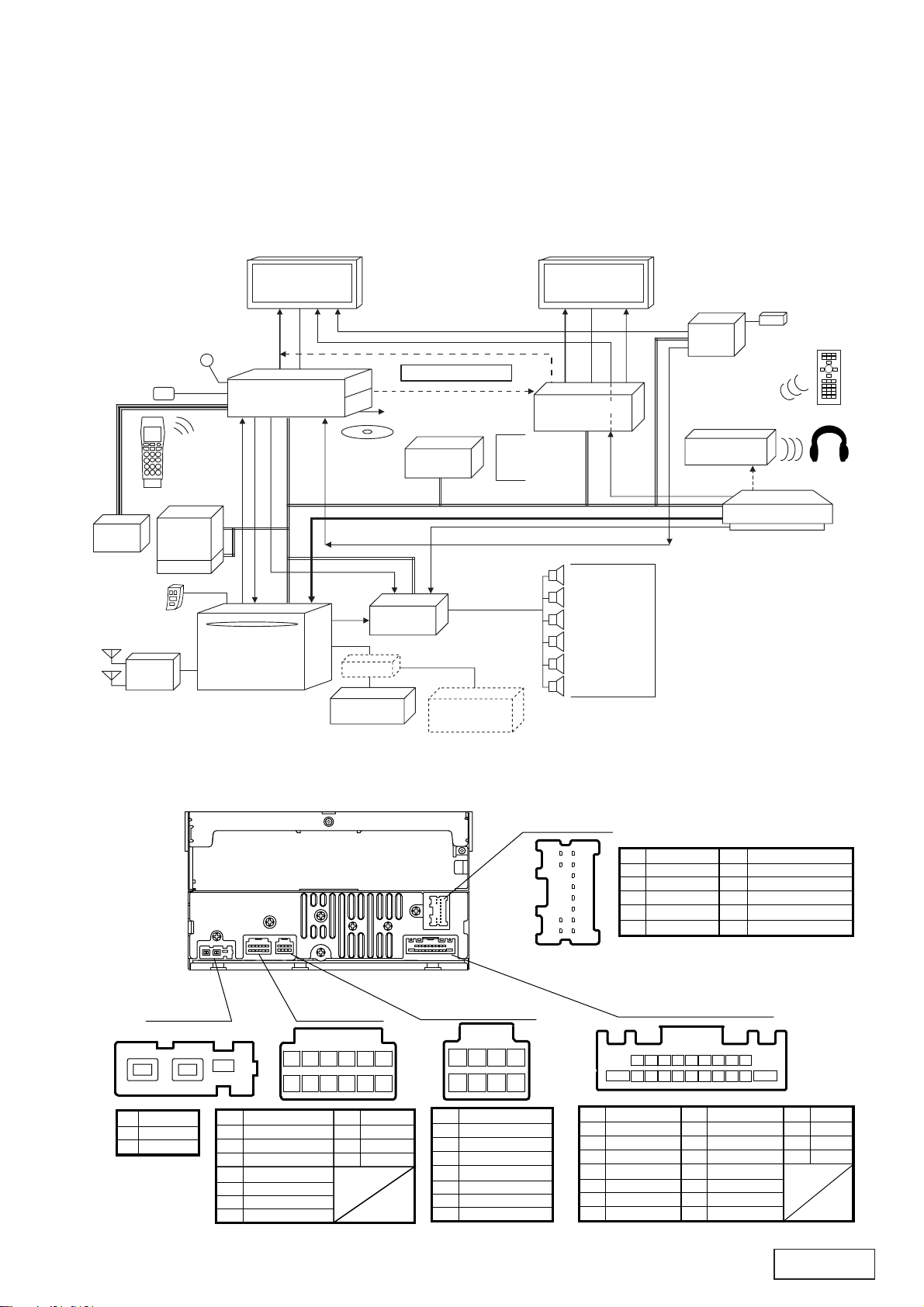

SYSTEM DIAGRAM
IT-Master system (The example of PN-2701B-A.)
This audio unnit has the following connection with a navigation system and accessories.
9-3. Cleaning the lens
Dust on the optical lens affects performance. To
clean the lens, apply a small amount of isopropyl
alcohol to lens paper and wipe the lens gently.
CONNECTOR LAYOUT
J501
TH18HW-CS2
(Power/SP/STRG-Remo)
1
2
3
4
5
6
7
8
N.C.
SP FL+
SP FL-
SP RL+
SP RL-
STRG SW A
ACC
ILL CONT(*2)
9
10
11
12
13
14
15
16
ILL
N.C.
SP FR+
SP FR-
N.C.
N.C.
STRG-GND
STRG SW B
17
18
19
20
N.C.
N.C.
B/U
GND
123456789
V12 V11
V09
V08
V07
V06
V05
V03
V01
V10
V04
V02
181716151413121110
19 20
J201
TH12HW (TEL)
ANT101
GT-13SHA
(ANT-IN)
J250
TH08HW
(Audio-BUS/M-CAN)
A
B
C
ANT+B
MAIN ANT
SUB ANT
h01
h02
h03
h04
h05
h06
h07
h08
Audio BUS L+
Audio BUS R+
M-CAN H
M-CAN L
Audio BUS L-
Audio BUS R-
Audio BUS GND
N.C.
h11
h12
h13
h14
h15
h16
h17
h18
N.C.
TEL VOICE+(*1)
TEL VOICE-(*1)
N.C.
N.C.
N.C.
N.C.
N.C.
h19
h20
h21
h22
TEL GND
N.C.
N.C.
N.C.
Ah01
h11 h12 h13 h14 h15 h16
h17 h18 h19 h20 h21 h22
h02 h03 h04
h05 h06 h07 h08
BC
J820
A12MW (N-BUS)
V01
V02
V03
V04
V05
V06
N-BUS L-
N-BUS L+
N-BUS R-
N-BUS R+
N-BUS-GND
DATA-GND
V07
V08
V09
V10
V11
V12
Source-CHG
NDS-REQ1
NDS-RXD
NDS-TXD
NDS CONT
NDS-REQ2
*2 : PN-2702B-A is not connected.
*1 : PN-2702B-A is not connected.
Control unit
(DVD-NAVI)
MIC
GPS-ANT
RGB
YS,HP,VP
UART
N-BUS
AUDIO
BLUETOOTH
TWIN
N-BUS AUDIO
ANT-AMP
UART
COMPOSIT
RGB
YS,HP,VP
N-BUS
BCU
HVAC
FM-MPX
MULTIMEDIA-CAN
Audio-BUS
GSM/CDMA
COMPOSIT
GUIDE-SIG
䌒䌇䌂 distributor
COMPOSIT selector
RR-DISP control
OSD
TWIN BOX
VEHICLE-CAN
TEL-SIG
RSE H/P SIGNAL
Repeat
CAMERA
CONT
Rear view
CCD
DVD-DECK
COMPOSIT
RW-RST
Rear - 8" DSIP
AUDIO
PN-2701B-A
Road map disc
Front - 8" DISP
Headphone
Remote
controller
Dolby 5.1ch
DTS Decorder
Infrared receiver
Infrared transmitter
Video distributor
for backseat
Rear entertainment
Controller
for backseat
Center
switch
Steering
remote
contorller
FR-L
FR-R
RR-L
RR-R
(CENTER)
SUB WOOFER
BOSE system
(max. 14-SP)
BOSE AMP
L/R 2ch
ANALOG 5.1ch
Satelite Radio Tuner

PN-2701B-A
PN-2702B-A -4-
CONNECTION OF SERVICE JIG
ADJUSTMENT
Item Procedure Measuring
instrument
FM noise
convergence
FM stop
sensitivity
<MAIN>
1. An antenna input is fixed to a main channel using a jig(Control panel unit).
2. Set an antenna input to main channel.
3. Input the FM 98.1/55dBu(1kHz, 22.5kHz MOD)signal. This state is standard
output(=0dB).
4. Adjust VR161 so that the output level becomes -25dB, when set the SSG output
is -20dB.
<SUB>
1. An antenna input is fixed to a sub channel using a jig(Control panel unit).
2. Set an antenna input to sub channel.
3. Input the FM 98.1/55dBu(1kHz, 22.5kHz MOD)signal. This state is standard
output(=0dB).
4. Adjust VR160 so that the output level becomes -20dB, when set the SSG output
is -20dB.
1. An antenna input is fixed to a main channel using a jig(Control panel unit).
2. Set an antenna input to main channel.
3. Input the 98.1MHz/55dBu(1kHz, 22.5kHz MOD)signal.
4. Adjust VR162 so that the input level becomes 32dB.
SSG
Digital tester
SSG
Digital tester
SUB
MAIN
ANT
䇼㵘㪚㪦㪥㪫㪩㪦㪣㩷㪧㪘㪥㪜㪣㩷㪬㪥㪠㪫㵘䇽
M-CAN1 Molex04
䇼㵘SSG-1 : MAIN㵘䇽
䇼㵘㪪㪰㪪㪫㪜㪤㩷㪙㪦㪯㵘䇽
䇼㵘PN-2701B-A / PN-2702B-A㵘䇽
䇼㵘㪛㪬㪤㪤㪰㩷㪙㪦㪯㵘䇽
䇼㵘SSG2 : SUB㵘䇽
ANT
M5 X 8 mm MAX
Adjustment point
VR160 (SUB)
VR161 (MAIN)
GT13
VR162

PN-2701B-A
PN-2702B-A
-5-
EXPLANATION OF IC
052-3188-00 M30843MW-M02GP Audio CPU
Terminal Description
pin 1: CTRST : O : Contrast adjustment analogue output(DA).
pin 2: SPEED :IN: Speed Pulse input.
pin 3: EEP/ST DA :I/O: The serial data input/output for EEP and
Sub-tuner.
pin 4: EEP/ST CK : O : The serial clock output for EEP and Sub-
tuner.
pin 5: BU DET :IN: Backup detection signal input.
pin 6: GND : - : Ground.
pin 7: CN VSS :IN: Connect to VSS.
pin 8: ILL ON :IN: Illumination ON signal input.
pin 9: SYS ON : O : System ON signal output.
pin 10: RESET :IN: Reset signal input.
pin 11: X out : O : Crystal connection.
pin 12: VSS : - : Negative voltage supply.
pin 13: X IN :IN: Crystal connection.
pin 14: VDD : - : Positive voltage supply.
pin 15: NMI :IN: Connect to VDD.
pin 16: ACC IN :IN: ACC ON flag input.
pin 17: NC : O : Not in use.
pin 18: NC : O : Not in use.
pin 19: TB :IN: Time base input.
pin 20: NC : O : Not in use.
pin 21: M CAN RX :IN: M-CAN serial data input.
pin 22: M CAN TX : O : M-CAN serial data output.
pin 23: Power IC Stndb : O : The standby signal output to Power IC.
pin 24: BEEP/BUZ : O : BEEP out or the buz control.
pin 25: AMP ON : O : AMP ON signal output.
pin 26: DIMMER : O : PWM output.
pin 27: EEP/MT CK : O : The clock pulse output to EEP/Main-tuner.
pin 28: EEP/MT DA : O : The serial data output to EEP/Main-tuner.
pin 29: NDS TX : O : The serial data output for NDS.
pin 30: NDS RX :IN: The serial data input for NDS.
pin 31: NDS REQ 1 :IN: NDS request signal input.
pin 32: NDS CONT : O : NDS/Automatic-changer select.
pin 33: 1&6-CD TX : O : The serial data output for 1-CD & 6-CD-
Changer.
pin 34: 6-CD RX / CK :I/O:The serial data input for 6-CD-Changer. Or
clock pulse output for 1-CD.
pin 35: NDS REQ 2 :IN: NDS request signal input.
pin 36: NDS S-CHG : O : N-BUS audio signal select command out-
put.
pin 37: NC : O : Not in use.
pin 38: NC : O : Not in use.
pin 39: WRITE ONLY : - : WRITE ONLY.
pin 40: NC : O : Not in use.
pin 41: NC : O : Not in use.
pin 42: NC : O : Not in use.
pin 43: 1-CD RX :IN: The serial data input from 1-CD.
pin 44: 1&6-CD REQ :IN: The request signal input from 1-CD & 6-
CD-Changer.
pin 45: 1-CD CS : O : The chip select signal output.
pin 46: 1-CD WUP : O : The wakeup signal output.
pin 47: 1-CD RESET : O : The reset signal output.
pin 48: CD ON : O : CD ON signal output.
pin 49: Power IC Diag :IN: Power IC Diagnosis signal input.
pin 50: LCD ON : O : LCD ON signal output.
pin 51: KEY/LCD DO : O : Serial data output for KEY IC or LCD IC.
pin 52: KEY/LCD CLK : O : Clock output for KEY IC or LCD IC.
pin 53: KEY/LCD DI :IN: Serial data input for KEY IC or LCD IC.
pin 54: KEY/LCD CE : O : Chip Enable output for KEY IC or LCD IC.
pin 55: KEY/LCD S/R : O : KEY IC Standby output / LCD IC Reset
output.
pin 56: VOL-2 :IN: The volume pulse input.
pin 57: VOL-1 :IN: The volume pulse input.
pin 58: NC : O : Not in use.
pin 59: NC : O : Not in use.
pin 60: VDD : - : Positive voltage supply.
pin 61: POWER-ON : - : POWER-KEY.
pin 62: GND : - : Ground
pin 63: RTLY-VOL2/TH :IN: Rotary volume pulse input / temperature.
pin 64: RTLY-VOL1 :IN: Rotary volume pulse input.
pin 65: MD WP : O : MD wakeup, H = WAKE-UP, L = SLEEP.
pin 66: MD XCS : O : MD chip select , H = CS ON.
pin 67: MD XSCK : O : MD clock.
pin 68: CPU-MD : O : The serial data output to MD.
pin 69: MD RESET : O : L = RESET ON.
pin 70: MD XSRQ :IN: MD request.
pin 71: NC : O : Not in use.
pin 72: MD DI :IN: The serial data input from MD.
pin 73: MD LD/RDS CK :IN: MD loading start signal input, DISC load-
ing beginning of L. And RDS clock input.
pin 74: MD ON/RDS DI : O : MD power supply control, H = Power ON.
pin 75: NC : O : Not in use. And RDS data input.
pin 76: ST/SD/TWEET :I/O: At AM station receiving, this port outputs
"L" by AM 900kHz receiving. At FM station
receiving, this port detects the stereo sig-
nal. And at seeking or scanning, this port
detects the SD signal.
pin 77: DSP INT :IN: The interrupt command input from the DSP
IC.
pin 78: DSP RESET : O : Reset signal output to the DSP IC.
pin 79: S METER :IN: The input terminal of internal A/D convert-
er to monitor the radio field strength.
pin 80: PLL DI :IN: Serial data input from the PLL IC.
pin 81: VFM PLL CE : O : The chip enable signal output to the PLL
IC.
pin 82: VFM PLL DO : O : Serial data output to the PLL IC.
pin 83: VFM PLL CK : O : The clock pulse output to the PLL.
pin 84: VFM PLL DI :IN: Serial data input from the PLL IC.
pin 85: VFM SD :IN: Station detection signal input.
pin 86: VFM S METER :IN: The input terminal of internal A/D convert-
er to monitor the radio field strength.
pin 87: MD EJ/6-CD LD :IN: MD eject signal input. And 6-CD-Changer
loading start signal input.
pin 88: CD EJECT :IN: CD eject signal input.
pin 89: PLL CK :IN: PLL clock input.
pin 90: PLL DO : O : Serial data output to the PLL IC.
pin 91: PLL CE : O : The chip enable signal output to the PLL
IC.
pin 92: N REMO B :IN: The input terminal of internal ADC for N-
remote-controller signal.
pin 93: N REMO A :IN: The input terminal of internal ADC for N-
remote-controller signal.
pin 94: A GND : - : Analog ground.
pin 95: NC : O : Not in use.
pin 96: Vref : - : Reference voltage.
pin 97: A VCC : - : Positive voltage supply for the internal an-
alog section.
pin 98: DSP/PIC/RDS C :IN: The clock pulse input.
pin 99: DSP/PIC/RDS D :IN: The serial data input.
pin100: ANT ON : O : Antenna ON command output.

PN-2701B-A
PN-2702B-A -6-
052-5062-03 MBM29DL800BA-90PFTN 8 M bit Flash Memory
[NOTE] This IC is compatible with 052-5062-02 and 052-5062-01.
Terminal Description
pin 1: Address 15 :IN: Address signal input.
pin 2: Address 14 :IN: Address signal input.
pin 3: Address 13 :IN: Address signal input.
pin 4: Address 12 :IN: Address signal input.
pin 5: Address 11 :IN: Address signal input.
pin 6: Address 10 :IN: Address signal input.
pin 7: Address 9 :IN: Address signal input.
pin 8: Address 8 :IN: Address signal input.
pin 9: NU : - : Not in use.
pin 10: NU : - : Not in use.
pin 11: WE :IN: Write enable signal input.
pin 12: RESET :IN: Reset signal input.
pin 13: NU : - : Not in use.
pin 14: NU : - : Not in use.
pin 15: Ready/Busy : O : Ready/Busy flag output, H = Ready.
pin 16: Address 18 :IN: Address signal input.
pin 17: Address 17 :IN: Address signal input.
pin 18: Address 7 :IN: Address signal input.
pin 19: Address 6 :IN: Address signal input.
pin 20: Address 5 :IN: Address signal input.
pin 21: Address 4 :IN: Address signal input.
pin 22: Address 3 :IN: Address signal input.
pin 23: Address 2 :IN: Address signal input.
pin 24: Address 1 :IN: Address signal input.
pin 25: Address 0 :IN: Address signal input.
pin 26: CE :IN: Chip enable signal input.
pin 27: VSS : - : Negative supply voltage.
pin 28: OE :IN: Output enable signal input.
pin 29: DQ 0 :I/O: The data input / output.
pin 30: DQ 8 :I/O: The data input / output.
pin 31: DQ 1 :I/O: The data input / output.
pin 32: DQ 9 :I/O: The data input / output.
pin 33: DQ 2 :I/O: The data input / output.
pin 34: DQ 10 :I/O: The data input / output.
pin 35: DQ 3 :I/O: The data input / output.
pin 36: DQ 11 :I/O: The data input / output.
pin 37: VCC : - : Positive supply voltage.
pin 38: DQ 4 :I/O: The data input / output.
pin 39: DQ 12 :I/O: The data input / output.
pin 40: DQ 5 :I/O: The data input / output.
pin 41: DQ 13 :I/O: The data input / output.
pin 42: DQ 6 :I/O: The data input / output.
pin 43: DQ 14 :I/O: The data input / output.
pin 44: DQ 7 :I/O: The data input / output.
pin 45: DQ 15/A-1 :I/O: The data input/output,TheAddress signal
input.
pin 46: VSS : - : Negative supply voltage.
pin 47: BYTE :IN: The data length selection(8bit/16bit).
pin 48: Address 16 :IN: Address signal input.
DSP
AUDIO-CPU
IC402
M30843MW
POWER-IC
(PRE-OUT)
IC503
TDA8593
IC401
EEPROM
TEL-SIG-IN
I2C
TEL
RADIO
A-BUS
N-BUS
FR-L(+)
FR-R(+)
CD-EJ
GUIDE ILL
CD
B/U
REMOCON
ILLUMI
ACC-DET ACC
ILL(+)
MAIN
SUB
ANT-ON
J201
TH12HW
IC301
SAF7730
N-BUS I/F
AUDIO-BUS
AUDIO-IN
N-BUS
AUDIO-IN
N-BUS
TWIN I/F
TX/RX
J820
A12HW
J250
TH08HW
IC403
CAN-TRANSCEIVER
PCA82C250
MULTIMEDIA -CAN
J501
TH18HW-CS2
ILL+
TEL VOICE(+)
TEL VOICE(-)
SHIELD
STRG-SW-A
GND
STRG-SW-B
M CAN H
M CAN L
L(+)
R(+)
L(-)
R(-)
SHIELD
ANT101
GT13-SHA
L(-)
L(+)
R(-)
R(+)
SHIELD
REQ1
RX
TX
DATA GND
AUDIO CONT
DATA CONT
REQ2
IC404
RESET
L503
C540
B/U FIL
IC505
VDD 5V
REG
Q513
SYS 5V
IC270
CD 9V
Q205
CD 5V
IC502
SYS 3.3V
SYS-5V
STBY
POWER SUPPLY
SYS 3.3V
Q301
SYS 1.8V
GND
SHIELD
CONTROL
AUDIO-SIG
POWER SUPPLY
TU-AU 9V
BL161
FM-2TUNER
880-1728F
BL160
AM-TUNER
880-1518G
Q507
ANT-ON
6CD MP3/WMA
MECHA-MODULE
Q166
AM+B
Q163
FM+B
TU-AU 9V
TUNER POWER SUPPLY
CD 5V CD 9V
+B
IC155
PLL-IC
LC72191
IC103
MIX-AMP
NJM4558
L.P.F
Q510
SYS 12V
IC504
SYS 9V
Q590
TU-AU 9V
Sub PWB(B3)
IC153
RDS-DEC
SAA6581
ILL(-)
ILL-
6CD
TUNER
DSP
FR-R(-)
FR-L(-)
Switch PWB(B1)

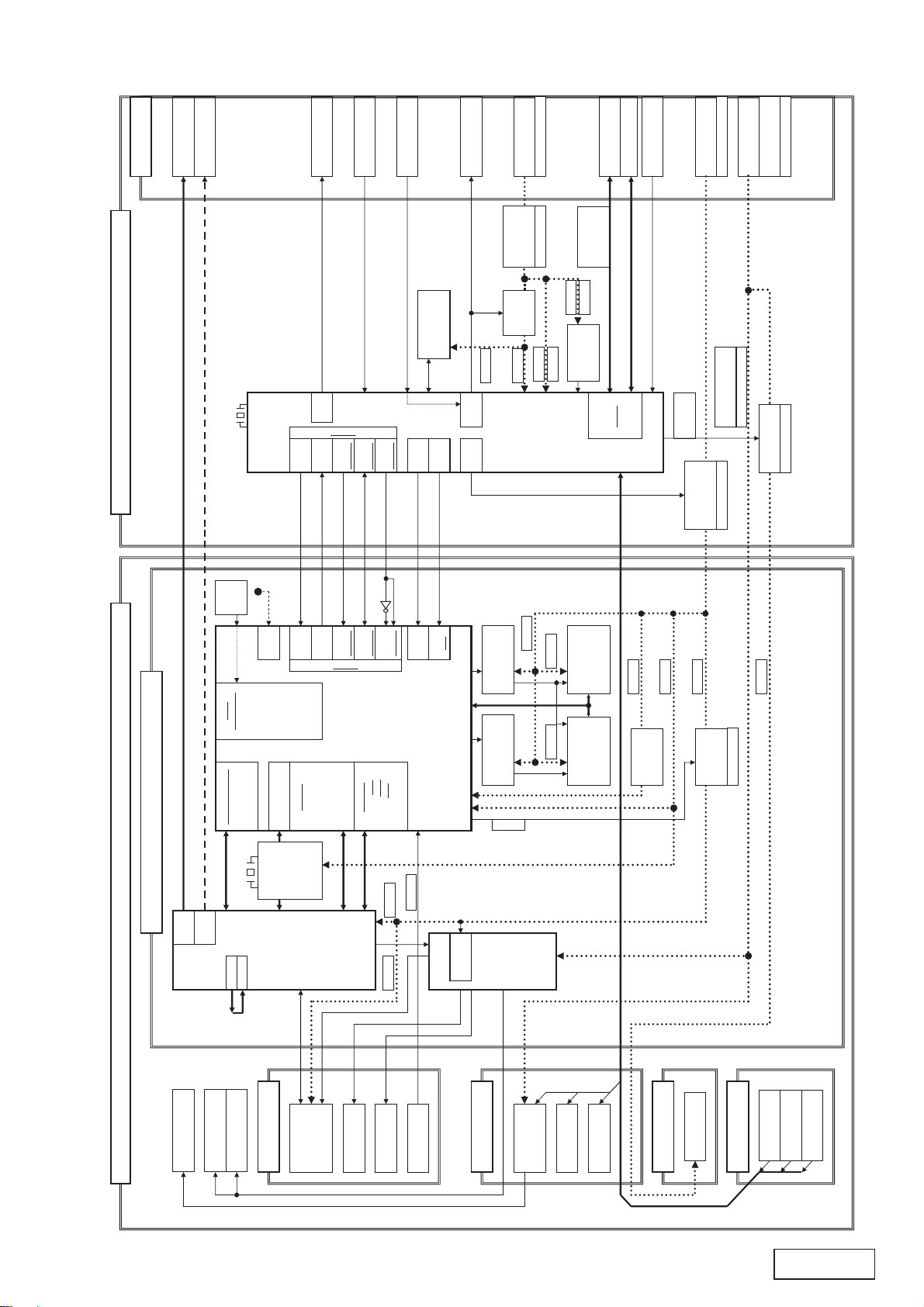

BLOCK DIAGRAM
Main section

PN-2701B-A
PN-2702B-A
-7-
CD changer module section
AUDIO L , R
3mA
22mA
5mA 3mA
111mA
60mA 40mA
215mA
RF
&
CD IC
TC94A15F
IC2
DSP
TMS320DA140
IC 9
MICOM
M30621
IC 3
EEPROM (2K)
BR93L56RFVM
IC 4
VDDREF
3.3V
Q 5
P-ON1
DSP PWB(B5)
10MHz
SERVO
DRIVER
BD7961FM
IC3
RESET
BD5227G
IC 2
MOTOR DRIVER
IC1
IC6
SYS-ACC
TX , RX
(SDA , SCL)
ACC 3.3V
BA033SFP
IC6
DRIVER PWB(B8)
PICK-UP
SPINDLE
MOTOR
SLED MOTOR
M3
M2
S2
MODE MOTOR
V MOTOR
LOADING MOTOR
M1
V- INT SW
S1
SENSOR PWB(B6)
DISC SENSOR
PT3䌾PT6
MODE- INT SW
S1
IC5
MODE SENSOR
PT1
V SENSOR
PT2
LED-L-PWB(B10)
LED-R-PWB(B11)
LED
LED1䌾4
PON1
SHUT-SW
B/U-DET
25mA
PLAY 250mA
MECH MOVE
1200mA (MAX)
B/U-5V
䌁䌃䌃䇭䋵V
䋨PON1 㪚㪦㪥㪫䋩
VDD 3.3V
NJU7222U33
IC 5
SD-RAM (64M)
K4S641632F
IC7
DECODE
SN74LV139
IC4
FLASH ROM
MBM29DL800BA
IC5
CLKIN
16.92MHz
AUDIO
L-CH , R-CH
BUS0 BUS1 BUS2 BUS3
BUCK
/CCE
SIGNAL
(INT) (INT)
(INT)
DECODE /
LATCH
74LV139 / 74LV74
IC6 IC8
DAC
LRCKI/O
AUDIO DATA(6)
BUS(6)
BCLKI/O
DATAI/O
SENSOR 9V
Q 8 , Q 9
V-BUS
TX
A-MUTE
(TO SET U-COM)
LED-SW
(PON3)
BUS BUFFER
FET
Q4 , Q6 , Q53
CD CHANGER MECHANISM
CONNECTOR
(To Main Unit)
J 3
DSP 1.6V
TPS76316DB
IC10
33mA
25mA
426mA
DRIVE UNIT
LIMIT SW
P-ON2
DRMUTE
LMT-SW RESET
SERIAL
SERIAL SERIAL
N-BUS
(I2C)
CD PWB(B4)
CCS
CSRQ
CMSI
CMSO
CSCK
CCS
CSRQ
CMSI
CMSO
CSCK
V-BUS
SFSY
SBSY
IPF
MBOV
RESET
EMPHO
WUP
WUP
A-
MUTE
RESET
MODE
61mA
50mA
16.92MHz
䌘㵭䌔䌁䌌
JTAG
IEEE 1149.1
EMU0 EMU1
TCK
TCK_RET
TDO
TDI
TMS
/TRST
3.3V
GND
JTAG
(15PIN)
EMPHI
170mA 45mA
33mA
䌁䌃䌃䇭䋹V
䋨PON1㩷㪚㪦㪥㪫䋩
426mA
MECH MOVE
1200mA (MAX)
PLAY 250mA
REQ
20㱘A
2.6㱘A
IC11 INV
䌄䌏䌕䌔
RX3.3V
2SB1188
Q 2
111mA
SYSP
SYSCLK
IC12 INV
IC13 BUFF
INT
SERIAL
SERIAL SERIAL
UART

PN-2701B-A
PN-2702B-A -8-
1
2
3
4
5
6
7
8
910
11
12
13
14
15
16
17
18
19
20
21 22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
19
4
33
33
33
33
33
33
33
35
35
33

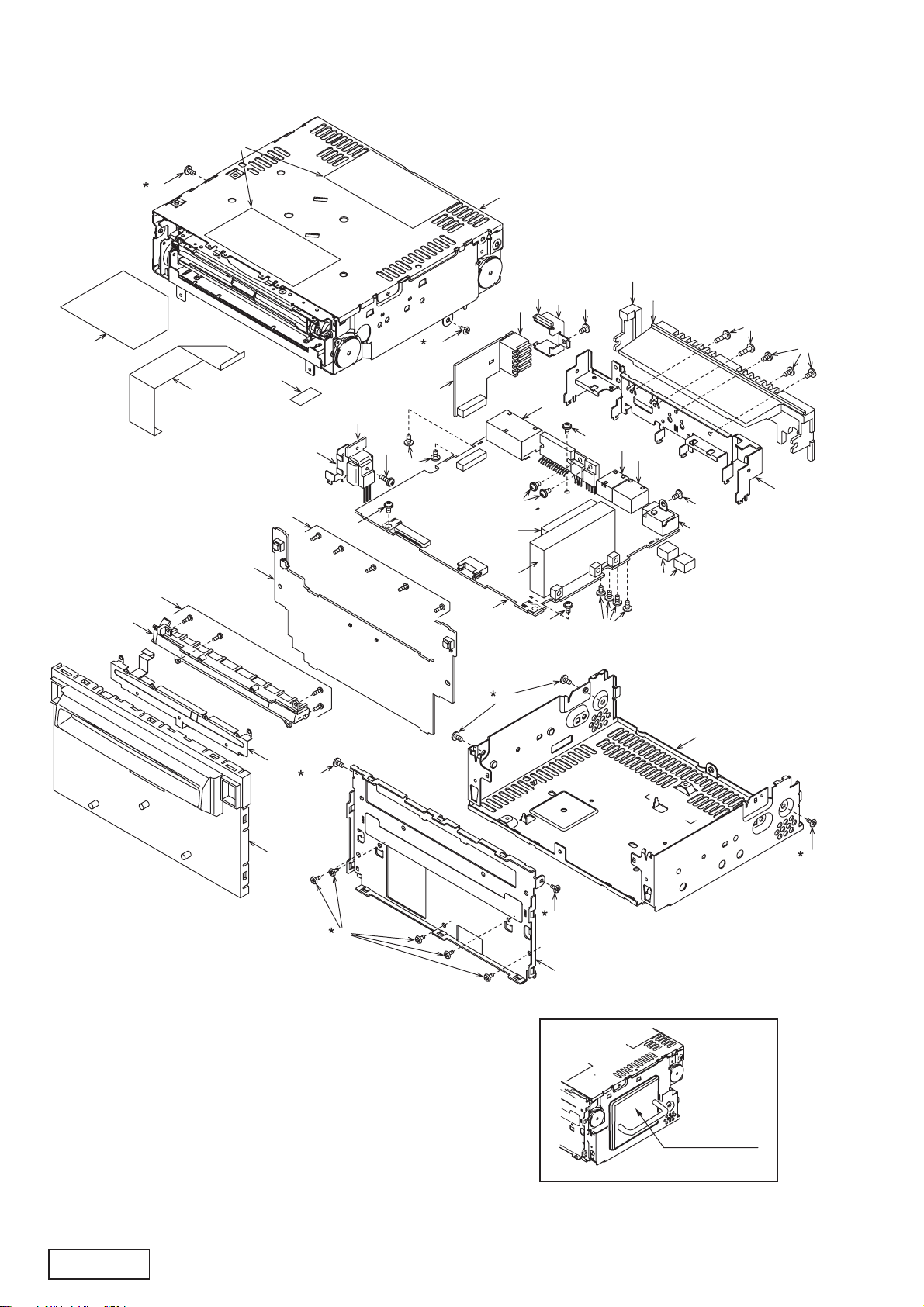

EXPLODED VIEW / PARTS LIST
Main section
Caution of assembling
When installing this unit into a vehicle, this unit side is
equipped with an attachment bracket. The attachment ac-
curacy of the bracket and the unit is +/-0.2mm. If it is not
satisfied, that will be a trouble for installation.
Therefore, in assembling the upper block(CD changer mod-
ule) and the lower block(main unit) of the unit, please use
the "Attachment jig". (When the screws of mark(*) are tight-
ened)
After assembling, please check the attachment position of
the unit with "Attachment jig" again.
Please set "Attachment jig" to the bracket attachment holes
of both sides of the unit.
Attachment jig
(PN-2700-M0H)

PN-2701B-A
PN-2702B-A
-9-
1
2
5
5
5
6
6
6
8
7
10
7
7
11
11 9
9
9
7
13
14
12
3
9
4
9
9
9
9
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
1 370-6106-01 ESCUTCHEON 1
2 331-3795-01 SURGE PLATE 1
3 947-0527-00 DOOR ASSY 1
4 716-0778-10 WAVE SCREW(2 x 3) 9
5 ----------- SW PWB 1
6 ----------- MAIN PWB 1
7 880-1518G AM TUNER 1
8 880-1728F FM TUNER 1
9 074-1302-08 OUTLET SOCKET(TH08HW) 1
10 074-1302-12 OUTLET SOCKET(TH12HW) 1
11 074-4009-20 OUTLET SOCKET(TH18HW) 1
12 092-2210-00 ANT-RECEPT(GT13) 1
13 307-0704-00 REAR PLATE 1
14 313-1910-00 HEAT SINK(SUB) 1
15 331-3880-00 TR-HOLDER 1
16 345-8529-00 RUBBER PART 2
17 716-0878-00 IT-SCREW(M2.6 x 5) 2
18 716-1646-00 IT SCREW(M2.6 x 8) 1
19 778-3006-00 TAP-SCREW(3 x 6) 6
20 ----------- SUB PWB 1
21 074-1013-00 OUTLET SOCKET(A12MW) 1
22 331-3792-00 CONNECTR-HOLDER 1
23 311-1890-01 LOWER CASE 1
24 313-1898-00 HEAT SINK 1
25 331-3794-01 ES PLATE 1
26 345-8749-00 GASKET 1
27 345-8749-10 GASKET 1
28 347-7359-00 EARTH SHEET 1
29 347-7363-00 W-FACE 1
30 816-4002-50 FLAT WIRE 1
31 929-0195-84 CD CHANGER MODULE 1
32 714-2003-89 MACHINE SCREW(M2 x 3) 1
33 714-2606-81 MACHINE SCREW(M2.6 x 6) 16
34 714-2610-89 MACHINE SCREW(M2.6 x 10) 2
35 716-0878-00 IT-SCREW(M2.6 x ) 3
36 286-6469-07 SETPLATE(2701) 1
286-6469-10 SETPLATE(2702)

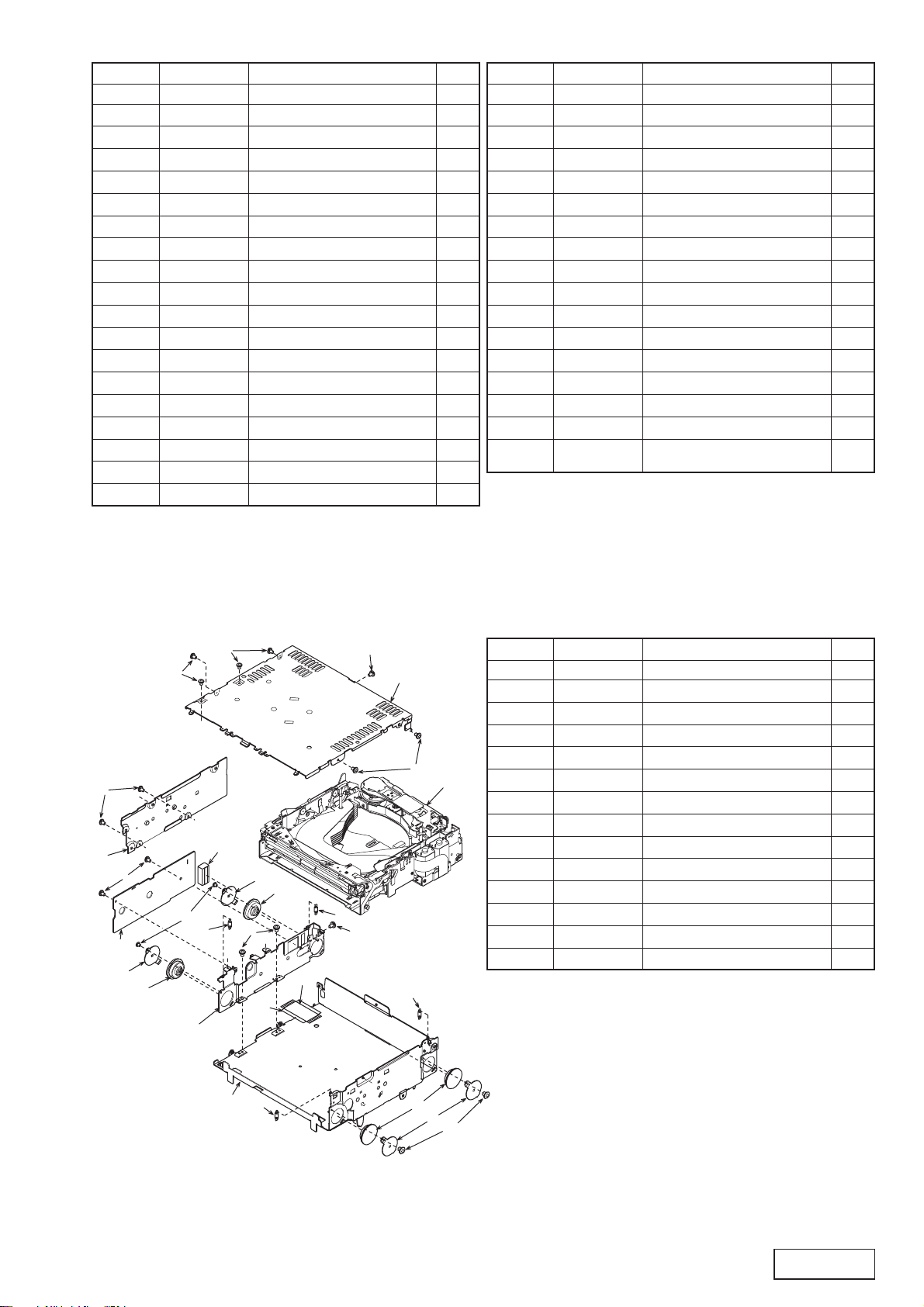

CD changer module section (929-0195-84 : IX-6 type)
NO. PART NO. DESCRIPTION Q'TY
1 311-1864-24 LOWER CASE 1
2 331-3896-22 PWB-HOLDER 1
3 305-0334-20 SIDE CASE 1
4 310-1741-28 UPPER CASE 1
5 629-0083-01 DAMPER 4
6 620-1086-20 DAMPER-H-PLT 4
7 750-3491-00 FL-SPRING 4
8 ----------- CD PWB 1
9 716-1716-00 SCREW(M2x3) 14
10 039-1957-01 FPC 1
11 716-3450-00 SCREW(M1.7x2) 4
12 ----------- CD CHANGER MECHANISM 1
13 347-6619-00 INSULATOR 1
14 345-8748-00 GASKET 1
Note) Somepartsdependoneachmodel.
Themodelnameisspecifiedinthedescription.
(PN-2701B-A:2701,PN-2702B-A:2702)

PN-2701B-A
PN-2702B-A -10-

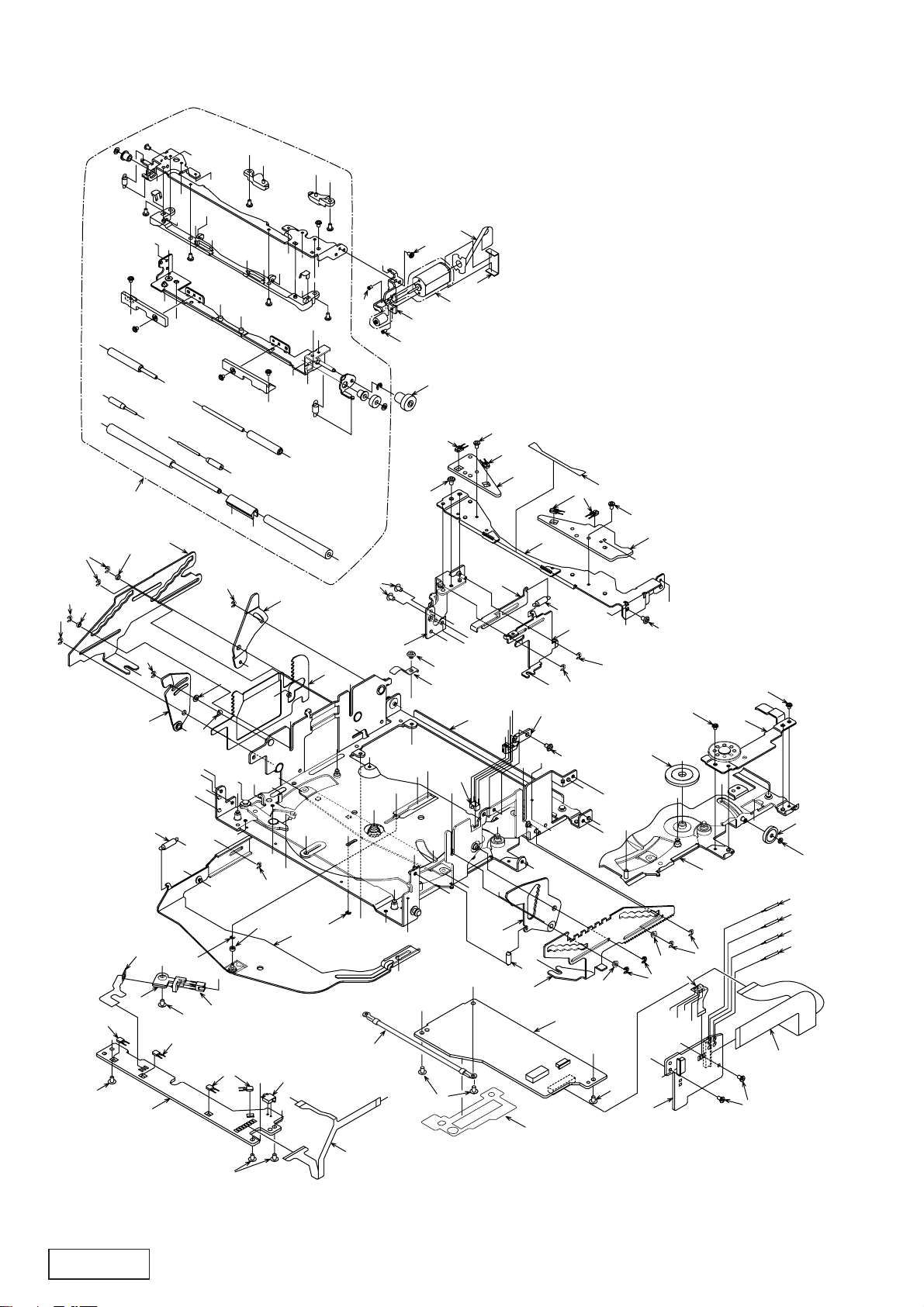

CD changer mechanism section
1
85
67
41
2
36
32
64
67
22
22
60
62
24
29
22
60
25
47
45
63
9
51
72
31
60
6
62
69
28
55
69
55
88
7
38
63
62
69
76
46
69
53
7
89
87
62
33
18
81
44
5
868
49
20
62
82
68
58
34
69
70
71
42
69
J3
K6
K1
K5
L1 L2
L3
L4
J3 J9
L5
L6 L7
L8
K7 K8
J4
J8
J4
J6
J5
J1
I1
J9
L5
L7
J5
J6
L6
L8
J7
J8
J2
I2
J7
K5
K6
K7
K8
X5
A28
A8
A14
A26
A18
A4
A3
B3
A19
A9
C1
A1 A2
O1 A5
F1
X1
X2
X3
X4
A27
A10
A27
A15
A13
Q1 E6
T1 A17
A16
T2 E5
Q1
A26
A27
W1
O2
T4
X1
X2
X3
X4
Y1
Y3
Y2
Y4
S1
A30
E7
A6
O2
V1
O1
A13
M1
N1 N2
A12
A11
R1
U1
A7
A11
A12
N1
N2
M1
E1
A29 P1
E4
A21
A20
A14
A22
A28
U1
R1
A25
E2
A23
A24
S1
A25
L1
L2
L3
L4
27
52
62
35
35
62
26
23
35
30
62
A21
A20
A22
W1
V1
A24
A23
69
69
54
54
43
69
19
E3
P1
69
K1
62
86

PN-2701B-A
PN-2702B-A
-11-
63
50
17
12
59
79
63
50
40
61
48
77
66
56
83
84
75
39
4
65
80
73
57
73
16
74
57
64
15
14
37
13
62
62
78
10
21
3
62
11
B1
I1
J1
E3
E1
E4 E8
I2
J2
A7
A8 A29
T3
G1
G2
G1
H1
G2
F1
D1
E8
A18
A6
A30
H1
B4
A10
A9
X5
C2
E7
E6
E5
E2
D1
C3
B2
T3
A17
T1
T2
A16
T4
A15 B1 B2
B4
A1 A2 A19 B3 A3
A4
A5
C2
C3
C1
Y2
Y1
Y4
Y3

PN-2701B-A
PN-2702B-A -12-
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
1 HBS-521-100 LOADING UNIT 1
2 SMA-186-100 LOADING MOTOR ASSY 1
3 HBS-530-100 MOTOR PLATE SUB ASSY 1
4 HBS-531-103 DRIVE UNIT 1
5 ----------- DSP PWB 1
6 ----------- DRIVER PWB 1
7 966-0597-25 CHASSIS ASSY 1
8 966-0600-23 LOCK-P-RE-ASSY 1
9 966-0601-21 M-GEAR-P-ASSY 1
10 966-0602-24 DR-LINK-ASSY 1
11 966-0603-21 MODE-P-ASSY 1
12 966-0604-24 LOCK-PF-ASSY 1
13 966-0605-20 SHIFT-P-ASSY 1
14 966-0606-23 HLC-PLATE-ASSY 1
15 966-0607-26 COV-PLATE-ASSY 1
16 HBS-535-100 TOP-PLATE-ASSY 1
17 966-0652-22 DR-BASE-P-ASSY 1
18 966-0615-21 LOCK-L-RF-ASSY 1
19 966-0616-20 LOCK-L-LF-ASSY 1
20 966-0618-21 EJECT-B-ASSY 1
21 966-0624-27 DISC-HOL-ASSY 1
22 001-7042-00 DIODE (GL4800) 4
23 013-7414-50 DETECTOR SWITCH 1
24 ----------- LED-L-PWB 1
25 ----------- LED-R-PWB 1
26 ----------- SENSOR PWB 1
27 039-2009-00 PIM-FPC 1
(WITHOUT COMPONENT)
28 039-2010-00 PIV-FPC 1
(WITHOUT COMPONENT)
29 039-2011-01 LED-FPC 1
30 039-2012-00 SENSOR-FPC 1
31 039-2013-02 MOS-FPC 1
32 039-2014-01 L-MOTOR-FPC 1
(WITHOUT COMPONENT)
33 051-5806-01 IC (GPIS93) 1
34 051-5806-02 IC (GPIS95) 1
35 060-0252-01 PHOTO-TR 4
36 347-6657-01 LO-COVER SHEET 1
37 620-1041-26 GEAR PLATE 1
38 620-1042-20 M-GEAR-H 1
39 620-1056-22 HLR-PLATE-L 1
40 620-1580-20 HLR-PLATE-R 1
41 620-1576-20 LO-MOTOR-PLT 1
42 620-1066-20 LOCK LINK-LR 1
43 620-1067-21 SLIDE PLATE-L 1
44 620-1068-22 SLIDE PLATE-R 1
45 620-1071-21 EJECT ARM 1
46 620-1072-20 EJECT PLATE 1
47 620-1577-20 FRONT PLATE 1
48 620-1083-20 FPC-PLATE 1
49 620-1090-20 GAP PLATE 1
50 620-1568-20 RATTLE PLATE-F 2
51 621-0640-20 V-GEAR-G 1
52 621-0641-21 PI-HOLDER-M 1
53 621-0656-21 PI-HOLDER-V 1
54 622-1622-20 SL-G-ROLLER 2
55 622-1623-00 SL-G-ROLLER-R 2
56 622-1648-23 DU-STP-SLEEVE 1
57 622-1650-23 COV-PLATE PIN-B 2
58 622-1651-00 LOCK-RE-ROLLER 1
59 622-1652-00 LOCK-PF-ROLLER 1
60 716-1866-00 SCREW(M1.7x3) 4
61 716-1873-00 SCREW(M2x1.6) 1
62 716-3449-00 SCREW(M2x3) 15
63 716-3450-00 SCREW(M1.7x2) 4
64 716-3451-00 SCREW(M1.7x2.5) 4
65 716-3459-00 SCREW(M1.7x5) 1
66 716-3466-02 SCREW(M2x6) 1
67 738-1422-11 PRECISION SCREW(M1.4x2.2) 2
68 743-1200-10 E-RING 2
69 743-1500-10 E-RING 13
70 746-0624-00 WASHER 1
71 746-0712-23 WASHER 1
72 746-0761-00 WASHER 1
73 750-3478-01 TOP-P-SP-L 2
74 750-3479-01 TOP-P-SP-R 1
75 750-3480-01 DR-LOCK-SP 1
76 750-3483-00 EJECT-A-SPRING 1
77 750-3484-01 DR-BASE-SPRING 1
78 750-3485-01 TENSION-SP-L 1
79 750-3486-01 LO-TENSION-SP 1
80 750-3489-01 DRIVE-P-SPRING 1
81 750-3496-00 GAP-P-SPRING R 1
82 750-3497-00 GAP-P-SPRING L 1
83 750-6711-01 DU-STP-SPRING 1
84 750-6712-01 DR-LOCK-SP-B 1
85 621-0651-22 LOAD GEAR-A 1
86 347-6974-22 FPC COVER 1
87 716-1850-01 SCREW(M2 x 2) 1
88 854-4348-01 EXTENSION LEAD 1
89 620-1604-20 DR-PLATE-SCREW 1

PN-2701B-A
PN-2702B-A
-13-
8
9
10
712
11
17
23
5
16
23
22
21
2
24 24
6
30
13
26
25
20
19
18
14
23
3
23
29
15
28
25
27
1
A1
B1
A2
A3 A1
A2
C1
A3
C1
4
B1

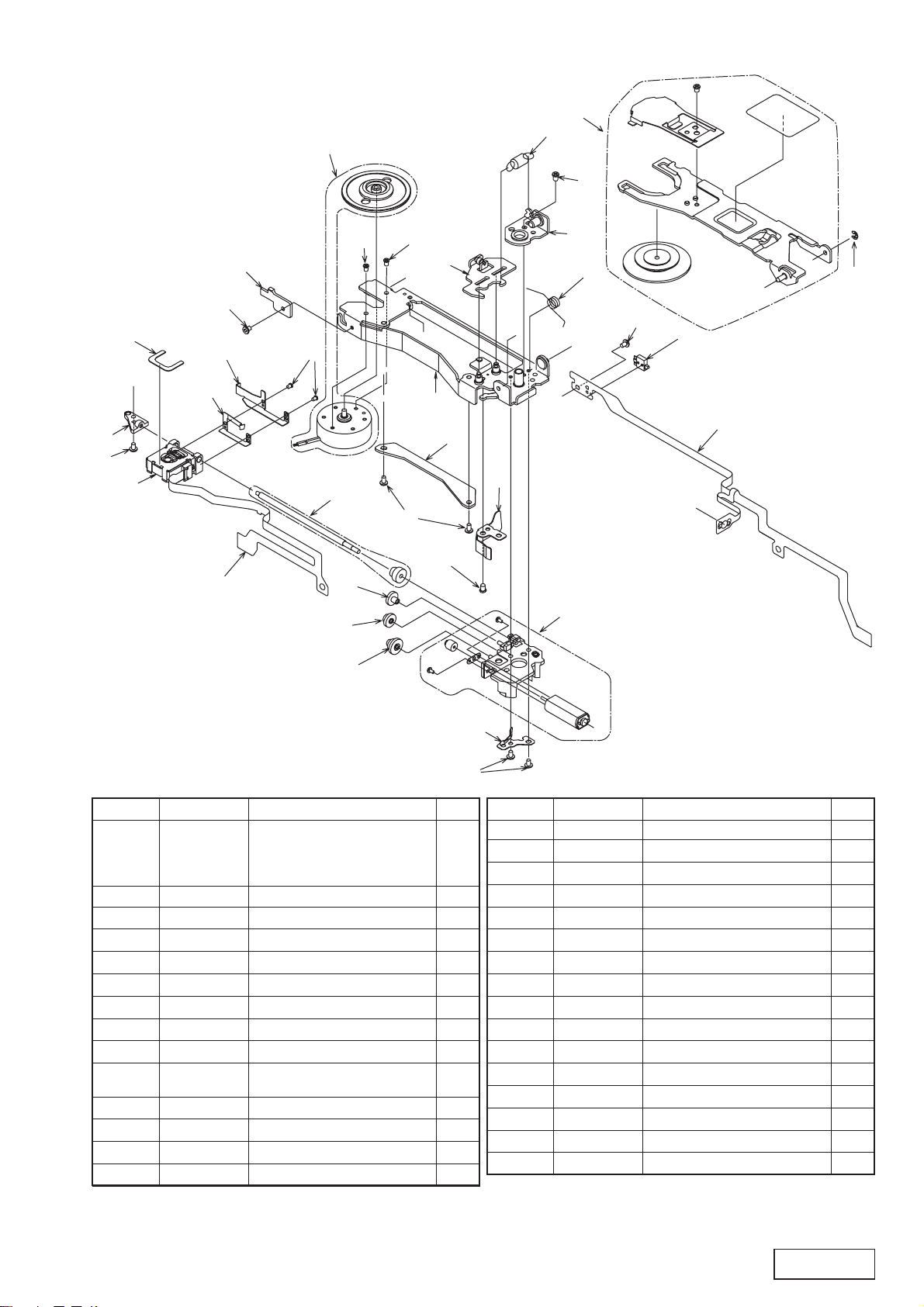

Drive unit section
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
1 HBS-532-100 CLAMPER SUB ASSY 1
(Date-code : until "Y4707...")
HBS-532-101 CLAMPER SUB ASSY
(Date-code : after "Y4708...")
2 SMA-185-102 SPINDLE MOTOR ASSY 1
3 SMA-191-100 SLED MOTOR ASSY 1
4 HBS-515-101 LS-ASSY 1
5 620-1587-83 SH-SP-PLT 1
6 HBS-542-101 D-SHIFT-P-ASSY 1
7 969-0011-01 PICK UP-ASSY 1
8 013-7414-50 DETECT SWITCH 1
9 039-2015-01 P/U-FPC 1
10 039-2016-02 M/S-FPC 1
(WITHOUT COMPONENT)
11 347-6632-00 PU-SHEET 1
12 620-1078-20 PUSH PLATE 1
13 620-1080-22 PU-GUIDE PLATE 1
14 620-1081-20 SCREW PUSH-PLT 1
15 966-0650-20 SPRING PLT ASSY 1
16 620-1730-81 SCREW-HOL-PLT 1
17 621-0670-20 LS-HOLDER-L 1
18 621-0673-20 D-GEAR A 1
19 621-0674-20 D-GEAR B 1
20 621-0675-20 D-GEAR C 1
21 621-0683-21 DU-STOPPER 1
22 716-3511-00 SCREW(M1.4x3) 2
23 716-3470-00 SCREW(M1.7x3) 5
24 738-1720-17 PRECISION SCREW(M1.7x2) 2
25 738-2025-17 PRECISION SCREW(M2x2.5) 2
26 716-3474-00 SCREW(M1.7x3) 2
27 743-1500-20 E-RING 1
28 750-3487-00 SHIFT-P-SPRING 1
29 750-3504-00 CLAMP-A-SPRING 1
30 966-0649-02 DRIVE PLT-ASSY 1
* No1: The date-code is stamped on the mechanism.
Y(Production place), 4(Year 200[4]), 7(Month), 07(Day)
(Month: 10=[X], 11=[Y], 12=[Z])

PN-2701B-A
PN-2702B-A -14-
ELECTRICAL PARTS LIST
Switch PWB(B1) section
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
D803 001-7069-90 LED YELLOW
D805 001-7069-90 LED YELLOW
D806 001-7069-90 LED YELLOW
D807 001-7069-90 LED YELLOW
J801 074-3003-60 10P SOCKET
R804 116-3321-15 1/4W 3.3k ohm
R805 116-3321-15 1/4W 3.3k ohm
R806 116-3321-15 1/4W 3.3k ohm
R807 116-3321-15 1/4W 3.3k ohm
S801 013-7415-50 SPVG110400
S802 013-6300-51 SJPGAA032A
S803 013-6300-51 SJPGAA032A
TM801 073-0778-90 TERMINAL
TM802 073-0778-90 TERMINAL
TM803 073-0778-90 TERMINAL
TM804 073-0778-90 TERMINAL
PWB 039-2561-01 PWB(WITHOUT
COMPONENT)
Main PWB(B2) section
PN-2701B-A
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
ANT101 092-2210-00 GT13SHA-2/1PP-DS
BL160 880-1518G AM TUNER
BL161 880-1728F FM TUNER
C101 166-1011-50 100pF CH
C102 168-1022-55 1000pF K
C103 166-3301-50 33pF CH
C107 168-4732-78 0.047uF K
C108 168-1042-78 16V 0.1uF
C109 168-4722-55 4700pF K
C119 189-1073-39 16V100uF
C127 166-2201-50 22pF CH
C128 168-1022-55 1000pF K
C129 166-2201-50 22pF CH
C130 178-1052-78 1uF
C132 178-1052-78 1uF
C133 166-5601-50 56pF CH
C134 166-4701-50 47pF CH
C135 168-5632-78 16V 0.056uF
C138 168-5632-78 16V 0.056uF
C140 166-1011-50 100pF CH
C141 166-1011-50 100pF CH
C152 166-5611-50 560pF CH
C153 166-1011-50 100pF CH
C160 166-1511-50 150pF CH
C161 166-1007-50 10pF CH
C162 168-2222-55 2200pF K
C163 168-1032-55 0.01uF K
C164 187-4763-37 16V47uF
C165 168-1042-78 16V 0.1uF
C166 178-2242-78 0.22uF
C167 187-4763-17 6.3V47uF
C168 166-1011-50 100pF CH
C169 168-1042-78 16V 0.1uF
C170 187-3363-27 10V 33uF
C173 187-4763-37 16V47uF
C174 168-1042-78 16V 0.1uF
C175 187-4763-37 16V47uF
C176 168-3322-55 3300pF K
C177 168-1042-78 16V 0.1uF
C178 043-0277-51 0.022uF
C179 187-2253-67 50V2.2uF
C180 168-3312-55 330pF K
C185 168-5632-78 16V 0.056uF
C186 168-5632-78 16V 0.056uF
C187 043-0277-51 0.022uF
C188 187-4763-37 16V47uF
C189 168-1022-55 1000pF K
C190 186-1053-69 50V 1uF
C191 168-2232-55 0.022uF K
C192 187-4763-37 16V47uF
C193 166-1011-50 100pF CH
C194 166-1011-50 100pF CH
C195 166-1011-50 100pF CH
C196 166-1011-50 100pF CH
C197 166-1801-50 18pF CH
C199 166-1501-50 15pF CH
C207 178-4732-78 0.047uF
C208 178-4732-78 0.047uF
C209 168-8222-55 8200pF K
C210 168-8222-55 8200pF K
C226 168-1042-78 16V 0.1uF
C227 168-1832-55 0.018uF K
C250 168-1022-55 1000pF K
C251 168-1022-55 1000pF K
C252 168-1022-55 1000pF K
C253 168-1022-55 1000pF K
C254 043-0548-50 10V 2.2uF
C255 043-0548-50 10V 2.2uF
C256 043-0548-50 10V 2.2uF
C257 043-0548-50 10V 2.2uF
C270 189-2273-29 10V 220uF
C271 187-1063-37 16V10uF
C272 168-1042-78 16V 0.1uF
C273 168-1042-78 16V 0.1uF
C275 187-1063-37 16V10uF
C288 166-1011-50 100pF CH
C301 166-4701-50 47pF CH
C302 166-1021-50 1000pF CH
C305 187-4753-57 35V 4.7uF
C308 166-1021-50 1000pF CH
C309 166-1007-50 10pF CH
C310 166-1007-50 10pF CH
C311 168-1042-78 16V 0.1uF
C312 168-1042-78 16V 0.1uF
C313 168-1022-55 1000pF K
C314 168-1022-55 1000pF K
C315 166-1011-50 100pF CH
C317 187-4753-57 35V 4.7uF
C318 168-1042-78 16V 0.1uF
C319 187-4753-57 35V 4.7uF
C320 168-1042-78 16V 0.1uF
C321 166-4701-50 47pF CH
C323 187-4753-57 35V 4.7uF
C324 166-1011-50 100pF CH
C325 168-2232-55 0.022uF K
C326 189-3373-18 6.3V 330uF
C327 042-0423-94 10V 4.7uF
C329 187-2263-37 16V 22uF
C330 168-1022-55 1000pF K
C331 168-1042-78 16V 0.1uF
C332 168-1042-78 16V 0.1uF
C333 168-1022-55 1000pF K
C334 168-1022-55 1000pF K
C335 168-2232-55 0.022uF K
C336 178-1052-78 1uF
C337 168-3332-78 0.033uF K
C339 168-3322-55 3300pF K
C341 168-3322-55 3300pF K
C342 168-2232-55 0.022uF K
C343 168-4712-55 470pF K
C344 168-1042-78 16V 0.1uF
C345 168-1042-78 16V 0.1uF
C346 168-2232-55 0.022uF K
C347 168-1042-78 16V 0.1uF
C348 178-1052-78 1uF
C349 189-3373-18 6.3V 330uF
C351 189-2273-29 10V 220uF
C355 168-2222-55 2200pF K
C356 187-1073-17 6.3V 100uF
C357 168-2222-55 2200pF K
C358 187-1073-17 6.3V 100uF
C360 168-1042-78 16V 0.1uF
C361 168-1042-78 16V 0.1uF
C362 168-1042-78 16V 0.1uF
C363 168-1042-78 16V 0.1uF
C364 168-1042-78 16V 0.1uF
C401 168-1042-78 16V 0.1uF
C402 168-1042-78 16V 0.1uF
C403 166-2201-50 22pF CH
C404 166-2201-50 22pF CH
C405 168-4722-55 4700pF K
C406 166-1201-50 12pF CH
C407 166-1201-50 12pF CH
C408 168-1042-78 16V 0.1uF
C409 187-4763-17 6.3V47uF
C410 168-1042-78 16V 0.1uF
C411 168-1042-78 16V 0.1uF
C412 168-1032-55 0.01uF K
C415 166-1011-50 100pF CH
C416 166-1011-50 100pF CH
C417 166-1011-50 100pF CH
C418 166-1011-50 100pF CH
C503 178-1052-78 1uF
C504 178-1052-78 1uF
C506 166-5611-50 560pF CH
C508 166-5611-50 560pF CH
C510 166-2201-50 22pF CH
C512 166-2201-50 22pF CH
C513 168-1042-78 16V 0.1uF
C514 166-5611-50 560pF CH
C517 166-5611-50 560pF CH
C518 042-0579-51 16V 10uF
C519 178-4742-78 0.47uF
C520 178-4742-78 0.47uF
C521 178-4742-78 0.47uF
C522 178-4742-78 0.47uF
C523 168-1042-78 16V 0.1uF
C524 042-0416-56 10V22uF M TAN
C525 178-1052-78 1uF
C526 163-2263-35 16V22uF
C527 042-1439-90 10V 220uF
C529 042-0643-50 35V22uF
C531 042-0579-51 16V 10uF
C533 168-1042-78 16V 0.1uF
C534 163-2253-65 50V2.2uF
C535 187-1053-67 50V1uF
C536 168-1042-78 16V 0.1uF
C538 189-1073-39 16V100uF
C539 172-1841-15 0.18uF
C540 042-1600-00 16V 1000uF
C541 168-1042-78 16V 0.1uF
C542 042-0423-97 16V10uF
C543 168-1042-78 16V 0.1uF
C544 168-1042-78 16V 0.1uF
C545 189-1073-39 16V100uF
C547 168-2232-55 0.022uF K
C548 168-2232-55 0.022uF K

PN-2701B-A
PN-2702B-A
-15-
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
C549 168-6822-55 6800pF K
C550 168-2232-55 0.022uF K
C551 168-2232-55 0.022uF K
C556 178-1052-78 1uF
C558 168-2232-55 0.022uF K
C561 166-1011-50 100pF CH
C566 168-2232-55 0.022uF K
C567 168-2232-55 0.022uF K
C568 168-2232-55 0.022uF K
C569 168-2232-55 0.022uF K
C593 042-0579-51 16V 10uF
C595 189-1073-39 16V100uF
C598 168-1022-55 1000pF K
C599 168-1022-55 1000pF K
CCT401 050-0145-52 1/16W 1k ohm x 4
D204 001-0529-32 MA8056-M
D503 001-0516-90 MA111
D504 001-0516-90 MA111
D505 001-0529-48 MA8091-H
D506 001-0516-90 MA111
D507 001-0516-90 MA111
D508 001-2015-00 RL253
D510 001-0466-90 S5688B
D511 001-0516-90 MA111
D512 001-0529-34 MA8062-L
D590 001-0504-48 HZS9C2L
IC103 051-3034-90 NJM4558V
IC153 051-4607-90 SAA6581T
IC155 051-6212-08 LC72191JM-TLM
IC270 051-3340-00 LD1085P
IC301 051-6706-00 SAF7730H/N114
IC401 051-9421-91 BR24L08FVM-WTR
IC402 052-3188-00 M30843MW-M02GP
IC403 051-6607-08 PCA82C250T-T
IC404 051-5420-08 S-80943CNMC-G9D
IC501 051-3019-90 NJM2060V
IC502 051-3343-00 NJM2396F33
IC503 051-2055-00 TDA8593J/N3
IC504 051-3340-00 LD1085P
IC505 051-3341-90 BD3931FP
IC506 051-5441-08 BD4828G-TR
J201 074-1302-12 12P
J203 074-1237-70 20P
J250 074-1302-08 OUTLET SOCKET
J501 074-4009-20 TH18HW-CS
L104 010-2003-04 COIL
L105 010-3105-62 1k ohm/100MHz
L161 010-3406-66 22uH
L162 010-3406-66 22uH
L163 010-2198-56 2.2uH
L164 010-3406-66 22uH
L165 010-6009-64 2.2uH
L166 010-3406-66 22uH
L167 010-3406-66 22uH
L201 119-0000-05 1/10W 0 ohm JW
L202 119-0000-05 1/10W 0 ohm JW
L205 010-3105-62 1k ohm/100MHz
L206 010-3105-62 1k ohm/100MHz
L207 010-3105-62 1k ohm/100MHz
L208 010-3105-62 1k ohm/100MHz
L209 010-3104-54 220 ohm/100MHz
L210 010-3104-54 220 ohm/100MHz
L302 010-3105-62 1k ohm/100MHz
L303 010-3105-62 1k ohm/100MHz
L304 010-3105-62 1k ohm/100MHz
L305 010-3104-54 220 ohm/100MHz
L307 010-3105-62 1k ohm/100MHz
L308 010-3105-62 1k ohm/100MHz
L309 119-0000-05 1/10W 0 ohm JW
L310 119-0000-05 1/10W 0 ohm JW
L311 010-3105-62 1k ohm/100MHz
L312 010-3105-62 1k ohm/100MHz
L313 010-3105-62 1k ohm/100MHz
L314 010-3105-62 1k ohm/100MHz
L315 010-2198-51 0.22uH
L401 010-3601-50 600ohm(10-100MHz)
L402 010-3406-54 2.2uH
L403 010-3105-62 1k ohm/100MHz
L404 010-3105-62 1k ohm/100MHz
L502 010-3406-66 22uH
L503 010-8028-00 520uH
L504 010-3105-62 1k ohm/100MHz
L505 010-3105-62 1k ohm/100MHz
L506 010-3105-62 1k ohm/100MHz
L507 010-3105-62 1k ohm/100MHz
L508 010-3105-62 1k ohm/100MHz
P201 076-0368-20 20P
P401 076-0478-58 8P
P402 076-0662-60 10P
Q113 192-4116-00 2SC4116
Q160 125-2026-91 UN5211
Q161 125-9017-92 UMD3N
Q162 125-2026-92 UN5212
Q163 190-1298-00 2SA1298
Q164 125-2026-91 UN5211
Q166 190-1162-00 2SA1162
Q168 192-4116-51 2SC4116 G,L
Q169 192-4116-51 2SC4116 G,L
Q204 125-2026-91 UN5211
Q205 193-2118-00 2SD2118
Q206 125-9017-92 UMD3N
Q301 125-7005-90 PHK04P02T
Q302 125-2026-91 UN5211
Q308 125-2026-91 UN5211
Q507 191-1240-00 2SB1240
Q508 125-2026-95 UN521N
Q509 192-4116-51 2SC4116 G,L
Q510 191-1204-61 2SB1204R.S.T
Q512 125-2026-91 UN5211
Q513 190-1298-00 2SA1298
Q517 192-4116-00 2SC4116
Q590 193-2118-00 2SD2118
R105 119-0000-05 1/10W 0 ohm JW
R121 119-5631-15 1/10W 56k ohm
R122 119-4721-15 1/10W 4.7k ohm
R123 119-4721-15 1/10W 4.7k ohm
R125 119-1021-15 1/10W 1k ohm
R126 119-1021-15 1/10W 1k ohm
R127 119-5631-15 1/10W 56k ohm
R131 119-6831-15 1/10W 68k ohm
R134 119-6831-15 1/10W 68k ohm
R135 119-3931-15 1/10W 39k ohm
R136 119-3931-15 1/10W 39k ohm
R142 119-1031-15 1/10W 10k ohm
R143 119-1031-15 1/10W 10k ohm
R148 119-1021-15 1/10W 1k ohm
R149 119-1021-15 1/10W 1k ohm
R152 119-1021-15 1/10W 1k ohm
R153 119-3321-15 1/10W 3.3k ohm
R154 119-4731-15 1/10W 47k ohm
R160 119-1021-15 1/10W 1k ohm
R161 119-2221-15 1/10W 2.2k ohm
R162 119-1031-15 1/10W 10k ohm
R163 119-2221-15 1/10W 2.2k ohm
R164 119-3311-15 1/10W 330 ohm
R165 119-1041-15 1/10W 100k ohm
R167 119-1021-15 1/10W 1k ohm
R168 119-3331-15 1/10W 33k ohm
R169 119-0000-05 1/10W 0 ohm JW
R170 119-0000-05 1/10W 0 ohm JW
R171 119-2221-15 1/10W 2.2k ohm
R172 119-2221-15 1/10W 2.2k ohm
R173 119-1031-15 1/10W 10k ohm
R174 119-1031-15 1/10W 10k ohm
R175 119-2221-15 1/10W 2.2k ohm
R181 119-4721-15 1/10W 4.7k ohm
R182 119-2221-15 1/10W 2.2k ohm
R183 119-3321-15 1/10W 3.3k ohm
R184 119-2221-15 1/10W 2.2k ohm
R185 119-1021-15 1/10W 1k ohm
R186 119-4721-15 1/10W 4.7k ohm
R187 119-1021-15 1/10W 1k ohm
R188 119-2221-15 1/10W 2.2k ohm
R189 119-1031-15 1/10W 10k ohm
R190 119-1031-15 1/10W 10k ohm
R203 119-3011-15 1/10W 300 ohm
R208 032-0140-80 1/10W 18k ohm F
R209 032-0140-80 1/10W 18k ohm F
R217 119-0000-05 1/10W 0 ohm JW
R218 119-0000-05 1/10W 0 ohm JW
R219 119-0000-05 1/10W 0 ohm JW
R220 119-0000-05 1/10W 0 ohm JW
R225 119-0000-05 1/10W 0 ohm JW
R226 119-0000-05 1/10W 0 ohm JW
R227 119-1021-15 1/10W 1k ohm
R229 117-2211-15 1/8W 220 ohm
R230 119-1041-15 1/10W 100k ohm
R250 119-2731-15 1/10W 27k ohm
R251 119-2731-15 1/10W 27k ohm
R252 010-3105-62 1k ohm/100MHz
R253 010-3105-62 1k ohm/100MHz
R254 010-3105-62 1k ohm/100MHz
R255 010-3105-62 1k ohm/100MHz
R271 119-4731-15 1/10W 47k ohm
R272 119-4731-15 1/10W 47k ohm
R273 032-0140-98 1/10W 330 ohm F
R274 032-0140-93 1/10W 2k ohm F
R301 032-0140-80 1/10W 18k ohm F
R302 032-0140-80 1/10W 18k ohm F
R303 032-0140-80 1/10W 18k ohm F
R304 032-0140-80 1/10W 18k ohm F
R305 119-4721-15 1/10W 4.7k ohm
R306 119-4721-15 1/10W 4.7k ohm
R307 119-0000-05 1/10W 0 ohm JW
R311 119-1031-15 1/10W 10k ohm
R315 032-0140-50 1/10W 10k ohm F
R316 119-1031-15 1/10W 10k ohm
R317 119-1031-15 1/10W 10k ohm
R318 032-0140-50 1/10W 10k ohm F
R319 032-0140-50 1/10W 10k ohm F
R320 010-3105-62 1k ohm/100MHz
R321 032-0140-50 1/10W 10k ohm F
R322 119-1041-15 1/10W 100k ohm
R323 119-1041-15 1/10W 100k ohm
R324 119-1001-15 1/10W 10 ohm
R325 119-1031-15 1/10W 10k ohm
R326 119-1031-15 1/10W 10k ohm
R327 032-0140-50 1/10W 10k ohm F
R328 032-0140-50 1/10W 10k ohm F
R329 032-0140-50 1/10W 10k ohm F
R330 032-0140-50 1/10W 10k ohm F
R332 119-1031-15 1/10W 10k ohm
R333 119-1031-15 1/10W 10k ohm
R335 119-1031-15 1/10W 10k ohm
R336 119-1031-15 1/10W 10k ohm
R337 010-3105-62 1k ohm/100MHz
R338 119-1011-15 1/10W 100 ohm
R339 119-1011-15 1/10W 100 ohm
R340 010-3105-62 1k ohm/100MHz
R341 010-3105-62 1k ohm/100MHz
R342 010-3105-62 1k ohm/100MHz
R343 119-1031-15 1/10W 10k ohm
R344 119-1031-15 1/10W 10k ohm
R345 010-3105-62 1k ohm/100MHz
R347 010-3105-62 1k ohm/100MHz
R348 119-0000-05 1/10W 0 ohm JW
R349 119-0000-05 1/10W 0 ohm JW
R352 119-1021-15 1/10W 1k ohm
R353 119-1021-15 1/10W 1k ohm
R356 119-4731-15 1/10W 47k ohm
R357 119-0000-05 1/10W 0 ohm JW
R358 119-0000-05 1/10W 0 ohm JW

PN-2701B-A
PN-2702B-A -16-
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
R363 119-1031-15 1/10W 10k ohm
R364 119-1031-15 1/10W 10k ohm
R365 119-0000-05 1/10W 0 ohm JW
R367 119-0000-05 1/10W 0 ohm JW
R368 116-1001-15 1/4W 10 ohm
R370 119-1011-15 1/10W 100 ohm
R374 010-3105-62 1k ohm/100MHz
R375 010-3105-62 1k ohm/100MHz
R378 032-0140-80 1/10W 18k ohm F
R379 032-0140-80 1/10W 18k ohm F
R380 032-0140-80 1/10W 18k ohm F
R381 032-0140-80 1/10W 18k ohm F
R382 119-0000-05 1/10W 0 ohm JW
R383 119-0000-05 1/10W 0 ohm JW
R384 119-0000-05 1/10W 0 ohm JW
R385 119-0000-05 1/10W 0 ohm JW
R401 119-1021-15 1/10W 1k ohm
R402 119-1021-15 1/10W 1k ohm
R403 119-1021-15 1/10W 1k ohm
R404 119-0000-05 1/10W 0 ohm JW
R405 119-1021-15 1/10W 1k ohm
R406 119-1021-15 1/10W 1k ohm
R407 119-1021-15 1/10W 1k ohm
R408 119-4731-15 1/10W 47k ohm
R409 119-3311-15 1/10W 330 ohm
R410 119-3311-15 1/10W 330 ohm
R411 119-4721-15 1/10W 4.7k ohm
R412 119-4721-15 1/10W 4.7k ohm
R413 119-4731-15 1/10W 47k ohm
R414 119-4731-15 1/10W 47k ohm
R415 119-4731-15 1/10W 47k ohm
R416 119-4721-15 1/10W 4.7k ohm
R417 119-4721-15 1/10W 4.7k ohm
R418 119-1011-15 1/10W 100 ohm
R419 119-1011-15 1/10W 100 ohm
R420 119-1011-15 1/10W 100 ohm
R421 119-1011-15 1/10W 100 ohm
R422 119-1031-15 1/10W 10k ohm
R423 119-1031-15 1/10W 10k ohm
R424 119-1011-15 1/10W 100 ohm
R425 119-1011-15 1/10W 100 ohm
R426 116-6201-15 1/4W 62 ohm D
R427 116-6201-15 1/4W 62 ohm D
R428 119-1031-15 1/10W 10k ohm
R429 119-4731-15 1/10W 47k ohm
R430 119-0000-05 1/10W 0 ohm JW
R431 119-1031-15 1/10W 10k ohm
R434 119-1031-15 1/10W 10k ohm
R438 119-1021-15 1/10W 1k ohm
R442 119-4731-15 1/10W 47k ohm
R453 119-2221-15 1/10W 2.2k ohm
R470 119-1841-15 1/10W 180k ohm
R471 119-1021-15 1/10W 1k ohm
R472 119-1021-15 1/10W 1k ohm
R475 119-1021-15 1/10W 1k ohm
R476 119-1021-15 1/10W 1k ohm
R480 119-2231-15 1/10W 22k ohm
R490 119-0000-05 1/10W 0 ohm JW
R503 119-1031-15 1/10W 10k ohm
R504 119-1031-15 1/10W 10k ohm
R505 119-1031-15 1/10W 10k ohm
R507 119-1031-15 1/10W 10k ohm
R510 119-1031-15 1/10W 10k ohm
R513 119-0000-05 1/10W 0 ohm JW
R514 119-1031-15 1/10W 10k ohm
R515 119-0000-05 1/10W 0 ohm JW
R516 119-1051-15 1/10W 1M ohm
R517 119-0000-05 1/10W 0 ohm JW
R518 119-1051-15 1/10W 1M ohm
R519 119-0000-05 1/10W 0 ohm JW
R520 119-1031-15 1/10W 10k ohm
R521 119-1031-15 1/10W 10k ohm
R524 119-1031-15 1/10W 10k ohm
R526 116-1221-15 1/4W 1.2k ohm
R527 116-1091-15 1/4W 1 ohm
R529 119-1031-15 1/10W 10k ohm
R530 119-0000-05 1/10W 0 ohm JW
R534 032-0140-98 1/10W 330 ohm F
R535 032-0140-93 1/10W 2k ohm F
R536 119-0000-05 1/10W 0 ohm JW
R537 119-0000-05 1/10W 0 ohm JW
R538 119-0000-05 1/10W 0 ohm JW
R539 119-0000-05 1/10W 0 ohm JW
R540 119-0000-05 1/10W 0 ohm JW
R541 116-1221-15 1/4W 1.2k ohm
R542 116-1221-15 1/4W 1.2k ohm
R543 116-1221-15 1/4W 1.2k ohm
R544 116-4791-15 1/4W4.7 ohm
R545 119-1031-15 1/10W 10k ohm
R546 119-1031-15 1/10W 10k ohm
R547 119-4741-15 1/10W 470k ohm
R548 119-4721-15 1/10W 4.7k ohm
R549 116-4791-15 1/4W4.7 ohm
R550 119-1521-15 1/10W 1.5k ohm
R552 119-1031-15 1/10W 10k ohm
R553 119-4721-15 1/10W 4.7k ohm
R554 119-4721-15 1/10W 4.7k ohm
R555 119-1011-15 1/10W 100 ohm
R556 119-1011-15 1/10W 100 ohm
R557 119-4731-15 1/10W 47k ohm
R558 032-0148-50 1/10W 100k ohm
R559 032-0148-54 1/16W 180k ohm D
R563 116-2721-15 1/4W 2.2k ohm
R564 116-1531-15 1/4W 15k ohm
R568 119-4731-15 1/10W 47k ohm
R569 119-1031-15 1/10W 10k ohm
R570 119-5611-15 1/10W 560 ohm
R576 119-0000-05 1/10W 0 ohm JW
R579 117-1001-15 1/8W 10 ohm
R580 117-1001-15 1/8W 10 ohm
R581 117-1001-15 1/8W 10 ohm
R582 117-1001-15 1/8W 10 ohm
R585 119-0000-05 1/10W 0 ohm JW
R586 119-1031-15 1/10W 10k ohm
R594 119-0000-05 1/10W 0 ohm JW
R595 116-3911-15 1/4W 390 ohm
R596 119-0000-05 1/10W 0 ohm JW
R600 060-0108-00 1/6ZP 0 ohm JW
SUP101 060-0122-91 DSP-141N-S00B
SUP102 060-0122-91 DSP-141N-S00B
TH501 002-0229-90 PTH8L05B
TM160 073-0768-90 TERMINAL
TM202 073-0778-90 TERMINAL
TM305 073-0778-90 TERMINAL
TM401 073-0768-90 TERMINAL
VR160 012-4318-59 47KB
VR161 012-4318-59 47KB
VR162 012-4318-56 10KB
X152 061-3013-00 4.33MHz
X153 061-1066-00 7.2MHz
X302 061-3537-90 41.6MHz
X401 061-3541-90 10MHz
PWB 039-2560-01 PWB(WITHOUT
COMPONENT)
PN-2702B-A (Difference from PN-2701B-A.)
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
C133 ----------- NO USED
C134 ----------- NO USED
C135 168-6832-78 16V 0.068uF
C138 168-6832-78 16V 0.068uF
C152 ----------- NO USED
C166 ----------- NO USED
C167 ----------- NO USED
C179 ----------- NO USED
C180 ----------- NO USED
C185 168-2732-55 16V 0.027uF K
C186 168-2732-55 16V 0.027uF K
C207 ----------- NO USED
C208 ----------- NO USED
C209 ----------- NO USED
C210 ----------- NO USED
C334 ----------- NO USED
IC153 ----------- NO USED
L167 ----------- NO USED
L201 ----------- NO USED
L202 ----------- NO USED
Q113 ----------- NO USED
R121 119-7531-15 1/10W 75k ohm
R127 119-7531-15 1/10W 75k ohm
R142 ----------- NO USED
R143 ----------- NO USED
R152 ----------- NO USED
R167 ----------- NO USED
R203 ----------- NO USED
R208 ----------- NO USED
R209 ----------- NO USED
R374 ----------- NO USED
R375 ----------- NO USED
R571 119-0000-05 1/10W 0 ohm JW
R576 ----------- NO USED
Sub PWB(B3) section
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
C820 043-0548-50 10V 2.2uF
C821 043-0548-50 10V 2.2uF
C822 043-0548-50 10V 2.2uF
C823 043-0548-50 10V 2.2uF
C824 168-2232-55 0.022uF K
C825 168-1022-55 1000pF K
C826 168-1022-55 1000pF K
C827 168-1022-55 1000pF K
C828 168-1022-55 1000pF K
C829 168-2222-55 2200pF K
C830 168-2222-55 2200pF K
C831 168-1022-55 1000pF K
C832 168-1022-55 1000pF K
C833 168-1022-55 1000pF K
C834 168-1022-55 1000pF K
D820 001-0529-44 MA8082-M
D821 001-0584-33 MA8200
D822 001-0584-33 MA8200
D823 001-4305-39 UDZSTE-17 36B
D824 001-0516-90 MA111
D825 001-0516-90 MA111
D826 001-0516-90 MA111
J820 074-1013-00 12P
J821 074-0898-20 20P
L801 010-3105-62 1k ohm/100MHz
L802 010-3105-62 1k ohm/100MHz
L803 010-3105-62 1k ohm/100MHz

PN-2701B-A
PN-2702B-A
-17-
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
L804 010-3105-62 1k ohm/100MHz
Q802 125-9017-92 UMD3N
Q803 125-9017-92 UMD3N
Q820 192-4116-00 2SC4116
Q823 192-4116-00 2SC4116
Q824 192-4116-00 2SC4116
Q825 192-4116-00 2SC4116
Q826 125-0020-91 UN5111
Q829 125-2026-91 UN5211
R820 119-3011-15 1/10W 300 ohm
R821 119-3011-15 1/10W 300 ohm
R822 119-1021-15 1/10W 1k ohm
R823 119-5621-15 1/10W 5.6k ohm
R824 119-5621-15 1/10W 5.6k ohm
R825 119-5621-15 1/10W 5.6k ohm
R826 119-5631-15 1/10W 56k ohm
R827 119-5631-15 1/10W 56k ohm
R828 119-5631-15 1/10W 56k ohm
R829 119-1031-15 1/10W 10k ohm
R830 119-1031-15 1/10W 10k ohm
R831 119-1031-15 1/10W 10k ohm
R832 116-8211-15 1/4W 820 ohm
R833 116-8211-15 1/4W 820 ohm
R834 116-8211-15 1/4W 820 ohm
R835 116-8211-15 1/4W 820 ohm
R836 119-5631-15 1/10W 56k ohm
R837 119-1031-15 1/10W 10k ohm
R840 119-2231-15 1/10W 22k ohm
R841 119-4731-15 1/10W 47k ohm
R842 119-4731-15 1/10W 47k ohm
PWB 039-2559-00 PWB(WITHOUT
COMPONENT)
CD changer mechanism section
CD PWB section(B4)
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
C1 168-4735-56 0.047uF Z
C2 168-4735-56 0.047uF Z
C4 168-1222-55 1200pF K
C5 163-2263-35 16V22uF
C6 168-1222-55 1200pF K
C12 168-1222-55 1200pF K
C15 168-1222-55 1200pF K
C16 163-2263-35 16V22uF
C18 168-1045-56 0.1uF Z
C19 166-1011-50 100pF CH
C21 168-1032-55 0.01uF K
C22 168-1045-56 0.1uF Z
C23 168-1045-56 0.1uF Z
C24 168-1032-55 0.01uF K
C25 163-1073-15 6.3V100uF
C26 178-1052-78 1uF
C27 168-1045-56 0.1uF Z
C28 042-0671-01 10V 47uF TA
C29 168-1045-56 0.1uF Z
C30 178-3342-78 0.33uF
C31 042-1673-00 10V 220uF
CCT4 050-0140-55 1/32W 2.2k ohmx4J
CCT5 050-0145-54 1/16W 47k ohm x4
CCT6 050-0145-53 1/16W 220k ohm x4J
D2 001-2610-90 RB480KTL
IC2 051-5445-08 BD5227G-TR
IC3 052-5061-01 M30621MCM-4S5GP
IC4 051-9402-78 BR93L56RFVM-W
IC5 051-3332-90 NJU7222U33
IC6 051-3293-90 BA033SFP-E2
J1 074-1189-95 45P
J3 074-1237-70 20P
P1 076-0478-55 PLUG
Q3 190-1162-00 2SA1162
Q4 198-3018-00 2SK3018
Q5 131-1188-50 2SB1188PQR
Q6 198-3018-00 2SK3018
Q7 125-2004-92 RN1402
Q8 125-2004-92 RN1402
Q9 125-0014-92 DTA114EK
Q53 193-0601-00 2SD601A
R2 119-2211-15 1/10W 220 ohm
R4 119-4731-15 1/10W 47k ohm
R8 119-4731-15 1/10W 47k ohm
R10 119-2211-15 1/10W 220 ohm
R13 119-1041-15 1/10W 100k ohm
R14 119-2221-15 1/10W 2.2k ohm
R15 119-1041-15 1/10W 100k ohm
R16 119-1021-15 1/10W 1k ohm
R20 119-4731-15 1/10W 47k ohm
R24 119-4731-15 1/10W 47k ohm
R25 119-1031-15 1/10W 10k ohm
R26 119-4721-15 1/10W 4.7k ohm
R27 119-1031-15 1/10W 10k ohm
R28 119-1041-15 1/10W 100k ohm
R29 119-1041-15 1/10W 100k ohm
R31 119-4731-15 1/10W 47k ohm
R32 119-0000-05 1/10W 0 ohm JW
R35 119-0000-05 1/10W 0 ohm JW
R36 119-4731-15 1/10W 47k ohm
R37 119-4731-15 1/10W 47k ohm
R38 119-2231-15 1/10W 22k ohm
R39 119-2231-15 1/10W 22k ohm
R40 119-2231-15 1/10W 22k ohm
R41 119-4711-15 1/10W 470 ohm
R42 119-2231-15 1/10W 22k ohm
R43 119-2241-15 1/10W 220k ohm
R60 119-0000-05 1/10W 0 ohm JW
R530 119-4731-15 1/10W 47k ohm
R550 119-4731-15 1/10W 47k ohm
TM1 073-0768-90 TERMINAL
TM2 073-0766-90 TERMINAL
TM4 073-0766-90 TERMINAL
TM5 073-0766-90 TERMINAL
X1 060-1533-90 CSTCE10M0G52-R0
PWB 039-2532-20 PWB(WITHOUT
COMPONENT)
DPS PWB section(B5)
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
C1 042-0671-01 10V 47uF TA
C2 168-4735-56 0.047uF Z
C3 046-4722-58 4700pF
C4 046-1032-78 0.01uF
C5 168-1045-56 0.1uF Z
C6 042-0671-01 10V 47uF TA
C7 168-1045-56 0.1uF Z
C8 168-1045-56 0.1uF Z
C9 045-1007-50 10pF
C10 168-1045-56 0.1uF Z
C11 045-1007-50 10pF
C12 168-1045-56 0.1uF Z
C13 042-0672-00 25V 47uF TA
C14 168-4735-56 0.047uF Z
C15 168-4735-56 0.047uF Z
C16 168-4735-56 0.047uF Z
C17 178-1052-78 1uF
C18 045-4701-50 47pF
C19 168-1045-56 0.1uF Z
C20 046-4712-58 470pF
C21 046-4712-58 470pF
C22 168-1045-56 0.1uF Z
C23 046-1532-78 0.015uF
C24 168-1045-56 0.1uF Z
C25 046-6822-58 6800pF
C26 046-1032-78 0.01uF
C28 046-1022-58 1000pF
C29 046-3332-78 0.033uF
C32 046-4722-58 4700pF
C33 046-1522-58 1500pF
C34 168-1045-56 0.1uF Z
C35 046-1532-78 0.015uF
C36 168-1045-56 0.1uF Z
C37 168-1045-56 0.1uF Z
C38 042-0671-01 10V 47uF TA
C39 178-1052-78 1uF
C40 045-6801-50 68pF
C41 168-1045-56 0.1uF Z
C42 178-1052-78 1uF
C43 042-0671-01 10V 47uF TA
C44 046-6812-58 680pF
C45 168-1045-56 0.1uF Z
C46 168-1045-56 0.1uF Z
C47 042-0671-01 10V 47uF TA
C48 168-5632-78 16V 0.056uF
C49 168-1045-56 0.1uF Z
C50 168-1045-56 0.1uF Z
C51 168-1045-56 0.1uF Z
C53 168-1045-56 0.1uF Z
C54 042-0671-01 10V 47uF TA
C56 168-4712-55 470pF K
C57 046-1032-78 0.01uF
C58 168-4712-55 470pF K
C59 168-1045-56 0.1uF Z
C60 168-1045-56 0.1uF Z
C61 046-1032-78 0.01uF
C62 042-0671-01 10V 47uF TA
C63 046-1032-78 0.01uF
C64 168-1045-56 0.1uF Z
C65 045-1201-50 12pF
C66 046-1032-78 0.01uF
C67 046-1032-78 0.01uF
C68 168-1045-56 0.1uF Z
C69 045-1201-50 12pF
C101 046-1032-78 0.01uF
C102 046-1032-78 0.01uF
CCT1 050-0140-68 1/32W 3.3k ohm x4J
CCT4 050-0140-63 1/32W 47k ohm x4J
D1 001-0367-91 1SS226
D2 001-2610-90 RB480KTL
IC2 051-6399-00 TC94A15F
IC3 051-6060-08 BD7961FM-E2
IC4 051-7518-18 SN74LVC139APWR
IC5 052-5062-03 MBM29DL800BA-
90PFTN
IC6 051-7518-18 SN74LVC139APWR
IC7 051-9330-00 K4S641632F-TC60
IC8 051-7203-48 SN74LV74APW
IC9 051-6700-00 TMS320DA140
PGE160
IC10 051-3315-90 TPS76316DBVR
IC11 051-7221-58 SN74AHC1G04
HDCKR

PN-2701B-A
PN-2702B-A -18-
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
IC12 051-7525-08 SN74LVC2GU04
DCKR
IC13 051-7526-08 SN74LVC1G126
DCKR
J1 074-1201-65 15P
J2 074-1138-56 6P
J3 074-1059-76 26P
J4 074-1189-95 45P
J5 074-1201-60 10P
L2 010-3104-54 MPZ1608S601AT
L3 010-3104-54 MPZ1608S601AT
Q1 131-1188-50 2SB1188PQR
Q2 131-1188-50 2SB1188PQR
Q3 125-2004-92 RN1402
R1 033-1021-15 1/10W 1k ohm
R2 033-1021-15 1/10W 1k ohm
R3 033-3311-15 1/10W 330 ohm
R4 033-2211-15 1/10W 220 ohm
R5 033-2211-15 1/10W 220 ohm
R6 033-1021-15 1/10W 1k ohm
R7 033-1051-15 1/10W 1M ohm
R8 033-0000-05 1/10W 0 ohm
R10 033-5621-15 1/10W 5.6k ohm
R11 033-4731-15 1/10W 47k ohm
R12 119-3341-15 1/10W 330k ohm
R13 033-2231-15 1/10W 22k ohm
R14 033-2231-15 1/10W 22k ohm
R15 117-1001-15 1/8W 10 ohm
R16 033-5631-15 1/10W 56k ohm
R17 033-3331-15 1/10W 33k ohm
R18 033-6831-15 1/10W 68k ohm
R19 033-6831-15 1/10W 68k ohm
R20 033-1011-15 1/10W 100 ohm
R21 116-4711-15 1/4W 470 ohm
R22 117-1811-15 1/8W 180 ohm
R23 116-4711-15 1/4W 470 ohm
R24 033-2231-15 1/10W 22k ohm
R25 033-2231-15 1/10W 22k ohm
R26 033-2231-15 1/10W 22k ohm
R27 033-1011-15 1/10W 100 ohm
R28 033-4731-15 1/10W 47k ohm
R29 033-2231-15 1/10W 22k ohm
R30 033-4721-15 1/10W 4.7k ohm
R31 033-4721-15 1/10W 4.7k ohm
R32 033-4731-15 1/10W 47k ohm
R33 033-4731-15 1/10W 47k ohm
R35 033-4731-15 1/10W 47k ohm
R36 033-3311-15 1/10W 330 ohm
R37 033-4731-15 1/10W 47k ohm
R38 033-3311-15 1/10W 330 ohm
R39 033-2211-15 1/10W 220 ohm
R40 033-1011-15 1/10W 100 ohm
R41 033-1001-15 1/10W 10 ohm
R42 033-1001-15 1/10W 10 ohm
R45 033-1011-15 1/10W 100 ohm
R46 033-4731-15 1/10W 47k ohm
R47 033-4731-15 1/10W 47k ohm
R48 033-1011-15 1/10W 100 ohm
R49 033-0000-05 1/10W 0 ohm
R50 033-0000-05 1/10W 0 ohm
R51 033-8231-15 1/10W 82k ohm
R52 033-0000-05 1/10W 0 ohm
R53 033-4731-15 1/10W 47k ohm
R63 033-2231-15 1/10W 22k ohm
R64 033-2231-15 1/10W 22k ohm
R65 033-4731-15 1/10W 47k ohm
R66 033-4731-15 1/10W 47k ohm
R100 033-1011-15 1/10W 100 ohm
R101 033-1011-15 1/10W 100 ohm
R102 033-1011-15 1/10W 100 ohm
R103 033-1011-15 1/10W 100 ohm
R104 033-1011-15 1/10W 100 ohm
R105 033-1011-15 1/10W 100 ohm
R106 033-1011-15 1/10W 100 ohm
R107 033-4731-15 1/10W 47k ohm
R200 033-1051-15 1/10W 1M ohm
R201 033-1021-15 1/10W 1k ohm
R202 033-1021-15 1/10W 1k ohm
R220 033-4731-15 1/10W 47k ohm
R301 119-2231-15 1/10W 22k ohm
R302 119-3911-15 1/10W 390 ohm
X1 061-3534-90 16.92MHz
PWB 039-2531-20 PWB(WITHOUT
COMPONENT)
Sensor PWB sction(B6)
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
PT3 060-0252-01 PT4850F
PT4 060-0252-01 PT4850F
PT5 060-0252-01 PT4850F
PT6 060-0252-01 PT4850F
S1 013-7414-50 SPVG22
PWB 039-1956-00 PWB(WITHOUT
COMPONET)
PIM-FPC section(B7)
IC5 051-5806-02 GPIS95
Driver PWB section(B8)
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
C1 168-1045-56 0.1uF
C2 163-1073-35 16V100uF
D1 001-0529-32 MA8056-M
IC1 051-6044-18 BA6920FP-Y
J1 074-1239-76 26P
J2 074-1100-59 9P
R1 033-1021-15 1/10W 1k ohm
R2 032-0104-59 1/4W 2.2 ohm
R3 032-0104-59 1/4W 2.2 ohm
S1 013-7412-50 SPVG21
PWB 039-2242-00 PWB(WITHOUT
COMPONET)
PIV-FPC section(B9)
IC6 051-5806-01 GPIS93
LED-L-PWB section(B10)
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
LED3 001-7042-00 GL4800
LED4 001-7042-00 GL4800
PWB 039-1954-20 PWB(WITHOUT
COMPONET)
LED-R-PWB section(B11)
LED5 001-7042-00 GL4800
LED6 001-7042-00 GL4800
PWB 039-1955-20 PWB(WITHOUT
COMPONET)
L-Motor-FPC section(B12)
M1 SMA-186-100 LOADING
M/S-FPC section(B13)
REF No. PART No. DESCRIPTION
M2 SMA-185-102 SPINDLE
M3 SMA-191-100 SLED
S2 013-7414-50 SPVG22

- 19 - PN-2701B-A
PN-2702B-A
CIRCUIT DIAGRAM 1/10
PRINTED WIRING BOARD 1/6
Switch PWB(B1) section
EJECT LOAD
To page 22
Main PWB(B2) 3/4
P402
To page 24
Main PWB(B2) 1/2
P402
COMPONENT SIDE SOLDER SIDE
Caution:
COMPONENT SIDE: Parts on the component side seen
from the component side are indicated.
SOLDER SIDE: Parts on the solder side seen
from the solder side are indicated.
EJECT LOAD

- 20 - PN-2701B-A
PN-2702B-A
CIRCUIT DIAGRAM 2/10
Main PWB(B2) section 1/4
Only PN-2701B-A
Only PN-2701B-A
SUB
ANT
MAIN
ANT
ANT +B 1 ANT +B
2 M-GND
3 MAIN
4 M-GND
5 S-GND
6 SUB
7 S-GND
No.
No. Description
A
B
C
Description
J201
TH12HW (TEL)
h11 h12 h13 h14 h15 h16
h17 h18 h19 h20 h21 h22
h11 N.C.
h12 TEL VOICE+ (*1)
h13 TEL VOICE- (*1)
h14 N.C.
h15 N.C.
h16 N.C.
h17 N.C.
h18 N.C.
h19 TEL VOICE GND
h20 N.C.
h21 N.C.
h22 N.C.
No. Description
*1 : PN-2702B-A is not connected.
To page 23
Main PWB(B2) 4/4
To page 21
Main PWB(B2) 2/4
To page 22
Main PWB(B2) 3/4
To page 23
Main PWB(B2) 4/4
