Clarion BD216 User manual

BD216 2
English
1. When the inside of the car is very cold and
the player is used soon after switching on
the heater, moisture may form on the disc
or the optical parts of the player and proper
playback may not be possible. If moisture
forms on the disc, wipe it off with a soft
cloth. If moisture forms on the optical parts
of the player, do not use the player for about
one hour and the condensation will disap-
pear naturally to allow normal operation.
2. Driving on extremely bumpy roads which
cause severe vibration may cause the
sound to skip.
3. This unit uses a precision mechanism.
Even in the event that trouble arises, never
open the case, disassemble the unit, or
lubricate the rotating parts.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reason-
able protection against harmful interference in
a residential installation. This equipment gen-
erates, uses, and can radiate radio frequency
energy and, if not installed and used in accor-
dance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interfer-
ence will not occur in a particular installation. If
this equipment does cause harmful interfer-
ence to radio or television reception, which can
be determined by turning the equipment off
and on, the user is encouraged to consult the
dealer or an experienced radio/TV technician
for help.
1. PRECAUTIONS
Bottom View of Source Unit
All Rights Reserved. Copyright © 2001: Clarion Co., Ltd.
Printed in Malaysia / Imprimé à Malaisie / Impreso en Malasia
2001/1 (D•M)
Clarion Co., Ltd.
PE-2420B
280-7643-00
Owner’s manual
Mode d’emploi
Manual de instrucciones
AM/FM CD PLAYER
•
RADIO AM/FM-LECTEUR CD
•
RADIO AM/FM Y REPRODUCTOR CD
■Contents
English
1. PRECAUTIONS...........................................................2
2. CONTROLS.................................................................3
3. BUTTON TERMINOLOGY..........................................4
4. FEATURES..................................................................5
5. HANDLING COMPACT DISCS...................................6
6. DCP (Detachable Control Panel)..............................7
7. OPERATION................................................................8

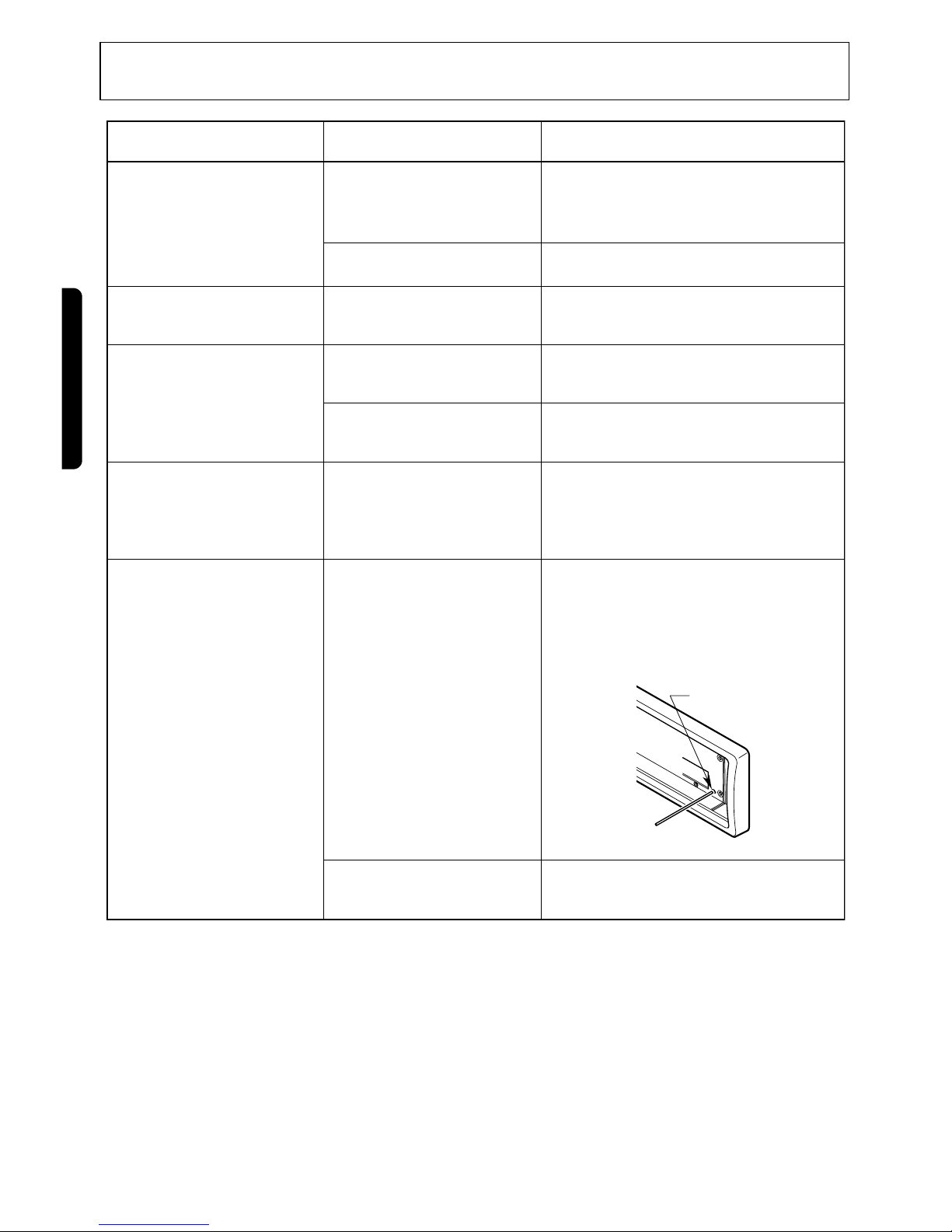

8. TROUBLESHOOTING ..............................................12
9. ERROR DISPLAYS...................................................13
10.SPECIFICATIONS.....................................................14
■Table des matières
Français
1. PRÉCAUTIONS.........................................................15
2. COMMANDES.............................................................3
3. NOMENCLATURE DES TOUCHES.........................16
4. CARACTÉRISTIQUES..............................................17
5. MANIPULATION DES DISQUES COMPACTS ........18
6. CLAVIER DE COMMANDE AMOVIBLE (DCP).......19
7. FONCTIONNEMENT.................................................20
8. DÉPISTAGE DES PANNES......................................24
9. AFFICHAGE DES ERREURS...................................25
10.SPÉCIFICATIONS.....................................................26
■Índice
Español
1. PRECAUCIONES......................................................27
2. CONTROLES..............................................................3
3. NOMENCLATURA DE LOS BOTONES...................28
4. CARACTERÍSTICAS ................................................29
5. MANEJO DE LOS DISCOS COMPACTOS..............30
6. PANEL DE CONTROL DESMONTABLE (DCP)......31
7. OPERACIÓN.............................................................32
8. SOLUCIÓN DE PROBLEMAS..................................36
9. INDICACIONES DE ERROR ....................................37
10.ESPECIFICACIONES ...............................................38
CHANGES OR MODIFICATIONS TO THIS PRODUCT WILL VOID THE WARRANTY AND WILL
VIOLATE FCC APPROVAL.
INFORMATION FOR USERS:
USE OF CONTROLS, ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN, MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE
EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.
CAUTION
Be sure to unfold and read the next page.
Veuillez déployer et vous référer à la page suivante.
Cerciórese de desplegar y de leer la página siguiente.
BD216

280-7643-00
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez déployer cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.
3BD216 4BD216
English
2. CONTROLS / COMMANDES / CONTROLES
SOURCE UNIT / APPAREIL PILOTE / UNIDAD FUENTE
DISPLAY
AFFICHEUR
VISUALIZADOR
0
CD Insertion Slot
Fente d’insertion de CD
Ranura de inserción del disco compacto
1 32 4 5
789 6@$ # !
¥
%
English Français Español
BD216 41
Note:
•
Be sure to read this chapter referring to the front diagrams of chapter 2. CONTROLS on page 3 (unfold).
1DCP Release Button
2Volume Knob
3Eject (Q) Button
4POWER Button
FNC (Function) Button
5Z-EHCR (Z-enhancer) Button
6AS (Auto Store) Button
7PS (Preset Scan) Button
8Play/Pause (s) Button
9DISP (Display) Button
0BND (Band) Button
TOP Button
!RDM (Random) Button
@A-M (Audio Mode) Button
#RPT (Repeat) Button
$SCN (Scan) Button
%Preset Buttons (1 to 6)
¥SRCH (Search) Up and Down ( and ) Buttons
3. BUTTON TERMINOLOGY
Note: The above illustration shows the front panel of the model BD216.
Remarque: L’illustration ci-dessous montre le panneau avant du modèle
BD216.
Nota: La ilustración de arriba muestra el panel frontal del modelo BD216.

E glis
BD216 5
■Rotary Encoder Volume Control
■DIN Chassis with Detachable Control Panel (1DIN, Full DCP feature)
■Z-Enhancer with 3 Mode Sound Selector
■®FM Reception System
■Seek / Manual Up / Down Tuning
■8-Times Oversampling Digital Filter and Dual 1-Bit D/A Converters
■Preset Station Scan (PS), Automatic Store (AS)
■2-Channel RCA Line Level Output
■AM 1 band, FM 4 bands each 5 channels total 25 channels, Preset Memory Function
■Repeat/Random Play/Intro Music Scan
■180W (45 W ×4) Maximum Power Output
4. FEATURES

6BD216
English

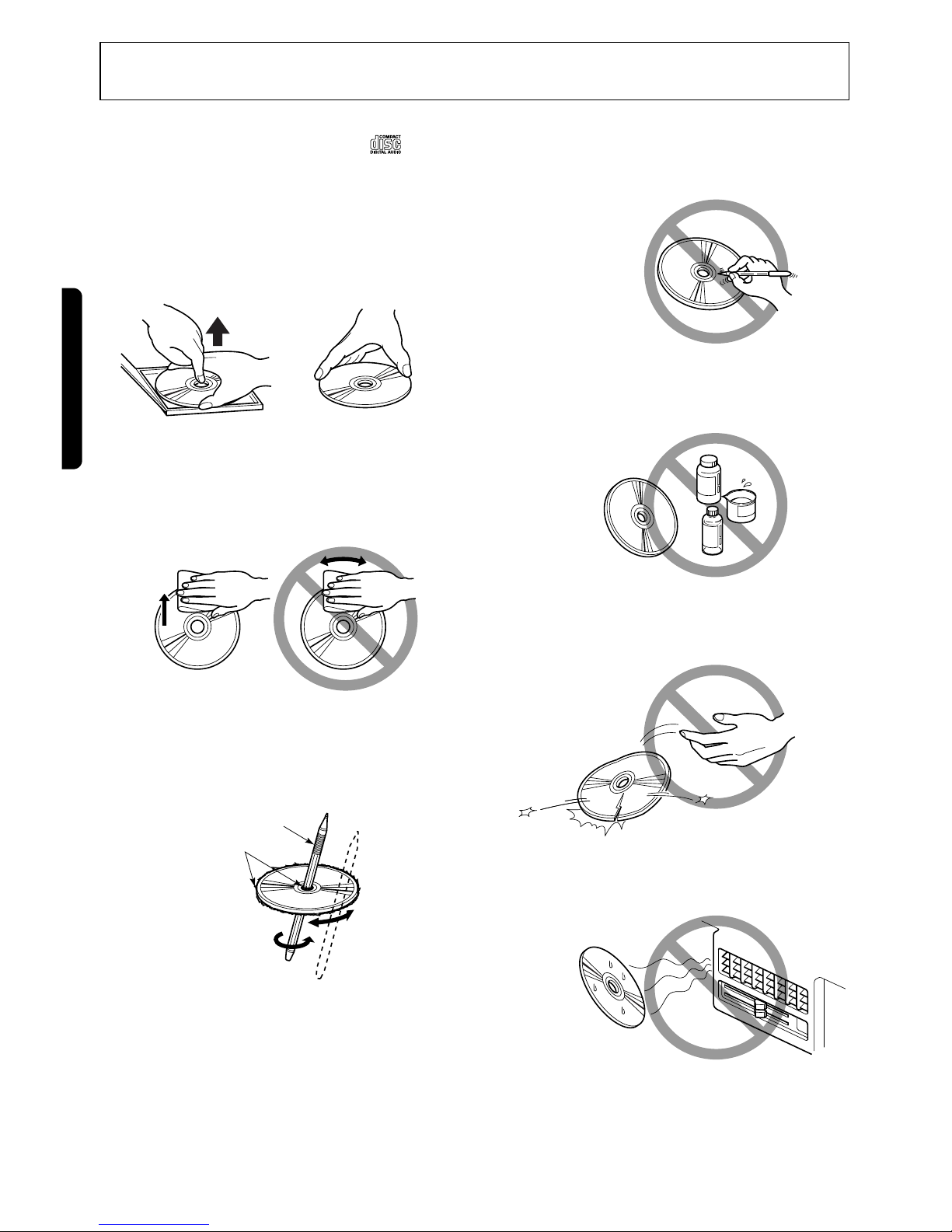

5. HANDLING COMPACT DISCS
This unit has been designed specifically for play-
back of compact discs bearing the mark.
No other discs can be played.
Single CD (8cm) cannot be played with the unit.
To remove the compact disc from its storage
case, press down on the center of the case and
lift the disc out, holding it carefully by the edges.
Always handle the compact disc by the edges.
Never touch the surface.
To remove fingermarks and dust, use a soft
cloth, and wipe in a straight line from the center
of the compact disc to the circumference.
New discs may have some roughness around
the edges. The unit may not work or the sound
may skip if such discs are used. Use a ball-point
pen, etc. to remove roughness from the edge of
the disc.
Note on Compact Discs
Never stick labels on the surface of the compact
disc or mark the surface with a pencil or pen.
Do not use any solvents such as commercially
available cleaners, anti-static spray, or thinner to
clean compact discs.
Do not use compact discs that have large
scratches, are misshapen, or cracked, etc. Use
of such discs will cause misoperation or damage.
Do not expose compact discs to direct sunlight
or any heat source.
No
No
No
No
Ball-point pen
Roughness
No
Proper way to hold
the compact disc
Removing the disc
Note:
•
Do not use commercially available CD protection sheets or discs equipped with stabilizers, etc. These
may get caught in the internal mechanism and damage the disc.

BD216 7
E glis
6. DCP (Detachable Control Panel)
The control panel can be detached to prevent
theft. We recommend taking the DCP with you
when leaving the car.
Removing the DCP
1. Turn off the power.
2. Press the DCP Release button 1.
CAUTION
CAUTION
DCP release button
DCP
DCP
3. Remove the DCP.
Attaching the DCP
1. Insert the side of the DCP into the main unit.
2. Insert the left side of the DCP into the main
unit.
Do not insert the DCP from the left side. Doing so
may damage it.
•The DCP can easily be damaged by shocks. After
removing it, place it in a protective case and be
careful not to drop it or subject it to strong shocks.
•When the release button is pressed and the DCP is
unlocked, the car’s vibrations may cause it to fall.
To prevent damage to the DCP, always store it in a
protective case after detaching it.
•The rear connector that connects the source unit
and the DCP is an extremely important part. Be
careful not to damage it by pressing on it with fin-
gernails, pens, screwdrivers, etc.
DCP Rear Panel Source Unit Front
Source unit connector
DCP
connector
Note:
•
If the DCP is dirty, wipe off with a soft, dry cloth only.

8BD216
English
Basic Operations
When this unit is turned on, starting and stop-
ping the engine of a car with its volume raised
to the maximum level may harm your hearing.
Be careful about adjusting the volume.
Turning ON the Power and Adjusting
the Volume
1) Press the POWER button 4.
*To turn off the power, press the POWER button
4for 1 second or longer.
2) Press the FNC button 4and select another
operation mode. Every time the FNC button
4is pressed, the display changes the oper-
ation mode as:
Radio ➜CD ➜Radio
Note:
•
If the CD mode is selected when no disc is inserted,
the display flashes “ DISC ” and blinking.
3) Turning the Rotary knob 2clockwise
increases the volume; turning it counterclock-
wise decreases the volume.
*The volume level is from 0 (minimum) to 33 (max-
imum).
Audio Mode Adjustments
Press the A-M button @to select the adjustment
mode. The mode switches as follows each time
the A-M button is pressed:
BASS ➜TREB ➜BAL ➜FAD ➜Previous
mode
Adjusting the Bass
1) Press A-M button @and select “BAS”.
2) Turning the Rotary knob 2clockwise empha-
sizes the bass; turning it counterclockwise
attenuates the bass.
*The factory default setting is “0”. (Adjustment
range: –6 to +6)
3) When the adjustment is complete, press A-M
button @several times until the function
mode is reached.
Adjusting the Treble
1) Press A-M button @and select “TrE”.
2) Turning the Rotary knob 2clockwise empha-
sizes the treble; turning it counterclockwise
attenuates the treble.
*The factory default setting is “0”. (Adjustment
range: –6 to +6)
3) When the adjustment is complete, press A-M
button @several times until the function
mode is reached.
Adjusting the Balance
1) Press A-M button @and select “BAL”.
2) Turning the Rotary knob 2clockwise empha-
sizes the sound from the right speaker; turn-
ing it counterclockwise emphasizes the sound
from the left speaker.
*The factory default setting is “0”. (Adjustment
range: L9 to r9)
3) When the adjustment is complete, press A-M
button @several times until the function
mode is reached.
Adjusting the Fader
1) Press A-M button @and select “FAd”.
2) Turning the Rotary knob 2clockwise empha-
sizes the sound from the front speakers; turn-
ing it counterclockwise emphasizes the sound
from the rear speakers.
*The factory default setting is “0”. (Adjustment
range: F9 to r9)
3) When the adjustment is complete, press A-M
button @several times until the function
mode is reached.
Note:
•
Bass and Treble can only be adjusted when the
“ Z-enhancer ” is off.
7. OPERATION
CAUTION
Note:
•
Be sure to read this chapter referring to the front diagrams of chapter 2. CONTROLS on page 3 (unfold).

BD216 9
E glis
Setting the Z-enhancer
This unit comes with three types of sound tone
effects stored in memory. Select the one you prefer.
*The factory default setting is “Z-EHCR OFF”.
Each time you press Z-EHCR button 5, the
tone effect changes in the following order.
“Z-ENHANCER 1” ➜“Z-ENHANCER 2” ➜
“Z-ENHANCER 3” ➜“Z-EHCR OFF” ➜
“Z-ENHANCER 1”...
• Z-ENHANCER 1: bass emphasized
• Z-ENHANCER 2: treble emphasized
• Z-ENHANCER 3: bass and treble emphasized
• Z-EHCR OFF: no sound effect
Switching the Clock Display
Press and hold the BND button 0, and then
press the DISP button 9to swith between the
operation mode and the clock display.
Setting the Clock
1) Press and hold the BND button 0, and then
press the DISP button 9to display the clock
display.
2) Press and hold the BND button 0, and then
press the DISP button 9for 2 seconds or
longer.
3) Press the SRCH Up button ¥, then set the
current hour.
4) Press the SRCH Down button ¥, then set
the current minute.
5) Press the BND button 0, then the clock is
set.
Notes:
•
If you select another operation mode while you are
setting the clock, the clock setting operation will be
canceled.
•
If you remove the vehicle’s battery for a check or
repair, the clock will be reset, so you must set it again.
Radio Mode Operations
FM Reception
For enhanced FM performance the ®
tuner includes signal actuated stereo control and
Multipath noise reduction circuits.
Listening to the Radio
1) Press the FNC button 4to select the radio
mode, then the radio will be on.
2) To select a preset band, press the BND but-
ton 0, then select one of the preset bands
such as FM1, FM2, FM3, FM4, or AM. Every
time the BND button 0is pressed, the dis-
play will change as:
3) Press the SRCH Up/Down button ¥, then
the station at which there is a broadcast will
be selected (Seek selection).
Manual Tuning
1) Press the BND button 0, then select FM1,
FM2, FM3, FM4 or AM.
2) Press and hold the BND button 0for 2 sec-
onds or longer, then the display will show
“MANU”, which means that a manual selec-
tion function is on.
3) Press the SRCH Up/Down button ¥and
select the right station.
Seek Tuning
1) Press the BND button 0, then select FM1,
FM2, FM3, FM4 or AM.
2) If the “MANU” on the display is on, press and
hold the BND button 0for 2 seconds or
longer. When the “MANU” display is off, the
Seek Selection function is on.
3) Press the SRCH Up/Down button ¥, then
when it selects the station in which there is a
broadcast, it automatically stops.
FM1 FM2 FM3 FM4 AM

10 BD216
English
Preset Memory Function
Preset Memory Function can store up to 25 sta-
tions: five stations for each of FM1, FM2, FM3,
FM4 and AM.
Note:
•
When the present memory function is used, all the
content of the memory will be erased.
Manual memory function
1) Press the BND button 0, and select the
band you want to store in the memory.
2) Press the SRCH Up/Down button ¥then
select the station you want to store in the
memory.
3) Press and hold the Preset button %for 2
seconds or longer, then the station will be
stored in the memory.
Auto store function (Automatic Station Store)
1) Press the BND button 0, then select the
band you want to store in the memory.
2) Press and hold the AS button 6for 2 sec-
onds or longer, then the station at which the
reception is the strongest will be automatical-
ly stored in the memory.
Note:
•
When the number of stations stored is less than five,
the previous content of the memory for each direct
button will be retained.
Preset Scanning (Preset Station Scan)
When the PS button 7is preset, the preset
memory numbers flash and the stations are
tuned in for 7 seconds each in the order in which
they were stored. Press the PS button again to
cancel the preset scanning mode.
CD Mode Operations
Loading a Disc
Insert a CD into the centre CD insertion slot with
the labeled side facing up, “LOAd” appears in
the display, the CD enters inito the slot and start
playing.
Notes:
•
Single CD (3”(8 cm)), cannot be played with the unit.
•
Do not put your hand, fingers, or foreign objects into
the CD insertion slot.
•
If a CD has already been loaded, another CD cannot
be inserted. Do not insert another one forcefully.
•
Discs not bearing the mark cannot be played
with the unit. CD-ROMs cannot be played.
•
Some CDs recorded in CD-R mode may not be
usable.
•
CD recorded in CD-RW mode cannot be played with
the unit
Listening to the Disc already Inserted
Press the FNC button 4to select the CD mode,
the CD will start playing.
Stopping (pausing) Playback
While the CD playing, pressing the Play/Pause
button 8will stop the CD and “PAUS” indicate.
Press the Play/Pause button 8again to resume
playback.
Ejecting the CD
Press the Eject button 3, then the CD will be
ejected.
Note:
•
If the ejected CD is left as it is, it will be reloaded after
15 seconds.
Top Function
Press the TOP button 0, then the CD will start
playing from the first song (track number 1).
Selecting Tracks (songs)
Press the SRCH Up/Down button ¥.
: Playback will start from the next track.
: Playback will start from the beginning of
the track currently playing. When this
button is pressed again, the CD will play
from the previous track.

BD216 11
E glis
Fast-Forward and Fast-Backward
Press and hold the SRCH Up/Down button ¥.
: To fast-forward
: To fast-backward
*Pressing the SRCH Up/Down button for 1 second or
longer will move forward or backward 5 times faster
than normal play, and pressing it for 3 seconds or
longer will do the operation 30 times faster.
Scan Play (Intro Music Scan)
Press the SCN button $, then the display
shows “SCN”, then the CD will play the first 10
seconds of each track of the whole disc. Press
the SCN button $again to disengage the unit
from scan play.
*A scan play will start from the track following the one
currently.
Repeat Play
Press the RPT button #, then the display shows
“RPT”, then the track currently playing will be
played repeatedly. Press the RPT button #
again to disengage the unit from repeat play.
Random Play
Press the RDM button !, then the display will
show “RDM”, then the entire tracks on the disc
will be played at random. Press the RDM button
!again to disengage the unit from random play.
Switching between CD Play Time,
Clock Display and CDTrack Number
Press and hold the BND button 0, and then
press the DISP button 9, the display changes in
the following order:
CD Track No. CD Play Time
Clock Display

12 BD216
English
Reset button
Problem Cause Solution
Power does not turn on.
(No sound is produced.) Fuse is blown. Replace with a fuse of the same
amperage. If the fuse blows again,
consult your store of purchase.
Incorrect wiring. Consult your store of purchase.
Compact disc cannot be
loaded. Another compact disc is
already loaded. Eject the compact disc before loading
the new one.
Sound skips or is noisy. Compact disc is dirty. Clean the compact disc with a soft
cloth.
Compact disc is heaviiy
scratched or warped. Replace with a compact disc with no
scratches.
Sound is bad directly after
power is turned on. Water droplets may form
on the internal lens when
the car is parked in a
humid place.
Let dry for about 1 hour with the
power on.
Nothing happens when
buttons are pressed.
Display is not accurate.
Microprocessor has
malfunctioned due to
noise, etc.
Turn off the power, then press the
DCP Release button 1and remove
the DCP.
Press the reset button for about 2
seconds with a thin rod.
DCP or source unit
connectors are dirty. Wipe the dirt off with a soft cloth
moistened with cleaning alcohol.
8. TROUBLESHOOTING

BD216 13
E glis
■To protect the system, this unit has been equipped with self diagnostic functions. If a fault
arises, a warning is issued by various error displays. Follow the corrective measures and
remove the fault.
Error Display Corrective Measure
This error display indicates that a fault has arisen in the
mechanism of the source unit (for example, the disc cannot be
ejected).
➜Check the source unit.
This error display indicates that the pickup focus is off because
of a scratched disc or some other factor during source unit play.
➜Check the compact disc.
This indicates that the CD’s TOC (table of contents) cannot be
read, for example because the selected disc is upside-down.
Er 2
Er 3
Er 6
9. ERROR DISPLAYS

14 BD216
English
FM Tuner
Frequency Range: 87.9 MHz to 107.9 MHz
Usable Sensitivity: 11 dBf
50 dB Quieting Sensitivity: 17 dBf
Alternate Channel Selectivity: 75 dB
Stereo Separation (1 kHz): 35 dB
Frequency Response (±3 dB): 30 Hz to 15 kHz
AM Tuner
Frequency Range: 530 kHz to 1,710 kHz
Usable Sensitivity: 25 µ V
CD Player
System: Compact disc audio system
Usable Discs: Compact disc
Frequency Response: 10 Hz to 20 kHz (±1 dB)
Signal-to-Noise Ratio: 100 dB (1 kHz) IHF-A
Dynamic Range: 95 dB (1 kHz)
Harmonic Distortion: 0.01%
Audio
Maximum Power Output:
180 W (45 W ×4 ch)
Continuous Average Power Output:
17 W ×4, into 4 Ω, 20 Hz to 20 kHz,1%THD
Bass Control Action (30 Hz): ±13 dB
Treble Control Action (10 kHz): ±12 dB
Line Output (with A/C 1 kHz, 10 kΩ): 1.8 V
General
Power Supply Voltage: 14.4 V DC (10.8 V to 15.6
V allowable), negative ground
Current Consumption: Less than 15 A
Speaker Impedance: 4 Ω(4 Ωto 8 Ωallowable)
Weight: 3.31 lb. (1.5 kg)

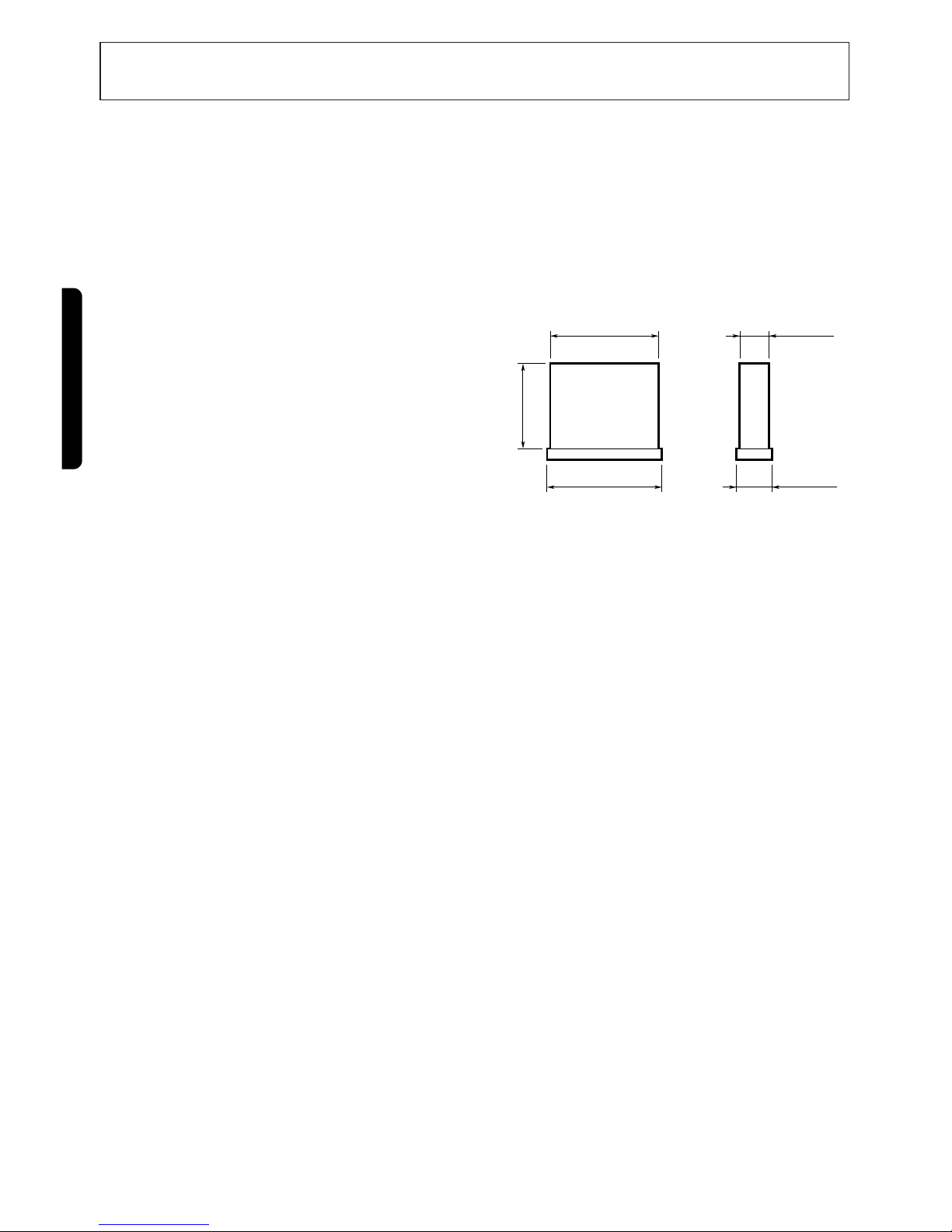

Dimensions:
7 ” (178 mm) Width ×2 ” (50 mm) Height ×
6 ” (152 mm) Depth
Notes:
•
Specifications comply with EIA Standards.
•
Specifications and design are subject to change with-
out notice for further improvement.
•
Please make sure when connecting external power
amplifier, that you properly, to the car chassis, ground
the amplifier.
•
If this is not done, severe damage to the source unit
way happen.
2”
2-1/4”
7”
7-3/8”
6”
(50 mm)(178 mm)
(58 mm)(188 mm)
(152 mm)
10. SPECIFICATIONS
