Clarke Vantage 17 cable User manual

Form No. 909 6773 000 - 05/2006
Vantage 17 Cable
Operator’s Manual
Manuel d’utilisation
Libro de Instrucciones
EN
ES
FR
READ THIS BOOK
LEA ESTE MANUAL
LISEZ CE MANUEL
English (3 - 21)
Español (23 - 41)
Français (43 - 62)
This book has important information for the use and safe operation of this machine. Failure to read
this book prior to operating or attempting any service or maintenance procedure to your Clarke
machine could result in injury to you or to other personnel; damage to the machine or to other
property could occur as well. You must have training in the operation of this machine before using it.
If your operator(s) cannot read this manual, have it explained fully before attempting to operate this
machine.
All directions given in this book are as seen from the operator’s position at the rear of the machine.
For new books write to: Clarke®, 2100 Highway 265, Springdale, Arkansas 72764.
Order Parts Here:
www.ivie-ent.com/parts
Ph:[phone]

ENGLISH
EN
2 Operator’s Manual - Vantage 17 Cable
TABLE OF CONTENTS
Operator’s Manual 1
OPERATOR SAFETY INSTRUCTIONS 3
INTRODUCTION 6
HOW TO KEEP THIS MANUAL 6
IDENTIFICATION DATA 6
CHANGES AND IMPROVEMENTS 6
UNPACKING 6
MACHINE SPECIFICATIONS 7
GROUNDING INSTRUCTIONS 7
MACHINE TRANSPORT PROCEDURES 8
SYMBOLS SHOWN ON THE MACHINE 8
MACHINE DESCRIPTION 9
OUTER STRUCTURE 9
INNER STRUCTURE 10
CONTROL PANEL 11
USE 12
BEFORE MACHINE START-UP 12
MACHINE START AND STOP 13
MACHINE OPERATION (SCRUBBING/DRYING) 14
MACHINE TRANSPORT/PARKING 14
TANK EMPTYING 15
AFTER USING THE MACHINE 15
RECOVERY TANK REMOVAL 16
STORED MACHINE 16
MAINTENANCE 17
SCHEDULED MAINTENANCE TABLE 17
INTEGRITY CHECK OF POWER SUPPLY CABLE AND EXTENSION 17
SQUEEGEE CLEANING 18
SQUEEGEE BLADE CHECK AND REPLACEMENT 18
BRUSH CLEANING 19
CLEANING OF TANK AND VACUUM GRID WITH FLOAT 19
SOLUTION FILTER CLEANING 20
MACHINE SPEED ADJUSTMENT 20
Vantage 17 Cable ACCESSORIES/OPTIONS 21
HOW TO CORRECT PROBLEMS IN THE MACHINE 21
Parts List 65

ENGLISH EN
Operator’s Manual - Vantage 17 Cable 3
OPERATOR SAFETY INSTRUCTIONS
DANGER: It indicates a dangerous situation with risk of death for the operator.
WARNING: It indicates the risk for people of being injured and for objects of being damaged.
CAUTION: It indicates a caution or a remark related to important or useful functions. Pay the greatest
attention to the paragraphs marked by this symbol.
DANGER: This machine must be used by properly trained and authorized personnel only. Children or
disabled people cannot use this machine.
DANGER: Do not operate the machine near toxic, dangerous, inflammable and/or explosive powders,
liquids or vapours.
DANGER: Before performing any maintenance/repair procedure, disconnect the power supply cable from
the electrical mains.
DANGER: Do not wear jewels when working near electrical components.
WARNING: Before connecting the machine to the electrical mains, make sure that the frequency and voltage
shown in the serial number plate/technical data match the mains voltage.
WARNING: Do not use with damaged power supply cable or plug. If the machine is not working as it should,
has been damaged, left outdoors or dropped into water, return it to the Service Center.
WARNING: If the supply cable or the plug is worn or damaged, it needs to be replaced by the Service Center.
WARNING: Do not pull or carry the machine by the supply cable; never use the power supply cable as a
handle. Do not close a door on the supply cable, or pull the supply cable around sharp edges or
corners. Do not run the machine on the battery charger cable.
Keep the battery charger cable away from heated surfaces.
WARNING: Do not unplug the machine by pulling the supply cable. To unplug, grasp the plug, not the cable.
WARNING: Do not handle the plug or the machine with wet hands.
WARNING: Turn off all controls before unplugging.
WARNING: To reduce the risk of fire, electric shock, or injury, do not leave the machine unattended when it
is plugged in. Unplug the machine from the outlet when not in use and before servicing.
WARNING: To avoid electric shock, do not expose to rain. Store the machine indoors.
WARNING: Do not allow to be used as a toy. Close attention is necessary when used near children.
WARNING: Use only as described in this Manual. Use only Clarke recommended accessories.
WARNING: Take all necessary precautions to prevent hair, jewerly and loose clothing from being caught in
the machine moving parts or vacuuming parts of this machine.

ENGLISH
EN
4 Operator’s Manual - Vantage 17 Cable
WARNING: Do not leave the machine unattended without being sure that the machine cannot move
independently.
WARNING: Do not use the machine on slopes with a gradient exceeding the specifications.
WARNING: Do not allow any object to enter into the openings. Do not use the machine if the openings are
clogged; always keep the openings free from dust, hair and any other foreign material which
could reduce the air flow.
WARNING: While using this machine, take care not to cause damage to people.
WARNING: Do not use the machine in particularly dusty areas.
WARNING: Do not put any can containing fluids on the machine.
WARNING: The machine working temperature must be between +32°F and +104°F (0°C and +40°C).
WARNING: The storage temperature must be between +32°F and +104°F (0°C and +40°C).
The humidity must be between 30% and 95%.
WARNING: Always protect the machine against the sun, rain and bad weather, both under operation and
inactivity condition.
WARNING: Do not use the machine as a means of transport.
WARNING: Do not use the machine on slopes with an inclination higher than 2%.
WARNING: Do not allow the brush to operate while the machine is stationary to avoid damaging the floor.
WARNING: Do not bump into shelves or scaffoldings, particularly where there is a risk of falling objects.
WARNING: Do not tamper with the machine safety guards and follow the ordinary maintenance instructions.
WARNING: Do not remove or modify the labels affixed to the machine.
WARNING: In case of fire, use a powder fire extinguisher, not a water one.
WARNING: To ensure the proper and safe operation of the machine, have the scheduled maintenance and
repair, detailed in the relevant chapter of this Manual, performed by the authorized personnel or
an authorized Service Center.
WARNING: Carefully read all the instructions before carrying out any maintenance/repair procedure.
WARNING: If parts must be replaced, require GENUINE spare parts from a Dealer or Authorized Retailer.
WARNING: Do not wash the machine with direct or pressurized water jets, or with corrosive substances.
WARNING: Do not work under the machine without supporting it with safety stands.

ENGLISH EN
Operator’s Manual - Vantage 17 Cable 5
WARNING: The machine must be disposed of properly, because of the presence of toxic-harmful materials
(batteries, electronic boards etc.), which are subject to standards that require disposal in special
centers (see Scrapping chapter).
WARNING: If the machine is used according to the instructions, the vibrations do not cause dangerous
situations. The machine vibration level is less than 98.42 in/s2 (2.5 m/s2) (98/37/EEC - EN
1033/1995).
WARNING: Pay attention during the machine transfers when temperature is below freezing point. The water
in the recovery tanks or in the hoses could freeze and seriously damage the machine.
WARNING: Use the brushes and the pads supplied with the machine and those specified in the Operator's
Manual. Using other brushes or pads could reduce safety.

ENGLISH
EN
6 Operator’s Manual - Vantage 17 Cable
The Vantage 17 Cable model of the Clarke scrubber-dryer ensures a highly effective floor cleaning performance. The Vantage
17 Cable model uses a single rotary brush to clean an area of 17.0 in (430 mm) in width. The rear squeegee performs the floor
cleaning and the vacuum system recovers the washing water in a single pass.
HOW TO KEEP THIS MANUAL
The Operator's Manual must be kept near the machine, inside an adequate case, away from liquids and other substances that
can cause damage to it.
IDENTIFICATION DATA
The machine serial number and model are shown on the plate and can be read from the outside. (A, Fig. 2 - page 9).
The machine model year is written in the Declaration of Conformity and it is also indicated by the first two figures of the machine
serial number.
This information is useful when requiring machine spare parts. Use the following table to write down the machine identification
data for any further reference.
CHANGES AND IMPROVEMENTS
KENT constantly improves its products and reserves the right to make changes and improvements at its discretion without
being obliged to apply such benefits to the machines previously sold.
Any change and/or addition of accessories must be approved and performed by Clarke.
UNPACKING
To unpack the machine carefully follow the instructions on the packing.
When the machine is delivered, check that the packing and the machine were not damaged during transportation. In case of
visible damages, keep the packing and have it checked by the Carrier that delivered it. Call the Carrier immediately to fill in a
damage claim.
Please check that the following items have been supplied with the machine:
1. Technical documents:
– Scrubber-dryer Operator’s Manual
2. Supply cable extension
INTRODUCTION
MACHINE Model ________________________
MACHINE serial number __________________

ENGLISH EN
Operator’s Manual - Vantage 17 Cable 7
This machine is equipped with a grounding system. If the machine has a malfunction or an electrical failure, the grounding
system reduces the risk of electric shock. This Machine is equipped with a power supply cable with grounding cable and plug
with grounding connection.
The plug must be inserted in proper electrical mains equipped with a grounding system according to the Law in force.
Extension
Use the extension supplied with the machine or an extension of identical electrical characteristics.
MACHINE SPECIFICATIONS
Model Vantage 17 Cable 115 V Vantage 17 Cable 230 V
Working Voltage 115 V 230 V
Drive Speed Determined by brush rotation
Vacuum Motor 550 W, 60 Hz 550 W, 50 Hz
Vacuum System Capacity 51.8 in H2O (1,316 mm H2O)
Solution Tank Capacity 8.2 gal (31 liters)
Solution Flow (min/max) 0.08/0.26 gal/min (0.3/1.0 liters/min)
Recovery Tank Capacity 7.7 gal (29 liters)
Squeegee Straight
Squeegee Width 28.3 in (720 mm)
Cleaning Width 17 in (430 mm)
Brush/Pad Motor 550 W, 60 Hz 1,100 W, 50 Hz
Brush/Pad Diameter 17 in (430 mm)
Brush/Pad Rotation Speed 150 rpm
Brush/Pad On-Floor Pressure (with Full Tank) 61.6 lbs (28 kg)
Central Wheels on Fixed Axle Diameter 9.8 in (250 mm)
Pivoting Wheel (diameter) 1.9 in (49 mm)
Wheel Pressure on the Ground Less than 0.5 N/mm2
Maximum Floor Inclination 2 %
Machine Length 43.9 in (1,115 mm)
Machine Width (without Squeegee) 22.4 in (570 mm)
Machine Height 41.4 in (1,050 mm)
Machine weight with broom and full solution tank
(working condition) 217.2 lbs (98.5 kg)
Sound Pressure Level (at the Operator's Position) 76 dB(A)
GROUNDING INSTRUCTIONS
WARNING:
Improper connections can cause electric shock. Ask a technician to check if the electrical plug to be used is
equipped with a grounding connection.
Do not modify the plug of the machine. If it is not possible to connect the plug of the machine to the electrical
mains, have a qualified technician install a proper electrical mains equipped with a grounding system, according
to the Law in force.

ENGLISH
EN
8 Operator’s Manual - Vantage 17 Cable
How to Load and Unload the Machine from a Van or a
Truck
1. Check that the loading ramp is not longer than 8 feet (2.5
m) and not wider than 40 inches (1 m). Its thickness must
be adequate to support the machine and operators’
weight.
2. Check that the ramp is dry and clean.
3. Position the ramp properly.
4. Before loading the machine, remove the squeegee
assembly and the brush/pad holder. Before loading the
machine, empty both the solution and the recovery tank.
How to Fasten the Machine Inside the Vehicle
5. Clarke recommends tying down machine when
transporting.
MACHINE TRANSPORT
PROCEDURES
WARNING:
This machine is heavy. Machine transfer must be
performed by qualified personnel only. Machine
transfer on steep ramps must be performed by two
well-trained operators only. Always move it slowly.
Do not turn the machine on slopes. Do not leave the
machine unattended on slopes. Loading ramp width
must not be less than 40 in (1 m).
Figure 1
SYMBOLS SHOWN ON THE MACHINE
WARNING:
Carefully read all instructions before performing any procedure.
WARNING:
Do not wash the machine with direct or pressurized water jets.

ENGLISH EN
Operator’s Manual - Vantage 17 Cable 9

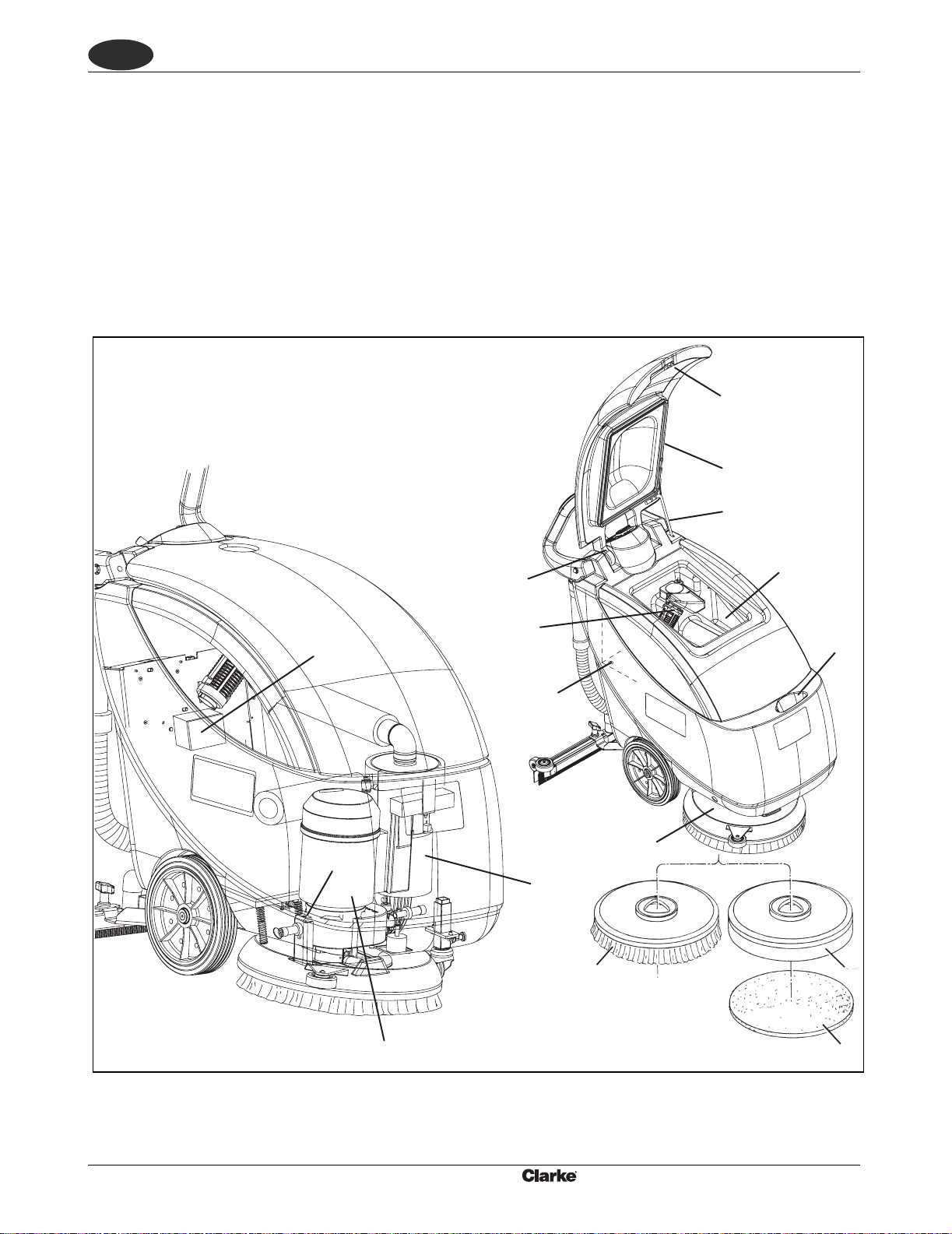

OUTER STRUCTURE
(See Fig. 2)
A. Serial number plate/technical data/mark of conformity
B. Handlebar
C. Control panel
D. Solution flow control lever
E1. ECO Solution Flow Position
E2. Maximum solution flow position
F. Recovery tank cover
G. Rear support wheel for transport/parking
H. Central wheels on fixed axle
I. Brush/pad-holder with pad
J. Brush/pad-holder cover
K. Squeegee
L. Squeegee knobs
M. Front squeegee blade
N. Rear squeegee blade
MACHINE DESCRIPTION
O. Squeegee blade fixing springs
P. Recovery tank drain hose
Q. Recovery tank drain hose bracket
R. Solution drain valve
S. Squeegee lifting/lowering lever
T. Solution filter
U1. Power supply cable
U2. Power supply cable extension
V. Squeegee vacuum hose
W. Transport/parking device
W1.Transport/parking device activated
W2.Transport/parking device deactivated
X. Transport/parking device positioning pin
Y. Recovery water tank
Z. Solution tank
Figure 2
Z
X
WJIHT
DG
MNO
K
O
L
V
E2
E1
A
U1
U2
P
Q
B
S
CF
Y
W1 W2 MN
R

ENGLISH
EN
10 Operator’s Manual - Vantage 17 Cable
INNER STRUCTURE
(See Fig. 3)
A. Recovery tank cover (open)
B. Recovery tank cover gasket
C. Cover stand (applied)
D. Recovery tank
E. Solution tank
F. Suction grid with automatic shut-off float
G. Recovery water drain hole
H. Vacuum motor
I. Brush/pad motor
J. Cover with brush/pad-holder coupling pin
K. Machine speed adjusting screw
L. Brush
M. Pad-holder
N. Pad
O. Vent hole
P. Terminal board box
Figure 3
A
B
C
D
E
J
G
F
LM
N
O
P
K
I
H

ENGLISH EN
Operator’s Manual - Vantage 17 Cable 11

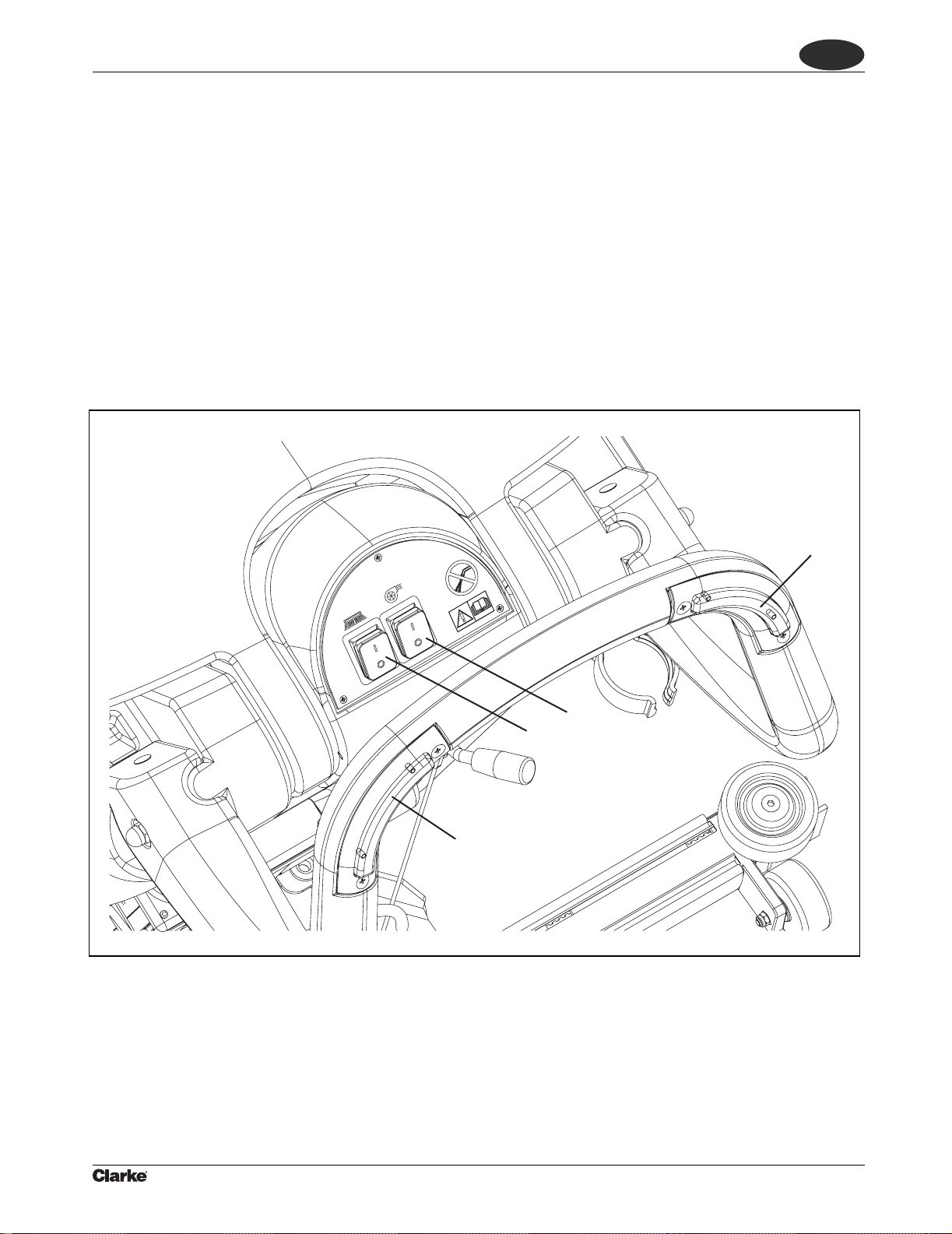

CONTROL PANEL
(See Fig. 4)
Brush/Pad Rotation Switch (A, Fig. 4)
When it is turned to the “I” position, the machine is ready to start the brush/pad rotation. To start the brush/pad rotation, press
and hold one or both the activation switches (C, Fig. 4).
When it is turned to the “0” position, the brush/pad rotation is deactivated.
Water Vacuuming Switch (B, Fig. 4)
When it is turned to the “I” position, it starts the vacuuming of the recovery water.
When it is turned to the “0” position, it stops the vacuuming of the recovery water.
Activation Switches (C, Fig. 4)
When one or both the activation switches are pressed, the brush/pad rotation is activated.
The switches are active only if the brush/pad rotation switch (A, Fig. 4) is turned to the “I” position.
Figure 4
AB
C
C

ENGLISH
EN
12 Operator’s Manual - Vantage 17 Cable
While reading this Manual, the Operator must pay particular
attention to the symbols shown in the labels.
Do not cover these labels for any reason and immediately
replace them if damaged.
BEFORE MACHINE START-UP
To prepare the machine for operation, follow this procedure
before start-up.
Squeegee Installation
1. Install the squeegee (A, Fig. 5) and fix it by means of the
squeegee knobs (B), then connect the vacuum hose (C)
to the squeegee.
Solution Tank Filling
2. Fill the solution tank (A, Fig. 6) with a solution suitable for
the work to be carried out.
Do not fill the solution tank completely, leave few inches
from the edge.
Always follow the dilution instructions on the container
label on the chemical product used to create the solution.
The solution temperature must not exceed 100°F (40°C).
Brush or Pad-Holder Installation
3. Deactivate the transport/parking device (D, Fig. 5) by
putting it in position (E) after inserting the relevant pin (F).
4. Lift the brush cover (G, Fig. 5) by prying the handlebar
(H).
5. Place the brush (B, Fig. 6) or the pad-holder (C) with pad
(D) under the cover.
6. Lower the cover (G, Fig. 5) by means of the handlebar
(H).
USE
WARNING:
On some points of the machine there are some
labels indicating:
– DANGER
– WARNING
– CAUTION
–INFORMATION
CAUTION:
Use only low-foam and non-flammable liquid
detergents, intended for automatic scrubber
applications.
NOTE:
According to the kind of cleaning to be carried out,
the machine can be equipped both with the brush (B,
Fig. 6) and the pad-holder (C) with pad (D).
7. Connect the extension (J, Fig. 5) with the power supply
cable (K). Connect the extension plug (L) to the electrical
mains.
8. Turn the brush/pad rotation switch (I, Fig. 5) to the “I”
position; then hook the brush/pad-holder by pressing for
a few seconds one or both switches (N, Fig. 5).
If the hooking operation is difficult, manually rotate the
brush/pad-holder counterclockwise (Fig. 7, next page).
Figure 5
Figure 6
WARNING:
Before connecting the machine to the electrical
mains, make sure that the frequency and voltage
shown in the serial number plate/technical data (M,
Fig. 5) match the mains voltage.
F
DG
E
BA
C
JL
MK
I
H
N
BC
D
A

ENGLISH EN
Operator’s Manual - Vantage 17 Cable 13

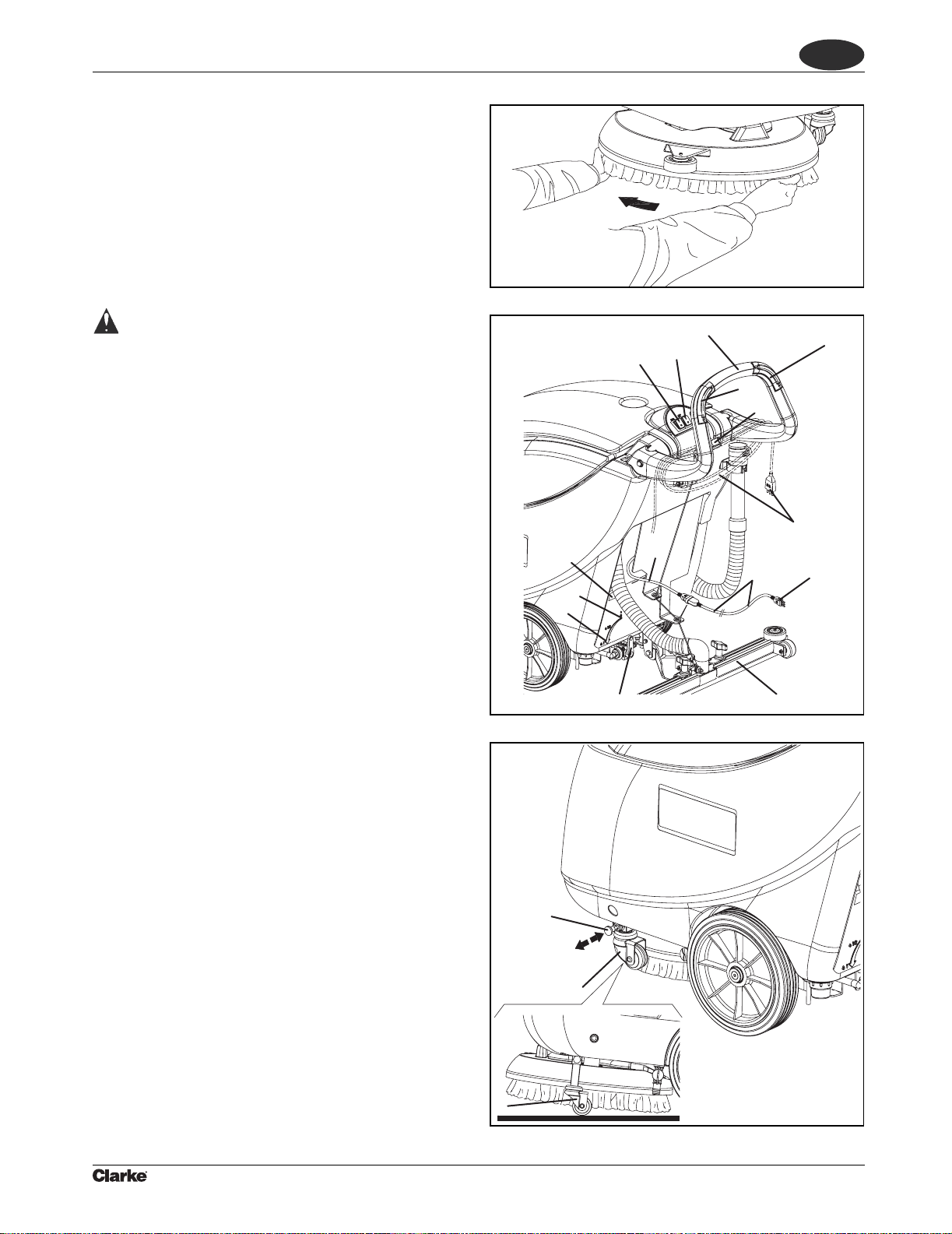

MACHINE START AND STOP
Start
1. Prepare the machine according to the procedure shown
in the previous paragraph.
2. If the machine has not yet been connected to the
electrical mains, connect it proceeding as follows.
Connect the power supply cable (I) to the extension (H,
Fig. 8) supplied. Connect the extension plug (J) to the
electrical mains.
3. Lower the squeegee (A, Fig. 8) by pushing the lever (B)
downwards.
4. Turn the solution flow control lever (C, Fig. 8) to one of
the following positions, according to the type of cleaning
to be carried out:
–ECO system: When the lever (C, Fig. 8) is in the
“ECO” position (D), the machine works in a special
condition of programmed water “economy” usage; as
the water flow is set and constant, the machine can
work with a cleaning time of 70-80 minutes [0.08
gal/min (0.3 liters/min].
–Variable system: When the lever is turned to the left
(variable flow), it is possible to increase the capacity
up to 0.26 gal/min (1 liter/min) (E, Fig. 8).
During machine operation, it is not possible to completely
close the water flow to the brush/pad.
5. Turn the switches (F and G, Fig. 8) to the “I” position.
6. While keeping both hands on the handlebar (K, Fig. 8),
start the machine by pressing one or both the activation
switches (L).
Machine Stop
7. Release the switches (L, Fig. 8).
8. Turn the switches (F and G, Fig. 8) to the “0” position.
9. Disconnect the power supply cable plug (J) from the
electrical mains. If necessary, roll up the power supply
cable (H, Fig. 8) on the handlebar into position (N).
10. Lift the squeegee by pushing the lever (B, Fig. 8)
completely upwards.
11. Lift the brush/pad by activating (B, Fig. 9) the
transport/parking device (A) after inserting the relevant
pin (C).
WARNING:
Before connecting the machine to the electrical
mains, make sure that the frequency and voltage
shown in the serial number plate/technical data (M,
Fig. 8) match the mains voltage.
Figure 7
Figure 8
Figure 9
M
D
E
CA
J
H
IN
B
L
L
K
G
F
B
C
A

ENGLISH
EN
14 Operator’s Manual - Vantage 17 Cable
MACHINE OPERATION (SCRUBBING/DRYING)
1. Start the machine according to the procedure shown in
the previous paragraph.
2. While keeping both hands on the handlebar (I, Fig. 10),
move the machine and start scrubbing/drying the floor.
3. If necessary, adjust the solution flow sent to the
brush/pad by turning the lever (B, Fig. 10).
Machine Speed Adjustment
4. The machine speed depends on the type of floor to be
cleaned and on the choice of using brush or pad.
If necessary, it is possible to adjust the machine speed by
following the relevant procedure in the Maintenance
chapter.
MACHINE TRANSPORT/PARKING
After operation, proceed as follows to transport/park the
machine.
1. Turn the brush/pad rotation switch and the water
vacuuming switch (F and G, Fig. 10) to the “0” position.
2. Disconnect the power supply cable plug (C, Fig. 10) from
the electrical mains. Roll up the power supply cable on
the handlebar into position (J).
3. Lift the squeegee by pushing the lever (H, Fig. 10)
completely upwards.
4. Grasp the handlebar (A, Fig. 11) and slightly lower it until
the rear wheel (B) comes into contact with the floor, as
shown in the figure. While holding the machine in this
position, push it to the transport/parking area.
CAUTION:
To avoid damaging the floor surface:
– Do not use the brush/pad without the solution.
– When the machine is stopped, stop the
brush/pad by releasing the switches (A, Fig. 10).
CAUTION:
Before lifting the brush/pad, stop its rotation by
releasing the switches (A, Fig. 10).
Figure 10
Figure 11
FG
I
A
HJ
C
B
A
B

ENGLISH EN
Operator’s Manual - Vantage 17 Cable 15
TANK EMPTYING
An automatic float shut-off system (A, Fig. 12) deactivates the
vacuum system once the recovery tank (B) is full.
The vacuum system shutdown is due to the recovery tank
filling, which prevents recovery water from being vacuumed,
and it is signalled by a sudden increase in the system motor
noise frequency.
When the recovery tank (B, Fig. 12) is full, empty it according
to the following procedure.
Recovery Tank Emptying
1. Stop the machine by turning the brush/pad rotation
switch and the water vacuuming switch (A and B, Fig. 13)
to the “0” position.
2. Disconnect the power supply cable plug (M, Fig. 13) from
the electrical mains. Roll up the power supply cable on
the handlebar into position (N).
3. Lift the squeegee by means of the lever (C, Fig. 13).
4. Drive the machine to the appointed disposal area.
5. Insert the positioning pin (E), lift the brush/pad and
activate the transport/parking device (D, Fig. 13) by
means of the handlebar.
6. Disconnect the recovery tank drain hose (F, Fig. 13) from
the bracket (G); open the cover (H), then lower the hose
(F) and empty the recovery tank. Then, rinse the tank
with clean water.
Solution Tank Emptying
7. Carry out steps 1 to 5.
8. Empty the solution tank by opening the drain valve (I, Fig.
13). Then, rinse the tank with clean water.
AFTER USING THE MACHINE
After scrubbing-drying, before leaving the machine proceed
as follows:
1. Remove the brush/pad-holder as follows:
– Turn the brush/pad rotation switch (A, Fig. 13) to the
“I” position.
– Lift the brush/pad-holder and press one or both the
switches (J, Fig. 13) for a few seconds, then release
them: this causes the brush/pad-holder to be
disengaged.
2. Disconnect the power supply cable plug (M, Fig. 13) from
the electrical mains. Roll up the power supply cable on
the handlebar into position (N).
3. Empty the tanks (B and C, Fig. 12) according to the
procedure shown in the previous paragraph.
4. Perform the daily maintenance operations (see the
Maintenance chapter).
5. Store the machine in a clean and dry place, with the
brush/pad and the squeegee lifted or removed.
Figure 12
Figure 13
C
B
A
G
F
E
DIKL
M
N
CH
J
B
A

ENGLISH
EN
16 Operator’s Manual - Vantage 17 Cable

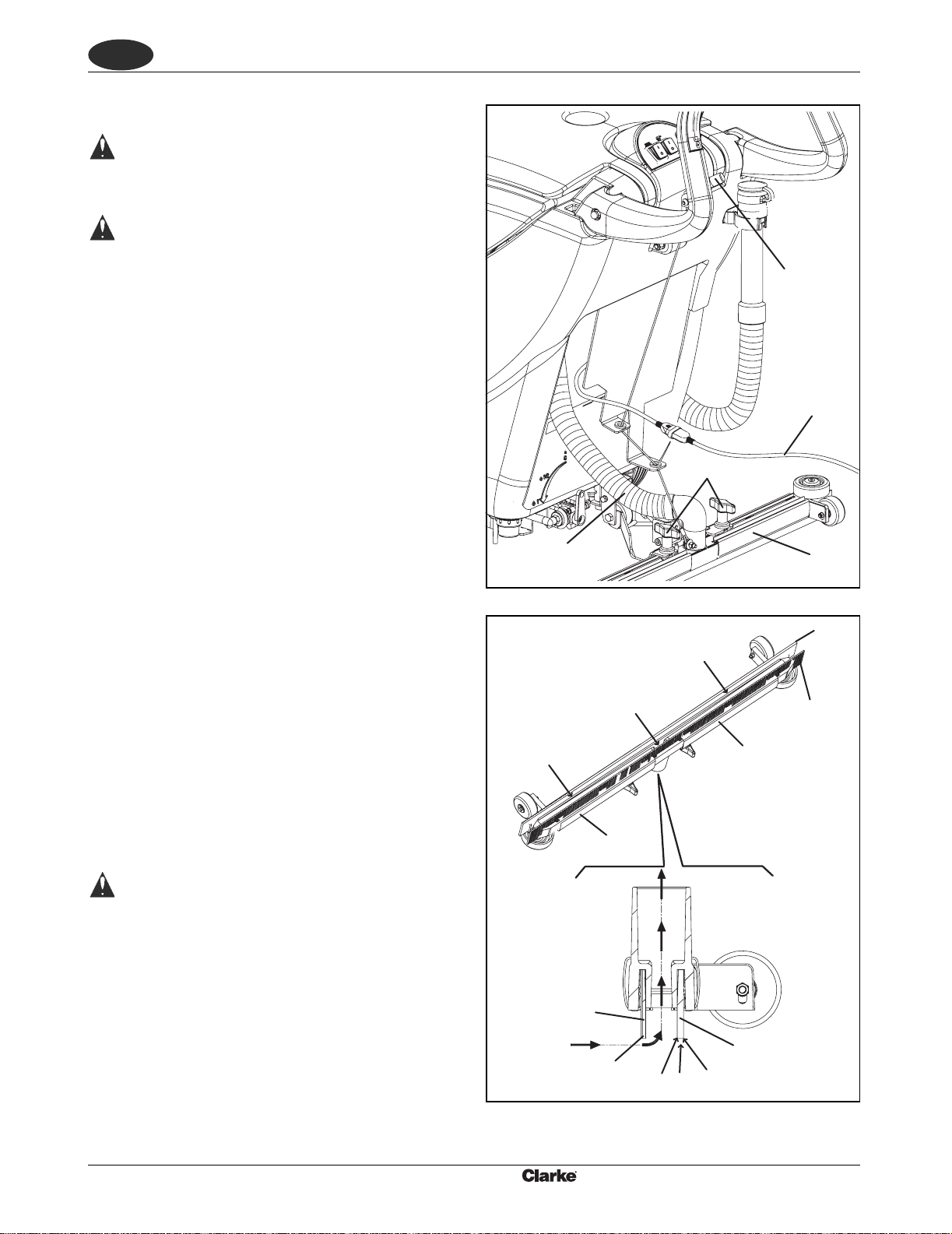

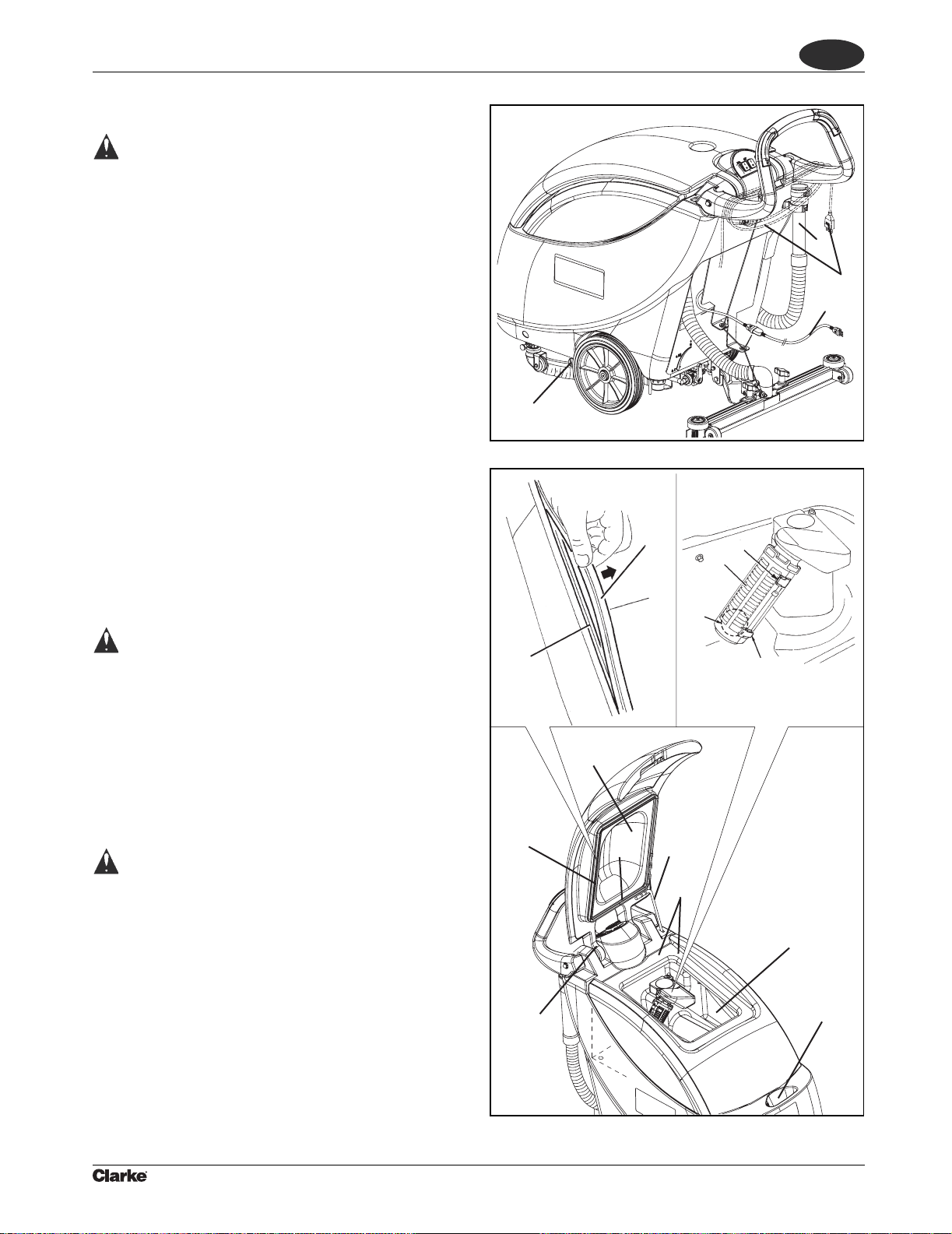

RECOVERY TANK REMOVAL
To perform check and maintenance operations, it may be
necessary to remove the recovery water tank (15, Fig. H)
according to the following procedure:
1. Empty the tank (A, Fig. 15) according to the procedure
shown in the relevant paragraph.
2. Drive the machine on a level ground.
3. Make sure that the power supply cable (M, Fig. 14) is
disconnected from the electrical mains.
4. Disconnect the vacuum hose (A, Fig. 14) from the
squeegee (B).
5. Disconnect the recovery tank drain hose (C, Fig. 14) from
the bracket (D).
6. Open the cover (B, Fig. 15) and apply the cover stand
(C).
7. Grasp the recovery tank (A, Fig. 15) in the area (D) and
slightly lift it, as shown in the figure.
8. Disconnect the vacuum hose (E, Fig. 15) from the tank,
then remove the tank (A) with the hoses (F) and (G).
STORED MACHINE
If the machine is not going to be used for more than 30 days,
proceed as follows:
1. Perform the operations described in the paragraph After
using the machine.
2. Store the machine in a clean and dry place, with the
brush/pad and the squeegee lifted or removed.
Figure 14
Figure 15
D
C
M
B
A
A
E
D
B
G
C
F

ENGLISH EN
Operator’s Manual - Vantage 17 Cable 17
The lifespan of the machine and its maximum operating safety are ensured by correct and regular maintenance.
Provided below is the Scheduled Maintenance Table. The intervals shown may vary according to particular working conditions,
which are to be defined by the person in charge of the maintenance.
This Manual contains the Scheduled Maintenance Table and describes only the easiest and most common maintenance
procedures.
SCHEDULED MAINTENANCE TABLE
(1): and after the first 8 working hours
(2): for these maintenance operations, contact an authorized Clarke Service Center
INTEGRITY CHECK OF POWER SUPPLY CABLE AND EXTENSION
Carefully check if the power supply cable, the extension and the plugs are worn or damaged.
If necessary, have them replaced by the Service Center.
MAINTENANCE
WARNING: All maintenance operations must be performed by qualified personnel, or by an authorized
Service Center.
WARNING: Maintenance operations must be carried out:
– With the machine switched off
– With the power supply cable disconnected from the electrical mains
Moreover, read carefully the instructions in the Operator Safety Instructions chapter before
performing any maintenance operation.
Procedure
Daily or after
using the
machine
Weekly Every six
months Yearly
Integrity Check of Power Supply Cable and Extension z
Squeegee Cleaning z
Brush Cleaning z
Cleaning of Tank and Vacuum Grid with Float z
Squeegee Blade Check and Replacement z
Solution Filter Cleaning z
Screw and Nut Tightening Check z(1)
Vacuum Motor Carbon Brush Check or Replacement z(2)

ENGLISH
EN
18 Operator’s Manual - Vantage 17 Cable
SQUEEGEE CLEANING
1. Make sure that the power supply cable (A, Fig. 16) is
disconnected from the electrical mains.
2. Lower the squeegee (B, Fig. 16) by means of the lever
(C).
3. Disconnect the vacuum hose (D, Fig. 16) from the
squeegee.
4. Loosen the squeegee knobs (F, Fig. 16) and remove the
squeegee (D).
5. Wash and clean the squeegee assembly to remove dirt
and debris.
6. Check the front blade (C, Fig. 17) and the rear blade (D)
for wear, cuts and tears; if required replace them
according to the procedure in the “Squeegee Blade
Check and Replacement“ section below).
7. Reassemble in the reverse order of disassembly.
SQUEEGEE BLADE CHECK AND REPLACEMENT
1. Clean the squeegee according to the procedure shown in
the previous paragraph.
2. Check that the edge (E, Fig. 17) of the front blade and the
edge (F) of the rear blade lay down on the same level,
along their length; otherwise adjust their height according
to the following procedure:
– Remove the fixing springs (G, Fig. 17) and adjust the
front blade (C) and the rear blade (D).
– Reinstall the fixing springs on the properly adjusted
front and rear blades.
3. Check the front blade (C, Fig. 17) and rear blade (D) for
wear, cuts and tears. If necessary, replace them
according to the following procedure:
– Removie the spring clamp (G, Fig. 17) and replace the
blade.
– Reinstall the spring clamp (G, Fig. 17).
4. Reinstall the squeegee (B, Fig. 16) and screw down the
squeegee knobs (E).
5. Connect the vacuum hose (D, Fig. 16) to the squeegee
(B).
NOTE:
The squeegee must be clean and the blades must be
in good condition in order for the floor to dry
properly.
CAUTION:
It is advisable to use protective gloves when
cleaning the squeegee because there may be cutting
debris.
NOTE:
When replacing the blades, make sure that the ribs
of the front blade face the front and the ribs of the
rear blade face the rear.
Figure 16
Figure 17
C
A
E
B
D
A
B
A
D
C
G
G
C
D
EHFI

ENGLISH EN
Operator’s Manual - Vantage 17 Cable 19
BRUSH CLEANING
1. Remove the brush from the machine, according to the
procedure shown in the Use chapter.
2. Clean and wash the brush with water and detergent.
3. Check the brush bristles for integrity and wear; if
necessary, replace the brush.
CLEANING OF THE TANK AND VACUUM GRID
FLOAT
1. Make sure that the power supply cable (A, Fig. 18) is
disconnected from the electrical mains. Roll up the power
supply cable on the handlebar into position (D).
2. Drive the machine to the appointed disposal area.
3. Lift the cover (A, Fig. 19) and apply the cover stand (B),
then clean and wash the cover, the tanks (C and D) and
the vacuum grid (E) with clean water.
Drain the water from the tanks by means of the drain
hose (B, Fig. 18) and valve (C).
4. If necessary, release the retainers (F, Fig. 19), open the
vacuum grid (E), remove the float (G), then carefully
clean and reinstall them.
5. Check the cover sealing gasket (H, Fig. 19) of the
recovery tank for wear.
If necessary, replace the gasket (H, Fig. 19) after
removing it from the housing (I).
When reassembling the new gasket, install the joint (J) in
the central area, as shown in Fig. 19.
6. Check the gasket (H, Fig. 19) seating surface (K) for
integrity and sealing capabilities.
7. Check the vent hole (L, Fig. 19). If clogged, clean it.
8. Remove the cover stand (B, Fig. 19) and close the cover
(A).
CAUTION:
It is advisable to use protective gloves when
cleaning the brush because there may be cutting
debris.
NOTE:
The gasket (H, Fig. 19) creates vacuum in the tank,
which is necessary for the vacuuming of the
recovery water.
NOTE:
The hole (L, Fig. 19) compensates the air in the cover
interspaces, thus allowing the creation of vacuum in
the recovery tank.
Figure 18
Figure 19
B
D
A
C
I
HF
E
F
G
A
H
L
B
J
K
C
D

ENGLISH
EN
20 Operator’s Manual - Vantage 17 Cable
SOLUTION FILTER CLEANING
1. Empty the solution tank (A, Fig. 20) according to the
procedure shown in the relevant paragraph.
2. Make sure that the power supply cable (H, Fig. 20) is
disconnected from the electrical mains.
3. Drive the machine on a level ground.
4. Remove the transparent cover (D, Fig. 20) and the filter
strainer (E), then clean and reinstall them on the support
(F).
MACHINE SPEED ADJUSTMENT
1. Remove the recovery tank as shown in the Use chapter.
2. Adjust the machine speed by means of the screw (A, Fig.
21), according to the following procedure:
– Loosen the screw (B, Fig. 21) on the right side of the
machine, by turning it counter-clockwise.
– Turn the adjusting screw (A, Fig. 21)
counter-clockwise to increase the machine speed.
– Turn the adjusting screw (A, Fig. 21) clockwise to
decrease the machine speed.
– After adjusting, tighten the screw (B, Fig. 21).
3. Install the recovery tank as shown in the Use chapter.
4. With the machine ready to operate, carry out hands-on
tests of the machine speed and, if other adjustments are
necessary, repeat steps 1 to 4.
NOTE:
Properly install the strainer (E, Fig. 20) in the
housing (G) of the support (F).
NOTE:
The machine speed depends on the type of floor to
be cleaned and on the choice of using brush or pad.
The machine speed can be adjusted according to
the following procedure.
Figure 20
Figure 21
G
E
A
H
F
E
D
A
B
