Clarke Woodworker CWVE1 Installation and operation manual

OPERATING & MAINTENANCE
INSTRUCTIONS
GC0916
VACUUM EXTRACTOR
MODEL NO: CWVE1
PART NO: 6471168

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION
Thank you for purchasing this CLARKE Workshop Vacuum Extractor.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
PRODUCT SPECIFICATIONS
GENERAL SAFETY PRECAUTIONS
WORK AREA AND PERSONAL SAFETY
1. Avoid operating in the presence of flammable liquids or gases. The motor
may produce sparks during operation. Do not use in enclosed areas where
flammable, explosive or toxic vapours are given off.
Model Number CWVE1
Dimensions (Length x Width x Height) 377 x 355 x 660 mm
Weight 10.7 kg (empty)
Container Capacity 50 Litres
Max Vacuum 2.500 Pa
Hose Length/Dia L = 2000 (extended) / Dia =100 mm
Airflow 3.05 m3/min (183m3/hr)
Duty Cycle S1 (continuous)
Input Power 1100W
Motor Speed 20000 rpm
Power Supply 230V @ 50Hz 1ph
IP Rating IP20
Measured Sound Pressure Level 80 LWA dB(A)
Uncertainty Factor 1.5

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
2. Always stay alert, watch what you are doing and use common sense when
operating the dust extractor. Do not use while you are tired or under the
influence of medication, drugs or alcohol. Lack of attention can result in
personal injury.
3. Never over-reach. Keep your proper footing and balance at all times to
enable better control of the dust extractor in unexpected situations.
4. Never use a power product if any part is damaged. Have it inspected and
repaired by your Clarke dealer. Do not use if the electric cable, plug, or the
machine itself, is in poor condition.
5. Do not insert fingers or other objects into the inlet opening.
6. Always wear eye and ear protection when using the extractor.
GENERAL PRODUCT USE AND CARE
1. Prior to use, all users should become familiar with the warnings in this
instruction manual.
2. Always maintain the dust extractor with care and keep it clean for best/
safest performance.
3. Never abuse the power cable. Never pull on the cable when removing the
plug from the socket or lift the extractor by the power cable. Take care not
to close doors on the cable or allow it to become snagged under objects
with sharp edges. Keep away from heat or oil.
4. Only use extension leads that are of an appropriate power rating and
suitable for the work environment. Extension leads must have an earth
connection. Inspect the extension lead regularly and replace if damaged.
5. Never abuse the dust extractor by standing on it.
6. Always store the dust extractor out of reach of children.
DUST EXTRACTOR SAFETY INSTRUCTIONS
1. This dust extractor is for indoor use only.
2. This dust extractor is for collecting wood chips, shavings and dust particles
only. Do not use with hazardous substances i.e. MDF dust.
3. Always ensure that the dust extractor is properly positioned where
necessary to prevent it from moving during use and that the immediate
area is kept clear.
4. Always use a face or dust mask if operation is particularly dusty including
when disposing of the contents.
5. Always disconnect the dust extractor from the power supply before
servicing or removing & emptying the filter bag etc.

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
6. Never leave the dust extractor running unattended. Turn power off and
wait for the machine to stop before leaving.
7. Do not use in enclosed areas where flammable, explosive or toxic vapours
are given off, by oil based paints, paint thinner, petrol etc.
8. Never pick up flammable or readily combustible material, including
burning cigarettes or other smoking substances.
9. Never attempt to pick up liquids with this vacuum extractor.
10. Always use in an upright position. Always transport the dust extractor using
the handle.
11. Always take care when a long hose is required in the work area as it
presents a trip hazard. Tidy the hose away when the job is finished.
12. Do not use without the inlet hose attached and ensure the cover is
securely in place when in operation.
13. Only use parts and accessories recommended in this manual. The use of
unauthorised accessories or attachments is not permitted and may result in
personal injury or damage to the dust extractor.
14. Do not attempt to repair or modify the dust extractor or attempt any
electrical repair yourself. Consult a qualified electrician or the Clarke
Service Department on 020 8988 7400.
SAFETY SYMBOLS
The above safety symbols appear on the product.
Read instruction
manual before use
Wear dust mask
Weee Directive Wear ear defenders
Indoor Use Only Wear safety glasses

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
ELECTRICAL CONNECTIONS
Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.
If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal
which is marked N or coloured black.
•The wire which is coloured Brown must be connected to the terminal
which is marked L. or coloured red
• The wire which is coloured Yellow and Green must be connected to
the terminal which is marked E or or coloured Green.
.
We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD). If in any doubt, consult a qualified
electrician. DO NOT attempt any repairs yourself.
WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS SUPPLY.
WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT
ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH
Plug must be BS1363/A approved.
Always fit a 13 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
Earth
(Green and Yellow)

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
COMPONENTS
When unpacking please check contents and advise your dealer immediately if
any parts are missing. The essential components are as follows;
Pos Description Pos Description
1 Inlet Hose 7 Tapered Hose Connector
2 Dust Container 8 Straight Hose Connector
3 Retaining Band 9 Filter Cartridge
4 On/OFF Switch 10 Filter Bags
5 Motor Casing 11 Inlet Adaptor Set (dims shown)
6HoseClamps(x2)

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
ASSEMBLY
1. Place filter cartridge (1) into a filter
bag (2) as in Fig 1.
2. Fold any overhang into the filter
cartridge.
3. Push the filter cartridge (1)
complete with bag (2), onto the
fan housing part of the motor
casing (3).
4. Sit the entire motor casing on the
container and secure with the
retaining band as shown on page
6 (item 3).
5. Attach the inlet hose to the
tapered hose connector using one
hose clamp as shown in Fig 4.
6. Push-fit the hose connector to the
dust collector body.

8
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

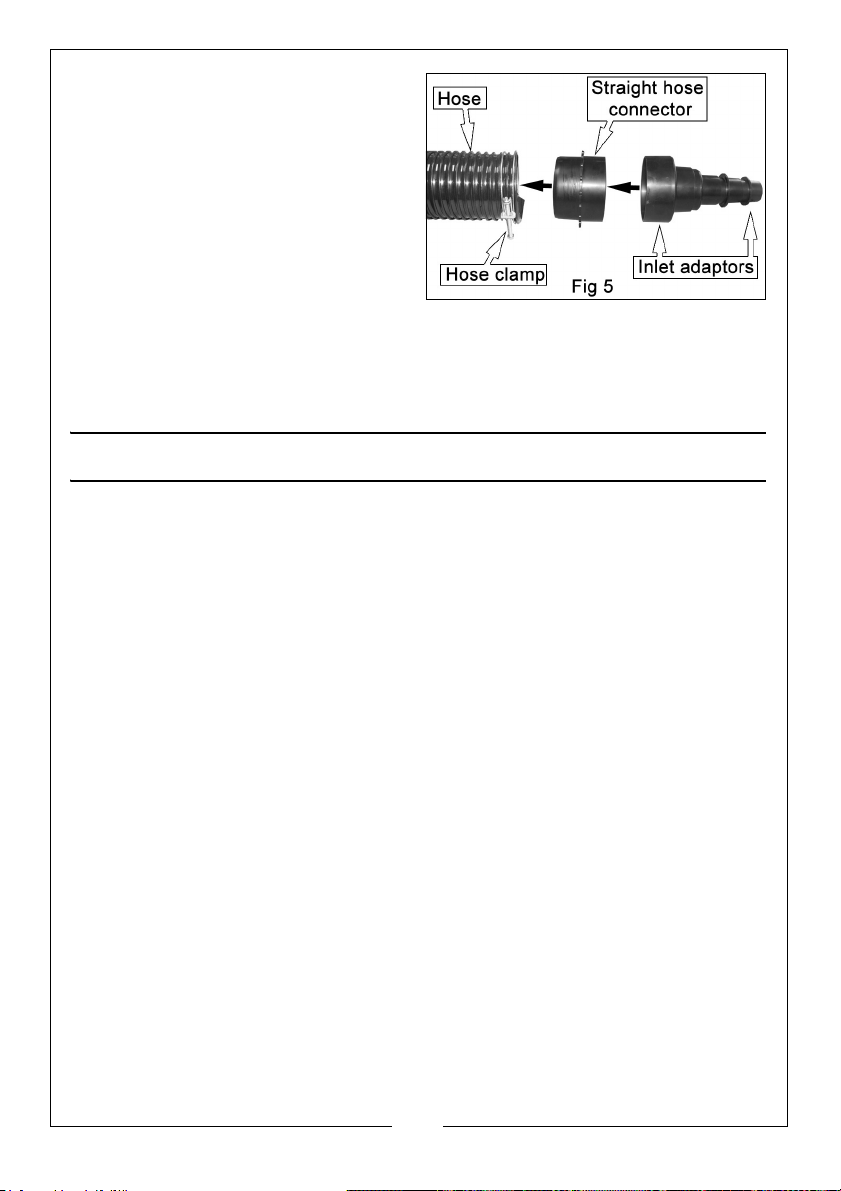

7. Secure the other end of the inlet
hose to the straight hose
connector using the remaining
hose clamp as shown in Fig 5.
• The inlet adaptors can then be
connected to the straight hose
connector as required to suit
the size of the extract duct on
the woodworking appliance to
be used.
8. Before plugging into the power supply, the extractor should be positioned
on a firm, level surface. Do not cover the dust extractor and always
position it with good all-round air ventilation. The dust extractor must
remain upright.
OPERATING AND MAINTENANCE
Regularly inspect the filter for damage before use and replace if necessary.
Regularly check the tightness of the filter, filter bag and retaining band.
Check the power cable to ensure it is free from cracks, bare wires etc.
Connect the inlet hose to the outlet on your woodworking appliance using the
inlet adaptor(s). Start the extractor using the ON/OFF switch (I=on/O=off).
Take care not to suck in foreign objects such as screws, nails, large pieces of
plastic or wood.
Empty the dust extractor after use and clean it when required. Dislodge as
much imbedded debris as possible from the filter. Refit the filter over the motor
inlet.
Ensure the hose is kept in good condition. A damaged hose will seriously effect
the efficiency of the dust extractor and should be replaced. Contact your
CLARKE dealer for replacements.
CARE & STORAGE
1. When not in use, switch off and unplug from the power supply and ensure
the power cable is not left as a hazard for persons to trip over.
2. With the dust extractor unplugged from the power supply, use a dry cloth
to wipe over the casing. Do not use solvents, thinners or alcohol to clean
the dust extractor, as these chemicals will damage the finish.
3. Store the dust extractor in a secure, dry place, out of the reach of children.
DO NOT leave it exposed to the elements and avoid direct sunlight, direct
heat, rain/moisture etc.

9
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
TROUBLESHOOTING
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.
Problem Possible cause Suggested Remedy
Motor will not run Defective switch, cable or
motor.
Check electrical
connections to all
components or consult
your Clarke dealer.
Excessive dust in the air Loose retaining band or
hose. Collecting bag
damaged.
Tighten connections.
Replace collecting bag.
Unexpected noise from
fan/motor
Loose internal
components. Dust buildup
inside housing.
Consult your Clarke
dealer.
Machine runs but fails to
reach full speed.
Low voltage or motor
defective.
Have machine repaired
by your Clarke dealer
Motor fails to develop
full power.
Supply circuit overloaded.
Extension lead unsuitable.
Use different circuit.
Replace extension lead.

10
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS DIAGRAM
Pos No Description Pos No Description
1Container 15PowerCablewithPlug
2 Retaining Band 16 On/Off Switch
3 Cartridge Filter 17 Cable Gland
4 Motor Assembly 18 Spring Washer 5mm
5 Screw 5.5 x 15 19 Washer 5mm
6ContainerLid 20RubberSeal
7 Screw 5.5 x 15 21 Filter Bag
8 Outer Sponge Belt 22 Hose Connector
9 Sponge Pad 23 Hose Clamps
10 R/H Motor casing 24 Hose/Adaptor Connector
11 Screw M5 x 45 25 Inlet Hose
12 Screw M5 x 25 26 Screw M5 x 12
13 M5 Nut 27 Nut M5
14 L/H Motor Casing 28 Hose/Container Connector

11
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
DECLARATION OF CONFORMITY
