Clarke CVACASH500 Installation and operation manual

OPERATING & MAINTENANCE
INSTRUCTIONS
GC0416

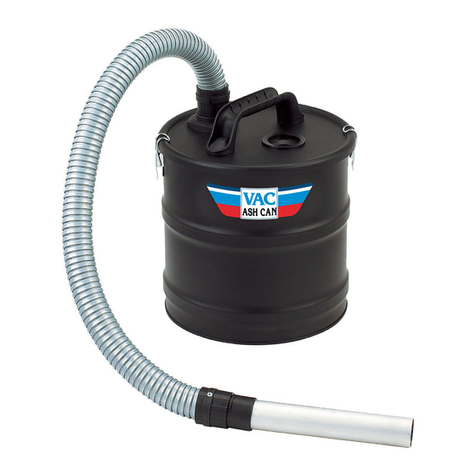

ELECTRIC ASHCAN
MODEL NO: CVACASH500
PART NO: 6471132

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION
Thank you for purchasing this CLARKE electrically powered ashcan which is
designed for fast, easy removal of ash from stoves and fireplaces.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
PARTS & SERVICE
This product has been designed to give long and trouble free service. If,
however, having followed the instructions in this booklet carefully, you
encounter problems, refer to your local Clarke dealer.

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SPECIFICATIONS
Please note that the details and specifications contained herein are correct at the time
of going to print. However CLARKE International reserve the right to change
specifications at any time without prior notice. Always consult the machine’s data plate.
GENERAL SAFETY PRECAUTIONS
WORK AREA
1. Avoid operating in the presence of flammable liquids or gases. The motor
may produce sparks during operation. Do not use in enclosed areas where
flammable, explosive or toxic vapours are given off.
PERSONAL SAFETY
1. Always stay alert, watch what you are doing and use common sense when
operating the ashcan. Do not use the ashcan while you are tired or under
Model Number CVACASH500
Dimensions (Dia x Height) 300 x 400 mm
Weight 3.3 kg (empty)
Drum Capacity 22 Litres (16L working)
Max Vacuum 11 kPa
Duty Cycle S1 (continuous)
Fuse Rating 5A
Power Supply 230V @50Hx 1ph
Motor power rating 500W
IP Rating 20
Sound Pressure Level 80 dB LpA
Sound Power Level 94 dB LwA
Guaranteed Sound Power Level 82 dB LwA
Uncertainty Factor 3

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
the influence of medication, drugs or alcohol. Lack of attention can result
in personal injury.
2. Always store the ashcan out of reach of children.
3. Never over-reach. Keep your proper footing and balance at all times to
enable better control of the ashcan in unexpected situations.
4. This appliance can be used by children aged from 8 years and above
GENERAL PRODUCT USE AND CARE
1. Prior to use, all users should become familiar with this instruction booklet.
2. Always maintain the ashcan with care and keep it clean for best/safest
performance.
3. Never use this product if any part is damaged. Have it inspected and
repaired by your Clarke dealer. Do not use if the electric cable, plug, or the
machine itself, is in poor condition.
4. Never abuse the power cable. Never pull on the cable when removing the
plug from the socket or lift the ashcan by the power cable. Take care not
to close doors on the cable or allow it to become snagged under furniture/
objects with sharp edges. Keep away from heat or oil.
5. Only use extension leads that are of an appropriate power rating and
suitable for the work environment. Extension leads must have an earth
connection. Inspect the extension lead regularly and replace if damaged.
6. Always take care when a long hose is required in the work area as it
presents a trip hazard. Tidy the hose away when the job is finished.
7. Never pick up flammable or readily combustible material such, or use in
the presence of explosive liquids or vapours.
8. Never pick up burning cigarettes or other smoking substances.
9. Never abuse the ashcan by standing on it.
10. Always transport the ashcan using the handle.
11. Only use the metal suction hose provided with this ashcan. A normal plastic
vacuum cleaner hose is not suitable and may be damaged.
WARNING: DO NOT USE THIS ASH CAN TO COLLECT HOT ASHES, COALS
OR WOOD EMBERS. ALWAYS ALLOW THE RESIDUE FROM STOVES AND
FIREPLACES TO COOL FULLY BEFORE COLLECTING WITH THIS ASH CAN.

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
ELECTRICAL CONNECTIONS
Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.
If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.
•T
he wire which is coloured Blue must be connected to the terminal
which is marked N or coloured black.
•The wire which is coloured Brown must be connected to the terminal
which is marked L. or coloured red
We strongly recommend that this machine is connected to the mains supply via a
Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.
This symbol indicates that this is a Class II product, and does not
require an earth connection.
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY
BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE
Plug must be BS1363/A approved.
Always fit a 13 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
COMPONENTS
NO DESCRIPTION NO DESCRIPTION
1Tank 5TankCover
2 Securing Clip 6 Sponge Filter
3 Suction Tube 7 Cartridge Filter
4 Suction Hose 8 Mesh Canister

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PREPARATION FOR USE
Numbers in brackets refer to the components on page 6.
1. With the ashcan removed from the
packaging, undo the securing
clips (2) securing the tank cover (5)
and remove the components from
within the tank. Check for
shortages and that no damage
was suffered in transit.
2. Check that the sponge filter (6) is
correctly in position on the motor
housing.
3. Place the cartridge filter (7) over
the motor housing.
4. The cartridge filter is secured to the
tank cover by a protective mesh
canister. Secure this in place by
engaging the three retaining tabs
shown in figure 2, into the fixing on
the tank cover and twisting the
canister clockwise.
NOTE: Note: The motor will not run
without the filter correctly in position.
5. Fit the tank cover to the tank,
securing in place with three clips.
6. Insert the suction tube (3) into one
end of the suction hose (4) as
shown in fig 3.
NOTE: Note that the two ends of the
suction hose are different.
The end with the collar and
swivel fits into the tank.
7. Insert the other end of the suction
hose into the inlet connection in the tank.
8. Before plugging into the power supply, the ashcan should be positioned on
a firm, level surface. Do not cover the ashcan and always position it with
good all-round air ventilation. The ashcan must remain upright.

8
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
OPERATING INSTRUCTIONS
1. Switch on the ashcan and use the suction tube to collect the ash.
2. When moving the ashcan:
• Always use the handle.
• Do not lift it by (or place a strain on) the hose or power cable.
3. Always switch it off and disconnect it from the mains power supply.
4. Take care not to collect material which appears to have cooled down on
the outside but which may still be hot on the inside. Hot ash particles may
ignite again in the air flow.
• Any ash which has a temperature exceeding 40°C may damage
the ashcan.
5. Do not attempt to quickly extinguish fires in fireplaces or stoves with water
in order to achieve cool ash. The construction material in the fireplace or
stove may not withstand any sudden variations in temperature and suffer
permanent damage.
6. Continuously check the tube and ashcan for excess temperature during
use. If you notice a significant temperature rise, switch off immediately and
disconnect the ashcan from the power supply. Let the ashcan cool down
under supervision before emptying the vacuumed material.
7. Watch the visual indicator on the
top of the ashcan.
• The red indicator will be visible
when the ashcan is full and
needs emptying, or if there is a
blockage in the hose or filter.
Always empty the ashcan after use
and clean it when required. Never use
solvents for cleaning any part of the
ashcan.
CAUTION: MAKE SURE THAT FIREPLACES AND STOVES ARE COLD BEFORE
YOU ATTEMPT TO VACUUM THEM CLEAN. WAIT UNTIL THE ASH HAS
COOLED DOWN COMPLETELY BEFORE YOU BEGIN TO COLLECT IT.
CAUTION: EXCESSIVE TEMPERATURES CAN LEAD TO DAMAGE TO THE
SUCTION HOSE AND THE ASH CAN AND CAUSE A RISK OF FIRE.

9
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
MAINTENANCE
1. Inspect the cartridge filter regularly and clean it when necessary. Remove
the lid and twist the mesh cartridge filter off the housing.
2. Dislodge as much imbedded debris as possible before washing the filter
with tap water before drying it completely.
3. Reposition the filter, ensuring it is in place by engaging the three retaining
tabs into the fixings on the tank cover and twisting the canister clockwise.
Important: cleaning should not use chemicals or compressed air.
4. Always ensure that the sponge filter covering the motor fan is in good
condition and not blocked. Lift it away and wash it in water if required and
allow it to dry completely before use.
5. Ensure the hose is kept in good condition. A damaged hose will seriously
effect the efficiency of the ashcan and should be replaced.
6. Contact your CLARKE dealer for replacements.
CARE & STORAGE
1. When not in use, turn off using the switch on top of the ashcan, then
remove the plug from the mains power supply.
2. When you have finished with the ashcan, ensure the electric cable is
stowed away by winding it around the handle and not left as a hazard for
others to trip over.
3. Do not change filters, or carry out any cleaning or servicing, without first
disconnecting the ashcan from the power supply.
4. Keep the external surfaces clean. Avoid impact damage & do not allow
the ashcan to come into contact with abrasive or corrosive materials.
5. Do not use solvents, thinners or alcohol to clean the ashcan, as these
chemicals will damage the finish. With the ashcan unplugged from the
power supply, use a dry cloth to wipe over the casing.
6. When not in use the ashcan should be stored in a secure, dry place, out of
the reach of children. DO NOT leave it exposed to the elements and avoid
direct sunlight, direct heat, rain/moisture etc.
7. Only use parts and accessories recommended in this manual. The use of
unauthorised accessories or attachments is not permitted and may result in
personal injury or damage to the ashcan.
8. Do not attempt to repair or modify the ashcan. Do not attempt any
electrical repair yourself. Consult a qualified electrician or the Clarke
Service Department on 020 8988 7400.

10
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS DIAGRAM
When ordering spare parts please
quote the reference HT-CVAC500-01
onwards from the above list.
Ref No Description
1 Carrying Handle
2TopCover
3 On/Off Switch
4 Sealing Cap
5 Motor
6 Lid Sealing Ring
7 Ashcan Full Indicator
8 Rubber Seal
9 Filter Microswitch
10 Inner Wiring
11 Motor Housing
12 Top Cover Assembly
13 Suction Hose
14 Cartridge Filter
15 Power Cable & Plug
16 Suction Tube
17 Filter Canister
18 Connecting Elbow
19 Ash Tank 22L
20 Sponge Filter

11
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
DECLARATION OF CONFORMITY
