Clarke CTV 20 User manual

Form No. 70973A 3/05 Clarke®Printed in the U.S.A.
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read
this book prior to operating or attempting any service or maintenance procedure to your Clarke
machinecouldresultininjurytoyouortootherpersonnel;damagetothemachineortootherproperty
could occur as well. You must have training in the operation of this machine before using it. If your
operator(s) cannot read English, have this manual explained fully before attempting to operate this
machine.
All directions given in this book are as seen from the operator’s position at the rear of the machine.
For new books write to: Clarke®, 2100 Highway 265, Springdale, Arkansas 72764.
Wet/Dry Vacuum
120V
CTV
Operator's Manual
Manuel d'utilisation
Libro de Instrucciones

Page -2- Clarke®Wet/Dry Vacuums Operator's Manual
TableofContents
ImportantSafetyInstructions ....................................................................................5
Specifications andAccessories ..............................................................................11
GroundingInstructions .............................................................................................14
HowToAssembletheMachine................................................................................16
HowToPrepareTheMachineForOperation...........................................................16
MachineOperation..................................................................................................18
MaintenanceandRepair .........................................................................................22
Troubleshooting.......................................................................................................24
Recommended Spare Parts....................................................................................25
Section II Parts and Service Manual
CTV 15 & 20 HeadAssembly Drawing...................................................................30
Parts List .......................................................................................................31
CTV7Assembly Drawing .......................................................................................32
Parts List .......................................................................................................33
CTV 15 & 20 TankAssembly Drawing and Parts List...............................................34
CTV 15 & 20 FrameAssembly Drawing and Parts List ...........................................35
CTV 7, 15 & 20 SqueegeeAssembly Drawing ........................................................36
Parts List ........................................................................................................37
CTV 7, 15 & 20Accessory Tools .............................................................................38
CTV 15 & 20 Electrical Schematic ..........................................................................39
CTV 7 Electrical Schematic ....................................................................................40

Page -5-
Clarke®Wet/DryVacuums Operator'sManual
IMPORTANT SAFETY INSTRUCTIONS
WARNING AVERTISSEMENT ADVERTENCIA
DANGER: Failure to read and observe all DANGER statements could result in severe
bodilyinjury ordeath. ReadandobserveallDANGERstatements foundin
your Owner's Manual and on your machine.
WARNING: Failure to read and observe all WARNING statements could result in injury
to you or to other personnel; property damage could occur as well. Read
and observe all WARNING statements found in your Owner's Manual and on
yourmachine.
CAUTION: Failure to read and observe all CAUTION statements could result in damage
to the machine or to other property. Read and observe all CAUTION
statements found in your Owner's Manual and on your machine.
WARNING: To reduce the risk of fire, electric shock, or injury:
1. Donot leavemachinewhenplugged in. Unplugfromoutlet whennotinuse and
beforeservicing.
2. To reduce the risk of electric shock use indoors only.
3. Do not allow to be used as a toy. Close attention is necessary when used by or
nearchildren.
4. Useonly asdescribedin themanual. Use only manufacturer'srecommended at-
attachments.
5. Do not use with damaged cord or plug. If machine is not working as it should, has
beendropped,damaged,leftoutdoors,ordroppedintowater,returnittoaservice
center.
6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
aroundsharp edgesor corners. Do notrun machineovercord. Keep cordaway
fromheatedsurfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Donot handleplug ormachinewith wethands.
9. Do not put any object into openings. Do not use with any opening blocked; keep
free of dust, lint, hair and anything that may reduce air flow.
10. Keep hair,looseclothing, fingers,and allpartsof bodyaway from openingsand
movingparts.
11. The following materials must not be picked up with the machine: Hot materials
(glowingcigarettes,hotashes,etc.);Inflammable,explosiveoraggressivefluids(e.g.
gasoline,solvents, acids,alkalines, etc.);Inflammable, explosivedusts (e.g.
magnesium or aluminum dust, etc.).
12. Do not use without dust bag and/or filters in place. Use the machine only with an
undamagedfilterelement.
13. Turnoffallcontrolsbeforeunplugging.
14. Use extra care when cleaning on stairs.
16. Connecttoproperlygroundedoutlet. See"GroundingInstructions".
SAVE THESE INSTRUCTIONS

Page -6- Clarke®Wet/Dry Vacuums Operator's Manual
DANGER: Failure to read the Owner's Manual prior to operating or attempting any service
or maintenance procedure to your Clarke machine could result in injury toyou
or to other personnel; damage to the machine or to other property could occur
as well. You must have training in the operation of this machine before using it.
If your operator(s) cannot read English, have this manual explainedfullybefore
attemptingtooperatethismachine.
DANGER: Operating a machine that is not completely or fully assembled could result in
injury or property damage. Do not operate this machine until it is completely
assembled. Inspect the machine carefully before operation. Use only as
described in this manual. Use only Clarke's recommended
attachmentsandreplacementparts.
WARNING: Operating a machine without observing all labels, decals, etc., could result in
injuryor damage. Readallmachine labelsbefore attemptingto operate the
machine. Make sure all of the labels are attached or fastened to the machine.
Get replacement labels and decals from your Clarke distributor.
WARNING: Before connecting any appliance to the appliance plug socket, the machine must
always be switched off. If appliances are connected to the appliance plug
socket, ensure that these appliances are also switched off when being
connected to the appliance plug socket. See "Appliance Plug Socket" in the
"Grounding Instructions" section in of this manual.
CAUTION: Making technical modifications to the machine could endanger your safety. Do
not make any technical modifications to the machine.
CAUTION: Never spray the top section of the machine with water. Can cause danger to
persons or danger of short circuits.
CAUTION: Wrap cord around handle when machine is not in use. Use caution not to run
over cord while machine is in use.
CAUTION: Thismachine isnot suitablefor pickingup health endangeringdust.
CAUTION: Iffoam/liquid comesout, switchoff immediately.

Page -11-
Clarke®Wet/DryVacuums Operator's Manual
Model Code # 02170A 02172A 02174B 02176B 02178B 02180B 02182B
Model Description CTV7 CTV7 w/AS/E CTV15 CTV15 CTV20 CTV15 w/squ. CTV20 w/squ.
Voltage(V) 120 120 120 120 120 120 120
Frequency(Hz) 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Power (Watts) 1200 1300 1200 1300 1300 1300 1300
Connectedloadfor --- 600 Watts --- --- --- --- ---
applianceplugsocket
VolumeAirFlow(CFM) 120 110 120 110 110 110 110
Vacuum Motor Single Stage Dual Stage Single Stage Dual Stage Dual Stage Dual Stage Dual Stage
Static Water Lift
(inches) 65 95 65 95 95 95 95
(inchesH20)
Cord Length (feet) 16 16 50 50 50 50 50
TankVolume(gal.) 7 7 15 15 20 15 20
Width (inches) 14.5 14.5 24 24 24 24 24
Depth(inches) 14 14 24 24 24 24 24
Height(inches) 21 21 38 38 38 38 38
Weight (lbs) Machine 14 16 44 45 48 45 48
Weight (lbs) Shipping 16 18 48 49 52 61 64
Order # for bag-type
filterelements 60910 60910 70007041 70007041 70007041 70007041 70007041
(pack of 5)
Order# for permanent
filterelement(unit) 11754000 11754000 11754000 11754000 11754000 11754000 11754000
ClotheFilterLiner/
Washable 61156103 61156103 61156103 61156103 61156103 61156103 61156103
SqueegeeFloorTool --- --- --- --- --- 70007035 70007035
Replacement
SqueegeeBlades --- --- --- --- --- 30292A 30292A
.
SPECIFICATIONS&ACCESSORIES

Page -14- Clarke®Wet/Dry Vacuums Operator's Manual
GROUNDINGINSTRUCTIONS
Thisappliance mustbegrounded. If itshould malfunction or
breakdown,grounding provides apath ofleast resistancefor
electric current to reduce the risk of electric shock. This
applianceis equippedwith acord havingan equipment-
groundingconductor andgrounding plug. Theplug mustbe
pluggedinto an appropriate outlet that is properly installed
andgrounded in accordancewith all localcodes and ordi-
nances.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service
person if you are in doubt as to whether the outlet
is properly grounded. Do not modify the plug
provided with the product - if it will not fit the
outlet, have a proper outlet installed by a qualified
electrician.
Thisappliance is for use on a nominal120-volt circuit and
has a ground plug that looks like the plug illustrated in figure
1. Make sure that the appliance is connected to an outlet
havingthe sameconfiguration as theplug. No adapter
should be used with this appliance.
WARNING:Topreventpossibleelectricshock,protect
the machine from rain. Keep the machine in a dry
building.
WARNING:Topreventpossibleelectric shock,always
use a 3-wire electrical system connected to the elec-
trical ground. For maximum protection against elec-
tricalshock,use a circuitthatisprotectedbyaground
fault circuit interrupter. Consult your electrical con-
tractor.
WARNING: Do not cut, remove or break the ground
pin. If the outlet does not fit the plug, consult your
electrical contractor.
WARNING: Have worn, cut or damaged
cords replaced by an authorized service person.
EXTENSIONCORDS
Use only an approved extension cord with three conductors,
a plug with three terminals, and a connector body with three
holes. The machine has a power cord with wire size 16
AWG (AWG means American Wire Gauge).
WARNING: If you use an extension cord, use an
extension cord with minimum wire size 14 AWG.
Do not use an extension cord longer than 50 feet.
Do not join two extension cords.
APPLIANCEPLUGSOCKET
Before connecting any appliance to the appliance plug
socket, the machine must always be switched off. If appli-
ances are connected to the appliance plug socket, ensure
that these appliances are also switched off when being
connected to the appliance plug socket.
CAUTION: The operating instructions and the safety
precautions contained therein must be observed
when using appliances connected to the appliance
plug socket of the machine.
Grounding
Pin
Grounded
Outlet
Grounded
Outlet
Box

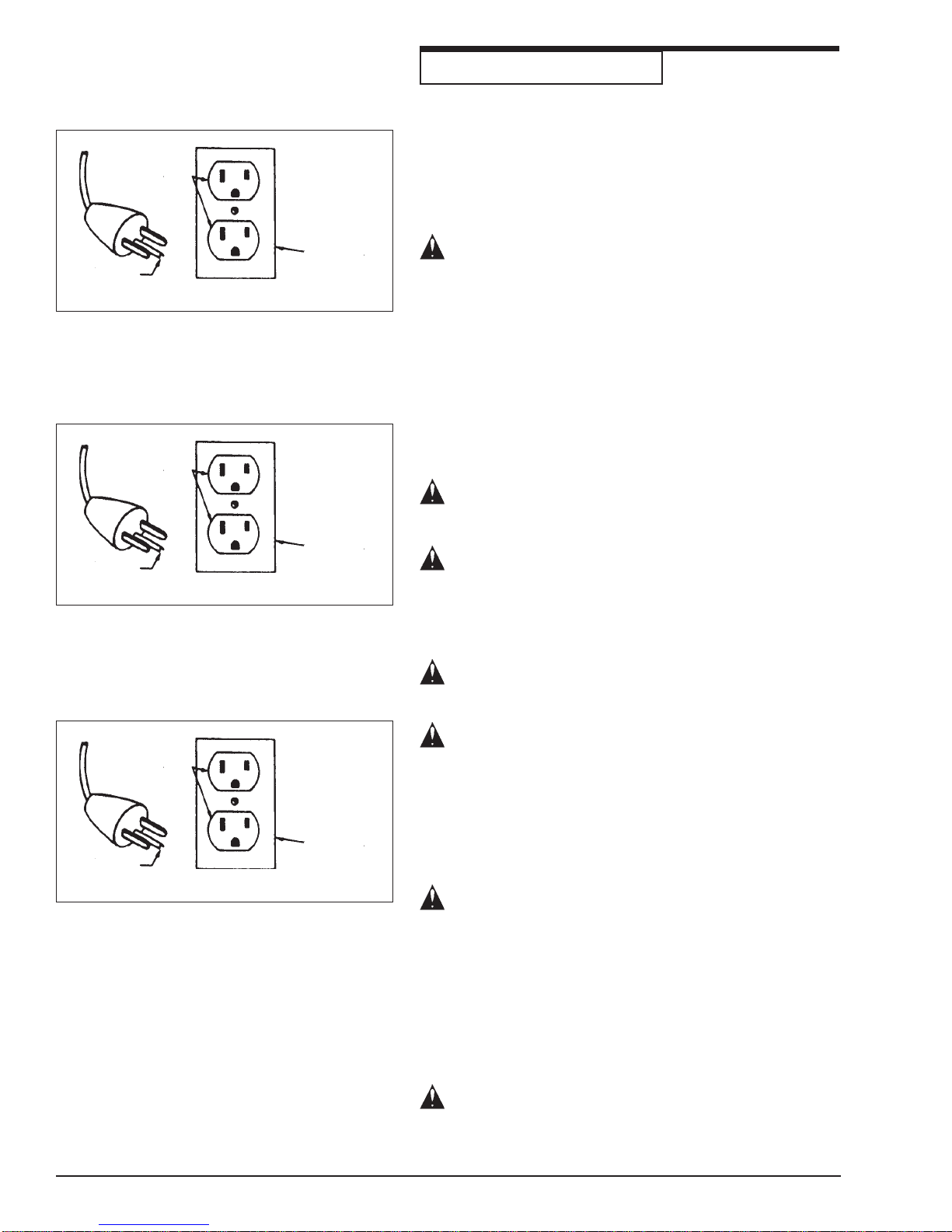

Figure 1
(A)
Terminal
de tierra
Toma
corriente
con polo
de tierra
Tapa del toma
corriente con
polo de tierra.
Figure 1a
(A)
Broche de
mise à la
terre
Prise de
courant
avec mise
à la tere
Boîte de
sortie mise à
la terre
Figure 1b
(A)

Page -16- Clarke®Wet/Dry Vacuums Operator's Manual
HOW TOASSEMBLETHE MACHINE
CAUTION!
On delivery, the accessories - are lying in the tank and
mustbe removed beforethe machine is used for the first
time. See figure 2 (figure is for CTV 7, but other units are
similar).
Toassemble themachine, remove the machine top
section:
The power cord must not yet be inserted into a plug
socket.
1. Open the retaining clamps and lift off the machine top
section(Figure 3).
2. Place a bag-type filter into the tank as described in the
instructionsprinted on the filter.
3. Fit the machine top section back on the tank, and close
theretaining clamps.
4. Connect the suction hose. The "Wap Multifit" enables
any Clarke suction hoses (27, 32, 36, 50 mm diameter)
to be connected to the machine (Figure 4).
HOW TO PREPARE THE MACHINE FOR OPERATION
To preparethemachine foroperation, followthis procedure:
1. Removetool kitfrom carton.
2. Removeheadassembly fromtank before removingtank
fromcarton.
3. Removetank assemblyfrom carton.
4. Attach head assembly to tank.
Ensure that the machine is switched off and insert the
plugof the powercord into aproperly installed andfused
plugsocket with ground.
Connecting Electric Tools - (For CTV 7 AS)
Connect the electric tool to the appliance plug socket on
thecontrol panel(Figure 5).
Before connecting a tool, ensure that both the machine and
thetool are switched off.
For maximum power consumption of the electric tool to be
connected, see the SpecificationTable on page 5.
Figure 2
Figure 3
Figure 4
Figure 5

Page -18- Clarke®Wet/Dry Vacuums Operator's Manual
MACHINE OPERATION
Picking Up Dry Substances
Before picking up dry substances, the bag-type filter should
always be installed in the tank. It is then easy to dispose of
the material picked up and the service life of the main filter
element is significantly increased.
WARNING: Inflammable substances must not be
picked up with the machine!
After picking up liquids, the filter element is damp. Damp
filter elements can clog more quickly when dry substances
are picked up. For this reason, the filter element should be
dried or replaced before picking up any dry substances.
PickingUp Liquids
For both wet and dry applications be sure to leave the
cartridge filter and the cloth filter in place around the float
cage. Also be sure to frequently clean the filters. This is
especially true when the vacuum is being used with
strippers and wax.
Daily Maintenance
CAUTION: Strippers and some detergents produce
foam which will damage the vacuum motors. The
vacuum float shut-off may not be sensitive to all
foams. Be sure to check that the tank is not filling
with foam. Use a defoaming agent to avoid pulling
foam through the vacuum motor. Should the vacuum
motor become wet, remove source of overflow and
immediately run vacuum motor open to purge the
motor dry. Both the cartridge filter and the cloth filter
should be rinsed and dried to remove stripper or wax.
Do not allow stripper or wax to dry in the filters, as
this will adversely affect performance.
1. Drain and rinse tank and remove head assembly to
allow drying.
2. Remove, rinse, and clean filters and allow to dry.
3. Inspect the power cord and hoses for damage.
WARNING: Inflammable liquids must not be picked up
with the machine!
Switching On The Machine (CTV 7, 15, 20)
Turn the switch to position "I" .
Switching On The Machine (CTV 7 AS)
Two operating modes are possible.
1. Switch position "I":
The machine motor starts immediately.
2. Switch position "auto":
The machine motor starts only when the tool con-
nected to the appliance plug socket is switched on.
CAUTION: Before turning the switch to position
"auto", ensure that the tool connected to the appli-
ance plug socket is switched off.
The motor speed and thus the suction power can be varied
at the suction force regulator. This permits a precise
adaptation to different substances to be picked up.

Page -20- Clarke®Wet/Dry Vacuums Operator's Manual
MACHINE OPERATION
Operating The Machine
Ifusing machine for liquid pickup,follow this procedure:
1. Leavefilter cartridge and cloth filterin place.
NOTE: This machine has a float shut-off.
When the water raises the float, the air
stops moving through the machine.
2. Turn machine on and begin vacuuming. The ON/OFF
switch is on top of the vacuum head assembly. Put
the switch in the "I" position to start the motor. Put the
switch in the "O" position to stop the motor.
3. When cleanup is complete, empty the liquid by
opening the drain valve on the drain hose. See figure
6.
4. Forbest performance, cleanand rinse clothand
permanentfilters.
If using for dry pickup or to remove shampoo from
carpet, follow this procedure:
1. Use the filter bag. This will keep debris from entering
thevacuum motor.
2. Turn machine on and begin vacuuming. If pickup
efficiency decreases, stop the machine.
3. Remove the foam, liquid, dirt and carpet fibers from
the tank and from the filter bag.
NOTE: Have an extra clean filter bag avail
able for continuous operation. Use clean filter bag
while other filter bag is being laundered and dried.
4. For best performance, clean the mesh screen around
thefloat often.
There are no user serviceable parts. All repairs
must be done by authorized personnel only.
After Finishing Work
1. Switch off the machine and pull the plug of the power
cord out of the plug socket.
2. Windup thepower cord.
Figure 6

Page -22- Clarke®Wet/Dry Vacuums Operator's Manual
Figure 7
Figure 8
2
MACHINE OPERATION
Changing The Bag Type Filter
1. Pull the bag-type filter sleeve off the inlet fitting.
See Figure 7.
2. Dispose of the used bag-type filter in accordance
with the local waste disposal regulations.
3. Place a new bag-type filter into the tank as de-
scribed in the instructions printed on the filter.
IMPORTANT!
Push the bag-type filter sleeve completely
onto the inlet fitting.
Replacing The Filter Element
1. Switch off the machine and pull the plug of the
power cord out of the plug socket.
2. Remove the machine top section from the dirt tank
and place to one side with the filter element facing
upwards (Figure 8).
3. Remove theouter strainerfilter bag.
4. Unscrew the filter retaining nut (1) and remove.
5. Pull off the filter element (2).
6. Push on a new filter element.
7. Fit the filter retaining washer and tighten the
retainingnut.
8. Dispose of the used filter element in accordance
withthe localwaste disposalregulations.
9. Reinstall theouter strainerfilter bag.
MAINTENANCEAND REPAIR
CAUTION: Before cleaning and servicing the
machine, always remove the power cord.
Carryout onlymaintenance operations described in
these operating instructions. Use only original Clarke
spare parts.
CAUTION: Do not make any technical
modifications to the machine. Your safety
could be endangered as a result!
For all other maintenance and repair work,
please contact an authorized Clarke Service
department.

Page -24- Clarke®Wet/Dry Vacuums Operator's Manual
TROUBLESHOOTING
ActionCause
Problem
1. Reset the fuse
2. Allow the machine to cool down approximately
5 minutes; if the machine does not start again
automatically, contact the Service Dept.
1. Replace bag-type filter.
2. Clean suction hose.
3. Clean and replace filter element.
1. Emptytank.
1. The fuse or plug socket has blown.
2. Overload protection switch has tripped.
1. Bag-type filter full.
2. Suction hose clogged.
3. Filter element clogged.
1. Tank full (float switch closing off the
suction opening).
Motor does not start
Reduced suction power
No suction power during
wet cleaning.
DETECCIÓNDEPROBLEMAS
AcciónCausa
Problema
1. Coloque nuevamente el fusible.
2. Deje que la máquina se enfríe por
aproximadamente 5 minutos; si la máquina no
vuelveaencenderseenformaautomática,llame
al Departamento de servicio.
1. Cambie el filtro tipo bolsa.
2. Limpie la manguera de aspiración.
3. Limpie y cambie el elemento filtrante.
1. Vacíe el depósito.
1. Saltó el fusible o no funciona el toma-
corriente.
2. Se disparó el mecanismo de interrup-
ción por sobrecarga.
1. Filtro tipo bolsa lleno.
2. Manguera de aspiración obstruida.
3. Elemento filtrante obstruido.
1. Depósito lleno (el interrupotor de flota-
ción cierra la abertura de aspiración.)
El motor no enciende.
Baja potencia de aspiración.
No hay potencia de aspiración
durante la limpieza en
húmedo.
DIAGNOSTIC
ActionCause
Problème
1. Replacez un fusible.
2. Laissez la machine refroidir pendant environ 5
minutes; si la machine ne démarre toujours pas
automatiquement, contactez le Service des
Réparations.
1. Remplacez le filtre de type sac.
2. Nettoyez le tuyau d'aspiration.
3. Nettoyez et replacez l'élément de filtrage.
1. Videz le réservoir.
1. Le fusible ou la prise a sauté.
2. Le commutateur de protection contre les
surcharges s'est décienché.
1. Le filtre de type sac est plein.
2. Le tuyau d'aspiration est bouché
3. L'élément de filtrage est bouché.
1. Le réservoir est plein (le commutateur à
flotteurrefermantl'ouvertured'aspiration).
Le moteur ne démarre pas.
Force d'aspiration réduite.
Aucune force d'aspiration
pendant un nettoyage
humide.

Page -25-
Clarke®Wet/DryVacuums Operator's Manual
Part No. Description
60608 Caster
60610 Gasket,Vacuum
60867 Switch, Main Power
11754000 Filter,Permanent
21448070 Knob,Squeegee
26771800 Cord, Power
26771900 Cord, Power
27000410 Frame,SqueegeeWeldment
27000411 Retainer,Squeegee Blade
27000414 Wheel,Squeegee
30001200 Foam, 20 x 60
30001504 Hose, Vac (2 meter)
30001505 Hose, Vac (4 meter)
30001506 Hose, Tools Assembly (15/20 Gal.)
30001507 Hose,DrainAssembly
30001508 Hose,Squeegee
60608100 Caster
61156102 FilterBag, 15/20Gallon
70002112 Motor,VacuumSingleStage
70003311 Motor,VacuumTwoStage
70000316 BrushCarbonSingleStage
70000316 BrushCarbonTwoStage
70007035 CompleteSqueegee Assembly Kit
70007039 Adapter, Hose to 1½" Wand
70020032 Wheel
60910 Filter Bag, 7 Gallon (pkg. of 5)
90000502 Hose,ToolAssembly(7Gal.)
30292A Blade,Squeegee
CTV 7, 15 & 20
Recommended Spare Parts
Clarke®

Page -29-
Clarke®Wet/DryVacuums Operator's Manual
CTV
Wet/Dry Vacuum
120V
Section II
Parts and Service
(70973A)

Page -30- Clarke®Wet/Dry Vacuums Operator's Manual
CTV 15 & 20
Head Assembly Drawing 3/05
Clarke®
1
2
3
4
5
67
8
9
10
8
11
12
13
14
15
16
17
18
19
20
21

Page -31-
Clarke®Wet/DryVacuums Operator's Manual
CTV 15 & 20
Head Assembly Parts List 3/05
Clarke®
Ref. Part No. Description Qty Qty Qty Qty Qty
1 60603000 Handle 1 1 1 1 1
2 60601000 Cover, Top 1 1 1 1 1
3538423 Clamp 2 2 2 2 2
4 60604000 Housing,Upper 1 1 1 1 1
5 60867 Switch,Main Power 1 1 1 1 1
6 30001200 Foam, 20 x 60 1 1 1 1 1
7 60610200 RingDistance 1 1 1 1 -
8 60610 Gasket,VacuumMotor 2 2 2 2 2
9 70002112 Motor, 127V Single Stage - - - - 1
70003311Motor, 127V Two Stage 1 1 1 1 -
10 70000316Brush Carbon Motor (Single Stage) - - - - 1
70000316Brush Carbon Motor (Two Stage) 1 1 1 1 -
11 60605000 Housing, Bottom(Single Stage) - - - - 1
60605010 Housing,BottomTwoStage 1 1 1 1 -
12 NA Screw,M5 x 20, PhillipsSelfThread 5 5 5 5 5
13 27000436 Deflector,(Perm. Filter) 1 1 1 1 1
14 NA Rivet, 4mm x 12mm,Alum. Closed 3 3 3 3 3
15 61156103 Filter, Cloth 1 1 1 1 1
16 60607000 Cage,Float 1 1 1 1 1
17 60606000 Float 1 1 1 1 1
18 11754000 Filter,Permanent 1 1 1 1 1
19 26771900 Cord,Power 1 1 1 1 1
20 61156102 Filter Bag, 15/20 Gal. 1 1 1 1 1
2153839A PIn, 3/8 x 44 mm 2 2 2 2 2
NA= NotAvailable
NOTE: indicates a change has been made since the last publication of this manual.
02178B 02182B 02180B 02176B 02174B

Page -32- Clarke®Wet/Dry Vacuums Operator's Manual
CTV 7
AssemblyDrawing8/02
Clarke®
1
2
3
4
5
67
8
7
10
11
12
13
14
13
15
16
17 18
17 19
20
22
23
24
25
26
27
21
9
29
28

Page -33-
Clarke®Wet/DryVacuums Operator's Manual
CTV 7
AssemblyPartsList 10/03
Clarke®
Ref. Part No. Description QTY QTY
1 11754000 Filter Element,P.P. 1 1
2 60606000 Float 1 1
3 60607000 Cage, Float` 1 1
4 61156103 Filter,Cloth 1 1
5 60910 FilterBag, (pkg. of 5)` 1 1
6 2364 Cap Nut 4 4
7 2793 U-Disc 8.4 mm Zinc 4 4
8 90000136 Tank 1 1
9 61276 Washer 4 4
10 60608 Caster,PVC 4 4
11 NA Screw, M 5 x 20, PhillipsSelfThreading 5 5
12 60605000 BottomHousing, Single Stage - 1
60605010 BottomHousing, Two Stage 1 -
13 60610 Motor Ring, Vac 2 2
14 70002112 Vac Motor, 120V Single Stage - 1
70003311 VacMotor, 120V Two Stage 1 -
15 60611 Foam 1 1
16 62171 AutomaticStart 1 -
17 46248 Screw, PT 3.5 x 16 4 -
18 46297 PlugCover 1 -
19 49267 Plug Socket 1 -
20 60867 Switch - 1
11992 SwitchComplete 1 -
21 NA Screw, M3.5x.6 x 14Shoulder,Hex 3 3
22 60603 Handle 1 1
23 60601000 Top Cover 1 1
24 26797 Clamp 2 2
25 26771800 Power Cord 1 1
26 60604000 Upper Housing 1 1
27 70000316 Brush Carbon (Set) 1 1
28 30000601 Inlet 1 1
29 30000602 Inlet, Seal 1 1
NA= NotAvailable
02172A 02170A

Page -34- Clarke®Wet/Dry Vacuums Operator's Manual
Ref. Part No. Description Qty Qty.
1 50170 Screw, 3.5 x 14 3 3
2NA Screw, M8 x 12 2 2
353840A Tank, 20 Gallons - 1
53841A Tank, 15 Gallons 1 -
4 30001507 Hose, Drain Assembly 1 1
5 30000601 Inlet 1 1
6 30000602 Inlet Seal 1 1
NA= NotAvailable
NOTE: indicates a change has been made since the last publica-
tion of this manual.
CTV 15 & 20
Tank Assembly Drawing and Parts List 3/05
Clarke®
15Gallon 20Gallon
1
2
3
4
56

Page -35-
Clarke®Wet/DryVacuums Operator's Manual
Clarke®
CTV 15 & 20
Frame Assembly Drawing and Parts List 3/05
Ref. Part No. Description Qty Qty
1 53843A Frame Weldment 1 1
2 70020032 Wheel 2 2
3 21532060 Retainer 2 2
4 70000145 Retainer, Cover 2 2
5 60608100 Caster 1 1
6 NA Washer,M8.4 x 17 x 1.5 1 1
7 NA Nut,M8Hex 1 1
8 43625 Handle Bar SQ. 1 1
9 NA Screw, M6x 40 SelfThreading 2 2
10 NA Washer, M6.4 x 12.5x 1.5 2 2
11 NA Nut,M6 Lock 2 2
8
9
10
11
1
7
6
5
2
34
15Gallons 20Gallons
NA = Not Available
NOTE: indicates a change has been made since
the last publication of this manual.

Page -36- Clarke®Wet/Dry Vacuums Operator's Manual
Clarke®
CTV 7, 15 & 20
Squeegee Assembly Drawing 9/04
12
3
45
6
7
10
8
9
11
12
13
14
9
11
12
15
16
17
18
1
19
18 21
17 16
16
17* 18
22 20
23
21
22
20
*Asneeded
25 26
272829
Step
Bracket
Tubular
Frame
Tank
25
26
27
28
29
FIGURE A
