Clarke PSP195 Instruction Manual

OPERATION & MAINTENANCE
INSTRUCTIONS
GC0819 - ISS 1
ORIGINAL INSTRUCTIONS
PUDDLE PUMP
MODEL NO: PSP195
PART NO: 7239240

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION
Thank you for purchasing this CLARKE Puddle Pump. The pump is of the
submersible type, designed for domestic use, with manual or automatic
operation. It is suitable for drying out basements subject to flooding and for
pumping drainage wells or rainwater collecting traps.
Due to its compact shape, it can be used as a portable pump for emergency
situations such as for drawing water from tanks or rivers, draining swimming
pools and fountains, excavations or underpasses. Also suitable for gardening
and general hobby activity.
This pump should not be used in swimming pools, ponds or hot tubs where
people are present, or for pumping hydrocarbons (petrol, diesel fuel,
combustible oils, solvents, etc.) in accordance with the accident-prevention
regulations in force.
It is not designed for continuous use, but over a limited period and should be
cleaned before putting away in storage. See the section “Maintenance”.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SAFETY INSTRUCTIONS
GENERAL
1. Read all instructions before use
and save these instructions for
future use.
2. An approved residual current
device (RCD) which has a
tripping current of less then 30mA
MUST be used for all operations.
3. The electrical supply must be the
same as that on the rating plate.
4. Always make sure that your
hands are dry when connecting
or disconnecting from the mains
supply.
5. Never pull the mains lead to
disconnect the pump from the
mains socket.
6. The mains plug must be kept
away from the water at all times.
7. Do not allow children or
unauthorised people to touch the
pump, cables or connections.
8. Disconnect the pump from the
mains supply when not in use.
9. Keep the mains lead away from
heat, oil and sharp edges.
10. If you have to use an extension
lead with this product it must be
designed for outdoor use and
incorporate a cable suitable for
use with Class I appliances.
11. Disconnect the pump from the
electrical supply and wear gloves
during servicing or maintenance.
PUMP SPECIFIC
1. Do not pump explosive /
flammable liquids or chemicals.
2. Never allow the pump to run dry
or operate out of the water.
3. Submersible pumps should always
be submerged and stored
vertically.
4. Disconnect the pump from the
mains supply before placing it
into or removing it from the water.
5. Always check the plug and cable
for damage before use.
6. Do not use the pump if
damaged. Refer to qualified
service personnel for repair.
7. Never carry or lower the pump by
the power cable. Always use the
handle or a rope tied securely to
the handle.
8. Never use the submersible pump
in a swimming pool when there
are people or animals in the pool.
9. Keep the pump clear of sediment
by standing it on a platform or
brick or suspending it at a suitable
depth.
10. Do not use the pump if the water
is liable to freeze, as this can
cause damage to the pump.
Remove the pump from the
water and store it in a frost free
location.

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
ELECTRICAL CONNECTIONS
These pumps MUST be fitted with a Residual Current Device (RCD), with a
rated residual operating current of no greater than 30mA. This is essential
when the pump is used for pumping swimming pools.
The mains lead must be connected to a standard 230 volt (50Hz) electrical
supply through an approved plug or a suitably fused isolator switch.
As the colours of the flexible cable of this appliance may not correspond with
the coloured markings identifying terminals in your plug proceed as follows:
• The BLUE wire must be
connected to the
terminal which is
marked N.
• The BROWN wire must
be connected to the
terminal which is
marked L.
• The YELLOW AND
GREEN wire must be
connected to the
terminal which is
marked E or .
In the event that the pump is hard-wired into the electrical system, it must be
carried out in accordance with IEE regulations.
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH
Plug must be BS1363/A approved.
Always fit
Ensure that the outer sheath of
Neutral
(Blue)
Live
(Brown)
Earth
(Green and
a 13 Amp
the cable is firmly held by the clamp
fuse.
Yellow)

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INSTALLING THE PUMP
1. Remove all packaging and make sure that the pump has no visible
damage. Dispose of all packaging appropriately.

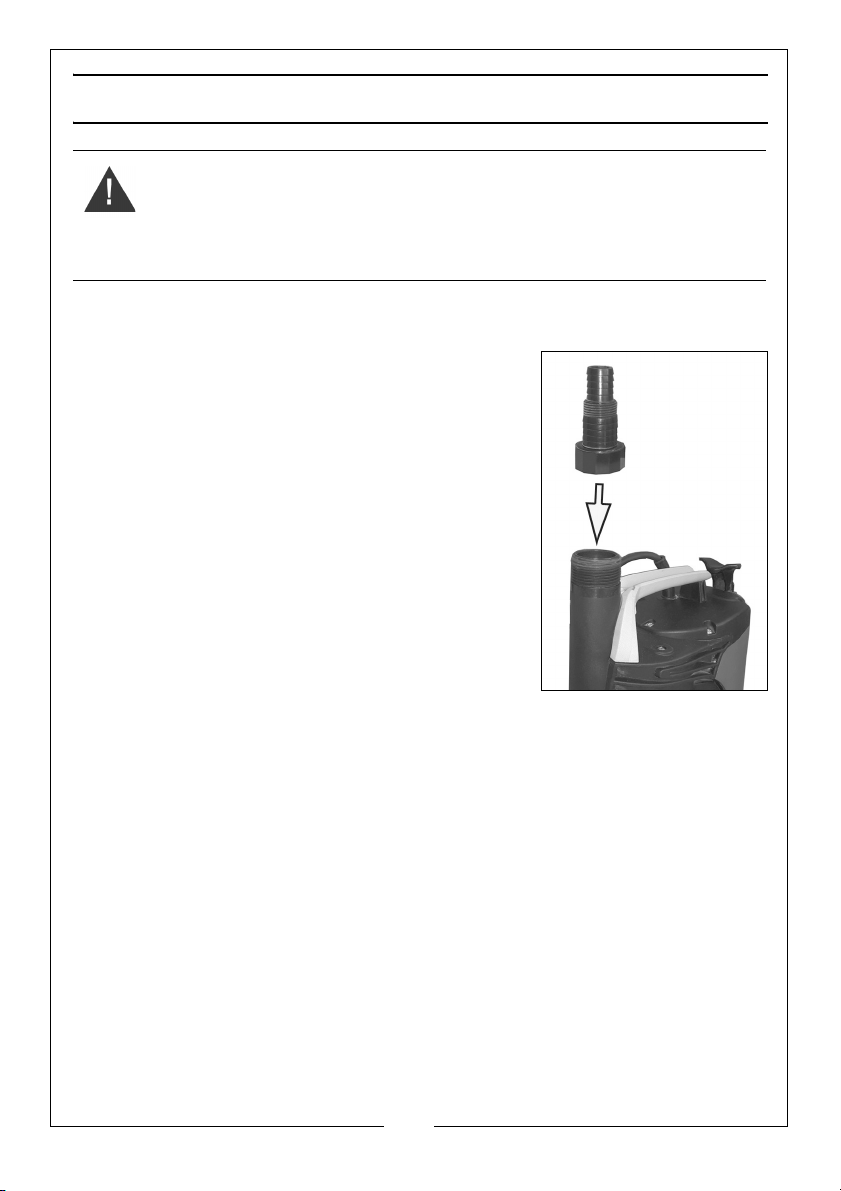

• The stepped hose adaptor supplied is
designed to be used for either screw type
hose connection or push fit.
2. Connect a suitable hose (not supplied) to the
adaptor.
• Suitable hoses are available from your local
Clarke dealer.
3. When push fitting the hose to the adaptor use
a jubilee clip to secure it.
4. Stand the pump upright on a flat surface in the
water that you want to drain.
5. Ensure the pump is positioned with adequate
space - recommended minimum base area of
20 x 20 cm and the maximum depth of any
installation - 7 metres. The pump is supplied with 10 metres of power cable.
6. Always raise and lower the pump using the lifting handle and a rope
attached to it if required. Never lift or lower the pump using the power
cable.
• The filter base inlet must be fully submerged before the pump is switched
on and the pump is standing vertical.
7. Connect the mains plug to the mains supply via a high sensitivity residual
current device (RCD) which has a tripping current of less then 30mA.
8. Switch the mains power supply on.
WARNING: CHECK THE PUMP FOR DAMAGE BEFORE USE AND DO NOT
USE IF DAMAGED IN ANY WAY.
WARNING: THE WATER SEAL CONTAINS LUBRICANT WHICH IS NON-TOXIC
BUT WHICH MAY ALTER THE CHARACTERISTICS OF THE WATER IN THE CASE
OF PURE WATER, IF THE PUMP WERE TO DEVELOP ANY LEAKS.

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
OPERATION

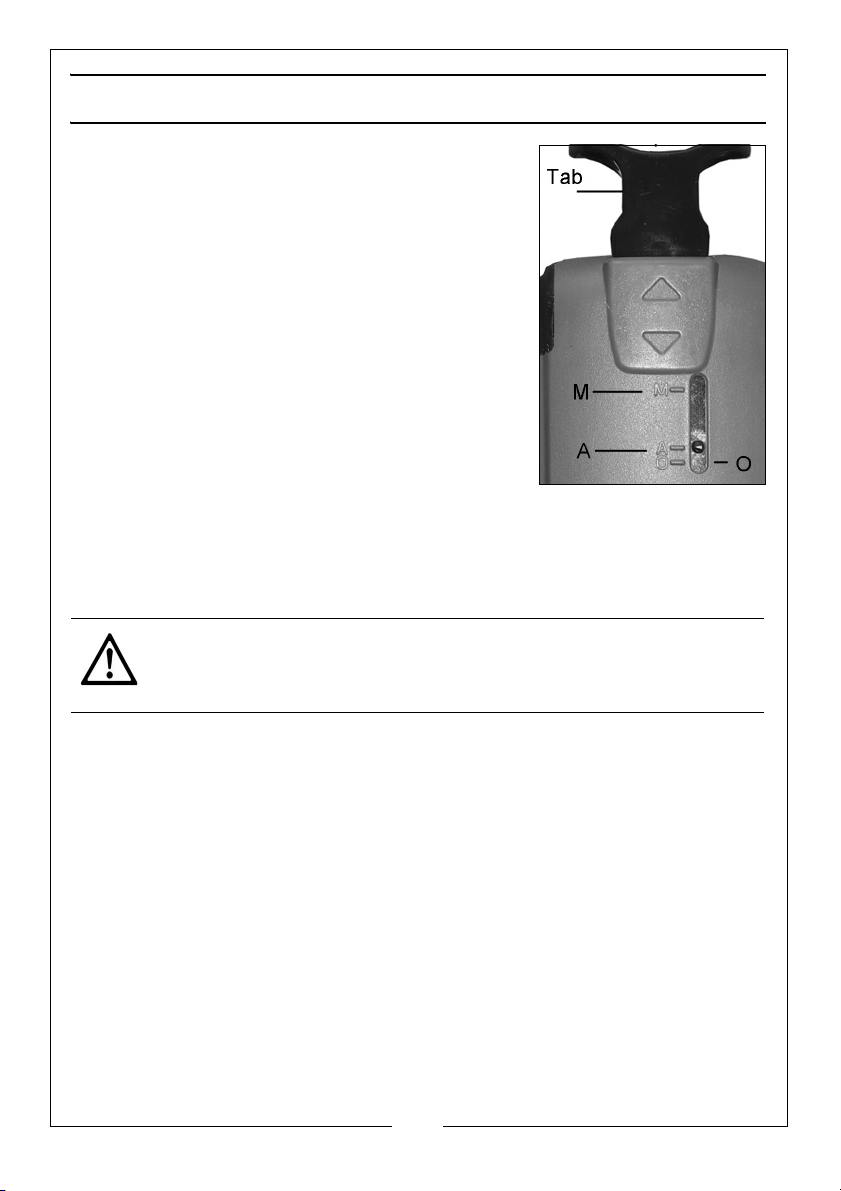

To operate the pump move the tab to the
required position for either Auto or Manual mode.
AUTOMATIC OPERATION (A)
To set the pump running automatically:
1. Move the tab until the indicator is positioned
on “A” (automatic).
• When the float reaches the ON level the
pump will start and will continue operating
until the float drops to the OFF level.
MANUAL OPERATION (M)
To manually start the pump:
1. Lift the tab until the indicator is positioned on
“M” (manual).
• The pump will run indefinately.
2. When the water level is down to 2-3 mm disconnect the pump from the
mains power suppy..
The pump is fitted with a thermal overload switch. If the pump overheats for
any reason, it will automatically switch OFF. Once the pump has cooled (at
least 5-10 minutes), it will automatically restart.
AFTER USE
If the temperature is lower than 0°C, ensure there is no residual water in the
pump which could freeze, causing cracks in the plastic parts.
If the pump has been used with substances that tend to form a deposit, or
with water containing chlorine, rinse it after use with a powerful jet of water in
order to avoid the formation of deposits which would reduce the
performance of the pump.
CAUTION: DO NOT ALLOW THE PUMP TO RUN DRY

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
MAINTENANCE
This pump should require no maintenance other than regular cleaning. If the
pump shows signs of wear or damage contact your CLARKE dealer for advice.
CLEANING
1. Check the pump regularly to ensure the water
inlet is clear of leaves or other debris. If foreign
material has been drawn into the pump inlet,
further cleaning may be required.

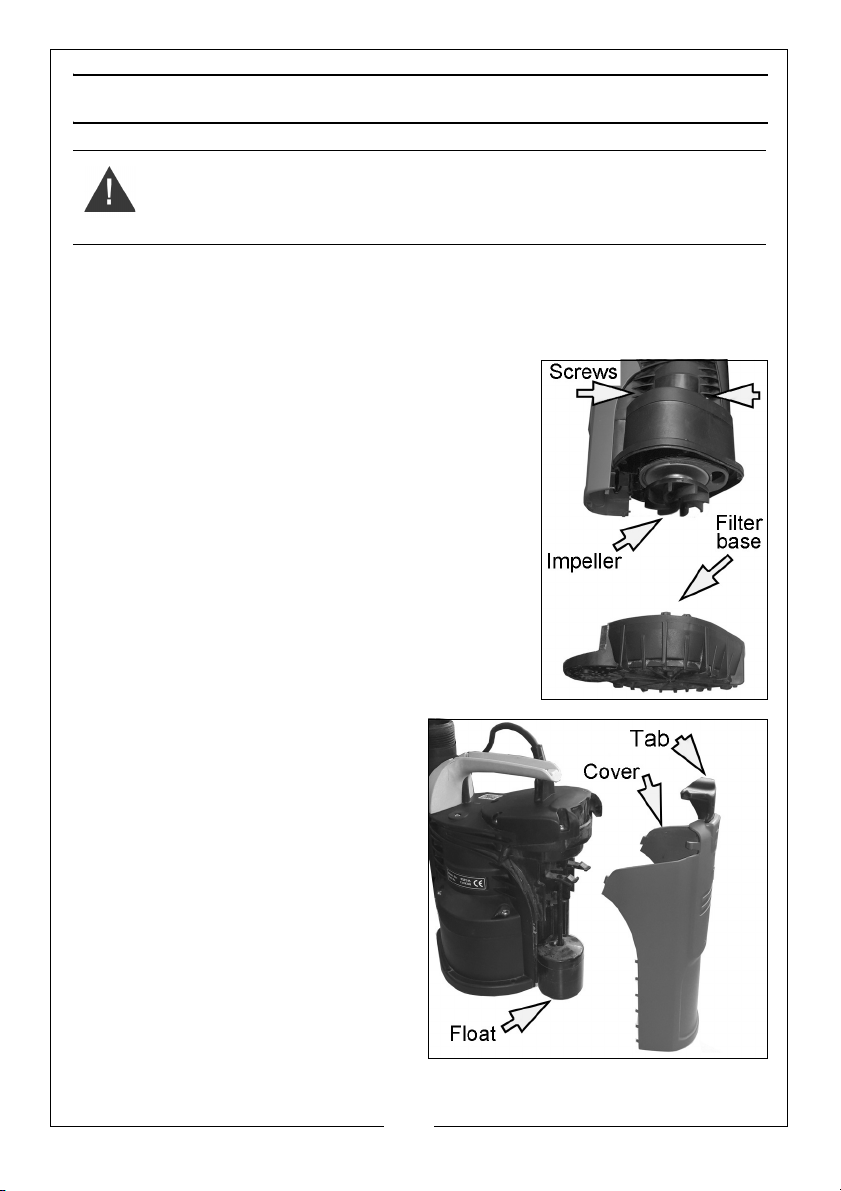

CLEANING THE FILTER BASE AND IMPELLER
1. Switch off the power supply to the pump.
2. Remove the retaining screws securing the filter
base and lift the base away.
3. Clean the impeller and check that it can spin
freely.
4. Re-fit the filter base.
CLEANING THE FLOAT SWITCH
1. If a collection of foreign material is
impeding the movement of the
float switch it may be necessary
to clean it.
2. Position the control tab at “O” and
unclip the cover by pulling it away
from the pump body.
3. Remove any foreign material that
prevents the free movement of
the float.
4. Re-fit the cover.
WARNING: BEFORE CHECKING THE CONDITION OF THE PUMP, ENSURE IT
IS UNPLUGGED FROM THE MAINS SUPPLY. IF THE UNIT IS HARD WIRED,
ENSURE THE CIRCUIT BREAKER IS OPEN.

8
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
TROUBLESHOOTING
If this does not solve your problem, please contact the CLARKE service
department. Do not attempt to repair the pump yourself. Repairs must be
carried out by your CLARKE dealer.
PROBLEM SOLUTION
PUMP WILL
NOT START
1. Make sure that the power is switched on.
2. Check fuse (consult an electrician if in doubt).
3. If extension lead is used, check connections (consult an
electrician if in doubt).
4. Internal thermal cut-out has not re-set. Leave for 5-10
minutes and try again.
5. The impeller may be jammed. Disconnect from the mains
supply and remove any objects that may be obstructing
the impeller.
6. Float switch may be jammed or prevented from moving.
7. Water level too low - float switch in OFF position - lift float
to check switch.
8. If the pump still fails to start, consult your CLARKE dealer
for advice.
PUMP WILL
START BUT NOT
PUMP
1. Check that the inlet is not blocked.
2. Check that the discharge tube is not clogged or
obstructed.
3. The head may be too great, i.e. you are trying to lift the
water too great a distance for the pump to cope with.
(“It is not designed for continuous use, but over a limited
period and should be cleaned before putting away in
storage. See the section “Maintenance”.” on page 2).
4. Air bubble in the pump, produced during the plunge.
Plunge the pump again, at an angle, and shake it whilst
lowering to remove any air trapped in the system.
5. Impeller may be damaged - Consult your CLARKE dealer.
PUMP WILL
NOT STOP
1. Float switch may be prevented from moving to the fully
down position.
2. Float switch may be faulty. Consult your CLARKE dealer
for advice.
PUMP STOPS
RUNNING
1. Thermal overload has operated. Leave for 5-10 minutes
and try again.
2. Pump has run dry or float switch has cut in.
3. A foreign object has jammed the impeller.

9
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS DIAGRAM
1 Capacitor holder / connector 10 Impeller kit
2 Seal kit 11 Filter base
3 Motor screws & o-rings 12 Float switch cover
4 Handle c/w screws 13 Stepped adaptor / O-ring
5 Cover unit with power cable 14 Pump body kit
6 Capacitor 15 Control tab
7 Motor assembly 16 Float guide
8 O-Ring kit 17 Filter base screws
9 Floatswitch 18 Cover retaining screws

10
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

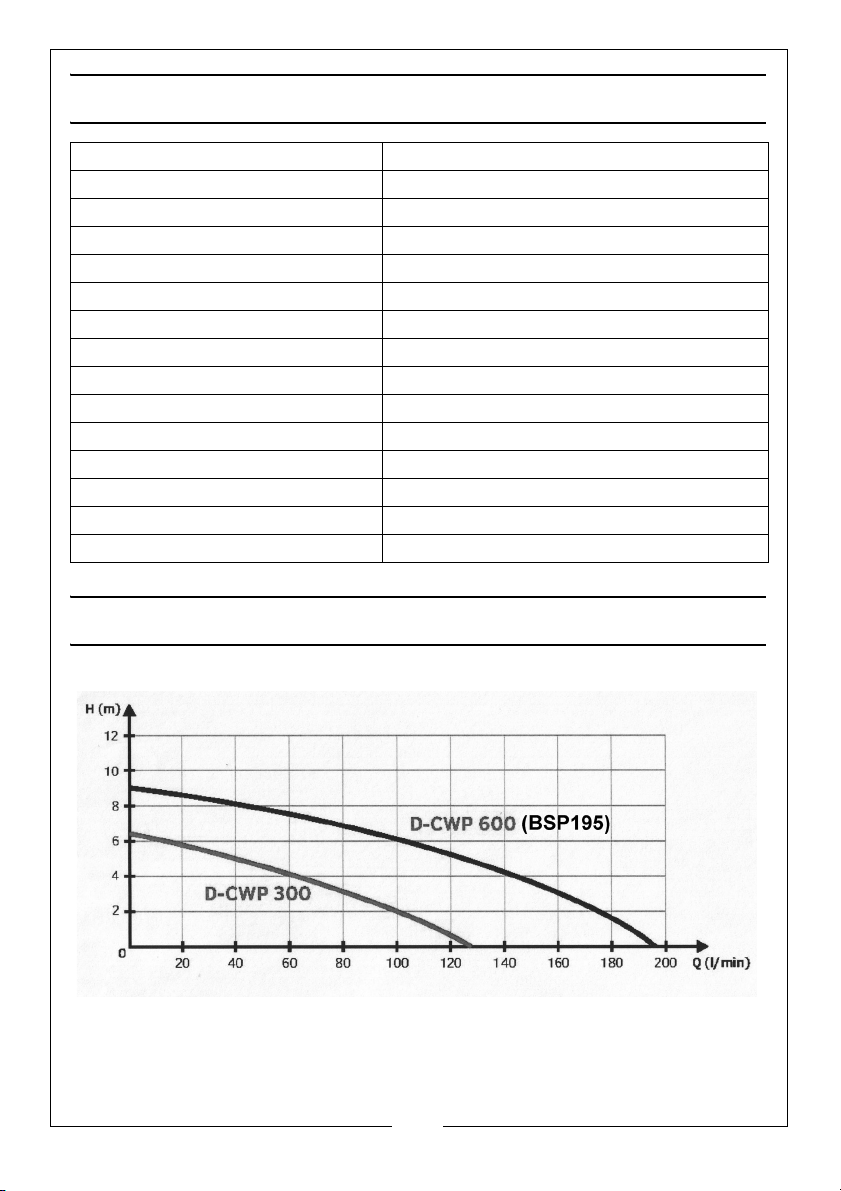

SPECIFICATIONS
PERFORMANCE CURVE
Dimensions (D x W x H) 225 x 185 x 335 mm (exc adaptor)
Weight 5.3 kg
Outlet Size 32 mm dia (male 1¼“ BSP)
Power supply 230v ~ 50 Hz
Rated power 665 W
Fuse Rating in BS plug 13 A
Cable length 10 m
IP Rating IP X8
Maximum delivery 195 L/min
Max. head 9 m
Max particle size 5 mm
Maximum depth 7 m
Residual water depth 2-3 mm
Minimum automatic starting depth 115 mm
Automatic stopping depth 45 mm
