Clarke HSEC651A Instruction Manual

OPERATION & MAINTENANCE
INSTRUCTIONS
LS0218 ISS 1
ORIGINAL INSTRUCTIONS
SUBMERSIBLE SEWAGE CUTTER PUMP
MODEL NO: HSEC650A/651A/1400A
PART NO: 7230290, 7230295, 7230243

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION
Thank you for purchasing this CLARKE Submersible Sewage Cutter Pump.
The pump is fitted with a tungsten carbide cutter, and is especially suited for
heavily polluted water containing waste solids, such as sewage, light slurry
etc.
This pump is NOT designed for pumping heavy slurry, sludge, mud, salt water,
or any water containing chemicals or other acidic contaminants. It is also not
suitable for single chamber septic tanks.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SAFETY INSTRUCTIONS
GENERAL
1. Read all instructions before use
and save these instructions for
future use.
2. An approved residual current
device (RCD) which has a
tripping current of less then 30mA
MUST be used for all operations.
3. The electrical supply must be the
same as that on the rating plate.
4. Always make sure that your
hands are dry when connecting
or disconnecting from the mains
supply.
5. Never pull the mains lead to
disconnect the pump from the
mains socket.
6. The mains plug must be kept
away from the water at all times.
7. Do not allow children or
unauthorised people to touch the
pump, cables or connections.
8. Disconnect the pump from the
mains supply when not in use.
9. If necessary have the pump
repaired by a qualified person.
10. Keep the mains lead away from
heat, oil and sharp edges.
11. If you have to use an extension
lead with this product, it must be
designed for outdoor use and
incorporate a cable suitable for
use with Class I appliances.
12. Disconnect the pump from the
electrical supply and wear gloves
during servicing or maintenance.
PUMP SPECIFIC
1. Do not pump explosive /
flammable liquids or chemicals.
2. Never allow the pump to run dry
or operate out of the water.
3. Submersible pumps should always
be submerged and stored
vertically.
4. Disconnect the pump from the
mains supply before placing it
into or removing it from the water.
5. Always check the plug, and all
cables for damage before use.
6. Do not use the pump if
damaged. Refer to qualified
service personnel for repair.
7. Never carry or lower the pump by
the power cable or float switch
always use the handle or a rope
tied securely to the handle.
8. Never insert your fingers into the
pump whilst it is connected to the
mains.
9. Never use the submersible pump
in a swimming pool when there
are people or animals in the pool.
10. Keep the pump clear of any
sediment by standing it on a
platform or brick or suspending it
at a suitable depth.
11. Do not use the pump if the water
is liable to freeze, as this can
cause damage to the pump.
Remove the pump from the
water and store it in a frost free
location.

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
ELECTRICAL CONNECTIONS
We recommend that these pumps MUST be fitted with a Residual Current
Device (RCD), with a rated residual operating current of no greater than
30mA. This is mandatory when pump is used for pumping swimming pools
HSEC1400A + HSEC650A should have their mains lead connected to a
standard 230 volt (50Hz) electrical supply through an approved plug or a
suitably fused isolator switch.
As the colours of the flexible cable of this appliance may not correspond with
the coloured markings identifying terminals in your plug proceed as follows:
• The BLUE wire must be
connected to the
terminal which is
marked N or coloured
black.
• The BROWN wire must
be connected to the
terminal which is
marked L or coloured
red.
• The YELLOW AND
GREEN wire must be
connected to the terminal which is marked E or or coloured green.
HSEC651A must be connected to a protected 110V supply, through a
suitably approved connector. On no account must a 230V, 13amp plug be
used.
NOTE: If a portable 110V transformer is used, make sure it has a rated
capacity sufficient to take the load of the pump.
In the event that the pump is hard-wired into the electrical system, it must be
carried out in accordance with IEE regulations.
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH
Plug must be BS1363/A approved.
Always fit
Ensure that the outer sheath of
Neutral
(Blue)
Live
(Brown)
Earth
(Green and
a 13 Amp
the cable is firmly held by the clamp
fuse.
Yellow)

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
USING THE PUMP

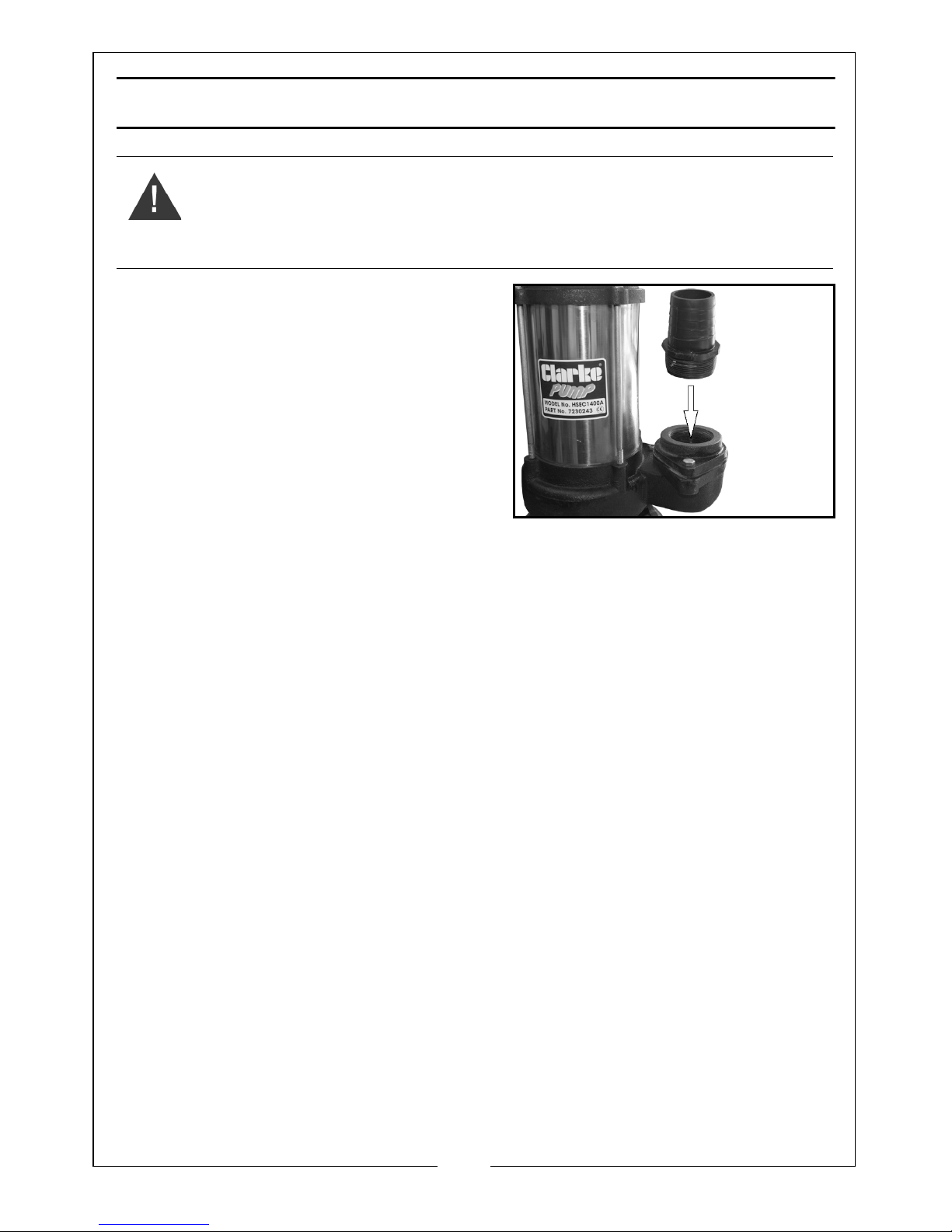

1. Using the adaptor if required,
connect a suitable hose (not
supplied) to the pump outlet.
• Suitable hoses are available from
your local Clarke dealer.
2. Place the pump vertically on a flat
surface in the area that you want to
drain.
• If there is sediment in the area,
place the pump on house bricks,
or similar.
• Ensure the pump is positioned with adequate space so that the
movement of the float switch is not restricted - recommended minimum
area of 50 x 50 cm.
• ALWAYS raise and lower the pump using a rope attached to the lifting
handle.
• Take all necessary precautions as described on page 3.
• The pump inlet must be fully submerged before the pump is switched on.
3. Connect the mains plug to a high sensitivity residual current device (RCD)
which has a tripping current of less then 30mA.
4. Switch the mains power supply on.
• The pump will begin to drain water.
• As the water level falls, so will the float switch, until it stops the pump.
WARNING: CHECK THE PUMP FOR DAMAGE BEFORE USE, DO NOT USE THE
PUMP IF IT IS DAMAGED IN ANY WAY.
WARNING: THE WATER BEING PUMPED WILL BE POLLUTED IF THIS PUMP
BECOMES DAMAGED AND LUBRICANT WITHIN THE PUMP ESCAPES.

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

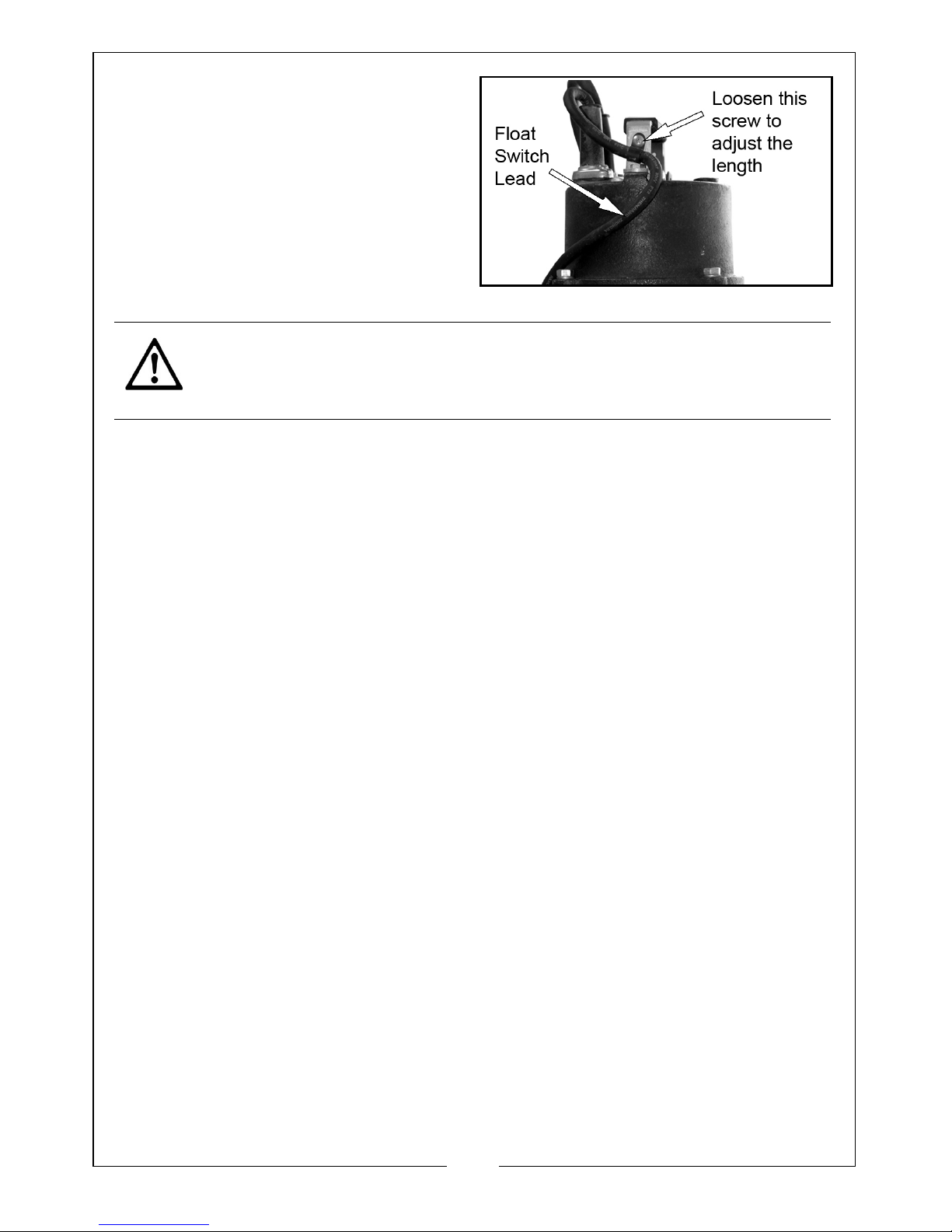

• You can adjust the position at
which the float switch lead is
held to the pump. Adjusting
the length of the float switch
lead will change the depth of
water at which the pump will
turn on or off.
5. When the pumping is finished,
disconnect the pump from the
mains power supply.
OVERLOAD SWITCH
These pumps are fitted with a thermal overload switch. If the pump overheats
for any reason, it will automatically switch the pump OFF. Once the pump has
cooled (at least 5-10 minutes), it will automatically restart.
CAUTION: DO NOT ALLOW THE PUMP TO RUN DRY

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
MAINTENANCE
This pump should require no maintenance other than regular cleaning.
If the pump starts to show signs of wear or damage, contact your CLARKE
dealer for advice.
CLEANING
1. Check the pump installation regularly to ensure the water inlet is clear of
leaves or other debris.
2. Take extra care to remove any debris from around the impeller.
NOTE: Do not attempt to repair the pump yourself. Repairs must be carried
out by your CLARKE dealer, or contact the CLARKE Service
Department.
STORAGE
When the pump is not being used for extended periods, clean and dry it
thoroughly and store it indoors. If the pump is left in water, it must be run at
least once a week to prevent it from seizing up.
SPECIFICATIONS
WARNING: BEFORE CHECKING THE CONDITION OF THE PUMP, ENSURE IT
IS UNPLUGGED FROM THE MAINS SUPPLY. IF THE UNIT IS HARD WIRED,
ENSURE THE CIRCUIT BREAKER IS OPEN.
HSEC650A HSEC651A HSEC1400A
Part Number 7230290 7230295 7230243
Outlet Diameter 2“BSP (inc 2”BSP to 50 mm Hose Adaptor)
Voltage 230V/50hz 110V/50Hz* 230V~50Hz
Motor Wattage@ max flowrate 665W 665W 1400 W
Fuse Rating (amps) 13 13
Cable length (m) 10 10 10
IP Rating IP68 IP68 IP68
Max. Head (m) 9.5m 9.5m 13 m
Dimensions (D x W x H) mm 240 x 180 x 420 240 x 180 x 420 228 x 305 x 478
Weight 17 17 29.85.5 kg
Maximum Depth 5m 5m 6 m

8
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
TROUBLESHOOTING
If this does not solve your problem, please contact the Clarke service
department.
PROBLEM SOLUTION
PUMP WILL
NOT START
1. Make sure that the power is switched on.
2. Check fuse (consult an electrician if in doubt).
3. If extension lead is fitted, check connections (consult an
electrician if in doubt).
4. Internal thermal cut-out has not re-set. Leave for 5-10
minutes and try again.
5. The impeller may be jammed. Disconnect from the mains
supply and remove any objects that may be obstructing
the impeller.
6. Float switch may be jammed against side wall, or
prevented from moving.
7. Water level too low - float switch in OFF position - lift float
to check switch.
8. If the pump still fails to start, consult your CLARKE dealer
for advice.
PUMP WILL
START BUT NOT
PUMP
1. Check that the inlet is not blocked.
2. Check that the discharge tube is not clogged or
obstructed.
3. The head may be too great, i.e. you are trying to lift the
water too great a distance for the pump to cope with.
(“Specifications” on page 7).
4. Air bubble in the pump, produced during the plunge.
Plunge the pump again, at an angle, and shake it whilst
lowering to remove any air trapped in the system.
5. Impeller may be damaged - Consult your CLARKE dealer.
PUMP WILL
NOT STOP
1. Float switch may be prevented from moving to the fully
down position.
2. Float switch may be faulty. Consult your CLARKE dealer
for advice.
PUMP STOPS
RUNNING
1. Thermal overload has operated. Leave for 5-10 minutes
and try again.
2. Pump has run dry, or float switch has cut in.
3. A foreign object has jammed the impeller.

9
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS DIAGRAM HSEC1400A

10
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS LIST HSEC1400A
Part number = (HGHSE14 + the number of the part)
1 Motor Cover 20 O-ring (Oil Hole)
2 Motor Housing 21 Gasket (Leak Test Hole)
3 Rotor 22 Gasket (Flange)
4 Stator (240V/50HZ) 23 Gasket (Cable)
5 Bearing Cover 24 Flange
6 Oil Seal Cover 25 Hose tail
7 Pump Housing 27 Handle
8 Cutter Impeller (50HZ) 28 Float Switch
9 Strainer 29 Power Cable Set
10 Capacitor 33 Cable Clamp
12 Upper Bearing 34 Cable Fastener
13 Lower Bearing 35 Screw (Cable Clamp)
14 Double Mechanical Seals 36 Screws (Cable)
15 Key 37 Screws (Motor Housing)
16 Oil Seal 40 Screws Strainer)
17 O-ring (Motor/Bearing Cover) 41 Screw (Flange)
18 O-ring (Pump Housing) 42 Nut (Cutter Impeller)
19 O-ring (Oil Seal Cover) 45 Spring Washer (Cutter Impeller)

11
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS DIAGRAM HSEC650A/651A

12
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS LIST HSEC650A/651A
No HSEC650A HSEC651A DESCRIPTION
1 HG650A01 HG651A01 Upper Cover
2 HG650A02 HG651A02 Top Bearing Cover
3 HG650A03 HG651A03 Motor Housing
4 HG650A04 HG651A04 Stator
5 HG650A05 HG651A05 Rotor
6 HG650A06 HG651A06 Seal Cover
7 HG650A07 HG651A07 Seal Plate
8 HG650A08 HG651A08 Impeller
9 HG650A09 HG651A09 Pump Casing
10 HG650A10 HG651A10 Strainer
11 HG650A11 HG651A11 Top Bearings
12 HG650A12 HG651A12 Lower Bearing
13 HG650A13 HG651A13 Double Mech Seal
14 HG650A14 HG651A14 Oil Seal
15 HG650A15 HG651A15 Sleeve
16 HG650A16 HG651A16 Lock Ring
17 HG650A17 HG651A17 Capacitor
18 HG650A18 HG651A18 Float Switch
19 HG650A19 HG651A19 Power Cable
20 HG650A20 HG651A20 Handle
21 HG650A21 HG651A21 Packing
22 HG650A22 HG651A22 O-Ring
23 HG650A23 HG651A23 O-Ring
24 HG650A24 HG651A24 O- Ring
25 HG650A25 HG651A25 Nut

13
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
DECLARATION OF CONFORMITY

14
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
DECLARATION OF CONFORMITY

15
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
DECLARATION OF CONFORMITY
