Clayton GS-1350 Guide

March 2021
WARNING
Respiratory protection is recommended
operating this equipment.
WARNING
Eye protection is required when operating this
equipment.
WARNING
Hearing protect is recommended when
operating this equipment.
WARNING
Read and understand operator’s manual before
using this equipment.
SAFETY LEGEND
WARNING
Safety – Operation – Maintenance
Keep this document in a safe place
Read and understand this manual before operating your air tool
• The proper HEPA and Panel Filters from Clayton Associates must be installed in the GS-1350 at all times.
• The GS-1350 must be used with the supplied or recommended accessories from Clayton Associates.
• Any alteration to the GS-1350 by a third party will nullify its warranty.
• Always lock the brakes on the GS-1350 once positioned so that it does not roll.
HEPA Grinding Station
High‑Flow HEPA Filtration System
Models with Prex: GS-1350
Designed for the collection of sanding and grinding dust.
Scan this QR code for
online instructions and
documentation, or visit
www.ClaytonHowTo.com

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 2
TABLE OF CONTENTS
Table Of Contents................................................................................................................2
Important Safety Instructions...............................................................................................3
Applications & Environments...............................................................................................4
What’s Included ...................................................................................................................4
Specications & Requirements............................................................................................5
Getting Started ....................................................................................................................5
Before Each Use .................................................................................................................7
Panel Filter Replacement ....................................................................................................8
HEPA Filter Replacement ....................................................................................................9
Routine Maintenance.........................................................................................................12
Illustrated Parts Breakdown...............................................................................................13
Limited Lifetime Warranty Terms And Conditions ..............................................................19

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Page 3
Repair or Warranty Contact
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
When using an electrical appliance, basic precautions should always be followed, including the following:
WARNING
To reduce the risk of re, electric shock, or injury:
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
• This unit is to be used only indoors and in a dry location.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors,
or dropped into water, return it to a service center.
• Handle provided on power head is used only for removal of power head during maintenance.
• Before separation of power head from tank, users must disengage draw latches on tank.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
• Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may
reduce air ow.
• Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.
• Turn o all controls before unplugging.
• Do not use to pick up ammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Connect to a properly grounded outlet only. Refer to “EARTHING/GROUNDING INSTRUCTIONS” on page 3.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without all lters in place.
• Do not allow to be used as a toy. Close attention necessary when used by or near children.
EARTHING/GROUNDING INSTRUCTIONS
This appliance must be earthed/grounded. If it should malfunction or breakdown, earthing/grounding provides a path of least resistance
for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-earthing/grounding
conductor and earthing/grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and earthed/grounded in
accordance with all local codes and ordinances.
WARNING – Improper connection of the equipment-earthing/grounding conductor can result in a risk of electric shock. Check with a qualied
electrician or service person if you are in doubt as to whether the outlet is properly earthed/grounded. Do not modify the plug provided with the
appliance – if it will not t the outlet, have a proper outlet installed by a qualied electrician.
Refer to Name Plate for electrical requirements.
• USA 120V
This appliance has a earthing/grounding attachment plug that looks
like the plug illustrated in Figure 1. Make sure that the appliance is
connected to an outlet having the same conguration as the plug. No
adapter should be used with this appliance.
SAVE THESE INSTRUCTIONS
Figure 1: Earthed/Grounded Outlet and Plug
IMPORTANT SAFETY INSTRUCTIONS

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 4
• Designed for general and hazardous dust.
• Dry recovery only.
Do not use this equipment to collect combustible dust.
• GS‑1350 Grinding Station
Consumables
Use only the following Clayton consumables:
• 627‑1350PM08 – Panel Filter 30 in x 13 in MERV 8;
• 627‑1350PM13 – Panel Filter 30 in x 13 in MERV 13;
• 627-1350H – HEPA Filter 14 in x 30 in (2 required).
GS-1350_00

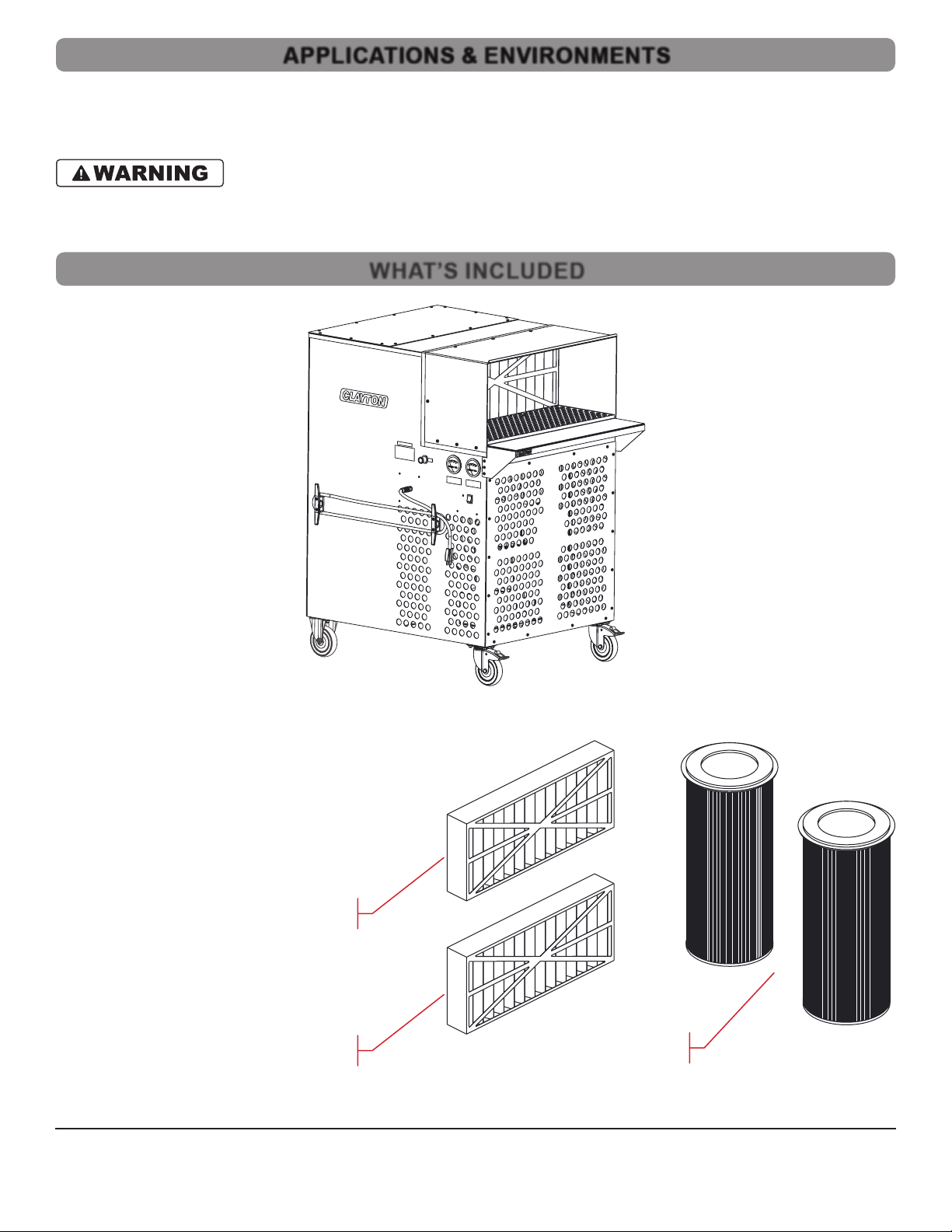

WHAT’S INCLUDED
Stage 2
MERV 13 Filter
Stage 1
MERV 8 Filter
Stage 3 HEPA
Filter (qty. 2)
GS-1350_009
APPLICATIONS & ENVIRONMENTS

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 5
Weight .......................................................................................................................................................................................... TBD lbs (TBD kg)
Dimensions (W x D x H) ......................................................................................................30.70 x 43.00 x 51.66 in (77.98 x 109.22 x 131.22 cm)
HEPA Filter Eciency.......................................................................................................................................................99.995% @ 0.3 μm (H14)
Panel Filter Eciency ............................................................................................................................................................. MERV 8 @ 10 micron
Panel Filter Eciency .......................................................................................................................................................... MERV 13 @ 0.3 micron
Sounds Pressure Level ............................................................................................................................................................................... <70 dBA
Power Consumption ........................................................................................................................................................................ 120VAC~ 13.5A
Flow.....................................................................................................................................................................................1300 CFM (204 SCMH)
Vacuum Suction.........................................................................................................................................................................120 in/H
2
O (30 kPa)
1. Using a forklift, carefully remove the Grinding Station from the shipping pallet.
2. Visually inspect the Grinding Station to ensure that no parts are missing or damaged.
GETTING STARTED
Place forks
here to lift
GS-1350_002
SPECIFICATIONS & REQUIREMENTS

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 6
3. Familiarize yourself with the Grinding Station.
Panel Filter
Gauge
HEPA Filter
Gauge
Gauge
Vent
Power
Cord
Lexan
Shield
Debris
Tray
HDPE Work
Surface
Shelf
Power
Switch
GS-1350_001
GETTING STARTED

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 7
4. The Grinding Station requires a DEDICATED 120VAC, 20A circuit equipped with NEMA 5-20R receptacles.
• Do not attempt to plug the Grinding Station into a standard 15A receptacle.
CAUTION:!You must wait 60 seconds after shutdown before restart.
Failure to wait 60 seconds may trip electrical breaker.
5. Always keep the Gauge Vent clear.
6. Cleaning the Lexan Shield
• Only use a mild soap/detergent, lukewarm water, and a clean sponge or a soft cloth.
• Never use ammonia, vinegar, alcohol, or similar cleaners.
7. The following customer-provided tools and items are required to perform other routine maintenance procedures:
• T25 TORX® Driver;
• Anti‑seize compound.
Prepare the Grinding Station for Use
• Verify the power switch on the Grinding Station is in the OFF position before proceeding.
• Always engage the two (2) front wheel brakes to prevent the Grinding Station from rolling.
1. Unwind the power cord (stored on the side of the chassis) and insert the plug into an appropriate power source.
2. Check the Filters.
• Turn the Grinding Station power switch to the ON position.
• Wait 10 seconds for the blower to stabilize.
• If the Panel Filter Gauge exceeds 0.8 refer to “Replace the Panel Filters” on page 8.
• If the HEPA Filter Gauge exceeds 1.0 refer to “Replace the HEPA Cartridge Filters” on page 9.
NEMA 5-20
Receptacles
GS-1350_003
BEFORE EACH USE
GETTING STARTED

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 8

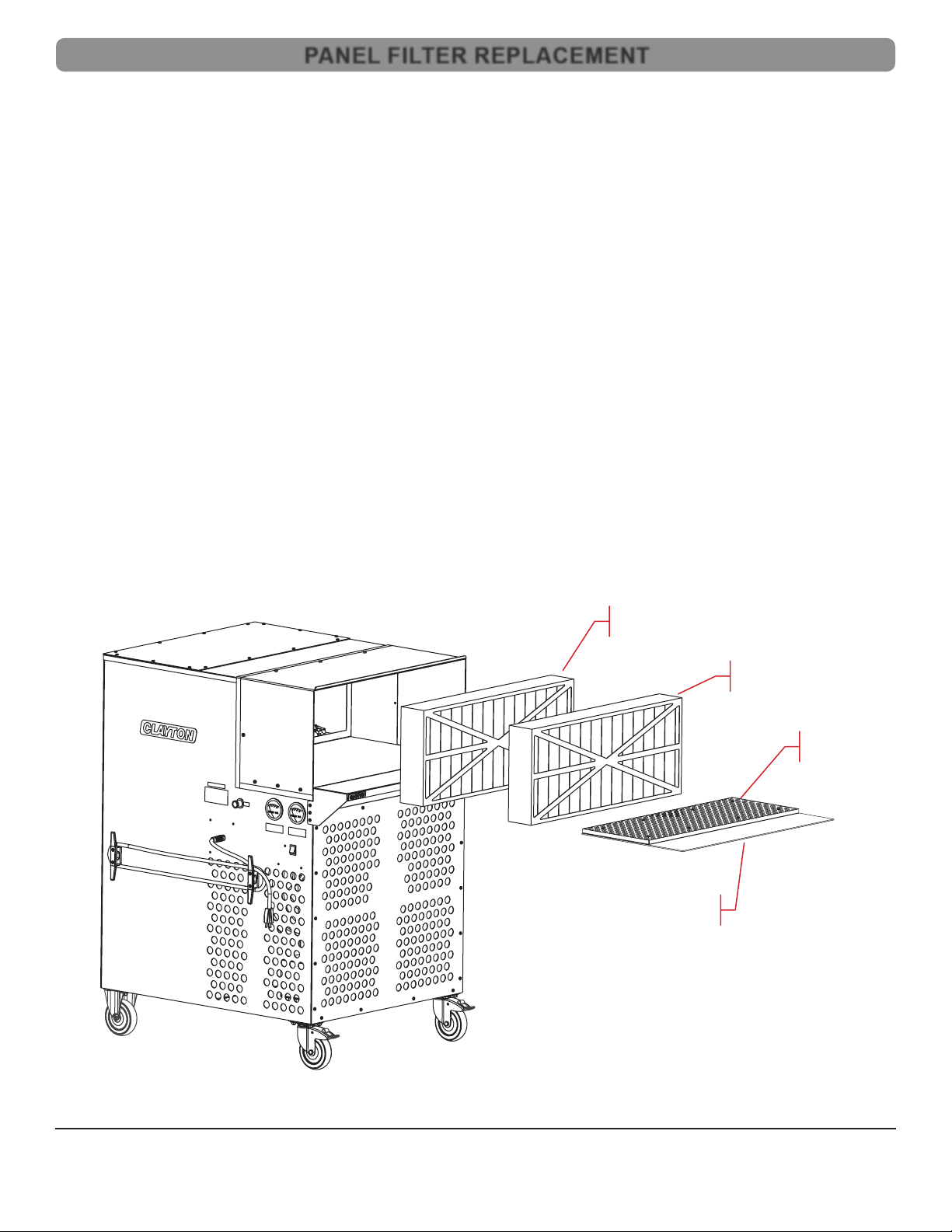

Replace the Panel Filters
• If the Panel Filter Gauge exceeds 0.8, replace the Panel Filters, one at a time, starting with the Stage 1 Filter.
1. Safe the Grinding Station
• Deactivate the Grinding Station.
• Disconnect the Grinding Station from the power source.
2. Remove the Debris Tray.
• Slide the Debris Tray out and set aside.
3. Remove the HDPE Work Surface
• Slide the HDPE Work Surface out and set aside.
4. Remove the Stage 1 MERV 8 Panel Filter.
• Grasp the lter pleats and carefully slide the Stage 1 Filter out and set aside.
5. Install a new Stage 1 MERV 8 Filter.
• Slide a new Stage 1 Filter in until it is ush with the Stage 2 Filter.
6. Test the Panel Filters.
• Connect the Grinding Station to an appropriate power source.
• Activate the Grinding Station.
• Wait 10 seconds for the blower to stabilize.
• Check the Panel Filter Gauge. If it exceeds 0.8, repeat the above procedure to replace the Stage 2 MERV 13 Filter.
7. Insert the HDPE Work Surface.
• Slide the HDPE Work Surface into the chamber.
8. Insert the Debris Tray.
• Slide the Debris Tray into the chamber.
9. Return the Grinding Station to service.
Stage 2
MERV 13
Stage 1
MERV 8
Debris
Tray
HDPE Work
Surface
GS-1350_004
PANEL FILTER REPLACEMENT

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 9
Replace the HEPA Cartridge Filters
• If the HEPA Filter Gauge exceeds 1.0 replace the two Stage 3 HEPA Cartridge Filters.
1. Safe the Grinding Station.
• Deactivate the Grinding Station.
• Disconnect the Grinding Station from the power source.
2. Remove the HEPA Filter Compartment Cover.
• Use a T25 TORX driver to remove the fourteen (14) 10-32 x 3/8” TORX screws securing the HEPA Filter Compartment Cover to the
chassis.
• Remove the cover and set aside.
GS-1350_005
TORX 10-32 x 3/8”
(qty. 14)
HEPA Filter
Compartment Cover
HEPA FILTER REPLACEMENT

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 10
3. Disengage eight (8) Toggle Latches to release the two (2) HEPA Filters.
• The HEPA Filter are accessed via the top of the Grinding Station.
• Lift the red handle on each toggle latch to disengage the latch.
4. Remove the two (2) HEPA Filters from the Filter Compartment.
• Carefully lift each cartridge up and out of the Filter Compartment.
GS-1350_006
Stage 3
HEPA
Stage 3
HEPA
Toggle Latch
(qty. 8)
Front View [Partial] of Grinding Station Showing
8 Toggle Latches Securing Stage 3 HEPA Filters
HEPA
Filter
HEPA
Filter
GS-1350_007
HEPA FILTER REPLACEMENT

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 11
5. Install two (2) new HEPA Filters.
• Carefully slide each cartridge into the HEPA Filter Compartment until rmly seated.
• When properly seated, engage each of the eight (8) Toggle Latches by pressing down/lifting up the red handle.
6. Replace the HEPA Filter Compartment Cover.
• Position the HEPA Filter Compartment Cover on the chassis, lining up all mounting holes.
• Apply a small amount of anti‑seize compound to each screw before inserting into the HEPA Filter compartment cover.
• Use the T25 TORX driver to secure the cover to the chassis using the fourteen (14) 10-32 x 3/8” TORX screws removed in Step 1.
7. Test the HEPA Filters.
• Connect the Grinding Station to an appropriate power source.
• Activate the Grinding Station.
• Wait 10 seconds for the blower to stabilize.
• Check the HEPA Filters Gauge.
8. Return the Grinding Station to service.
HEPA FILTER REPLACEMENT

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 12

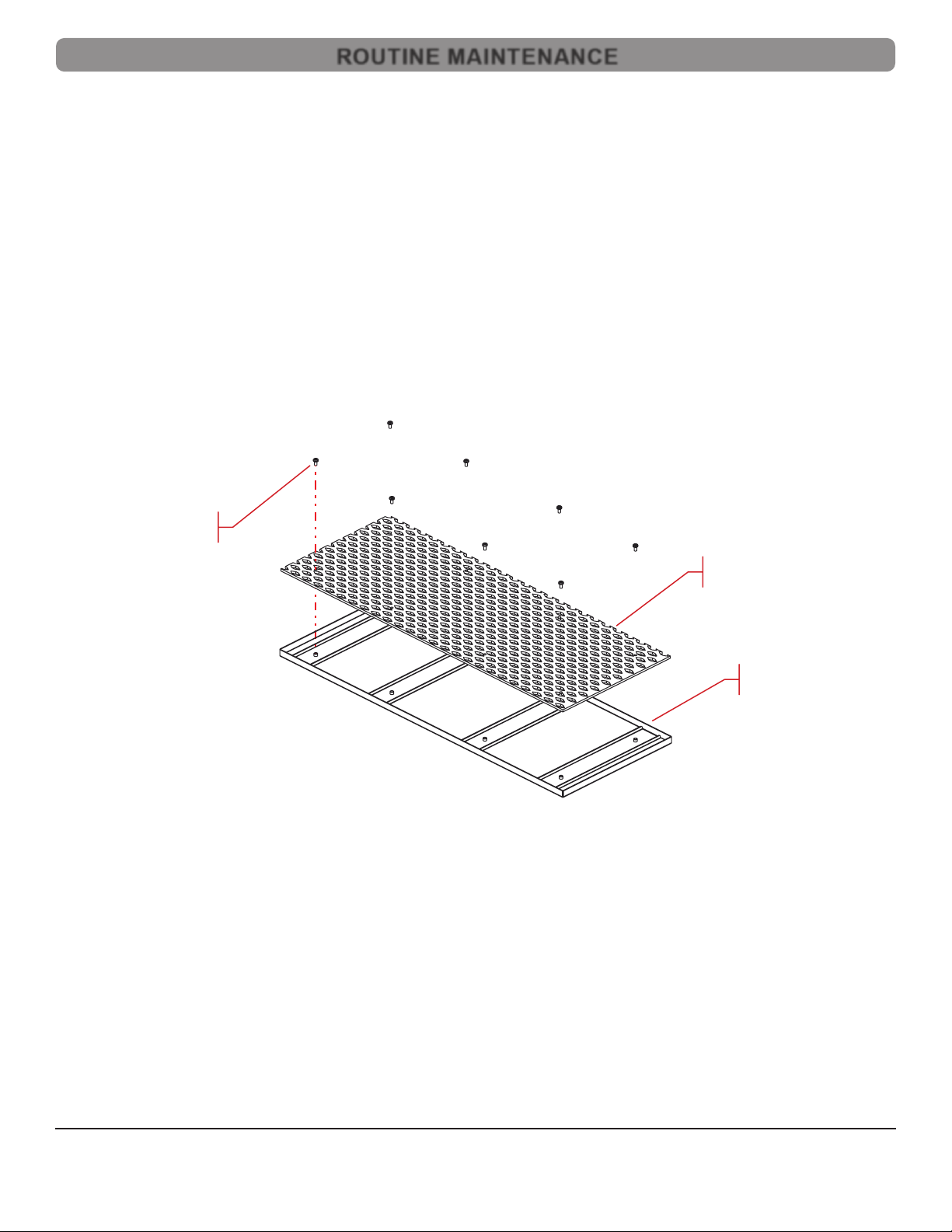

Clean/Empty the Large Debris Tray:
1. Remove the Debris Tray.
• Slide the Debris Tray out.
2. Remove the Mesh insert.
• Use the T25 TORX driver to remove the eight (8) 10-32 x 3/8” TORX screws securing the mesh insert to the tray.
3. Clean the Mesh Insert.
4. Empty the tray of any debris.
5. Clean the mesh insert and/or the tray as needed.
• Replace tray and/or mesh insert as required.
6. Insert mesh into the tray.
• Verify mounting holes line up.
• Use the T25 TORX driver to secure the mesh insert to the tray using eight (8) 10-32 x 3/8” TORX screws.
7. Insert the Debris Tray.
• Slide the Debris Tray into the chamber.
Remove/Replace HDPE Work Surface
1. Remove Debris Tray.
• Slide the Debris Tray out.
2. Remove the HDPE Work Surface.
• Slide the HDPE Work Surface out.
3. Examine the HDPE Work Surface.
• Wipe down and/or use isopropyl alcohol to clean the Work Surface. Replace the Work Surface with a new item if it is worn/damaged.
4. Insert the HDPE Work Surface.
• Slide the HDPE Work Surface into the chamber.
5. Insert the Debris Tray.
• Slide the Debris Tray into the chamber.
10-32 x 3/8”
TORX Screws
(Qty 8)
Mesh
Insert
Debris
Tray
GS-1350_008
ROUTINE MAINTENANCE

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 13
ILLUSTRATED PARTS BREAKDOWN
ILLUSTRATED PARTS BREAKDOWN
GS-1350
SEQ ITEM NO DESCRIPTION
1 602-2004 HDPE 17.75 X 30.7 X 1/8 FOR GRINDING STATION
2 610-202I GRINDING STATION 1350 TRAY
3 610-202J GRINDING STATION 1350 TRAY MESH
4 610-202K GRINDING STATION 1350 WORK SURF EXT
5 985-009 LABEL, CLAYTON LOGO, DOMED 1.5 X 3
6 SE103206-XPSM-Z SCREW 10-32 X 3/8IN SS TORX
GS-1350_010
1
2
3
4
5
6
6

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 14
ILLUSTRATED PARTS BREAKDOWN
ILLUSTRATED PARTS BREAKDOWN
GS-1350
SEQ ITEM NO DESCRIPTION
1
610-202C GRINDING STATION 1350 COVER
2
610-202G LEXAN SHIELD FOR 1350 GRINDING STATION
3
NE10320608-HNSZ NUT 10-32 NYLON LOCK SS SHORT
4
SE103206-XPSM-Z SCREW 10-32 X 3/8IN SS TORX
GS-1350_011
1
2
4
3

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 15
ILLUSTRATED PARTS BREAKDOWN
ILLUSTRATED PARTS BREAKDOWN
GS-1350
SEQ ITEM NO DESCRIPTION

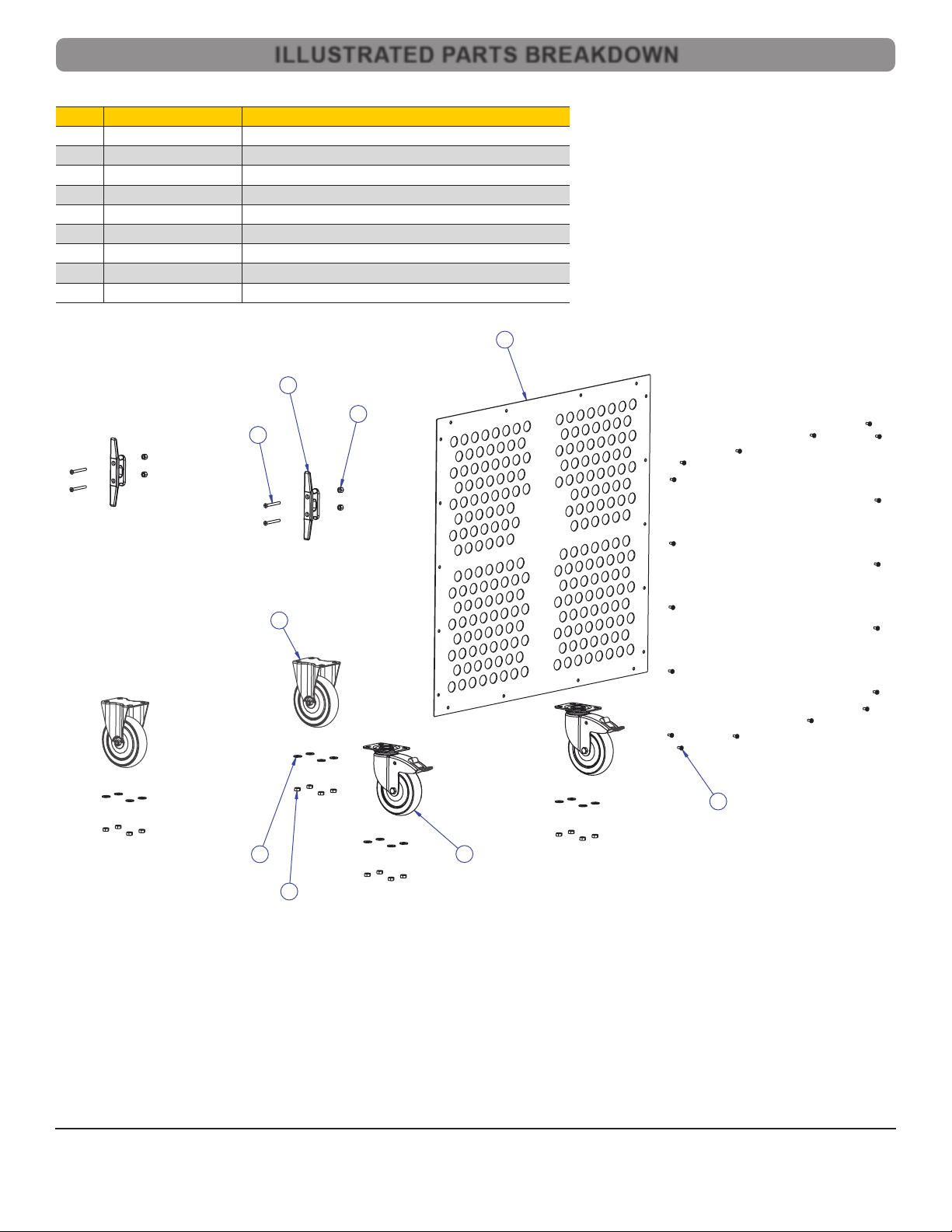

1 701-05-001SL CASTER 5IN SWIVEL LOCKING
2 701-05-001R CASTER FIXED 5IN NON-LOCKING
3 610-202D GRINDING STATION 1350 DOOR
4 650-013 CLEAT BLACK NYLON
5 NE12241420-HNSZ NUT 12-24 NYLON LOCK SS
6 NE20180815-HNSZ NUT,NYLON LOCK 5/16-18 HEX JAM SS
7 SE103206-XPSM-Z SCREW 10-32 X 3/8IN SS TORX
8 SE122432-PFSM-Z SCREW 12-24 X 2IN FLAT HEAD PHILLIPS SS
9WE204804-RFS-Z WASHER .313ID X .750OD .063H ROUND STAINLESS
GS-1350_012
1
2
3
4
5
6
7
8
9

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 16
ILLUSTRATED PARTS BREAKDOWN
ILLUSTRATED PARTS BREAKDOWN
GS-1350
SEQ ITEM NO DESCRIPTION
1
150-032 OUTLET, WALL MOUNT NEMA 5-20R SINGLE, SCREW ON TERMINALS
2
150-032B OUTLET COVER, WALL MOUNT NEMA 5-20R SINGLE ROUND OUTLET
3
350-023 STRAIN RELIEF FOR 20 AMP CORD
4
610-202E GRINDING STATION 1350 ELEC BOX
5
900-014 JUMPER WIRE, GROUNDING W RING TERM
6
900-018 FLAG QUICK DISCONNECT TERM .250 X .032 14-16 AWG
7
900-023 SWITCH 20 AMP LIGHTED
8
900-143N520P-30 CORD 14/3 20A PLUG 30FT YEL
9
900-WAG-221-412 WAGO 2 WIRE CONNECTOR
10
900-WAG-221-413 WAGO 3 WIRE CONNECTOR
11
NE10320608-HNSZ NUT 10-32 NYLON LOCK SS SHORT
12
3
4
5
6
7
8
9
9
10
11
11
GS-1350_013

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 17
ILLUSTRATED PARTS BREAKDOWN
ILLUSTRATED PARTS BREAKDOWN
GS-1350
SEQ ITEM NO DESCRIPTION
1 922-T.516R TUBING, 5/16 IN., RED, PER FOOT
2 925-D40R001-01 GAUGE DIFF PRESSURE 2.5IN 0-1IN H2O PANEL MOUNT
3 926-GS06B GS FILTER HOLDER 3/8IN
4 926-GS06E GS FILTER ELEMENT 3/8IN
5 927-05BH FTG 5/16 PC BULKHEAD
6 927-05MA-06 3/8 PC X 5/16 TUBING
7 927-05T TEE, 5/16 PC
8 930-136 ZIP TIE BLACK 8-1/2IN WITH MOUNTING HOLE
9NE08321115-HNSZ NUT 8-32 X 11/32 LOCK NYLON SS
1
2
2
3
4
5
5
5
6
7
8
9
GS-1350_014

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Page 18
ILLUSTRATED PARTS BREAKDOWN
ILLUSTRATED PARTS BREAKDOWN
GS-1350
SEQ ITEM NO DESCRIPTION

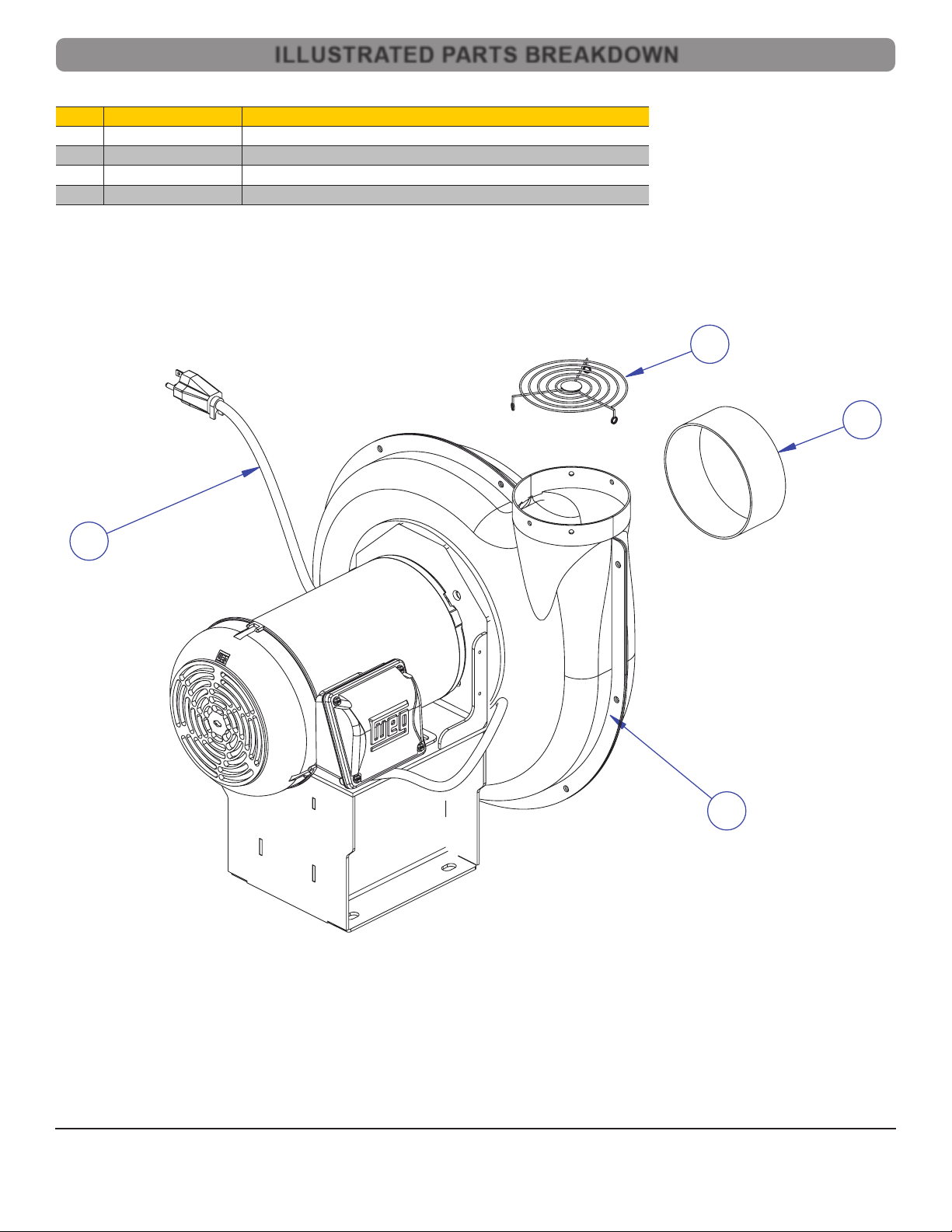

1 600-SPB10-1 CIN FAN SPB-10 ARRANGEMENT 4
2 900-123N520P-04 CORD 12/3 20A CORD LOCK PLUG, 48IN LONG 5IN STRIP BLACK
3 921G-80SC03 SLIP COUPLING, 5IN ID X 3IN L, ALUMINUM
4 600-SP10-3 TBD
GS-1350_015
1
2
3
4

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Page 19
Repair or Warranty Contact
Warranty Terms
Clayton Associates, Inc. guarantees its manufactured products against defects in materials or workmanship and will either repair or replace
all parts that prove defective under normal use during the lifetime of the products. The warranty period shall commence from the date of paid
invoice.
This warranty does not cover (a) repairs due to normal wear, accident, neglect, misuse, or use other than as indicated in the instruction booklet
(b) products manufactured by third parties and distributed by Clayton (c) wear items such as bearings, rotor blades, regulators, valve stems,
levers, shrouds, guards, O‑rings, seals, gaskets, motor brushes, and other wearable parts.
Repair within the Continental US
During the rst 90 days of the warranty period, Clayton will provide parts and labor to the customer’s site at no charge or pay freight costs
associated with returning the products for repair to a Clayton selected service location and repair the product at no charge. Clayton personnel
will determine the best way to repair the product.
Past 90 days, Clayton will provide parts to the customer’s site at no charge or the customer may ship the product to a Clayton selected service
location at customer’s expense and Clayton will repair the product at no charge and provide return shipping.
Repair Outside the Continental US
Clayton will provide parts to the customer’s site at no charge or the customer may ship the product to a Clayton selected service location at
customer’s expense and Clayton will repair the product at no charge and provide return shipping.
Limitation of Liability
Clayton shall not in any event be liable for any damages, loss of production time or prots, whether based on contract, warranty, negligence,
strict liability or otherwise, including without limitation any consequential, incidental or special damages, arising with respect to the equipment
or its failure to operate.
Clayton Associates, Inc. makes no other warranty or representation of any kind, except that of title, and all other warranties, express or implied,
including warranties of merchantability or tness for any particular purpose, are hereby expressly disclaimed.
LIMITED LIFETIME WARRANTY TERMS AND CONDITIONS

Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
Repair or Warranty Contact
Clayton products are proudly made in the USA
Table of contents
Other Clayton Laboratory Equipment manuals
