Clayton CF700M Quick start guide

TM
This manual includes Installation and
operation instructions for the Model
CF700M Furnace utilizing the listed
operational types:
1. Wood add-on
2. Wood only
Owner’s Installation and Operation Manual
Model CF700M
Installation is to be preformed by a
qualied installer.
SAVE THESE INSTRUCTIONS
This unit is certied UL 391
United States Stove Company
227 Industrial Park Rd.
South Pittsburg, TN 37380 852511-0804F
U.S. ENVIRONMENTAL PROTECTION AGENCY
Certied to comply with the 2016 particulate
emission standards. Not approved for sale after
May 15, 2020

2
CAUTION:
• The warm air supply outlet of the supplementary furnace shall not be connected to the cold-air return inlet
of the central furnace because a possibility exists of components of the central furnace overheating and
causing the central furnace to operate other than as intended.
• Power source not controlled by furnace main disconnect.
• Respect all local and national codes when installing this unit.
• This unit is not to be connected to a chimney ue serving another appliance.
• This unit is designed to burn solid hardwood only.
40.73
38.39
26.07
1.97
33.63
28.01
40.73
38.39
26.07
1.97
33.63
28.01

3
Combustible : Wood
Flue Pipe Diameter : 6” (153cm)
Flue Pipe Type: (Standard Single Wall or Double Wall): Black or Blued Steel 2100°F (650°C) Class “A”
Minimum Chimney Height : 12’
Maximum Log Length : 22”
Electrical 120V, 60Hz, 1.8A per blower (5.6A on start up)
Dimensions
Combustion Chamber :
Width x Depth :
18.5” x 22” (469mm x 558mm)
Volume :
Cubic Feet:
3.6 cubic feet
Door Opening : Width x Height: 13.6” x 9.8” (345mm x 248mm)
Pyroceramic Glass Door : (Viewing) Width x Height: 13” x 10.75” (330mm x 273mm)
Weight (lbs): 470
Specications
CONGRATULATIONS!
You’ve purchased a heater from North America’s oldest manufacturer of wood burning products.
By heating with wood you’re helping to CONSERVE ENERGY!
Wood is our only Renewable Energy Resource. Please do your part to preserve our wood supply. Plant at least
one tree each year. Future generations will thank you.
This manual describes the installation and operation of the Clayton, CF700M
wood heater. This heater meets the 2017 U.S. Environmental Protection
Agency’s emission limits for wood heaters sold after May 15, 2016. Under
specic EPA test conditions this heater has been shown to deliver heat at a
rate of 20,568 – 64,166 BTU/hr. This heater achieved a particulate emissions
rate of 0.408 lb/mmBtu when tested to method CSA B415.1-10 (*and an overall
efciency of 70.8 %.) The maximum overall heat output of this heater was
tested to be 108,758 Btu/hr.
This wood heater has a manufacturer-set minimum low burn rate that must not be altered. It is against federal
regulations to alter this setting or otherwise operate this wood heater in a manner inconsistent with operating
instructions in this manual.
The operation of this wood heater in a manner inconsistent with the owner’s manual will void you warranty and
is also against federal regulations.
This heater is designed to burn natural wood only. Higher efciencies and lower emissions generally result when
burning air dried seasoned hardwoods, as compared to softwoods or to green or freshly cut hardwoods.
This wood heater needs periodic inspection and repair for proper operation. It is against federal regulations to
operate this wood heater in a manner inconsistent with operating instructions in this manual.
0215WS044E
Note: Register your product on line at www.usstove.com. See “Limited Warranty” section for specic warranty
information for your new purchase. Save your receipt with your records for any claims.

4
Safety
• Do not operate with fuel loading or ash removal doors open.
• Do not connect this unit to a chimney ue serving another appliance.
• Danger: Risk of re or explosion. Do not burn garbage, gasoline, naphtha, motor oil, or other inappropriate
materials. Do not use chemicals or uids to start the re.
• Warning: Risk of re. Do not operate with ue draft exceeding .060” water column/14.93 Pascals. Do not
operate with fuel loading and ash removal doors open. Do not store fuel or other combustible materials
within marked installation clearances. Inspect and clean ues and chimney regularly.
• Caution: Hot surfaces. Keep children away. Do not touch during operation.
• The heat exchanger, ue pipe, and chimney must be cleaned regularly to remove accumulated creosote
and ash. Ensure that the heat exchanger, ue pipe, and chimney are cleaned at the end of the heating
season to minimize corrosion during the summer months. The appliance, ue pipe, and chimney must be
kept in good condition. These instructions also apply to a draft inducer if used. To prevent ame or smoke
spillage, the slide bafe must be pulled out and the fuel loading door left cracked for 10 seconds prior to
opening door fully. Load fuel carefully or damage may result.
• Hot while in operation. Keep children, clothing and furniture away. Contact may cause skin burns.
• Do not use chemicals or uids to ignite the re.
• Do not leave the furnace unattended when the door is slightly opened.
• Do not burn garbage, ammable uid such as gasoline, naphtha or motor oil.
• Always close the door after the ignition.
• Consult your municipal building department or re ofcials about permits, restrictions and installations
requirements in your area.
• INSPECT FLUE PIPES, FLUE PIPE JOINTS, AND FLUE PIPE SEALS REGULARLY TO ENSURE THAT SMOKE AND FLUE
GASES ARE NOT DRAWN INTO, AND CIRCULATED BY, THE AIR-CIRCULATION SYSTEM.
• CAUTION: CLEAN OUT OF THE HEAT EXCHANGER, FLUE PIPE CHIMNEY, AND DRAFT INDUCER, IF USED, IS
ESPECIALLY IMPORTANT AT THE END OF THE HEATING SEASON TO MINIMIZE CORROSION DURING THE SUMMER
MONTHS, CAUSED BY ACCUMULATED ASH.

5
Unpacking And Preassemble
UNPACKING
1. Remove all packaging from the furnace.
2. Remove the supplied tools and parts from the furnace.
A. The supplied ash shovel and poker from the heat exchanger tube, behind the heat exchanger door at
the top of the unit.
BRICK ALIGNMENT
Inspect for any damage. Ensure that the bricks and ash plug are positioned correctly and not broken (see
illustration for proper brick arrangement).
TOOLS AND MATERIALS NEEDED FOR INSTALLATION
The following is a list of tools and materials needed to install your furnace.
• 7/16” socket wrench.
• 5/16” socket (Best if using a power drill and a socket bit).
• Pair of pliers or channel-locks.
• Power drill with an 1/8” drill bit to install sheet metal screws into connector pipe..
• Sheet metal screws.
• Non-combustible oor protector as specied in this manual.
• All chimney and chimney connector components required for your particular venting installation..
• Electrical wiring tools and supplies.
• Ductwork for supply and return air.
Proper Fire Brick Alignment

6
Furnace Installation
Dimension Inch mm
ABackwall to Furnace 29 737
BSidewall to Furnace 15 381
CSidewall to Flue 18 458
D Backwall to Flue 18 458
ESupply Duct (rst 6 feet) 6 153
F Supply Duct (after rst 6 feet) 1 26
GMinimum Duct height 8 204
INSTALLATION OPTIONS
The installation of this furnace includes supplying electrical power, return (fresh air) ductwork, and supply air
ductwork. This furnace may be installed in two different congurations.
1. Stand alone wood furnace
2. Add-on wood furnace
See kit installation section in this manual to ensure proper assembly, installation and operation of your new
furnace.
If installing in an area with a fan it should not be allowed to create negative pressure in the room where the
furnace is installed.
LOCATING YOUR FURNACE (INSURE THAT THE REQUIRED MAINTENANCE CLEARANCES ARE MAINTAINED)
Your furnace must be installed as shown in this manual and in compliance with all local and national codes.
It is of the utmost importance that the clearances to combustible materials be strictly adhered to during
installation of the furnace. Refer to the table and diagrams below for minimum required clearances.
Back wall / Arrière Mur
Side wall / Paroi Latérale Side wall / Paroi Latérale
Back wall / Arrière Mur
Ceiling / Plafond
Floor Protector / Protection de Plancher
C
B
A
JK
L
H
E
F
G
D
P
M
Q
N
RR
Back wall / Arrière Mur
Side wall / Paroi Latérale
Side wall / Paroi Latérale
Back wall / Arrière Mur
Ceiling / Plafond
Floor Protector / Protection de Plancher
C
B
A
JK
L
H
E
F
G
D
P
M
Q
N
RR
CLEARANCE TO COMBUSTIBLES
CLEARANCE TO COMBUSTIBLES

7
MAINTENANCE CLEARANCES
Your furnace has recommended minimum maintenance clearance requirements. These clearances insure that
there is adequate room to preform maintenance and service your furnace. DO NOT store fuel within the specied
clearances. The clearances will change depending on what kits are installed with your furnace. See the tables
and diagram below to determine the clearances for your furnace.
Standard unit (no additional kits)
Dimension Inch mm
HMaintenance Clearance (Front) 24 610
J Maintenance Clearance (Left) 10 254
K Maintenance Clearance (Right) 10 254
L Maintenance Clearance (Rear) 29 737
Unit with Blower Kit
Dimension Inch mm
HMaintenance Clearance (Front) 24 610
J Maintenance Clearance (Left) 24 610
K Maintenance Clearance (Right) 24 610
L Maintenance Clearance (Rear) 36 915
Back wall / Arrière Mur
Side wall / Paroi Latérale Side wall / Paroi Latérale
Back wall / Arrière Mur
Ceiling / Plafond
Floor Protector / Protection de Plancher
C
B
A
JK
L
H
E
F
G
D
P
M
Q
N
RR
Back wall / Arrière Mur
Side wall / Paroi Latérale Side wall / Paroi Latérale
Back wall / Arrière Mur
Ceiling / Plafond
Floor Protector / Protection de Plancher
C
B
A
JK
L
H
E
F
G
D
P
M
Q
N
RR
MAINTENANCE CLEARANCE
Dimension Inch mm
M* Front 22 558.8
NFlue rear 251
P** Left 8 204
Q** Right 8 204
RFlue Side 251
FLOOR PROTECTOR REQUIREMENTS
FLOOR PROTECTOR
The furnace must be placed on solid concrete, solid masonry, or when installed on a combustible oor, on a oor
protector. The oor protector is required to provide heat, live ember, and ash protection and must be of a non-
combustible, continuous solid surface to protect against inltration of live embers and ash. Floor protection must
have and R-Value of at least 1.03. Refer to oor protector manufacturer’s instructions for installation directions.
The oor protector or non combustible oor must extend under the furnace and beyond each side as shown
below.

8
Duct Work Installation
We strongly recommend that the hot air ductwork be installed by a home heating specialist. If doing the
installation yourself, before you decide which installation will best suit your needs, consult a qualied heating
technician and follow his recommendations as to the safest and most efcient method of installation.
This furnace can be installed in three ways, as a stand alone unit, parallel, and in series with an existing furnace.
SUPPLY AIR (HOT AIR) PLENUM
The warm-air supply duct shall be constructed of metal in accordance with NFPA 90B, 2-1.1. The plenums installed
to the furnace shall be constructed of metal in accordance with NFPA 90B, 2-1.3.
When installing this furnace the hot air plenum is to have a minimum height of 24” (610mm) if the top of the rst
vertical section is not ush with the top of the rst horizontal section of ductwork. If the top of the plenum is ush
with the top of the rst horizontal section of ductwork then the minium height is 15” (381mm).
RETURN AIR (FRESH AIR)
The return (fresh) air intake on the furnace is on the rear of the unit. The ductwork must be mechanically
attached to the unit or blower kit box with sheet metal screws to ensure a proper operation.
26.25
6.12
Supply Air (Hot Air) Duct Work Outlet Size
Supply Air Plenum Minimum
Height Of 24”
Supply Air Plenum With
Minimum Height Of 15”

9
STAND ALONE INSTALLATION
If installing this furnace as a stand alone unit, ensure all local codes and all instructions in this manual are followed,
including clearance to combustibles, oor protector specications and safety warnings.
PARALLEL FURNACE INSTALLATION
To install the new furnace in parallel with an existing furnace follow the instructions for series installation with a
few additional requirements listed below.
• The return air will duct directly to the return of the new furnace, and not be pulling through any other
furnace.
• The output of the existing furnace must be equal to or greater than this wood furnace.
• If installing in a parallel conguration the ductwork may need adjustments so as to maintain the static
pressure between 0.2” W.C. And 0.05” W.C.
• A back ow damper must be installed in the supply duct work of the new furnace, to ensure that air does
not circulate back through the wood furnace.
• Some installation congurations may require dampers to be installed in the supply duct work of both
furnaces.

10
CENTRAL INSTALLATION
ADD-ON INSTALLATION

11
INSTALLATION A
INSTALLATION B
INSTALLATION C
SOLID FUEL
FURNACE
FILTER BOX
COLD AIR
RETURN
EXISTING
FURNACE
PLENUM
COLLECTOR
BOX
WARM AIR
TO EXISTING
DUCT WORK
SOLID FUEL
FURNACE
FILTER BOX
PLENUM TOP
(OPTIONAL)
EXISTING
FURNACE
COLD AIR
RETURN WARM AIR
TO EXISTING
DUCT WORK
SOLID FUEL
FURNACE
FILTER BOX
EXISTING
FURNACE
COLD AIR
RETURN WARM AIR
TO EXISTING
DUCT WORK
INSTALLATION A
INSTALLATION B
INSTALLATION C
SOLID FUEL
FURNACE
FILTER BOX
COLD AIR
RETURN
EXISTING
FURNACE
PLENUM
COLLECTOR
BOX
WARM AIR
TO EXISTING
DUCT WORK
SOLID FUEL
FURNACE
FILTER BOX
PLENUM TOP
(OPTIONAL)
EXISTING
FURNACE
COLD AIR
RETURN WARM AIR
TO EXISTING
DUCT WORK
SOLID FUEL
FURNACE
FILTER BOX
EXISTING
FURNACE
COLD AIR
RETURN WARM AIR
TO EXISTING
DUCT WORK

12
INSTALLATION D
INSTALLATION E

13
INSTALLATION H
TOP VIEW
FRONT VIEW
INSTALLATION F INSTALLATION G

14
Accessory Installation
THERMODISC
THERMODISC
COVER
4” ELECTRICAL
JUNCTION BOX
BLOWERS
BLOWERS GASKET CLIP NUTS
(Not used in the upper center hole.)
ASSEMBLY OF FURNACE
Your furnace requires the following items to be assembled or installed by the service person:
Blowers and Blower Controls
Electrical Connections
1. Remove all parts from inside the furnace and inspect for damage, including the rebrick as some breakage
could occur during shipment.
2. Install the thermodisc on rear of furnace cabinet with the two screws provided. Mount the conduit assembly
from the junction box to the thermostat bracket. Crimp the two female terminals to each of the wire leads.
Plug the wires to the thermodisc. NOTE: It does not matter which of the two wires plugs to which terminal on
the thermodisc.
3. Remove blowers from cartons. Remove junction box cover. Attach clip nuts as in gure shown. Install
blower(s) and gasket(s with 1/4"-20 x 3/4" bolts as shown.
4. Wire right side blower rst (See wiring diagram) and replace cover on junction box on blower.
5. Wire left blower same as above and replace cover.
6. Check operation of shaker grates with grate handle before operating furnace.

15
Electrical Installation
All electrical connections should be done by a qualied electrician
It is recommended to connect the furnace to its own 15 amp 120 Volt circuit from the house power supply
105°C
NOTE:Wire leads from the distribution blower are usually
BOTH BLACK. Makes no difference which leads from the
motor(s) connects to the corresponding leads coming out of
the conduit.

16
Chimney Installation
CHIMNEY
Your wood furnace may be hooked up with a factory built or masonry chimney, matching the diameter of the
exhaust. If you are using a factory built chimney, it must comply with UL 103 or CSA-B365 standard; therefore
it must be a Type HT (2100°F). It is extremely important that it be installed according to the manufacturer’s
specications.
If you are using a masonry chimney, it is important that it be built in compliance with the specications of the
National Building Code. It must be lined with re clay bricks, metal or clay tiles sealed together with re cement.
(Round ues are the most efcient).
The interior diameter of the chimney ue must be identical to the furnace smoke exhaust. A ue which is too
small may cause draft problems, while a large ue favors rapid cooling of the gas, and hence the build-up of
creosote and the risk of chimney res. Note that it is the chimney and not the furnace which creates the draft
effect; your furnace’s performance is directly dependent on an adequate draft from your chimney.
Do not connect this unit to a chimney ue serving another appliance.
The following recommendations may be useful for the installation of your chimney:
• It must rise above the roof at least 3’ (0.9m) from the uppermost point of contact.
• The exterior portion should be double or triple wall pipe to ensure proper draft.
• The chimney must exceed any part of the building or other obstruction within a 10’ (3.04m) distance by a
height of 2’ (0.6m).
• Installation of an interior chimney is always preferable to an exterior chimney. The interior chimney will be
hotter than an exterior chimney that is being cooled by the ambient air outside the house. Therefore the gas
which circulates will cool slower, thus reducing the build-up of creosote and the risk of chimney res.
• The draft caused by the tendency for hot air to rise will be increased with an interior chimney.
• Using a re screen at the extremity of the chimney requires regular inspection in order to insure that it is not
obstructed thus blocking the draft, and it should be cleaned when used regularly.
IMPORTANCE OF PROPER DRAFT
Draft is the force which moves air from the appliance up through the chimney. The amount of draft in your
chimney depends on the length of the chimney, local geography, nearby obstructions and other factors. Too
much draft may cause excessive temperatures in the appliance. Inadequate draft may cause back pufng into
the room and ‘plugging’ of the chimney. Inadequate draft will cause the appliance to leak smoke into the room
through appliance and chimney connector joints.
An uncontrollable burn or excessive temperature indicates excessive draft.
Take into account the chimney’s location to insure it is not too close to neighbours or in a valley which may
cause unhealthy or nuisance conditions.

17
MASONRY CHIMNEY
Ensure that a masonry chimney meets the minimum standards of the National Fire Protection Association (NFPA)
by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration
and blockage. Have the chimney cleaned before the furnace is installed and operated. When connecting the
furnace through a combustible wall to a masonry chimney, special methods are needed as explained in the
“Combustible Wall Chimney Connector Pass-Throughs” Section.

18

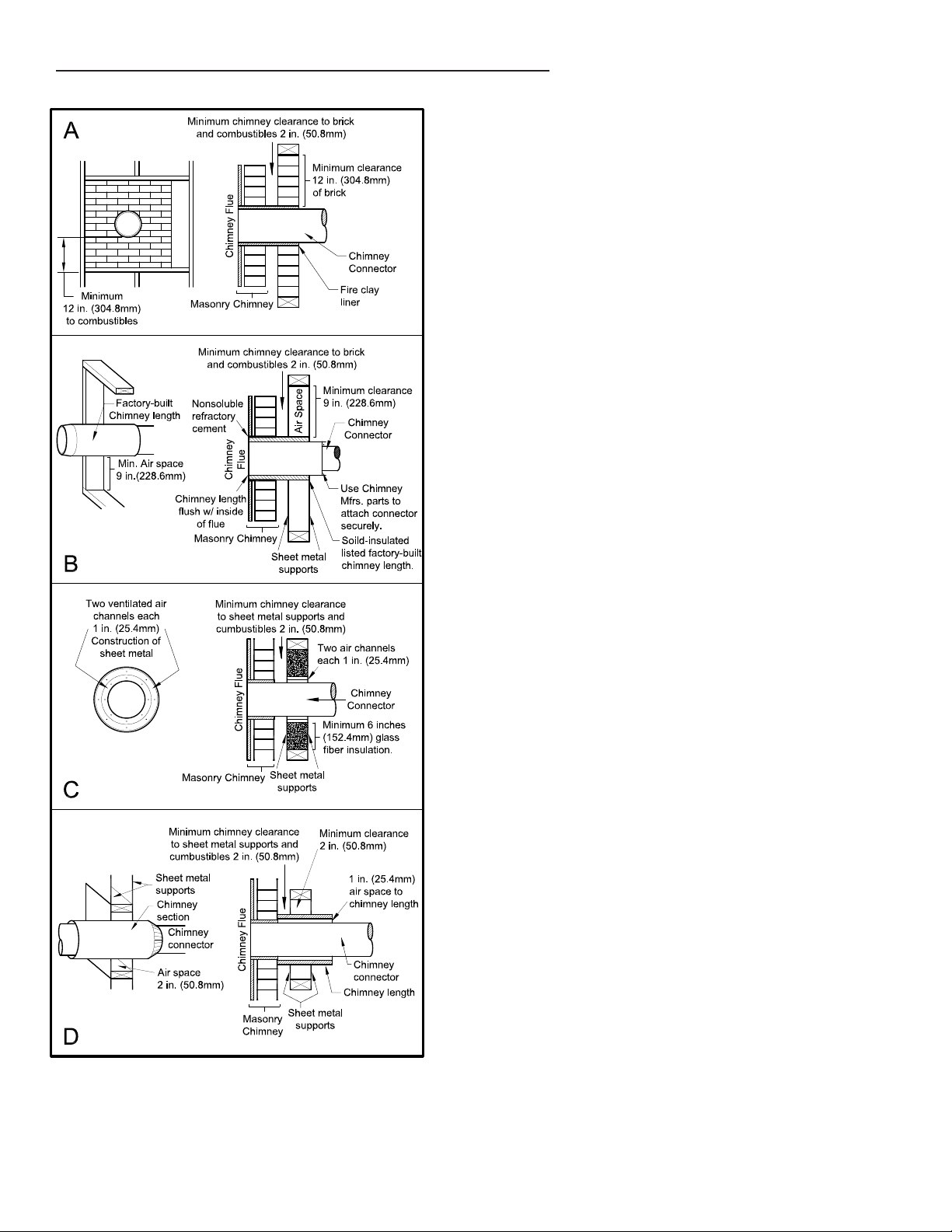

COMBUSTIBLE WALL CHIMNEY CONNECTOR PASS-THROUGHS
Method A. 12” (304.8 mm) Clearance to Combustible Wall
Member: Using a minimum thickness 3.5” (89 mm) brick
and a 5/8” (15.9 mm) minimum wall thickness clay liner,
construct a wall pass-through. The clay liner must conform
to ASTM C315 (Standard Specication for Clay Fire Linings)
or its equivalent. Keep a minimum of 12” (304.8 mm) of brick
masonry between the clay liner and wall combustibles. The
clay liner shall run from the brick masonry outer surface to
the inner surface of the chimney ue liner but not past the
inner surface. Firmly grout or cement the clay liner in place
to the chimney ue liner.
Method B. 9” (228.6 mm) Clearance to Combustible Wall
Member: Using a 6” (152.4 mm) inside diameter, listed,
factory-built Solid-Pak chimney section with insulation
of 1” (25.4 mm) or more, build a wall pass-through with a
minimum 9” (228.6 mm) air space between the outer wall of
the chimney length and wall combustibles. Use sheet metal
supports fastened securely to wall surfaces on all sides,
to maintain the 9” (228.6 mm) air space. When fastening
supports to chimney length, do not penetrate the chimney
liner (the inside wall of the Solid-Pak chimney). The inner end
of the Solid-Pak chimney section shall be ush with the inside
of the masonry chimney ue, and sealed with a non-water
soluble refractory cement. Use this cement to also seal to
the brick masonry penetration.
Method C. 6” (152.4 mm) Clearance to Combustible Wall
Member: Starting with a minimum 24 gauge (.024” [.61 mm])
6” (152.4 mm) metal chimney connector, and a minimum 24
gauge ventilated wall thimble which has two air channels of
1” (25.4 mm) each, construct a wall pass-through. There shall
be a minimum 6” (152.4) mm separation area containing
berglass insulation, from the outer surface of the wall thimble
to wall combustibles. Support the wall thimble, and cover
its opening with a 24-gauge minimum sheet metal support.
Maintain the 6” (152.4 mm) space. There should also be a
support sized to t and hold the metal chimney connector.
See that the supports are fastened securely to wall surfaces
on all sides. Make sure fasteners used to secure the metal
chimney connector do not penetrate chimney ue liner.
Method D. 2” (50.8 mm) Clearance to Combustible Wall
Member: Start with a solid-pak listed factory built chimney
section at least 12” (304 mm) long, with insulation of 1” (25.4
mm) or more, and an inside diameter of 8” (2 inches [51 mm]
larger than the 6” [152.4 mm] chimney connector). Use this
as a pass-through for a minimum 24-gauge single wall steel
chimney connector. Keep solid-pak section concentric with
and spaced 1” (25.4 mm) off the chimney connector by
way of sheet metal support plates at both ends of chimney
section. Cover opening with and support chimney section
on both sides with 24 gauge minimum sheet metal supports.
See that the supports are fastened securely to wall surfaces
on all sides. Make sure fasteners used to secure chimney ue
do not penetrate ue liner.
NOTES:
Connectors to a masonry chimney, excepting method B, shall extend in one continuous section through the
wall pass-through system and the chimney wall, to but not past the inner ue liner face. A chimney connector
shall not pass through an attic or roof space, closet or similar concealed space, or a oor, or ceiling.

19
CHIMNEY CONNECTOR
Your chimney connector and chimney must have the same diameter as the furnace outlet. If this is not the case,
we recommend you contact your dealer in order to insure there will be no problem with the draft.
The furnace pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021” or 0.53 mm. It
is strictly forbidden to use galvanized steel.
Your connector should be assembled in such a way that the male section (crimped end) of the pipe faces
down. Attach each of the sections to one another with three equidistant metal screws. Seal the joints with furnace
cement.
The pipe must be short and straight. All sections installed horizontally must slope at least 1/4 inch per foot, with
the upper end of the section toward the chimney. Any installation with a horizontal run of furnace pipe must
conform to NFPA 211. You may contact NFPA (National Fire Protection Association) and request the latest edition
of the NFPA Standard 211.
To insure a good draft, the total length of the furnace pipe should never exceed 8’ to 10’ (2.4m to 3.04 m).
(Except for cases of vertical installation, cathedral-roof style where the smoke exhaust system can be much
longer and connected without problem to the chimney at the ceiling of the room).
There should never be more than two 90 degrees elbows in the smoke exhaust system.
Installation of a “barometric draft stabilizer” (replace register) on a smoke exhaust system is prohibited.
Furthermore, installation of a draft damper is not recommended. With a controlled combustion wood furnaces
the draft is regulated upon intake of the combustion air in the furnace and not at the exhaust.
To
Appliance

20
FACTORY BUILT CHIMNEY
When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed. You
must also purchase (from the same manufacturer) and install the ceiling support package or wall pass-through
and “T” section package, restops (where needed), insulation shield, roof ashing, chimney cap, etc. Maintain
proper clearance to the structure as recommended by the manufacturer. The chimney must be the required
height above the roof or other obstructions for safety and proper draft operation.
