Cleanfix HBA2500 User manual

Copyright ©2005 by Cleanfix Cleaning Systems Inc., 465 West Main St., Wyckoff, NJ 07481.
All rights reserved. Content is subject to change.
Operations
Manual
Cleanfix®Air Mover
This unit is intended for commercial use
This manual is furnished with each new Cleanfix®Air Mover (Model HBA2500). It provides necessary
operation and maintenance instructions.
READ AND FOLLOW ALL INSTRUCTIONS, WARNINGS AND CAUTIONS BEFORE AND WHEN
USING THE AIR MOVER.
All information and specifications printed in this manual are current at the time of printing. However,
because of Cleanfix’s policy of continual product improvement, we reserve the right to make changes at
any time without notice.

Copyright ©2006 by Cleanfix Cleaning Systems, Inc., 465 West Main St., Wyckoff, NJ 07481.
All rights reserved. Content is subject to change. 2
WHEN THE MACHINE IS DELIVERED
This Air Mover will afford you many years of
trouble-free operating satisfaction, provided it is
given proper care. All parts are passed rigid quality
control standards prior to their being assembled to
the finished product. Prior to packaging, your Air
Mover was again inspected for assurance of
flawless assembly.
The Air Mover is protectively packed to prevent
damage in shipment. When machine is delivered
carefully check the carton for signs of damage.
Remove the machine from the carton. If the
machine is damaged, notify the carrier immediately
and request an inspection. As a shipper we are
unable to report any claim for damage. You must
origin any claim within 5 days of delivery. Be sure
to keep the carton, packing inserts, packing list and
carrier's receipt until the inspector has verified your
claim. CLEANFIX’S LIABILITY CEASES WHEN
THE SHIPMENT IS PICKED UP BY THE
CARRIER. Cleanfix will furnish any information
needed to expedite the claim process.
WARRANTY
The unit will be guaranteed to be free from defects
in materials and workmanship under normal use
and service for a period of one (1) year including
the pump and vacuum.
The fiberglass housing will have a three (3) year
warranty. The warranty does not apply to (a)
damage in shipping, (b) alteration by unauthorized
repair, (c) failure caused by lack of proper
maintenance and cleaning, (d) misuse and abuse.
Normal wear and tear parts such as switches,
power cords, and machine finish of which the use
cannot be controlled are not included.
Before sending a machine back for warranty or
machine repair, contact your local distributor where
you purchased the equipment to make
arrangements on the repair of the equipment. The
distributor will obtain a return authorization number
from Cleanfix for warranted parts and facilitate the
repair of the equipment. Replace damaged or worn
parts only with Cleanfix original replacement parts
to maintain safety and to protect your warranty.
GENERAL PRECAUTIONS
FAILURE TO FOLLOW PRECAUTIONS AND WARNINGS MAY CAUSE SERIOUS INJURY TO
THE OPERATOR AND CAUSE DAMAGE TO MACHINE, WHICH CAN VOID WARRANTY.
TO REDUCE RISK OF FIRE, ELECTRIC SHOCK OR INJUR: READ ALL INSTRUCTIONS
BEFORE AND WHEN USING THIS AIR MOVER.
•For 120 volt grounded outlet models. The unit
must be plugged into a properly grounded
outlet. Do not operate the machine with a
broken/missing grounding pin. Have a qualified
service person replace the plug immediately.
•Do not leave the Air Mover when plugged in.
Unplug from outlet when not in use and before
servicing.
•To avoid electric shock Do not use outdoors or
on wet surfaces.
•This is NOT a toy. Close attention is necessary
when used around or near children.
•Use only as described in this safety/operations
manual.
•Do not use this Air Mover with damaged cord
or plug. If the Air Mover is not working as it
should, because it has been dropped,
damaged, left outdoors or dropped into water,
contact authorized service center or factory.
•Do not pull or carry by the cord, use cord as a
handle, close a door on cord or pull cord
around sharp edges and corners. Keep cord
away from heated surfaces.
•Do not unplug the Air Mover by pulling on the
cord. To unplug, grasp the plug, not the cord.

Copyright ©2006 by Cleanfix Cleaning Systems, Inc., 465 West Main St., Wyckoff, NJ 07481.
All rights reserved. Content is subject to change. 3
GENERAL PRECAUTIONS (continued)
•Do not handle the plug of the Air Mover with
wet hands.
•Store Air Mover indoors in a dry area.
•Do not put any objects into openings. Do not
use with any opening blocked; keep free of
anything that may reduce air flow.
•Keep hair, loose clothing, fingers, and all parts
of body away from openings and moving parts.
•Turn OFF all the controls before unplugging.
•Do not use where anesthetics or oxygen is
used. Do not operate the machine where
explosive vapors or flammable materials exist.
•Do not use an extension cord unless
absolutely necessary. If an extension cord is
used, then wire size must be 14 ga. or larger
and should not exceed 50 feet in length. The
extension cord must be three-wire type to
insure grounding protection.
•Replace damaged or worn parts immediately
with genuine original equipment parts to
maintain safety and to protect your limited
warranty.
GROUNDING INSTRUCTIONS - 120 VOLT
Improper use of the grounding plug can result in a risk of electric shock.
Electrical equipment must be grounded. If it should malfunction or breakdown, grounding
provides a path of least resistance for electrical current to reduce the risk of electric shock.
The blower is equipped with a cord having equipment grounding conductor and grounding plug.
The plug must be inserted into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
If repair or replacement is necessary, DO NOT connect the grounded wire to either flat blade
terminal. The wire with insulation having an outer surface that is green with or without yellow
stripes is the grounding wire.
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or service person if you are in doubt as
to whether the outlet is properly grounded.
Do not modify the plug provided with the equipment. If it will not fit the outlet, have a
proper outlet installed by a qualified electrician.
Note: In Canada, the use of a temporary adapter is not permitted by the Canadian
Electrical Code.
DO NOT Place in
standin
g
water.
WARNING
WARNING

Copyright ©2006 by Cleanfix Cleaning Systems, Inc., 465 West Main St., Wyckoff, NJ 07481.
All rights reserved. Content is subject to change. 4
GROUNDING METHODS
This electric equipment is for use on a nominal 120-volt circuit and has a grounded plug that
looks like the plug illustrated in (Fig. A). A temporary adaptor that looks like the adaptor
illustrated in (Fig. B & C) may be used to connect this plug to a 2-pole receptacle as shown in
(Fig. B) if a properly grounded outlet is not available.
The temporary adaptor should be used only until a properly grounded outlet (Fig. A) can be
installed by a qualified electrician. The green color rigid ear, lug or the like extending from the
adaptor must be connected to a permanent ground such as a properly grounded outlet box
cover. Whenever the adaptor is used, it must be held in place by a metal screw.
DRYING INSTRUCTIONS
Use this method when the carpeting is glued
and you cannot place Air Mover underneath
the carpet.
1) Place the Air Mover in a corner pointing
toward the center of the room.
2) Turn the switch knob to select the speed
you want.
3) The air blows over the surface to speed
evaporation. Move the Air Mover
periodically as the surface dries.
FLOODED AND STRETCHED CARPET
If stretched (non-glued) carpet becomes
completely saturated due to flooding or pipes
breaking, use this method to dry the carpet’s
backing. Only a professional should perform
this procedure.
1) Remove all the furniture from the room.
2) Lift an edge of the carpet and slide the
exhaust side of Air Mover under the carpet.
3) Plug Air Mover into a grounded outlet and
turn it ON. This forces the air under and
through the carpet to speed drying time.
The will billow in the center.
4) Remove Air Mover when the carpet is dry
and stretch carpet back into place.
Improper use of the
grounding plug can
result in a risk of
electrical shock.
DANGER:

Copyright ©2006 by Cleanfix Cleaning Systems, Inc., 465 West Main St., Wyckoff, NJ 07481.
All rights reserved. Content is subject to change. 5

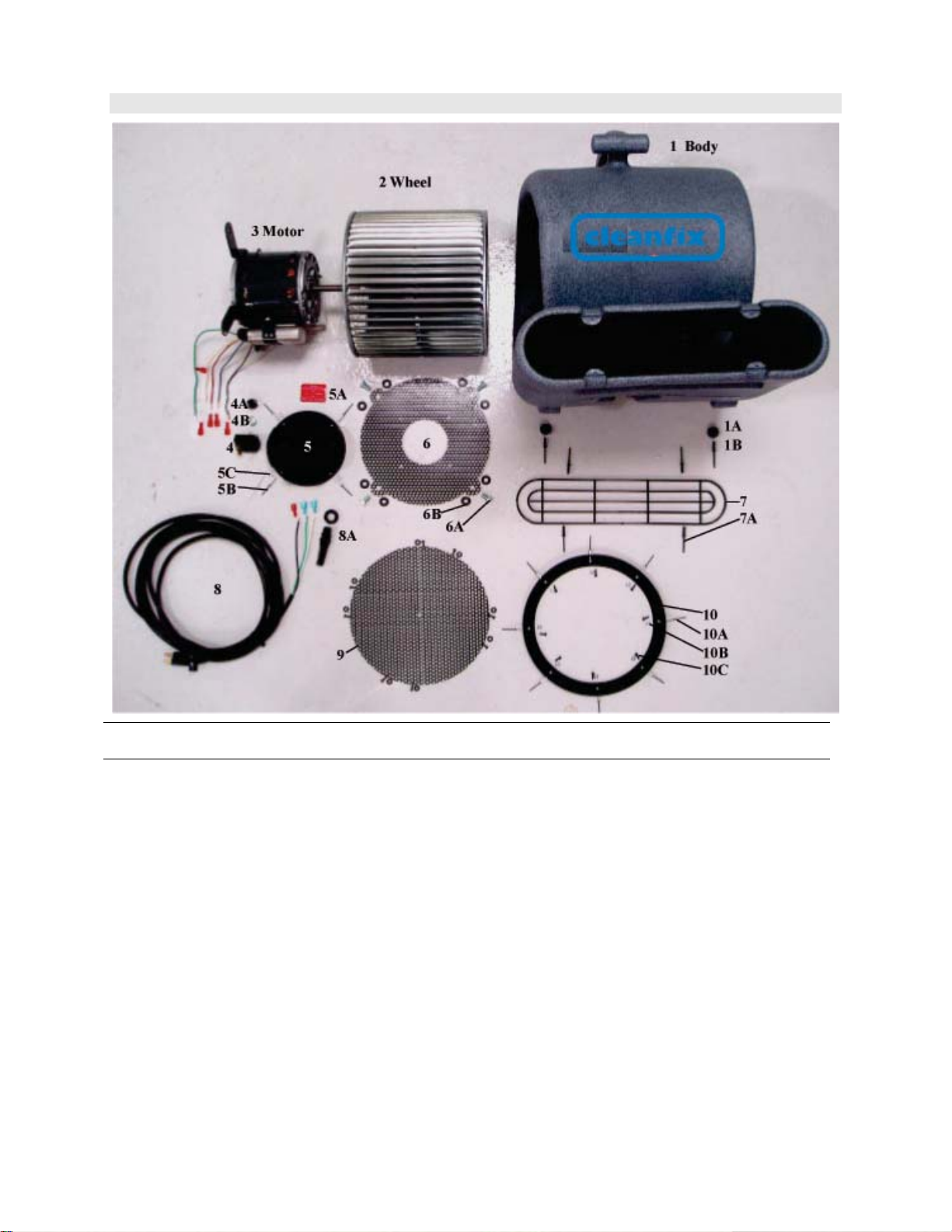

AIR MOVER REPLACEMENT PARTS LIST
Ref.
No. Part Description Part No. Ref. No. Part Description Part No.
1 Main Body 2501 6A Motor Bolt 2506A
1A Feet/Bumper 2501A 6B Motor Washer 2506B
1B Bumper/Rivet 2501B 7 Finger Guard 2507
2 Fan Wheel 2502 7A Rivet 2507A
3 1/2hp Motor 2503 8 Cord 2508
4 Rotary Switch 2504 8A Strain Relief 2508A
4A Switch Knob 2504A 9 Intake Screen 2509
4B Switch Nut 2504B 10 Venturi Ring 2510
5 Switch Housing 2505 10A Venturi Rivet 2510A
5A Warning Label 2505A 10B Venturi Washer 2510B
5B Switch/Rivet 2505B 10D Venturi Screw 2510C
5C Switch/Washer 2505C
6 Motor Screen 2506

New Machine Warranty
Copyright ©2007 Cleanfix Cleaning Systems Inc.
All rights reserved. Content is subject to change without notice. Version 5.1.
1. Limited Warranty. These terms and conditions of the New
Machine Warranty are a material part of the agreement
between Buyer and Cleanfix Cleaning Systems Inc., a New
Jersey-based corporation (hereinafter “Cleanfix”), and
supersede warranty terms and conditions in documentation
submitted by Buyer to Cleanfix. Cleanfix warrants new
machines of its manufacture against defects in material and
workmanship under normal use and service to the original end-
user purchaser. No person, agent, representative or distributor
is authorized to give any warranties on behalf of Cleanfix, or to
assume any other liability for Cleanfix in connection with any
Cleanfix machine. Cleanfix reserves the right to make changes
to its equipment without notice. The warranty coverage is
subject to the conditions below.
2. Registration of Warranty. The warranty commences on the
date of purchase by the original end-user from an authorized
Cleanfix distributor or agent, subject to proof of purchase. The
warranty commences latest, however, after six (6) months of
the purchase date by the authorized distributor or agent of
Cleanfix. Any new Cleanfix machine must be registered
immediately with Cleanfix by the original end-user customer by
fully completing and returning the warranty registration form to
Cleanfix. If proof of purchase cannot be identified through a
completed and returned warranty registration form, the warranty
commences from the date of sale to the authorized Cleanfix
distributor.
3. Warranty Coverage. Subject to conditions outlined below,
Cleanfix warrants rotationally molded PE housings and tanks on
all of its machines to be free from defects in material and
workmanship, under normal use and service for ten (10) years
to the original end-user.
Subject to conditions outlined below, Cleanfix warrants
fiberglass housings and tanks on all of its machines to be free
from defects in material and workmanship, under normal use
and service for three (3) years to the original end-user.
Under this warranty Cleanfix warrants the performance of non-
polyethylene and non-fiberglass components to be free from
defects and workmanship for up to one (1) year to the original
end-user. Parts replaced or repaired under this warranty are
warranted for the remainder of the original warranty period.
(See table below)
Rotationally molded PE housings and tanks 10 years
Fiberglass housings and tanks 3 years
Vacuum motors, brush motors, pump motors,
boards and electronics 1 year
Battery and battery charger* 1 year
* The 1 year period warranty commences with the purchase date by the
authorized distributor or agent of Cleanfix.
Service labor charges are covered for up to one (1) year from
the date of purchase through an authorized Cleanfix service
provider. A total maximum of one (1) hour travel time - equal to
one (1) hour labor rate - is covered for large machines, namely
Falcon, Raven, Eagle and larger for 90 days. No coverage is
extended for diagnosis time.
4. Product Exceptions and Exclusions. ALL vacuum cleaners
and air movers are warranted for one (1) year. No warranty is
extended for wear items, accessories and attachments
including, but not limited to, belts, brushes, pad holders,
capacitors, carbon brushes, wheels, casters, glides, clutches,
cords, filters, filter bags, gaskets, hoses, rectifiers, switches,
float switches, valves, squeegees, bearings, pulleys, relays,
actuating cables, wheels, tires, vacuum cleaner attachments.
The purchaser is assured that meticulous care has been
exercised in the selection, assembling and testing of these parts
and components before shipping. No warranty is extended for
machine finish, labels and other cosmetic parts or features.
5. Stated Warranties. Stated warranties are in lieu of all other
warranties, expressed or implied. Any statutory implied
warranties, including any warranty of merchantability or fitness
for a particular purpose, are expressly limited to the duration of
the written warranty. Cleanfix will not be liable for any other
damages, including but not limited to incidental, indirect or
special consequential damages arising out of or in connection
with the furnishing, performance, use or inability to use the
machine, including damages to persons or property. This
remedy shall be the exclusive remedy of the buyer. The
warranty is limited to the warranty.
6. Warranty is null and void for the following.
•Damage, defects, malfunction or other failures caused by
not using the electric current indicated on the spec plate,
including the use of improper extension cords.
•Damage or defect caused by accident, misuse, neglect,
abuse, fire etc., including use of incompatible or corrosive
chemicals or overloading of capacity.
•Failure caused by lack of proper maintenance and care,
including proper machine clean-up after use, proper
charging procedures for batteries.
•Failure caused by loss, damage or removal of protective
components, including, but not limited to, filters and filter
screens, tank covers and lids, skirts and bumpers, float
shut-off assemblies.
•Freezing of any water or chemical related components
(this will void all warranties on water or chemical related
components, internal or external, of the product).
•Deposits and buildup in any water or chemical related
systems due to hardness in water (this will void all
warranties on affected systems).
•Any design alterations, adjustments and/or repairs
performed on the equipment by an organization not
authorized or specified by Cleanfix.
•Use of any parts not approved by Cleanfix, including, but
not limited to, batteries, battery charger, filter bags, belts,
electric components, motors.
•Use of machine for a purpose other than which it was
designed and intended, and use of machine in excess of
design duration.
•Damage in transit.
7. Warranty Claim Procedure. If a difficulty develops during
the specified warranty period, contact the authorized Cleanfix
distributor/partner from whom the machine was originally
purchased. Do not return any products to Cleanfix unless
explicitly authorized by Cleanfix. Cleanfix may elect to require
the return of the machine or component(s) to validate the claim.
Any defective machine or component to be returned must be
shipped freight pre-paid to an authorized Cleanfix
distributor/service center.
Cleanfix will provide and charge for replacement parts, including
shipping and handling, to the original purchaser through an
authorized service center. If the part is returned within 30 days
and is found defective, the purchaser will be credited for the
cost of the replacement part including shipping and handling.
8. Term. This warranty is valid for all products sold after
January 1, 2006. A product sold before that date will be covered
by the limited warranty in effect at the date of sale to the original
purchaser.
