Trane P0V0 Series Installation and operating instructions

SSAAFFEETTYY WWAARRNNIINNGG
Only qualified personnel should install and service the equipment The installation, starting up, and servicing of heating, ventilating, and air-conditioning
equipment can be hazardous and requires specific knowledge and training Improperly installed, adjusted or altered equipment by an unqualified person
could result in death or serious injury When working on the equipment, observe all precautions in the literature and on the tags, stickers, and labels that
are attached to the equipment
May 2023 PP00VV00--SSVVXX000011--11AA--EENN

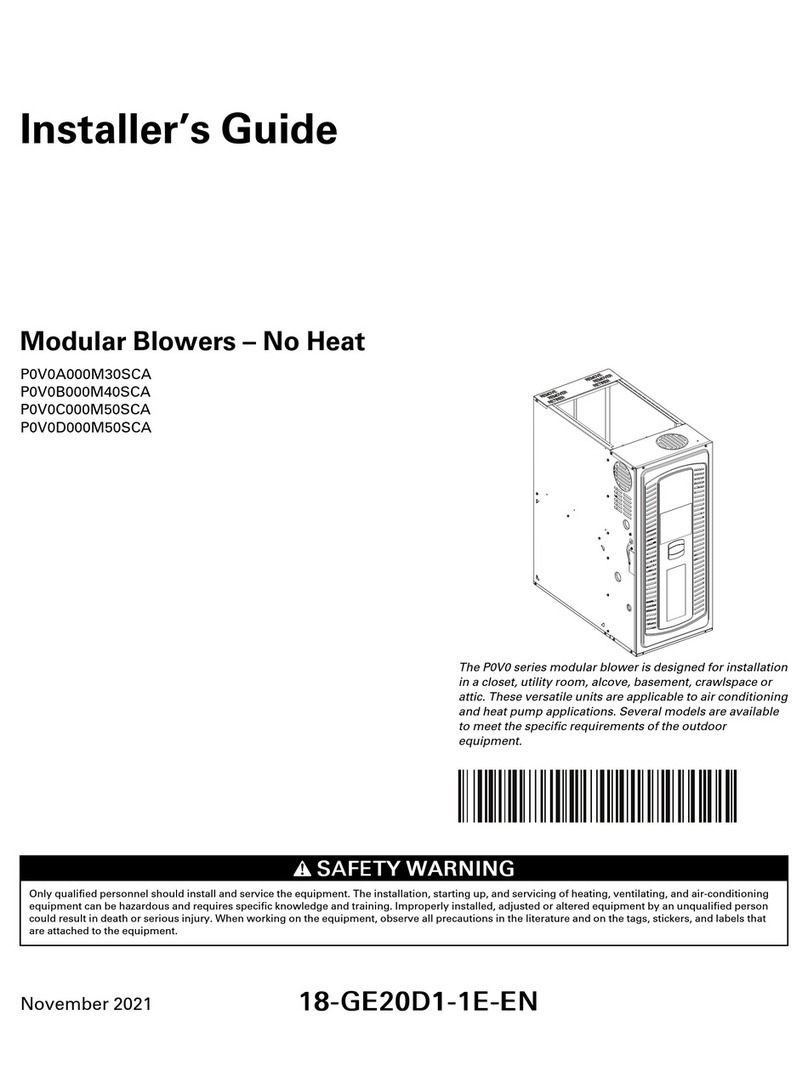

Modular Blowers – No Heat
P0V0A000M30SDA
P0V0B000M40SDA
P0V0C000M50SDA
P0V0D000M50SDA
The P0V0 series modular blower is designed for installation
in a closet, utility room, alcove, basement, crawlspace or
attic. These versatile units are applicable to air conditioning
and heat pump applications. Several models are available
to meet the specific requirements of the outdoor
equipment.
WARNING
FIRE HAZARD!
Failure to follow this Warning could result in property damage, severe personal
injury, or death.
This Warning applies to installations with a ammable refrigeration system.
The furnace must be powered except for service.The furnace shall be installed
and connected according to installation instructions and wiring diagrams that
are provided with the evaporator coil.
Installation, Operation, and Maintenance

©2023 P0V0-SVX001-1A-EN
SAFETY SECTION
MODULA BLOWE S
IImmppoorrttaanntt:: This document contains a wiring diagram,
a parts list, and service information. This is
customer property and is to remain with
this unit. Please return to service
information pac upon completion of wor .
IImmppoorrttaanntt:: These instructions do not cover all
variations in systems nor provide for every
possible contingency to be met in
connection with the installation. Should
further information be desired or should
particular problems arise which are not
covered sufficiently for the purchaser’s
purposes, the matter should be referred to
your installing dealer or local distributor.
WWAARRNNIINNGG
HHAAZZAARRDDOOUUSS VVOOLLTTAAGGEE!!
FFaaiilluurree ttoo ffoollllooww tthhiiss WWaarrnniinngg ccoouulldd rreessuulltt iinn
pprrooppeerrttyy ddaammaaggee,, sseevveerree ppeerrssoonnaall iinnjjuurryy,, oorr
ddeeaatthh
DDiissccoonnnneecctt aallll eelleeccttrriicc ppoowweerr,, iinncclluuddiinngg rreemmoottee
ddiissccoonnnneeccttss bbeeffoorree sseerrvviicciinngg FFoollllooww pprrooppeerr
lloocckkoouutt//ttaaggoouutt pprroocceedduurreess ttoo eennssuurree tthhee ppoowweerr
ccaannnnoott bbee iinnaaddvveerrtteennttllyy eenneerrggiizzeedd
CCAAUUTTIIOONN
GGRROOUUNNDDIINNGG RREEQQUUIIRREEDD!!
FFaaiilluurree ttoo iinnssppeecctt oorr uussee pprrooppeerr sseerrvviiccee ttoooollss mmaayy
rreessuulltt iinn eeqquuiippmmeenntt ddaammaaggee oorr ppeerrssoonnaall iinnjjuurryy
RReeccoonnnneecctt aallll ggrroouunnddiinngg ddeevviicceess AAllll ppaarrttss ooff tthhiiss
pprroodduucctt tthhaatt aarree ccaappaabbllee ooff ccoonndduuccttiinngg eelleeccttrriiccaall
ccuurrrreenntt aarree ggrroouunnddeedd IIff ggrroouunnddiinngg wwiirreess,, ssccrreewwss,,
ssttrraappss,, cclliippss,, nnuuttss,, oorr wwaasshheerrss uusseedd ttoo ccoommpplleettee aa
ppaatthh ttoo ggrroouunndd aarree rreemmoovveedd ffoorr sseerrvviiccee,, tthheeyy mmuusstt
bbee rreettuurrnneedd ttoo tthheeiirr oorriiggiinnaall ppoossiittiioonn aanndd pprrooppeerrllyy
ffaasstteenneedd
WWAARRNNIINNGG
LLIIVVEE EELLEECCTTRRIICCAALL CCOOMMPPOONNEENNTTSS!!
FFaaiilluurree ttoo ffoollllooww tthhiiss WWaarrnniinngg ccoouulldd rreessuulltt iinn
pprrooppeerrttyy ddaammaaggee,, sseevveerree ppeerrssoonnaall iinnjjuurryy,, oorr
ddeeaatthh
FFoollllooww aallll eelleeccttrriiccaall ssaaffeettyy pprreeccaauuttiioonnss wwhheenn
eexxppoosseedd ttoo lliivvee eelleeccttrriiccaall ccoommppoonneennttss IItt mmaayy bbee
nneecceessssaarryy ttoo wwoorrkk wwiitthh lliivvee eelleeccttrriiccaall ccoommppoonneennttss
dduurriinngg iinnssttaallllaattiioonn,, tteessttiinngg,, sseerrvviicciinngg,, aanndd
ttrroouubblleesshhoooottiinngg ooff tthhiiss pprroodduucctt
CCAAUUTTIIOONN
IIMMPPRROOPPEERR VVOOLLTTAAGGEE CCOONNNNEECCTTIIOONN!!
FFaaiilluurree ttoo ffoollllooww tthhiiss CCaauuttiioonn ccoouulldd rreessuulltt iinn
pprrooppeerrttyy ddaammaaggee
DDoo NNOOTT ccoonnnneecctt tthhee mmoodduullaarr bblloowweerr lliinnee vvoollttaaggee
ttoo aa GGFFCCII pprrootteecctteedd cciirrccuuiitt
CCAAUUTTIIOONN
SSHHAARRPP EEDDGGEE HHAAZZAARRDD!!
FFaaiilluurree ttoo ffoollllooww tthhiiss CCaauuttiioonn ccoouulldd rreessuulltt iinn
pprrooppeerrttyy ddaammaaggee oorr ppeerrssoonnaall iinnjjuurryy
BBee ccaarreeffuull ooff sshhaarrpp eeddggeess oonn eeqquuiippmmeenntt oorr aannyy
ccuuttss mmaaddee oonn sshheeeett mmeettaall wwhhiillee iinnssttaalllliinngg oorr
sseerrvviicciinngg
WWAARRNNIINNGG
WWAARRNNIINNGG!!
TThhiiss pprroodduucctt ccaann eexxppoossee yyoouu ttoo cchheemmiiccaallss
iinncclluuddiinngg lleeaadd,, wwhhiicchh aarree kknnoowwnn ttoo tthhee SSttaattee ooff
CCaalliiffoorrnniiaa ttoo ccaauussee ccaanncceerr aanndd bbiirrtthh ddeeffeeccttss oorr
ootthheerr rreepprroodduuccttiivvee hhaarrmm FFoorr mmoorree iinnffoorrmmaattiioonn ggoo
ttoo wwwwww PP6655WWaarrnniinnggss ccaa ggoovv
IImmppoorrttaanntt:: Installation of this unit shall be made in
accordance with the National Electric Code,
NFPA No. 90A and 90B, and any other local
codes or utilities requirements.
NNootteess::
• This unit is certified to UL 1995.
• The modular blowers have been evaluated
in accordance with the Code of Federal
Regulations Title 24 Subtitle B Chapter XX
Part 3280 or the equivalent. "SUITABLE FOR
MOBILE HOME USE."
• The manufacturer recommends installing
ONLY A.H.R.I approved, matched indoor
and outdoor systems. Some of the benefits
of installing approved matched indoor and
outdoor split systems are maximum
efficiency, optimum performance, and the
best overall system reliability.

P0V0-SVX001-1A-EN 3
Features and Accessories 4
Parts List 4
Product Specifications 5
Location and Clearances 6
Installation Instructions 7
Outline Drawing 9
Wiring Diagram 10
Airflow Tables 11
General Installation 15
Panel Removal 15
Horizontal Installation in an Attic or
Crawlspace 15
Duct Connections 16
Return Air Filters 21
Electrical Connections 22
Field Wiring 22
Integrated Modular Blower Control
Menu 24
Integrated Modular Blower Control
(IMBC) Display Codes 26
Fault Code Recovery 27
Troubleshooting 28
Sequence of Operation 37
Periodic Servicing Requirements 38
Checkout Procedures 39
Table of Contents

4P0V0-SVX001-1A-EN
Features and Accessories
Table 1. Standard Features
• MULTI-POSITION UPFLOW, DOWNFLOW, HORIZONTAL LEFT
AND HORIZONTAL RIGHT
• PAINTED FINISH ON GALVANIZED STEEL EXTERIOR WITH
FULLY INSULATED CABINET THAT MEETS 4.0 R VALUE.
BLOWER COMPARTMENT INSULATION IS ONLY INSTALLED
IN B, C AND D SIZE PRODUCTS AND HAS A 2.1 R VALUE
• 120 VAC OPERATION
• VARIABLE SPEED DIRECT DRIVE BLOWER
• SIDE AND BOTTOM RETURN
• MEETS THE MINIMUM LEAKAGE REQUIREMENTS FOR THE
FLORIDA AND CALIFORNIA BUILDING CODES
• THESE MODULAR BLOWERS ARE APPROVED FOR
INSTALLATION IN MANUFACTURER/MOBILE HOUSING.
• THIS FURNACE MUST BE INSTALLED IN ACCORDANCE WITH
THE MANUFACTURER'S INSTRUCTIONS AND THE
MANUFACTURED HOME CONSTRUCTION AND SAFETY
STANDARD, TITLE 24 CFR, PART 3280 OR WHEN SUCH
STANDARD IS NOT APPLICABLE, THE STANDARD FOR
MODEL MANUFACTURED HOME INSTALLATION, NFPA 225,
OR THE CANADIAN STANDARD FOR MANUFACTURED
HOMES, CSA Z240 MH.
Table 2. Accessories
Model Number Description Use with
BAYHANG Horizontal Hanging Kit All modular blowers
BAYLIFTB Dual Return Kit (B size extension) B Cabinet modular blowers
BAYLIFTC Dual Return Kit (C size extension) C Cabinet modular blowers
BAYLIFTD Dual Return Kit (D size extension) D Cabinet modular blowers
BAYFLTR206 Filter Access Door Kit (Downflow only) All modular blowers in Downflow orientation
BAYSF1165AA(a) 1” SlimFit Box with MERV 4 Filter All modular blowers
BAYSF1255BA 1” SlimFit Filter and Insulated Frame All modular blowers when used in side return
application
B Cabinet modular blowers only when in
bottom return application
FLRSF1255 1” Filter replacement (Qty 12) BAYSF1255BA
BAYFLTR203 Horizontal Filter Kit B Cabinet modular blowers in Downflow/
Horizontal
BAYFLTR204 Horizontal Filter Kit C Cabinet modular blowers in Downflow/
Horizontal
BAYFLTR205 Horizontal Filter Kit D Cabinet modular blowers in Downflow/
Horizontal
(a) Airflow greater than 1600 CFM requires dual returns
Parts List
• Blower Motor
• Blower Wheel
• IMBC (Integrated Modular Blower Control)

P0V0-SVX001-1A-EN 5
Product Specifications
MODEL P0V0A000M30SDA P0V0B000M40SDA P0V0C000M50SDA P0V0D000M50SDA
TYPE Upflow / Horizontal /
Downflow
Upflow / Horizontal /
Downflow
Upflow / Horizontal /
Downflow
Upflow / Horizontal /
Downflow
BLOWER DRIVE DIRECT DIRECT DIRECT DIRECT
Diameter - Width (in.) 11 X 8 11 X 8 11 X 10 11 X 10
No. Used 1 1 1 1
Speeds (No.) Variable Variable Variable Variable
CFM vs. in. w.g. See Fan Performance
Table
See Fan Performance
Table
See Fan Performance
Table
See Fan Performance
Table
Motor HP 1/2 3/4 1 1
R.P.M. Variable Variable Variable Variable
Volts / Ph / Hz 120 / 1 / 60 120 / 1 / 60 120 / 1 / 60 120 / 1 / 60
FLA (Panasonic V2) 5.7 8 10.5 10.5
FILTER – Furnished? No No No No
Type recommended High Velocity High Velocity High Velocity High Velocity
Hi Vel. (No.-Size-Thk.) 1 - 14 X 25 - 1 in. 1 - 16 X 25 - 1 in. 1 - 20 X 25 - 1 in. 1 - 24 X 25 - 1 in.
POWER CONN. – V/Ph/Hz (a) 120 / 1 / 60 120 / 1 / 60 120 / 1 / 60 120 / 1 / 60
Ampacity (In Amps) 2.2 7.5 7.5 8.1
Max. Overcurrent Protection (Amps) 15 15 15 15
WEIGHT
Shipping (Lbs.) 83 92 101 107
(a) The wiring specifications are in accordance with National Electrical Code; however, installations must comply with local codes.

6P0V0-SVX001-1A-EN
Location and Clearances
Minimum clearance to combustible materials
MODULAR BLOWER
O”
21”
O”

P0V0-SVX001-1A-EN 7
Installation Instructions
1 UUnnppaacckkiinngg
Carefully unpack the unit and inspect the contents
for damage If any damage is found at the time of
delivery, proper notification and claims should be
made with the carrier
Check the rating plate to assure model number and
voltage match with what you ordered The
manufacturer should be notified within 5 days of
any discrepancy or parts shortage
2 LLooccaattiioonn
The modular blower should be centrally located
and may be installed in a closet, alcove, utility
room, basement, crawl space or attic Minimum
clearances must be met
When the unit is installed in a closet or utility room,
the room should be large enough, and have an
opening to allow replacement of the unit All
servicing is done from the front and a clearance of
21" is needed for service unless the closet door
aligns with the front of the modular blower
If you are installing the unit in an unconditioned
space such as an attic or crawl space, you must
ensure that the area provides sufficient air
circulation to prevent moisture collection on the
cabinet during high dew point conditions
3 DDuucctt WWoorrkk
The duct work should be installed in accordance
with the NFPA No 90A "Installation of Air
Conditioning and Ventilating systems" and No 90B
"Residential Type Warm Air Heating and Air
Conditioning Installation "
The duct work should be insulated in accordance
with the applicable requirements for the particular
installation as required by HUD, FHA, VA the
applicable building code, local utility or other
governing body
4 BBlloowweerr
This unit is supplied with a variable speed motor
with a direct drive blower wheel which can obtain
various air flows The unit is shipped with factory
set cooling and heating air flows Airflow
performance tables are available for additional air
flows Be sure to check the air flow and the
temperature drop across the evaporator coil to
ensure sufficient air flow
5 WWiirriinngg
Consult all schematic and pictorial wiring diagrams
of this unit and the outdoor equipment to
determine compatibility of wiring connections and
to determine specific requirements
All field wiring to the modular blower should be
installed in accordance with the latest edition of the
National Electric Code NFPA No 70 and any local
codes Check rating plates on unit for rated volts,
minimum circuit ampacity and maximum over
current protection Supply circuit power wiring
must be 75 degree C (167 degree F) minimum
copper conductors only Copper supply wires shall
be sized to the National Electric Code or local code
requirements, whichever is more stringent
The unit is shipped wired for 120 Volt AC 60 HZ 1
Phase Operation (Ensure unit is properly
grounded) Do Not use GFCI plug
Class 2 low voltage control wiring should not be run
in conduit with power wiring and must be
separated from power wiring unless class 1 wire
with proper voltage rating is used
Low voltage control wiring should be 18 AWG,
color coded (105 degree C minimum) For lengths
longer than 100ft , 16 AWG wire should be used
Make certain that separation of control wiring and
power wiring has been maintained
6 AAiirr FFiilltteerr
To protect the coil, blower and other internal parts
from excessive dirt and dust an air filter must be
installed before air enters the evaporator coil A
remote filter must be installed Consult the filter
manufacturer for proper sizing and maximum
velocity requirements
7 TThheerrmmoossttaatt
Select a thermostat that is commonly used with HP
or AC two stage or Variable speed Heating/Cooling
outdoor unit The thermostat will energize the fan
on a demand for heat or cool
Install the thermostat on an inside wall, away from
drafts, lights or other heat sources in a location that
has sufficient air circulation from other rooms being
controlled by the thermostat

8P0V0-SVX001-1A-EN
8 OOppeerraattiioonnaall aanndd CChheecckkoouutt PPrroocceedduurreess
To obtain proper performance, all units must be
operated and charge adjustments made in
accordance with procedures found in the Service
Facts document of the outdoor unit After
installation has been completed, it is recommended
that the entire system be checked against the
checkout list located at the back of this document
See “Checkout Procedures,” p 39
9 MMaaiinntteennaannccee
The system air filter(s) should be inspected, cleaned
or replaced at least monthly Make certain that the
access panels are replaced and secured properly
before placing the unit back in operation This
product is designed for dependable service;
however, periodic maintenance should be
scheduled and conducted by trained professional
service personnel This service should be
conducted at least annually, and should include
testing and inspection of electrical components
The blower motor is permanently lubricated for
normal operating conditions
IInnssttaallllaattiioonn IInnssttrruuccttiioonnss

P0V0-SVX001-1A-EN 9
Outline Drawing
Table 3. 14.5”, 17.5”, 21” and 24.5” Width Cabinets

10 P0V0-SVX001-1A-EN
Wiring Diagram

P0V0-SVX001-1A-EN 11
Airflow Tables
P0V0A000M30SDA Modular Blower Cooling Airflow (CFM) and Power (Watts) vs. External Static Pressure without Filter
Cooling Unit Outdoor Airflow Setting
(CFM/Ton)
EXTERNAL STATIC PRESSURE (IN. W. C.)
0.1 0.3 0.5 0.7 0.9
Cooling 1.5 Ton
Cooling 450 CFM/Ton CFM / Watts 671 / 46 676 / 91 681 / 135 685 / 178 690 / 219
Cooling 420 CFM/Ton CFM / Watts 627 / 40 631 / 83 636 / 125 642 / 166 648 / 206
Cooling 400 CFM/Ton CFM / Watts 597 / 37 601 / 78 606 / 119 613 / 159 620 / 197
Cooling 370 CFM/Ton CFM / Watts 553 / 32 556 / 72 562 / 111 569 / 149 578 / 185
Cooling 350 CFM/Ton CFM / Watts 523 / 29 525 / 67 532 / 105 540 / 142 549 / 178
Cooling 330 CFM/Ton CFM / Watts 493 / 27 495 / 63 502 / 100 511 / 136 521 / 171
Cooling 310 CFM/Ton CFM / Watts 464 / 24 465 / 60 472 / 95 481 / 130 492 / 164
Cooling 290 CFM/Ton CFM / Watts 434 / 22 434 / 56 442 / 91 452 / 125 463 / 158
Cooling 2.0 Ton
Cooling 450 CFM/Ton CFM / Watts 896 / 84 901 / 141 901 / 196 900 / 249 898 / 300
Cooling 420 CFM/Ton CFM / Watts 836 / 72 841 / 126 843 / 178 843 / 228 843 / 276
Cooling 400 CFM/Ton CFM / Watts 796 / 65 801 / 116 803 / 167 805 / 215 806 / 261
Cooling 370 CFM/Ton CFM / Watts 736 / 55 741 / 104 745 / 151 748 / 196 750 / 240
Cooling 350 CFM/Ton CFM / Watts 696 / 49 701 / 96 705 / 141 709 / 185 713 / 227
Cooling 330 CFM/Ton CFM / Watts 656 / 44 661 / 88 666 / 132 671 / 174 676 / 215
Cooling 310 CFM/Ton CFM / Watts 617 / 39 621 / 82 626 / 123 632 / 164 639 / 203
Cooling 290 CFM/Ton CFM / Watts 577 / 35 581 / 75 587 / 115 593 / 154 601 / 192
Cooling 2.5 Ton
Cooling 450 CFM/Ton CFM / Watts 1126 / 143 1126 / 212 1122 / 279 1114 / 343 1104 / 405
Cooling 420 CFM/Ton CFM / Watts 1048 / 121 1051 / 186 1048 / 249 1043 / 309 1035 / 367
Cooling 400 CFM/Ton CFM / Watts 997 / 107 1001 / 170 999 / 230 995 / 288 990 / 344
Cooling 370 CFM/Ton CFM / Watts 921 / 89 926 / 148 926 / 204 924 / 258 921 / 310
Cooling 350 CFM/Ton CFM / Watts 871 / 79 876 / 134 877 / 188 877 / 240 875 / 290
Cooling 330 CFM/Ton CFM / Watts 821 / 69 826 / 122 828 / 173 829 / 223 829 / 271
Cooling 310 CFM/Ton CFM / Watts 771 / 61 776 / 111 779 / 160 781 / 207 783 / 252
Cooling 290 CFM/Ton CFM / Watts 721 / 53 726 / 101 730 / 147 733 / 192 737 / 235
Cooling 3.0 Ton
Cooling 450 CFM/Ton CFM / Watts 1361 / 228 1355 / 310 1343 / 389 1327 / 466 1309 / 539
Cooling 420 CFM/Ton CFM / Watts 1266 / 191 1263 / 268 1255 / 342 1242 / 413 1227 / 482
Cooling 400 CFM/Ton CFM / Watts 1203 / 168 1202 / 242 1195 / 312 1185 / 381 1172 / 446
Cooling 370 CFM/Ton CFM / Watts 1110 / 138 1111 / 207 1107 / 273 1100 / 336 1090 / 397
Cooling 350 CFM/Ton CFM / Watts 1048 / 121 1051 / 186 1048 / 249 1043 / 309 1035 / 367
Cooling 330 CFM/Ton CFM / Watts 987 / 105 991 / 167 990 / 226 986 / 284 980 / 339
Cooling 310 CFM/Ton CFM / Watts 926 / 90 931 / 149 931 / 206 929 / 260 926 / 313
Cooling 290 CFM/Ton CFM / Watts 866 / 78 871 / 133 872 / 187 872 / 238 870 / 288

12 P0V0-SVX001-1A-EN
P0V0B000M40SDA Modular Blower Cooling Airflow (CFM) and Power (Watts) Vs. External Static Pressure without Filter
Cooling Unit
Outdoor
Airflow Setting
(CFM/Ton)
EXTERNAL STATIC PRESSURE (IN. W. C.)
0.1 0.3 0.5 0.7 0.9
Cooling 1.5 Ton
Cooling 450 CFM/Ton CFM / Watts 661 / 41 663 / 74 666 / 111 668 / 150 671 / 191
Cooling 420 CFM/Ton CFM / Watts 614 / 35 616 / 68 618 / 104 621 / 142 623 / 183
Cooling 400 CFM/Ton CFM / Watts 582 / 32 584 / 64 587 / 100 589 / 138 592 / 178
Cooling 370 CFM/Ton CFM / Watts 534 / 28 537 / 59 539 / 94 542 / 131 544 / 171
Cooling 350 CFM/Ton CFM / Watts 502 / 25 505 / 56 507 / 90 510 / 128 512 / 168
Cooling 330 CFM/Ton CFM / Watts 470 / 23 473 / 53 475 / 87 477 / 124 480 / 164
Cooling 310 CFM/Ton CFM / Watts 438 / 20 440 / 50 443 / 84 445 / 121 448 / 162
Cooling 290 CFM/Ton CFM / Watts 406 / 19 408 / 48 411 / 81 413 / 119 415 / 160
Cooling 2.0 Ton
Cooling 450 CFM/Ton CFM / Watts 893 / 81 895 / 116 898 / 157 900 / 200 903 / 244
Cooling 420 CFM/Ton CFM / Watts 832 / 68 834 / 103 837 / 143 839 / 185 841 / 228
Cooling 400 CFM/Ton CFM / Watts 791 / 61 793 / 95 795 / 134 798 / 175 800 / 218
Cooling 370 CFM/Ton CFM / Watts 729 / 50 731 / 84 733 / 122 736 / 163 738 / 204
Cooling 350 CFM/Ton CFM / Watts 687 / 44 689 / 78 692 / 115 694 / 155 697 / 196
Cooling 330 CFM/Ton CFM / Watts 645 / 39 648 / 72 650 / 109 652 / 148 655 / 188
Cooling 310 CFM/Ton CFM / Watts 603 / 34 606 / 67 608 / 103 610 / 141 613 / 181
Cooling 290 CFM/Ton CFM / Watts 561 / 30 563 / 62 566 / 97 568 / 135 571 / 175
Cooling 2.5 Ton
Cooling 450 CFM/Ton CFM / Watts 1118 / 147 1120 / 183 1123 / 225 1125 / 271 1127 / 320
Cooling 420 CFM/Ton CFM / Watts 1044 / 122 1046 / 158 1048 / 199 1051 / 245 1053 / 292
Cooling 400 CFM/Ton CFM / Watts 994 / 107 996 / 142 999 / 184 1001 / 229 1003 / 275
Cooling 370 CFM/Ton CFM / Watts 918 / 87 921 / 122 923 / 163 925 / 207 928 / 252
Cooling 350 CFM/Ton CFM / Watts 867 / 76 870 / 110 872 / 151 875 / 193 877 / 237
Cooling 330 CFM/Ton CFM / Watts 816 / 65 819 / 100 821 / 139 824 / 181 826 / 224
Cooling 310 CFM/Ton CFM / Watts 765 / 56 767 / 90 770 / 129 772 / 170 775 / 212
Cooling 290 CFM/Ton CFM / Watts 713 / 48 715 / 82 718 / 120 720 / 160 723 / 201
Cooling 3.0 Ton
Cooling 450 CFM/Ton CFM / Watts 1336 / 242 1338 / 280 1340 / 324 1343 / 372 1345 / 423
Cooling 420 CFM/Ton CFM / Watts 1249 / 200 1252 / 237 1254 / 280 1257 / 328 1259 / 378
Cooling 400 CFM/Ton CFM / Watts 1191 / 175 1194 / 212 1196 / 254 1198 / 301 1201 / 351
Cooling 370 CFM/Ton CFM / Watts 1103 / 141 1105 / 178 1108 / 220 1110 / 266 1113 / 314
Cooling 350 CFM/Ton CFM / Watts 1044 / 122 1046 / 158 1048 / 199 1051 / 245 1053 / 292
Cooling 330 CFM/Ton CFM / Watts 984 / 104 986 / 140 989 / 181 991 / 226 993 / 272
Cooling 310 CFM/Ton CFM / Watts 923 / 89 926 / 124 928 / 164 931 / 208 933 / 253
Cooling 290 CFM/Ton CFM / Watts 862 / 75 865 / 109 867 / 150 870 / 192 872 / 236
Cooling 3.5 Ton
Cooling 450 CFM/Ton CFM / Watts 1546 / 373 1549 / 414 1551 / 459 1554 / 508 1556 / 560
Cooling 420 CFM/Ton CFM / Watts 1449 / 307 1451 / 347 1454 / 391 1456 / 440 1458 / 491
Cooling 400 CFM/Ton CFM / Watts 1383 / 268 1385 / 307 1388 / 351 1390 / 399 1393 / 450
Cooling 370 CFM/Ton CFM / Watts 1283 / 216 1285 / 253 1288 / 297 1290 / 344 1293 / 394
Cooling 350 CFM/Ton CFM / Watts 1215 / 185 1218 / 222 1220 / 265 1223 / 312 1225 / 362
Cooling 330 CFM/Ton CFM / Watts 1147 / 157 1150 / 194 1152 / 237 1154 / 283 1157 / 332
Cooling 310 CFM/Ton CFM / Watts 1078 / 133 1081 / 169 1083 / 211 1086 / 257 1088 / 304
Cooling 290 CFM/Ton CFM / Watts 1009 / 111 1011 / 147 1014 / 188 1016 / 233 1018 / 280
Cooling 4.0 Ton
Cooling 450 CFM/Ton CFM / Watts 1750 / 546 1752 / 589 1755 / 636 1757 / 687 1760 / 740
Cooling 420 CFM/Ton CFM / Watts 1642 / 448 1645 / 490 1647 / 536 1649 / 586 1652 / 639
Cooling 400 CFM/Ton CFM / Watts 1569 / 390 1572 / 431 1574 / 477 1576 / 526 1579 / 578
Cooling 370 CFM/Ton CFM / Watts 1458 / 313 1461 / 353 1463 / 397 1465 / 446 1468 / 497
Cooling 350 CFM/Ton CFM / Watts 1383 / 268 1385 / 307 1388 / 351 1390 / 399 1393 / 450
Cooling 330 CFM/Ton CFM / Watts 1307 / 227 1309 / 265 1312 / 309 1314 / 356 1317 / 407
Cooling 310 CFM/Ton CFM / Watts 1230 / 191 1232 / 228 1235 / 271 1237 / 319 1240 / 368
Cooling 290 CFM/Ton CFM / Watts 1152 / 159 1154 / 196 1157 / 238 1159 / 285 1162 / 334
AAiirrffllooww TTaabblleess

P0V0-SVX001-1A-EN 13
P0V0C000M50SDA Modular Blower Cooling Airflow (CFM) and Power (Watts) vs. External Static Pressure without Filter
Cooling Unit Outdoor Airflow Setting
(CFM/Ton)
EXTERNAL STATIC PRESSURE (IN. W. C.)
0.1 0.3 0.5 0.7 0.9
Cooling 2.5 Ton
Cooling 450 CFM/Ton CFM / Watts 1145 / 87 1143 / 141 1141 / 195 1138 / 247 1136 / 295
Cooling 420 CFM/Ton CFM / Watts 1071 / 74 1069 / 125 1067 / 178 1065 / 227 1062 / 273
Cooling 400 CFM/Ton CFM / Watts 1022 / 66 1020 / 116 1018 / 167 1015 / 215 1013 / 259
Cooling 370 CFM/Ton CFM / Watts 948 / 56 946 / 103 944 / 152 942 / 198 939 / 240
Cooling 350 CFM/Ton CFM / Watts 899 / 50 897 / 96 895 / 143 892 / 187 890 / 229
Cooling 330 CFM/Ton CFM / Watts 850 / 44 848 / 89 846 / 134 843 / 178 841 / 219
Cooling 310 CFM/Ton CFM / Watts 801 / 39 799 / 82 796 / 127 794 / 169 792 / 209
Cooling 290 CFM/Ton CFM / Watts 752 / 34 750 / 77 747 / 120 745 / 161 743 / 201
Cooling 3.0 Ton
Cooling 450 CFM/Ton CFM / Watts 1366 / 137 1364 / 198 1362 / 260 1360 / 320 1357 / 376
Cooling 420 CFM/Ton CFM / Watts 1278 / 115 1276 / 173 1273 / 232 1271 / 288 1269 / 341
Cooling 400 CFM/Ton CFM / Watts 1219 / 102 1217 / 158 1214 / 215 1212 / 269 1210 / 320
Cooling 370 CFM/Ton CFM / Watts 1130 / 84 1128 / 138 1126 / 192 1124 / 243 1121 / 291
Cooling 350 CFM/Ton CFM / Watts 1071 / 74 1069 / 125 1067 / 178 1065 / 227 1062 / 273
Cooling 330 CFM/Ton CFM / Watts 1012 / 65 1010 / 114 1008 / 165 1006 / 212 1003 / 257
Cooling 310 CFM/Ton CFM / Watts 953 / 56 951 / 104 949 / 153 947 / 199 944 / 242
Cooling 290 CFM/Ton CFM / Watts 894 / 49 892 / 95 890 / 142 888 / 186 885 / 228
Cooling 3.5 Ton
Cooling 450 CFM/Ton CFM / Watts 1588 / 205 1585 / 274 1583 / 344 1581 / 412 1579 / 476
Cooling 420 CFM/Ton CFM / Watts 1484 / 170 1482 / 236 1480 / 302 1478 / 366 1475 / 427
Cooling 400 CFM/Ton CFM / Watts 1416 / 150 1413 / 213 1411 / 277 1409 / 338 1407 / 396
Cooling 370 CFM/Ton CFM / Watts 1312 / 123 1310 / 182 1308 / 242 1306 / 300 1303 / 354
Cooling 350 CFM/Ton CFM / Watts 1244 / 107 1241 / 164 1239 / 222 1237 / 277 1234 / 329
Cooling 330 CFM/Ton CFM / Watts 1175 / 93 1172 / 147 1170 / 203 1168 / 256 1166 / 305
Cooling 310 CFM/Ton CFM / Watts 1106 / 80 1104 / 132 1101 / 186 1099 / 236 1097 / 283
Cooling 290 CFM/Ton CFM / Watts 1037 / 68 1035 / 119 1032 / 170 1030 / 218 1028 / 263
Cooling 4.0 Ton
Cooling 450 CFM/Ton CFM / Watts 1809 / 295 1807 / 372 1805 / 450 1802 / 527 1800 / 600
Cooling 420 CFM/Ton CFM / Watts 1691 / 244 1689 / 317 1686 / 390 1684 / 462 1682 / 531
Cooling 400 CFM/Ton CFM / Watts 1612 / 214 1610 / 283 1608 / 354 1606 / 423 1603 / 489
Cooling 370 CFM/Ton CFM / Watts 1494 / 174 1492 / 239 1490 / 306 1488 / 370 1485 / 431
Cooling 350 CFM/Ton CFM / Watts 1416 / 150 1413 / 213 1411 / 277 1409 / 338 1407 / 396
Cooling 330 CFM/Ton CFM / Watts 1337 / 129 1335 / 189 1332 / 250 1330 / 309 1328 / 364
Cooling 310 CFM/Ton CFM / Watts 1258 / 110 1256 / 168 1254 / 226 1251 / 282 1249 / 334
Cooling 290 CFM/Ton CFM / Watts 1180 / 94 1177 / 148 1175 / 204 1173 / 257 1171 / 307
Cooling 4.5 Ton
Cooling 450 CFM/Ton CFM / Watts 2030 / 411 2028 / 496 2026 / 583 2024 / 668 2021 / 751
Cooling 420 CFM/Ton CFM / Watts 1898 / 338 1895 / 418 1893 / 500 1891 / 580 1888 / 657
Cooling 400 CFM/Ton CFM / Watts 1809 / 295 1807 / 372 1805 / 450 1802 / 527 1800 / 600
Cooling 370 CFM/Ton CFM / Watts 1676 / 238 1674 / 310 1672 / 383 1669 / 455 1667 / 523
Cooling 350 CFM/Ton CFM / Watts 1588 / 205 1585 / 274 1583 / 344 1581 / 412 1579 / 476
Cooling 330 CFM/Ton CFM / Watts 1499 / 175 1497 / 241 1495 / 308 1492 / 372 1490 / 433
Cooling 310 CFM/Ton CFM / Watts 1411 / 149 1408 / 211 1406 / 275 1404 / 336 1402 / 394
Cooling 290 CFM/Ton CFM / Watts 1322 / 125 1320 / 185 1318 / 245 1315 / 304 1313 / 358
Cooling 5.0 Ton
Cooling 450 CFM/Ton CFM / Watts 2252 / 555 2249 / 650 2247 / 745 2245 / 839 2243 / 931
Cooling 420 CFM/Ton CFM / Watts 2104 / 455 2102 / 544 2100 / 633 2097 / 722 2095 / 807
Cooling 400 CFM/Ton CFM / Watts 2006 / 396 2003 / 481 2001 / 566 1999 / 651 1997 / 733
Cooling 370 CFM/Ton CFM / Watts 1858 / 318 1856 / 397 1854 / 477 1851 / 556 1849 / 631
Cooling 350 CFM/Ton CFM / Watts 1760 / 273 1758 / 348 1755 / 424 1753 / 499 1751 / 571
Cooling 330 CFM/Ton CFM / Watts 1662 / 232 1659 / 304 1657 / 376 1655 / 447 1652 / 515
Cooling 310 CFM/Ton CFM / Watts 1563 / 196 1561 / 264 1559 / 333 1556 / 401 1554 / 464
Cooling 290 CFM/Ton CFM / Watts 1465 / 164 1463 / 229 1460 / 295 1458 / 358 1456 / 418
AAiirrffllooww TTaabblleess

14 P0V0-SVX001-1A-EN
P0V0D000M50SDA Modular Blower Cooling Airflow (CFM) and Power (Watts) vs. External Static Pressure without Filter
Cooling Unit Outdoor Airflow Setting
(CFM/Ton)
EXTERNAL STATIC PRESSURE (IN. W. C.)
0.1 0.3 0.5 0.7 0.9
Cooling 3.0 Ton
Cooling 450 CFM/Ton CFM / Watts 1347 / 126 1353 / 182 1354 / 240 1352 / 300 1352 / 361
Cooling 420 CFM/Ton CFM / Watts 1259 / 107 1265 / 159 1265 / 215 1262 / 272 1260 / 330
Cooling 400 CFM/Ton CFM / Watts 1200 / 95 1206 / 146 1205 / 199 1201 / 254 1197 / 311
Cooling 370 CFM/Ton CFM / Watts 1111 / 79 1117 / 127 1114 / 178 1108 / 230 1102 / 284
Cooling 350 CFM/Ton CFM / Watts 1052 / 70 1058 / 116 1053 / 164 1045 / 215 1037 / 267
Cooling 330 CFM/Ton CFM / Watts 994 / 61 998 / 105 992 / 152 981 / 200 971 / 251
Cooling 310 CFM/Ton CFM / Watts 935 / 53 938 / 95 930 / 140 917 / 187 904 / 236
Cooling 290 CFM/Ton CFM / Watts 876 / 46 878 / 86 867 / 129 851 / 175 837 / 222
Cooling 3.5 Ton
Cooling 450 CFM/Ton CFM / Watts 1570 / 185 1573 / 248 1573 / 314 1574 / 381 1577 / 450
Cooling 420 CFM/Ton CFM / Watts 1466 / 155 1470 / 215 1471 / 277 1471 / 342 1473 / 407
Cooling 400 CFM/Ton CFM / Watts 1397 / 138 1402 / 195 1403 / 255 1402 / 317 1403 / 380
Cooling 370 CFM/Ton CFM / Watts 1293 / 114 1299 / 168 1299 / 224 1297 / 283 1296 / 342
Cooling 350 CFM/Ton CFM / Watts 1224 / 100 1231 / 151 1230 / 206 1226 / 262 1223 / 319
Cooling 330 CFM/Ton CFM / Watts 1155 / 87 1162 / 136 1160 / 188 1154 / 242 1150 / 297
Cooling 310 CFM/Ton CFM / Watts 1087 / 75 1092 / 122 1089 / 172 1082 / 223 1075 / 276
Cooling 290 CFM/Ton CFM / Watts 1018 / 65 1023 / 109 1017 / 157 1008 / 206 999 / 257
Cooling 4.0 Ton
Cooling 450 CFM/Ton CFM / Watts 1795 / 260 1792 / 330 1790 / 403 1790 / 479 1795 / 555
Cooling 420 CFM/Ton CFM / Watts 1675 / 218 1675 / 284 1675 / 353 1675 / 425 1679 / 497
Cooling 400 CFM/Ton CFM / Watts 1595 / 192 1597 / 256 1597 / 323 1598 / 391 1602 / 461
Cooling 370 CFM/Ton CFM / Watts 1476 / 158 1480 / 218 1481 / 281 1481 / 345 1483 / 411
Cooling 350 CFM/Ton CFM / Watts 1397 / 138 1402 / 195 1403 / 255 1402 / 317 1403 / 380
Cooling 330 CFM/Ton CFM / Watts 1318 / 119 1324 / 174 1324 / 231 1322 / 291 1322 / 351
Cooling 310 CFM/Ton CFM / Watts 1239 / 103 1245 / 155 1245 / 210 1241 / 266 1239 / 324
Cooling 290 CFM/Ton CFM / Watts 1160 / 88 1167 / 137 1165 / 189 1159 / 243 1155 / 298
Cooling 4.5 Ton
Cooling 450 CFM/Ton CFM / Watts 2020 / 353 2011 / 430 2005 / 511 2003 / 594 2007 / 678
Cooling 420 CFM/Ton CFM / Watts 1885 / 295 1879 / 368 1876 / 444 1876 / 522 1880 / 602
Cooling 400 CFM/Ton CFM / Watts 1795 / 260 1792 / 330 1790 / 403 1790 / 479 1795 / 555
Cooling 370 CFM/Ton CFM / Watts 1660 / 213 1660 / 278 1660 / 347 1661 / 418 1665 / 490
Cooling 350 CFM/Ton CFM / Watts 1570 / 185 1573 / 248 1573 / 314 1574 / 381 1577 / 450
Cooling 330 CFM/Ton CFM / Watts 1481 / 159 1485 / 219 1486 / 282 1486 / 347 1488 / 413
Cooling 310 CFM/Ton CFM / Watts 1392 / 137 1397 / 194 1398 / 254 1397 / 315 1398 / 378
Cooling 290 CFM/Ton CFM / Watts 1303 / 116 1309 / 170 1309 / 227 1307 / 286 1306 / 346
Cooling 5.0 Ton
Cooling 450 CFM/Ton CFM / Watts 2247 / 466 2230 / 551 2219 / 639 2214 / 729 2215 / 821
Cooling 420 CFM/Ton CFM / Watts 2096 / 388 2084 / 468 2076 / 551 2074 / 637 2076 / 723
Cooling 400 CFM/Ton CFM / Watts 1995 / 341 1987 / 418 1981 / 498 1980 / 580 1983 / 663
Cooling 370 CFM/Ton CFM / Watts 1845 / 279 1840 / 350 1838 / 426 1838 / 503 1842 / 581
Cooling 350 CFM/Ton CFM / Watts 1745 / 241 1743 / 310 1742 / 382 1743 / 455 1747 / 530
Cooling 330 CFM/Ton CFM / Watts 1645 / 208 1646 / 273 1646 / 342 1647 / 412 1650 / 483
Cooling 310 CFM/Ton CFM / Watts 1546 / 177 1548 / 239 1549 / 305 1550 / 372 1553 / 439
Cooling 290 CFM/Ton CFM / Watts 1446 / 150 1451 / 209 1452 / 271 1452 / 334 1453 / 399
AAiirrffllooww TTaabblleess

P0V0-SVX001-1A-EN 15
General Installation
The following sections give general instructions for the
installation of the modular blowers
Panel emoval
Note: For the P0V0, a 1/4" nut driver is required to remove the two
screws at the top of the front panel. The front panel can then be
removed by lifting upwards.
Note: Tinnerman clips are provided in the doc pack if the door panel
flange hole(s) becomes stripped.
Note: Remove shipping bracket before installation.
Tinnerman clip locations
(if needed)
Shipping bracket
Horizontal Installation in an Attic
or Crawlspace
The modular blower may be installed in an attic or
crawl space in the horizontal position by placing it on
its left or right side (as viewed from the front in the
vertical position) The horizontal installation in an attic
should be on a service platform large enough to allow
for proper clearances on all sides and service access to
the front of the modular blower See “Location and
Clearances,” p 6 Line contact is only permissible
between lines formed by intersections of the top and
two sides of the modular blower casing and building
joists, studs, or framing
The modular blower may be placed horizontally in a
crawl space on a pad or other noncombustible
material Place blocks underneath to support the
modular blower and raise the unit for sufficient
protection from moisture
The modular blower may be installed hanging in a
hanging position using straps The modular blower
should be supported at both ends and have an
additional support in the center of the modular blower
in back
WHEN SUSPENDING THE HORIZONTAL
MODULAR BLOWER, IT SHOULD BE
SUSPENDED BY ATTACHING TO THE
CABINET IN THE PLACES SHOWN.
WHEN SUPPORTING THE
MODULAR BLOWER FROM
BELOW, SUPPORT FRONT
TO BACK (AS SHOWN)
OR SIDE TO SIDE.

16 P0V0-SVX001-1A-EN
Duct Connections
Table 4. Supply Duct Connections
Upflow Modular Blower with Coil
Note: There are no longer guide holes located on the modular blower
flange.
Modular Blower in Horizontal Left with Coil
Note: There are no longer guide holes located on the modular blower
flange.
Refer to Step 1. Step 2. Step 3. Step 4.
Refer to Step 1. Step 5. Step 3. Step 4.
Modular Blower in Horizontal Right with “A” Coil
Note: Flat or dedicated horizontal coils may require flanges to be bent
upward.
Downflow Modular Blower with Coil
Refer to Step 6. Step 5. Step 7. Step 4. Refer to Step 6. Step 8. Step 4.
GGeenneerraall IInnssttaallllaattiioonn

P0V0-SVX001-1A-EN 17
Table 4. Supply Duct Connections (continued)
Horizontal Right and Downflow Modular Blower – no Coil
Refer to Step 1. Step 9. Step 4.
IInnssttaallllaattiioonn IInnssttrruuccttiioonnss
1 Bend modular blower flanges up
2 Set the coil on top of the modular blower
3 Screw through the coil cabinet into the modular
blower flange Guide holes are located on the coil
4 Seal per local codes and requirements
5 Support the modular blower and coil
independently
6 Bend modular blower flanges down
7 Match the coil up flush to the back of the modular
blower
8 Set the modular blower on top of the coil so that it
is flush with the back of the modular blower
9 Attach ducting
GGeenneerraall IInnssttaallllaattiioonn

18 P0V0-SVX001-1A-EN
Table 5. eturn Duct Connections
Return Ducting General Guidelines
• Back returns are not allowed on any S-Series Modular blowers
• Side returns are not allowed on downflow or horizontal S-Series Modular blowers
• Mounting flanges must be located on ducting
• Shoot screws through the mount flanges into the modular blower cabinet
• Always seal per local codes and requirements
• Modular blower, coil, and ducting must be supported separately
• An external overflow drain pan must be installed in all applications over a finished ceiling to prevent property damage
Upflow Modular Blower with Bottom Return in Closet with
Remote Filter
Upflow Modular Blower with Bottom Return in Closet with
Filter Box
Refer to Step 1. Step 2. Step 3. Step 4.
FILTER
Refer to Step 1. Step 5. Step 6. Step 4.
Upflow Modular Blower with Bottom Return Mounted on a
Ducted Pedestal
Upflow Modular Blower with Bottom Return Mounted on a
Ducted Pedestal with Filter Box
Refer to Step 1. Step 7. Step 8. Step 4.
FILTER
Refer to Step 1. Step 9. Step 4.
GGeenneerraall IInnssttaallllaattiioonn

P0V0-SVX001-1A-EN 19
Table 5. eturn Duct Connections (continued)
Upflow Modular Blower with Bottom and Side Returns
Mounted on a Ducted Pedestal with Side Return and Filter Box
Important: Make sure the thermostat wiring hole is sealed on the
cabinet side with the side return.
Important: Make sure not to cut the cabinet in the “No Cut” area.
Important: Remove Blower Assembly and Panel Loop before cutting
cabinet to avoid cutting wires.
Note: Use Optional BAYLIFT kit to lift modular blower. Follow kit
instructions.
Note: The modular blower bottom pedestal must be a minimum of 6”
in height.
Cabinet cutout when used with BAYLIFT
No Cut Area Cutouts
21” Filter Cabinet with BAYLIFT Kit shown
Flush with back of
modular blower cabinet
FILTER
Refer to Step 1. Step 10. Step 11. Step 12. Step 13. Step 14. Step 15.
Step 4.
Upflow Modular Blower with Side Return
Important: Make sure the thermostat wiring hole is sealed on the
cabinet side with the side return.
Important: Make sure not to cut the cabinet in the “No Cut” area.
Important: Remove Blower Assembly and Panel Loop before cutting
cabinet to avoid cutting wires.
Note: If using a filter box, use a transition, if possible, to attach the
filter box to the modular blower cabinet.
Upflow Modular Blower with Two Side Returns
Important: One of the sides must have a transition to allow the
thermostat wiring to exit the cabinet.
Important: If a transition is not a viable option, a hole will need to be
drilled in the side of the cabinet for the thermostat wiring
to exit.
Important: Make sure not to cut the cabinet in the “No Cut” area.
Important: Remove Blower Assembly and Panel Loop before cutting
cabinet to avoid cutting wires.
Note: If using one transition, the thermostat wiring will exit on the
transition side.
Note: If using a filter boxes, use transitions, if possible, to attach the
filter boxes to the modular blower cabinet.
Use four corner guides
to create cutout
No Cut Area
Refer to Step 16. Step 17. Step 18. Step 19.
Use four corner guides
to create cutout
No Cut Area
Refer to Step 16. Step 17. Step 18. Step 19.
GGeenneerraall IInnssttaallllaattiioonn

20 P0V0-SVX001-1A-EN
Table 5. eturn Duct Connections (continued)
Downflow Modular Blower with Top Return Downflow Modular Blower with Top Return and Plenum
Refer to Step 20. Step 21. Step 3. Step 4. Refer to Step 20. Step 22. Step 3. Step 4.
Downflow Modular Blower with Top Return and Plenum with
Filter Box
FILTER
Refer to Step 20. Step 23. Step 24. Step 4.
Installation Instructions
1. Remove the bottom plate.
2. Set the modular blower on the base inside closet.
3. Install remote filter.
4. Seal per local codes and requirements.
5. Set the modular blower on the filter box inside closet.
6. Must have grille present for air.
7. Set the modular blower on the ducted pedestal. The ducted
pedestal will use ducted air from a remote location.
8. Install filter at a remote location.
9. Set the modular blower on the filter box. The ducted pedestal will
use ducted air from a remote location.
10. Create ducting and set the modular blower in place.
11. Match the filter cabinet flush to the back and bottom sides of the
modular blower cabinet and secure in place with screws.
12. Mark the two areas to be cut out for the return air.
13. Cut out the two sections of the cabinet and BAYLIFT kit to be
removed.
14. Attach ducting to the filter box.
15. The ducted pedestal will use ducted air from a remote location.
16. Using guides, remove the cutout for the side return.
17. Create ducting and set the modular blower in place. Use screws to
attach ducting to the modular blower cabinet.
18. Seal bottom panel per local codes and requirements.
19. Seal all other panels per local codes and requirements.
20. Remove the top plate.
21. Attach the ducting to the top of the modular blower.
22. Attach the plenum ducting to the top of the modular blower.
23. Attach the filter box to the top of the modular blower.
24. Attach ducting.
GGeenneerraall IInnssttaallllaattiioonn
