CleanMaster Raptor 230H Product manual

MNL36456-E3H-CE
Rev. 00 (04-01)
Raptor 230H
Carpet And Upholstery Cleaner
Model No.:
100-652-230
11 gal Extractor
CLEANMASTER
11015 47TH AVENUE WEST
MUKILTEO WA 98275 U.S.A.
FAX: [phone]
WEBSITE: www.cleanmaster.com
CUSTOMER SERVICE: 1-425-775-7276
Operator and Parts Manual

36456-E3H-Raptor CE (04-01)2
Please fill out at time of installation for future reference.
Model No.-____________________________________
Install. Date-___________________________________
Serial No.-_____________________________________
OPERATION
This manual is furnished with each new model. It
provides necessary operation and maintenance
instructions and an illustrated parts list.
Read this manual completely and understand the
machine before operating or servicing it.
Use the illustrated Parts Lists to order parts. Before
ordering parts or supplies, be sure to have your
machine model number and serial number handy.
Parts and supplies may be ordered by phone or mail
from any authorized parts and service center,
distributor or directly from Cleanmaster.
This machine will provide excellent service. However,
the best results will be obtained at minimum costs if:
•The machine is operated with reasonable care.
•The machine is maintained regularly –per the
maintenance instructions provided.
•The machine is maintained with manufacturer
supplied or equivalent parts.
MACHINE DATA
©Cleanmaster Printed in U.S.A.
Cleanmaster is a registered United States trademark
TABLE OF CONTENTS
SAFETY PRECAUTIONS................................ 3
MACHINE COMPONENTS.............................. 4
MACHINE SETUP .......................................... 4
MACHINE OPERATION.................................. 5
DRAINING TANKS......................................... 6
FREEZE PROTECTION................................... 6
MACHINE MAINTENANCE.............................. 7
STORING MACHINE...................................... 7
RECOMMENDED STOCK ITEMS.................... 7
TROUBLE SHOOTING................................... 8
SPECIFICATIONS ......................................... 9
ELECTRICAL DIAGRAM ................................ 10
PARTS LIST ................................................. 11
OPTIONS...................................................... 16
WARRANTY POLICY..................................... 18

36456-E3H-Raptor CE (04-01) 3
OPERATION
SAFETY PRECAUTIONS
This machine is intended for commercial use. It is
designed to wet clean carpet and upholstery in a
indoor environment and is not constructed for any
other use. Use only recommended cleaning solutions
and accessory tools.
All operators must read, understand and practice the
following safety precautions.
The following safety-alert symbols are used throughout
this manual as indicated in their description:
WARNING: To warn of hazards or unsafe
practices which could result in severe personal
injury or death.
FOR SAFETY: To identify actions which must be
followed for safe operation of equipment.
The following information signals potentially dangerous
conditions to the operator or equipment.
FOR SAFETY:
1. Do not operate machine:
–Unless trained and authorized.
–Unless operator manual is read and
understood.
–In flammable or explosive areas.
–With damaged cord or plug.
–If not in proper operating condition.
–Unless cord is properly grounded.
–In outdoor areas.
–In standing water.
–With the use of an extension cord.
2. Before operating machine:
–Make sure all safety devices are in place
and operate properly.
3. When using machine:
–Do not run machine over cord.
–Do not pull machine by plug or cord.
–Do not pull cord around sharp edges or
corners.
–Do not unplug by pulling on cord.
–Do not stretch cord.
–Do not handle plugs with wet hands.
–Keep cord away from heated surfaces.
–Report machine damage or faulty operation
immediately.
–Follow mixing and handling instructions on
chemical containers.
–Connect hoses before turning on pump.
–Be sure chemicals are safe and non-toxic.
4. Before leaving or servicing machine:
–Turn off machine.
–Unplug cord from wall outlet.
5. When servicing machine:
–Unplug cord from wall outlet.
–Avoid moving parts. Do not wear loose
jackets, shirts, or sleeves.
–Use manufacturer supplied or approved
replacement parts.
WARNING: Hazardous Voltage. Shock or
electrocution can result. Always unplug machine
before servicing.
WARNING: Flammable materials can cause
an explosion or fire. Do not use flammable
materials in tank(s).
WARNING: Flammable materials or reactive
metals can cause an explosion or fire. Do not pick
up.
WARNING: Hot solutions up to 88°C (190°F).
Do not touch with any part of the body. Use
thermometer to gauge temperature.
WARNING: Contents of solution hoses may
be under pressure even after pump is off.
GROUNDING INSTRUCTIONS
Machine must be grounded. If it should
malfunction or breakdown, grounding provides a
path of least resistance for electrical current to
reduce the risk of electrical shock. This machine is
equipped with a cord having an equipment-
grounding connector and grounding plug. The
plug must be plugged into an appropriate outlet
that is properly installed in accordance with all
local codes and ordinances. Do not remove
ground pin; if missing, replace plug before use.
International models will have different cord ends.
GROUNDED OUTLET
(3 HOLE)
GROUNDING
PIN

36456-E3H-Raptor CE (04-01)4
OPERATION
MACHINE COMPONENTS
1. Recovery Tank
2. Solution Tank
3. Recovery Tank Lid
4. Solution Tank Lid
5. Vacuum Switches
6. Pump Switch
7. Inline Heater Switches
8. Circuit Breakers
9. Power Cords
10. Empty-Out Nozzle
11. Vacuum Hose Connector
12. Latches
13. Recovery Tank Drain
14. Solution Hose Connector
MACHINE SETUP
1. Carefully check carton for signs of damage.
Report damages at once to carrier. The machine
is shipped fully assembled and is ready for use.
2. Connect hoses and tool to be used (Figure1).
3. Using a clean bucket or hose, fill solution tank
with 41 liters (11 gallons) of hot water, 60°C
(140°F) maximum (Figure 2).
WARNING: Flammable materials can cause an
explosion or fire. Do not use flammable materials
in tank(s).
4. Add a recommended cleaning chemical.
FOR SAFETY: When using machine, follow
mixing and handling instructions on chemical
containers.
Fig. 1
Fig. 2
4
3
6
9
7
2
10
13
1
5
7
12
11
14
8
5

36456-E3H-Raptor CE (04-01) 5
Fig. 7
OPERATION
ATTENTION: If using powdered cleaning
chemicals, mix prior to adding.
NOTE: If desired, water alone achieves excellent
cleaning results.
5. Plug machine’s power cords into grounded wall
outlets on separate circuits (Figure 3). Green
circuit indicator light on switch panel illuminated
confirms connection to separate circuits.
FOR SAFETY: Do not operate machine unless
cord is properly grounded.
FOR SAFETY: Do not operate machine with the
use of an extension cord.
6. Secure recovery tank lid in place.
MACHINE OPERATION
FOR SAFETY: Do not operate machine unless
operator manual is read and understood.
PRE-OPERATION AND HEATING
1. Vacuum carpet and remove other debris with
standard vacuum.
2. Inspect power cord for damage.
3. Turn preheat / clean valve to preheat position and
turn on pump and heater (Figure 4). This will
preheat the entire contents of the solution tank.
CLEANING CARPETS
1. Activate vacuum, pump, and heater switches and
turn preheat valve to “clean” position (Figure 5).
2. Take carpet cleaning wand in hand and squeeze
valve trigger while moving the tool in short
forward and backward strokes. (Figure 6).
WHILE OPERATING
1. Overlap each path by 50 mm (2 in).
Warning: Flammable materials or reactive
metals can cause an explosion or fire. Do not
pick up.
2. Periodically check for excessive foam buildup in
recovery tank. Use a recommended foam control
solution to prevent vacuum motor damage.
ATTENTION: Excessive foam buildup will not
activate the float shut-off screen.
3. To clean heavily soiled areas, repeat cleaning
path from a different direction.
4. Empty recovery tank every time water is added to
solution tank.
CLEANING WITH ACCESSORY TOOLS
1. Connect accessory tool hoses to the couplers at
the end of the hoses already attached to the
machine. (Figure 7).
GROUNDED OUTLET
(3 hole)
GROUNDING
PIN
Fig. 3
Fig. 4
Fig. 6
Fig. 5

36456-E3H-Raptor CE (04-01)6
OPERATION

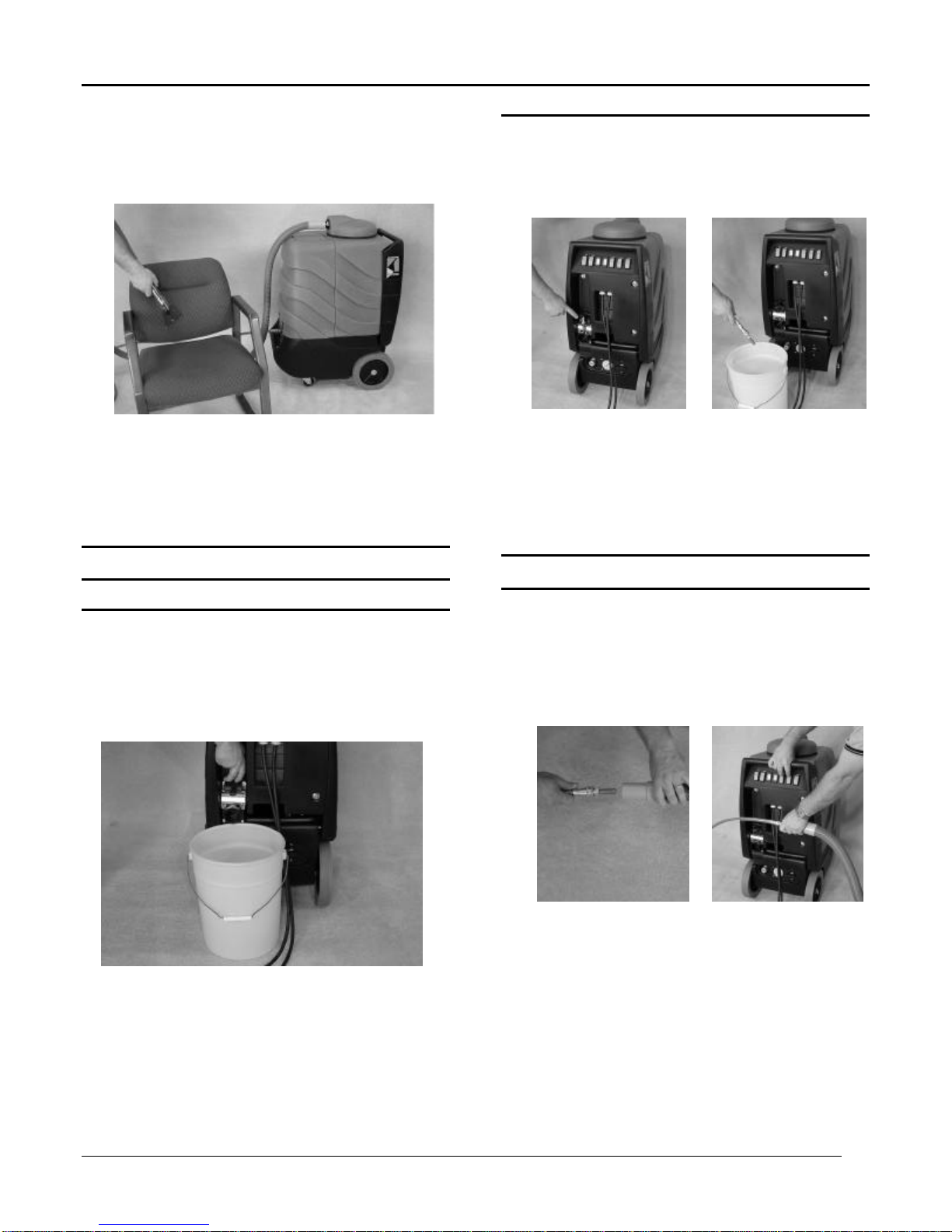

1. Operate accessory tool as normal (Figure 8).
NOTE: Before cleaning upholstery, always check
cleaning instructions sewn in furniture by
manufacturer.
2. After cleaning, relieve water pressure from tool
before disconnecting hose. Squeeze trigger for
five seconds after turning switches off.
DRAINING TANKS
DRAINING RECOVERY TANK
1. Turn machine off.
2. Insert supplied 45°elbow in drain valve. Place a
bucket below it and slowly pull up on the handle
(Figure 9).
3. Rinse tank with clean water at the end of the day.
DRAINING SOLUTION TANK
1. Remove empty-out nozzle from its storage
bracket (Figure 10) and attach to end of solution
hose.
2. Place empty-out nozzle over a bucket and turn on
pump until all the solution has been pumped from
solution tank.
3. Replace empty-out nozzle to its storage location.
FREEZE PROTECTION
1. After draining solution tank as described in steps
one and two in the previous section (DRAINING
SOLUTION TANK), place empty-out nozzle in
end of vacuum hose and seal with hand
(Figure 11).
2. Turn on vacuum and pump for 15 seconds. This
will fill the pump and hoses with air and prevent
freezing.
3. Replace empty-out nozzle to its storage place.
Fig. 8
Fig. 9
Fig. 11
Fig. 10
Fig. 8

36456-E3H-Raptor CE (04-01) 7
OPERATION
MACHINE MAINTENANCE
To keep machine in good working condition, simply
follow machine’s daily, weekly and monthly
maintenance procedures.
FOR SAFETY: When servicing machine, unplug
cord from wall outlet.
DAILY MAINTENANCE
(Every 4 Hours of Operation)
1. Empty and rinse out recovery tank thoroughly.
2. Remove float shut-off screen from recovery tank
and clean (Figure 12.)
3. When solution tank is empty, remove and clean
solution filter screen located in the bottom of the
solution tank.
4. Wipe off power cord and check for damage,
replace if necessary. Coil cord neatly after use.
5. Clean machine with an all purpose cleaner and
damp cloth.
WEEKLY MAINTENANCE
(Every 20 Hours of Operation)
1. Inspect vacuum hoses for holes and loose cuffs.
2. Inspect spray pattern for plugging. If plugged,
remove spray tips and soak them in acetic acid
solution for up to six hours. Do not use pointed
objects to unplug tips, damage will occur.
FOR SAFETY: When using machine, follow mixing
and handling instructions on chemical containers.
3. Inspect cord and cord grip for damage. Replace
immediately if damaged.
4. Lubricate metal shaft on recovery tank drain with
water resistant oil.
5. Lubricate female hose couplers with lightweight
oil.
MONTHLY MAINTENANCE
(Every 80 Hours of Operation)
1. Lubricate wheels with water resistant oil.
2. Inspect machine for water leaks and loose
hardware.
QUARTERLY MAINTENANCE
(Every 250 hours of Operation)
Check vacuum motor for carbon brush wear. Replace
motor if worn to a length of 10mm (0.38”) or less.
STORING MACHINE
1. Before storing machine, be certain to drain and
rinse tanks of all water.
2. Store machine in a dry area in the upright position.
3. Open recovery tank lid to promote air circulation.
ATTENTION: Do not expose to rain. Store
indoors.
ATTENTION: If storing machine in freezing
temperatures, be sure that machine and solution
system are completely drained and dry.
RECOMMENDED STOCK ITEMS
Refer to Parts List section for recommended stock
items. Stock items are clearly identified with a bullet
preceding the parts description. See example below:
PART # DESCRIPTION QTY.
J-30. LID,DOME 1
•J-38GRANITE TOP,SOL TANK ROTO GRANITE 1
J-39.5GRANITE HANDLE,WASTE TANK ROTO GRANI 1
J-39GRANITE WASTE TANK, ROTO GRANITE 1
FIG. 12

36456-E3H-Raptor CE (04-01)8
OPERATION
TROUBLE SHOOTING
PROBLEM CAUSE SOLUTION
Faulty switches or wiring. Contact Service Center.
Faulty power cord. Contact Service Center.
Machine does not operate.
Building circuit breaker tripped. Reset Breaker.
Heater does not heat. Faulty switch or wiring. Contact service center.
Faulty switch or wiring. Contact Service Center.
Faulty solution pump motor. Contact Service Center.
Faulty pump head. Contact Service Center.
Trigger on wand not pulled. Pull Solution Trigger.
Solution pump does not operate.
Quick couplers not fully engaged. Connect quick couplers.
Loose or broken wiring. Contact Service Center.
Faulty vacuum switch. Contact Service Center.
Defective vacuum motor. Contact Service Center.
Vacuum motor does not
operate.
Worn carbon brushes. Contact Service Center.
Recovery tank drain valve open. Close valve.
Defective recovery tank lid gasket. Replace gasket.
Clogged float shut-off screen. Remove recovery tank lid and clean
screen.
Loose vacuum hose connections. Secure cuffs to hose.
Poor solution pick-up.
Defective vacuum hose. Replace hose.
Plugged spray tips. Clean or replace tips.
Improper spray tip size or spray angle. Replace with proper tips.
Worn spray tips. Replace spray tips.
Solution tank low or empty. Refill solution tank.
Uneven or no spray.
Faulty solution pump. Contact Service Center.

36456-E3H-Raptor CE (04-01) 9
OPERATION

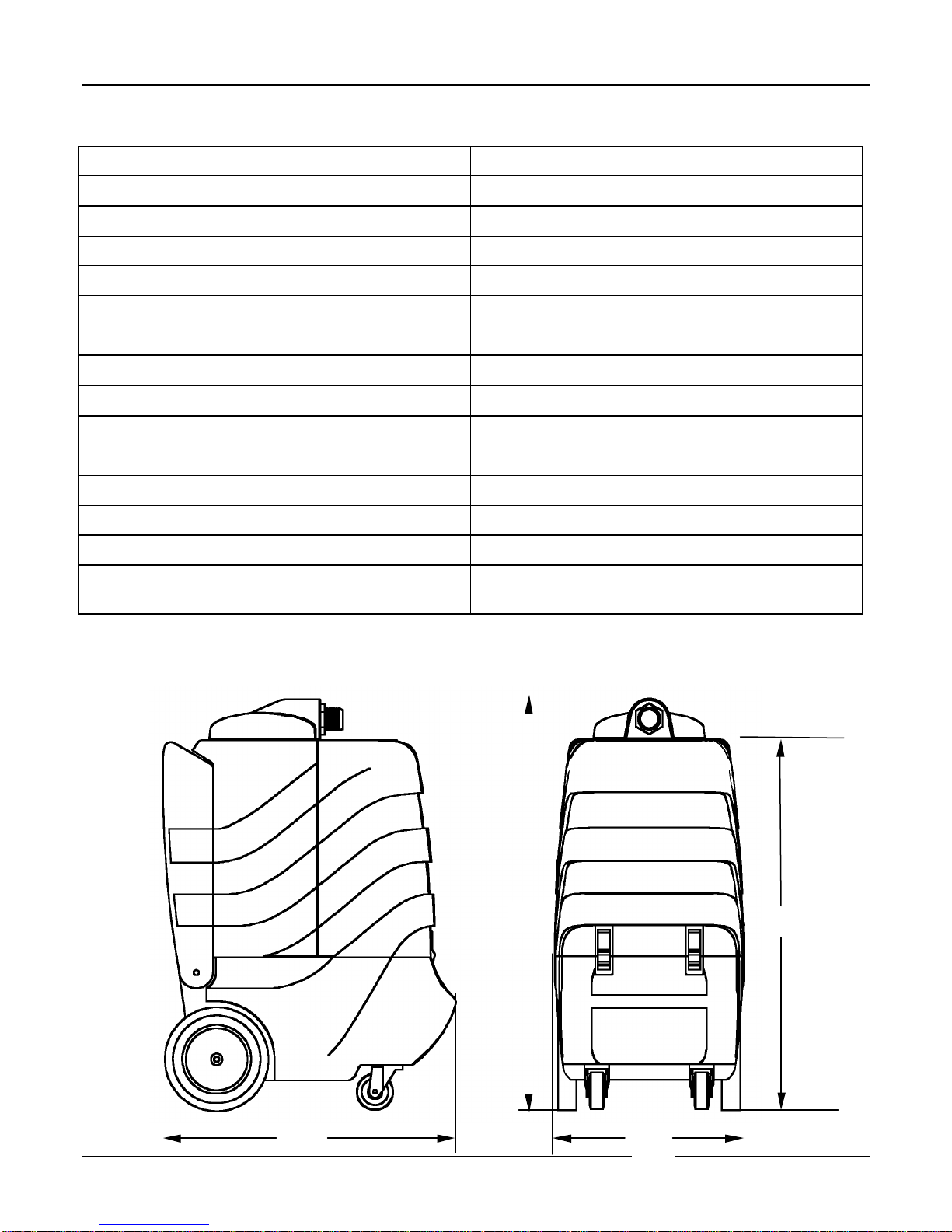

SPECIFICATIONS
MACHINE DIMENSIONS
Model 230H CE
LENGTH 711 mm (28 in)
WIDTH 450 mm (17.7 in)
HEIGHT 1016 mm (40 in)
WEIGHT 67 Kg (148lbs)
SOLUTION TANK CAPACITY 41 L (11 gal)
RECOVERY TANK CAPACITY 38L (10 gal)
SOLUTION PUMP 240 V, 20.68 bar (300psi), 1.0 A
VACUUM MOTORS 2 –3 STAGE PARALLEL 2 x 240 V, @4.6 A, 1104W
INLINE HEATER 2 x 240 V, @4.1 A, 1000 W
SEALED WATER LIFT 3454 mm (136 in) 200CFM (calc)
TOTAL POWER CONSUMPTION CIRCUIT ONE 240V, 9.1A, 2184W
TOTAL POWER CONSUMPTION CIRCUIT TWO 240V, 8.2A, 1968W
POWER CORDS 2 @ 7.6m (25 ft) 3/12
DECIBEL RATING 3 METERS (10 FT) FROM
MACHINE ON CARPET <77 db(A)
711 mm
(28 in)
1016 mm
(40 in)
450 mm
(17.7 in)
902 mm
(35.5 in)

36456-E3H-Raptor CE (04-01)10
ELECTRICAL DIAGRAM RAPTOR 230H
120 V WIRING DIAGRAM

36456-E3H-Raptor CE (04-01) 11
PARTS LIST RAPTOR 230H
TANK GROUP

36456-E3H-Raptor CE (04-01)12
PARTS LIST RAPTOR 230H
TANK GROUP
PART # DESCRIPTION QTY.
B-17.2 8-32 X 1/2 PHXSS 4
B-21 10-32 X 5/16 PHXSS 6
B-23 10-32 X 1/2 PHXSS 1
B-23.7 10-32 X 5/8 PHXSS 1
B-26.7 10-32 X 1 1/2 PHXZINC 2
B-28.01 NUT 10-32 HEX ZINC 2
B-33.05 1/4-20 X 1 HEX HD SS2
B-36.02 NUT 1/4-20 NYLOK SS 2
B-38.6 WASHER, 1/4 FLAT SS 4
B-40.91 3/8-16 X 1 1/2 HEX ZINC 2
B-40.95 3/8-16 X 3 1/2 HEX ZINC 1
B-40.96 3/8-16 X 4 HEX ZINC 1
B-41.5 WASHER, 3/8 FLAT ZINC 3
B-42.7 WASHER, 3/4 FLAT BLKHD CP 1
B-49 NUT,BULKHEAD 3/4-16 X.225 2
C-01.25 BUSHING,HOLDER EMPTY-OUT 1
C-03.13 CLAMP, HOSE 1 3/4 #20 2
C-03.2 CLAMP, HOSE 2" #24 1
C-03.3 CLAMP, HOSE 2 1/4 #32 2
•C-05.06 FILTER, 3/8NPT 50 MESH 1
•C-07.6 GASKET,LID FLD WATER RMVL 1
C-11.9 LATCH, SOFT DRAW BLACK 2
C-13.5 PLUG, HOLE NYLON .562 3
C-26 FLOAT,VAC SHUT OFF ROTO 1
C-35.5 HOSE BARB,1 1/2XMPT W/FLA 2
C-57 FLAT WASHER 1.75 ID X 2.75 1
D-01.935 BULKHEAD,3/4FPTx3/8 MPT 2.10"LNG 1
D-01.94 BULKHEAD,ADAPT3/8NPTX1/2N 1
E-14.65 CUFF, 1 1/2 SLIP 1 1/2 HOSE 2
F-02 Q/C 1/8" PLUG SS 1
F-03 Q/C 1/8 SOC BR ST TH 1
•F-11 Q/C 1/4" SOC BR SHUT OFF 2
F-13.5 QC 3/8" PLUG BR ST TH 1
F-14 QC 3/8 SOC BR ST TH 1
PART # DESCRIPTION QTY.
G-03.19 O-RING,VITON 2-020 BLKHD 1
J-48CLNMSTR LID, SOLUTION GRNGRANITE CM 1
J-49GRNGRNT LID,MEGA/E3 ROTO GREEN GRANITE 1
J-57.5 SPACER,ROTO 3"OD X 2.4"ID 1
•K-05.8 THERMAL CRCT BRKR 2
K-16.85 RELIEF, BELL MOUTH CORD 2
K-16.85A NUT, NYLON BELL MOUTH 2
•K-21WGRY SWITCH,SPST WTR RESIS GRY 5
K-28.05 TIE, WIRE NYLON #10 SCREW 1
K-28.1 TIE WRAP,8" LONG NATURAL 2
M-0791.03 BRACKET,SF-09 HOLDER 1
M-0791.05 BRACKET,DUMP VAL MNT 1
M-0792.1 PLATE,HANDLE SW COVR 1
M-18.2 HINDGE, SOLUTION LID 8.125" 1
N-30.100B PANEL, HVBBPVH MODIFY N-30.100 1
SC-05.025E3 ELBOW,PVC LID ASSM 1
SC-35.5 HOSE BARB, ABS 1 1/2 CUT 1
SD-48.25/3.57 TEE COMP,3/8X3/8X1/8 W/1/4"X3.57TUB 1
SE-06.7GRY/50 HOSE, 1/4"SOL GRY 50' W/QC'S 1
SE-06.7GRY/50A HOSE, 1/4"SOL GRY 50' 1/4MPTX1/4MPT 1
SE-10.05/31 HOSE, VAC 1.5" FLEX 31" 1
SE-10.6/50 HOSE,VAC 1 1/2X50' NO CUFFS 1
SE-10.6/50A HOSE,VAC 1 1/2X50' W/ 1.5CUFFS 1
SE-12/2.25 HOSE,2" VINYL X 2.25" 1
SF-09 NOZZEL, EMPTY OUT MALE 1
•SG-16 VALVE,DUMP 1.5 W/PVC EXT 1
SJ-41SOLCUP/GRN-G-01 SOL TANK,E2/3 CUPBOT GRNGRNT DRILD 1
SJ-41VACE3/GRNGNT-01 VAC TANK,E3 GREEN GRANITE DRILLED 1
SJ-42CM.7 HNDL,CM BLK 5 SWT 2BRK RAPTOR 1
SJ-43.75 COMP,VAC FLTR NECK ASSM 1
SJ-49.5GRNGRNT LID COMPLETE -GREEN GRANITE 1
SK-09.3C CORD,25' HRZD TERM/BLNK 2
SK-95CE/HNDL HARNESS,CE HNDL C2HVB C1BPVH 1
•RECOMMENDED STOCK ITEMS

36456-E3H-Raptor CE (04-01) 13
PARTS LIST RAPTOR 230H
BASE GROUP

36456-E3H-Raptor CE (04-01)14
PARTS LIST RAPTOR 230H
BASE GROUP
PART # DESCRIPTION QTY.
B-01 4-40 X 1/4 PHXSS 2
B-09.1 6-32 X 3/8 PHXSS 4
B-10 6-32 X 1/2 PHXSS 8
B-14 NUT 6-32 HEX SS 8
B-16.2 8-32 X 3/8 PHXSS 4
B-17.6 8-32 X 3/4PHX ZINC 4
B-18.02 NUT 8-32 NYLOK, ZINC 4
B-21 10-32 X 5/16 PHXSS 11
B-22 10-32 X 7/16 PHXSS 5
B-23 10-32 X 1/2 PHXSS 5
B-23.17 10 X 1/2 SELF TAP HEX 1
B-23.7 10-32 X 5/8 PHXSS 1
B-26.7 10-32 X 1 1/2 PHXZINC 2
B-28.01 NUT 10-32 HEX ZINC 7
B-28.02 NUT, 10-32 SS NYLOCK 4
B-29 WASHER #10 LOCK 6
B-29.1 WASHER,#10 SS 6
B-31.5 1/4-20 X 1/2 HEX CP 4
B-32 1/4-20 X 3/4 HEX HD CP 12
B-33.5 1/4-20 X 4 1/2 HEX CP 6
B-36.01 NUT 1/4-20 NYLOK ZINK 14
B-38.5 WASHER, 1/4 FLAT CP 20
B-42 WASHER 9/16 x 1 1/4 FLAT 6
C-02.3 CASTER 3 1/2" 2
C-03.3 CLAMP, HOSE 2 1/4 #32 4
C-04.1 COTTER, HAIRPIN 7/16-9/16 2
C-06 GASKET, BLOWER/ARLON 1/4" 1
C-07.3 GASKET,VAC SEAL BASE 1
C-23.8 WHEEL 10" -1/2"BORE 2
C-30.2 GAUGE, PRESSURE 0-600 PSI 1
C-59 PUSHNUT FASTNER, 1/2 CAP 2
C-95 VELCRO, ONE WRAP STRAP 1/2" X 12" 1
D-04 BUSHING 3/8 X 1/4 NPT BR. 2
D-07.02 COUP 1/4 NPT X -6 SAE 1
D-15.2 45 ST ELBOW 1/4 NPT 4
D-17 90 ST ELBOW 1/4" NPT 5
D-18 90 ELBOW 1/4MPT x 1/4 MPT 1
D-20.01 ELBOW 90 1/4NPT X -4 SAE 1
D-20.015 ELBOW 90 1/4NPT X -6 SAE 2
D-43 NIPPLE, 1/4 HEX BRASS 1
D-44.03 NIPPLE, 1/4 X 2.5 BRASS 1
D-45.5 PLUG, 3/8" MPT BRASS 2
D-48.1 TEE,1/4 NPT BRASS 3
D-48.5 TEE,STREET 1/4 NPT BRASS 1
E-04.6 HOSE,1/4" PULSE W/SWVL 2
E-14 CUFF, 1 1/2SLIP X 1 1/4HOSE 1
•F-09 Q/C 1/4" PLUG BR SHUT OFF 1
G-25.15 VALVE, BALL 2-WAY 1/4"FPT 1
PART # DESCRIPTION QTY.
•G-25.1A KNOB, 2/3-WAY VALVE G-25.1(5) 1
G-37 VALVE,VAC SHUT OFF DUAL 1
J-45BLK PMP MNT,DRLD 2 VAC SILNCE BLCK ROTO 1
K-08W CONN AMP 4 CIR MALE W/RES 1
K-17.4 CLAMP,NYLON CABLE 1/4" 2
K-17.5 CLAMPS, NYLON CABLE 3/8 2
•K-23.23 THERMOSTAT,190 SPST W/LDS 2
M-0255 GUARD,SPL SCRN CMP EDG CE 2
M-0563.8 BRACKET, MTR STARTER CAP 1
M-0790.5 AXIL, ROD 1/2 ECONO 1
M-0791 AXIL, ROD 1/2 1
M-0791.01 BRACKET,PRES RELFVAL 1
M-0791.08 BRACKET, LOCK CE 1
M-0791.3 PIVOT, TUBE 3.400" 2
M-0792.01 PLATE,VAC MNT 2 VAC PARALL -QUIET 1
M-0792.3 PLATE,HTR MNT 1
M-0792.4 PLATE,ASM HTR COVER 4 THERMO 1
M-0792.51 PLATE,FLAPPER VALVE 1
M-0792.6 PLATE, MANIFOLD COVER 1
M-0792.7 BRACKET, MANIFOLD DIV 1
M-0796 WASHER, 2/3 WAY VALVE 1
M-31.175 STAND-OFF 5.7 3.190 6
M-72 SPACER, QUICK CONNECT 1
•SC-51 FOAM, SILENCE MUFFLER 1
SE-06.7/21 HOSE,1/4BLUE 1/4NPTX1/8NP 1
SE-06.7/5A HOSE,1/4 SOL 1/4NPTX-4SAE 5" 1
SE-06.9/12A HOSE,SS BRAID -6SAEX-6SAE 12" 1
SE-06.9/8A HOSE, -6SAE X 1/4NPT 8 1
SE-06.9/9.5 HOSE, 1/4NPT X -6SAE 9.5 1
SE-09.1/14A HOSE,1/2GPH 14" 3/8NPTX3/8NPT 1
SE-09.1/25 HOSE,1/2"GPH 25" 3/8NPTX3/8NPT 1
SE-09.1/8A HOSE,1/2GPH 8" 3/8NPTX3/8NPT 1
SE-12.5/5 HOSE,2" FLEX EXH 5" 1
SE-12.5/6 HOSE, 2" FLEX EXH 6" 1
SG-37 VALVE,DUAL FLPR MODI 1
SG-46 VALVE,PRESS RELF 600 TAP 1
SJ-02.3 EXCHG, CASTING COMP 1
SJ-40BLK101205211 BASE,BLK DRLD CEE2/3,PAR,QT,PHT,300PS 1
SJ-45BLKCOV COVER,HTR 1
SJ-46BLK MANIFOLD,ASM VAC 1
•SK-12.95 HTR,CAT 1000/1000 240VCMP W/IPX 1
•SK-23.25A THERMOSTATS, 230 SPST W/LEADS & SOC 2
•SK-34.5 FLTR,COMP EMI BLWR 10AMP 2
SK-95CE/BASE HARNESS,CE BASE C2HVB C1BPVH 1
•SL-008.5CE BLOWER,3STG 5.7 230V IPX4 2
•SL-28.400CE PUMP,300PSI 1/4HPAC CMP W/IPX 220V 1
SM-0277.6 EXCHG,HT EDG240 1000/1000 W/IPX 1
SR-08/6 INSULATION,HTR EDGE 1
•RECOMMENDED STOCK ITEMS

36456-E3H-Raptor CE (04-01) 15
PARTS LIST
PUMP 300 PSI BREAKDOWN
VOLTAGE AND HERTZ IN USAGE AREA
ITEMSPART # DESCRIPTION 100V 50/60 HZ 110V 60HZ 220V 50HZ CE 220V 60HZ
1-4SL-28.400 PUMP,300PSI 1/4HP AC CMP 110V 110 CAM XXX
1-4SL-28.400CE PUMP,300PSI 1/4HPAC CMP W/IPX 220VCE XXX
1-4SL-28.410 PUMP,300PSI 1/4HP AC CMP 100V116CAM 50/60HZ XXX
1-4SL-28.425 PUMP,300PSI 1/4HP AC CMP 220V110CAM 60HZ XXX
1,2 SL-28.300A MOTOR,300PSI AC CMP 110V 110CAM 60HZ XXX
1,2 SL-28.410MTR MOTOR,300PSI AC CMP 100V 116CAM 50/60HZ XXX
1,2 SL-28.425MTR MOTOR,300PSI AC CMP 220V 110CAM 60HZ XXX
1,2 SL-28.450MTRCE MOTOR,300PSI AC CMP 220V 125CAM 50HZ XXX
•3SL-28/KIT-APUMPTEC KIT,PLUNGER & SEAL XXX XXX XXX XXX
•4SL-28/KIT-BPUMPTEC KIT/VALVE & O-RING XXX XXX XXX XXX
•2SL-28/KIT-CPUMPTEC KIT-110CAM & BEARING XXX XXX
•2SL-28/KIT-EPUMPTEC KIT-116CAM & BEARINGXXX
•2SL-28/KIT-FPUMPTEC KIT-125CAM & BEARING XXX
•RECOMMENDED STOCK ITEMS
1
2
3
4

36456-E3H-Raptor CE (04-01)16

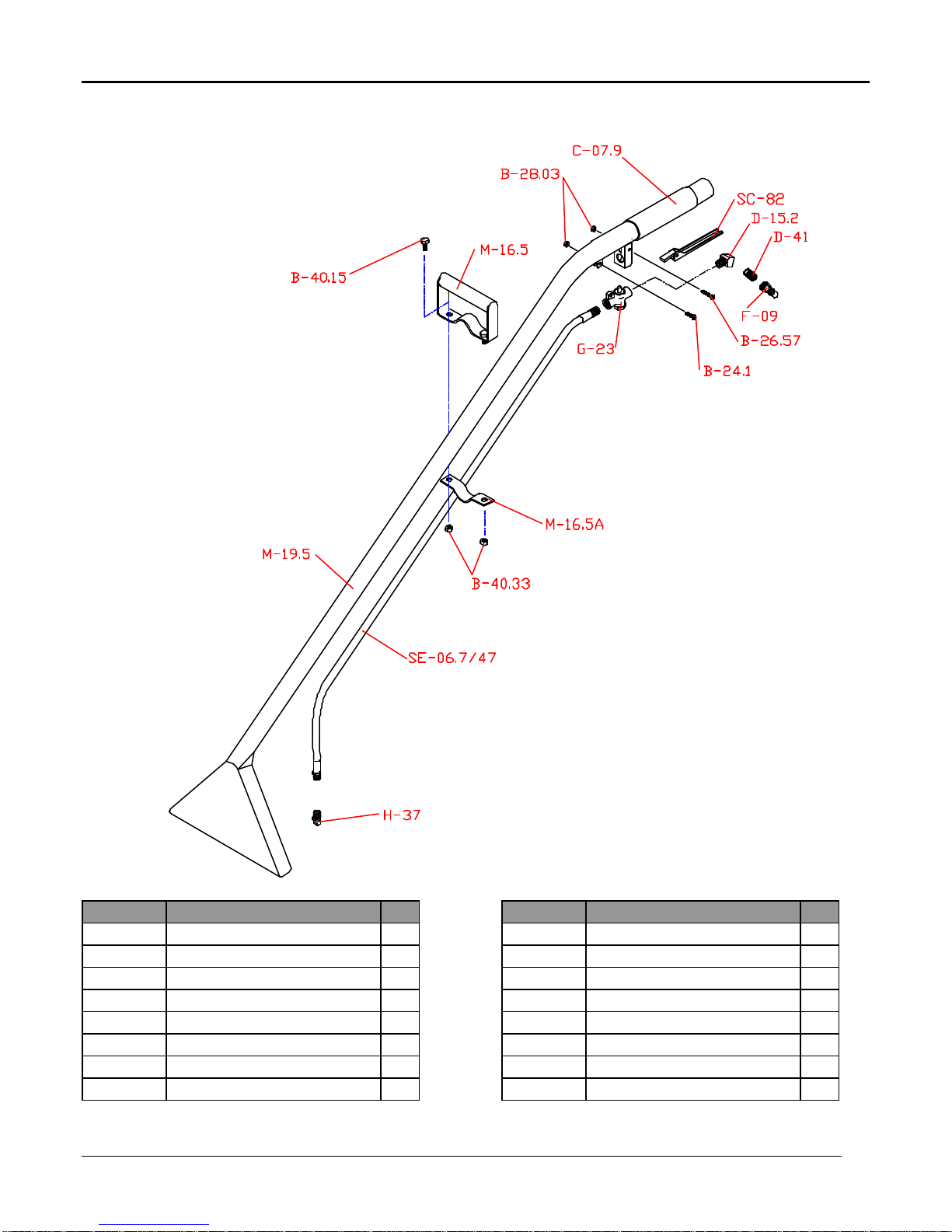

OPTIONS 20258 ECONO
FLOOR TOOL
PART # DESCRIPTION QTY.
B-24.1 10-32 X 3/4 PHXZINC 1
B-26.57 10-32 X 1 3/8 PHX ZINC 1
B-28.03 NUT, 10-32 NYLOK ZINK2
B-40.15 5/16-18 X 3/4 HEX CP 2
B-40.33 NUT 5/16-18 NYLOCK, ZINC 2
C-07.9 GRIP, FLRTOOL 1 1/2 X 6 1
D-15.2 45 ST ELBOW 1/4 NPT 1
D-41 NIPPLE, 1/4 NPT CLOSE BR 1
PART # DESCRIPTION QTY.
•F-09 Q/C 1/4" PLUG BR SHUT OFF 1
G-23 VALVE, KNGSTN STD S BND1
•H-37 JET, 11006 E VEE BRASS 1
M-16.5 HOE HANDLE,ECONO FLRTL 1
M-16.5A "U"CLAMP,SUPP HOE HNDL EC 1
M-19.5 WAND,FLOORTOOL COMP. ECONO 1
SC-82 TRIGGER,COMP KNGSTN VALVE 1
SE-06.7/47 HOSE,1/4 SOL 47"FLRTL ECO 1
•RECOMMENDED STOCK ITEMS

36456-E3H-Raptor CE (04-01) 17
OPTIONS LP/20208; HP/20216
FLOOR TOOL
PART # DESCRIPTION QTY.
B-24.1 10-32 X 3/4 PHXZINC 1
B-26.57 10-32 X 1 3/8 PHX ZINC 1
B-28.03 NUT, 10-32 NYLOK ZINK 2
B-40.15 5/16-18 X 3/4 HEX CP 2
B-40.33 NUT 5/16-18 NYLOCK, ZINC 2
C-07.9 GRIP, FLRTOOL 1 1/2 X 6 1
D-15.2 45 ST ELBOW 1/4 NPT 1
D-41 NIPPLE, 1/4 NPT CLOSE BR 1
•F-09 Q/C 1/4" PLUG BR SHUT OFF 1
G-23 VALVE,KNGSTN STD "S" BEND 1
PART # DESCRIPTION QTY.
G-23.5 VALVE,KNSTN HP "S" BEND 1
H-02.5 BODY, TEE JET 1/4 BRASS 2
H-03 CAP NUT, TEE JET BRASS 2
•H-18.5 JET,11003 TEE BRASS 2
•H-18.7 JET,110015 E TEE BRASS 2
M-16.5 HOE HANDLE,ECONO FLRTL 1
M-16.5A "U"CLAMP,SUPP HOE HNDL EC 1
M-20 WAND,"S"BND FLTL COM W/HD 1
SC-82 TRIGGER,COMP KNGSTN VALVE 1
SE-06.7/39.2 HOSE,1/4"SOL BLU X39.25DB 1
•RECOMMENDED STOCK ITEMS

36456-E3H-Raptor CE (04-01)18
OPTIONS 20078A
HAND TOOL
PART # Description QTY.
B-05.5 4-40 X 7/8 PHXZINC 1
B-07.5 NUT, 4-40 HEX ZINC NYLOK 1
B-11.5 6-32 X 1 PHXZINC 2
B-14.6 NUT, 6-32 HEX ZINC NYLOK 2
B-16.2 8-32 X 3/8 PHXSS 1
B-18.01 NUT 8-32 NYLOK, SS 1
C-05.07 FILTER, 4" DETAIL TOOL 50 MESH1
C-08.5 GROMMET, CLEAR DETAIL TOOL 1
D-02 BUSHING 1/4 X 1/8 NPT BR 1
E-13.5 CUFF,EXTRN HOSE 1 1/2SLPX1 1/4HOSE 1
E-14 CUFF, 1 1/2SLIP X 1 1/4HOSE 1
F-09 Q/C 1/4" PLUG BR SHUT OFF 1
G-04.5 GUIDE, VALVE STEM HEX BRASS 1
G-05.5 STEM, VALVE SS 4" DETAIL TOOL 1
G-08.5 SPRING, VALVE 4" UPH TOOL 1
PART # Description QTY.
GR-2-006N70 O-RING,2-006 BUNA 70DR 2
GR-2-011N70 O-RING,2-011 BUNA 70DR 1
GR-2-013N70 O-RING,2-013 BUNA 70DR 1
H-03.5 CAP NUT,TEE JET POLYPRO 1
H-18.8 JET, 110015 STD FLAT SPRYTIP PLSTIC 1
J-62 VALVE, 4" DETAIL TOOL AS MOLDED 1
J-63 TRIGGER, 4" DETAIL TOOL 1
J-64 ELBOW, 4" DETAIL TOOL 1
M10.5A COUPLER, 1.5" VAC HOSE ALUM 1
SE-02/16.5A HOSE, 1/8 BLK 16.5" ASM W/EXTRN CUFF 1
SE-10/12 HOSE, VAC 1 1/4 GREY/BLACK 12" LONG 1
SG-04.5 STEM ASM 4"TOOL BUNA W/BRASS CAP 1
SJ-60 HANDLE ASM, 4" DETAIL TOOL 1
SJ-62 VALVE,NYLON COMPLETE STD 4"DETAIL 1

36456-E3H-Raptor CE (04-01) 19
WARRANTY POLICY
PARTS ONLY –STANDARD REPLACEMENT POLICY
For the first 12 months from the date of original purchase, in the event that a part believed to be under warranty fails,
simply call Cleanmaster to obtain a Return Authorization, ship the part freight prepaid to Cleanmaster and,
Cleanmaster will either repair or replace the part at no charge if it is determined that failure was a manufacturing
defect. Cleanmaster will then ship the repaired or replaced part back to you freight collect. Our service department
can usually talk a person through any part replacement procedure in a matter of minutes.
HOW TO OBTAIN A RETURN AUTHORIZATION
Prior to shipping any part, assembly or machine to Cleanmaster a Return Authorization Number must be requested
from Cleanmaster and displayed prominently on the outside of all packages containing parts or machines for
warranty consideration to be processed and in effect. A Return Authorization can be obtained by calling
Cleanmaster Service Department at 1-425-775-7276. The machine and/or part serial number must be
communicated to Cleanmaster Customer Service to receive a Return Authorization Number. Any machine, part or
assembly must be returned with its original serial number as affixed by Cleanmaster for warranty consideration to be
in effect. All returns will be sent to Cleanmaster at 11015 47th Avenue West, Mukilteo Wa. 98275. Fax
communications can be sent to 1-800-426-4225 and emails sent to [email protected]

36456-E3H-Raptor CE (04-01)20
WARRANTY
Cleanmaster warrants the Raptor Cleaning Machine against defects in material and workmanship under
normal use and service. Cleanmaster, hereby, extends a limited three-year warranty on the polyethylene machine
housing of the Raptor against cracking or leaking and a one-year warranty on the rest of the machine against
manufacturing defect or workmanship subject to the terms and conditions that follow.
TERMSANDCONDITIONS
The warranty obligation extends only to the repair or replacement of parts, assemblies or machine housing found
upon examination by Cleanmaster to be defective in manufacturing or workmanship, and Cleanmaster reserves
the right to make that determination. Any adjustment or replacement of defective parts made under this warranty
does not void the warranty; neither does it extend the original warranty beyond its term.
Repair or replacements of any machine component(s) with any part(s) other than genuine Cleanmaster parts will
immediately void this and all warranties.
Filters, brass fittings, seals, o-rings and quick disconnects are considered expendable in normal use and are not
covered by this warranty.
Dry cleaning solvents cannot be used in the Raptor.
This warranty shall not cover any Raptor machine housing, part or assembly if there is evidence of misuse,
alteration, owner neglect, lack of proper maintenance, improper chemical use, improper voltage, abuse, accident,
freezing, flood, fire, etc. and any and all circumstances beyond Cleanmaster’s control.
In no event shall Cleanmaster be liable for loss of use, incidental or consequential damages or any damages to
persons or property.
11015 47th AVENUE WEST, MUKILTEO WA 98275 USA
Phone [phone]; Fax [phone];
Website: http://www.cleanmaster.com
PLEASE RETURN REGISTRATION WITHIN 10 DAYS OF RECEIVING YOUR RAPTOR CLEANING MACHINE.
KEEP THIS COPY FOR YOUR RECORDS
Date Received
Registered Owner(s)
Address
Phone Number
Fax Number
Email Address
Machine Serial Number
Purchased From (Distributor)
WARRANTYWARRANTY
REGISTRATIONREGISTRATION
