CleanMaster Rexx 120 100-600-120 Product manual

MNL32321-REXX 120
Rev. 00 (03-01)
Rexx 120
Carpet And Upholstery Cleaner
Model No.:
100-600-120
4 gal Extractor
CLEANMASTER
11015 47TH AVENUE WEST
MUKILTEO WA 98275 U.S.A.
FAX: [phone]
WEBSITE: www.cleanmaster.com
CUSTOMER SERVICE: 1-425-775-7276
Operator and Parts Manual

SPP-32321 REXX 120 (03-01)2
Please fill out at time of installation for future reference.
Model No.-____________________________________
Install. Date-___________________________________
Serial No.-_____________________________________
OPERATION
This manual is furnished with each new model. It
provides necessary operation and maintenance
instructions and an illustrated parts list.
Read this manual completely and understand the
machine before operating or servicing it.
Use the illustrated Parts Lists to order parts. Before
ordering parts or supplies, be sure to have your
machine model number and serial number handy.
Parts and supplies may be ordered by phone or mail
from any authorized parts and service center,
distributor or directly from Cleanmaster.
This machine will provide excellent service. However,
the best results will be obtained at minimum costs if:
•The machine is operated with reasonable care.
•The machine is maintained regularly –per the
maintenance instructions provided.
•The machine is maintained with manufacturer
supplied or equivalent parts.
MACHINE DATA
©Cleanmaster Printed in U.S.A.
Cleanmaster is a registered United States trademark
TABLE OF CONTENTS
SAFETY PRECAUTIONS................................ 3
SAFETY LABELS .......................................... 4
MACHINE COMPONENTS.............................. 5
MACHINE SETUP .......................................... 5
MACHINE OPERATION.................................. 6
DRAINING TANKS......................................... 7
FREEZE PROTECTION................................... 7
MACHINE MAINTENANCE.............................. 8
STORING MACHINE...................................... 8
RECOMMENDED STOCK ITEMS.................... 8
TROUBLE SHOOTING................................... 9

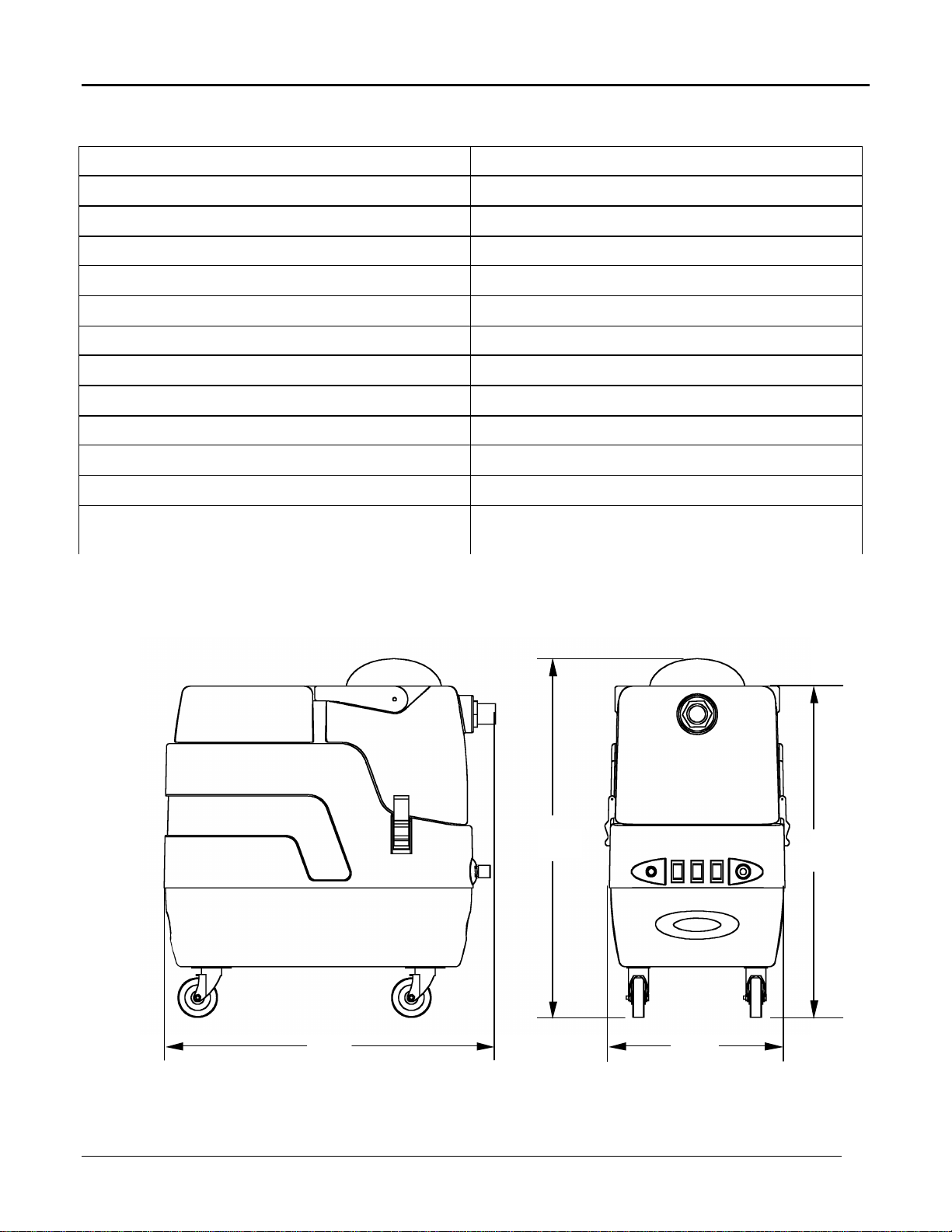

SPECIFICATIONS ......................................... 10
ELECTRICAL DIAGRAM ................................ 11

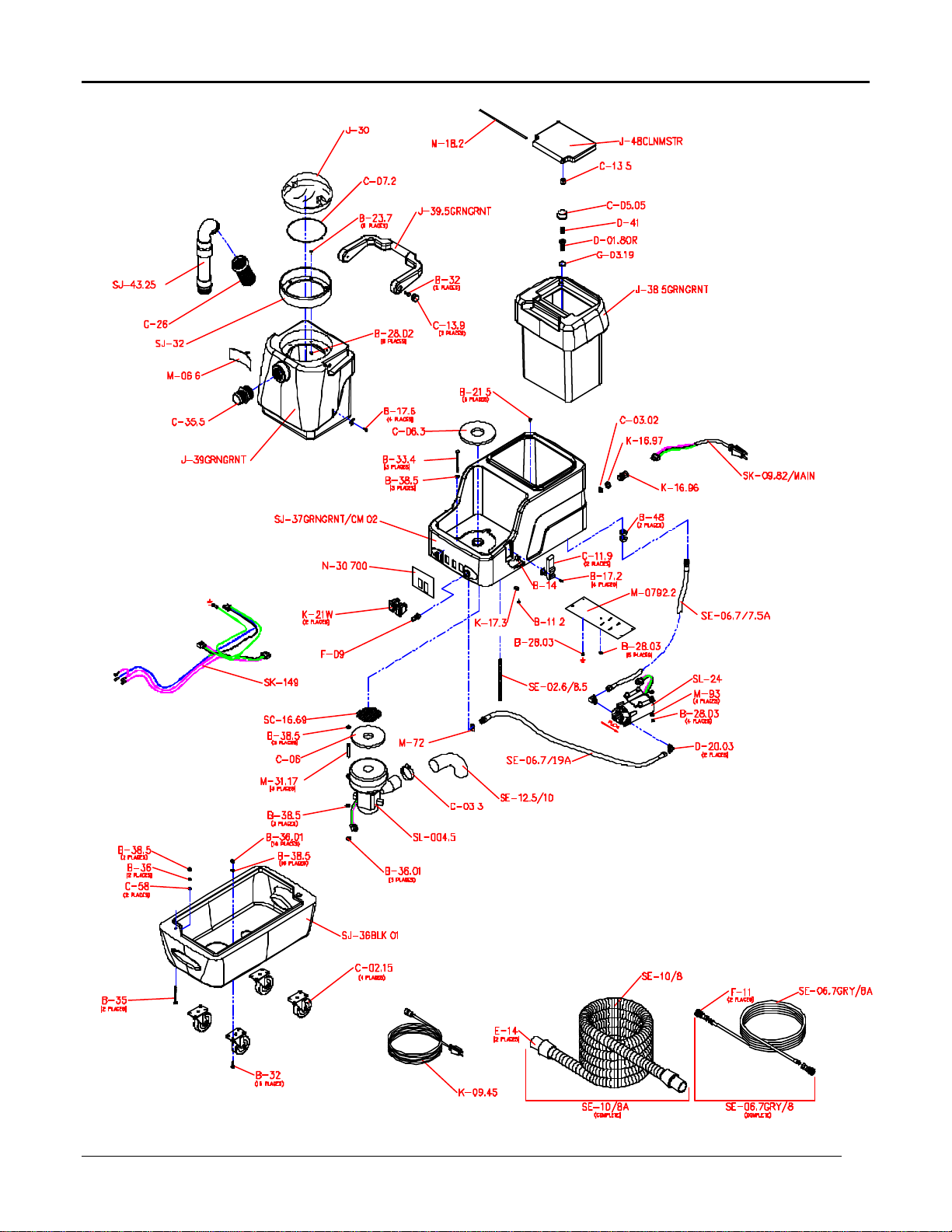

PARTS LIST ................................................. 12
OPTIONS...................................................... 15
WARRANTY POLICY..................................... 18

SPP-32321 REXX 120 (03-01) 3
OPERATION
SAFETY PRECAUTIONS
This machine is intended for commercial use. It is
designed to wet clean carpet and upholstery in a
indoor environment and is not constructed for any
other use. Use only recommended cleaning solutions
and accessory tools.
All operators must read, understand and practice the
following safety precautions.
The following safety alert symbols are used throughout
this manual as indicated in their description:
WARNING: To warn of hazards or unsafe
practices which could result in severe personal
injury or death.
FOR SAFETY: To identify actions which must be
followed for safe operation of equipment.
The following information signals potentially dangerous
conditions to the operator or equipment.
FOR SAFETY:
1. Do not operate machine:
–Unless trained and authorized.
–Unless operator manual is read and
understood.
–In flammable or explosive areas.
–With damaged cord or plug.
–If not in proper operating condition.
–Unless cord is properly grounded.
–In outdoor areas.
–In standing water.
–With the use of an extension cord.
2. Before operating machine:
–Make sure all safety devices are in place
and operate properly.
3. When using machine:
–Do not run machine over cord.
–Do not pull machine by plug or cord.
–Do not pull cord around sharp edges or
corners.
–Do not unplug by pulling on cord.
–Do not stretch cord.
–Do not handle plugs with wet hands.
–Keep cord away from heated surfaces.
–Report machine damage or faulty operation
immediately.
–Follow mixing and handling instructions on
chemical containers.
4. Before leaving or servicing machine:
–Turn off machine.
–Unplug cord from wall outlet.
5. When servicing machine:
–Unplug cord from wall outlet.
–Avoid moving parts. Do not wear loose
jackets, shirts, or sleeves.
–Use manufacturer supplied or approved
replacement parts.
WARNING: Hazardous Voltage. Shock or
electrocution can result. Always unplug machine
before servicing.
WARNING: Flammable materials can cause
an explosion or fire. Do not use flammable
materials in tank(s).
WARNING: Flammable materials or reactive
metals can cause an explosion or fire. Do not pick
up.
GROUNDING INSTRUCTIONS
Machine must be grounded. If it should
malfunction or breakdown, grounding provides a
path of least resistance for electrical current to
reduce the risk of electrical shock. This machine is
equipped with a cord having an equipment-
grounding connector and grounding plug. The
plug must be plugged into an appropriate outlet
that is properly installed in accordance with all
local codes and ordinances. Do not remove
ground pin; if missing, replace plug before use.
GROUNDED OUTLET
(3 HOLE)
GROUNDING
PIN

SPP-32321 REXX 120 (03-01)4
OPERATION
SAFETY LABELS
The safety labels appear on the switch panel of the machine. Replace switch label if any become damaged or
illegible.
FOR SAFETY:
Read manual
before operating
machine.
FOR SAFETY LABEL-
Located on switch panel.
FLAMMABLE MATERIALS -
Located on switch panel.
WARNING: Flammable materials
can cause explosion or fire. Do
not use flammable materials in
tank(s). Flammable materials or
reactive metals can cause
explosion or fire. Do not pick up.
HAZARDOUS VOLTAGE
LABEL-Located on switch
panel.
WARNING: Hazardous Voltage.
Shock or electrocution can
result. Always unplug machine
before servicing.

SPP-32321 REXX 120 (03-01) 5
OPERATION
MACHINE COMPONENTS
1. Recovery Tank
2. Solution Tank
3. Recovery Tank Lid
4. Solution Tank Lid
5. Vacuum Switch
6. Pump Switch
7. Switch / Safety Label
8. Power Cord Connect
9. Vacuum Hose Connector
10. Latches
11. Recovery Tank Handle
12. Solution Hose Connector
13. 76 mm (3”) Wheels, non-marking
MACHINE SETUP
1. Carefully check carton for signs of damage.
Report damages at once to carrier. The machine
is shipped fully assembled and is ready for use.
2. Connect hoses and tool to be used (Figure 1).
3. Using a clean bucket or hose, fill solution tank
with 15 liters (4 gallons) of hot water, 60°C
(140°F) maximum (Figure 2).
WARNING: Flammable materials can cause an
explosion or fire. Do not use flammable materials
in tank(s).
4. Add a recommended cleaning chemical.
FOR SAFETY: When using machine, follow
mixing and handling instructions on chemical
containers.
Fig. 1
Fig. 2
2
4
3
1
11
5
6
7
8
9
10
13
12

SPP-32321 REXX 120 (03-01)6
OPERATION
ATTENTION: If using powdered cleaning
chemicals, mix prior to adding.
NOTE: If desired, water alone achieves excellent
cleaning results.
5. Plug machine’s power cord into a grounded wall
outlet (Figure 3).
FOR SAFETY: Do not operate machine unless
cord is properly grounded.
FOR SAFETY: Do not operate machine with the
use of an extension cord.
6. Secure recovery tank lid in place.
MACHINE OPERATION
FOR SAFETY: Do not operate machine unless
operator manual is read and understood.
PRE-OPERATION
1. Vacuum carpet and remove other debris with
standard vacuum.
2. Inspect power cord for damage.
CLEANING CARPETS
1. Activate vacuum and pump switches (Figure 4).
2. Take carpet cleaning wand in hand and squeeze
valve trigger while moving the tool in short
forward and backward strokes over the carpet
(Figure 5).
WHILE OPERATING
1. Overlap each path by 50 mm (2 in).
Warning: Flammable materials or reactive
metals can cause an explosion or fire. Do not
pick up.
2. Periodically check for excessive foam buildup in
recovery tank. Use a recommended foam control
solution to prevent vacuum motor damage.
ATTENTION: Excessive foam buildup will not
activate the float shut-off screen.
3. To clean heavily soiled areas, repeat cleaning
path from a different direction.
4. Empty recovery tank every time water is added to
solution tank.
CLEANING WITH ACCESSORY TOOLS
1. Connect accessory tool hoses to the couplers at
the end of the hoses already attached to the
machine (Figure 6).
GROUNDED OUTLET
(3 hole)
GROUNDING
PIN Fig. 3 Fig. 5
Fig. 6 Fig. 4

SPP-32321 REXX 120 (03-01) 7
OPERATION
2. Operate accessory tool as normal (Figure 7).
NOTE: Before cleaning upholstery, always check
cleaning instructions sewn in furniture by
manufacturer.
3. After cleaning, relieve water pressure from tool
before disconnecting hose. Squeeze trigger for
five seconds after turning switches off.
DRAINING TANKS
DRAINING RECOVERY TANK
1. Turn machine off.
2. Disconnect vacuum hose from tank. Release
both latches and lift tank away from machine
(Figure 9).
3. Empty tank by pouring waste out vacuum inlet
(Figure 10).
4. Rinse tank with clean water at the end of the day.
DRAINING SOLUTION TANK
1. Turn on vacuum and remove water from solution
tank (Figure 11).
FREEZE PROTECTION
1. After draining solution tank as described in step
one in the previous section (DRAINING
SOLUTION TANK), place spare empty-out nozzle
(optional item available –part number SF-09) in
vacuum inlet on vacuum tank and seal with hand
(Figure 11).
2. Turn on vacuum and pump for 15 seconds. This
will fill the pump and hoses with air and prevent
freezing.
Fig. 7
Fig. 9
Fig. 11
Fig. 10
Fig. 11

SPP-32321 REXX 120 (03-01)8
OPERATION
MACHINE MAINTENANCE
To keep machine in good working condition, simply
follow machine’s daily, weekly and monthly
maintenance procedures.
FOR SAFETY: When servicing machine, unplug
cord from wall outlet.
DAILY MAINTENANCE
(Every 4 Hours of Operation)
1. Empty and rinse out recovery tank thoroughly.
2. Remove float shut-off screen from recovery tank
and clean (Figure 13).
3. When solution tank is empty, remove and clean
solution filter screen located in the bottom of the
solution tank.
4. Wipe off power cord and check for damage,
replace if necessary. Coil cord neatly after use.
5. Clean machine with an all purpose cleaner and
damp cloth.
WEEKLY MAINTENANCE
(Every 20 Hours of Operation)
1. Inspect vacuum hoses for holes and loose cuffs.
2. Inspect spray pattern for plugging. If plugged,
remove spray tips and soak them in acetic acid
solution for up to six hours. Do not use pointed
objects to unplug tips, damage will occur.
FOR SAFETY: When using machine, follow mixing
and handling instructions on chemical containers.
3. Inspect cord and cord grip for damage. Replace
immediately if damaged.
4. Lubricate female hose couplers with lightweight
oil.
MONTHLY MAINTENANCE
(Every 80 Hours of Operation)
1. Lubricate wheels with water resistant oil.
2. Inspect machine for water leaks and loose
hardware.
QUARTERLY MAINTENANCE
(Every 250 hours of Operation)
Check vacuum motor for carbon brush wear. Replace
motor if worn to a length of 10mm (0.38”) or less.
STORING MACHINE
1. Before storing machine, be certain to drain and
rinse tanks of all water.
2. Store machine in a dry area in the upright position.
3. Unscrew recovery tank lid to promote air
circulation.
ATTENTION: Do not expose to rain. Store
indoors.
ATTENTION: If storing machine in freezing
temperatures, be sure that machine and solution
system are completely drained and dry.
RECOMMENDED STOCK ITEMS
Refer to Parts List section for recommended stock
items. Stock items are clearly identified with a bullet
preceding the parts description. See example below:
PART # DESCRIPTION QTY.
•J-30 LID,DOME 1
J-38GRANITE TOP,SOL TANK ROTO GRANITE 1
J-39.5GRANITE HANDLE,WASTE TANK ROTO GRANI 1
J-39GRANITE WASTE TANK, ROTO GRANITE 1
FIG. 13

SPP-32321 REXX 120 (03-01) 9
OPERATION
TROUBLE SHOOTING
PROBLEM CAUSE SOLUTION
Faulty switches or wiring. Contact Service Center.
Faulty power cord. Contact Service Center.
Machine does not operate.
Building circuit breaker tripped. Reset Breaker.
Faulty switch or wiring. Contact Service Center.
Faulty solution pump motor. Contact Service Center.
Faulty pump head. Contact Service Center.
Trigger on wand not pulled. Pull Solution Trigger.
Solution pump does not operate.
Quick couplers not fully engaged. Connect quick couplers.
Loose or broken wiring. Contact Service Center.
Faulty vacuum switch. Contact Service Center.
Preheat switch not set to CLEAN. Set preheat switch to CLEAN position.
Defective vacuum motor. Contact Service Center.
Vacuum motor does not
operate.
Worn carbon brushes. Contact Service Center.
Recovery tank drain valve open. Close valve.
Defective recovery tank lid gasket. Replace gasket.
Clogged float shut-off screen. Remove recovery tank lid and clean
screen.
Loose vacuum hose connections. Secure cuffs to hose.
Poor solution pick-up.
Defective vacuum hose. Replace hose.
Plugged spray tips. Clean or replace tips.
Improper spray tip size or spray angle. Replace with proper tips.
Worn spray tips. Replace spray tips.
Solution tank low or empty. Refill solution tank.
Uneven or no spray.
Faulty solution pump. Contact Service Center.

SPP-32321 REXX 120 (03-01)10
OPERATION
SPECIFICATIONS
MACHINE DIMENSIONS
Model REXX 120
LENGTH 660 mm (26 in)
WIDTH 341 mm (13.43 in)
HEIGHT 698 mm (27.5 in)
WEIGHT 20.0 Kg (44.5 lbs)
SOLUTION TANK CAPACITY 16 L (4.2 gal)
RECOVERY TANK CAPACITY 14.2 L (3.75 gal)
SOLUTION PUMP 120 V, 4.13 bar (60psi), .7A
VACUUM MOTOR –2 STG LP 120 V, 8A, 960 W
SEALED WATER LIFT 2083 mm (82 in)
TOTAL POWER CONSUMPTION 120V, 8.7 A, 1044 W
POWER CORD 6m (20 ft) 14/3
DECIBEL RATING 3 METERS (10 FT) FROM
MACHINE ON CARPET <78 db(A)
635 mm
(25 in)
341 mm
(13.43 in)
660 mm
(26 in)
698 mm
(27.5 in)

SPP-32321 REXX 120 (03-01) 11
ELECTRICAL DIAGRAM
120 V WIRING DIAGRAM

SPP-32321 REXX 120 (03-01)12
PARTS LIST REXX 120

SPP-32321 REXX 120 (03-01) 13
PARTS LIST REXX 120
PART # DESCRIPTION QTY.
B-11.2 6-32 X 3/4 FHXSS 100 DEG 1
B-17.2 8-32 X 1/2 PHXSS 4
B-17.6 8-32 X 3/4PHX ZINC 4
B-21.5 10-32 X3/8 FHXSS 100 DEG 5
B-23.7 10-32 X 5/8 PHXSS 6
B-28.02 NUT, 10-32 SS NYLOCK 6
B-28.03 NUT, 10-32 NYLOK ZINK 10
B-32 1/4-20 X 3/4 HEX HD CP 18
B-33.4 1/4-20 X 3 3/4 HEX CP 3
B-35 1/4-20 X 6" HEXCP 2
B-36 NUT 1/4-20 HEX CP 2
B-36.01 NUT 1/4-20 NYLOK ZINK 19
B-38.5 WASHER, 1/4 FLAT CP 27
B-48 NUT, 1/4" BULK HD 3/4-16 2
C-02.15 CASTER, 3" IMPORT 4
C-03.02 CLAMP, HOSE 1/4" #4 1
C-03.3 CLAMP, HOSE 2 1/4 #32 1
C-05.05 FILTER, 1/4NPT 50MESH 1
•C-06 GASKET, BLOWER/ARLON 1/4" 1
•C-06.3 GASKET, BLOWER 1
•C-07.2 GASKET, DOME LID 1
C-11.9 LATCH, SOFT DRAW BLACK 2
C-13.5 PLUG, HOLE NYLON .562 1
C-13.9 PLUG, HOLE NYLON 1"OD 2
•C-26 FLOAT,VAC SHUT OFF ROTO 1
C-35.5 HOSE BARB,1 1/2XMPT W/FLA 1
C-58 RETAINER,1/4"ID EXTRNL SELF LOCKING 2
D-01.8OR BULK HEAD, 1/4" BRASS W/O-RING 1
D-20.03 ELBOW 90 3/8NPT X -6 SAE 2
D-41 NIPPLE, 1/4 NPT CLOSE BR 1
E-14 CUFF, 1 1/2SLIP X 1 1/4HOSE 2
F-09 Q/C 1/4" PLUG BR SHUT OFF 1
F-11 Q/C 1/4" SOC BR SHUT OFF 2
G-03.19 O-RING,VITON 2-020 BLKHD 1
PART # DESCRIPTION QTY.
J-30 LID, DOME EDGE 1
J-38.5GRNGRNT SOLUTION TANK, ROTO GRN GRNT 1
J-39.5GRNGRNT HNDL,WASTE TNK SPHR ROTO GRNGRNT CM 1
J-39GRNGRNT WASTE TANK, ROTO GRNGRANITE 1
J-48CLNMSTR LID, SOLUTION EDGE 2 GRNGRANITE CM 1
K-09.45 CORD 20' 14/3 SJT EXT CORD W/LOCK 1
K-16.96 BUSHING,RELIEF 1/2 NPT 1
K-16.97 NUT,NYLON BUSHING REL.1/2 1
K-17.3 CLAMP,NYLON CABLE 3/16" 1
•K-21W SWITCH, SPST WATER RESIS 2
M-06.6 GUARD, SPLASH INTAKE EDGE 1
M-0792.2 PLATE,SHFL PMP&INLINE HTR MNT SPHR 1
M-18.2 HINDGE, SOLUTION LID EDGE 2 8.125" 1
M-31.17 STANDOFF, 5.7 EDGE 2.260" 3
M-72 SPACER, QUICK CONNECT 1
M-93 WASHER, .219 X .625 18GA 4
N-30.700 PANEL, PV 1
SC-16.69 SCREEN,BLOWER GUARD 1
SE-02.6/8.5 HOSE,1/8TYGON 1/8MPTXBLUNT CUT 8.5" 1
SE-06.7/19A HOSE,1/4SOL 1/4MPTX1/4SAEFMLSVL 19" 1
SE-06.7/7.5A HOSE,1/4SOL -4SAEFMSVLX1/4MPT7.5 1
SE-06.7GRY/8 HOSE, 1/4 SOL GRY 8' W/QC 1
SE-06.7GRY/8A HOSE, 1/4 SOL GRY 8' 1/4MPTX1/4MPT 1
SE-10/8 HOSE, 1 1/4 GREY 8 FT 1
SE-10/8A HOSE, 1 1/4 X 8 FT W/1.5CUFFS 1
SE-12.5/10 HOSE,2" FLEX EXHAUST 10" 1
SJ-32 FLANGE, ASM-DOME LID GLUE 1
SJ-36BLK.01 BASE, DRILLED 1 VAC ROTO BLK 1
SJ-37GRNGRNT/CM.02 CASE,DRILL SPH 1-3STG,2SW,POLYTNK 1
SJ-43.25 VAC FILTER ASSM COMPLETE W/NECK SPH 1
SK-09.82/MAIN MAIN,CORD PIGTAIL 14/3 SPHRERE TERM 1
SK-149 HARNESS, C1PV 1
•SL-004.5 BLOWER,2STG 120V 5.7W/PLUG#11639200 1
•SL-24 PUMP,DIAPH 60PSI 120V W/WIR&SWITCH 1
•RECOMMENDED STOCK ITEMS

SPP-32321 REXX 120 (03-01)14
PARTS LIST

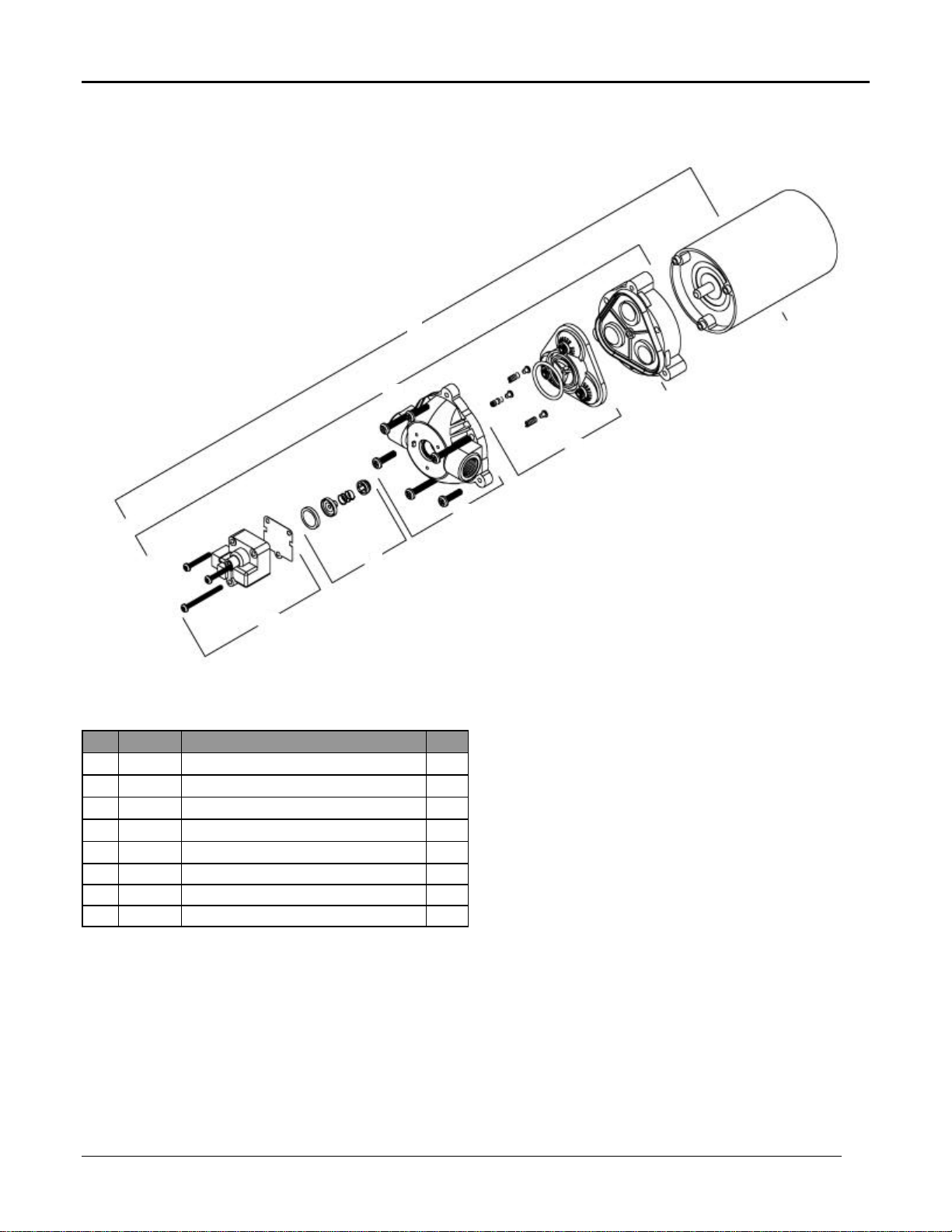

PUMP 60 PSI BREAKDOWN
REF# PART # DESCRIPTION QTY.
1610550 •PUMP SH FL 100 PSI 120V PLG 1
2610767 PUMP HEAD 100 PSI COMP ASM 1
3610768 •SWITCH ASM, 100 PSI SH FL 1
4610769 •CHECK VALVE ASM, 100 PSI SH FL 1
5610770 HEAD, PUMP DIAPHRAGM 1
6610771 •VALVE ASM, BYPASS SH FL 1
7610772 DIAPHRAGM, SOLID DRIVE ASM 1
8610773 MOTOR, 100 PSI 120V SH FL PLG 1
•RECOMMENDED STOCK ITEMS
1
27
8
3
4
5
6

SPP-32321 REXX 120 (03-01) 15
OPTIONS 20258 ECONO
FLOOR TOOL
PART # DESCRIPTION QTY.
B-24.1 10-32 X 3/4 PHXZINC 1
B-26.57 10-32 X 1 3/8 PHX ZINC 1
B-28.03 NUT, 10-32 NYLOK ZINK 2
B-40.15 5/16-18 X 3/4 HEX CP 2
B-40.33 NUT 5/16-18 NYLOCK, ZINC 2
C-07.9 GRIP, FLRTOOL 1 1/2 X 6 1
D-15.2 45 ST ELBOW 1/4 NPT 1
D-41 NIPPLE, 1/4 NPT CLOSE BR 1
E-14.65 CUFF, 1 1/2 SLIP 1 1/2 HOSE 2
F-09 Q/C 1/4" PLUG BR SHUT OFF 1
F-11 Q/C 1/4" SOC BR SHUT OFF 2
G-23 VALVE, KNGSTN STD S BND 1
PART # DESCRIPTION QTY.
•H-37 JET, 11006 E VEE BRASS 1
M-16.5 HOE HANDLE,ECONO FLRTL 1
M-16.5A "U"CLAMP,SUPP HOE HNDL EC 1
M-19.5 WAND,FLOORTOOL 1
SC-82 TRIGGER,COMP KNGSTN VALVE 1
SE-06.7/25.7 HOSE, 1/4 SOL 25' NPT NO/QC 1
SE-06.7/25-7HOSE, 1/4 SOL 25' W/QC 1
SE-06.7/47 HOSE,1/4 SOL 47"FLRTL ECO 1
SE-10.003 HOSE,VAC 1 ¼ X 25’W/1 ½ CUFFS 1
SE-10.6/15 HOSE,VAC 1 ½ X 15’ W/1 ½ CUFFS 1
SE-10.6/25 HOSE, VAC 1 1/2 GREY 25' 1
SE-10.61 HOSE, VAC 1 1/2X25'W/1.5 CUFF 1
•RECOMMENDED STOCK ITEMS

SPP-32321 REXX 120 (03-01)16
OPTIONS LP/20208; HP/20216
FLOOR TOOL
PART # DESCRIPTION QTY.
B-24.1 10-32 X 3/4 PHXZINC 1
B-26.57 10-32 X 1 3/8 PHX ZINC 1
B-28.03 NUT, 10-32 NYLOK ZINK 2
B-40.15 5/16-18 X 3/4 HEX CP 2
B-40.33 NUT 5/16-18 NYLOCK, ZINC 2
C-07.9 GRIP, FLRTOOL 1 1/2 X 6 1
D-15.2 45 ST ELBOW 1/4 NPT 1
D-41 NIPPLE, 1/4 NPT CLOSE BR 1
•F-09 Q/C 1/4" PLUG BR SHUT OFF 1
G-23 VALVE,KNGSTN STD "S" BEND 1
PART # DESCRIPTION QTY.
G-23.5 VALVE,KNSTN HP "S" BEND 1
H-02.5 BODY, TEE JET 1/4 BRASS 2
H-03 CAP NUT, TEE JET BRASS 2
•H-18.5 JET,11003 TEE BRASS 2
•H-18.7 JET,110015 E TEE BRASS 2
M-16.5 HOE HANDLE,ECONO FLRTL 1
M-16.5A "U"CLAMP,SUPP HOE HNDL EC 1
M-20 WAND,"S"BND FLTL COM W/HD 1
SC-82 TRIGGER,COMP KNGSTN VALVE 1
SE-06.7/39.2 HOSE,1/4"SOL BLU X39.25DB 1
•RECOMMENDED STOCK ITEMS

SPP-32321 REXX 120 (03-01) 17
OPTIONS 20078B
HAND TOOL
PART # Description QTY.
B-05.5 4-40 X 7/8 PHXZINC 1
B-07.5 NUT, 4-40 HEX ZINC NYLOK 1
B-11.5 6-32 X 1 PHXZINC 2
B-14.6 NUT, 6-32 HEX ZINC NYLOK 2
B-16.2 8-32 X 3/8 PHXSS 1
B-18.01 NUT 8-32 NYLOK, SS 1
C-05.07 FILTER, 4" DETAIL TOOL 50 MESH 1
C-08.5 GROMMET, CLEAR DETAIL TOOL 1
D-02 BUSHING 1/4 X 1/8 NPT BR 1
E-13.5 CUFF,EXTRN HOSE 1 1/2SLPX1 1/4HOSE 1
E-14 CUFF, 1 1/2SLIP X 1 1/4HOSE 1
F-09 Q/C 1/4" PLUG BR SHUT OFF 1
G-04.5 GUIDE, VALVE STEM HEX BRASS 1
G-05.5 STEM, VALVE SS 4" DETAIL TOOL 1
G-08.5SPRING, VALVE 4" UPH TOOL 1
PART # Description QTY.
GR-2-006N70 O-RING,2-006 BUNA 70DR 2
GR-2-011N70 O-RING,2-011 BUNA 70DR 1
GR-2-013N70 O-RING,2-013 BUNA 70DR 1
H-03.5 CAP NUT,TEE JET POLYPRO 1
H-18.8 JET, 110015 STD FLAT SPRYTIP PLSTIC 1
J-62 VALVE, 4" DETAIL TOOL AS MOLDED 1
J-63 TRIGGER, 4" DETAIL TOOL 1
J-64 ELBOW, 4" DETAIL TOOL 1
M10.5A COUPLER, 1.5" VAC HOSE ALUM 1
SE-02.6/16.5C HOSE, TYGON 16.5" ASM W/EXTRN CUFF 1
SE-10/12 HOSE, VAC 1 1/4 GREY/BLACK 12" LONG 1
SG-04.5 STEM ASM 4"TOOL BUNA W/BRASS CAP 1
SJ-60 HANDLE ASM, 4" DETAIL TOOL 1
SJ-62 VALVE,NYLON COMPLETE STD 4"DETAIL 1

SPP-32321 REXX 120 (03-01)18
WARRANTY POLICY
PARTS ONLY –STANDARD REPLACEMENT POLICY
For the first 12 months from the date of original purchase, in the event that a part believed to be under warranty fails,
simply call Cleanmaster to obtain a Return Authorization, ship the part freight prepaid to Cleanmaster and,
Cleanmaster will either repair or replace the part at no charge if it is determined that failure was a manufacturing
defect. Cleanmaster will then ship the repaired or replaced part back to you freight collect. Our service department
can usually talk a person through any part replacement procedure in a matter of minutes. There is no charge for this
nationwide toll-free service.
HOW TO OBTAIN A RETURN AUTHORIZATION
Prior to shipping any part, assembly or machine to Cleanmaster a Return Authorization Number must be requested
from Cleanmaster and displayed prominently on the outside of all packages containing parts or machines for
warranty consideration to be processed and in effect. A Return Authorization can be obtained by calling
Cleanmaster Service Department at 1-425-775-7276. The machine and/or part serial number must be
communicated to Cleanmaster Customer Service to receive a Return Authorization Number. Any machine, part or
assembly must be returned with its original serial number as affixed by Cleanmaster for warranty consideration to be
in effect. All returns will be sent to Cleanmaster at 11015 47th Avenue West, Mukilteo Wa. 98275. Fax
communications can be sent to 1-800-426-4225 and emails sent to [email protected].

SPP-32321 REXX 120 (03-01) 19
WARRANTY
Cleanmaster warrants the Rexx Cleaning Machine against defects in material and workmanship under normal
use and service. Cleanmaster, hereby, extends a limited three-year warranty on the polyethylene machine
housing of the Rexx against cracking or leaking and a one-year warranty on the rest of the machine against
manufacturing defect or workmanship subject to the terms and conditions that follow.
TERMSANDCONDITIONS
The warranty obligation extends only to the repair or replacement of parts, assemblies or machine housing found
upon examination by Cleanmaster to be defective in manufacturing or workmanship, and Cleanmaster reserves
the right to make that determination. Any adjustment or replacement of defective parts made under this warranty
does not void the warranty; neither does it extend the original warranty beyond its term.
Repair or replacements of any machine component(s) with any part(s) other than genuine Cleanmaster parts will
immediately void this and all warranties.
Filters, brass fittings, seals, o-rings and quick disconnects are considered expendable in normal use and are not
covered by this warranty.
Dry cleaning solvents cannot be used in the Rexx.
This warranty shall not cover any Rexx machine housing, part or assembly if there is evidence of misuse,
alteration, owner neglect, lack of proper maintenance, improper chemical use, improper voltage, abuse, accident,
freezing, flood, fire, etc. and any and all circumstances beyond Cleanmaster’s control.
In no event shall Cleanmaster be liable for loss of use, incidental or consequential damages or any damages to
persons or property.
11015 47th AVENUE WEST, MUKILTEO WA 98275 USA
Phone [phone]; Fax [phone];
Website: http://www.cleanmaster.com
PLEASE RETURN REGISTRATION WITHIN 10 DAYS OF RECEIVING YOUR REXX CLEANING MACHINE.
KEEP THIS COPY FOR YOUR RECORDS
Date Received
Registered Owner(s)
Address
Phone Number
Fax Number
Email Address
Machine Serial Number
Purchased From (Distributor)
WARRANTYWARRANTY
REGISTRATIONREGISTRATION

SPP-32321 REXX 120 (03-01)20
WARRANTY
Cleanmaster warrants the Rexx Cleaning Machine against defects in material and workmanship under normal
use and service. Cleanmaster, hereby, extends a limited three-year warranty on the polyethylene machine
housing of the Rexx against cracking or leaking and a one-year warranty on the rest of the machine against
manufacturing defect or workmanship subject to the terms and conditions that follow.
TERMSANDCONDITIONS
The warranty obligation extends only to the repair or replacement of parts, assemblies or machine housing found
upon examination by Cleanmaster to be defective in manufacturing or workmanship, and Cleanmaster reserves
the right to make that determination. Any adjustment or replacement of defective parts made under this warranty
does not void the warranty; neither does it extend the original warranty beyond its term.
Repair or replacements of any machine component(s) with any part(s) other than genuine Cleanmaster parts will
immediately void this and all warranties.
Filters, brass fittings, seals, o-rings and quick disconnects are considered expendable in normal use and are not
covered by this warranty.
Dry cleaning solvents cannot be used in the Rexx.
This warranty shall not cover any Rexx machine housing, part or assembly if there is evidence of misuse,
alteration, owner neglect, lack of proper maintenance, improper chemical use, improper voltage, abuse, accident,
freezing, flood, fire, etc. and any and all circumstances beyond Cleanmaster’s control.
In no event shall Cleanmaster be liable for loss of use, incidental or consequential damages or any damages to
persons or property.
11015 47th AVENUE WEST, MUKILTEO WA 98275 USA
Phone [phone]; Fax [phone];
Website: http://www.cleanmaster.com
PLEASE RETURN REGISTRATION WITHIN 10 DAYS OF RECEIVING YOUR REXX CLEANING MACHINE.
RETURN THIS COPY
Date Received
Registered Owner(s)
Address
Phone Number
Fax Number
Email Address
Machine Serial Number
Purchased From (Distributor)
WARRANTYWARRANTY
REGISTRATIONREGISTRATION
