Kärcher LB2000I User manual

86402450-A 06/23/15

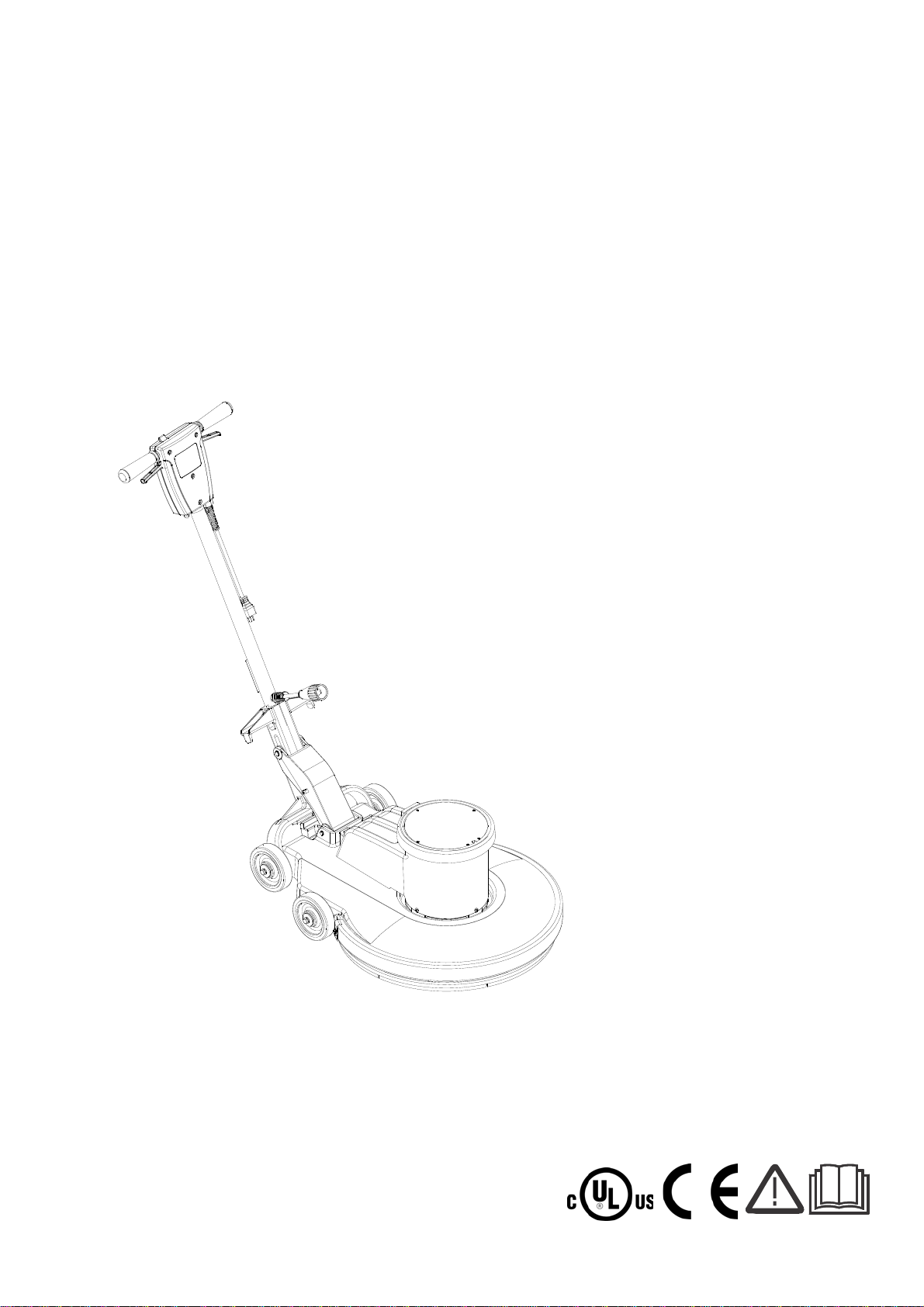

High Speed Burnisher
Burnisher
Operating instructions (ENG)
MODELS: LB2000I
1.009-020.0
LB2000IA
1.009-021.0
UB2000F
1.009-062.0
LB2000
1.009-019.0
From Serial Number (Ref No1*)
*See Serial Number Page in Spare
Parts List or call manufacturer

2
Warranty Registration
Thank you for choosing our product. Warranty registration is quick and easy.
Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to:
http://warranty.karcherna.com/warrantyregistration.aspx
86402450 Operators Manual - High Speed Burnisher (2000 Series)
Machine Data Label
Overview
The High Speed Burnisher is a mains powered, portable floor burnisher intended for commercial use. The
appliance can be fitted with a variety of pads to perform various floor care functions. The appliance employs
active dust control, and automatically adjusted pad pressure.

3
Table of Contents
Machine Data Label. . . . . . . . . . . . . . . . . . . . . . . . 2
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . 3
How To Use This Manual . . . . . . . . . . . . . . . . . . . 4
Safety
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . 5
CONSIGNES DE SÉCURITÉ IMPORTANTES . . 6
HAZARD INTENSITY LEVEL. . . . . . . . . . . . . . . . 7
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Grounding Instructions - 120v. . . . . . . . . . . . . . . 10
Grounding Instructions - 230v. . . . . . . . . . . . . . . 11
Operations
Technical Specifications . . . . . . . . . . . . . . . . . . . 12
Handle Installation . . . . . . . . . . . . . . . . . . . . . . . 13
Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Maintenance
Pad Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Machine Troubleshooting . . . . . . . . . . . . . . . . . . 15
Service Schedule . . . . . . . . . . . . . . . . . . . . . . . . 16
Suggested Spare Parts. . . . . . . . . . . . . . . . . . . . 17
86402450 Operators Manual - High Speed Burnisher (2000 Series)

4
How To Use This Manual
This manual contains the following sections:
• How to Use This Manual
•Safety
• Operations
• Maintenance
• Suggested Spare Parts
The HOW TO USE THIS MANUAL section will tell
you how to find important information for ordering
correct repair parts.
Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA
box is located on the inside of the front cover of this
manual.
The model and serial number of your machine is
located on the back of the machine.
The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The OPERATIONS section is to familiarize the
operator with the operation and function of the
machine.
The MAINTENANCE section contains preventive
maintenance to keep the machine and its compo-
nents in good working condition. They are listed in
this general order:
• Storage
• Maintenance
• Troubleshooting
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement
parts numbers needed for ordering future parts.
NOTE: The manual part number is located on the
lower right corner of the front cover.
Model:
Date of Purchase:
Serial Number:
Dealer:
Address:
Phone Number:
Sales Representative:
86402450 Operators Manual - High Speed Burnisher (2000 Series)

5
Safety
IMPORTANT SAFETY INSTRUCTIONS
When using this machine, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer’s recommended components and attachments.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water,
return it to an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine
near flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and
offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
During operation, attention shall be paid to other persons, especially children.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, unplug the machine.
Do not handle the plug or machine with wet hands.
Do not unplug machine by pulling on cord. To unplug, grasp the plug, not the cord.
Do not use with damaged cord or plug. Follow all instructions in this manual concerning grounding the machine.
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or
corners.
Do not pull/run machine over cord. Keep cord away from heated surfaces.
Connect to a properly grounded outlet. See Grounding Instructions.
If the supply cord is damaged it must be replaced by a special cord from an authorized service agent.
Unplug before cleaning or servicing.
Operational hazard may occur when running the machine over the supply cord.
This appliance has been designed for use with pads specified by the manufacturer. The fitting of other pads
may affect its safety.
This machine is for dry use only and shall not be used or stored outdoors in wet conditions.
READ AND SAVE THESE INSTRUCTIONS
86402450 Operators Manual - High Speed Burnisher (2000 Series)

6
Safety
CONSIGNES DE SÉCURITÉ IMPORTANTES
Lors de l'utilisation de cette machine, des précautions de base
doivent toujours être prises, y compris les précautions suivantes :
LIRE TOUTES LES INSTRUCTIONS AVANT D'UTILISER CETTE MACHINE.
Pour réduire le risque d'incendie, d'électrocution ou de
blessure :
N’utiliser cette machine qu’en intérieur. Ne jamais l’utiliser à l’extérieur ou dans la pluie.
N’utiliser cette machine que comme décrit dans le présent manuel. N’utiliser que les composants et les acces-
soires conseillés par le fabricant.
Lorsque la machine ne fonctionnant pas correctement, a fait l’objet d’une chute ou d’une détérioration, a été
laissée à l’extérieur, est tombée dans l’eau, la retourner au centre de service agréé.
Ne pas opérer la machine lorsque les conduits de ventilation sont bloquées. Débarrasser les débris des
conduits, car ils peuvent réduire l’écoulement d’air.
Cette machine peut provoquer un incendie lorsqu’elle est utilisée près de vapeurs ou de matériaux inflam-
mables. Ne pas l’utiliser près de liquides, de poussières ou de vapeurs inflammables.
Cette machine est destinée à un usage commercial. Elle est recommandée davantage pour les domaines
hôtelier, scolaire, hospitalier, industriel ou pour les bureaux, les chaînes de magasin, que pour un usage domes-
tique normal.
L’entretien et les réparations de la machine doivent être effectuées par un personnel qualifié.
Durant la manoeuvre de la machine, prendre garde aux personnes environnantes et notamment aux enfants.
Cette machine ne doit être manoeuvrée que par un personnel expérimenté et qualifié.
Lorsque vous laissez la machine sans surveillance, débranchez-la.
Ne pas toucher la fiche ou l’appareil lorsque vos mains sont humides.
Ne pas débrancher en tirant sur le cordon. Tirer plutôt la fiche.
Ne pas utiliser si le cordon ou la fiche est endommagé
Ne pas tirer soulever ou traîner l’appareil par le cordon. Ne pas utiliser le cordon comme une poignée, le
coincer dans l’embrasure d’unée porte ou l’appuyer contre des arêtes vives ou des coins.
Ne pas faire rouler l’appareil sur le cordon. Garder le cordon à l’écart des surfaces chaudes.
Cet appareil ne doit être connecter qu a des prises ayant une sortie de terre. Se reporter aux instructions de
mise à la terre.
Si le cordon d'alimentation est endommagé, il doit être remplacé par un cordon spécial d'un agent d'entretien
autorisé.
Débranchez la machine avant de la nettoyer ou la réparer.
Un risque opérationnel est probable lors du fonctionnement de la machine avec une surcharge du cordon
d'alimentation.
Cet appareil a été conçu pour être utilisé avec des coussins protecteurs spécifiés par le fabricant. L'utilisation
d'autres coussins protecteurs peut affecter sa securité.
Cette machine est faite pour un usage à sec seulement et ne doit pas être utilisée ou rangée à l'extérieur dans
des conditions humides.
LIRE ET CONSERVER CES INSTRUCTIONS
86402450 Operators Manual - High Speed Burnisher (2000 Series)

7
Safety
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property
damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the
equipment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on
the machine. Please take the necessary steps to train the machine operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use
manufacturer approved replacement parts.
86402450 Operators Manual - High Speed Burnisher (2000 Series)

8
Safety
Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions :
DEGRÉS DE RISQUES EN CAS DE DANGER
Il existe trois degrés de risques identifiés par les termes signalétiques –AVERTISSEMENT et
ATTENTION et POUR VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante
AVERTISSEMENT - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou
entraîner la mort.
ATTENTION - Dangers ouméthodesdangereusesquipourraientprovoquer desblessureslégèresouunedétérioration
du produit ou des biens immobiliers.
POUR VOTRE SÉCURITÉ : ce signe permet d’identifier les mesures de précaution à prendre pour
assurer un bon fonctionnement du matériel.
Rendre compteimmédiatement d’une défaillance oud’une détérioration dela machine. Nepas utiliserla machine
si celle-ci ne fonctionne pas correctement. Lire soigneusement les informations ci-dessous signalant certains
dangers potentiels pour l’opérateur de la machine. L’opérateur doit être absolument au courant de ces dangers
potentiels. Localiser tous les dispositifs de sécurité sur la machine. Il est conseillé de prendre les mesures néces-
saires pour former le personnel opérateur.
POUR VOTRE SÉCURITÉ :
NE PAS MANOEUVRER LA MACHINE :
Lorsqu’on n’est pas expérimenté ou qualifié.
Lorsque le guide d’utilisation n’est pas été lu ou compris.
Dans des zones inflammables ou explosives.
Dans des zones où des objets peuvent tomber.
LORS DE L’ENTRETIEN DE LA MACHINE :
Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou
des vêtements avec manches lors de l’utilisation de la machine. Utiliser les pièces détachées homo-
loguées.
86402450 Operators Manual - High Speed Burnisher (2000 Series)

9
Safety
Safety Labels
NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become
illegible, promptly replace them.
Emplacement De L'étiquette De Sécurité
NOTE: REMARQUE: Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à
tout moment, les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement
rapide.
86402450 Operators Manual - High Speed Burnisher (2000 Series)

10
Safety
Grounding Instructions - 120v
THIS PRODUCT IS FOR COMMERCIAL
USE ONLY.
Electrical:
In the USA this machine operates on a 15 amp
nominal 120V, 60 hz, A.C. power circuit. The amp,
hertz, and voltage are listed on the data label found
on each machine. Using voltages above or below
those indicated on the data label will cause serious
damage to the motors.
Grounding Instructions:
This appliance must be grounded. If it should
malfunction or break down, grounding provides a
path of least resistance for electric current to reduce
the risk of electric shock. This appliance is equipped
with a cord having an equipment-grounding
conductor and grounding plug. The plug must be
inserted into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
This appliance is for use on a nominal 120-volt circuit,
and has a grounded plug that looks like the plug in
“Fig. A”. A temporary adaptor that looks like the
adaptor in “Fig . C” may be used to connect this plug
to a 2-pole receptacle as shown in “Fig. B”, if a
properly grounded outlet is not available. The
temporary adaptor should be used only until a
properly grounded outlet (Fig. A) can be installed by
a qualified electrician. The green colored rigid ear,
lug, or the like extending from the adaptor must be
connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adaptor is
used, it must be held in place by a metal screw.
Improperconnectionof the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or service
person if you are in doubt as to whether the outlet
is properly grounded. Do not modify the plug
provided with the appliance - if it will not fit the
outlet, have a proper outlet installed by a
qualified electrician.
Le raccordement incorrect du conducteur de
terre d'équipement peut entraîner des risques
d'électrocution. Vérifiez auprès d'un électricien
qualifié ou d'un responsable de l'entretien si
vous avez quelque doute que ce soit quant au
raccordement à la terre de votre prise murale. Ne
modifiez pas la fiche fournie avec l'appareil: si
elle ne correspond pas à la prise murale, faites
installer une prise adéquate par un électricien
qualifié.
USING AN ADAPTOR
GROUNDING CONNECTION
Note: Adaptors are not allowed in Canada.
Outlet
Tab for Grounding
Outlet Box
FIGURE C
Grounded
FIGURE A
Adaptor
Screw
FIGURE B
Adaptor
Metal Screw
Grounded
Grounding Pin
86402450 Operators Manual - High Speed Burnisher (2000 Series)

11
Safety
Grounding Instructions - 230v
THIS PRODUCT IS FOR COMMERCIAL USE
ONLY.
Electrical:
The amp, hertz, and voltage are listed on the data
label found on each machine. Using voltages above
or below those indicated on the data label will cause
serious damage to the motors.
Extension Cords:
If an extension cord is used, the wire size must be at
least one size larger than the power cord on the
machine, and must be limited to 50 feet (15.5m) in
length.
Grounding Instructions:
This appliance must be grounded. If it should
malfunction or break down, grounding provides a
path of least resistance for electric current to reduce
the risk of electric shock. This appliance is equipped
with a cord having an equipment-grounding
conductor and grounding plug. The plug must be
inserted into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or service
person if you are in doubt as to whether the outlet
is properly grounded. Do not modify the plug
provided with the appliance - if it will not fit the
outlet, have a proper outlet installed by a qualified
electrician.
Le raccordement incorrect du conducteur de
terre d'équipement peut entraîner des risques
d'électrocution. Vérifiez auprès d'un électricien
qualifié ou d'un responsable de l'entretien si vous
avez quelque doute que ce soit quant au
raccordement à la terre de votre prise murale. Ne
modifiez pas la fiche fournie avec
l'appareil: si elle ne correspond pas à la prise
murale, faites installer une prise adéquate par un
électricien qualifié.
86402450 Operators Manual - High Speed Burnisher (2000 Series)

12
Operations
Technical Specifications
NOTE: Always use a pad, which has been designed for electric ultra high speed burnishing of at least
2000 rpm.
The sound pressure level at the operator’s ear was measured to be 70 dBA. This was a nearfield, broad-band
measurement taken in a typical industrial environment on a tile floor. This appliance contains no possible source
of impact noise. The instantaneous sound pressure level is below 63 Pa.
ITEM DIMENSION/CAPACITY
Construction Heavy-duty die cast aluminum deckwith heavy-duty rubber bumper,
tubular steel self adjusting handle with die cast aluminum handle
housing.
Motor 1.5 hp
Transmission Direct drive from motor shaft.
Pad speed 2000 rpm
Electrical system:
LB2000I, LB2000IA 230 volts, 50Hz
LB2000, UB2000F 115 volts, 60Hz
Cable 75’ [22.9 m]
Switches Dual levers with safety lock.
Pad Holder Æ20” [50.8 cm] flexible disc
Wheels Four Æ5” [Æ12.7 cm], 1.25” [3.2 cm] wide, non-marking tread.
Handle Æ1.5” [Æ3.8 cm] tubular steel, self adjusting handle consistently
maintains full contact with the floor, and easy to use thumb activated
safety lock.
Dimensions (L x W x H) 32” [81.3 cm] X 23.9” [60.2 cm] X 48.4” [122.9 cm]
Pad size (See note) 20” diameter x 1” thick
86402450 Operators Manual - High Speed Burnisher (2000 Series)

13
Operations
Handle Installation
The machine is shipped with handle unassembled.
Follow these steps for installation:
1. Remove handle and deck assembly from carton.
2. Remove bolt (item 3), washers (item 2), and nut (item 1) from deck assembly.
3. Install Handle Assembly as shown.
4. Slide Bolt (item 3) through, washers (item 2), Handle Mount Brackets and HandleAssembly as shown.
Tighten bolt (item 3) and nut (item 1) until the handle cannot twist in the mount bracket (45-50 foot pounds).
5. Check handle for movement up and down.
6. Plug cord into handle cord receptacle.
HANDLE
ASSEMBLY
1
2
3
DECK
ASSEMBLY
HANDLE
MOUNT BRACKET
86402450 Operators Manual - High Speed Burnisher (2000 Series)

14
Operations
Controls
1. Safety Lock – Prevents unintended operation of
the machine.
2. Switch Levers – Turns machine on/off.
Operations
For indoor use only.
Pour utilisation à l'intérieur seulement.
When using the pad, always keep the machine
moving when in contact with the floor.
Couple de démarrage élevé. Tenez la machine
fermement à deux mains.
High starting torque. Hold machine firmly with
both hands.
Couple de démarrage élevé. Tenez la machine
fermement à deux mains.
1. Ensure that the pad driver is in good shape.
Install or change pad if necessary.
2. Plug the machine into a wall outlet as described
in the grounding instructions.
3. Release latch, lower the handle and move into
position.
4. Push the safety lock forward, unlocking the
switch levers.
5. With the safety lock forward, squeeze one or
both of the switch levers, turning the machine on.
(These levers can be operated independently of
each other). The safety lock will not re-engage
until both levers are released.
6. To stop the machine, release the switch levers.
7. Do not let machine rest on pad. When finished
with the machine, return handle to the storage
position.
NOTE: The machine is equipped with a circuit
breaker to protect the motor in the event an
overload condition occurs. The circuit breaker is
located on the handle. Push the reset button to
restart the machine. If the breaker trips again,
correct the cause of overloading before proceeding.
Maintenance
1. Inspect power cord for wear. To prevent electrical
shock replace cords with frayed or cracked insu-
lation immediately.
2. Place machine in the storage position.
3. Check pad condition. Change if soiled or torn.
Pad Installation
1. Lay machine back, exposing the under side.
2. Remove center lock by turning counter-clock-
wise.
3. Ensure pad is centered on pad driver. Pull pad to
edge of pad driver in several directions to check
for proper engagement.
4. Replace center lock by turning clockwise firmly
compressing the center of the pad.
22
1
86402450 Operators Manual - High Speed Burnisher (2000 Series)
HANDLE
RELEASE
LATCH

15
Maintenance
Machine Troubleshooting
PROBLEM CAUSE SOLUTION
Machine will not run
Tripped circuit breaker Reset
Circuit breaker tripped in
building. Check and reset
Fuse in motor is blown
Replace
CAUTION: To reduce the risk of elec-
trical shock, unplug the machine before
opening fuse holder.
Fuse will only open under extreme
conditions.
Investigate cause before replacing.
Power switch failure Test switch for continuity and replace if
necessary.
Faulty power cord Replace
Electrical shock
Equipment not grounded Follow grounding instructions exactly.
Receptacle not grounded Have an electrician inspect building’s
wiring.
Internal wiring problem
Ensurethat the machinewiring matches
theappropriatewiringdiagram.Replace
any wires or components, which are
short-circuiting.
Repeated circuit breaker tripping Mechanical problem Higher amp draws indicate a mechan-
ical problem; find the problem before
using the machine.
Faulty circuit breaker Test circuit for continuity. Replace circuit
breaker if necessary.
Excessive vibration
Pad not centered Re-center pad.
Damaged or unevenly worn
pad. Replace pad. Do not rest machine on pad when not in use.
Damaged pad driver. Replace.
86402450 Operators Manual - High Speed Burnisher (2000 Series)

16
Maintenance
Service Schedule
MAINTENANCE DAILY MONTHLY
Check pad wear to prevent buildup of chemicals *
Check pad driver system for damage *
Check handles, switches, and knobs for damage *
Store with pad off the floor *
Check all bearings for noise *
Check skirt/bumpers for damage and replace as necessary *
Check overall performance of machine *
86402450 Operators Manual - High Speed Burnisher (2000 Series)

17
Maintenance
Suggested Spare Parts
PART NO. DESCRIPTION SERIALNO.
FROM NOTES:
86224740 SPRING, EXT .5OD X 3.5L
86224750 SPRING, COMP .48OD X .91L
86223460 RECTIFIER, 50A 1000V BRIDGE
86003660 FUSE
86003670 FUSE HOLDER
86001390 BAG, DUST (PACKAGE OF 10 BAGS)
86216230 BRUSH, STRIP (PACKAGE OF 6)
86001820 BRUSH SET 120V
86001720 BRUSH SET (SET OF 4) 230V
86222470 PAD DRIVER, 20 INCH BURNISHER
86216600 CAP, EXTRUSION
86216270 BUMPER, EXTRUSION
86402450 Operators Manual - High Speed Burnisher (2000 Series)

Table of contents
Valid on 27.09.2018 Page 2 / 12
Lightning 2000 (All MODELS:) 3
9020 DECK 4
9030 ELECTRICAL 5
9040 HANDLE - LOWER 6
9050 HANDLE - UPPER 7
9060 MOTOR 8
9070 PAD / DRIVER 9
9080 WIRING - 120V 10
9090 WIRING - 230V 11
9100 SERIAL NUMBER 12

Lightning 2000 (All MODELS:)
Valid on 27.09.2018 Page 3 / 12
POS Description Quantity Unit
9020 DECK 1.000 ST
9030 ELECTRICAL 1.000 ST
9040 HANDLE - LOWER 1.000 ST
9050 HANDLE - UPPER 1.000 ST
9060 MOTOR 1.000 ST
9070 PAD / DRIVER 1.000 ST
9080 WIRING - 120V 1.000 ST
9090 WIRING - 230V 1.000 ST
9100 SERIAL NUMBER 1.000 ST

9020 DECK
Valid on 27.09.2018 Page 4 / 12
POS Article no. Description Quantity Unit
1 8.621-628.0 BUMPER, RUBBER 4.000 ST
2 8.621-752.0 COVER, FILTER BAG 1.000 ST
3 8.600-139.0 BAG, DUST (PACKAGE OF 10) 1.000 ST
4 8.622-343.0 Retainer cord 1.000 ST
5 8.627-681.0 SCREW, M5 X .8 X 10 PHPNHMS BLK 2.000 ST
6 8.628-901.0 DECK, 20 IN BURNISHER GRAY 1.000 ST
7 8.621-627.0 BUMPER, EXTRUSION 1.000 ST
8 8.613-734.0 WASHER, M6 FLT BLK 2.000 ST
9 8.637-278.0 SCREW, M6-1 X 22 HHCS BLK 2.000 ST
10 8.627-155.0 NUT, M6X1 HEX NYLOCK STL ZNPLT 2.000 ST
11 8.621-660.0 CAP, EXTRUSION 2.000 ST
12 8.621-502.0 Front axle 2.000 ST
13 8.622-572.0 WASHER, 14MMID X 36MMOD 4.000 ST
14 8.613-728.0 WASHER, M8 FLT STL DIN125A ZNPLT 2.000 ST
15 8.613-664.0 SCREW, M8-1.25 X 20 HHMS ZNPLT 2.000 ST
16 8.628-874.0 SET SCR,8MMX1.25X8MM CUP PT 2.000 ST
