Trusted Clean TPL-17-150-CE-HEAT-TCP User manual

17 Gallon Box Extractor OWNER’S
MANUAL
&
PARTS LIST
This equipment is intended for commercial use only
TRUSTED CLEAN MODEL
TPL-17-150-CE-HEAT-TCP
1-888-722-5508

BEFORE OPERATING THE MACHINE
Read the manual carefully and completely before attempting to operate the unit. This manual has important information for the use and safe
operation of the machine. Keep this manual handy at all times. This machine will assure years of satisfactory service if operated and maintained
according to recommendations in this manual. If additional information is needed, please call or write to:
CleanFreak
P.O. Box 569
Wausau, WI 54402
WARNING!
The machine was designed for use on carpet, floor and upholstery extraction applications as per instructions and recommendations
written in this manual. Any deviation from its proper use or purpose and the consequential damage that may occur is the sole
responsibility of the end user.
Disconnect the power cord from the outlet before servicing. Do not leave the machine connected to an electrical outlet when
unattended.
Do not immerse or use this machine in standing water. Such use may cause electric shock.
This equipment is not designed to handle or use combustible/volatile substances such as gasoline or kerosene, in, on, or near the
machine. The use of such materials will cause an extremely hazardous condition.
When using an extension cord, use only a 3-prong conductor grounding cord- 12 gauge wire or heavier.
To avoid electric shock, do not expose the machine to rain. Store it indoors only.
Do not use the machine for dry vacuuming, as it is not equipped with a fine dust filter.
Use a defoamer at all times to prevent damage to the vacuum motors. If defoamer is not used, or not used sufficiently, foam from your
chemical or chemical left in the carpet from a previous cleaning may be ingested into and damage your vacuum motors. Failure to use a
defoamer may cause water damage to the vacuum system and void warranty.
Do not use water in excess of 135°F (57°C) in the solution tank as it may damage the solution system.
To prevent seal damage and chemical build-up to the pump system, run clean water through the solution lines after each day’s use.
Use only commercially available carpet cleaning solutions and defoamer intended for use with machines of this type. Do not use dyes,
bleaches, ammonia, or other additives. The use of powdered cleaning solution if not diluted properly may result in damage to the pump.
If powdered chemicals are used, premix in a separate container according to directions on the container before placing in the solution
tank. Monitor and clean intake filters to prevent clogs. Replace damaged filters immediately to prevent damage to pump.
Do not expose the machine to freezing temperatures, or store inside a room or vehicle where the temperature might drop to freezing
temperatures.
For troubleshooting or technical issues, please contact Cleanfreak.
Do not use replacement parts other than those specified on the parts list or recommended by a Cleanfreak representative.
FOR UNITS EQUIPPED WITH EXTERNAL HEATER
Read and understand the external heater owner’s manual before using the heater on your extractor.
Do not run heater dry! Turn on your pump and run solution completely through the system prior to turning on the heater. Be advised that water in the
tank does not ensure that water is in the heater. Turn off your heater immediately if you run out of water in the machine, and do not activate again until
water has once again been run through system.
Water hookups must be in place and water flowing through the heater prior to turning it on. Failure to do so may cause internal component damage and
will void warranty.
Heater must be filled with water or water based solutions at all times when in use. Turn off the switch and unplug the heater from outlet when not in use.
Do not use heater at more than 500 psi.
Do not immerse heater in water.
To avoid explosion and / or fire, do not use solvents or any flammable liquid in heater.
FAILURE TO COMPLY WITH THE ABOVE WARNING INSTRUCTIONS WILL VOID THE WARRANTY

GROUNDING INSTRUCTIONS
The 120V A/C and the 220V A/C models have been outfitted with the appropriate grounded connectors. Make sure the machine is connected to a
grounded outlet having the same configuration as the grounded plug. No adaptor should be used with this machine. Any modification to the
connectors will void the warranty.
PREPARING THE MACHINE
IMPORTANT: For all Trusted Clean equipment, use only the correct Trusted Clean high pressure, high heat wands & upholstery tools. They are
designed to deliver and maintain the correct gallons per minute (GPM), pressure (PSI) and heat when attached to the Trusted Clean pump system.
Use of other manufacturer wands can cause over-wetting of carpet, damage to the pump system (including hose & fittings), lack of pressure and
heat.
1. Pour properly mixed cleaning solution or water into the solution tank using a new or clean bucket. Add defoamer per chemical
manufacturer’s instructions on label. For more information, see warning section in this manual.
2. Slide vacuum hose cuff onto the black hose adapter (located at the top left of the rear of the machine) and then slide the cuff from the
other end of the vacuum hose onto the tool being used.
3. Connect the male end of the solution hose to the wand and the female end to the machine by pulling back the knurled collar on the
female quick disconnect fitting and pushing the male fitting in, then release the knurled collar to lock the male into place. You should
hear it click fully into place.
4. Make sure the drain valve is closed by pushing the T-handle all the way in. Failure to close a drain valve will result in leaking of dirty water
or loss in suction. Keep the drain valve clean as debris may prevent a proper seal.
5. If a Powerwand is to be used with the machine, connect the male electrical plug coming from the wand to the optional power receptacle
on the machine. If your machine is not factory equipped with a power receptacle a Powerwand may still be used by plugging the
Powerwand’s electrical cord directly into a 3-prong wall outlet.
ADDITIONAL INSTRUCTIONS FOR MACHINES WITH OPTIONAL EXTERNAL HEATER INSTALLED:
1. Be sure to fill the solution tank with water before plugging in the machine.
2. Water hookups must be in place and water flowing through the heater prior to turning heater on. Failure to do so may cause internal
component damage and will void the warranty. For more information see Warnings section.
3. Spray water through the tool / wand before turning on the heater to assure that there is water flow.
4. Heater must be filled with water or water based solutions at all times when in use.
5. Plug heater power cord and machine power cord into separate outlets on separate circuits.
6. Turn off the switch and unplug the heater from outlet when not in use.
7. Do not use heater at more than 500 PSI.
8. Turn on heater switch when you are ready to clean.
CAUTION: When the green light on the heater is on, the heat element is heating the water up to the proper temperature. When the green light is
off, the water in the heater tank is up to temperature and the thermostat switch in the heater has turned the heater off. It will automatically turn
on and off throughout your job to provide the correct temperature.
OPERATING INSTRUCTIONS – CARPET TOOL
1. Turn on the vacuum and solution switches one at a time to prevent an amp surge. Making sure that the wand is evenly positioned on the
carpet, slowly pull it towards you with the solution valve trigger engaged. Then release the trigger while making a forward pass along the
same area. This pass is called a dry pass because it is done with the trigger disengaged thus using only the vacuum (no spray). Now
position your wand head for your next pass and repeat. Do not over-wet carpet. Make overlapping passes to prevent streaking.
2. On heavily soiled carpets, we recommend using a pre-spray solution. You can find the proper chemical for the proper type of stain and
soil by consulting Cleanfreak.
3. When you run out of solution, turn off the machine completely (including the heater if applicable). Attach the drain elbow on the drain
valve. Place a pail under the downspout and pull up the drain valve T-handle. Dirty solution will pour out until the tank is empty. Close
the drain valve. Use a clean bucket when you refill the solution tank. Do not use the bucket that was used for draining.
4. When the job is completed, turn the switches off and disconnect the vacuum and solution hoses from the carpet and the machine. Be
careful of dripping at the time of disconnection as solution may still be in the lines. Drain the recovery tank by following the drain valve
instructions.

CLEANING UPHOLSTERY
Cleaning upholstery with success requires a good knowledge of the type of fabric you will work on. Look for the cleaning instructions label sewn on
the underside of the furniture for the recommended method of cleaning. If it calls for dry-cleaning, do not attempt to clean by wet extraction
otherwise damage to the fabric could occur. Extraction works perfectly on most synthetic fabrics including synthetic velvets. Always consult
Cleanfreak for information on how to find the proper type of chemical and method for the type of fabric you are cleaning.
Before proceeding, test the fabric for colorfastness. Apply a small amount of cleaning solution on the fabric in an inconspicuous spot. Wait 2 to 3
minutes and rub the area with a white terry cloth towel. If no color comes off the towel, the fabric should be safe to clean. If a little color comes
off, there is some risk of colors running when you clean. It may be possible to stabilize colors by cleaning with an acidic rinse.
1. Prepare the machine in the same manner as for carpet cleaning (see Preparing the Machine) except attach the upholstery tool to the
vacuum and solution hose instead of the wand. Pour hot water into the solution tank, not exceeding 135°F. Add recommended amount
of cleaning concentrate into the solution tank. Turn on the vacuum and pump switches.
2. Clean with the upholstery tool using as little solution as possible. Make overlapping passes to prevent streaking. Go over the area you
just cleaned without depressing the lever (vacuum only) and gauge the amount of moisture extracted through the view window for
dryness. On heavily soiled areas like arm rests, pre-treat with a recommended pre-spray solution.
DAILY MAINTENANCE
1. Always keep the machine clean inside and out.
2. Pour 1 gallon of clean, hot water into the solution tank. Turn on and flush the entire system through the wand nozzles for about a minute
to prevent mineral or chemical build-up. A periodic use of a 1:3 white vinegar and water solution helps to break down build up, as well.
3. Remove dirt and lint build-up inside the filter screen in the recovery tank. Lint should be cleaned off so that air flow is not impeded.
4. Check the solution tank strainer in the solution tank. If lint has accumulated in the screen, remove and rinse it in clear running water.
Replace as necessary.
5. Empty recovery tank and open recovery lid and run your vacuums for 3-5 minutes after every job to remove any excess moisture from
the vacuum motors. This is especially important if you have over filled the machine or did not use enough defoamer.
PERIODIC MAINTENANCE
All Trusted Clean machines are engineered and built to require a minimum amount of maintenance. But like any machine it does require some
care to keep it in optimum working condition. Careful attention to these maintenance instructions will give you maximum operating performance
and will increase the life expectancy of your machine.
Solution Lines & Fitting: Flush the machine at least once a month with a solution of 3 parts water with 1 part white vinegar in order to
neutralize the alkaline residue left by the cleaning solution.
Quick Connect Couple: Spray with WD-40 or equivalent lubricant to prevent coupler from sticking.
Drain Valve: Apply light oil on gate seals. If machine has to be stored for a prolonged period, leave the gate valve open.
Solution Pump: The same above procedure used on the solution line and fittings applies to the pump.

TROUBLE SHOOTING
PROBLEM
PROBLEM CAUSE
ELECTRICAL SYSTEM
No electrical power 1. Defective power cord
2. House or building circuit breaker tripped.
Switch is turned on.
Power is intermittent to
all motor(s)
1. Faulty electrical cable.
2. Defective switches.
3. Loose terminal or discolored terminal connections.
VACUUM SYSTEM
No vacuum 1. Drain valve is open or not sealed properly.
2. Vacuum lid is not sealed against tank.
3. Loose vacuum hose, vacuum connection.
4. Disconnected or loose wire inside machine.
Low vacuum 1. Accumulated dirt on lid screen.
2. Worn out vacuum lid gasket.
3. Lint & dirt build-up on wand head.
4. Defective vacuum hose.
5. Loose connection in the vacuum motor(s).
SOLUTION SYSTEM
Pump motor on, no spray
through spray tips 1. Clogged spray tips.
2. Clogged solution intake filter screen.
3. Plugged female quick disconnect coupler or couplers not fully engaged.
4. Punctured pump diaphragm.
5. Defective or clogged check valve.
6. Crack in pump housing.
7. Lost prime.
Uneven or weak spray
from tips 1. Clogged or dirty spray tips.
2. Accumulated dirt on solution intake filter screen.
3. Accumulation of debris inside pump and plumbing.
4. Worn pump bearing (excessive noise).
5. Punctured pump diaphragm.
6. Defective motor.
7. Worn nozzles.
Vacuum motor(s)
working, pump motor
fails to turn on
1. Loose wiring connection.
2. Defective pressure switch in the pump.
3. Defective pump motor.

2 3 4 6 7 8 9
11
12
13
15
16
272625
24
2220 21
22 28
34
3738
55
3940
454647
46
4849
50
7
51
52
54
56 57 58 59
62
54
6
17
7
63
64
65
66
32
33
42
41
7
15
31
60
61
23
53

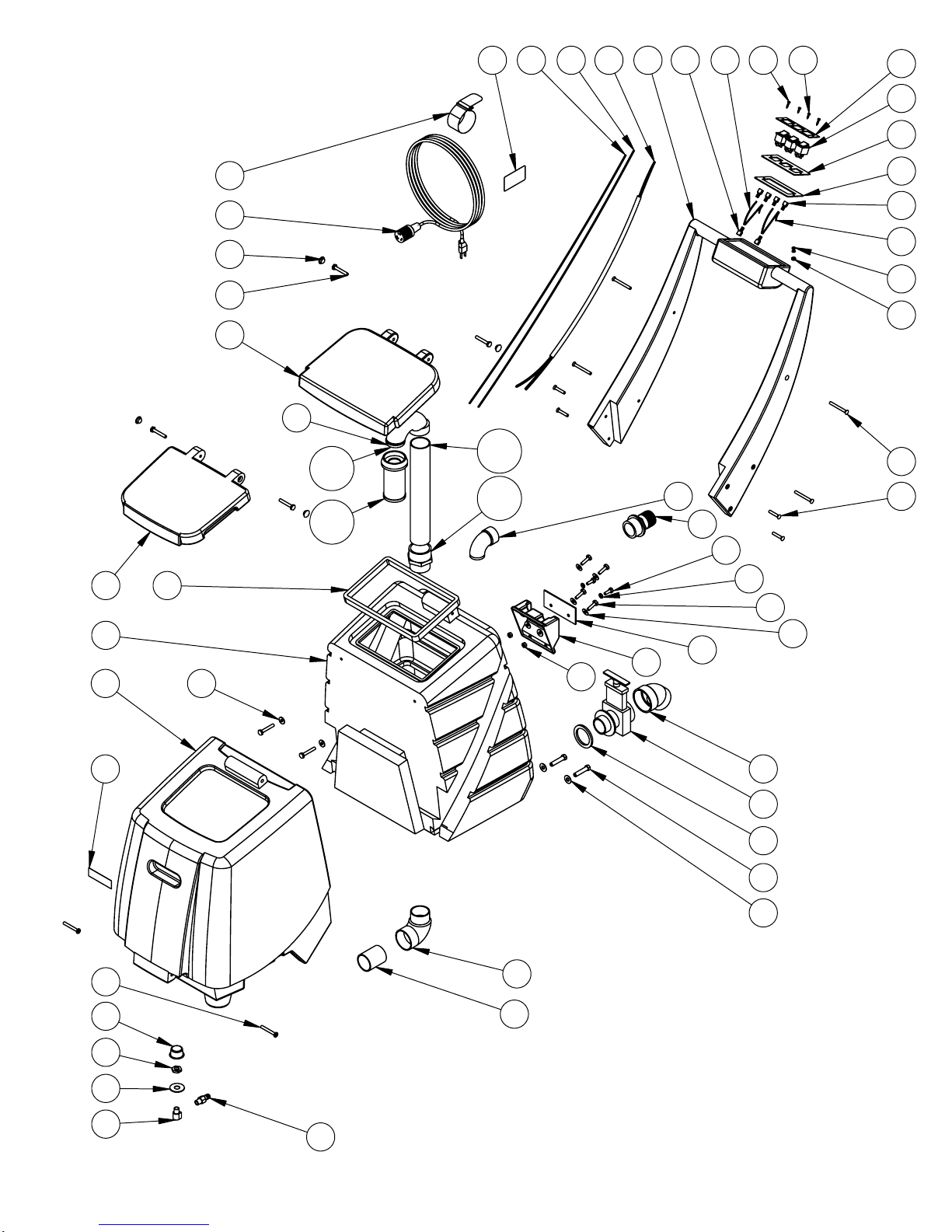

17 GALLON BASE
2-3-08
2000MX-HR Base
2-3-08
36
1
14
19
18
29
43
44
55
6
35
30
5
10
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 C00297 Screw,#8 X .25 in, Pan Head 1
2 J11863 Hose, 3 in 1
3 J00639 Screw Clamp, 1.63 - 2.43in. 3
4 J00618 Vacuum Hose, 2in Grey, Wire, 22 in lg 1
5 F11178-BLK Intercooler, Galaxy, Black 1
6 C00273 Locknut, 1-4 X 20, Nylon, SS 16
7 C00233 Washer, Flat, .25 in 26
8 E00449 Grommet 6
9 C00284 Screw, 10-32 X .375 Ground 2
10 B11150 Ground Wire, Galaxy 2
11 G00520-IL Vacuum, 106 in, 115 V, 5.7 in 2
12 J00657 Hose Clamp, 2 inSLDPRT 1
13 J00618 Vacuum Hose, 2 in Grey, Wire, 4 in lg 1
14 C00254 Lock Washer, 1-4in Split 1
15 C00261 Nut, .25-20, Hex 10
16 D11134 Vac Plate 1
17 C11189 Screw, 1-4 X 20 X 4.5 in, Hex 5
18 C11516 Screw, 1-4 X 20 X 4.5 in, Flat Head, Phillips 1
19 C02312 Lockwasher, .25 in., Internal Star 1
20 G11314-2 Pressure Regulator, 180 PSI 1
21 A00060 3-8 Barb X 1-4MP, Brass 1
22 A00052 .25 X .375 M-F 90 deg Brass 3
23 A00161 Tee, .25 FP, Brass 1
24 A00111 Nipple, .25 in 2
25 A00121 Fitting, .25 MP X .25 FP, Brass 1
26 C11244 Washer, .56 X 1.5 X .05 2
27 A00104 QD, 1-4 M X 1-4 FP, Brass 1
28 A00097A Cap, Inline Filter 1
29 A00094E Checkvalve, No Strainer 1
30 A00094C Check Valve Body 1
31 C02322 Hex Bolt,1-4 X 20 X 1.75 in 4
32 D010379 Heater Mounting Plate 1
33 C11440 Spacer, Heater Mounting Plate 4
34 A00061 3-8 Barb X 1-4FP, Brass 1
35 H02564-2 Label, Caution, Motor Housing 1
36 C11165, Screw, #8 X 1 in, Pan, Black 4
37 F11790 Heater, Tunnel Cover, Blue Granite 1
38 B11779 Stub, 12-3 SJTW Yellow 1
39 C00293 #8 X .5in Pan, Black SMS, Phillips 2
40 B00192 Mount, Nylon Tie 1
41 B11606 Strain Relief, Pigtail 1
42 K10510 Plug, 1.25 in, Black 1
43 H03545 Cover, Serial # Label 1
44 H00565-5 Label, Serial Number 1
45 C02305 Cap Nut, .5in Push-on 2
46 C00240 Washer, Shoulder, Nylon 4
47 G11767 Wheel, 10 in 2
48 D11170 Axle 1
49 F11789 Base 1
50 C00314-1 Hex Bolt, 1-4 X 20 X 1in 8
51 G03518 Caster, 4 in 2
52 J00613B Solution Hose, .375 in, Black 1
53 J11508 Screw Clamp #6, .43 to .875 in 8
54 A00054 Elbow, 90, .375MP X .375B, Nylon 2
55 B00191 Nylon Tie, 11in Black 4
56 B00190 Nylon Tie, 4in 13
57 G11234 Pump, 150 PSI 1
58 D11194 Pump Plate 1
59 J00613B Solution Hose, .375 X 26 in, Black 1
60 J11154 Solution Hose, .375 X 10 in, Wire Reinforced 1
61 A11243 Tee, .375B X .375B X .375B, Nylon 1
62 J11154 Solution Hose, .375 X 6 in, Wire Reinforced 1
63 J00618 Vacuum Hose, 2 in Grey, Wire, 7 in lg 1
64 E11169 Gasket, Vac Motor, Galaxy 2
65 B00179-2 Closed End Cntr, 16-3 1
66 B00179-1 Closed End Cntr, 16-3 3

17-150-CE-HEAT-TCP BASE
ITEM # PART # DESCRIPTION QTY
1C00297 SCREW, #8 X .25IN, PAN HEAD 1
2J11863 HOSE, 3IN 1
3J00639 SCREW CLAMP, 1.63-2.43IN 3
4J00618 VACUUM HOSE, 2 IN GREY, WIRE22 IN LG 1
5F11178-BLK INTERCOOLER, GALAXY, BLACK 1
6C00273 LOCKNUT, 1-4 X 20, NYLON, SS 16
7C00233 WASHER, FLAT, .25 IN 26
8E00449 GROMMET 6
9C00284 SCREW, 10-32 X .375 GROUND 2
10 B11150 GROUND WIRE, GALAXY 2
11 G13394 VACUUM, 117 IN, 115 V, 5.7 IN 1
12 J00657 HOSE CLAMP, 2 IN SLDPRT 1
13 J00618 VACUUM HOSE, 2 IN GREY, WIRE, 4 IN LG 1
14 C00254 LOCK WASHER, 1-4 IN SPLIT 1
15 C00261 NUT, .25-20, HEX 10
16 D11134 VAC PLATE 1
17 C11189 SCREW, 1-4 X 20 X 4.5IN, HEX 5
18 C11516 SCREW, 1-4 X 20 X 4.5IN, FLAT HEAD, PHILLIPS 1
19 C02312 LOCKWASHER, .25 IN, INTERNAL STAR 1
20 G11314-2 PRESSURE REGULATOR, 180 PSI 1
21 A00060 3-8 BARB X 1-4 MP, BRASS 1
22 A00052 .25 X .375 M-F 90 DEG, BRASS 3
23 A00161 TEE, .25 FP, BRASS 1
24 A00111 NIPPLE, .25 IN 2
25 A00121 FITTING, .25 MP X .25 FP, BRASS 1
26 C11244 WASHER, .56 X 1.5 X .05 2
27 A00104 QD, 1-4M X 1-4FP, BRASS 1
28 A00097A CAP, INLINE FILTER 1
29 A00094E CHECKVALVE, NO STRAINER 1
30 A00094C CHECK VALVE BODY 1
31 C02291 HEATER PLATE HEX 4
32 D010379 HEATER MOUNTING PLATE 1
33 K10691 PVC PIPE, .25IN 4
34 A00061 3-8 BARB X 1-4RP, BRASS 1
35 H02564-2 LABEL, CAUTION, MOTOR HOUSING 1
36 C11165 SCREW, #8 X 1 IN, PAN, BLACK 4
37 F11790-1STCB HEATER, TUNNEL COVER, BLUE GRANITE 1
38 B11779 STUB, 12-3 SJTW, YELLOW 1
39 C00293 #8 X .5 IN PAN, BLACK SMS, PHILLIPS 2
40 B00192 MOUNT, NYLON TIE 1
41 B11606 STRAIN RELIEF, PIGTAIL 1
42 K10510 PLUG, 1.25 IN, BLACK 1
43 H03545 COVER, SERIAL # LABEL 1
44 H00565-5 LABEL, SERIAL NUMBER 1
45 C02305 CAP NUT, .5 IN PUSH- ON 2
46 C00240 WASHER, SHOULDER, NYLON 2
47 G11767 WHEEL, 10 IN 2
48 D11170 AXLE 1
49 F11789-1STCB BASE 1
50 C02310 HEX BOLT, 1/4 X 20 X 1 1/4" 8
51 G03518 CASTER, 4 IN 2
52 J00613B SOLUTION HOSE, .375 IN, BLACK 1
53 J11508 SCREW CLAMP #6, .43 TO .875 IN 8
54 A00054 ELBOW, 90, .375 MP X .375B, NYLON 2
55 B00191 NYLON TIE, 11 IN BLACK 4
56 B00190 NYLON TIE, 4 IN 13
57 G11234 PUMP, 150 PSI 1
58 D11835M-1 PUMP PLATE 1
59 J00613B SOLUTION HOSE, .375 X 26 IN, BLACK 1
60 J11154 SOLUTION HOSE, .375 X 10 IN, WIRE REINFORCED 1
61 A11243 TEE, .375B X .375B X .375B, NYLON 1
62 J11154 SOLUTION HOSE, .375 X 6 IN, WIRE REINFORCED 1
63 J00618 VACUUM HOSE, 2 IN GREY, WIRE, 7 IN LG 1
64 E11169 GASKET, VAC MOTOR, GALAXY 2
65 B00179-2 CLOSED END CNTR, 16-3 1
66 B00179-1 CLOSED END CNTR, 16-3 3

43
6
7
8
9
10
11
1
2
12 13 14 15 16 17 18 19 20
21
22
23
24
25
26
27
28
2930
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
17 GALLON
Upper
3-25-08
2700MX-HR Upper
3-25-08
5B
5D
5A
5
5C
A
B
C
D
53
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 F11787-1 Solution Tank, Galaxy Pro 1
2 F11788-1 Recovery Tank, Galaxy Pro 1
3 F11791-1 Lid, Sol Tank, Galaxy Pro 1
4 G11836 Gasket, Recovery Tank 1
5 12904A Stand Pipe Assembly 1
K11965 Elbow, 180 Deg. Float Ball 1
K00672 Pvc Pipe, 1.5 X 12 in, Sch 40 Wht 1
10989-2A Float Ball Screen 1
K00741 Adapter 1
6 F11785-1 Lid, Recovery Tank 1
7 C11167 Bolt, 1-4 X 20 6
8 K02714 Plug, .500 4
9 B11769 Extension Cord, 12-3 SJTW 1
10 C11177 Velcro Strap 1
11 H02548-2 Label, Important, Cord 1
12 B00185-30 Wires, 73 in 1
13 B00185-40 Wires, 73 in 1
14 B010314 Wire Harness 1
15 F11786-1 Handle 1
16 B00177 Terminal Lug, Female, QD, .25 X .032, 16-14 AWG, Fully Insulated 2
17 B00185-40 Wire,14 GA Black, UL1015, 5 in 1
18 C00295-1 #10 X .75in Pan, Black SMS, Phillips 2
19 C00293 #8 X .5in Pan, Black SMS, Phillips 2
20 D11168 Cover, Switchplate, Galaxy 1
21 B02211-1 Switch, Rocker, Green Light 3
22 D010284 Switchplate 1
23 E010453 Gasket, Switch Bracket 1
24 B00177-1 Terminal Lug, Female, QD, .25 X .032 4
25 B00185-30 Wire,14 GA White, UL1015, 5 in 1
26 C02315 Lockwasher, #10 Int. Str, SS 2
27 C00264 Nut, 10-32 1
28 C00288-1 .25-20 X 2.25 Flat Head 4
29 C00288 .25-20 X 1.5 Flat Head 4
30 K00666 90 Elbow, SCH D 40, 1.5 in 1
31 K00665-1 Hose Adapter, 1.5in, Black 1
32 C00313 Hex Bolt, .25 X 20 X .75 2
33 C02312 Lockwasher, .25 in., Internal Star 2
34 C00314-1 Hex Bolt, 1-4 X 20 X 1in 4
35 C00233 Washer, Flat, .25 in 6
36 D010283 Plate, Heater Mounting 1
37 F11804 Heater Mount 1
38 C00261 Nut, .25-20, Hex 2
39 K00710 Elbow, Drain Valve, Black 1
40 K00711 Drain Valve, Black 1
41 E11128 Gasket, Drain Valve 1
42 C12110 Hex Bolt, .375-16 X 1.75 2
43 C11540 Washer, .375 ID X .875 OD 2
44 K11185 Elbow, 90, 1.5 in, MT-MS, PVC 1
45 K00672-1 Pvc Pipe, 1.5 X 2.25 in, Sch 40 Wht 1
46 A00060 3-8 Barb X 1-4MP, Brass 1
47 A00052 .25 X .375 M-F 90 deg Brass 1
48 C11244 Washer, .56 X 1.5 X .05 1
49 A00124 Hex Nut, .25 NPT Brass 1
50 D00373 Inlet Filter, .25 NPT 1
51 C11144 Screw, .25-20 X 2, SS 2
52 S11179 Non-Skid Tape, 1 in. Roll 1
53 C00238 Washer, .275 in, Neosteel 2

17-150-CE-HEAT-TCP UPPER
ITEM # PART # DESCRIPTION QTY
1F11787-BLANK SOLUTION TANK 1
2F11788-1BWG RECOVERY TANK 1
3F11791-1BWG LID, SOLUTION TANK 1
4G11836 GASKET, RECOVERY TANK 1
512904A STAND PIPE ASSY 1
AK11965 ELBOW, 180 DEG. FLOAT BALL 1
BK00672 PVC PIPE, 1.5 X 12 IN, SCH 40 WHT 1
C10989-2A FLOAT BALL SCREEN 1
DK00741 ADAPTER 1
6F11785-1BWG LID, RECOVERY TANK 1
7C11167 BOLT, 1-4 X 20 6
8K02714 PLUG, .500 4
9B11769 EXTENSION CORD, 12-3 SJTW 1
10 C11177 VELCRO STRAP 1
11 H02548-2 LABEL, IMPORTANT, CORD 1
12 B00185-30 WIRES, 73 IN 1
13 B00185-40 WIRES, 73 IN 1
14 B010314 WIRE HARNESS 1
15 F11786-1BWG HANDLE 1
16 B00177 TERMINAL LUG, FEMALE, QD , .25 X .032, 16-14 AWG FULLY INSULATED 2
17 B00185-40 WIRE, 14 GA BLACK, UL1015, 15IN 1
18 C00295-1 #10 X .75INPAN, BLACK SMS, PHILLIPS 2
19 C00293 #8 X .5IN PAN, BLACK SMS, PHILLIPS 2
20 D11168 COVER, SWITCHPLATE, GALAXY 1
21 B02211-1 SWITCH, ROCKER, GREEN LIGHT 3
22 D010284 SWITCHPLATE 1
23 E010453 GASKET, SWITCH BRACKET 1
24 B00177-1 TERMINAL LUG, FEMALE, QD, .25 X .032 4
25 B00185-30 WIRE, 14 GA WHITE, UL1015, 5IN 1
26 C02315 LOCKWASHER, #10 INT. STR,SS 2
27 C00264 NUT, 10-31 1
28 C00288-1 .25-20 X 2.25 FLAT HEAD 4
29 C00288 .25-20 X 1.5 FLAT HEAD 4
30 K00666 90 ELBOW, SCH D 40, 1.5 IN 1
31 K00665-1 HOSE ADAPTER, 1.5 IN, BLACK 1
32 C00313 HEX BOLT, .25 X 20 X .75 2
33 C02312 LOCKWASHER, .25 IN, INTERNAL STAR 2
34 C00314-1 HEX BOLT, 1-4 X 20 X 1 IN 4
35 C00233 WASHER, FLAT, .25 IN 6
36 D010283 PLATE, HEATER MOUNTING 1
37 F11804-BWG HEATER MOUNT 1
38 C00261 NUT, .25-20, HEX 2
39 K00710 ELBOW, DRAIN VALVE, BLACK 1
40 K00711 DRAIN VALVE, BLACK 1
41 E11128 GASKET, DRAIN VALVE 1
42 C12110 HEX BOLT, .375-16 X 1.75 2
43 C11540 WASHER, .375 ID X .875 OD 2
44 K11185 ELBOW, 90, 1.5IN, MT-MS, PVC 1
45 K00672-1 PVC PIPE, 1.5 X 2.25 IN, SCH 40 WHT 1
46 A00060 3-8 BARB X 1-4MP, BRASS 1
47 A00052 .25 X .375 M-F DEG BRASS 1
48 C11244 WASHER, .56 X 1.5 X .05 1
49 A00124 HEX NUT, .25 NPT, BRASS 1
50 D00373 INLET FILTER, .25 NPT 1
51 C11144 SCREW, .25-20 X 2, SS 2
52 S11179 NON-SKID TAPE, 1 IN ROLL 1
53 C00238 WASHER, .275 IN, NEOSTEEL 2

NOTES
Revised 01-31-13
