ClearMirror 16101-1212120H User manual

Fog-free Heaters for Vanity Mirrors
Models 16101-1212120H, 1414120H, 2020120H, 2030120H
and Custom Sizes
June 2018
Original ClearMirror
Installation Instructions
IMPORTANT INSTRUCTIONS
Original ClearMirror heaters are designed to be powered by a switched circuit. A 15A or 20A
fuse or circuit breaker at the electrical box should protect the circuit. Read all instructions
before using the Original ClearMirror.

NOTICE: All wiring must be performed by a licensed electrician. Follow the National Electrical
Code or local codes as applicable.
WARNING: Failure to follow instructions could result in death or serious injury.
NOTICE: ClearMirror height is usually 2 inches higher than the tallest user’s height.
NOTICE: ClearMirror heater must be smaller than the mirror. Leave at least a 1” space from
mirror edges to the heater edges.
General Guidelines
Install the Original ClearMirror to a junction box in accordance with all applicable safety,
national and local electrical codes. All wiring between the mirror heater and the bathroom light
junction boxes must be installed per local and national electrical codes using wire system
identified by the National Electrical Code. Consult a qualified electrician for all wiring.
• Do not install on mirrors located on uninsulated external walls.
• Only wire the pad to a 110/220 volt power supply.
• These installation procedures are for mirrors that are not permanently installed. Consult
local authorities for variations in installation.
• Do not install is product is damaged. Do not bend, alter, submerge in water, or use product
for purposes other than described. Do not overlap ClearMirror pads if using more than one
on a mirror.
• Mirror must be larger than ClearMirror heater.
• Use caution with all electrical appliances. Install according to these instructions.
Installation
Install the Original ClearMirror to a junction box in accordance with all applicable safety,
national and local electrical codes. All wiring between the mirror heater and the bathroom light
junction boxes must be installed per local and national electrical codes using wire system
identified by the National Electrical Code. Consult a qualified electrician for all wiring.
• Choose the mirror defogger location.
• Install an electrical junction box.
• Adhere the mirror defogger to the back of mirror.
• Wire mirror defogger to junction box to switched 110/220 power supply – preferably
bathroom light switch or fan to ensure it is turned off when not in use.
• Use two people for safety.
TOOLS NEEDED
Electrical tape, flashlight, 4-yellow or red wire connectors, non-sheathed wire cable,
remodeler’s junction box, utility knife, wire strippers, screwdriver, pliers and keyhole saw.

WARNING: This stage requires a qualified electrician and conformance with both the National
Electrical Code and local building codes. Turn off the power to the circuit connected to the light
fixture at the disconnect means. Failure to do so could result in death or serious injury.
MEASURE FOR CLEARMIRROR INSTALLATION
With mirror removed, mark junction box location on the wall where the sink’s center meets the
top edge of the ClearMirror heater. Normally 2 inches higher than the tallest user as shown in
Figure 1.
INSTALL ELECTRICAL BOX
Shut off power to the circuit where heater is to be connected at the disconnect means.
• Use a keyhole saw or drywall router to cut a tight fit for the remodelers’ box.
• Install remodeler’s electrical junction box and tighten screws until junction box is secure in
the opening.
WIRE TO OVERHEAD LIGHT FIXTURE
• Disconnect overhead light fixture base from the wall to expose the junction box.
• Drop down a Romex (non-sheathed) cable to the ClearMirror junction box below.
APPLY CLEARMIRROR TO MIRROR BACK
• Before attaching ClearMirror pad onto mirror, re-measure the
sink’s center and height position and mark an ‘X’ on the back
of the mirror at this location (see Figure 1).
• Clean area of mirror application with isopropyl alcohol
solution to remove residues and dry excess moisture
• Apply ClearMirror to mirror by removing contact paper
and aligning edge of leads connection over the ‘X’ on the
back of the mirror.
• Press firmly around all edges and through the
middle of the ClearMirror heater pad.

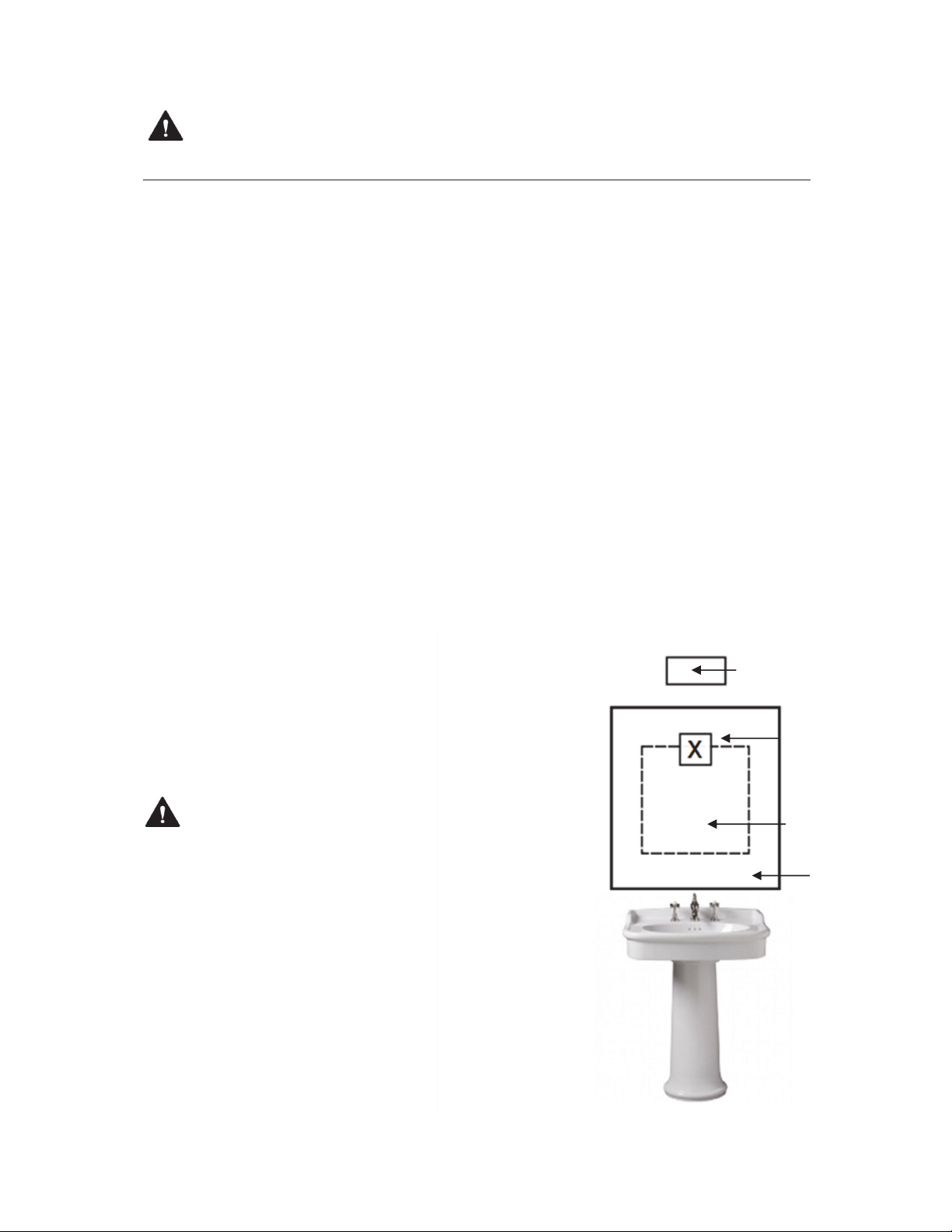

Figure 1. ClearMirror height and positioning.
WARNING: Do not use any fuel-based cleaners.
OverheadLightCircuit
JunctionBox
ClearMirrorPad
FinishedFloor
Mirror

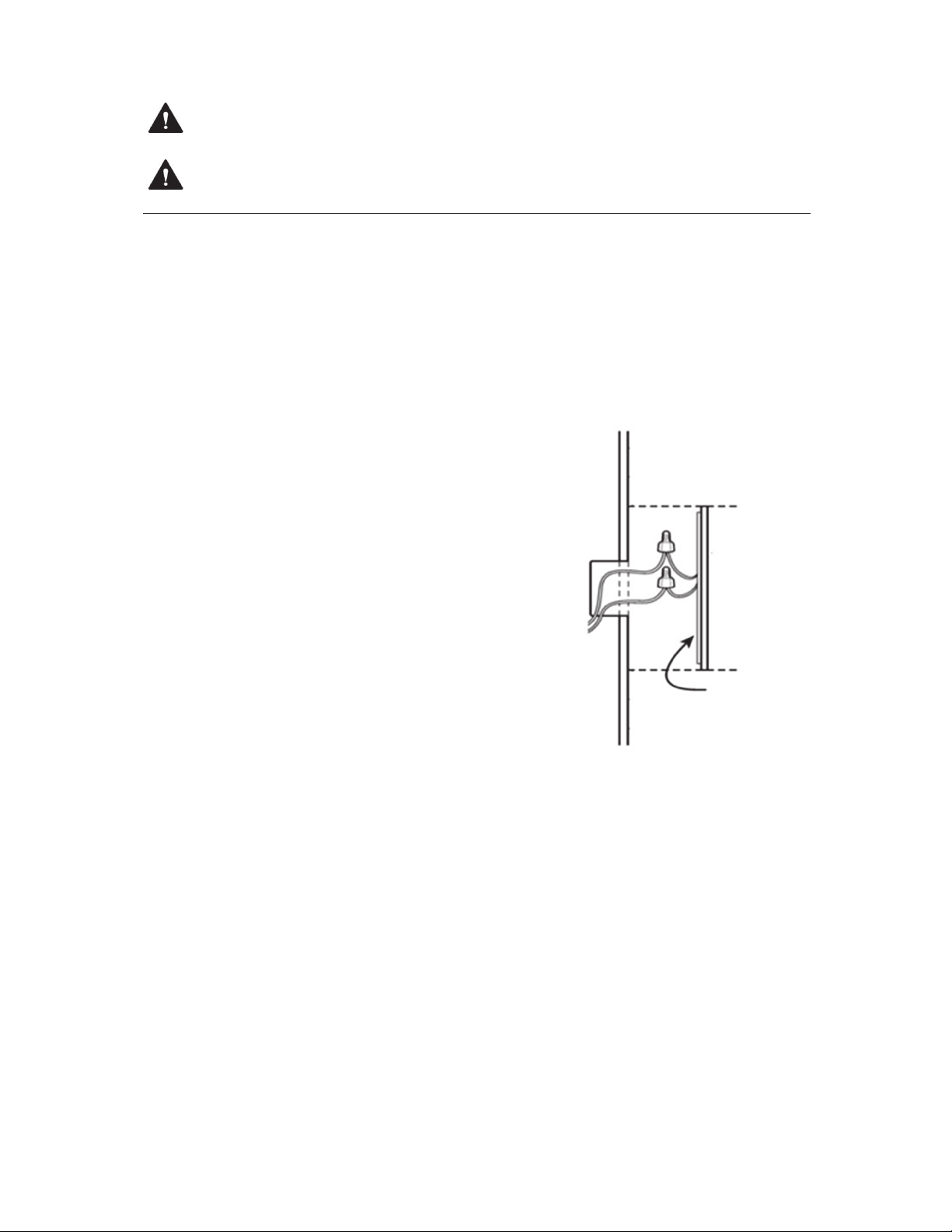

CONNECT LEADS TO POWER SUPPLY
1. With assistance of another person, position the mirror to connect the heater leads to the
wire cable in the junction box.
2. Connect the mirror heater and power wires.
3. Wrap wire connectors and wire with electrical tape and push excess into junction box.
4. Replace light fixture onto base.
5. Turn on circuit breaker and switch for
overhead light.
6. Test ClearMirror by placing hand on surface of
mirror. It should heat in two minutes.
CAUTION: Ensure leads are not stuck between the mirror and the wall.
NOTE: Polarity is not relevant - there are neither positive nor negative connections on the
ClearMirror heater pad, nor are there any ground wires
ClearMirror
Pad

IMPORTANT INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Read all instructions before installing or using this heater.
When using electrical appliances, basic precautions should always be followed to
reduce the risk of fire, electric shock, and injury to persons, including the following:
• Do not operate any heater after it malfunctions. Disconnect power at service panel and
have heater inspected by a reputable electrician before reusing.
• Do not use outdoors.
• To disconnect heater, turn bath switch to off, and turn off power to heater circuit at main
disconnect panel (or operate internal disconnect switch if provided).
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this
may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner.
• Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to persons.
•DO NOT USE IN SHOWER APPLICATIONS!
Only the Shower ClearMirror and ShowerLite models are UL approved for use in a
shower.
OPERATING
• Original ClearMirror must be properly installed before it is used.
• Install Original ClearMirror over a bathroom vanity sink with wiring fed from behind the full,
wall-mounted assembly.
• Be certain that the controls are operational per the instructions above in that the bathroom
light, ceiling fan or alternate switch power on and power off the Original ClearMirror.
• Do not modify the installation from within (or outside) the assembly, and do not tamper
with any user-operated devices intended to reduce the risk of fire, electric shock, or injury
to persons; and warn against tampering with such devices.
• Any servicing should only be done by a qualified service person.

ClearMirror
2861 Eagandale Blvd • Eagan, MN 55121 • 651.251.9036
MAINTENANCE
• Be sure that all excess wires are stowed in the electrical box, and are not hanging outside of
the protective area of the mirror.
• As necessary, clean only the surface of the mirror with an approved glass cleaner and soft
cleaning cloth.
• All other servicing should be performed by qualified service personnel. Call ClearMirror
directly with any warranty or operational problems or concerns.
GROUNDING
This Original ClearMirror heater is for use with 120 volt power supply. The cord (leads) exiting
the back of the mirror assembly are 18-gauge and are not required to be grounded.
WARRANTY INFORMATION
NewHome Bath & Mirror, Inc. DBA ClearMirror and its affiliates will not warranty the labor or
material costs for installation, replacement or use of Original ClearMirror when operated in an
application that is lower than 50° F.
NewHome Bath & Mirror, Inc. and its suppliers cannot be held responsible for damage caused
by improper installation. These installation instructions are to be used as a guide only while
meeting all applicable building codes. Consult a professional installer if you have any
questions.
The Original ClearMirror product line is provided with a five-year warranty against defects in
workmanship or materials. Improper installation and/or cleaning voids the warranty. Contact
your installer or original place of purchase for issues relating to installation and replacement.
The warranty is void without proof of purchase, proper installation, or if product is
altered in any way.
