Cleaver Scientific PowerPro300 User manual

Version 1
Revised on: 2017/7/19
PowerPro Power Supplies
Instruction manual
Catalog No. PowerPro300
PowerPro3AMP
PowerPro500
www.cleaverscientific.com

2
Table of Contents
PACKING LIST ............................................................................................................ 3
WARNING ................................................................................................................. 4
SECTION 1INTRODUCTION........................................................................................ 8
2.1 OVERVIEW ......................................................................................................................8
2.2 PRODUCT DESCRIPTION &FEATURE ......................................................................................9
SECTION 2TECHNICAL SPECIFICATION........................................................................ 10
SECTION 3INSTALLATION INSTRUCTIONS.................................................................... 11
SECTION 4OPERATION INSTRUCTIONS....................................................................... 11
4.1 CONTROL INTERFACE .......................................................................................................11
4.2 START THE OPERATION ..................................................................................................... 12
4.3 CONSTANT MODE...........................................................................................................13
4.4 PROGRAM MODE ...........................................................................................................16
4.5 TYPICAL RUNNING CONDITION .......................................................................................... 18
SECTION 5TROUBLE SHOOTING AND MAINTENANCE .................................................... 20
REPLACING THE FUSE ...............................................................................................................23
MAINTENANCE .......................................................................................................................23
SECTION 6ORDERING INFORMATION ........................................................................ 23
SECTION 7WARRANTY .......................................................................................... 24

3
Packing list
PowerPro 300
- 1x PowerPro 300 Power Supply
- 1x Power Cord
- 1x Instruction Manual
PowerPro 3AMP
- 1x PowerPro 3AMP Power Supply
- 1x Power Cord
- 1x Instruction Manual
PowerPro 500
- 1x PowerPro 500 Power Supply
- 1x Power Cord
- 1x Instruction Manual
Packing list checked by ________________________ Date ____________
Cleaver Scientific is liable for all missing or damaged parts / accessories within 7 days
after customer received this instrument package. Please contact Cleaver Scientific
immediately regarding this issue. If no response within such period from consignee
party, that will be consignee party’s whole responsibility.

4
Warning
Cleaver Scientific PowerPro Power Supply has been tested and found to comply with
the limits for the CE regulation. Also, it is RoHS compliant to deliver confident product
which meets the environmental directive. These limits are designed to provide
reasonable protection against harmful interference when the instrument series is
operated in a commercial environment. This instrument series used together with
power supply unit generates, uses, and can radiate radio frequency energy, and if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this instrument series in a
residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at their expense. Changes or modifications not
expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment. It is strongly recommended for the user to read
the following points carefully before operating this equipment.
1. Read and follow the manual instructions carefully.
2. Do not alter the equipment. Failure to follow these directions could result in
personal and/or laboratory hazards, as well as invalidate equipment warranty.
3. Use a properly grounded electrical outlet with correct voltage and current
handling capacity.
4. Disconnect from power supply before maintenance and servicing. Refer servicing
to qualified personnel.
5. Never use this instrument series without having the safety cover correctly in
position.
6. Do not use the unit if there is any sign of damage to the external tank or cover.
Replace damaged parts.
7. Do not use in the presence of flammable or combustible material; fire or
explosion may result. This device contains components which may ignite such
materials.
8. Refer maintenance and servicing to qualified personnel.
9. Ensure that the system is connected to electrical service according to local and
national electrical codes. Failure to make a proper connection may create fire or
shock hazard.
10. Use appropriate materials and operate correctly to avoid possible hazards of
explosion, implosion or release of toxic or flammable gases arising from
overheated materials.

5
11. The unit shall be operated only by qualified personnel.
Safety Information
Use high level of precaution against any electrical device. Before connecting the
electrical supply, check to see if the supply voltage is within the range stated at the
rating label, and see to it that the device be seated firmly. Place the unit in a safe and
dry location; it must NOT touch the surrounding. Follow the safety precautions for
chemicals / dangerous materials. If needed, please contact qualified service
representative or [e-mail]
Environmental Conditions
Ensure the instrument is installed and operated strictly under the following conditions:
1. Indoor use only
2. ≤95% RH
3. 75 kPa –106 kPa
4. Altitude must not exceed 2000 meters
5. 4℃~ 40℃operating temperature
6. Pollution degree: 2
7. Mains supply voltage fluctuations up to ±10% of the normal voltage
Avoiding Electrical Shock
Follow the guidelines below to ensure safe operation of the unit.
The PowerPro Power Supply has been designed to utilize shielded wires thus
minimizing any potential shock hazard to the user. Cleaver Scientific recommends
against the use of unshielded wires.
To avoid electrical shock:
1. In the event of solution spilling on the instrument, it must be dried out for at least
2 hours and restored to NORMAL CONDITION before each operation.
2. Never connect or disconnect wires loading from the power jacks when the red
indicator light of power switch is on.
3. WAIT at least 5 seconds after stopping a run before handling output leads or any
connected apparatus.
4. ALWAYS make sure that your hands, work area, and instruments are clean and dry
before making any connections or operating the power supply.
5. ONLY connect the power cord to a properly grounded AC outlet.

6
Avoiding Damage to the Instrument
1. Do not attempt to operate the device if damage is suspected.
2. Protect this unit from physical damage, corrosive agents and extreme
temperatures (direct sunlight, etc.).
3. For proper ventilation and safety concerns, keep at least 10 cm of space behind
the instrument, and at least 5 cm of space on each side.
4. Use high level of precaution against the damages on the unit.
5. Do not operate the unit out of environmental conditions addressed above.
6. Do not operate the power supplies in high humidity environments (> 95%), or
where condensation may occur.
7. To avoid condensation after operating the power supply in a cold room, wrap
the unit in a plastic bag and allow at least 2 hours for the unit to equilibrate to
room temperature before removing the bag and operating the unit.
8. Prior to applying any cleaning or decontamination methods other than
manufacturer’s recommendation, users should check with the manufacturer’s
instruction to see if the proposed method will damage the equipment.
Equipment Operation
Follow the guidelines below to ensure safe operation of the unit:
1. NEVER access dangerous chemicals or other materials to prevent possible hazard of
explosion and damage.
2. Do not operate the unit without lids or covers to prevent possible hazards.
3. A temporary conductivity caused by condensation might occur even though this
series is rated Pollution Degree 2 in accordance with IEC 664.
Symbol
Symbols used on the power supply are explained below.
Indicates an area where a potential shock hazard may exist.
Consult the manual to avoid possible personal injury or instrument damage.
Indicates disposal instruction.
DO NOT
throw this unit into a municipal trash bin when this unit has reached
the end of its lifetime. To ensure utmost protection of the global environment
and minimize pollution, please recycle this unit.
Caution/ Warning: Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.

7
PowerPro 300
Max. voltage: 300 V
Max. current: 700 mA
Max. watt: 150 W
PowerPro 3AMP
Max. voltage: 300 V
Max. current: 3000 mA
Max. watt: 300 W
PowerPro 500
Max. voltage: 500 V
Max. current: 800mA
Max. watt: 300W
Potential Risk and Preventive Measure
1. Risk assessment table
Potential
Risk
Frequency
Frequent Likely Possible Rare Unlikely
Bruise √
Slash √
Electrical shock √
Power cord
plug wrong √
2. Preventative measures of risk
Potential Risk Preventive measures
Bruise Do not put the machine near the table edge.
Slash Prevent hard impact on the case.
Electrical Shock Make sure that your hands, work area, and devices
are clean and dry
Power cord plug
wrong Observe correct adapter plug.

8
Section 1 Introduction
2.1 Overview
Cleaver Scientific PowerPro Series Power Supplies are recognized as unique power
supplies equipped with very powerful specifications to cover the majority of
electrophoresis applications on the market. Sufficient and accurate output voltages,
five terminal pairs, and its compacted size can deliver accurate and reliable
experimental results from one experiment to another. PowerPro Series Power Supplies
are RoHS and CE compliant for environmental and safety concerns.

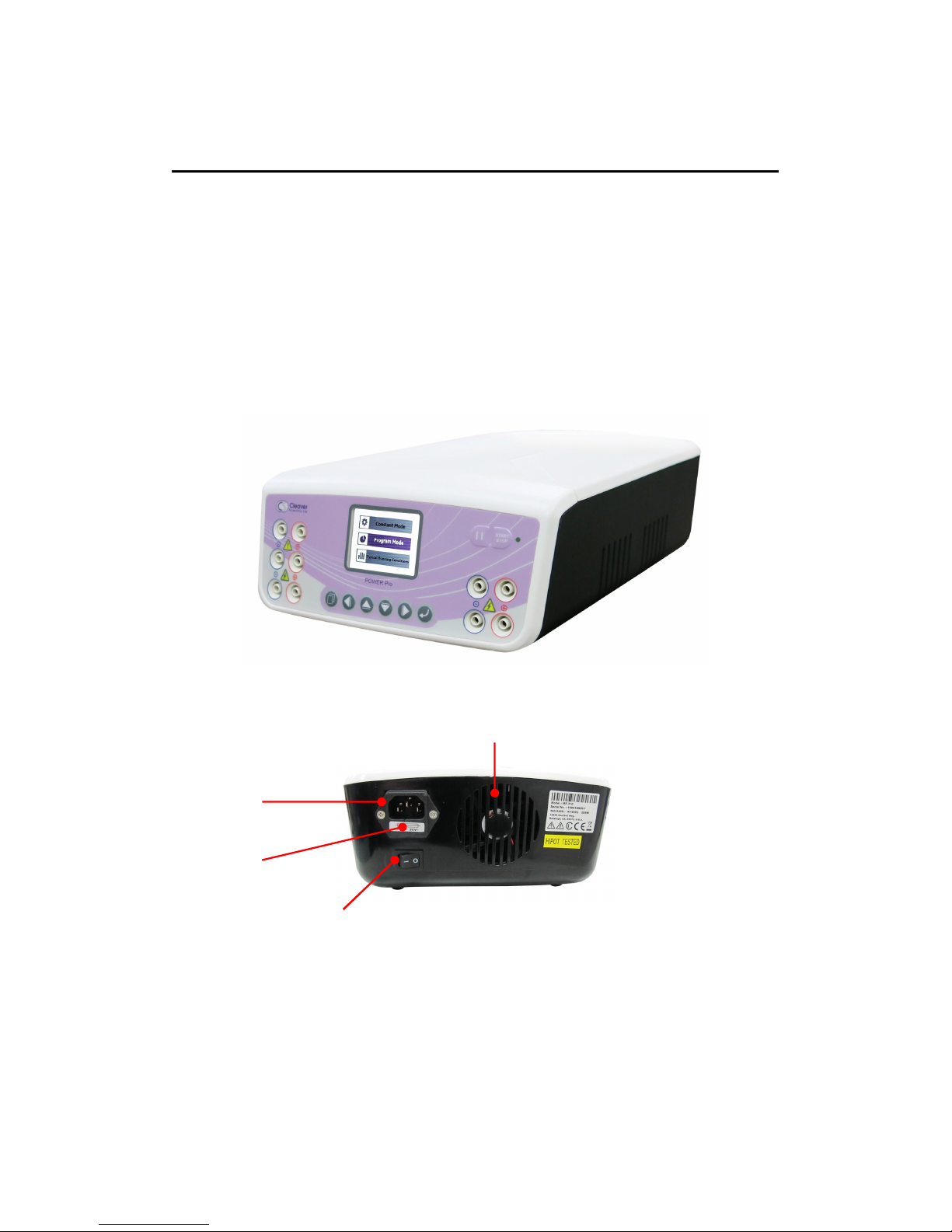

pFront view
pRear view
Main power socket
Fan
ON/OFF switch
Fuse

9
2.2 Product Description & Feature
Cleaver Scientific PowerSeries Power Supply are microprocessor controlled and
designed to meet most electrophoresis needs. This manual describes the setup and
operation of the PowerPro Series Power Supply including important information on
safety and maintenance of the unit. The PowerPro Series Power Supply are capable of
running horizontal & vertical electrophoresis, SDS-PAGE, native PAGE applications,
two-dimensional electrophoresis, and electro-blotting. Furthermore, the powerful
specifications plus five terminal pairs can be used for multi electrophoresis units
simultaneously.
Cleaver Scientific PowerPro Series Power Supply provides Constant Voltage or
Constant Current or Constant Power to instruments used in electrophoresis. 5 terminal
pairs and the powerful specification equipped enable the maximum capability of
PowerPro Series Power Supply compared to other existing similar product on the
market.
Features of PowerPro Series Power Supply:
- Compact size
- Advanced capacity:
- Microprocessor controller
- Constant voltages, constant currents and constant power
- Five terminal outlets
- LCD display
- Timer with alarm function
- Advanced safety devices
- Stackability
- Wide applications for DNA, RNA and protein electrophoresis
PowerPro 300 PowerPRO 3AMP PowerPro 500
150W, 700mA, 300V 300W, 3000mA, 300V 300W, 800mA, 500V

10
Section 2 Technical Specification
PowerPro 300 PowerPro 3AMP PowerPro 500
Output Voltage / Inc 5 - 300V / 1V 5 –300 / 1V 5 –500 / 1V
Output Current / Inc 1 - 700mA / 1mA 10 –3,000mA / 10mA 1 –800mA / 1mA
Max. Watt 150W 300W 300W
Rated Voltages 100~ 240V; 47-60Hz,
200W: T2.5A/250V
100-240V: 47-60Hz,410W
:
T4A/250V
100-240V: 47-60Hz,400W
:
T4A/250V
Type of Output 1. Voltage or Current with automatic crossover
2. When target constant mode is set, system automatically adjusts the two
other parameter to maximum to allow constant run (later could be changed
by user)
Program Storage 30 programmed files
Program Multi-Step Up to 6 steps
Editable Program Function
1.Have typical running conditions program
2.Manual editable program
Display 2.4”TFT
Control Microprocessor controller
Safety Device No Load detect
Leakage detect
Over temperature protection
Over load detection
Sudden load change detection (could be disabled by proper setting)
Shrouded plugs and sockets
Timer Constant: 1~9999 mins with alarm, continuous
Program: 1~999 mins with alarm, continuous
Crossover Yes
Stackable Yes
Automatic Recovery After
Power Failure Yes
IQ/OQ Protocols Yes, optional
Regulatory CE, ETL CE CE
Operating Temperature 4
℃
~ 40
℃
Construction Material Flame retardant ABS faceplate
Unit Dimension 215 x 335 x 104 mm (W x L x H)
Weight approx. 2.1 kg

11
Section 3 Installation Instructions
PowerPro Series Power Supply is actually a pre-installed instrument. As long as it is
placed on a sturdy and level surface in a safe, dry place, and further connects with
well-prepared electrophoresis system, it is ready for operation.
Section 4 Operation Instructions
4.1 Control interface
Button Functions
No. Icon Function
1 Press to activate or stop the unit
2
Press to temporarily interrupt power to an
operation in progress; resume power after pausing
without resetting the timer
3
Press to select either Constant/ Program Mode or
Constant Voltage or Constant Current mode or
Time
4 Press to enter the numeric value set up
LED Indicator: It indicates
running condition

12
4.2 Start the operation

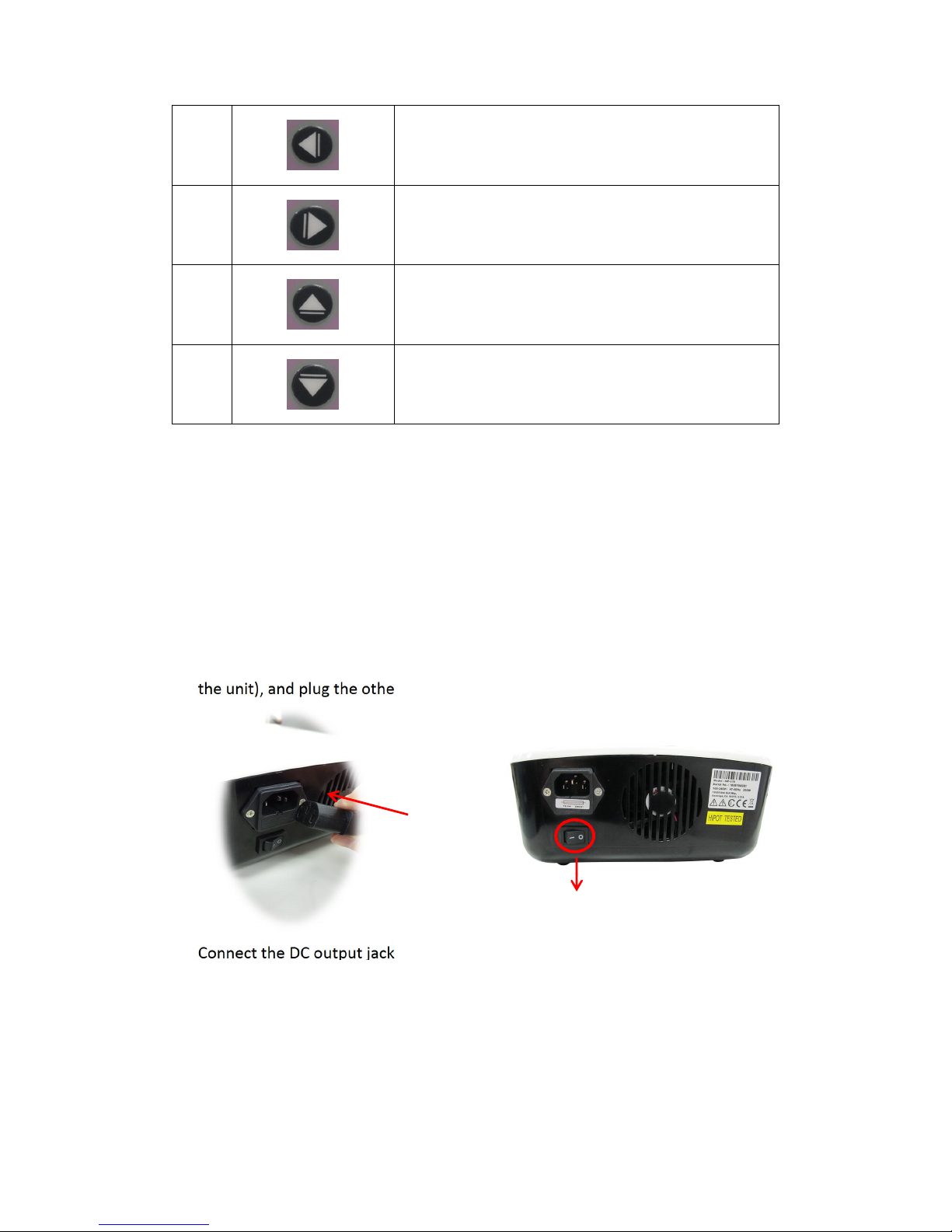

1. Place the unit on a sturdy and level surface in a safe, dry place, away from
laboratory traffic.
2. Ensure that the AC power switch is OFF, and then plug the three-pronged power
cord one end into a grounded three-prong AC outlet with appropriate voltage
(100V to 240V as indicated on the rating sticker near the AC cord on the back of
the unit), and plug the other end into the main power socket.

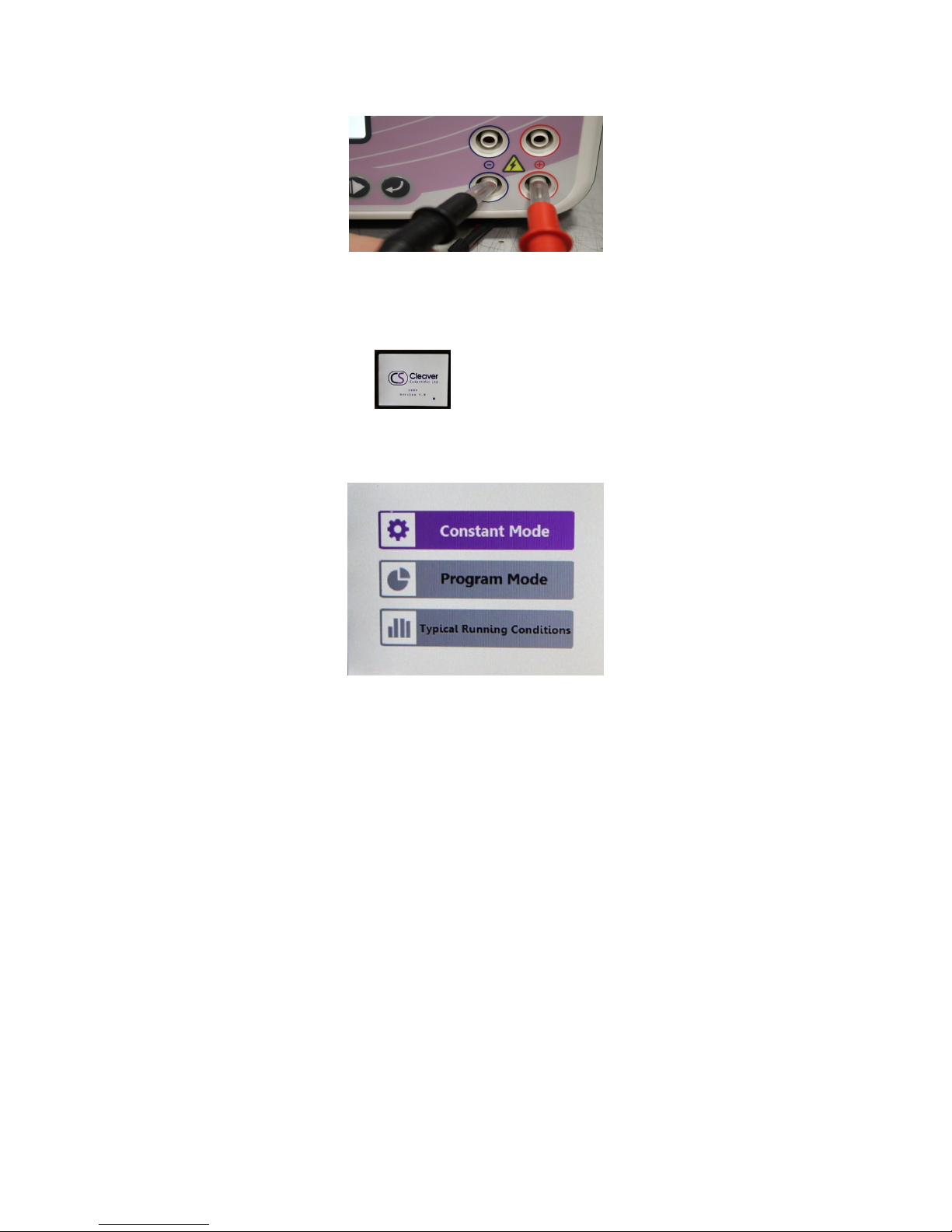

3. Connect the DC output jacks from the electrophoresis unit; insert the red lead (+)
into the red output jack, and the black lead (-) into the black output jack.
5
Press to move cursor left forward between
parameters
6
Press to move cursor right forward between
parameters
7
Press to move cursor up between parameters and
to increase numeric values
8
Press to move cursor down between parameters
and to decrease numeric values
OFF
Plug in

13
4. Power on the unit by pressing the ON/OFF switch on the back.
5. The screen will show for few seconds then enter to the mode-
selecting page.
4.3 Constant Mode
Use the Constant Voltage / Current / Power Operation for applications that require
only one specific voltage limit, current limit, and power limit continuously during the
entire operation of electrophoresis.
Note: When target constant mode is set, system automatically adjusts the other two
parameters to maximum to allow constant run. For example, if constant voltage is set,
system will adjust current and power to the maximum value.
Users could later lower the other two values by themselves. System will hold the value
either at target constant value or the one which has been reached first.

14

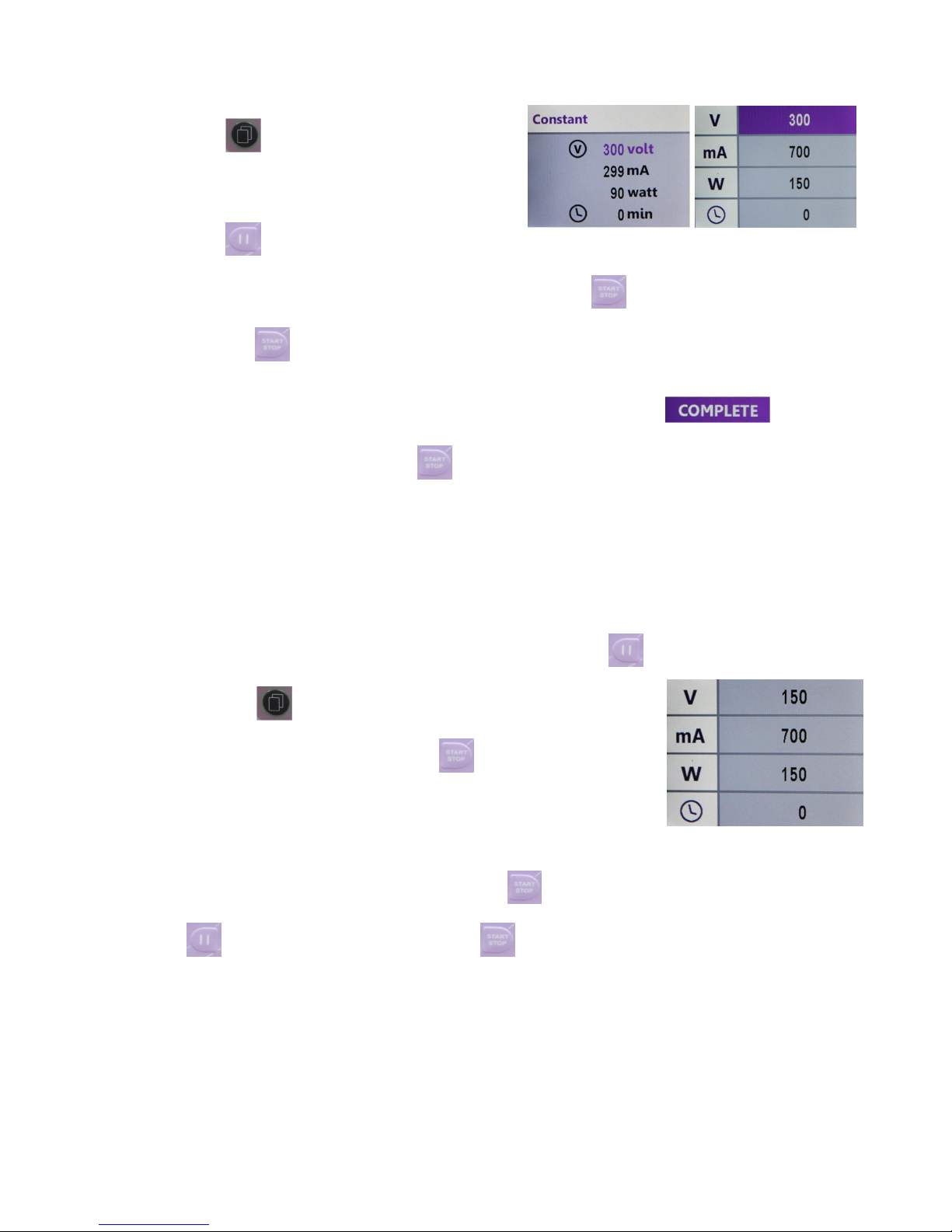

ØUse Key and Key to select
Constant Mode, and then press either or
to enter the next page.
ØUse and to select ether Constant
Voltage(V) or Constant Current(mA) or Constant
Power(W), and then press or to enter
the next page
ØUse and to move cursor to the
parameter such as voltage (V) current (mA) or
power (W) or time (min.). Press Key to set
the specified parameter.
Ø
ØUse or to set the appropriate value,
and then press Key, and move to the next
parameter until all the parameters are set in the
same operation method.
ØPress Key to start electrophoresis. The LED
is lit, and the screen will show the real time
parameter values.
ØWhen parameters reach the assigned value, the
color would turn orange.
Note: If the time value is set “0,”it indicates the power supplier will constantly
operate until user manually stops it.

15
ØPress to switch pages between real-
time value display and value set up page.
ØPress Key to temporarily interrupt power to ongoing electrophoresis without
terminating the operation. The LED is flashing. Press Key to resume the run.
ØPress the Key again to stop electrophoresis and to terminate a timed run.
ØIf you need to make changes to the values of parameters
during current running but do not want to terminate the time
run, you may pause electrophoresis by pressing the
Key. Press Key to enter the setting screen.
Adjust the values and then press Key to resume your
operation.
ØIf you want to change values of parameters and start a new
operation run during current running, press Key instead
of . After adjusting the values press Key once again
to start a new operation run.
Note: After stopping and restarting an operation, the timer resets to selected time and does
not take into account the time that electrophoresis was in progress before it was stopped.
ØWhen the run is completed, operation stops with alarm and is
displayed on the screen. Press Key to terminate a timed run, and turn the
AC power OFF by the switch on the back.
Note: It would take some time (about 5 seconds) for the unit to power off.

16
4.4 Program Mode
Instructions for operating PowerPro Series Power Supply in the programming
operation are provided in this section. The Program Mode allows you to vary levels in
voltage (V), current (mA), and power (W) during specified time periods for up to 6
Steps, depending upon your electrophoresis needs. The PowerPro Series power
supply is capable of having 30 different program files storages for user’s convenience.
After starting the operation (see the above 4.2 instruction), set the Program Mode as
follow:

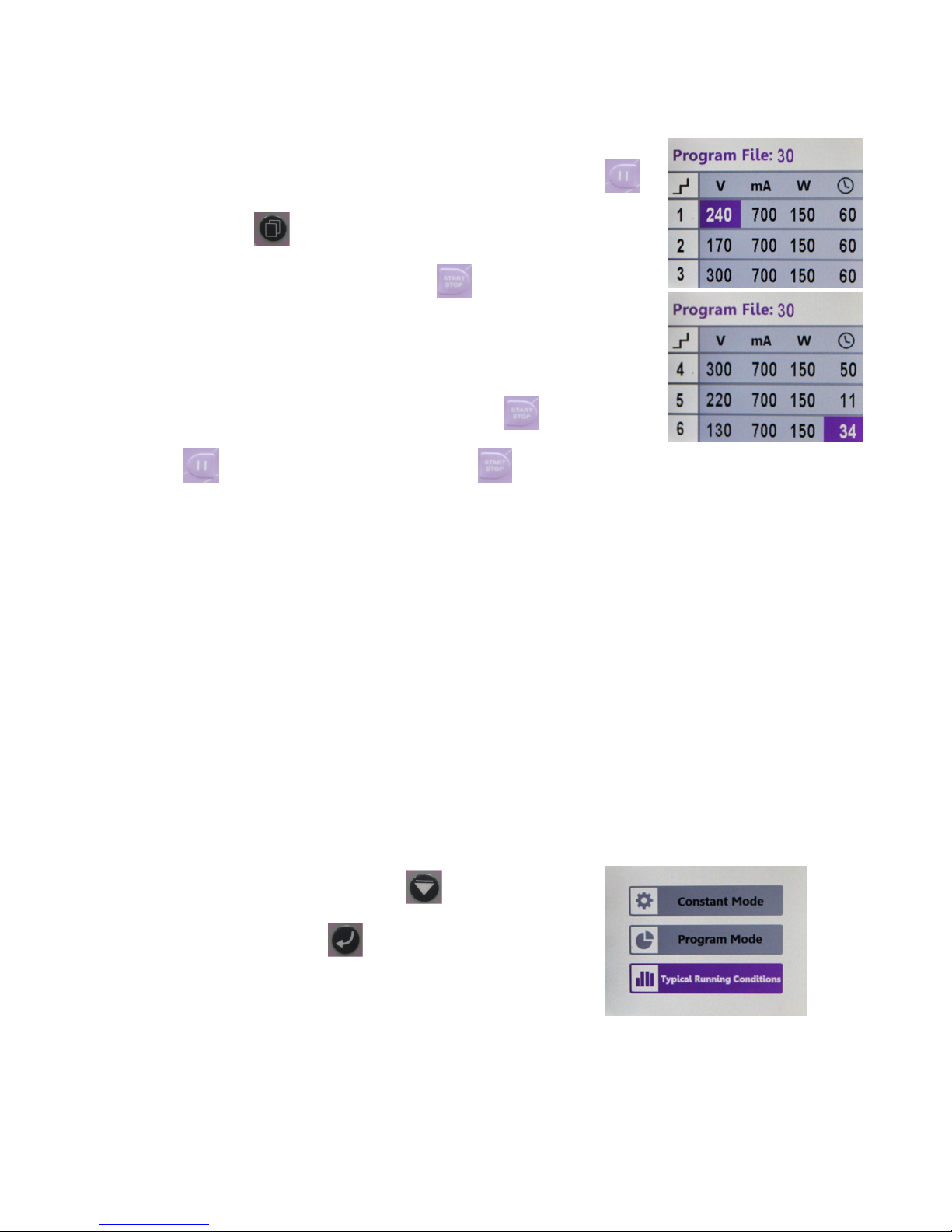

ØUse Key and Key to select Program
Mode, and then press either or to
enter the next page.
ØPress or Key to select appropriate file
number, and then press or Key to
enter the next page.
ØUse , , or to move cursor
to parameters such as voltage (V) current (mA) or
power (W) or time (min.). Press Key and
use and to set the appropriate value,
and then press Key. Repeat this step until all
the parameters are set properly. There are 6
stages available for use; use to move down
for setting Stage 4-6, and to go back Stage
1-3.

17
ØPress Key to start electrophoresis. The LED
is lit, and the screen will show the real time
parameter values.
ØWhen parameters reach the assigned value, the
color would turn orange.
ØWhen the run is completed, operation stops with alarm and is
displayed on the screen. Press Key to terminate a timed run, and turn the AC
power OFF by the switch on the back.
Note: It would take a little time (about 5 seconds) for the unit to power off.
ØPress to switch pages between real-
time value display and value set up page.
ØPress Key to temporarily interrupt power to ongoing electrophoresis without
terminating the operation. The LED is flashing. Press Key to resume the run.
ØPress the Key again to stop electrophoresis and to terminate a timed run.

18
4.5 Typical Running Condition
Besides Constant Mode and Program Mode, PowerPro Power Supply provide a third
option, Typical Running Condition. It is helpful for those beginning users who are not
familiar with the parameter setting and is convenience for quick start.
ØTurn on the unit; use key to select and
then press to enter the next page.
ØIf you need to make changes to the values of parameters
during current running but do not want to terminate the time
run, you may pause electrophoresis by pressing the
Key. Press Key to enter the setting screen.
Adjust the values and then press Key to resume your
operation.
ØIf you want to change values of parameters and start a new
operation run during current running, press Key instead
of . After adjusting the values press Key once again
to start a new operation run.
Note: After stopping and restarting an operation, the timer resets to selected time and does
not take into account the time that electrophoresis was in progress before it was stopped.

19
ÚThere are 4 categories that can be selected. Choose the model according to your
experiment need.
Ú
ØAfter selecting model, the preset
value will display. User could adjust
the value or simply just press to
start operation.

20
Section 5 Trouble shooting and Maintenance
Many operating problems may be solved by carefully reading and following the
instructions in this manual accordingly. Some suggestions for troubleshooting are given
below. Should these suggestions not resolve the problem, contact our SERVICE
DEPARTMENT or a distributor in your region for assistance. If troubleshooting service is
required, please include a full description of the problem.
Problem Possible Causes Solution
No Display / lights
No AC power
ØCheck if PowerPro power supply is
plugged, or AC power source has
problem.
AC power cord is not
connected
ØCheck AC power cord connections at
both ends. Use the correct cords.
The fuse has blown ØReplace the fuse.
Repeated fuse broken Hardware failure
ØContact Cleaver Scientific service
department
Operation stops and the
screen displays
Communication wires on
circuit board have loosen or
broken.
ØIt is recommended to send the
machine back to local distributor or
our Service Department for
maintenance.
Operation stops with
alarm: The screen
displays
Electrophoresis leads are
not connected to the
power supply or to the
electrophoresis unit(s), or
there is a broken circuit in
the electrophoresis cell
ØCheck the connections to the power
supply and on your electrophoresis cell
to make sure the connection is intact;
check condition of wires in
electrophoresis unit. Close the circuit
by reconnecting the cables. Press
START/STOP to restart the run.
High resistance due to tape
left on a pre-cast gel,
incorrect buffer
concentration, or incorrect
buffer volumes in the
electrophoresis cell
ØMake sure the tape is removed from
the pre-cast gel, buffers are prepared
correctly, and the recommended
volume of buffer is added to the
electrophoresis unit.
