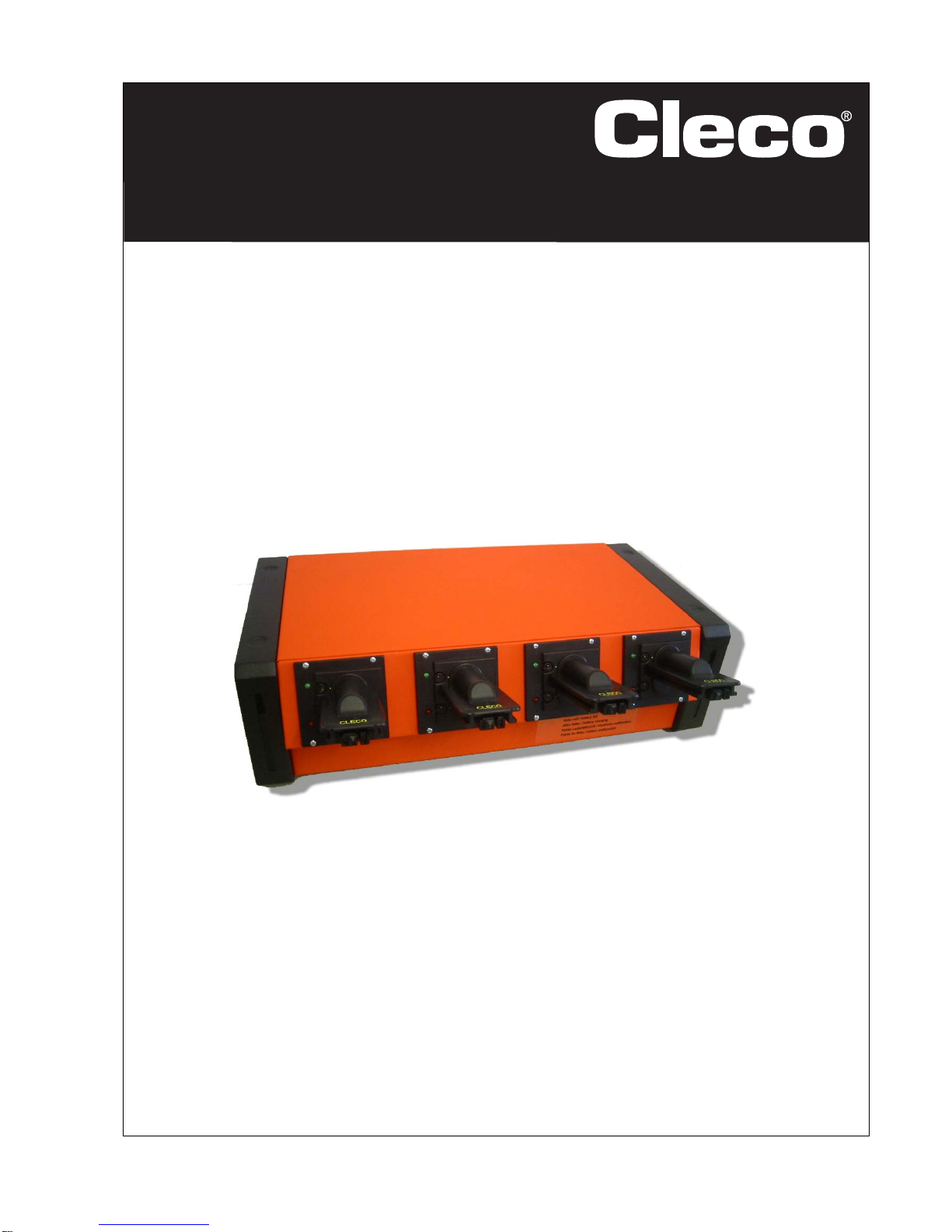

Battery Charger, 4-fold for 26 V Li-ion batteries
Order no. 935302
Instruction Manual
P1947E/EN
2015-07

P1947E-EN_2015-07_Ladegeraet_4-fach_Li-Io26VIVZ.fm, 21.07.2015 P1947E/EN 2015-07 2
Contents
1 Safety 3
1.1 Warnings and information..................................................................... 3
1.2 Symbols on the product........................................................................ 3
1.3 Basic requirements for safe working practices..................................... 4
1.4 Designated use..................................................................................... 4
2 Items supplied / Transport 4
3 Product description 4
3.1 General description............................................................................... 4
4 Initial operation 5
5 Troubleshooting 5
6 Maintenance 6
7 Service 6
8 Technical data 6
8.1 Dimensions in mm................................................................................ 7
9Disposal 7
10 CE Declaration of Conformity 8

1947b_1_5 en.fm, 21.07.2015 P1947E/EN 2015-07 3
Safety 1
Copyright protection
Apex Tool Group reserves the right to modify, supplement or improve this document or the product without
prior notice. This document may not be reproduced in whole or in part in any way, shape or form, or copied
to another natural or machine-readable language or to a data carrier, whether electronic, mechanical, opti-
cal or otherwise, without the express permission of Apex Tool Group.
1Safety
1.1 Warnings and information
Warning notes are identified by a signal word and a pictogram:
• The signal word describes the severity and the probability of the impending danger.
• The pictogram describes the type of danger.
1.2 Symbols on the product
Make sure you are familiar with the meanings before you start using the device.
WARNING! Carefully read all safety information and instructions. Failure to comply with safety instructions and other
instructions could result in electric shocks, burns and/or serious injuries.
WARNING! A symbol combined with the word WARNING warns of a potentially dangerous situation for the health of
personnel. If this warning is not observed, death or serious injury may occur.
CAUTION! A symbol combined with the word CAUTION warns of a potentially harmful situation for the health of per-
sonnel or damage to property or the environment. If this warning is not observed, injuries, property or envi-
ronmental damage may occur.
This symbol indicates a general instruction.
General instructions include application tips and special useful information, but no warnings against
dangers.
Read the Instruction Manual
before initial operation. Always return used electrical equipment for recycling.
Only for EU countries:
Do not dispose of electrical
equipment with domestic
waste!
Pursuant to EU Directive
2002/96/EC, used electrical
equipment must be collected
separately and returned for
environmentally compatible
recycling.
Operation only indoors or in closed prem-
ises

Battery Charger
4 P1947E/EN 2015-07 1947b_1_5 en.fm, 21.07.2015
1.3 Basic requirements for safe working practices
1.4 Designated use
• The charger is intended exclusively for charging Apex Tool Group lithium ion batteries, order no.
935377.
2 Items supplied / Transport
Check shipment for transit damage and ensure that all items have been supplied:
1 Battery charger
1 EU power cable
1 Operating instructions
Transport and store the charger in the original packaging. The packaging can be recycled.
3 Product description
3.1 General description
• Automatically detection of
- battery connected.
- charged battery guarantees optimum charge results.
- defect battery.
• Optical display of charge state
• Fault display:
- Maximum charge time exceeded
- Battery short-circuit
• Automatic transition to conservation charging after full charging
guarantees maximum battery operating time.
• Voltage monitoring prevents overdischarging or battery short-circuiting
CAUTION! Electrical safety
Do not operate the charger if the housing, power cable or plug are damaged.
Do not use batteries which have been damaged or modified in any way. Batteries which have been
damaged or modified may respond unpredictably, causing fire, explosion or injury.
Do not open the charger.
Do not modify the charger structurally.
Operate the charger in dry, enclosed rooms only.
Protect the charger from moisture and rain.
Never operate the charger under unsuitable ambient conditions (i.e. where combustible gases, solvents,
dust, vapors or moisture is present).
Workstation
Ensure that there is enough space at the workstation.
Keep the work area clean and dry.

1947b_1_5 en.fm, 21.07.2015 P1947E/EN 2015-07 5
Initial operation 4
3.1.1 Display
4 Initial operation
5 Troubleshooting
LED Result
Green continuous light Charging compartment ready: power supply available, no battery
connected
Red continuous light Battery being charged.
Green flashing light Battery full: conservation charging
Red flashing light, long Error in battery: defective or overdischarged battery.
Red flashing light, short Charging electronics error.
WARNING! Risk of explosion if other batteries are used
Use only Apex Tool Group lithium ion batteries, order no. 935377.
Never use other battery types.

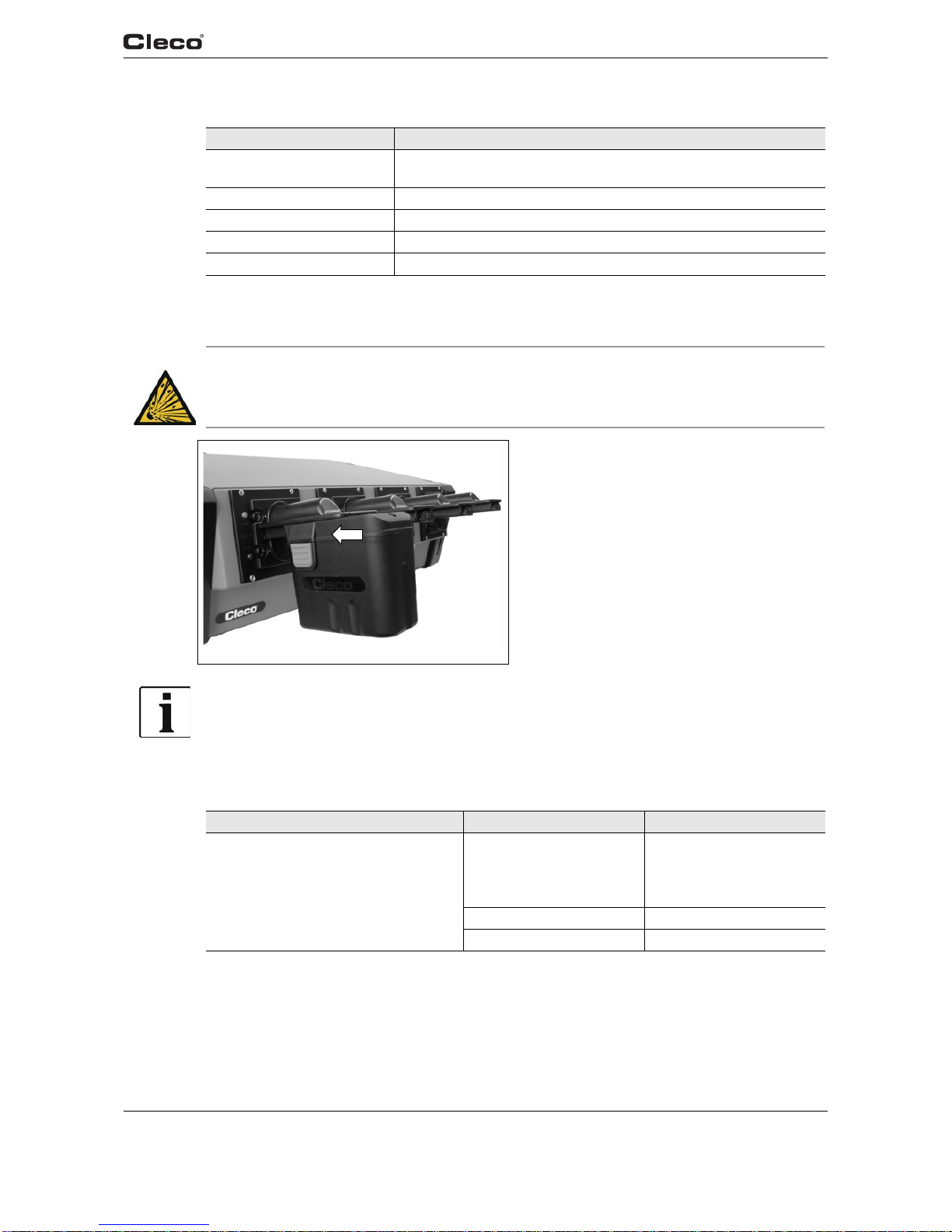

Connect the charger to the power network:
green continuous light indicates that power is
supplied.
Mains switch on (see rear panel).
Plug the battery into the charger until the stop.
After plug-in, the red continuous light is lit, indicat-
ing that charging is in progress. When charging is
finished, the charger automatically shuts off the
charging process. Red continuous light goes out,
green flashing light appears.
The red continuous light should not be lit before plugging in.
If necessary, when changing batteries, wait a few seconds until the indicator goes off.
Error Cause Measure
The green continuous light is not lit when
mains connection available. No power supply voltage. Check and restore the
power supply voltage.
Check the position of the
mains switch.
Power cable defective. Replace power cable.
Charger defective Replace charger.

Battery Charger
6 P1947E/EN 2015-07 1947b_1_5 en.fm, 21.07.2015
6 Maintenance
To ensure proper charger function, keep the contacts of the charger and batteries free of dirt.
7 Service
8 Technical data
The red continuous light is not lit when the
battery plugged in. The battery that is plugged in has already been charged
(red LED stays off).
Check battery for proper
function.
The battery contacts are not
connected correctly. Plug the battery in again.
Contacts are dirty. Clean the contacts of the
charger and battery.
Battery defective Check battery and replace
if necessary.
CAUTION!
To clean the charger, make sure the power plug is disconnected and clean with a dry cloth.
If repair is required, send the complete charger to Apex Tool Group. It may be repaired only by authorized
technicians. Opening the charger will void the warranty.
Features Data
Supply voltage 230 ±10% VAC
Power supply frequency 50 to 60 Hz
Power consumption max. 400 W
Rated battery voltage 26 VDC
End-of-charge voltage 29.4 ±1% VDC
Charging current max. 2.5 A
Degree of protection IP20
Weight 11.8 kg
Charge time typ. 50
Ambient temperature +5 to 40 °C
Storage temperature -20 °C to +70 °C (-4°F to 158°F)
Relative humidity 0 to 90%, non-condensing
Error Cause Measure

1947b_1_5 en.fm, 21.07.2015 P1947E/EN 2015-07 7
Disposal 9
8.1 Dimensions in mm
9Disposal
CAUTION! Injuries and environmental damage from improper disposal.
Components and auxiliary materials of the charger pose risks to the health and the environment.
Separate the components of the packing and dispose of them by segregating them clearly.
Follow the locally applicable regulations.
Return the charger and defective/used batteries to your company collection facility or to
Apex Tool Group.
Do not throw the batteries in household refuse, fire or liquids.
535
400
165
530*
* complete with battery and cable

Battery Charger
8 P1947E/EN 2015-07 1947b_1_5 en.fm, 21.07.2015

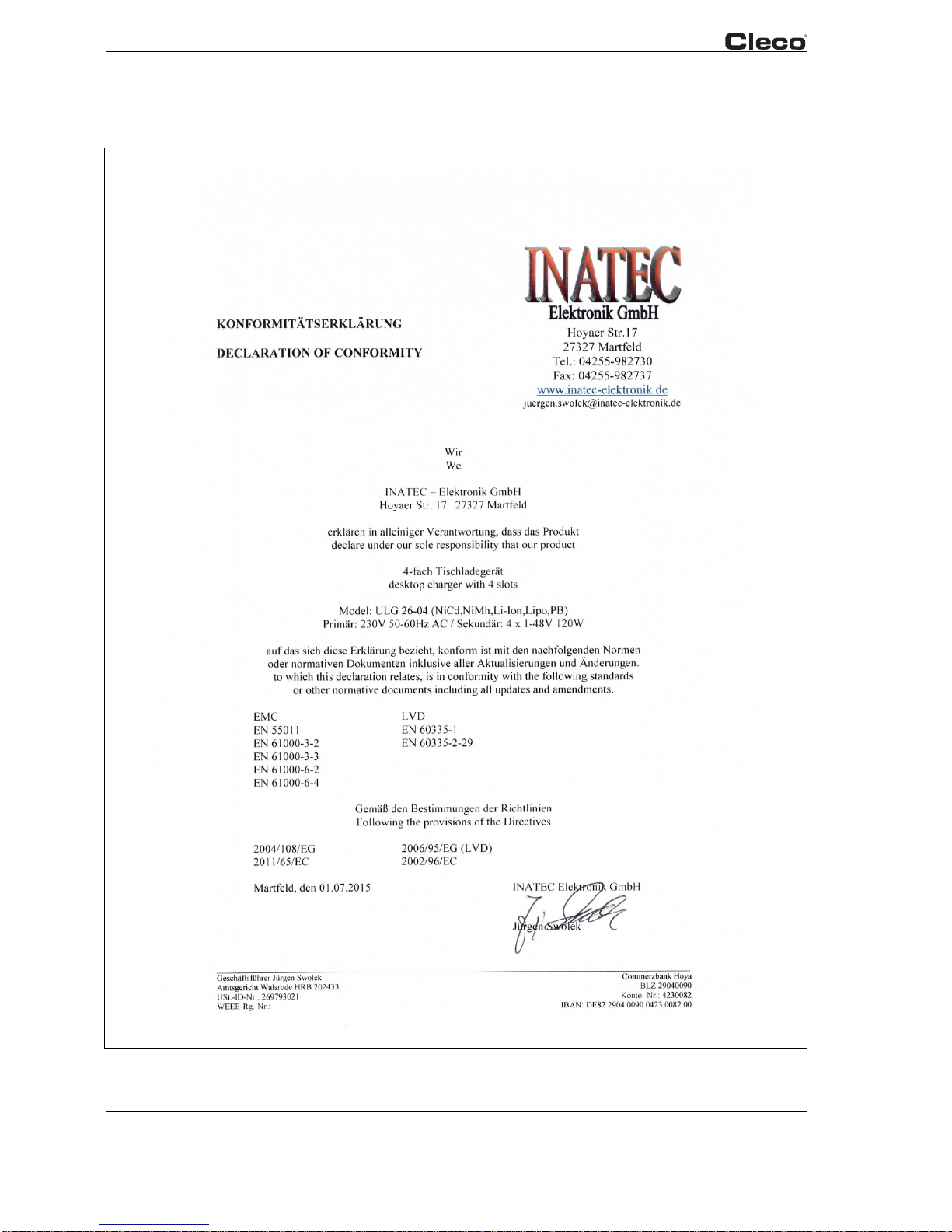

10 CE Declaration of Conformity
