Clek FOONF User manual

WARNING
• Read and understand product
labels and all instructions in
this manual and in your vehicle
owner’s manual before installing
or using this car seat.
• Failure to properly install or
use this car seat or follow these
warnings and those on this car
seat’s labels can result in serious
injury or death to the child
in a sharp turn, sudden stop
or crash.
C01-0602-B1-CA O ctober2013
Foonf Instruction Manual
This car seat is designed for use either Rear-Facing or Forward-Facing by children who meet
all of the following requirements:
HEIGHT WEIGHT AGE
64 – 110 cm
25 – 43 in. 6.4 – 18 kg 14 – 40 lb Able to sit upright alone
HEIGHT WEIGHT AGE
76 – 124 cm
30 – 49 in. 10 – 29.5 kg 22 – 65 lb
Min. 1 year
(2+ years
recommended)
0000 0031

ii
i
Checklist for Proper Use
IMPORTANT: This is only a checklist — you must read and understand all of the warnings and
instructions on this car seat’s labels and in this manual before installing or using this car seat.
When Using This Car Seat in Rear-Facing Mode
√ Child weighs between 6.4 and 18 kg (14 and 40 lb), height is between 64 and 110 c m (25
and 43 in.) and able to sit upright alone.

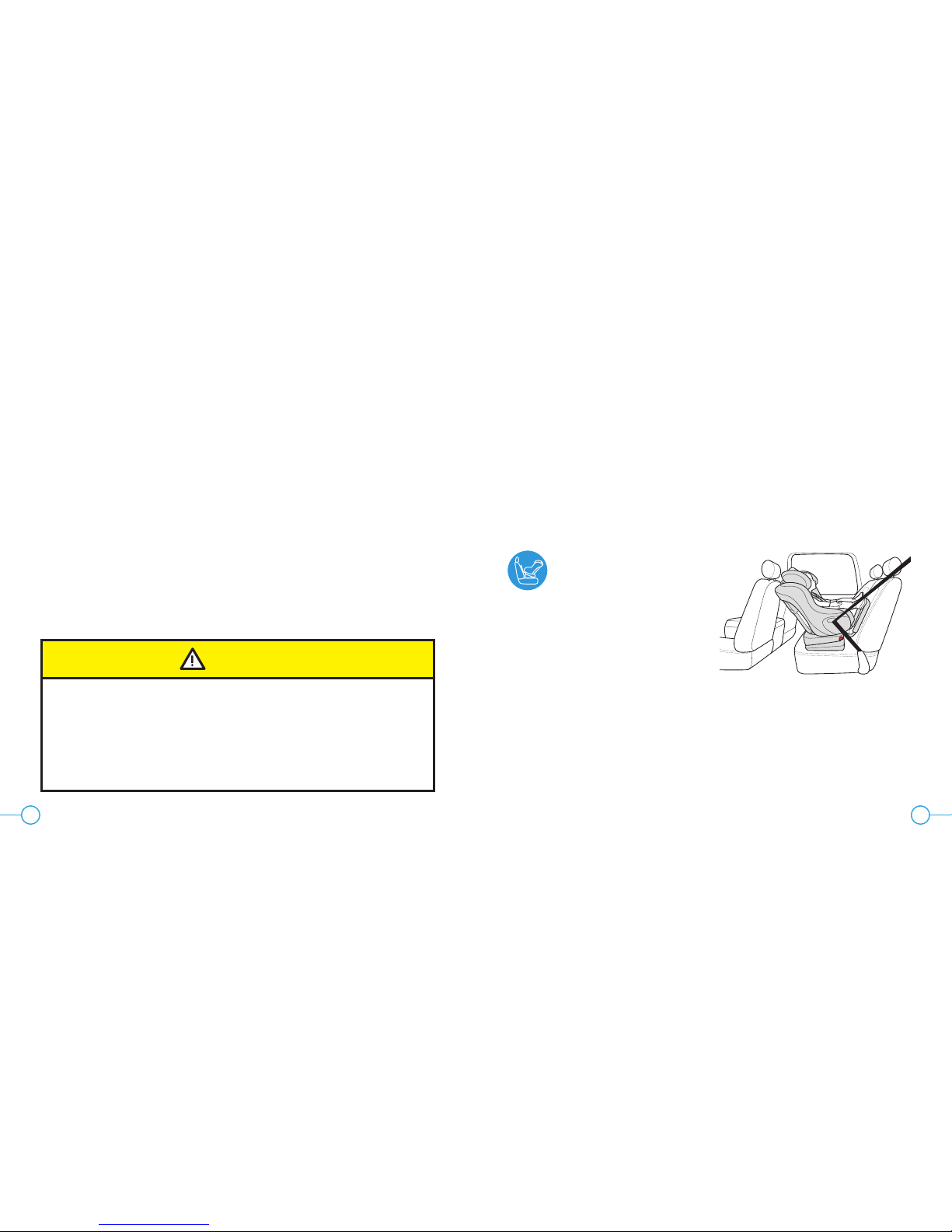

√ Car seat is securely installed in a vehicle rear seat using Rear-Facing Base and Anti-
Rebound Bar.
– If car seat must be installed in a front seat, the front air bag for that position is
deactivated and the vehicle owner’s manual states that this is an acceptable position to
install a Rear-Facing child restraint.
√ UAS lower anchor belt or vehicle belt is correctly routed under Seat Cushion in the Rear-
Facing belt path and there is no slack in the UAS lower anchor belt or the vehicle belt.
√ Car seat is reclined within an acceptable recline zone for the child’s age using a Rear-
Facing recline position.
√ The top of the child’s head is at least 2.5 cm (1”) below the top of the car seat Headrest.
√ Shoulder Harness Straps are through Shoulder Harness Slots closest to and at or below the
shoulder of the child.
√ Bottom of Headrest is at or above the Shoulder Harness Slots in use.
√ Crotch Strap is through Crotch Strap Slot at or behind and closest to the child’s crotch.
√ Harness is snugly adjusted on child and buckled.
When Using This Car Seat in Forward-Facing Mode
√ Child weighs between 10 and 29.5 kg (22 and 65 lb), height is between 76 to 124 cm
(30 and 49 in.) and is at least 1 year of age.
√ Car seat is securely installed in a vehicle rear seat without the Rear-Facing Base or the
Anti-Rebound Bar.
– If car seat must be installed in a front seat, the front air bag for that position is
deactivated, check the vehicle owner’s manual for proper use of a child restraint in
that position.
√ Car seat is correctly attached to the vehicle using either the rigid UAS lower connectors
and Top Tether; the vehicle belt and Top Tether; or the rigid
UAS lower connectors, the vehicle belt and the Top Tether.
– If child weighs more than 21.8 kg (48 lb) or the weight
limit specified for UAS use in your vehicle owner’s
manual, this car seat must be installed with the vehicle
belt and Top Tether.
√ Car seat is in a Forward-Facing recline position.
√ The top of the child’s ears are at or below the top of the
car seat Headrest.
√ Shoulder Harness Straps MUST be through Shoulder
Harness Slots closest to and at or above shoulders of child.
√ Bottom of Headrest is at or above the Shoulder Harness
Slots in use.
√ Harness Crotch Belt is through Crotch Belt Slot at or behind
and closest to the child’s crotch.
√ Harness is snugly adjusted on child and buckled.
For concerns related
to parts or the use and
maintenance of this
product, please contact
us at:
Clek Inc.
Attn: Customer Service
12 Upjohn Rd., Suite 1
Toronto, Ontario
Canada
M3B 2V9
1-866-656-2462
www.clekinc.ca

12
Table of Contents
Checklist for Proper Use ....................................................................................... i
When Using This Car Seat in Rear-Facing Mode ............................................... i
When Using This Car Seat in Forward-Facing Mode .......................................... ii
Car Seat Features .............................................................................................. 3
Registration & Recall Information ......................................................................... 5
Registering Your Car Seat ............................................................................. 6
Warnings ......................................................................................................... 7
Certification ..................................................................................................... 11
Vehicle Classification ......................................................................................... 11
Size & Age Limitations ....................................................................................... 11
When Using This Car Seat in Rear-Facing Mode ............................................. 12
When Using This Car Seat in Forward-Facing Mode ....................................... 14

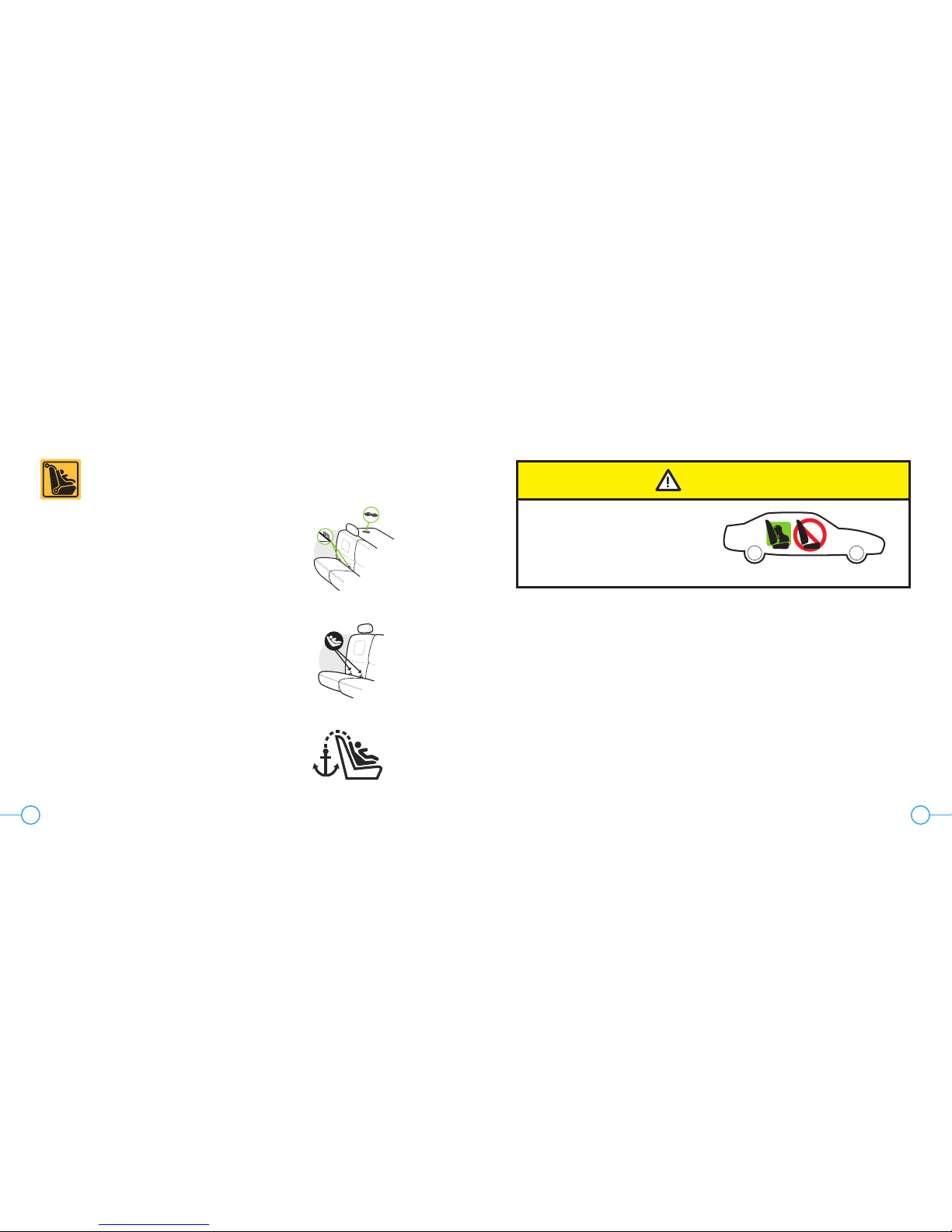

Vehicle Information ........................................................................................... 15
Vehicle Universal Anchorage System (UAS) .................................................... 15
Vehicle Seat Location Requirements .............................................................. 16
Vehicle Belt Requirements ........................................................................... 18
Vehicle Belt Systems ................................................................................... 19
Before Installing Car Seat .................................................................................. 22
Rear-Facing .............................................................................................. 22
Forward-Facing ......................................................................................... 23
Installing/Removing Rear-Facing Car Seat ............................................................ 23
Installing Rear-Facing Car Seat With UAS ..................................................... 25
Removing Rear-Facing Car Seat Installed With UAS ......................................... 31
Installing Rear-Facing Car Seat With Vehicle Belt ........................................... 33
Removing Rear-Facing Car Seat Installed With Vehicle Belt .............................. 40
Installing/Removing Forward-Facing Car Seat ....................................................... 41
Installing Forward-Facing Car Seat With UAS ................................................ 43
Removing Forward-Facing Car Seat Installed With UAS .................................. 53
Installing Forward-Facing Car Seat With Vehicle Belt ...................................... 55
Removing Forward-Facing Car Seat Installed With Vehicle Belt ........................ 60
Securing Your Child in Car Seat .......................................................................... 62
Removing Your Child From Car Seat ............................................................. 67
Operation and Adjustments................................................................................. 68
Crotch Strap Adjustment............................................................................... 68
Shoulder Harness Height Adjustment.............................................................. 70
Shoulder Harness Unthreading ............................................................... 71
Shoulder Harness Slot Adjustment ........................................................... 72
Shoulder Harness Rethreading................................................................ 73
Shoulder Harness Cover Removal/Installation.................................................. 76
Installing/Removing Rear-Facing Base ............................................................ 77
Installing/Removing Rear-Facing Anti-Rebound Bar .......................................... 78
Removing/Installing Seat Cushion.................................................................. 81
Installing/Adjusting Headrest ........................................................................ 83
Rear-Facing UAS Storage ............................................................................. 85
Forward-Facing Rigid UAS Storage................................................................ 87
Top Tether Storage ...................................................................................... 87
Instruction Manual Storage........................................................................... 88
Removing/Installing Seat Cushion Cover......................................................... 88
Aircraft Installation ............................................................................................ 90
Care and Cleaning............................................................................................. 91
Troubleshooting................................................................................................. 94
Accessories ....................................................................................................... 94
Warranty ......................................................................................................... 95
® Clek and Clek logos, Olli, Ozzi, Oobr, and Foonf are registered trademarks of Clek Inc.
For a complete list of Clek Inc. trademarks please visit www.clekinc.ca/trademarks.

34

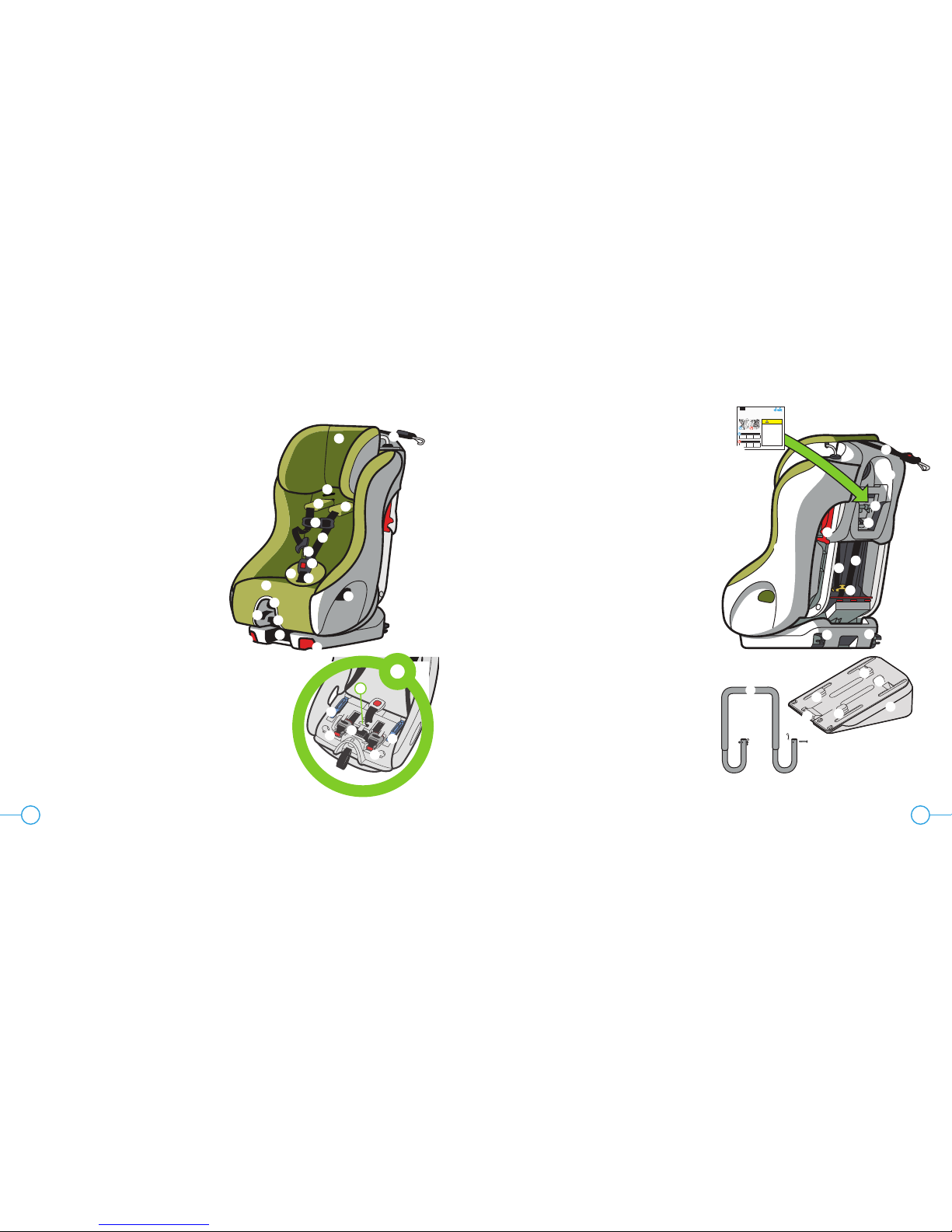

Car Seat Features – Front
1 Seat Cushion
2 Shoulder Harness Slots
3 Shoulder Harness Covers
4 Shoulder Harness Straps
5 Chest Clip
6 Buckle Tongues
7 Buckle
8 Crotch Strap
9 Buckle Pad
10 Harness Adjuster
11 Harness Adjuster Strap
12 Recline Handle
13 Rigid UAS Release Handles
14 Rigid UAS Adjustment Handle
15 Rear-Facing Belt Path
16 Headrest
17 Headrest Adjuster
18 Crotch Strap Slots
19 Rear-Facing UAS Storage
(under Seat Cushion)
20 Rear-Facing UAS Belt
21 Rear-Facing UAS Push-on Connectors
22 Rear-Facing Belt Lock-offs
2
4
20
19
18
33
5
21
21
22
22
7
8
9
1
10
11 12
6
17
16
15
14
13 13
Car Seat Features – Back
23 Seat
24 Top Tether
25 Tether Adjuster
26 Tether Hook
27 Tether Storage (behind manual)
28 Forward-Facing Shoulder Belt Lock-offs
29 Shoulder Harness Access Panel
30 Troubleshooting Tool
31 Shoulder Harness Straps
32 Metal Harness Plate
33 Rigid UAS Lower Connectors
(Forward-Facing Use)
34 Instruction Manual (stored in Shoulder
Harness Access Panel)
35 Rear-Facing Base
36 Rear-Facing Base Retention Hooks
37 Rear-Facing Base Release Lever
38 Anti-Rebound Bar
39 Anti-Rebound Bar Locking Pins and
Locking Pin Clips
23
24 25
26
28
29
31
30
32
31
33 33
27
35
36
36
36
36
37
WARNING
• READ AND UNDERSTAND PRODUCT
LABELS AND ALL INSTRUCTIONS
IN THIS MANUAL AND IN YOUR
VEHICLE OWNER’S MANUAL
BEFORE INSTALLING OR USING
THIS CAR SEAT.
• FAILURE TO PROPERLY INSTALL OR
USE THIS CONVERTIBLE CAR SEAT
OR FOLLOW THESE WARNINGS
AND THOSE ON THIS CAR SEAT’S
LABELS CAN RESULT IN SERIOUS
INJURY OR DEATH TO THE CHILD
IN A SHARP TURN, SUDDEN STOP
OR CRASH.
JULY2012
Foonf Instruction Manual
This convertible car seat is designed for use in either rear-facing mode or forward -facing
mode by children who meet all of the following requirements:
HEIGHT WEIGHT AGE
25 – 46 in.
64 – 116 cm.
14 – 45 lb.
6.4 – 20.5 kg.
Able to sit
upright alone
HEIGHT WEIGHT RECOMMENDED
30 – 49 in.
76 – 124 cm.
20 – 65 lb.
9 – 29.5 kg.
2+ years
recommended
age
0000002 8
FPO
34
38
39 39

6
5
Registering Your Car Seat
Please fill in the information on the previous page for your
records. The model name, serial number and manufacturing
date can be found on a label affixed to the back of this Car
Seat.
Fill out the prepaid registration postcard attached to the
car seat and mail it today.
Child restraints could be recalled for safety reasons. You must
register this restraint to be reached in a recall. Send your
name, address, e-mail address if available, and the restraint’s
model number and manufacturing date to:
Clek Inc.
12 Upjohn Rd., Suite 1
Toronto, Ontario, Canada M3B 2V9
or call 1-866-656-2462
or register online at http://www.clekinc.ca/register
For recall information, call Transport Canada’s Road Safety
Information Centre at 1-800-333-0371, or go to http://www.
tc.gc.ca/eng/roadsafety/safedrivers-
childsafety-notices-menu-907.htm
Registration & Recall Information
WARNING
• Child restraints could be recalled for safety reasons. You must register this
restraint (car seat) to be reached in a recall.
Model Name: _____________________________________________________________________
Serial Number: ___________________________________________________________________
Manufactured In: __________________________________________________________________
(yyyy/mm/dd)
Date of Purchase: __________________________________________________________________
FOONF

8
7
WARNING — DEATH or
SERIOUS INJURY can occur (continued)
• Discontinue Rear-Facing use when:
– Child’s weight exceeds 18 kg (40 lb).
– Child’s height exceeds 110 cm (43 in.).
– Child’s head is less than 2.5 cm (1") from top of Headrest in highest
position.
• Discontinue Forward-Facing use when:
– Child’s weight exceeds 29.5 kg (65 lb).
– Child’s shoulders are above the top Shoulder Harness Slots.
– Top of child’s ears are above the top of the car seat’s Headrest in its
highest adjustment position.
• This car seat must be installed by an adult.
• Never allow the child to buckle themselves in this car seat.
• Snugly adjust Harness provided with this car seat around child.
• Never secure car seat into vehicle with a belt around the base. Belt must
always be routed through the correct Belt Path in the seat for the mode
of use (denoted by blue markings for Rear-Facing and red markings for
Forward-Facing).
• Never use this child restraint Rear-Facing without the Rear-Facing Base
and Anti-Rebound Bar.
Warnings
WARNING — DEATH or
SERIOUS INJURY can occur
Failure to properly install or use this car seat or follow these warnings and
instructions and those on this car seat’s labels can result in serious injury or
death of the child in a sharp turn, sudden stop or crash.
• Do not install or use this car seat until you read and understand the
instructions in this manual and in your vehicle owner’s manual. Do not let
others install or use this car seat unless they understand how to correctly
install and use it.
• Never use this car seat Rear-Facing in a vehicle front seating location with
an air bag.
• Use only in a Rear-Facing position when using this car seat with an infant
less than one year old and weighing less than 10 kg (22 lb).
• Failure to choose the correct car seat mode (Rear-Facing or Forward-
Facing) and to properly secure this car seat and your child can increase
the risk of injury or death.
• Never use this car seat with children not able to sit upright alone. Their
head may fall forward, which could restrict their ability to breathe.

910
WARNING — DEATH or
SERIOUS INJURY can occur (continued)
• Do not use this car seat after nine (9) years from the date of manufacture.
The date of manufacture can be found on the label affixed to the back of
this car seat.
• Do not use accessories or parts with this car seat other than those
provided by Clek Inc. Use of accessories or parts from other
manufacturers could alter the performance of this car seat.
• Do not attempt to make repairs to or otherwise modify or tamper with this
car seat.
• Never use this car seat if it is damaged or is missing parts.
• Keep this manual in the storage compartment located on the back of this
car seat for future use.
• Never use a second-hand car seat or a car seat whose history you do not
know.
• Register your child restraint with Clek Inc.
• Avoid burn injury — always touch the surfaces that will contact your child
first before putting them in this car seat. This car seat can become very hot
if left in the sun and can burn your child’s skin.
WARNING — DEATH or
SERIOUS INJURY can occur (continued)
• Always use the Buckle Pad supplied with this car seat for children
weighing up to 10 kg (22 lb).
• Never use the longer Crotch Strap length in the rear Crotch Strap Slot.
• Never use this seat without the Headrest.
• Do not use this child restraint with motorized or door mounted belt systems.
• When installing this child seat Forward-Facing, it must be secured by the
Top Tether strap and the UAS lower anchors or vehicle seat belt as shown
in this instruction manual.
• UAS system or vehicle belt must stay tightly adjusted on car seat at all
times.
• Always secure the Top Tether provided with this child restraint as specified
in this instruction manual.
• Do not use this car seat after a crash of any kind. A crash can cause
damage to this car seat that you cannot see.
• Always securely attach this car seat to the vehicle, even when not
occupied. An unsecured car seat can injure other occupants in a crash.
• Never leave child unattended.
• Never leave child in car seat when Harness is not buckled and properly
adjusted, children can strangle on loose Harness straps.

11 12
American Academy of Pediatrics
(AAP) Recommendation
The AAP advises parents to keep their
toddlers in Rear-Facing car seats until age 2,
or until they reach the maximum height and
weight for their seat.
When Using This Car
Seat in Rear-Facing Mode
• All infants less than one year old or 10 kg
(22 lb) MUST be Rear-Facing.
• Child’s weight is between 6.4–18 kg (14
and 40 lb), AND
• Child’s height is between 64 and 110 c m
(25 and 43 in.), AND
• Child is able to sit upright alone.
Certification
• This child restraint system conforms to all applicable requirements of Canadian Motor
Vehicle Safety Standards 213 and 213.1 and is certified for use in motor vehicles.
• This restraint is certified for use in Aircraft.
Vehicle Classification
• This car seat is for use only in the following classes of vehicles: passenger cars, trucks,
and multi-purpose vehicles such as SUVs (sport utility vehicles) and CUVs (crossover utility
vehicles).
Size & Age Limitations
WARNING
• Use only in a Rear-Facing position when using this car seat with an infant
less than one year old and weighing less than 10 kg (22 lb).
• Failure to choose the correct car seat mode (Rear-Facing or Forward-
Facing) and to properly secure this seat and your child can increase the
risk of injury or death.
• Never use this seat with children not able to sit upright alone. Their head
may fall forward, which could restrict their ability to breathe.

13 14
When Using This Car Seat
in Forward-Facing Mode
• Child’s weight is between 10 and 29.5 kg
(22 and 65 lb), AND
• Child’s height is between 76 to 124 cm
(30 and 49 in.), AND
• Child is at least 1 year of age, AND
• The tops of the child’s ears MUST be below
the top of the car seat’s Headrest, as shown
in Figure 3. If the tops of the child’s ears
are above the top of this car seat’s Headrest
in the highest adjustment position, your
child is too large for this car seat.
• The Shoulder Harness Straps must be
through Shoulder Harness slots at or above
and closest to the child’s shoulders, as
shown in Figure 3a. If the child’s shoulders
are above the highest set of Shoulder
Harness Slots in the car seat’s seat back,
your child is too large for this car seat.
• If child weighs more than 21.8 kg (48 lb)
or the weight limit specified for UAS use in
your vehicle owner’s manual, this car seat
must be installed with:
– the vehicle belt and Top Tether; or
– the UAS lower connectors, vehicle belt
and Top Tether
Figure 3 Figure 3a
• The top of the child’s head must be at
least 2.5 cm (1”) below the top of the car
seat’s Headrest, as shown in Figure 1.
If the top of the child’s head is less than
2.5 cm (1”) below the top of the Headrest
in the highest adjustment position, your
child is too large for using this car seat
Rear-Facing and must be transitioned to
Forward-Facing use with this car seat.
• The Shoulder Harness Straps must be
through Shoulder Harness slots at or below
and closest to the child’s shoulders, as
shown in Figure 2.
2.5 cm
Figure 1
Figure 2

16
15
Vehicle Seat Location Requirements
• Before using this car seat, reference your vehicle owner’s
manual for:
– Car seat installation instructions
– Information about air bags and car seat use
– Vehicle UAS lower anchor weight limit. If no
recommended weight limit is present in your vehicle
owner’s manual, call your vehicle manufacturer. If no
guidance is available, assume a vehicle lower anchor
weight limit of 18.1 kg (40 lb).
• For a toddler over one year old and Forward-Facing, if a
vehicle front seat location with an air bag must be used,
follow the vehicle manufacturer’s instructions for child
restraint use and move the vehicle seat back as far as
possible.
WARNING
• According to accident statistics,
children 12 and under are safer
when properly restrained in rear
vehicle seating positions, rather
than front seating positions.
Vehicle Information

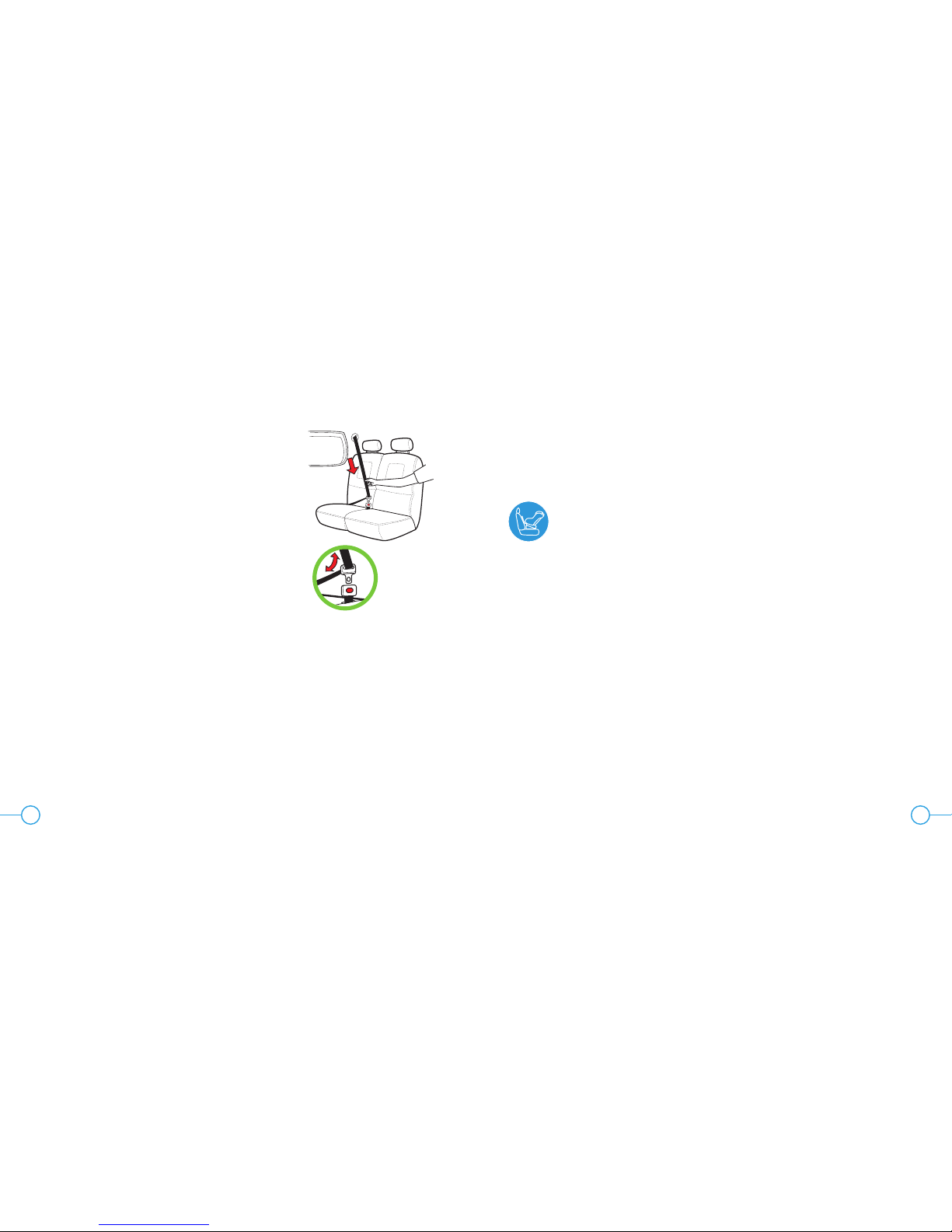

Vehicle Universal Anchorage System (UAS)
• UAS stands for Universal Anchorage System. This term
refers to the anchors built into a vehicle for attaching child
restraints and consists of two lower anchors at the crease
between the vehicle seat back and vehicle seat cushion
and a top tether anchor behind the vehicle seat as shown
in Figure 4.
• 2003 or newer model year vehicles have at least two
seating locations with a UAS Anchorage System. Some
2001 and 2002 model year vehicles have UAS Anchorage
Systems. 2000 model year vehicles or older DO NOT have
UAS Anchorage Systems. See your vehicle owner’s manual
if you are unsure if your vehicle is equipped with a UAS
Anchorage System.
• See your vehicle owner’s manual for seating positions
which can be used with UAS.
• If not readily visible, the UAS lower anchors may be noted
by a symbol located near the crease between the vehicle
seat back and vehicle seat cushion, as shown in Figure 5.
• If covered, the top tether anchor locations may be
identified by a symbol as shown in Figure 6.
Figure 4
Figure 5
Figure 6
Figure 7

18
17
Vehicle Belt Requirements
Refer to the vehicle owner’s manual for information regarding
car seat installation and vehicle belt use with a car seat.
WARNING
• Never use this car seat with a vehicle belt that is cut, damaged, frayed or
inoperable.
• Using this car seat with a vehicle belt system unsafe for use with this car
seat can result in serious injury or death. Pay careful attention to these
systems; some of the seat belts that are not safe to use look very much
like seat belts that are safe to use. If you are unsure, consult your vehicle
owner’s manual or call 1-866-656-2462.
• Not all vehicle belts can be used with a car seat. This car seat
must be held tight at all times by the lap belt or lap portion of the
lap/shoulder belt.
• Never use an inflatable vehicle belt to secure this car seat.
– If installing this car seat using UAS in a seating position equipped
with an inflatable vehicle belt, do not buckle the vehicle belt behind
this car seat.
WARNING — DEATH or
SERIOUS INJURY can occur
• Do not use this child restraint Rear-Facing in a front
vehicle seat location with an air bag. Child’s head
and neck may be seriously injured when an inflating
air bag hits back of child restraint.
• Never use this car seat in a front vehicle seat location
unless recommended by your vehicle owner’s manual.
• Improper placement of this car seat in your vehicle
increases the risk of serious injury or death. Some
seating positions in your vehicle may not be safe for
this car seat. Some vehicles do not have any seating
positions that can be used safely with this car seat. If you are not sure
where to place this car seat in your vehicle, consult your vehicle owner’s
manual or call 1-866-656-2462.
DO NOT place rear-facing child seat on front
seat with air bag. DEATH OR SERIOUS
INJURY can occur. The back seat is the safest
place for children 12 and under.
NE PAS placer un siège d’enfant faisant face à
l’arrière sur le siège avant doté d’un coussin
gonflable. LA MORT OU DES BLESSURES
GRAVES pourraient s’ensuivre. Le siège arrière
est l’endroit le plus sécuritaire pour les enfants
de 12 ans et moins.
WARNING/ADVERTENCIA/
MISE EN GARDE
NO coloque el asiento infantil para el
automóvil orientado hacia atrás en el
asiento delantero del vehículo que
tenga una bolsa neumática de
seguridad. El niño podría MORIR O
SUFRIR LESIONES GRAVES. El asiento
trasero es el lugar más seguro para los
niños de 12 años o menores.
• Install this car seat only on vehicle seats that face forward.
NEVER install this car seat on vehicle seats facing sideways
or backwards, as shown in Figure 9.
• Only use this car seat on vehicle seats with seat
backs that lock in an upright position. Check
that the vehicle seat back is locked in an upright
position recommended by the vehicle owner’s
manual for use when installing a child restraint.
Figure 9
Figure 8

20
19
Figure 13
Figure 14a
Figure 14
• Retractable Lap Belts – Lap belt is mounted on a retractor
which automatically pulls the lap belt back in when
released, as shown in Figure 13.
– If this type of lap belt is equipped with an Emergency
Locking Retractor (ELR) it should NEVER be used with a
car seat.
– If this type of lap belt is equipped with an Automatic
Locking Retractor (ALR), or a Switchable Locking
Retractor (SLR), it can be used. See your vehicle owner’s
manual for more information on SLR retractor belts. To
check if your retractable lap belt is equipped with an
ALR retractor:
1. Pull the belt all the way out until it stops.
2. Allow the belt to pull back in about 15 cm (6 in.).
3. Pull out on belt again. If the belt will not pull out
again, it is equipped with an ALR retractor.
• Manually Adjustable Lap Belts, see Figure 14 – Length can
be manually adjusted. Does not retract into the vehicle.
– Most manually adjustable lap belts will allow for secure
installation, but if the locking latch plate slides, not
allowing for a secure installation, it may be necessary
to flip the locking latch plate over to get a secure
installation as shown in Figure 14a.
Figure 11
Vehicle Belt Systems
• NEVER use a passive restraint — lap or shoulder belt
mounted on door, as shown in Figure 10.
• NEVER use a passive restraint — lap belt with a motorized
shoulder belt, as shown in Figure 11.
• NEVER use an inflatable vehicle belt.
– Check the belt for labels and refer to your vehicle
owner’s manual.
• Buckle/Lap Belt Anchor Forward of Seat Bight – lap belt or
lap belt portion of a lap/shoulder belt or buckle comes out
of vehicle seat bottom forward of the seat back, as shown
in Figure 12.
– May not allow for secure installation of this car seat
in some cases. Check for movement of car seat after
installation. If car seat is not secure, DO NOT use this
vehicle belt.
Figure 10
Figure 12

22
21
• Lap/Shoulder belts with a sliding latchplate – Shoulder
belt is mounted on a retractor which automatically pulls the
shoulder belt back in when released as shown in Figure
15. Latchplate slides freely along the webbing of the
vehicle belt as shown in Figure 15a.
– If this type of lap/shoulder belt is equipped with an
Emergency Locking Retractor (ELR), it may be used.
– If this type of lap/shoulder belt is equipped with an ELR/
ALR Switchable Locking Retractor (SLR), it can be used.
To check if your lap/shoulder belt is equipped with an
SLR:
1. Slowly pull the shoulder belt all the way out until it
stops.
2. Allow the shoulder belt to pull back in about 15 cm
(6”).
3. Pull out on shoulder belt again. If the belt will not pull
out again, it is equipped with a SLR
NOTE: Some vehicle seat belt systems may have a lap/
shoulder belt equipped with a latchplate which appears to
hold the lap portion at a fixed length when the belt is pulled
tight. This type of lap/shoulder belt is compatible. It may still
have a switchable locking retractor (SLR).
See your vehicle owner’s manual for more information on
installing a child seat using the vehicle belt.
Before Installing Car Seat
This Car Seat is shipped without the Headrest attached.
The Headrest must be installed on the seat prior to use, see
“Installing/Adjusting of Headrest” on page 83.
Rear-Facing
The following are a few things which must be done with this
car seat before installing it in a vehicle Rear-Facing.
• Rear-Facing base must be securely attached to the bottom
of the car seat. See “Installing/Removing Rear-Facing
Base” on page 77.
• Shoulder Harness must be adjusted to the correct Shoulder
Harness Slots for the height of the child. The Shoulder
Harness Straps should be through the Shoulder Harness
Slots closest to and at or below your child’s shoulders. See
“Securing your Child in Car Seat” on page 62.
• Select Recline Position 3 (Fully Reclined):
– Rear-Facing Anti-Rebound Bar must be used. See
“Installing/Removing Rear-Facing Anti-Rebound Bar”
on page 78.
Figure 15
Figure 15a

24
23
Installing/Removing Rear-Facing Car Seat
Forward-Facing
The following are a few things which must be done with this
car seat before installing it in a vehicle Forward-Facing.
• Rear-Facing Base and Anti-Rebound Bar must NOT be
attached to the car seat. See “Installing/Removing Rear-
Facing Base” on page 77 and “Installing/Removing Rear-
Facing Anti-Rebound Bar” on page 78.
• Shoulder Harness must be adjusted to the correct Shoulder
Harness Slots for the height of the child. The Shoulder
Harness Straps should be through the Shoulder Harness
Slots closest to and at or above your child’s shoulders. See
“Securing your Child in Car Seat” on page 62.
WARNING — DEATH or
SERIOUS INJURY can occur
• Never use this car seat Rear-Facing in a vehicle front seating location with
an air bag.
• UAS or vehicle belt must be routed through Rear-Facing Belt Path when
using car seat Rear-Facing.
WARNING — DEATH or
SERIOUS INJURY can occur (continued)
• Rear-Facing Base and Anti-Rebound Bar must be used when using seat
Rear-Facing.
• UAS or vehicle belt must stay tightly adjusted around car seat at all times.
• Failure to properly install or use this car seat increases the risk of serious
injury or death to the child and others in a sharp turn, sudden stop
or crash.
• Seat must be in Recline Position 3 within an acceptable recline range for
the child’s age when used Rear-Facing.
• To avoid injury this car seat must be installed by an adult.
• Never leave this car seat unsecured in your vehicle. This car seat must
remain secured even when not in use. In a sharp turn, crash or sudden
stop, an unsecured car seat can be thrown around and could severely
injure vehicle occupants.
• When installing this child restraint Rear-Facing, it must be secured by the
UAS lower anchors or vehicle seat belt as shown in this instruction manual.
• Use only with children who weigh between 6.4 and 18 kg, (14 and 40 lb)
and whose height is between 64 and 110 c m (25 and 43 in.).

25 26
Installing Rear-Facing Car Seat With UAS
WARNING — DEATH or
SERIOUS INJURY can occur
• Only use the car seat UAS system in vehicle seating locations designated
by the vehicle manufacturer for use with UAS and that have an anchor
spacing of 280 mm (11 in.).
• Rear-Facing UAS Push-on Connectors must be secured to the vehicle
UAS lower anchors only. Connection to other vehicle anchors or vehicle
components could result in the anchor tearing free in a crash.
• Never attach more than one push-on connector to a vehicle lower anchor
unless recommended by the vehicle owner’s manual for that vehicle.
• Rear-Facing UAS belt must be routed through Rear-Facing Belt Path.
Step 1
If Rear-Facing Base is not securely attached
to the bottom of the seat, install it now, see
“Installing/Removing Rear-Facing Base” on
p a g e 7 7.
• Anti-Rebound Bar must also be securely
attached to the seat, see “Installing/
Removing Anti-Rebound Bar” on page 78.
Step 2
Select a Forward-Facing vehicle seating
location which has UAS.
Locate the UAS lower anchors (as explained
in the “Vehicle Universal Anchorage System
(UAS)” on page 15 in this manual and in your
vehicle owner’s manual. See Figure 16.

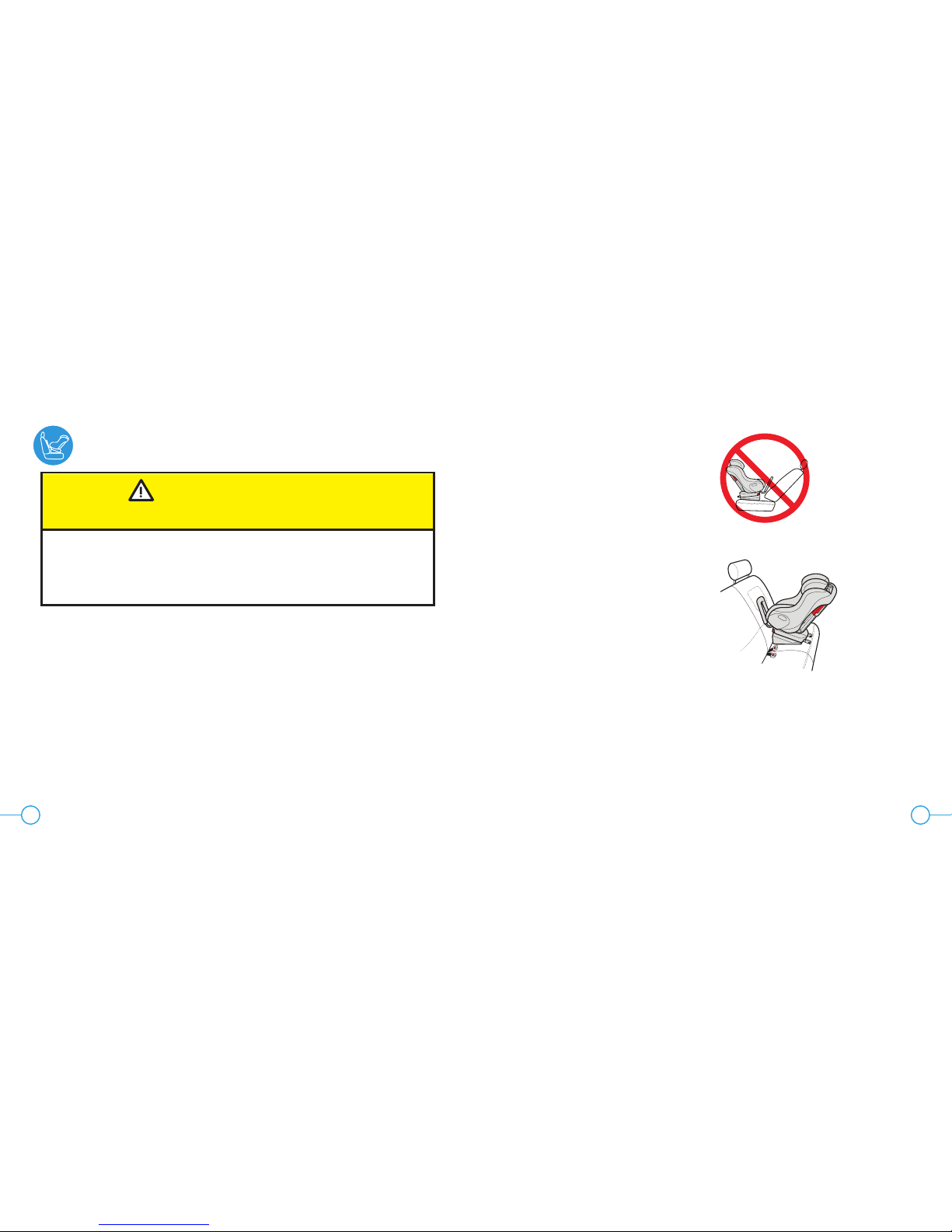

Step 3
If the vehicle seat back is adjustable, make
sure the seat back is locked in a more upright
position. Refer to vehicle owner’s manual for
recommended seat back angle. DO NOT
install or use this car seat while the vehicle
seat back is excessively reclined, as shown in
Figure 17.
Figure 16
Figure 17

27 28
Step 4
Remove Seat Cushion, see “Removing/
Installing Seat Cushion” on page 81.
Remove Rear-Facing UAS belt from its storage
location under the Seat Cushion, see “Rear-
Facing UAS Storage” on page 85.
Lengthen each side of Rear-Facing UAS belt
by pressing adjuster release button while
pulling belt to extend the length of lower
anchor belt as shown in Figure 18.
Step 5
Route the Rear-Facing UAS Belt through the
Rear-Facing Belt Path, as shown in Figure 19.
Step 6
Center the Rear-Facing UAS Belt in the Belt
Path and place it under the two Forward Belt
Tabs and over Rear-Facing Belt Lock-offs as
shown in Figure 20.
Check that Crotch Strap is not under Rear-
Facing UAS Belt as shown in Figure 20a.
Figure 19
Figure 20
Figure 20a
Figure 18
Step 7
Place car seat Rear-Facing in the vehicle
seat location selected with Rear-Facing Belt
Path toward vehicle seat back and centered
between the vehicle lower anchors as shown
in Figure 21.
Step 8
Secure Rear-Facing UAS Push-on Connectors
to the vehicle UAS lower anchors. For each
connector:
• Position red release button of Rear-
Facing UAS Push-On Connector facing
away from car seat.
• Align UAS Connector with the vehicle
UAS anchor and press the UAS
Connector against the UAS anchor until
you hear the UAS Connector click, as
shown in Figure 22.
• Pull on UAS Connector to check that it
is securely locked on the vehicle UAS
anchor.
Figure 21
Figure 22

29 30
1 32
Forward-Facing Rear-Facing
• Ground level must be within the recline
range designated for the age of the child.
ReclineRange
1yearandup
AllRear-FacingChildren• To Adjust Rigid UAS Lower Connectors: Pull Rigid UAS Adjustment Handle and slide seat to desired position.
• To Release Rigid UAS Lower Connectors: Fully extend Connectors, then pull Rigid UAS Release Handles.
1
Forward-Facing
• Ground level must be within the recline
range designated for the age of the child.
Recline Range
1 year and up
All Rear-Facing Children • To Adjust Rigid UAS Lower Connectors: Pull Rigid UAS Adjustment Handle and slide seat to desired position.
• To Release Rigid UAS Lower Connectors: Fully extend Connectors, then pull Rigid UAS Release Handles.
S t e p 11
Ground Level must be within the recline
range designated for the age of the child.
If an acceptable recline level cannot be
achieved using the vehicle seat back
adjustment, if vehicle owner’s manual allows
multiple positions, it may be necessary to
place a rolled towel or pool noodle under
the foot end of the car seat to achieve an
acceptable recline level.
Verify Ground Level is within the recline
range designated for the age of the child as
shown in Figure 25. If not, go back to Step 7
adjust the recline level and try installing
again, or move the seat to a different vehicle
seating position.
Step 12
Install Seat Cushion, see “Removing/Installing
Seat Cushion” on page 81.
Figure 25

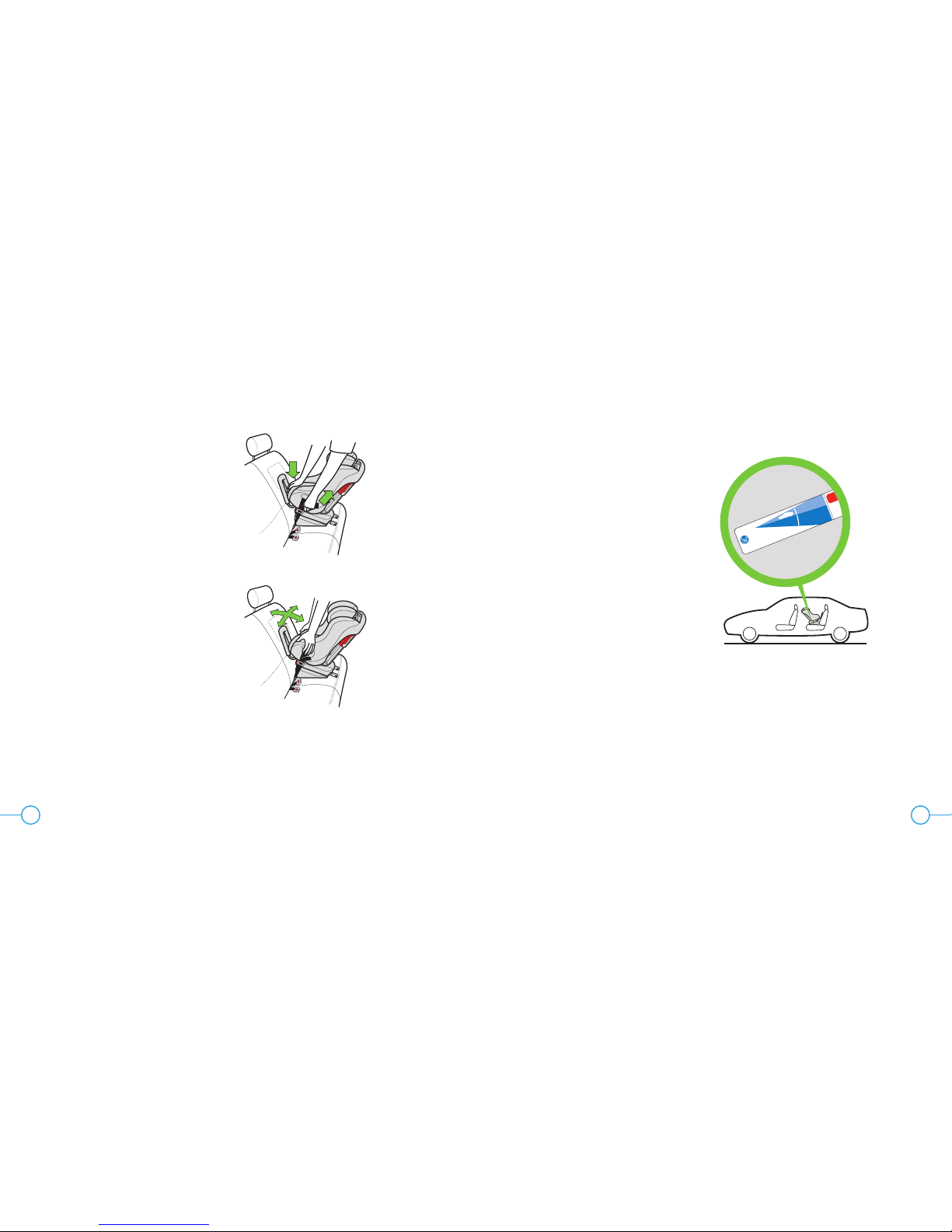

Step 9
Tighten Rear-Facing UAS Belt to secure the
car seat.
• Press down in center of car seat to
depress the vehicle seat cushion and
pull free end of Rear-Facing UAS Belt to
tighten as shown in Figure 23.
• Repeat for opposite side of Rear-Facing
UAS Belt.
Step 10
Check for secure installation. Gripping car
seat at top of armrests, pull car seat front
to back and left to right to check for secure
installation as shown in Figure 24. UAS belt
MUST stay tight and child restraint should not
move more than 2.5 cm (1”) in any direction.
• If UAS belt does not stay tight or car
seat cannot be securely installed, try
a different UAS location or install
using the vehicle belt, see “Installing/
Removing Rear-Facing Car Seat Using
Vehicle Belt” on page 33.
Figure 23
Figure 24

31 32
Step 3
Remove this car seat from vehicle.
Step 4
Remove Seat Cushion, See “Removing/
Installing Seat Cushion” on page 81.
Store the Rear-Facing UAS Belt, see “Rear-
Facing UAS Storage” on page 85.
Step 5
Install Seat Cushion, See “Removing/
Installing Seat Cushion” on page 81.
Removing Rear-Facing
Car Seat Installed With UAS
Step 1
Loosen Rear-Facing UAS Belt by pressing the
adjuster button on each Rear-Facing UAS Belt
adjuster and pulling out on Rear-Facing UAS
Belt as shown in Figure 26.
• Pressing down in center of car seat to
reduce tension on Rear-Facing UAS
Belt will make it easier to loosen lower
anchor belt.
Step 2
Remove Rear-Facing UAS Push-on Connectors
from vehicle lower anchors.
• Press and hold red release button
while pulling Rear-Facing UAS push-on
Connectors as shown in Figure 27.
• Repeat to remove push-on connector on
opposite side.
Figure 26
Figure 27

33 34

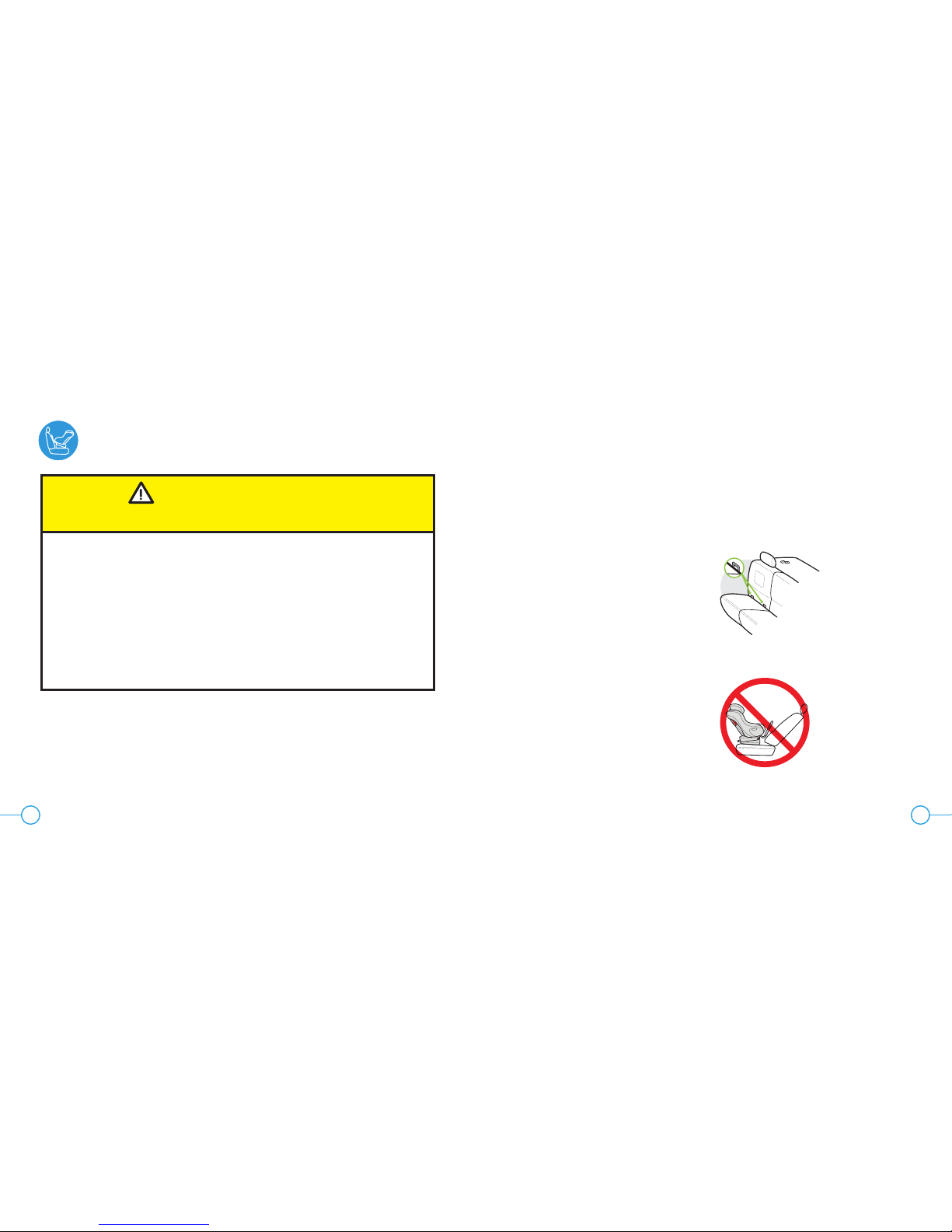

Figure 29
Step 3
If the vehicle seat back is adjustable, make
sure the seat back is locked in a more upright
position. Refer to vehicle owner’s manual for
recommended seat back angle. DO NOT
install or use this car seat while the vehicle
seat back is excessively reclined, as shown in
Figure 28.
Step 4
Remove Seat Cushion, see “Removing/
Installing Seat Cushion” on page 81.
Step 5
Place car seat Rear-Facing in the vehicle seat
location selected with Rear-Facing Belt Path
toward vehicle seat back and centered in
seating position as shown in Figure 29.
Figure 28
Installing Rear-Facing Car Seat With Vehicle Belt
WARNING — DEATH or
SERIOUS INJURY can occur
• Not all vehicle belts are safe for use with this car seat. Read the vehicle
belt requirements section in this manual and your vehicle owner’s manual.
• Vehicle Belt must be routed through Rear-Facing Belt Path when car seat is
installed Rear-Facing.
Step 1
If Rear-Facing Base is not securely attached
to the bottom of the seat, install it now, see
“Installing/Removing Rear-Facing Base” on
p a g e 7 7.
• Anti-Rebound Bar must also be securely
attached to the seat, see “Installing/
Removing Anti-Rebound Bar” on page 78.
Step 2
Select a forward-facing vehicle seating
location which has a vehicle belt which can
be used with this car seat.

35 36
Figure 34Figure 34a
Step 8
Choose the option that matches the type of
installation you are doing:
Option 1 — Installing with lap/shoulder
belt using a Rear-Facing Lock-off:
Tighten vehicle belt to secure the car seat
• Press down in center of car seat to
depress the vehicle cushion and pull free
the shoulder portion of lap/shoulder belt
to tighten as shown in Figure 32.
• While holding the vehicle belt tight,
close Rear-Facing Belt Lock-off as shown
in Figure 33.
IMPORTANT: If Lock-off will not close easily,
it may be necessary to loosen the belt slightly
in order to properly position the belt under
the Belt Tabs and close the Lock-off.
Check that the entire lap/shoulder belt (both
the lap and shoulder portions of the belt) is
through the Rear-Facing Belt Lock-off being
used and under all four Belt Tabs as shown in
Figure 34. Close-up of Belt Tabs is shown in
Figure 34a.
2
1
Figure 33
Figure 32
1
2
Figure 30
Step 6
If installing with a lap/shoulder belt, open
one (1) Rear-Facing Belt Lock-off as shown
in Figure 30. You may use whichever Lock-off
provides the most secure installation.
NOTE: If your vehicle’s belt system is
equipped with an ELR/ALR switchable
retractor (SLR), or if you are installing with
a lap belt, you may skip Step 6, and install
your car seat WITHOUT using a Rear-Facing
Belt Lock-off. Refer to the Child Restraint
section of your vehicle manual to understand
what type of belt system your vehicle is
equipped with.
Step 7
Route vehicle belt through the Rear-Facing
Belt Path and under all four Belt Tabs, shown
in Figure 31a, and buckle vehicle belt, as
shown in Figure 31.
Check that Crotch Strap is not under the
vehicle belt as shown in Figure 31b.
Figure 31 Figure 31a
Figure 31b
