COOK CHILL SYSTEMS Cook/Chill S stems
SECT. XIV PAGE 57
0907

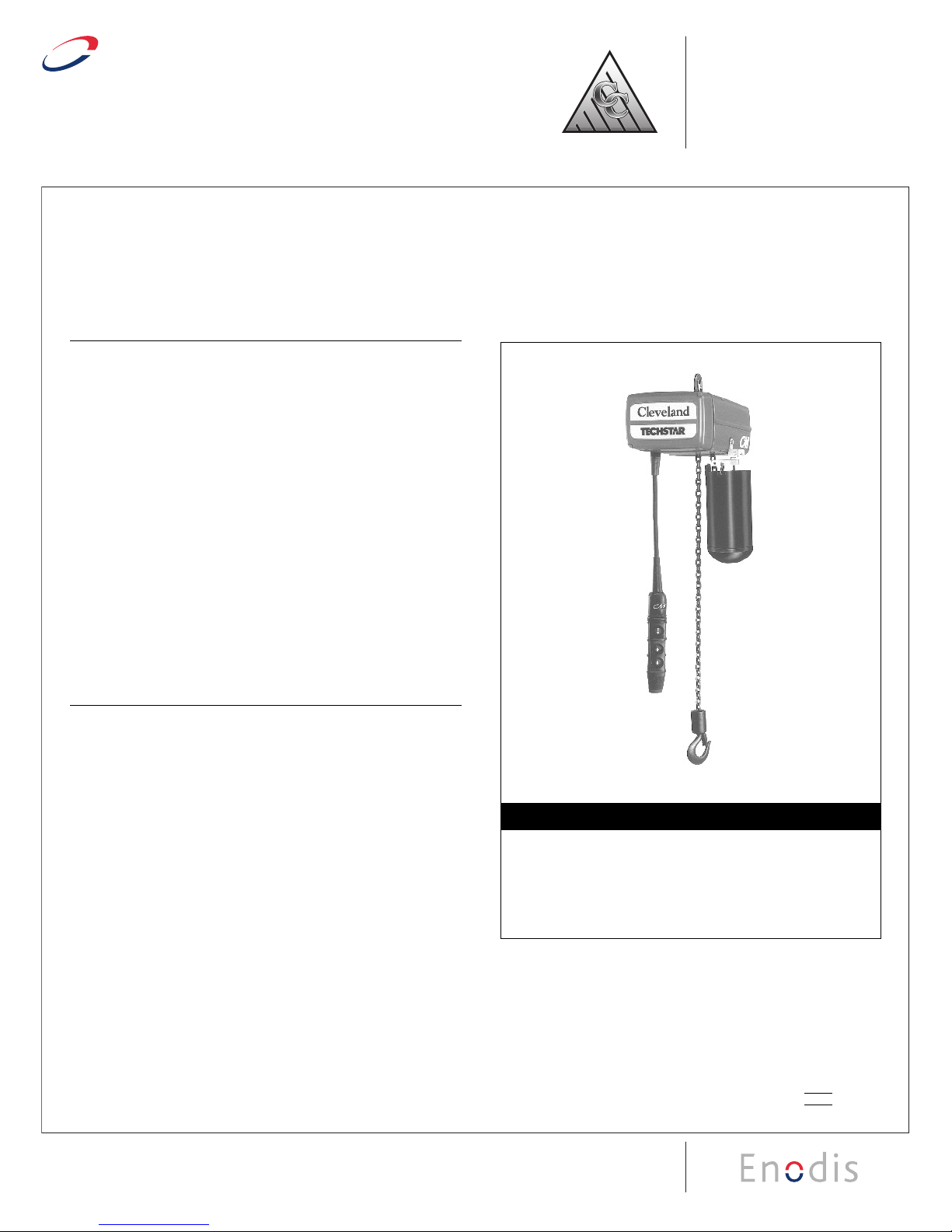

ELECTRIC CHAIN
HOIST
MODELS:  CH-E-1005-M
 CH-H-101-M
 CH-R-102-M
Cleveland Standard Features
I1/2 1 & 2 ton capacity Chain Hoist
I8 feet per minute Hoist lifting speed
IMotor driven low head room trolley with four special crown
tread wheels
IHeavy-duty Hoist motor with multiple disc brake
IOverload Protection automatically stops the lift when
overload is being sensed
ILifetime lubricated gears which require no oil in the
transmission
IImpact resistant Control Station with snap action contacts for
positive control
IInternal cable strain relief for Control Station
IComplete with lifting Chain bottom Hook Safety Lock and
Chain Container
IStainless steel Rail with End-Stops
IAccepted for use in U.S.D.A. Inspected Facilities
Options & Accessories
ËHanger Rods (specify length)
ËRail Hanger Brackets
ËUniversal Beam Clamps
ËRemote Control System
ËCurved sections
ËRail Coupling to support Rail at joint
ËAutomatic Cord Reel
ËFestooned stainless steel cable for power cord
ËStainless steel chain (1/2 and 1 ton only)
ËStainless steel bottom hook
ËStainless steel chain container
ËStainless steel chain hook (1/2 and 1 ton only)
Shall be CLEVELAND Mo el CH- _______ , Electric CHAIN HOIST
an MONORAIL SYSTEM. ____ ton capacity, motor riven Trolley
with special crown trea wheels, 8 feet per minute lifting spee ,
overloa protection, isk brakes,lifetime lubricate gears, impact
resistant Control Station, lifting Chain with safety-lock hook an
chain container.
Short Form Specifications

SECT. XIV PAGE 58
0907
Litho in USA
Cleveland Range reserves right of design improvement or modification, as warranted.
31 3/8" C
A
PLAN VIEW FRONT VIEW STAINLESS
6"
3 5/16" 3/8"
STEEL RAIL
41/2"
8 1/4"
15"
13 1/2"
1"
3 3/4"
3"
4 1/2"
9 1/4"
6 1/4"
CABLE REEL
B
UNIVERSAL BEAM CLAMP
HANGER ROD
9/16"
SIDE VIEW
2"
4"
2"
2"
END VIEW
2"
4"
2"
HANGER BRACKET
CLAMP AND HANGER ROD
FOR STAINLESS
HANGER BRACKET
STEEL RAIL
STRAIGHT LINE FESTOON CABLE SUPPORT
TAG-LINE WIRE
CABLE
TROLLEYS
FESTOON CABLE
BOX
JUCTION
CABLE
STRUCTURE TO MOUNT
CABLE REEL NOT SUPPLIED
BY CLEVELAND RANGE
BY CLEVELAND RANGE
STRUCTURE I BEAM NOT SUPPLIED
CABLE REEL
CEILING MOUNTED
CABLE REEL
345°
PIVOT BASE
PIVOT BASE
345°
'C' TRACK SUPPORTS
STAINLESS STEEL FESTOON
FESTOON 'C' TRACK
STAINLESS STEEL
18"
MONORAIL TRACK
CABLE TROLLEYS
STAINLESS STEEL
FESTOON CABLE
TOW ARM ON TROLLEY
FLAT RIBBON
TOW TROLLEY
STAINLESS STEEL
STAINLESS STEEL
HANGER ROD SPACING
SEE CHART BELOW
CURVED SECTION
SUPPORT
FESTOON CABLE
MOTORIZED HOIST
ROD
E ECTRIC SPACING
DIMENSIONS CAPACITY 208V-3PH STAIN ESS
MODE ABCTONS AMPS STEE RAI
CH-E-1005-M 8 3/4" 18 3/4" 18 1/8" 1/2 4.9 10’-0"
CH-H-101-M 8 3/4" 18 3/4" 18 1/2" 1 6.1 10’-0"
CH-R-102-M 12 11/16" 20 13/16" 21 15/16" 2 9.3 5’-0"
D 1D 2
B
(NOT TO SCALE)
