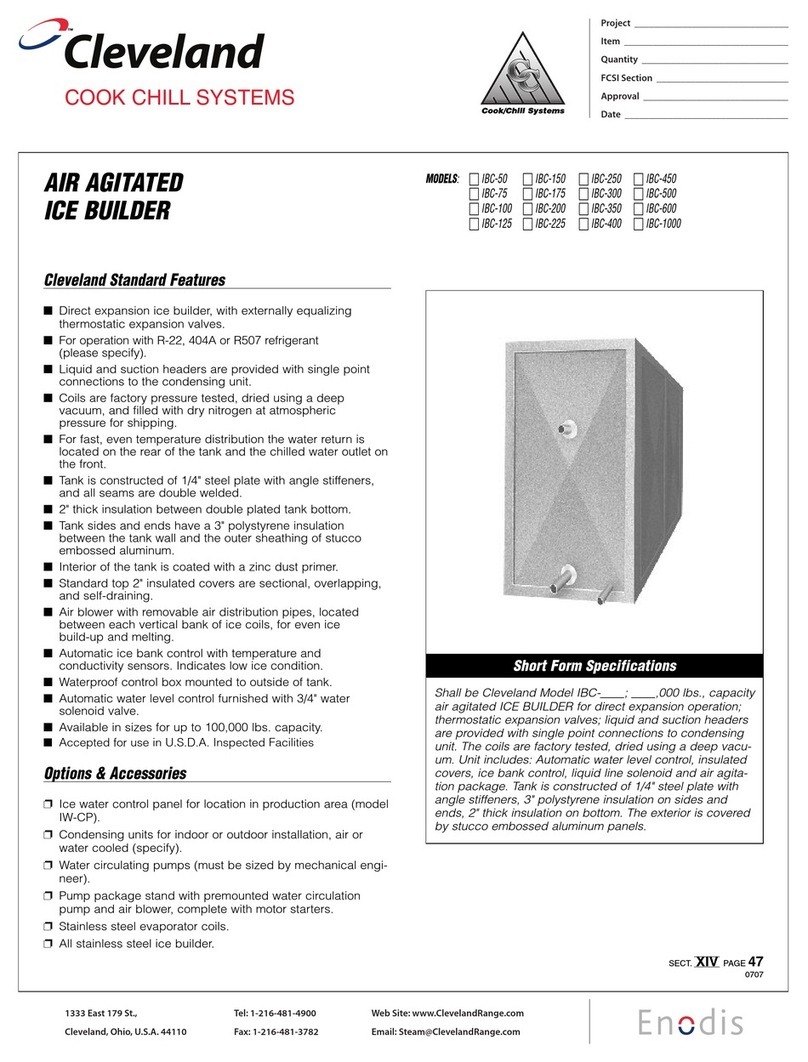

COOK CHILL SYSTEMS Cook/Chill S stems
SECT. XIV PAGE 47
0907
AIR AGITATED
ICE BUILDER
MODELS:IBC-50 IBC-150 IBC-250 IBC-450
IBC-75 IBC-175 IBC-300 IBC-500
IBC-100 IBC-200 IBC-350 IBC-600
IBC-125 IBC-225 IBC-400 IBC-1000
Cleveland Standard Features
IDirect expansion ice builder with externally equalizing
thermostatic expansion valves.
IFor operation with R-22 404A or R507 refrigerant
(please specify).
ILiquid and suction headers are provided with single point
connections to the condensing unit.
ICoils are factory pressure tested dried using a deep
vacuum and filled with dry nitrogen at atmospheric
pressure for shipping.
IFor fast even temperature distribution the water return is
located on the rear of the tank and the chilled water outlet on
the front.
ITank is constructed of 1/4" steel plate with angle stiffeners
and all seams are double welded.
I2" thick insulation between double plated tank bottom.
ITank sides and ends have a 3" polystyrene insulation
between the tank wall and the outer sheathing of stucco
embossed aluminum.
IInterior of the tank is coated with a zinc dust primer.
IStandard top 2" insulated covers are sectional overlapping
and self-draining.
IAir blower with removable air distribution pipes located
between each vertical bank of ice coils for even ice
build-up and melting.
IAutomatic ice bank control with temperature and
conductivity sensors. Indicates low ice condition.
IWaterproof control box mounted to outside of tank.
IAutomatic water level control furnished with 3/4" water
solenoid valve.
IAvailable in sizes for up to 100 000 lbs. capacity.
IAccepted for use in U.S.D.A. Inspected Facilities
Options & Accessories
ËIce water control panel for location in production area (model
IW-CP).
ËCondensing units for indoor or outdoor installation air or
water cooled (specify).
ËWater circulating pumps (must be sized by mechanical engi-
neer).
ËPump package stand with premounted water circulation
pump and air blower complete with motor starters.
ËStainless steel evaporator coils.
ËAll stainless steel ice builder.
Shall be Clevelan Mo el IBC-____; ____,000 lbs., capacity
air agitate ICE BUILDER for irect expansion operation;
thermostatic expansion valves; liqui an suction hea ers
are provi e with single point connections to con ensing
unit. The coils are factory teste , rie using a eep vacu-
um. Unit inclu es: Automatic water level control, insulate
covers, ice bank control, liqui line solenoi an air agita-
tion package. Tank is constructe of 1/4" steel plate with
angle stiffeners, 3" polystyrene insulation on si es an
en s, 2" thick insulation on bottom. The exterior is covere
by stucco embosse aluminum panels.
Short Form Specifications

SECT. XIV PAGE 48
0907
Litho in USA
Cleveland Range reserves right of design improvement or modification, as warranted.
FRONT VIEW
PLAN VIEW
RECOMMENDED
FLOOR SINK
W
LIQUID
H
24"
OUTLET
SUCTION
EXPANSION VALVE
REFRIGERANT
THERMAL
INLET
LIQUID
SUCTION
OUTLET
REFRIGERANT
INLET
ICE WATER OUTLET
D1
DRAIN
COLD CITY WATER
CONTROL BOX
WATER LEVEL
ICE BANK &
AIR BLOWER
L
INLET 1" NPT
D1 & D2
ICE WATER
RETURN
ICE WATER
RETURN
ICE WATER
OUTLET
MINIMUM C EARANCE
FRONT 36"
SIDE 24"
REAR 36"
DIMENSIONS
ICE OVERA OVERA OVERA TANK NO. OF
STORAGE TANK TANK TANK WATER AIR THERMA SHIPPING OPERATING
CAPACITY ENGTH WIDTH HEIGHT CAPACITY B OWER EXP. WEIGHT WEIGHT
MODE ( BS) WH(GA S) HP VA VES ( BS) ( BS)
IBC-50 5000 107" 69" 75" 1400 1/2 4 4470 16260
IBC-75 7500 122" 84" 75" 2150 1/2 5 5050 22900
IBC-100 10000 153" 84" 75" 2800 1 1/2 5 6500 29980
IBC-125 12500 153" 84" 90" 3150 1 1/2 5 9000 35150
IBC-150 15000 178" 84" 90" 3750 1 1/2 5 10500 42100
IBC-175 17500 173" 84" 105" 4350 3511500 47600
IBC-200 20000 194" 84" 105" 4950 3512750 54400
IBC-225 22500 184" 98" 105" 5550 3613250 59300
IBC-250 25000 201" 98" 105" 6100 3614750 66100
IBC-300 30000 236" 98" 105" 7250 3617250 78300
IBC-350 35000 236" 113" 105" 8450 3719500 90700
IBC-400 40000 206" 127" 120" 9550 3820250 100700
IBC-450 45000 228" 127" 120" 10700 3822500 112650
IBC-500 50000 381" 98" 105" 12100 5 12 28500 130400
IBC-600 60000 339" 113" 120" 14450 5 14 31000 152750
IBC-1000 100000 479" 127" 120" 23500 5 16 48500 246500
ICE WATER CONNECTIONS
IBC-50 to IBC-100 3"
IBC-125 to IBC-250 4"
IBC-300 to IBC-500 5"
IBC-600 6"
IBC-1000 8"
IQUID IN ET
IBC-50 to IBC-100 7/8"
IBC-125 to IBC-250 1 1/8"
IBC-300 to IBC-400 1 3/8"
IBC-500 (2) 1 1/8"
IBC-600 to IBC-1000 (2) 1 3/8"
SUCTION OUT ET
IBC-50 to IBC-75 1 3/8"
IBC-100 to IBC-175 2 1/8"
IBC-200 to IBC-250 2 5/8"
IBC-300 to IBC-450 3 1/8"
IBC-500 (2) 2 5/8"
IBC-600 to IBC-1000 (2) 3 1/8"
AIR B OWER IN ET
IBC-50 to IBC-75 3/4"
IBC-100 to IBC-200 1"
IBC-225 to IBC-450 1 1/2"
IBC-500 to IBC-1000 2"
OVERF OW
IBC-50 to IBC-1000 2"
DRAIN
IBC-50 to IBC-1000 3"
NOTES: LIQUID LINE SOLENOID VALVE, SIGHT GLASS AND AIR BLOWER SHIPPED LOOSE.
REGRIGERANT NOT SUPPLIED BY CLEVELAND RANGE.
(NOT TO SCALE)
D2
D1
