Clevo A110SUT User manual

I
Introduction (English)
This Concise User’s Guide introduces the main features
of your computer. The English version of this guide be-
gins on page 1. The expanded User’s Manual is on the
Device Drivers & Utilities + User’s Manual disc.
Einführung (Deutsch)
Dieses Ausführliche Benutzerhandbuch führt Sie in die
Hauptfunktionen des Computers ein. Die deutsche Ver-
sion des Handbuchs beginnt auf Seite 31. Das erweiterte
Benutzerhandbuch finden Sie auf der Disc für die Gerä-
tetreiber und Hilfsprogramme (Disc Device Drivers &
Utilities + User's Manual).
Présentation (Français)
Ce Guide Utilisateur Concis présente les fonctionnalités
principales de votre ordinateur. La version française de
ce guide commence à la page 61. Le Manuel de l'Utilisa-
teur étendu se trouve sur le disque de Pilotes & Utili-
taires + Manuel de l'Utilisateur (disque Device Drivers
& Utilities + User's Manual).
Introducción (Español)
Esta Guía del Usuario Concisa le presenta las caracterís-
ticas principales de su ordenador. La versión española de
esta guía comienza en la página 91. El Manual del usua-
rio completo se encuentra en el disco de Controladores
del dispositivo y Utilidades + Manual del usuario (disco
Device Drivers & Utilities + User's Manual).
Introduzione (Italiano)
La presente Guida Rapida per l'Utente introduce le carat-
teristiche principali del computer. La versione italiana di
questa guida inizia da pagina 121. Il Manuale utente
completo si trova nel disco contenente driver e utilità +
Manuale utente (disco Device Drivers & Utilities +
User's Manual).

II
Contents
About this Concise User Guide .........................................................1
Instructions for Care and Operation ..................................................2
System Startup ..................................................................................4
System Map: Front View ..................................................................5
System Map: Left & Right Views ....................................................7
HDMI-In Port ....................................................................................8
Tilting the Screen ............................................................................10
System Map: Rear View .................................................................11
Windows 8.1 Touch Screen Controls/Gestures ..............................12
Touch Keyboard ..............................................................................14
Windows 8.1 Control Panel ............................................................15
Windows 8.1 Start Screen & Desktop ............................................15
Apps & Tiles ...................................................................................16
Charms Bar .....................................................................................16
Video Features ................................................................................17
Audio Features ................................................................................18
Power Management Features ..........................................................19
PC Camera ......................................................................................20
Driver Installation ...........................................................................21
Wireless LAN Module (Option) .....................................................23
Bluetooth Module (Option) .............................................................25
Trusted Platform Module ................................................................26
Troubleshooting ..............................................................................28
Specifications ..................................................................................29
Inhalt
Über das Ausführliche Benutzerhandbuch ......................................31
Hinweise zu Pflege und Betrieb ......................................................32
Schnellstart ......................................................................................34
Systemübersicht: Ansicht von vorne ...............................................35
Systemübersicht: Ansicht von links & rechts .................................37
HDMI-Eingangsanschluss ...............................................................38
Neigen des Bildschirms ...................................................................40
Systemübersicht: Rückansicht .........................................................41
Touchscreen-Steuerung/Gesten bei Windows 8.1 ..........................42
Touch-Tastatur ................................................................................44
Windows 8.1 Systemsteuerung .......................................................45
Windows 8.1 Start-Bildschirm und Desktop ...................................45
Apps und Kacheln ...........................................................................46
Charms-Leiste .................................................................................46
Grafikfunktionen .............................................................................47
Audiofunktionen ..............................................................................48
Energieverwaltungsfunktionen ........................................................49
PC-Kamera ......................................................................................50
Installation der Treiber ....................................................................51
Wireless-LAN-Modul (Option) .......................................................53
Bluetooth-Modul (Option) ..............................................................55
TPM (Trusted Platform Module) ....................................................56
Fehlerbehebung ...............................................................................58
Technische Daten ............................................................................59

III
Sommaire
A propos de ce Guide Utilisateur Concis ........................................61
Instructions d’entretien et d’utilisation ...........................................62
Guide de démarrage rapide .............................................................64
Carte du système : Vue de face .......................................................65
Carte du système : Vues gauche & droite .......................................67
Port d’entrée HDMI ........................................................................68
Incliner l'écran .................................................................................70
Carte du Système : Vue Arrière ......................................................71
Commandes d'écran tactile/Gestes Windows 8.1 ...........................72
Clavier tactile ..................................................................................74
Panneau de Configuration de Windows 8.1 ....................................75
Écran d'accueil & bureau de Windows 8.1 .....................................75
Applications et Vignettes ................................................................76
Barre des charmes ...........................................................................76
Caractéristiques vidéo .....................................................................77
Caractéristiques audio .....................................................................78
Caractéristiques de gestion de l’alimentation .................................79
Caméra PC ......................................................................................80
Installation du pilote .......................................................................81
Module LAN sans fil (Option) ........................................................83
Module Bluetooth (Option) .............................................................85
TPM (Trusted Platform Module) ....................................................86
Dépannage .......................................................................................88
Spécifications ..................................................................................89
Contenidos
Acerca de esta Guía del Usuario Concisa .......................................91
Instrucciones para el cuidado y funcionamiento .............................92
Guía rápida para empezar ................................................................94
Mapa del sistema: Vista frontal .......................................................95
Mapa del sistema: Vistas izquierda & derecha ...............................97
Puerto de entrada HDMI .................................................................98
Inclinar la pantalla .........................................................................100
Mapa del sistema: Vista posterior .................................................101
Controles/gestos de pantalla táctil en Windows 8.1 ......................102
Teclado táctil .................................................................................104
Panel de Control de Windows 8.1 .................................................105
Pantalla Inicio y escritorio de Windows 8.1 .................................105
Apps y Mosaicos ...........................................................................106
Barra Charms .................................................................................106
Parámetros de vídeo ......................................................................107
Características de audio .................................................................108
Funciones de administración de energía .......................................109
Cámara PC .....................................................................................110
Instalación de controladores ..........................................................111
Módulo LAN Wireless (Opción) ...................................................113
Módulo Bluetooth (Opción) ..........................................................115
TPM (Trusted Platform Module) ..................................................116
Solución de problemas ..................................................................118
Especificaciones ............................................................................119

IV
Sommario
Informazioni sulla Guida Rapida per l'Utente ..............................121
Istruzioni per la custodia e il funzionamento ................................122
Guida di avvio rapido ....................................................................124
Descrizione del sistema: Vista anteriore .......................................125
Descrizione del sistema: Vista sinistra & destra ...........................127
Porta d'ingresso HDMI .................................................................128
Inclinazione dello schermo ...........................................................130
Descrizione del sistema: Vista posteriore .....................................131
Controlli e movimenti delle dita sul touch screen di
Windows 8.1 .................................................................................132
Tastiera touch ................................................................................134
Pannello di controllo di Windows 8.1 ...........................................135
Schermata Start e Desktop di Windows 8.1 ..................................135
App & Titoli ..................................................................................136
Charms Bar ...................................................................................136
Funzioni video ..............................................................................137
Funzionalità audio .........................................................................138
Funzioni di risparmio energetico ..................................................139
Camera PC ....................................................................................140
Installazione driver ........................................................................141
Modulo LAN Wireless (Opzione) ................................................143
Modulo Bluetooth (Opzione) ........................................................145
TPM (Trusted Platform Module) ..................................................146
Risoluzione dei problemi ..............................................................148
Specifiche tecniche .......................................................................149

1
English
About this Concise User Guide
This quick guide is a brief introduction to getting your system started. This is a supplement, and not a substitute for the
expanded English language User’s Manual in Adobe Acrobat format on the Device Drivers & Utilities + User’s Manual
disc supplied with your computer. This disc also contains the drivers and utilities necessary for the proper operation of
the computer (Note: The company reserves the right to revise this publication or to change its contents without notice).
Some or all of the computer’s features may already have been setup. If they aren’t, or you are planning to re-configure
(or re-install) portions of the system, refer to the expanded User’s Manual. The Device Drivers & Utilities + User’s
Manual disc does not contain an operating system.
Regulatory and Safety Information
Please pay careful attention to the full regulatory notices and safety information contained in the expanded User’s Man-
ual on the Device Drivers & Utilities + User’s Manual disc.
© October 2013
Trademarks
Intel, Intel Core, Pentium and Celeron are trademarks/registered trademarks of
Intel Corporation.

FCC Statement
This device complies with Part
15 of the FCC Rules. Operation
is subject to the following two
conditions:
1.This device may not cause
harmful interference.
2.This device must accept any
interference received, includ-
ing interference that may
cause undesired operation.

2
English
Instructions for Care and Oper-
ation
The computer is quite rugged, but it can be damaged. To
prevent this, follow these suggestions:
•Don’t drop it, or expose it to shock. If the computer falls, the
case and the components could be damaged.
•Keep it dry, and don’t overheat it. Keep the computer and
power supply away from any kind of heating element. This is an
electrical appliance. If water or any other liquid gets into it, the
computer could be badly damaged.
•Avoid interference. Keep the computer away from high capacity
transformers, electric motors, and other strong magnetic fields.
These can hinder proper performance and damage your data.
•Follow the proper working procedures for the computer. Shut
the computer down properly and don’t forget to save your work.
Remember to periodically save your data as data may be lost if
the battery is depleted.
• Note that in computer’s featuring a raised LCD electro-plated
logo, the logo is covered by a protective adhesive. Due to general
wear and tear, this adhesive may deteriorate over time and the
exposed logo may develop sharp edges. Be careful when handling
the computer in this case, and avoid touching the raised LCD
electro-plated logo. If any such wear and tear develops contact
your service center.
Power & Battery Safety
• Only use an AC/DC adapter approved for use with this computer.
• Use only the power cord and batteries indicated in this manual.
• Your AC/DC adapter may be designed for international travel but
it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service
representative or local power company.
• The AC/DC adapter may have either a 2-prong or a 3-prong
grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible
outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it
by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can sup-
port the total current load of all the connected devices.
• Only use batteries designed for this computer. The wrong battery
type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that
appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it
may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the computer’s system. Incorrect
recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair
or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged
battery. Always dispose of batteries carefully. Batteries may
explode or leak if exposed to fire, or improperly handled or dis-
carded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not dispose of batteries in a fire. They may explode. Check
with local codes for possible special disposal instructions.
• Do not touch the battery contacts with your hands or metal
objects.

3
English
Polymer Battery Precautions
Note the following information which is specific to poly-
mer batteries only, and where applicable, this overrides
the general battery precaution information.
• Polymer batteries may experience a slight expansion or swelling,
however this is part of the battery’s safety mechanism and is not a
cause for concern.
• Use proper handling procedures when using polymer batteries.
Do not use polymer batteries in high ambient temperature envi-
ronments, and do not store unused batteries for extended periods.
Cleaning
• Use a soft clean cloth to clean the computer, but do not apply
cleaner directly to the computer.
• Do not use volatile (petroleum distillates) or abrasive cleaners on
any part of the computer.
• Before cleaning the computer remove the battery and make sure
the computer is disconnected from any external power supplies,
peripherals and cables (including telephone lines).
Servicing
Attempting to service the computer yourself may violate
your warranty and expose you and the computer to electric
shock. Refer all servicing to qualified service personnel,
particularly under any of the following conditions:
• When the power cord or AC/DC adapter is damaged or frayed.
• If the computer has been exposed to any liquids.
• If the computer does not work normally when you follow the
operating instructions.
• If the computer has been dropped or damaged (do not touch the
poisonous liquid if the LCD panel breaks).
• If there is an unusual odor, heat or smoke coming from your com-
puter.

Battery Disposal & Caution
The product that you have purchased contains a recharge-
able battery. The battery is recyclable. At the end ofits use-
ful life, under various state and local laws, it may be illegal
to dispose of this battery into the municipal waste stream.
Check with your local solid waste officials for details in your
area for recycling options or proper disposal.
Danger of explosion if battery is incorrectly replaced. Re-
place only with the same or equivalent type recommended
by the manufacturer. Discard used battery according to the
manufacturer’s instructions.

4
English
System Startup
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Securely attach any peripherals you want to use with the computer (e.g. keyboard and mouse) to their ports.
4. Attach the AC/DC adapter to the DC-In jack at the rear of the LCD, then plug the AC power cord into an outlet, and connect the AC
power cord to the AC/DC adapter.
5. Push the power button at the front of the computer to turn the computer “on”.
Figure 1 - Computer with AC/DC Adapter Plugged-In/Power Button
System Software
Your computer may already come with system software pre-installed. Where this is not the case, or where you are re-
configuring your computer for a different system, you will find this manual refers to Microsoft Windows 8.1.
Power Button


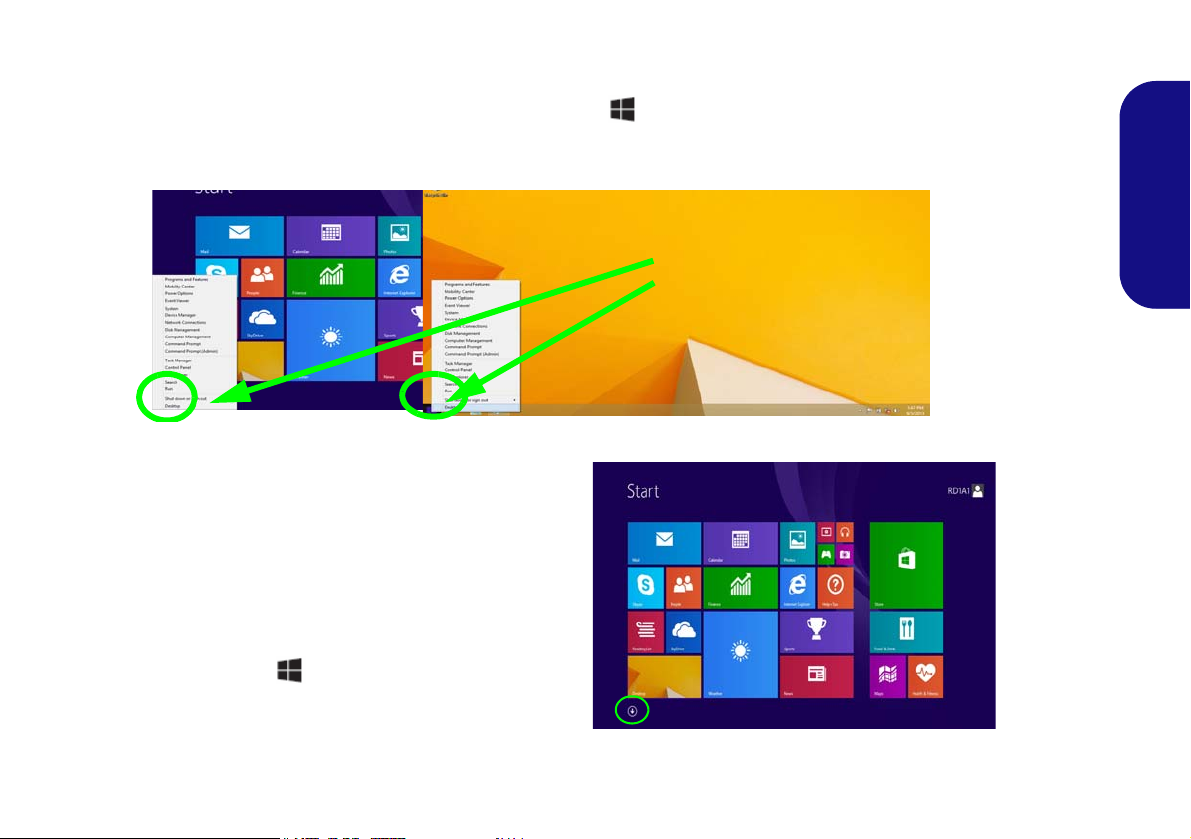

Shut Down
Note that you should always shut your computer down by
choosing the Shut down command in Windows (see be-
low). This will help prevent hard disk or system problems.
Click Settings in the Charms Bar (use the Windows Logo
Key + Ckey combination to access the Charms Bar)
and choose Shut down from the Power menu.
Or
Choose Shut down or sign out > Shut down from the
context menu (use the Windows Logo Key + Xkey
combination to access the context menu).

5
English
System Map: Front View
Figura 2 - Front View
1. Microphone
2. PC Camera
3. PC Camera LED
4. LCD (Model A)
LCD with Multi Touch
Screen (Model B)
5. Power Button
6. Function Buttons
7. LED Indicators
8. Speakers
4
31
5
2
768
8
5
76
4
31
5
2
768
8
Model A Model B

6
English
LED Indicators
The LED indicators on the computer display helpful infor-
mation about the current status of the computer.

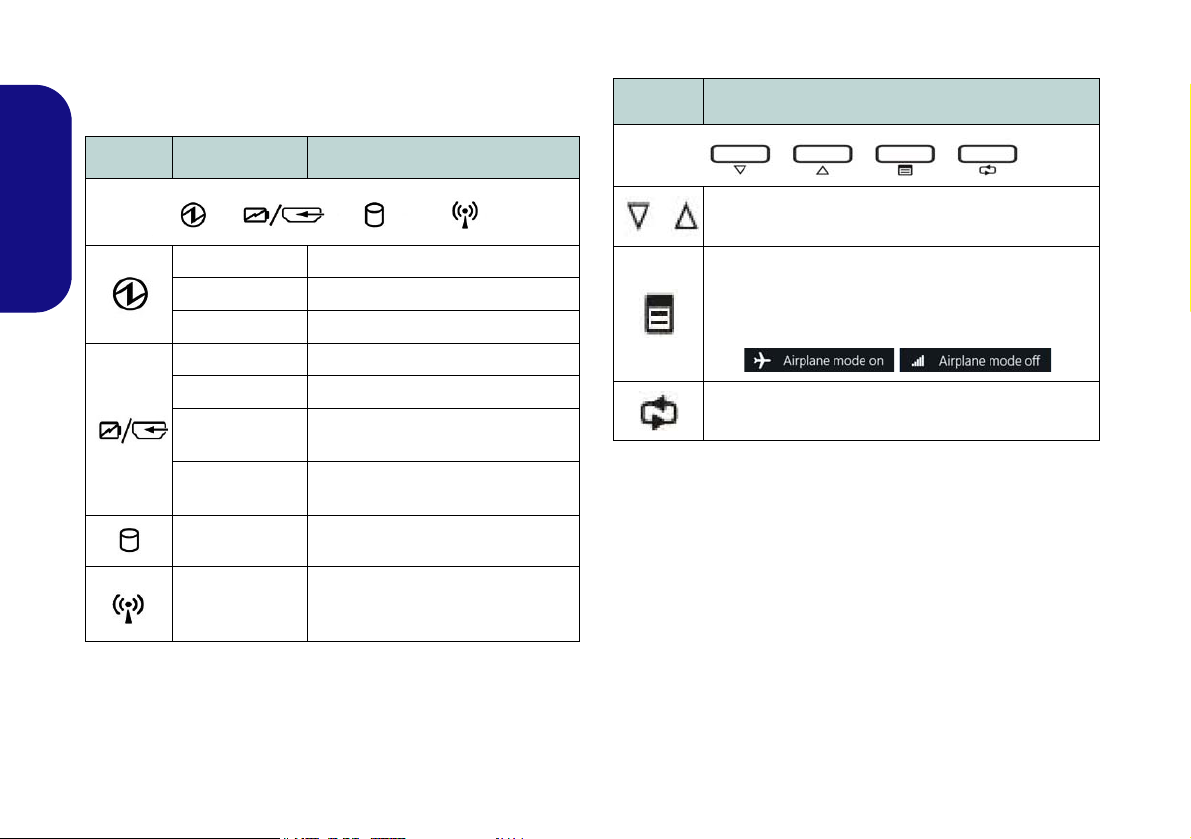

Table 1 - LED Indicators
Function Buttons
Table 2 - Function Buttons
Icon Color Description
Orange The AC/DC Adapter is Plugged in
Green The computer is On
Blinking Green The computer is in Sleep Mode
Orange The Battery is Charging
Blank The Battery is Fully Charged
Blinking Orange The Battery Has Reached Criti-
cally Low Power Status
Green HDMI Cable Plugged-In (if the
computer is off) - see page 8
Green System Activity
Green Airplane Mode is ON
(the WLAN & Bluetooth Modules
are OFF)
Icon Description
Decrease/Increase Buttons - Use the buttons to
decrease/increase the brightness
Menu Toggle - Use this button to bring up the on
screen menu when HDMI devices are plugged in
When no HDMI devices are plugged in this button
acts as an Airplane Mode switch
Mode Toggle - Use this button to toggle between
the computer and HDMI Input modes

7
English
System Map: Left & Right Views
1
2
3
4
56
4

Moving the Computer
We strongly recommend using both hands to move the
computer. You can use one hand to grip the computer by
the stand, and the other to hold the top of the LCD
screen.
It is recommended that you carry the computer with the
LCD facing your body to avoid scratching the surface
against other objects. However take care not to scratch
the LCD with any personal items, belt fittings or jewelry
etc.(one hand gripping the stand and the other gripping
the top of the computer to avoid accidentally dropping it).
USB 3.0 Port
The USB 3.0 ports are colored blue. USB 3.0 will
transfer data much faster than USB 2.0, and is back-
wards-compatible with USB 2.0.
Disc Emergency Eject
If you need to manually eject a disc (e.g. due to an unex-
pected power interruption) you may push the end of a
straightened paper clip into the emergency eject hole.
4
8
7
9
1110

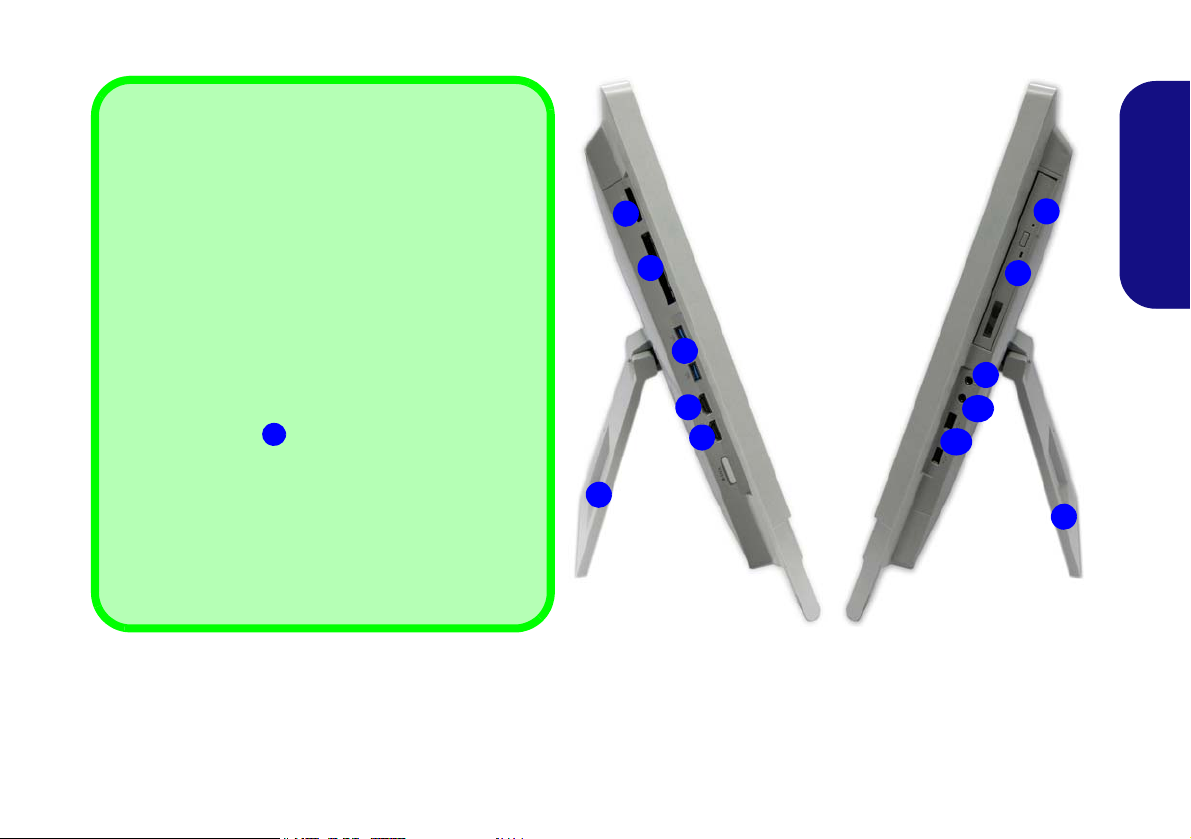

Figura 3 - Left & Right Views
1. Stand
2. Multi-in-1 Card Reader
3. ExpressCard Slot /54(34)
4. 2 * USB 3.0 Port
5. HDMI-In Port
6. HDMI-Out Port
7. Emergency Eject Hole
8. Optical Device Drive Bay
9. Headphone-Out Jack
10. Microphone-In Jack
11. 2 * USB 2.0 Port
1

8
English
HDMI-In Port
This computer features an HDMI (High-Definition Multimedia Interface)input port thatallows you to display external
sources such as Blu-ray players, DVDs, set top boxes and games consoles etc. on your computer screen.
The computer itself does not need to be powered on to display video and audio from external sources. As long as
the computer is plugged-in to a power source through the AC/DC adapter (the LED indicator will be orange if the
computer is plugged-in but powered off), simply plug-in the HDMI cable from the external device to the computer’s
HDMI-In port and the computer will act as the display device. If the computer is powered by battery then press the pow-
er button on the computer to turn the computer on to use the HDMI-In port.
Mode Toggle
Press & Hold the mode toggle button to switch between the computer and HDMI input modes. When the “Input
Source HDMI” is displayed you can use any HDMI device plugged in to the computer’s HDMI-In port. A quick press
of the button will toggle the display on/off.
The following table indicates the functions when an HDMI cable is plugged in to the HDMI-In port.
Table 3 - Mode Toggle Functions when HDMI Cable is Plugged-In
Computer Power
Status HDMI Icon Mode Toggle Button
(Press & Hold)
Mode Toggle Button
(Quick Press)
The computer is powered on (using
the AC/DC adapter/battery) Indicates battery charge status only Toggles between computer display and HDMI input Toggles the display on/off
The computer is powered off (but is
plugged in to the AC/DC adapter)
Green (when HDMI cable is plugged-in
and the Mode Toggle Button has been
pressed and held to select HDMI input)
Toggles between computer
display and HDMI input Toggles the display on/off

9
English
Menu Button
Press and hold the menu button when an HDMI device is connected to the HDMI-In port to bring up the on screen
menu. This menu allows you to adjust the Luminanace, Color, Volume, On ScreenDisplay, and interface Language.
Use the decrease/increase buttons to move up and down the menus, use the menu button to select an item and
use the decrease/increase buttons to make adjustments.

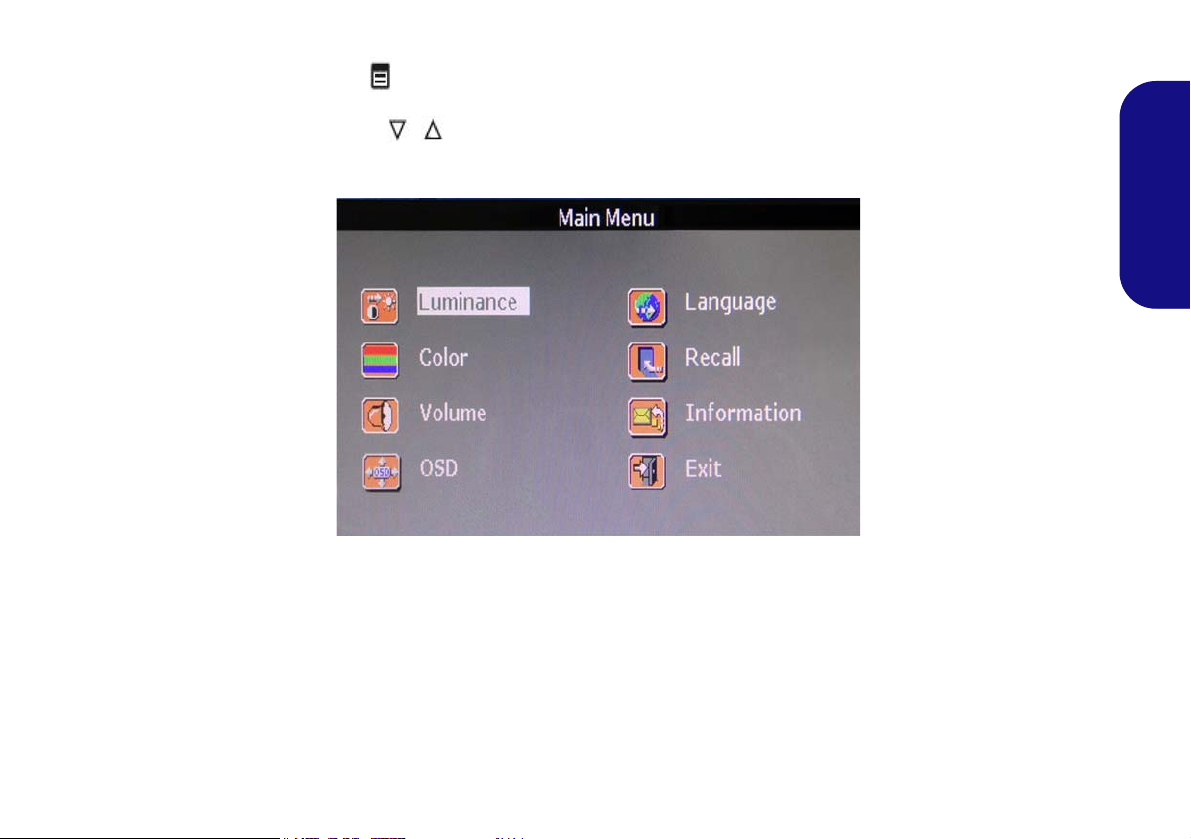

Figure 4 - Main Menu (If HDMI Device is Connected)

10
English
Tilting the Screen
It is possible to tilt the LCD screen in order to get the best
possible viewing angle of the screen without glare etc.
1. Place one hand at the top of the computer , and use the
other to open the stand to an angle of around 15 degrees
from the vertical position (the stand will allow you to adjust to
the appropriate angle if you pull it out and let it spring back).
Figure 5 - Adjusting the Stand
2. Apply pressure with one hand at the top (at point ) of the
computer (while holding on to the side with the other hand) to
carefully push the LCD screen down in order to tilt it to the
appropriate viewing angle (up to 50 degrees from the vertical
position).
3. Use one hand at the top of the computer (while holding on to
the side with the other hand) to move the computer back to the
original position.
Figure 6 - Tilting the Screen
1
2
Adjust the stand to
tilt the computer to
15° from the vertical
position.
15°
1
2
3

DVD Operation
Note that although the com-
puter may be tilted up to an
angle of 50 degrees from
the vertical position, the
DVD-ROM drive will only
work (i.e continue to spin
and read DVDs) up until an
angle of around 35 degrees
from the vertical position.
If you have any problems
with the system reading
DVDs, adjust the tillt angle
accordingly.
Apply pressure
from the top of
the screen to ad-
just the stand
outwards (up to
50° from the ver-
tical position).
50°
50°
3

11
English
System Map: Rear View
1
3
28
3
4
5
Figure 7 - Rear View
1. Rear Component Cover
2. Stand
3. Vent
4. Carrying Handle Area
5. USB Wireless Transceiver
Cover
6. Security Lock Slot
7. Battery (Optional)
8. External Monitor Port
9. RS-232 Serial (COM) Port
10. PS/2 Port (keyboard)
11. PS/2 Port (mouse)
12. DC-In Jack
13. 2 * USB 2.0 Ports
14. RJ-45 LAN Jack
7
10
12
6
13 14
9

Overheating
To prevent your computer from
overheating make sure nothing
blocks the vent while the comput-
er is in use.
Wall Mounting Information
The computer may be mounted on
a wall for display. The system
meets VESA (FDMI) Standard
(100mm * 100mm) for wall mount-
ing. However if you intend to wall
mount the system please contact
your service center for information
in order to avoid personal injury,
or damage to the computer.
USB Port for Wireless
Transceiver
Note that the USB port for the
wireless transceiver is designed
specifically for a USB dongle for
an RF Keyboard & Mouse kit (not
supplied with this model).
Do not use any other USB devices
in this port.
11

12
English
Windows 8.1 Touch Screen Controls/Gestures
Model B computers incorporate a Touch Screen and this can be used to navigate through he interface in much the same
way as a mouse, touchpad and keyboard. The following gestures are useful when navigating the Windows 8.1 interface.
•Swipe from the right (Access the Charms Bar) - Pull your finger from the right side of the screen (in the black
area) to the left a little bit to bring up the Charms Bar.
Figure 8 - Swipe from Right & Left
•Swipe from the left (Switch apps) - If multiple apps are running you can slide your finger from the left side of the
screen (in the black area) to the right to switch between apps.
•Swipe slowly from the left (Snap apps) - Perform the same action above more slowly, to drag one app out and dis-
play it side-by-side with the app that was already on your screen.
•Swipe from left and back (Display running apps) - Slide your finger from the left and quickly drag it back
towards the right to display a list of apps that are currently running. Tap any app to switch to it.
•Pull down from the top (Close app) - Close any running app by starting at the top area of the screen and quickly
pulling your finger about halfway down the screen.

13
English
•Swipe down/up (All Apps menu) - Swiping the finger a little bit down from the top, or up from the bottom of the
Start screen will bring up the menu with the All Apps icon. Tap the All Apps icon to access the apps.
Figure 9 - Swipe Up and Tap, Hold & Release (Desktop Right-Click)
•Swipe down on an item (Select/right-click) - Swipe down on any tile in the Start screen to select it and bring up
additional options.
•Tap, Hold & Release (Desktop right-click) - Tap the Desktop, hold until a square icon appears, and then release
to access the right click menu.

14
English
Touch Keyboard
(Model B only)
If you need to type on screen then the Touch Keyboard
will pop up when required (e.g. when you need to type in
an internet URL address in Internet Explorer). When the
Touch Keyboard is displayed you have several display/in-
put options and these can be accessed from the icon
at the bottom right of the keyboard.
To access the Touch Keyboard from the Desktop App
click/tap the keyboard icon in the taskbar .
Figure 10 - Touch Keyboard
The Touch Keyboard allows you to input text without the
use of an actual keyboard, and you can use writing pad to
write (continuously or one character at a time) or Touch
Keyboard to input text. Use the Help menu for further in-
formation.
Figure 11 - Touch Keyboard, Writing Pad Input & Help
Touch Keyboard Desktop App taskbar Icon
Select Keyboard or Writing Pad Input
Click Help

15
English
Windows 8.1 Control Panel
Throughout this manual you will see an instruction to open the Control Panel. Right-click the Start button in the
Desktop app or Start screen (or use the Windows Logo Key + X key combination) to bring up an advanced context
menu of useful features such as Control Panel, Programs and Features, Power Options, Task Manager, Search, File Ex-
plorer, Command Prompt, Device Manager and Network Connections etc. and then select Control Panel.
Windows 8.1 Start Screen &
Desktop
The Apps, control panels, utilities and programs within
Windows are accessed from the Start screen and/or
Windows Desktop app. The Desktop (which runs as an
app within the Start screen) can be accessed by clicking
the Desktop item in the Start screen (or by using the
Windows Logo Key + D key combination). Click
the arrow at the bottom of the Start screen to access Ap-
ps.
Move the mouse to
the bottom left of the
screen and right-click
the Start button to ac-
cess the menu. Figure 12
Context
Menu
Figure 13
Start
Screen
