Clevo L295N User manual

Preface
I
Preface
LCD Computer
L295N/L297N Series
Service Manual

Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
October 2006
Trademarks
Intel®, Celeron and Intel®Core are registered trademarks of Intel Corporation.
Windows®is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective companies.

Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the L295N/
L297N computer.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams

Preface
IV
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD
This describes the computer’s features and the procedures for operating the computer and its ROM-based setup program.
It also describes the installation and operation of the utility programs provided with the computer.

Preface
V
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
System Specifications .....................................................................1-2
External Locator - Front View ........................................................1-5
External Location - Left & Right Side Views .................................1-6
External Locator - Rear View .........................................................1-7
Mainboard Overview - Top (Key Parts) .........................................1-8
Mainboard Overview - Bottom (Key Parts) ....................................1-9
Mainboard Overview - Top (Cable Connectors & Switches) .......1-10
Mainboard Overview - Bottom (Cable Connectors & Switches) .1-11
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Disassembly Steps ...........................................................................2-4
Removing the Hard Disk Drive Assembly ......................................2-5
Removing the LCD Back Cover .....................................................2-6
Removing the System Memory .......................................................2-7
Removing and Installing the Processor ...........................................2-8
Removing the Modem ...................................................................2-11
Removing the Wireless LAN Module ...........................................2-12
Removing the Bluetooth Module ..................................................2-13
Removing the Floppy Disk Drive Assembly ................................2-14
Removing the Optical Device Assembly ......................................2-15
Part Lists ..................................................A-1
Part List Illustration Location ........................................................A-2
L295N - Base .................................................................................A-3
L295N - Bracket (AU) ...................................................................A-4
L295N - Front ................................................................................ A-5
L295N - Front - Touch Screen ....................................................... A-6
L295N - Combo Drive ................................................................... A-7
L295N - DVD-RW Drive .............................................................. A-8
L295N - FDD ................................................................................. A-9
L295N - HDD .............................................................................. A-10
L297N - Base ............................................................................... A-11
L297N - Bracket (Chi-Mei) ......................................................... A-12
L297N - Bracket - TouchScreen (AU) ........................................ A-13
L297N - Bracket - TouchScreen (Chi-Mei) ................................. A-14
L297N - Front .............................................................................. A-15
L297N - Combo Drive ................................................................. A-16
L297N - DVD-RW Drive ............................................................ A-17
L297N - FDD ............................................................................... A-18
L297N - HDD .............................................................................. A-19
Schematic Diagrams................................. B-1
System Block Diagram ...................................................................B-2
Clock Generator ..............................................................................B-3
Yonah CPU - 1 of 2 ........................................................................B-4
Yonah CPU - 2 of 2 ........................................................................B-5
Calistoga 1/5 Host ...........................................................................B-6
Calistoga 2/5 ...................................................................................B-7
Calistoga 3/5 DDR ..........................................................................B-8
Calistoga 4/5 ...................................................................................B-9
Calistoga 5/5 POWER ..................................................................B-10
DDRII RIMM ...............................................................................B-11
Chrontel CH7308 ..........................................................................B-12
LCD Connector .............................................................................B-13
VGA Interface ...............................................................................B-14
ICH7-M 1/4 (SATA) ....................................................................B-15

Preface
VI
Preface
ICH7-M 2/4 (PCI, USB) .............................................................. B-16
ICH7-M 3/4 (FWH) ..................................................................... B-17
ICH7-M 4/4 .................................................................................. B-18
CD-ROM, Ext USB, Mini PCI ..................................................... B-19
MDC, Mini Card, USB2.0, BT .................................................... B-20
LAN RTL8110SBL ...................................................................... B-21
TI PCI7412 ................................................................................... B-22
PCM Socket, 3-in-1 Socket .......................................................... B-23
Azalia CODEC ALC883 & MDC ................................................ B-24
H8 ................................................................................................. B-25
COM Port, Fan, Parallel Port ....................................................... B-26
Super I/O PC87392, FDD ............................................................ B-27
VDD3, VDD5, 3.3V, 5V .............................................................. B-28
1.5VS, 1.05VS, 2.5VS .................................................................. B-29
AC-IN, 1.8V, 0.9VS ..................................................................... B-30
VCORE ........................................................................................ B-31
12VS ............................................................................................. B-32
Button Board for L295N .............................................................. B-33
Button Board for L297N .............................................................. B-34
CD-ROM Board for L295N ......................................................... B-35
CD-ROM Board for L297N ......................................................... B-36
USB Board ................................................................................... B-37
CardReader Board ........................................................................ B-38
Screw Hole ................................................................................... B-39

Introduction
Overview 1 - 1
1.Introduction
1: Introduction
Overview
This manual covers the information you need to service or upgrade the L295N/L297N LCD computer. Information about
operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about drivers (e.g.
VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.
Operating systems (e.g. DOS, Windows 9x, Windows NT 4.0, Windows 2000, Windows XP, OS/2 Warp, UNIX, etc.) have
their own manuals as do application software (e.g. word processing and database programs). If you have questions about
those programs, you should consult those manuals.
The L295N/L297N LCD computer is designed to be upgradeable. See “Disassembly” on page 2 - 1 for a detailed de-
scription of the upgrade procedures for each specific component. Please note the warning and safety information indi-
cated by the “” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.

Introduction
1 - 2 System Specifications
1.Introduction
System Specifications
Feature Specification
Processor Types Intel® Core™ 2 Duo Processor
(478-pin) Micro-FC-PGA Package
T7200/ T7400/ T7600
65nm (65 Nanometer) Process Technology
4MB On-die L2 Cache & 667MHz FSB
2.0/ 2.16/ 2.33 GHz
Intel® Core™ 2 Duo Processor
(478-pin) Micro-FC-PGA Package
T5500/ T5600
65nm (65 Nanometer) Process Technology
2MB On-die L2 Cache & 667MHz FSB
1.66/ 1.83 GHz
Intel® Core™ Duo Processor
(478-pin) Micro-FC-PGA Package
T2300/ T2400/ T2500/ T2600/ T2700
65nm (65 Nanometer) Process Technology
2MB On-die L2 Cache & 667MHz FSB
1.66/ 1.83/ 2.0/ 2.16/ 2.33 GHz
Intel® Core™ Solo Processor
(478-pin) Micro-FC-PGA Package
T1300/ T1400
65nm (65 Nanometer) Process Technology
2MB On-die L2 Cache & 667MHz FSB
1.66/ 1.83 GHz
Intel® Celeron® M Processor
(478-pin) Micro-FCPGA Package
410/ 420/ 430/ 440/ 450
65nm (65 Nanometer) Process Technology
1MB On-die L2 Cache & 533MHz FSB
1.46/ 1.60/ 1.73/ 1.86/ 2.0 GHz
Core Logic Intel 945GM + ICH7-M

Latest Specification Information
The specifications listed in this Appendix are correct at the time of going to press. Certain items (particularly processor types/speeds
and CD/DVD device types) may be changed or updated due to the manufacturer's release schedule. Check with your service center for
details.
Table 1 - 1
System
Specifications

Introduction
System Specifications 1 - 3
1.Introduction
LCD L295N
15.0" XGA Anti-Glare Type Flat Panel TFT (1024*768)
Touch Panel (Factory Option)
Hard Glass (Factory Option)
L297N
17.0" SXGA Anti-Glare Type Flat Panel TFT (1280*1024)
Touch Panel (Factory Option)
Hard Glass (Factory Option)
Security Security (Kensington® Type) Lock Slot BIOS Password
Memory Two 200 Pin SO-DIMM Sockets Supporting DDRII (DDR2) 533/667 MHz
64-bit Wide DDRII (DDR2) Data Channels
Memory Expandable up to 2GB (256/ 512/ 1024 MB DDRII Modules)
(Note: Do Not Use Other Module Types)
Video Controller Intel 945GM Integration
Intel® Graphics Media Accelerator 950 (Intel® GMA 950)
Dynamic Video Memory Technology DVMT - Supports up to 224MB of Video Memory (dynamically allocated from
system memory where needed)
BIOS 4MB Flash ROM Phoenix BIOS
Storage One 3.5”, 25.4mm (h) Hard Disk (HDD) with SATA (Serial) Interface
One 3.5", 1.44MB 3-Mode Floppy Disk Drive
One changeable 12.7mm(h) Optical Device (CD/DVD) Type Drive (see “Optional” on page 1 - 4 for drive options)
Audio Intel AZALIA High Definition Audio Interface
3D Stereo Enhanced Sound System
Sound-Blaster PRO™ Compatible
2 * Built-In Speakers
Built-In Microphone, Line-In & Headphone Jacks
Keyboard Multi-language External Keyboard (Option)
PC Card Sockets Supports One Type II PCMCIA Slot (Cardbus Support)
Card Reader Embedded 7-in-1 Card Reader (SD/ MMC/ MS/ MS PRO/ MS Duo/ Mini SD/ RSMMC)
Interface One Serial Port
One Parallel Port
One External Monitor Port
One Headphone-Out Jack
One Microphone-In Jack
One Line-In Jack
Four USB 2.0 Ports
One RJ-45 Jack for LAN
One RJ-11 Jack for Modem
One AC-In Jack
One IEEE 1394a Port (Un-Powered)
Feature Specification

Introduction
1 - 4 System Specifications
1.Introduction
Communication 1GB PCIe Ethernet LAN
MDC 56K Fax Modem - V.90 & V.92 Compliant
Intel PRO/Wireless 3945ABG PCIe Interface Wireless LAN Module (Optional)
802.11 b/g Wireless LAN Module (Optional)
USB (2.0) Bluetooth Module (Factory Option)
Power
Management
Supports ACPI 2.0 Supports Wake On Modem Ring
Supports Wake On LAN
Power Full Range - 90W Built-in AC adapter
Environmental
Spec
Temperature
Operating: 5°C ~ 35°C
Non-Operating: -20°C ~ 60°C
Relative Humidity
Operating: 20% ~ 80%
Non-Operating: 10% ~ 90%
Dimensions &
Weight
L295N
369mm (W) * 188mm (D) * 384mm (H)
8.2Kg+/- 5% With Touch Screen
7.9Kg+/- 5% Without Touch Screen
Tilt (0-15 deg), Swivel (270 deg)
L297N
395mm (W) * 179mm (D) * 418mm (H)
10.1Kg+/- 5% With Touch Screen
9.8Kg+/- 5% Without Touch Screen
Tilt (0-15 deg), Swivel (270 deg)
Optional Optical Drive Module Options:
Combo Drive Module
DVD-Dual Drive Module
DVD Super Multi Drive Module
Touch Panel (Factory Option)
Hard Glass (Factory Option)
Intel PRO/Wireless 3945ABG PCIe Interface Wireless
LAN Module
802.11 b/g Wireless LAN Module
USB (2.0) Bluetooth Module (Factory Option)
Feature Specification

Introduction
External Locator - Front View 1 - 5
1.Introduction

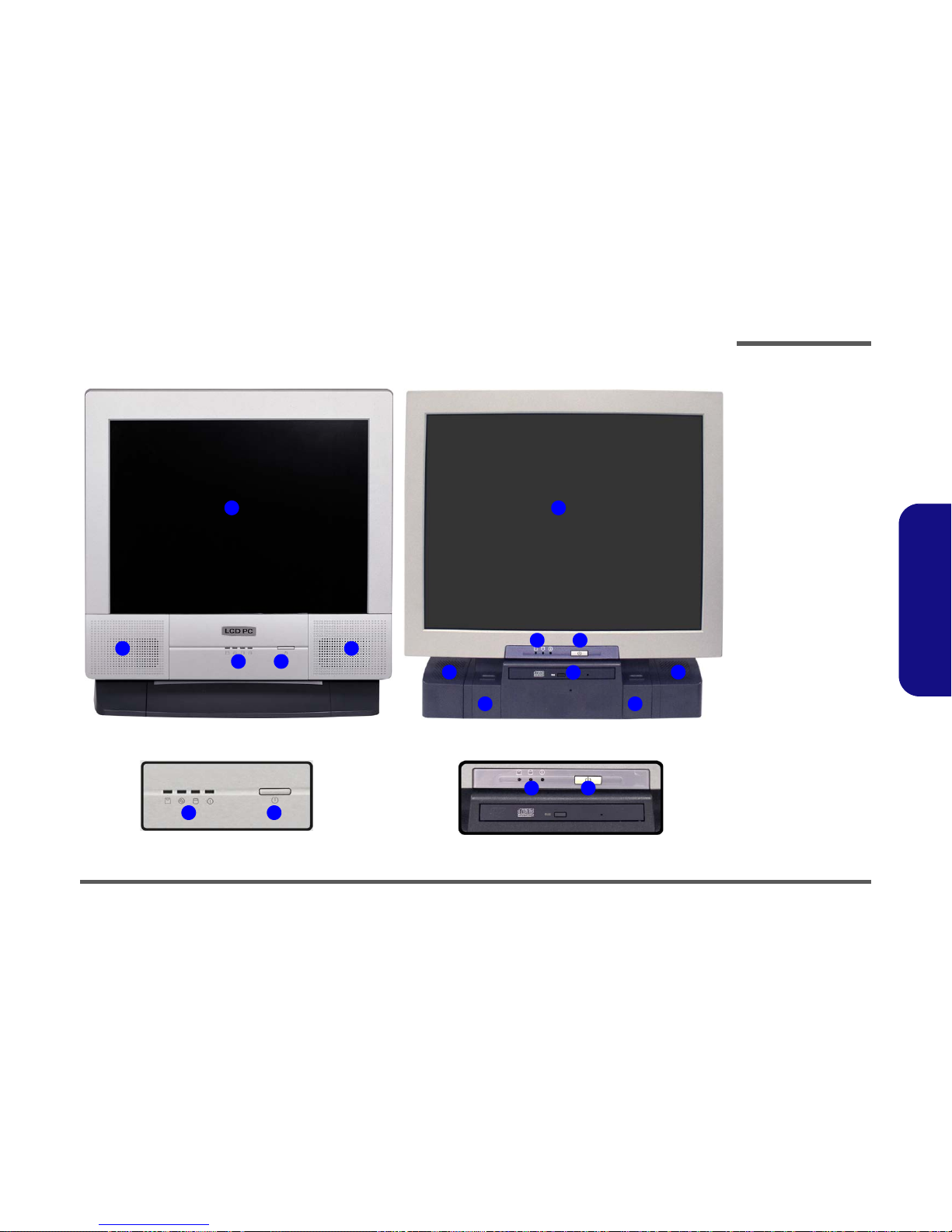

External Locator - Front View
1
2
4
2
3
43
1
2
4
2
3
43
5
66
L295N L297N
Figure 1 - 1
Front View
1. LCD Panel
2. Speakers
3. LED Activity
indicators
4. Power Button
5. Optical (CD/
DVD) Device
Bay (L297N
only)
6. Keyboard Holder
(L297N only)

Introduction
1 - 6 External Location - Left & Right Side Views
1.Introduction
External Location - Left & Right Side Views
Figure 1 - 2
Left & Right Views
1. Floppy Disk
Drive*
2. Vent
3. Hard Disk Drive
(HDD) Bay
4. CD Device
(L295N only)
5. LCD Brightness
Control Knob
6. Volume Control
Knob
7. Dual PC Card
Slots
8. PC Card Eject
Buttons
9. 7-in-1 Card
Reader
10. 2* USB Ports
11. AC Power-In Port
12. Security Lock
Slot
2
8
7
3
11
2
5
6
9
2
11
10
L295N L297N L295N L297N
2
3
4
5
6
12
8
79
11
10
12
Left Right

Introduction
External Locator - Rear View 1 - 7
1.Introduction

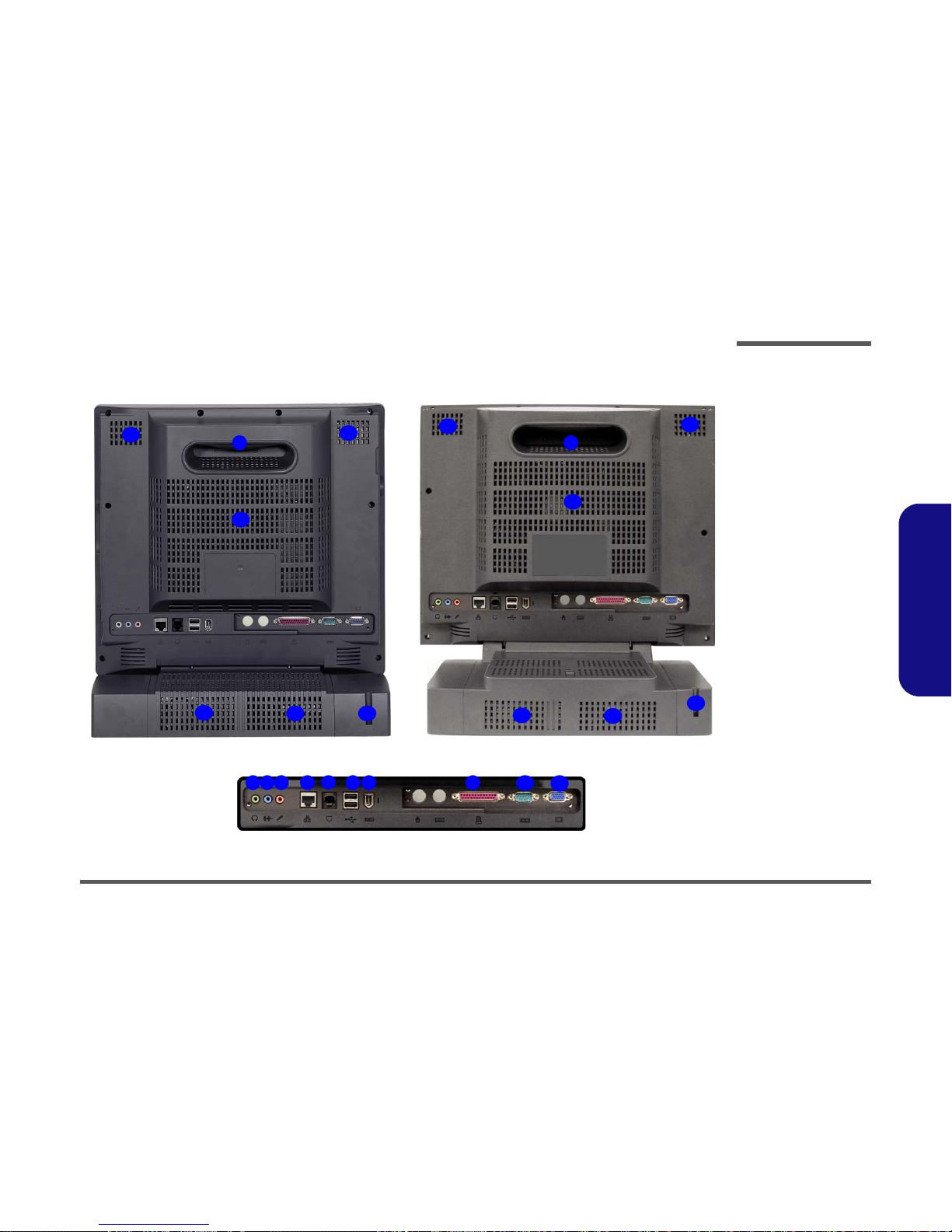

External Locator - Rear View
Figure 1 - 3
Rear View
1. Carrying Handle
2. Headphone-Out
Jack
3. Line-In Jack
4. Microphone-In
Jack
5. RJ-45 LAN Jack
6. RJ-11 Phone
Jack
7. 2* USB Ports
8. Unpowered -
IEEE 1394 Port
9. Printer/Parallel
Port
10. Serial Port
11. External Monitor
Port
12. Vents
13. Hard Disk Bay
Screw
1
4 5 6
12
2 3 87
12
10 11
13
12 12
9
112
12
12
12 12
L295N L297N
13
13

Introduction
1 - 8 Mainboard Overview - Top (Key Parts)
1.Introduction

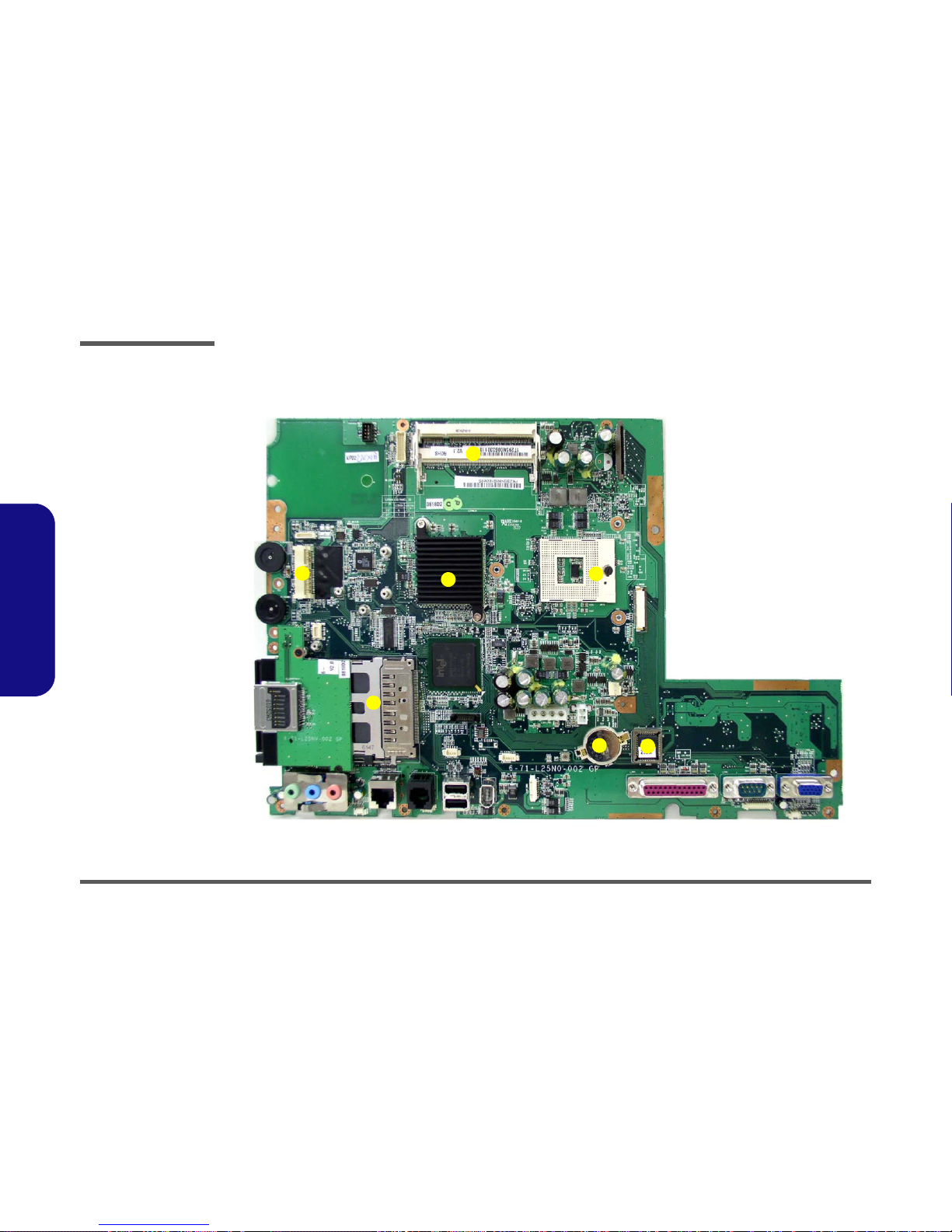

Mainboard Overview - Top (Key Parts)
Figure 1 - 4
Mainboard Over-
view - Top
Key Parts
1. CPU Socket (no
CPU Installed)
2. Intel 945GM
(North Bridge)
3. RAM Sockets
4. Mini Card
Socket for
WLAN
5. FLASH BIOS
6. CMOS Battery
7. Cardbus
PCI7412
5
6
7
41
3
2

Introduction
Mainboard Overview - Bottom (Key Parts) 1 - 9
1.Introduction
Mainboard Overview - Bottom (Key Parts)
Figure 1 - 5
Mainboard Over-
view - Bottom
Key Parts
1. Chrontel CH7308
2. Clock Generator
3. Intel ICH7-M 652
mBGA (South
Bridge)
4. SUPER I/O
Winbond
PC87392
5. AZALIA MDC
Module
45
3
1
2

Introduction
1 - 10 Mainboard Overview - Top (Cable Connectors & Switches)
1.Introduction
Mainboard Overview - Top (Cable Connectors & Switches)
1
2
3
4
5
6
7
89
10
11 12
13
14 15
17
16
Figure 1 - 6
Mainboard Top
Cable Connectors &
Switches
1. CD/DVD Device
(CN7)
2. Floppy Disk Drive
(CN5)
3. CN35 (LCD
Connector)
4. Inverter (CN1)
5. BT Module
6. Modem Module
7. Card Reader
8. Speaker (CN31)
9. Modem Cable
(CN33)
10. PC CARD (CN13)
11. Touch Screen
(CN16)
12. IEEE1394 (CN36)
13. USB 2.0 (CN17)
14. LED Board
(CN30)
15. Speaker (CN32)
16. Power (CN12)
17. Fan Power (CN9)

Introduction
Mainboard Overview - Bottom (Cable Connectors & Switches) 1 - 11
1.Introduction
Mainboard Overview - Bottom (Cable Connectors & Switches)
1
Figure 1 - 7
Mainboard Bottom
Cable Connectors &
Switches

Introduction
1-12
1.Introduction
