Preface
I
Preface
Notebook Computer
4200/4200M/4600
Service Manual

Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is forreference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
December 2001
Trademarks
Intel®and Pentium®are registered trademarks of Intel Corporation.
Windows®is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and./or registered trademarks of their respective companies.

Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the Notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams
Appendix C, Updating the FLASH ROM BIOS
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

Preface
IV
Preface

Preface
I
Preface
Contents
Introduction ...........................................................1-1
Overview ............................................................................................................. 1-1
System Specifications ......................................................................................... 1-2
Processor .............................................................................................................1-2
Core Logic ........................................................................................................... 1-2
Memory ...............................................................................................................1-2
BIOS .................................................................................................................... 1-2
LCD ..................................................................................................................... 1-2
Display ................................................................................................................ 1-3
Audio ................................................................................................................... 1-3
Storage ................................................................................................................. 1-3
PC Card Sockets .................................................................................................. 1-3
Keyboard .............................................................................................................1-3
Interface ............................................................................................................... 1-4
Communication ................................................................................................... 1-4
Power Management ............................................................................................. 1-5
Power ................................................................................................................... 1-5
Indicator .............................................................................................................. 1-5
EMC & Safety ..................................................................................................... 1-5
S/W Certificate .................................................................................................... 1-5
Environmental Spec ............................................................................................ 1-5
Dimensions .......................................................................................................... 1-5
Weight ................................................................................................................. 1-6
Optional ............................................................................................................... 1-6

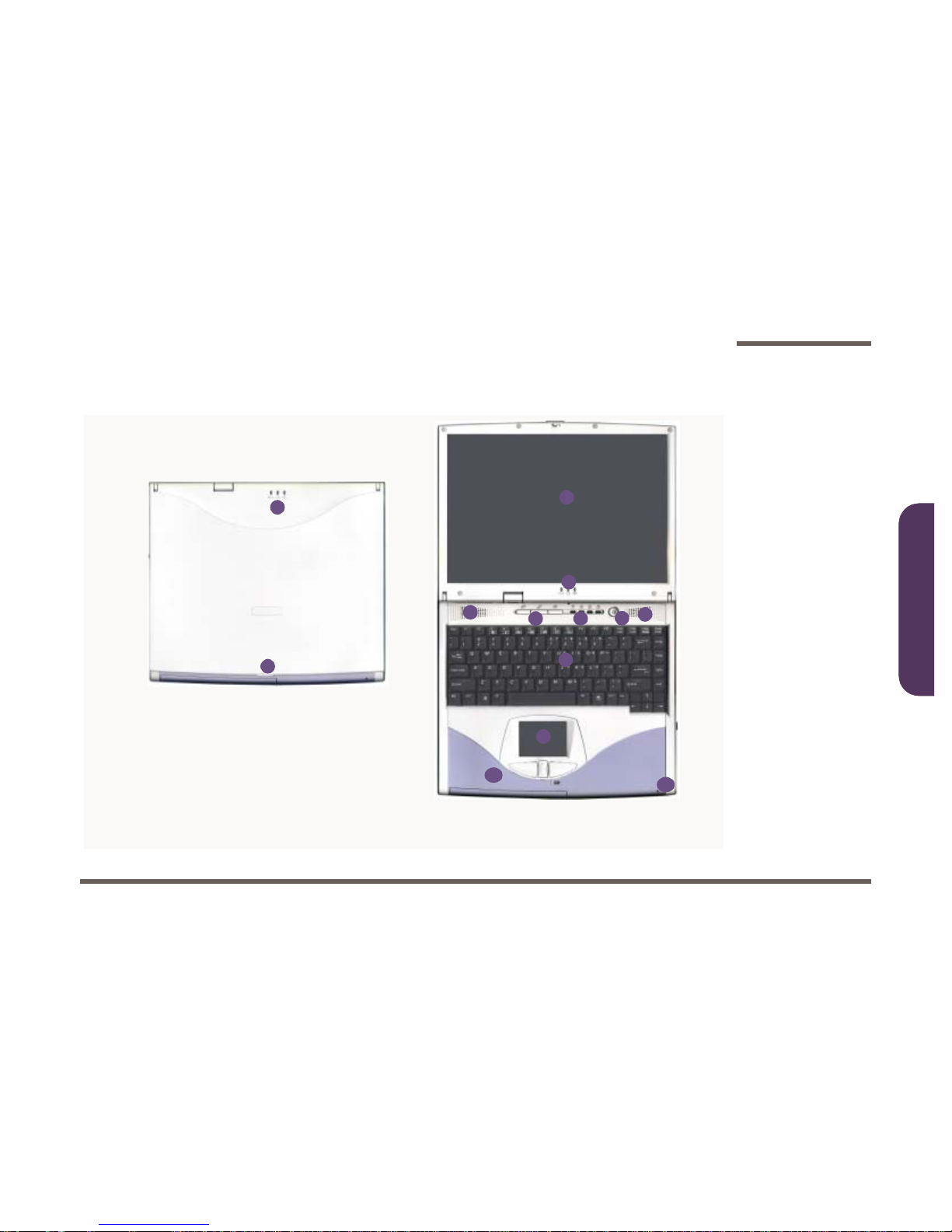

External Locator - Top View .............................................................................. 1-7
External Locator - Left & Right Side Views ...................................................... 1-8

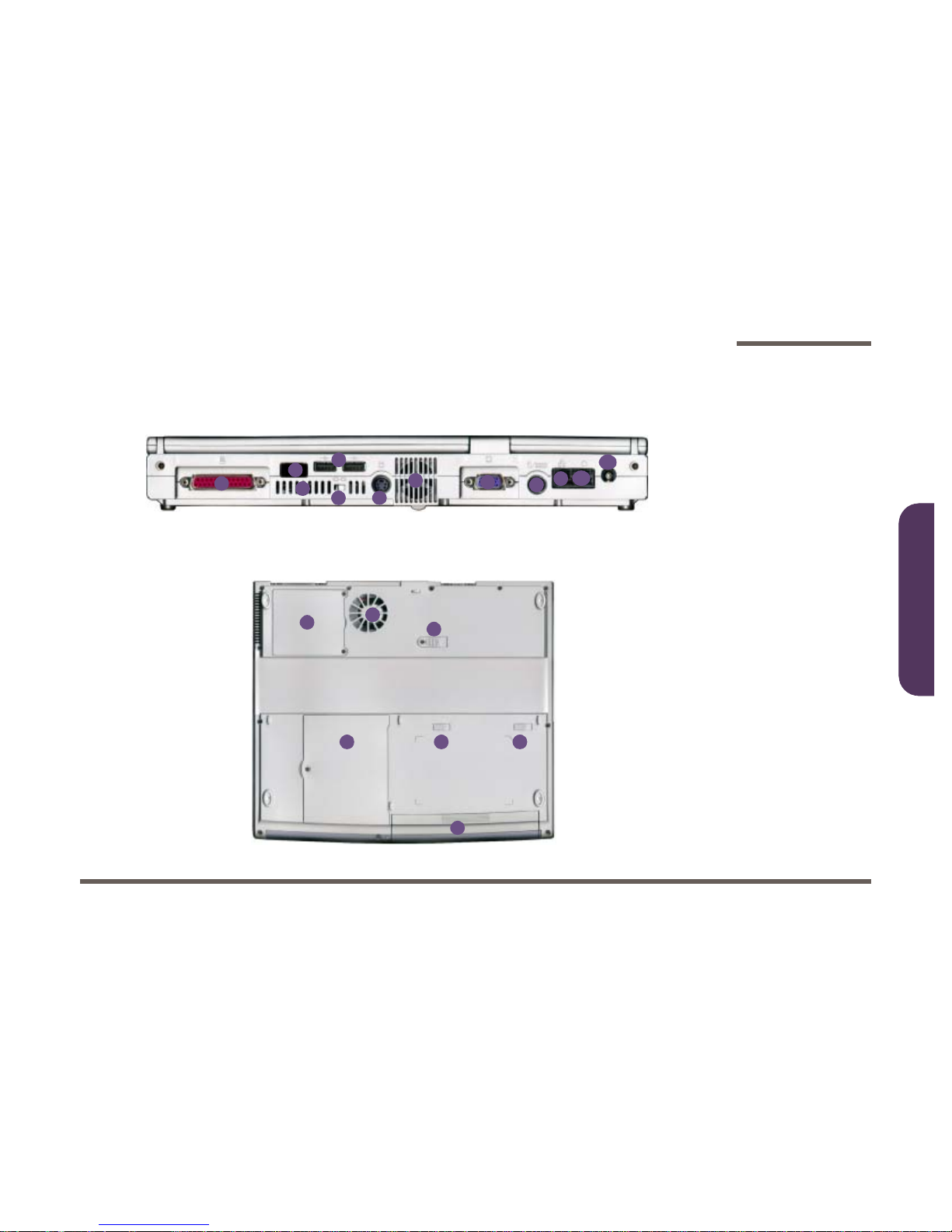

External Locator - Right Side & Bottom Views ................................................. 1-9

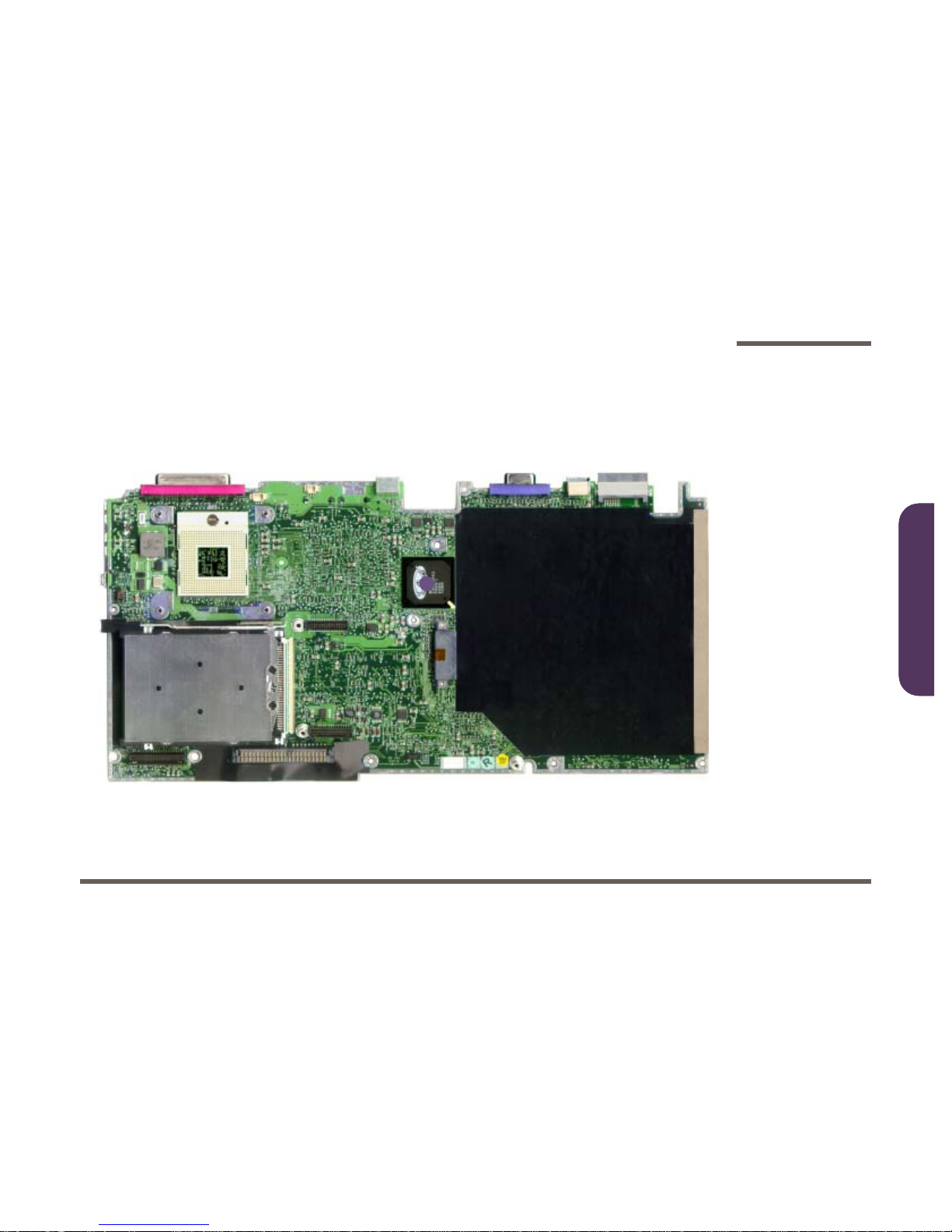

Mainboard Overview - Top ............................................................................... 1-10
Key Parts .......................................................................................................... 1-10

Preface
II
Preface
Mainboard Overview - Bottom ......................................................................... 1-11
Key Parts ........................................................................................................... 1-11
Mainboard Overview - Top ............................................................................... 1-12
Cable Connectors and Switches ........................................................................ 1-12
Mainboard Overview - Bottom ......................................................................... 1-13
Cable Connectors and Switches ........................................................................ 1-13
Disassembly ............................................................2-1
Overview ............................................................................................................. 2-1
Maintenance Tools .............................................................................................. 2-2
Connections ......................................................................................................... 2-2
Maintenance Precautions .................................................................................... 2-3
Cleaning ...............................................................................................................2-3
Disassembly Steps ............................................................................................... 2-4
Remove the Battery ............................................................................................. 2-9
Remove the Hard Disk Drive Assembly ........................................................... 2-10
Remove The Keyboard ..................................................................................... 2-11
Removing The System Memory ....................................................................... 2-12
Remove the CD-Device .................................................................................... 2-13
Remove the CPU ............................................................................................... 2-14
Remove the Modem .......................................................................................... 2-15
Remove the Top Case and LCD ........................................................................ 2-16
Remove the Inverter .......................................................................................... 2-18
Remove the Floppy Disk Drive Assembly ........................................................ 2-19
Remove the Battery Bracket ............................................................................ 2-19
Remove the Bottom Case and Audio Board ..................................................... 2-20
Remove the Fan Unit ........................................................................................ 2-21
Remove the PCMCIA assembly ....................................................................... 2-21
Remove the Power Board .................................................................................. 2-22
Part Lists ............................................................... A-1
Part List Illustration Location .............................................................................A-2

Preface
III
Preface
Top Assembly (4200) .........................................................................................A-3
Top Assembly (4200 - 15”) ................................................................................A-4
Bottom Assembly (4200) ....................................................................................A-5
LCD 14” (4200) ..................................................................................................A-6
LCD 15” (4200) ..................................................................................................A-7
Battery (4200) .....................................................................................................A-8
CD-ROM Drive (4200) .......................................................................................A-9
DVD-ROM Drive (4200) ..................................................................................A-10
CD-RW Drive (4200) .......................................................................................A-11
Combo Drive (4200) .........................................................................................A-12
Top Assembly (4200M) ....................................................................................A-13
Top Assembly (4200M - 15”) ...........................................................................A-14
Bottom Assembly (4200M) ..............................................................................A-15
LCD 14” (4200M) .............................................................................................A-16
LCD 15” (4200M) .............................................................................................A-17
Battery (4200M) ................................................................................................A-18
CD-ROM Drive (4200M) .................................................................................A-19
DVD-ROM Drive (4200M) ..............................................................................A-20
CD-RW Drive (4200M) ....................................................................................A-21
Combo Drive (4200M) .....................................................................................A-22
Top Assembly (4600) .......................................................................................A-23
Top Assembly (4600 15”) .................................................................................A-24
Bottom Assembly (4600) ..................................................................................A-25
LCD 14” (4600) ................................................................................................A-26
LCD 15” (4600) ................................................................................................A-27
Battery (4600) ...................................................................................................A-28
CD-ROM Drive (4600) .....................................................................................A-29
DVD-ROM Drive (4600) ..................................................................................A-30
CD-RW Drive (4600) .......................................................................................A-31
Combo Drive - KME (4600) .............................................................................A-32
Combo Drive - Toshiba (4600) .........................................................................A-33
Hard Disk Drive (4200, 4200M & 4600) ..........................................................A-34

Preface
IV
Preface
Floppy Disk Drive (4200, 4200M & 4600) ......................................................A-35
Schematic Diagrams ..............................................B-1
Mainboard ...........................................................................................................B-1
Inverter ..............................................................................................................B-28
Power Board ......................................................................................................B-29
Updating the FLASH ROM BIOS...................... C- 1

Introduction
Overview 1 - 1
1.Introduction
1: Introduction
Overview
This manual covers the information you need to service or upgrade the 4200/4200M/4600 Notebook Computer. Infor-
mation about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information
about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.
Operating systems (e.g. DOS, Windows 9x, Windows NT 4.0, Windows 2000, Windows XP, OS/2 Warp, UNIX, etc.) have
their own manuals as do application software (e.g. word processing and database programs). If you have questions about
those programs, you should consult those manuals.
The 4200/4200M/4600 notebook is designed to be upgradeable. See “Disassembly” on page 2 - 1 for a detailed descrip-
tion of the upgrade procedures for each specific component. Please note the warning and safety information indicated by
the “” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.

Introduction
1 - 2 System Specifications
1.Introduction
System Specifications
Processor
•Intel
®Mobile Pentium III-M 866 ~ 933MHz - 1.00 ~ 1.26 GHz
L2 Cache 512KB
•Intel
®Mobile Celeron 733 ~ 933MHz
L2 Cache 256KB
• Supporting µFC-PGA Package
0.13 Micron (Tualatin Process Technology)
Core Logic
•Intel®830MP “Almador-M” :
MCH= FW82830MP
ICH= MFW82801 (ICH3)
Memory
• Two SODIMM sockets
Supporting PC-133/PC-100 SDRAM
Expandable memory up to 1GB
64/128/256/512MB SO-DIMM modules supported
BIOS
• Phoenix BIOS
One 512KB Flash ROM
LCD
• 14.1” TFT XGA 1024x768, or 15.0” TFT SXGA+ 1400x1050

Introduction
System Specifications 1 - 3
1.Introduction
Display
• ATI M6-P Integrated AGP 4X
• Integrated 128-bit 2D / 3D Graphics Accelerator
Advanced HW Acceleration for DVD Playback (Motion Compensation engine and IDCT)
Fully DirectX 8 Compliant Graphics Engine
• External memory up to 32MB or 64MB of DDR SGRAM on board
• Supports dual-view Display Monitor
Audio
• AC’97 ver 2.2 Compliant Interface
3D stereo enhanced sound system
Compatible Sound-Blaster PRO
1 * SPDIF Digital output (5.1 CH) for DVD content
1* built-in microphone and 1* Headphone out
2 * speakers built-in
Storage
• 3.5” 3-mode FDD
• 2.5” 9.5 mm (h) HDD Easy changeable
• One Bay for optional CD-ROM (24X speed) 12.7mmH, OR 8X DVD-ROM (12.7mm), OR CD-RW, OR Combo
• Supports Master mode IDE, PIO mode 4 / ATA-33/66/100 (Ultra DMA)
PC Card Sockets
• PCMCIA 3.3V/5V/12V sockets, type II *2 or type III *1
• Supports Two CardBus slots (No Zoomed Video support available)
Keyboard
• Win key, Multi-Language

Introduction
1 - 4 System Specifications
1.Introduction
Interface
• Built-in Touch pad (Scrolling Key functionality integrated)
• Four USB ports
• One IEEE 1394 port (Mini)
• One S-Video jack for TV output
• One parallel port (LPT1), support ECP / EPP
• Infrared file transfer, IrDA 1.1 FIR/SIR/ ASKIR
• External CRT monitor
• One PS/2 port support mouse or keyboard
• One headphone jack
• One microphone jack
• One SPDIF jack
• One RJ-11 jack for Modem
• One RJ-45 jack for LAN
• DC-in jack
• Built-in 3 instant keys, www, email, DVD Player
• One SONY standard Memory Stick
• One PANASONIC SD Memory
Communication
• Infrared transfer: 115.2K bps SIR/ 4M bps FIR, 1M operating distance, IrDA 1.1 compliant
• 10/100Mb Ethernet LAN built-in
• 802.11b Wireless LAN (Optional)
• 56K MDC MODEM with V.90 & V.92 compliant

Introduction
System Specifications 1 - 5
1.Introduction
Power Management
• Supports ACPI v1.0b
• Supports APM v1.2
• Supports suspend to RAM
• Supports suspend to disk
• Battery low suspend
• Resume from modem ring
• Resume from LAN ring
Power
• Full Range AC adapter AC in 100~240V, 50~60Hz, DC Output 20V, 3.25A.
• Support one removable Smart Li-Ion Battery 80W
Indicator
• LED indicator (HDD, Power on/ AC-In/SUSPEND, Battery Charging/Battery full, E-mail, Num Lock, Caps Lock,
Scroll Lock)
EMC & Safety
• FCC Class B, CE, VCCI, C-TICK, BSMI, UL, CUL, TUV, CB
S/W Certificate
• MICROSOFT WHQL and WINKEY Logo, MACROVISION
Environmental Spec
• Temperature Relative Humidity
• Operating: 5° C ~ 35°C Operating: 20% ~ 80%
• Non-Operating: -20°C ~ 60°C Non-Operating: 10% ~ 90%
Dimensions
• 312 (w) x272.7(d) x37.5 (h) mm w/14.1” LCD

Introduction
1 - 6 System Specifications
1.Introduction
Weight
• 2.8kg w/o battery
Optional
• 4201 Lithium-Ion smart battery pack (12cell)
• 4202 DVD-ROM Drive Module 12.7mm (h)
• 4203 CD-RW Drive Module 12.7mm (h)
• 4204 Software DVD Player
• 4205 Software RW Writer
• 4206 802.11b Wireless LAN card
• 2005 Car Adapter

Introduction
External Locator - Top View 1 - 7
1.Introduction
External Locator - Top View Figure 1 - 1
Top View
45 6 7
8
9
10
4
3
2
11
1
2
1. Cover Latch
2. LED Power Indi-
cators
3. LCD Display
4. Speakers
5. Three Hot-Key
buttons
6. LED Status Indi-
cators
7. Power Button
8. Keyboard
9. TouchPad and
Buttons
10.Color Cover
(changeable)
11.Microphone
(built-in)

Introduction
1 - 8 External Locator - Left & Right Side Views
1.Introduction
External Locator - Left & Right Side Views
Figure 1 - 2
Left View
Figure 1 - 3
Right View
4
3
12
1. CD or DVD Label
Indicator
2. Busy Indicator
3. Open Button
4. Emergency Eject
Hole
1 2 3 4 5
67
8
9
10 11
12
1. Microphone-In
Jack
2. Speaker-Out
Jack
3. S/PDIF Port
4. Sony Memory
Stick Port
5. Secure Digital
Port
6. Floppy Disk Drive
7. Floppy Disk Eject
Switch
8. Dual PC Card
Slots
9. PC Card Socket
Eject Buttons
10.IEE 1394 Port
11.Dual USB Ports
12.Vent

Introduction
External Locator - Right Side & Bottom Views 1 - 9
1.Introduction
External Locator - Right Side & Bottom Views
12
34
5
6
378910
11
Figure 1 - 4
Right Side
1. Parallel Port
2. Infrared Port
3. Vent
4. Security Lock
5. Dual USB Ports
6. S-Video Output
Connector
7. Exrternal Monitor
CRT Port
8. PS/2 Type Port
9. LAN Jack
10.Phone Jack
11.DC-In Jack
Figure 1 - 5
Bottom View
1. CPU Cover
2. Fan Outlet
3. CD Device
Release Latch
4. Hard Disk Drive
Cover
5. Battery Release
Latches
6. Battery
2
3
4 5
1
5
6

Introduction
1 - 10 Mainboard Overview - Top
1.Introduction
Mainboard Overview - Top
Key Parts
Figure 1 - 6
Mainboard Over-
view - Top
Key Parts
1. Mini-IEEE 1394
controller
2. Flash BIOS ROM
3. Smart I/O
W83518D media
reader controller
4. Ricoh Cardbus
PCMCIA control-
ler
5. Southbridge Intel
ICH 3
6. LPC H8 Key-
board controller
7. On-board video
memory
8. LAN Controller
RTL8139CL
9. Power Button
10.Northbridge Intel
MCH 830MP
1
2
4
5
6
3
7
8
9
7
10

Introduction
Mainboard Overview - Bottom 1 - 11
1.Introduction
Mainboard Overview - Bottom
Key Parts Figure 1 - 7
Mainboard Over-
view - Bottom
Key Parts
1. ATI Mobility
Radeon Graph-
ics controller
1
