Clevo M350S User manual



Preface
I
Preface
Notebook Computer
M350S/M360S/M362S/M363S/M375S
Service Manual

Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
May 2005
Trademarks
Intel®, Pentium®and Celeron® are registered trademarks of Intel Corporation.
Windows®is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and./or registered trademarks of their respective companies.

Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the M350S/
M360S/M362S/M363S/M375S series notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams

Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, elec-
tric shock and injury to persons, including the following:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit (DC Output 20V, 3.25A).
CAUTION
Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.
TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,
TELECOMMUNICATION LINE CORD
This computer’s optical device is a Class I Laser product.

Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.

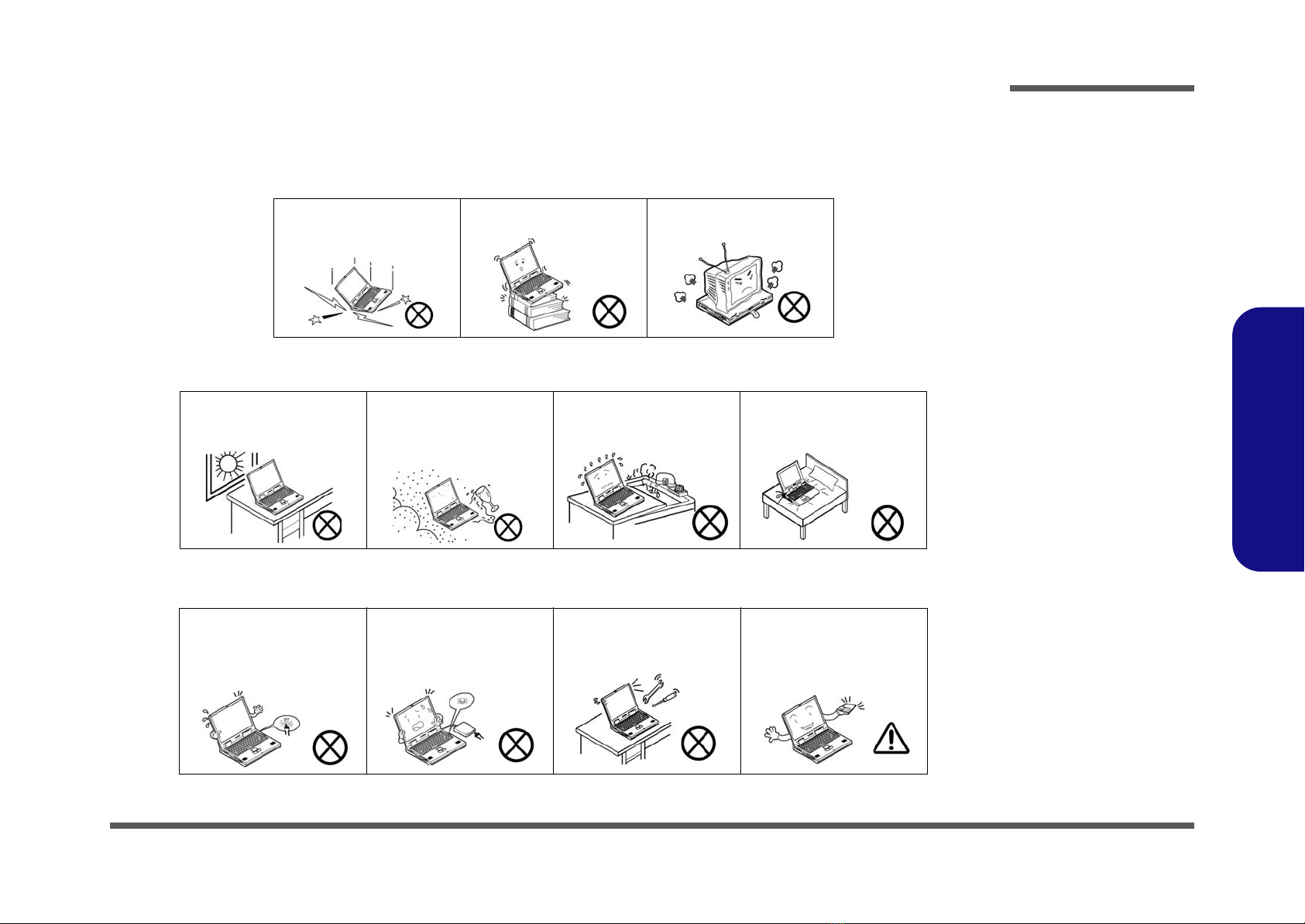

Do not expose the computer
to any shock or vibration.
Do not place it on an unstable
surface.
Do not place anything heavy
on the computer.
Do not expose it to excessive
heat or direct sunlight.
Do not leave it in a place
where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment.
Do not place the computer on
any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself.
Perform routine maintenance
on your computer.

Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals.
Unplug the power cord before
attaching peripheral devices.
Do not plug in the power
cord if you are wet.
Do not use the power cord if
it is broken.
Do not place heavy objects
on the power cord.
Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines). It is
advisable to also re-
move your battery in
order to prevent acci-
dentally turning the
machine on.

Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of
its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal
waste stream. Check with your local solid waste officials for details in your area for recycling options or proper
disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommend-
ed by the manufacturer. Discard used battery according to the manufacturer’s instructions.

Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

Preface
IX
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
System Specifications .....................................................................1-2
Design Differences ..........................................................................1-5
Gloss Style Top Cover Designs (M362S/M363S) ..........................1-6
External Locator - Top View ..........................................................1-7
External Locator - Front & Left Side Views ...................................1-8
External Locator - Right Side & Rear Views ..................................1-9
External Locator - Bottom View ...................................................1-10
Mainboard Overview - Top (Key Parts) .......................................1-11
Mainboard Overview - Bottom (Key Parts) ..................................1-12
Mainboard Overview - Top (Connectors) .....................................1-13
Mainboard Overview - Bottom (Connectors) ...............................1-14
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Disassembly Steps ...........................................................................2-4
Removing the Battery ......................................................................2-7
Removing the Hard Disk Drive .......................................................2-8
Removing the System Memory (RAM) ........................................2-10
Removing the Optical Device .......................................................2-12
Removing the Processor ................................................................2-13
Removing the Keyboard ................................................................2-15
Removing the Wireless LAN Module ...........................................2-16
Removing the Bottom Case ...........................................................2-17
Removing the Modem ...................................................................2-18
Removing the Audioboard ............................................................2-19
Removing the Multi-function board ............................................. 2-20
Removing the Mainboard ............................................................. 2-21
Removing the TouchPad and Click Board ................................... 2-22
Removing the Inverter .................................................................. 2-23
Removing the Speakers ................................................................ 2-24
Removing the LCD Panel ............................................................. 2-25
Removing the PC Camera Module ............................................... 2-25
Part Lists ..................................................A-1
Part List Illustration Location ........................................................ A-2
Top (M350S) ................................................................................. A-3
Bottom (M350S) ............................................................................ A-4
LCD (M350S) ................................................................................ A-5
CD-ROM Drive - QSI (M350S) .................................................... A-6
CD-ROM Drive - SAMSUNG (M350S) ....................................... A-7
CD-RW Drive - TEAC (M350S) ................................................... A-8
Combo Drive - QSI (M350S) ........................................................ A-9
DVD-ROM Drive - QSI (M350S) ............................................... A-10
DVD-ROM Drive - TEAC (M350S) ........................................... A-11
Top (M360S) ............................................................................... A-12
Bottom (M360S) .......................................................................... A-13
LCD (M360S) .............................................................................. A-14
CD-ROM Drive - QSI (M360S) .................................................. A-15
CD-ROM Drive - SAMSUNG (M360S) ..................................... A-16
CD-RW Drive - TEAC (M360S) ................................................. A-17
Combo Drive - QSI (M360S) ...................................................... A-18
DVD-ROM Drive - QSI (M360S) ............................................... A-19
DVD-ROM Drive - TEAC (M360S) ........................................... A-20
DVD-Dual Drive (M360S) .......................................................... A-21
DVD-Dual Drive - LITEON (M360S) ........................................ A-22
Top (M362S) ............................................................................... A-23

Preface
X
Preface
Bottom (M362S) ..........................................................................A-24
LCD (M362S) ..............................................................................A-25
CD-ROM Drive - QSI (M362S) ................................................... A-26
CD-ROM Drive - SAMSUNG (M362S) .....................................A-27
CD-RW Drive - TEAC (M362S) .................................................A-28
Combo Drive - QSI (M362S) .......................................................A-29
DVD-ROM Drive - QSI (M362S) ...............................................A-30
DVD-ROM Drive - TEAC (M362S) ...........................................A-31
DVD-Dual Drive (M362S) ........................................................... A-32
DVD-Dual Drive - LITEON (M362S) ......................................... A-33
Top (M363S) ................................................................................A-34
Bottom (M363S) ..........................................................................A-35
LCD (M363S) ..............................................................................A-36
CD-ROM Drive - QSI (M363S) ................................................... A-37
CD-ROM Drive - SAMSUNG (M363S) .....................................A-38
CD-RW Drive - TEAC (M363S) .................................................A-39
Combo Drive - QSI (M363S) .......................................................A-40
DVD-ROM Drive - QSI (M363S) ...............................................A-41
DVD-ROM Drive - TEAC (M363S) ...........................................A-42
DVD-Dual Drive (M363S) ........................................................... A-43
DVD-Dual Drive - LITEON (M363S) ......................................... A-44
Top (M375S) ................................................................................A-45
Bottom (M375S) ..........................................................................A-46
LCD 152 (M375S) .......................................................................A-47
LCD 154 (M375S) .......................................................................A-48
CD-ROM Drive - QSI-TEAC (M375S) ....................................... A-49
CD-RW Drive - TEAC (M375S) .................................................A-50
Combo Drive - TEAC (M375S) ...................................................A-51
DVD-ROM Drive - TEAC-TOSHIBA (M375S) .........................A-52
DVD-RW Drive - TOSHIBA (M375S) ....................................... A-53
DVD-Dual Drive (M375S) ........................................................... A-54
Card Reader (M375S) ..................................................................A-55
Schematic Diagrams................................. B-1
System Block Diagram ...................................................................B-2
Socket 479 - 1 of 2 ..........................................................................B-3
Socket 479 - 2 of 2 ..........................................................................B-4
M661MX-1 .....................................................................................B-5
M661MX-2 .....................................................................................B-6
M661MX-3 .....................................................................................B-7
M661MX-4 .....................................................................................B-8
SODIMM1 / SODIMM2 ................................................................B-9
SSTL-2 Terminatior ......................................................................B-10
Main Clock Generator ..................................................................B-11
LVDS; CRT ..................................................................................B-12
SIS302ELV ...................................................................................B-13
963L-1 (1 of 4) ..............................................................................B-14
963L-2 (2 of 4) ..............................................................................B-15
963L-3 (3 of 4) ..............................................................................B-16
963L-4 (4 of 4) ..............................................................................B-17
USB 2.0, Wireless LAN ...............................................................B-18
HDD; CD-ROM ............................................................................B-19
LAN RTL8201CL ........................................................................B-20
ROM .............................................................................................B-21
H8 .................................................................................................B-22
CON; Mini-PCI ............................................................................B-23
Audio Codec ALC202 ..................................................................B-24
PCMCIA (ENE1410) ....................................................................B-25
PCMCIA Socket ...........................................................................B-26
AC IN; Power Button ...................................................................B-27
V_CORE .......................................................................................B-28
+1.8V, +VCCP ..............................................................................B-29
Charger .........................................................................................B-30
+2.5V, +1.25V ..............................................................................B-31

Preface
XI
Preface
+VDD5, +VDD3, +1.2V .............................................................. B-32
Multi-Function Board ................................................................... B-33
Audio Jack Board ......................................................................... B-34
Click Board .................................................................................. B-35

Preface
XII
Preface

Introduction
Overview 1 - 1
1.Introduction
1: Introduction
Overview
This manual covers the information you need to service or upgrade the M350S/M360S/M362S/M363S/M375S series
notebook computer. Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s
Manual. Information about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the
computer.
Operating systems (e.g. DOS, Windows 9x, Windows NT 4.0, Windows 2000, Windows XP, OS/2 Warp, UNIX, etc.) have
their own manuals as do application software (e.g. word processing and database programs). If you have questions about
those programs, you should consult those manuals.
The M350S/M360S/M362S/M363S/M375S series notebook is designed to be upgradeable. See “Disassembly” on
page 2 - 1 for a detailed description of the upgrade procedures for each specific component. Please note the warning and
safety information indicated by the “” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.

Introduction
1 - 2 System Specifications
1.Introduction
System Specifications
Feature Specifications
Processor Types Intel Pentium® M - (478-pin) Micro-FCPGA package (µ0.13) 0.13 Micron Process Technology, 1MB On-die
L2 Cache & 400MHz FSB - 1.3/ 1.4/ 1.5/ 1.6/ 1.7 GHz
Intel Pentium® M - (478-pin) Micro-FCPGA package (µ0.09) 0.09 Micron Process Technology, 2MB On-die
L2 Cache & 400MHz FSB - 715/ 725/ 735 (1.5A ~ 1.7
GHz)
Intel Pentium® M - (478-pin) Micro-FCPGA package (µ0.09) 0.09 Micron Process Technology, 2MB On-die
L2 Cache & 533MHz FSB - 730/ 740/ 750 (1.6 ~ 1.86
GHz)
Intel Celeron® M - (478-pin) Micro-FCPGA package (µ0.13) 0.13 Micron Process Technology, 512KB On-
die L2 Cache & 400MHz FSB - 320/ 330/ 340 (1.3 ~
1.5 GHz)
Intel Celeron® M - (478-pin) Micro-FCPGA package (µ0.09) 0.09 Micron Process Technology, 1MB On-die
L2 Cache & 400MHz FSB - 350/ 360/ 370 (1.3 ~ 1.5
GHz)
Core Logic SiS M661MX + SiS 963L Chipset
Structure PC2001 Compliant
Security Security (Kensington® Type) Lock Slot BIOS Password
Latest Specification Information
The specifications listed in this Appendix are correct at the time of going to press. Certain items (particularly processor types/speeds)
may be changed or updated due to the manufacturer's release schedule. Check with your service center for details.

Introduction
System Specifications 1 - 3
1.Introduction
Memory One 64-bit wide DDR channel
Two 200-pin SODIMM sockets, supporting 266/ 333
MHz DDR modules
Memory expandable up to 2GB (128MB/ 256MB/
512MB/ 1GB DDR modules)
BIOS One 4MB Flash ROM Phoenix BIOS, Plug and Play (1.0a)
LCD M350S/M360S/M362S/M363S
14.1" XGA Flat Panel TFT (1024*768)
M375S
15.4" WXGA TFT(1280*800)
Display SiS M661MX Integration
Shared Memory Architecture, up to 64 MB of Dynamic Video Memory Allocation
Supporting Analog Monitor Resolution up to 1600 x 1200
Integrated High Quality 256 bit 3D Graphics Engine
Supports 2 Displays Dual View
Storage One changeable 12.7mm(h) Optical Device Drive (see “Optional” on page 1 - 4)
Easy changeable 2.5" 9.5 mm (h) HDD
Supports Master Mode IDE
Supports PIO Mode 4/ ATA-33/ ATA-66/ ATA-100/ ATA-133
Audio AC’97 2.2 Compliant
3D Stereo enhanced Sound system
Compatible Sound-Blaster PRO™
Built-In Microphone
2*Built-In Speakers
Keyboard & Pointing
Device
Winkey Keyboard Built-In TouchPad with Scrolling Function
PCMCIA One Type-II PCMCIA 3.3V/5V Socket Supporting Card Bus
Interface Two USB 2.0 Ports
One External Monitor Port
One Headphone-Out Jack
One Microphone-In Jack
One S/PDIF-Out Jack
One RJ-11 Jack for Plug & Play Fax/Modem
One RJ-45 Jack for 100M (Max) Fast Ethernet
One DC-in Jack
Communication 56K Plug & Play Fax/Modem V.90/92 Compliant
10M/100M (Max) Fast Ethernet
802.11g Wireless LAN Module with Mini-PCI Interface (optional)
Bluetooth 1.1 & MDC Modem Combo Module (optional)
Feature Specifications

Introduction
1 - 4 System Specifications
1.Introduction
Power Management Supports ACPI 2.0
Power Button as Sleep/Resume Key
Supports Hibernate Mode
Supports Standby Mode
Supports Battery Low Sleep Mode
Supports Resume From Modem Ring
Supports Wake on LAN
Power M350S/M360S/M362S/M363S
Full Range AC Adapter
AC-Input 100~240V, 47~63Hz
DC Output 20V, 3.25A (65W)
One 4 cell, Smart Lithium-Ion Battery Pack 2200mAH
(standard)
One 6 cell, Smart Lithium-Ion Battery Pack 4000mAH
or 4400mAH (optional)
M375S
Full Range AC Adapter
AC-Input 100~240V, 47~63Hz
DC Output 20V, 3.25A (65W)
One 6 cell, Smart Lithium-Ion Battery Pack 4400mAH
(standard)
One 12 cell, Smart Lithium-Ion Battery Pack 8800mAH
(optional)
Environmental Spec Temperature
Operating: 5°C ~ 35°C
Non-Operating: -20°C ~ 60°C
Relative Humidity
Operating: 20% ~ 80%
Non-Operating: 10% ~ 90%
Physical Dimensions &
Weight
M350S/M360S/M362S/M363S
312mm (w) * 263mm (d) * 27.5mm (h) Min
2.2 kg without Battery
M375S
360mm (w) * 273mm (d) * 27.5mm (h) Min
2.5 kg without Battery
Optional (M350S/M360S/M362S/M363S)
6 Cells, 4400mAH, Smart Lithium-Ion Battery
2.5" 12.5/12.7mm Height Hard Disk Drive
DVD-ROM Drive Module
DVD/CD-RW Combo Drive Module
Dual DVD Drive Module
Software DVD Player
PC Camera with USB Interface
802.11g Mini-PCI WLAN Module
Bluetooth & MDC Modem Combo Module
(M375S)
12 Cells, 8800mAH, Smart Lithium-Ion Battery
2.5" 12.5/12.7mm Height Hard Disk Drive
DVD-ROM Drive Module
DVD/CD-RW Combo Drive Module
Dual DVD Drive Module
Software DVD Player
PC Camera with USB Interface
802.11g Mini-PCI WLAN Module
Bluetooth & MDC Modem Combo Module
Feature Specifications

Introduction
System Specifications 1 - 5
1.Introduction

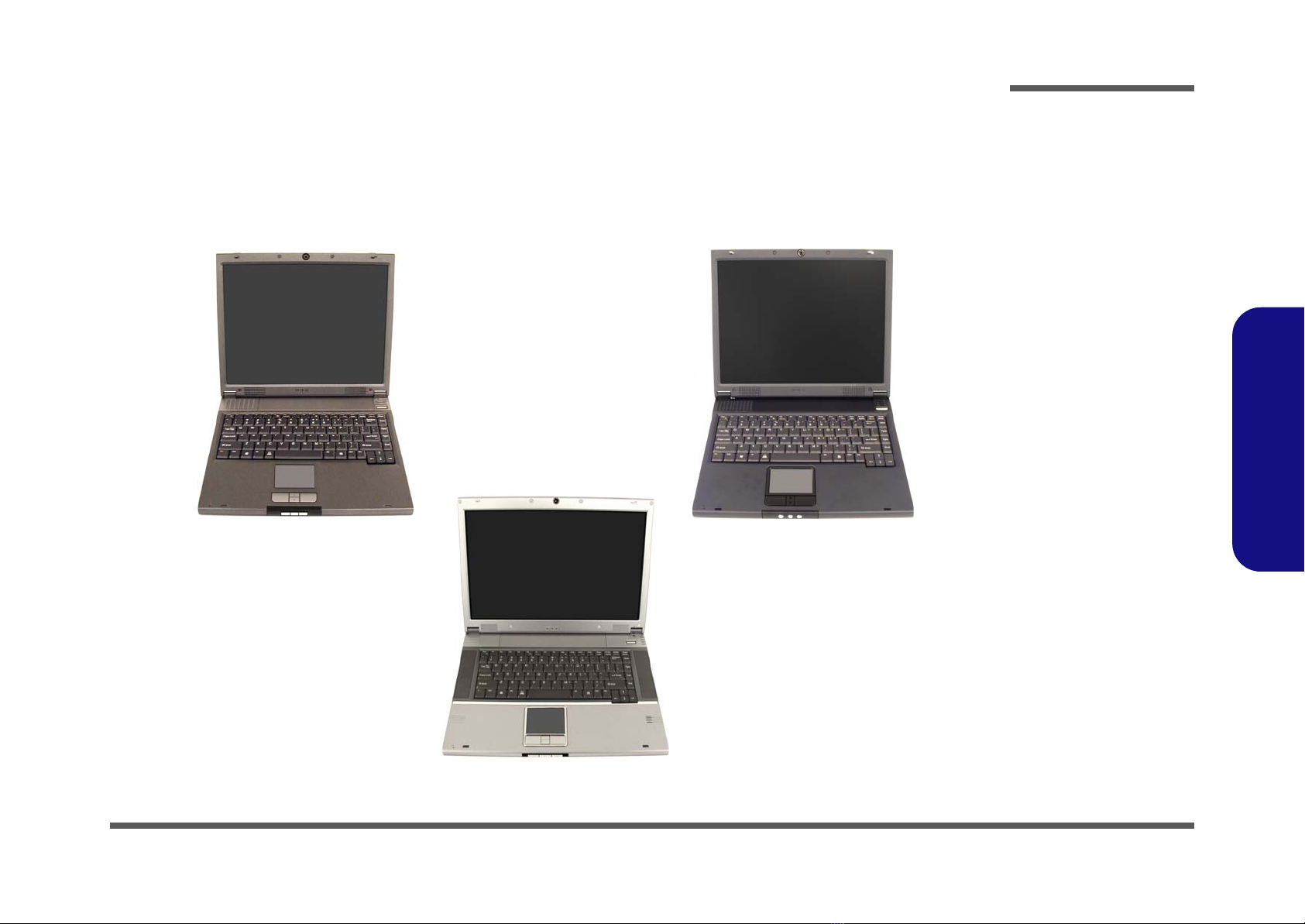

Design Differences
This notebook series includes two different model types. M350S/M360S/M362S/M363S has a standard screen, M375S
has a wide screen (see “LCD” on page 1 - 3 for details). The M350S/M360S/M362S/M363S models include two differ-
ent designs (note the touchpad and buttons - see Figure 1) as illustrated. In addition to the basic designs, the M362S/
M363S have colored gloss style top cover designs. See Figure 2 for an illustration and the specific care instructions for
this type of cover. Photographs used throughout this manual are of the M360S. Figure 1
Model and Design
Differences
M360S/M362S/M363S
M350S
M375S
(Wide Screen)

Introduction
1 - 6 System Specifications
1.Introduction

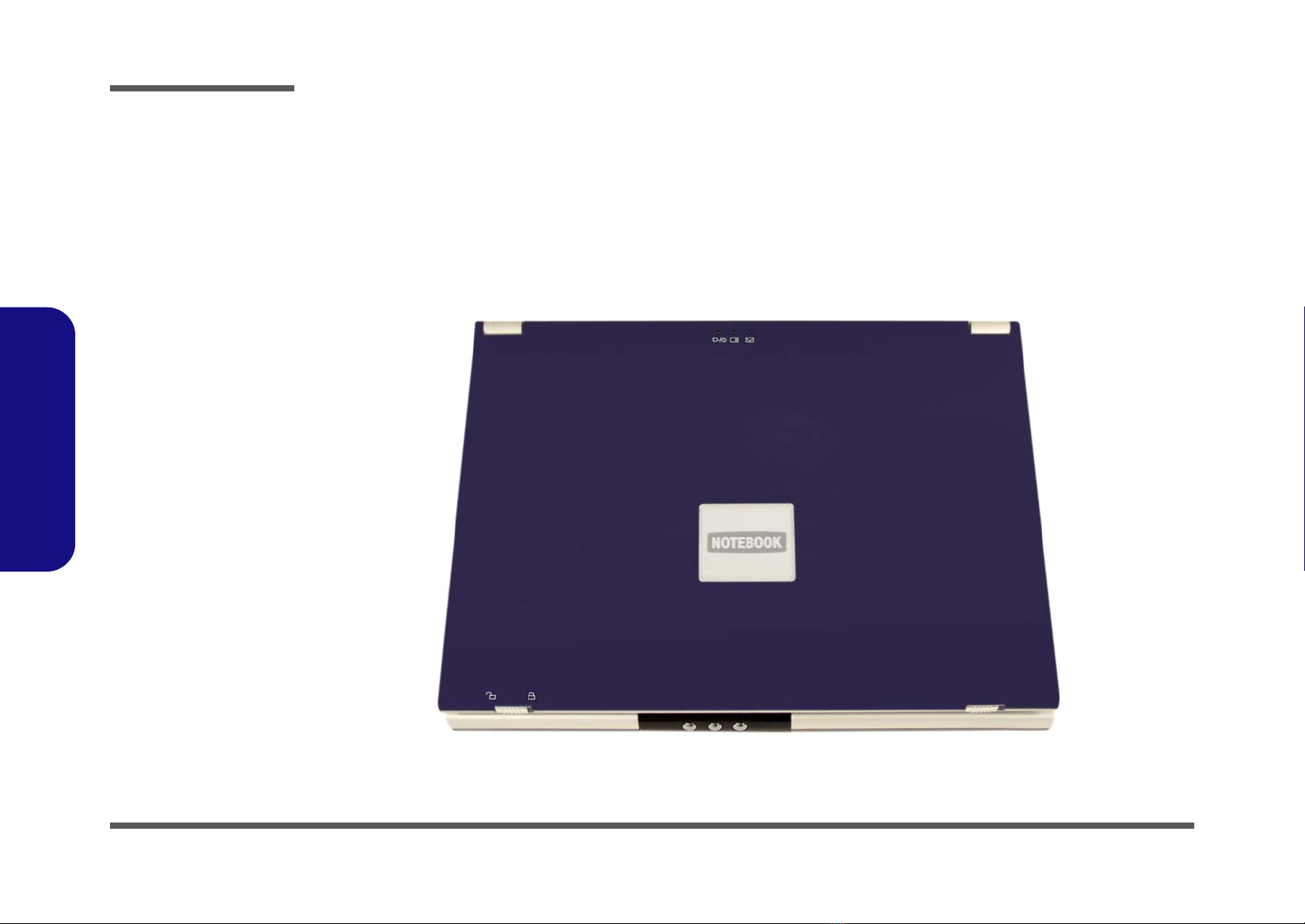

Gloss Style Top Cover Designs (M362S/M363S)
There are two colored (red and blue) gloss style top cover designs incorporated within the design styles of this notebook
model. Note the following guidelines for care and attention of this type of top cover.
• Remove the protective cover slowly and carefully. Do not forcibly tear off the protective cover as this may damage the surface
of the top cover.
• Do not use pointed objects on the surface of the top cover, and do not place objects on top of it.
• Do not expose the top cover to excessive heat or direct sunlight.
• Only use the soft cloth provided for cleaning the top cover, and do not use abrasive cleaners.
Figure 2
Gloss Style Top
Cover
This manual suits for next models
4
