Preface
I
Preface
Notebook Computer
M740J/M740JU/M760J/M760JU
Service Manual

Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
June 2008
Trademarks
AMD Athlon™,AMD Sempron™and AMD Turion™are trademarks of Advanced Micro Devices, Inc.
Windows®is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and./or registered trademarks of their respective companies.

Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the M740J/
M740JU/M760J/M760JU series notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams

Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-
sons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC Output
of 19V, 3.42A (65 Watts) minimum AC/DC Adapter for M740J/M760J computers, OR 19V, 4.74A (90 Watts) mini-
mum AC/DC Adapter for M740JU/M760JU computers.
CAUTION
Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.
TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,
TELECOMMUNICATION LINE CORD
This Computer’s Optical Device is a Laser Class 1 Product

Preface
V
Preface

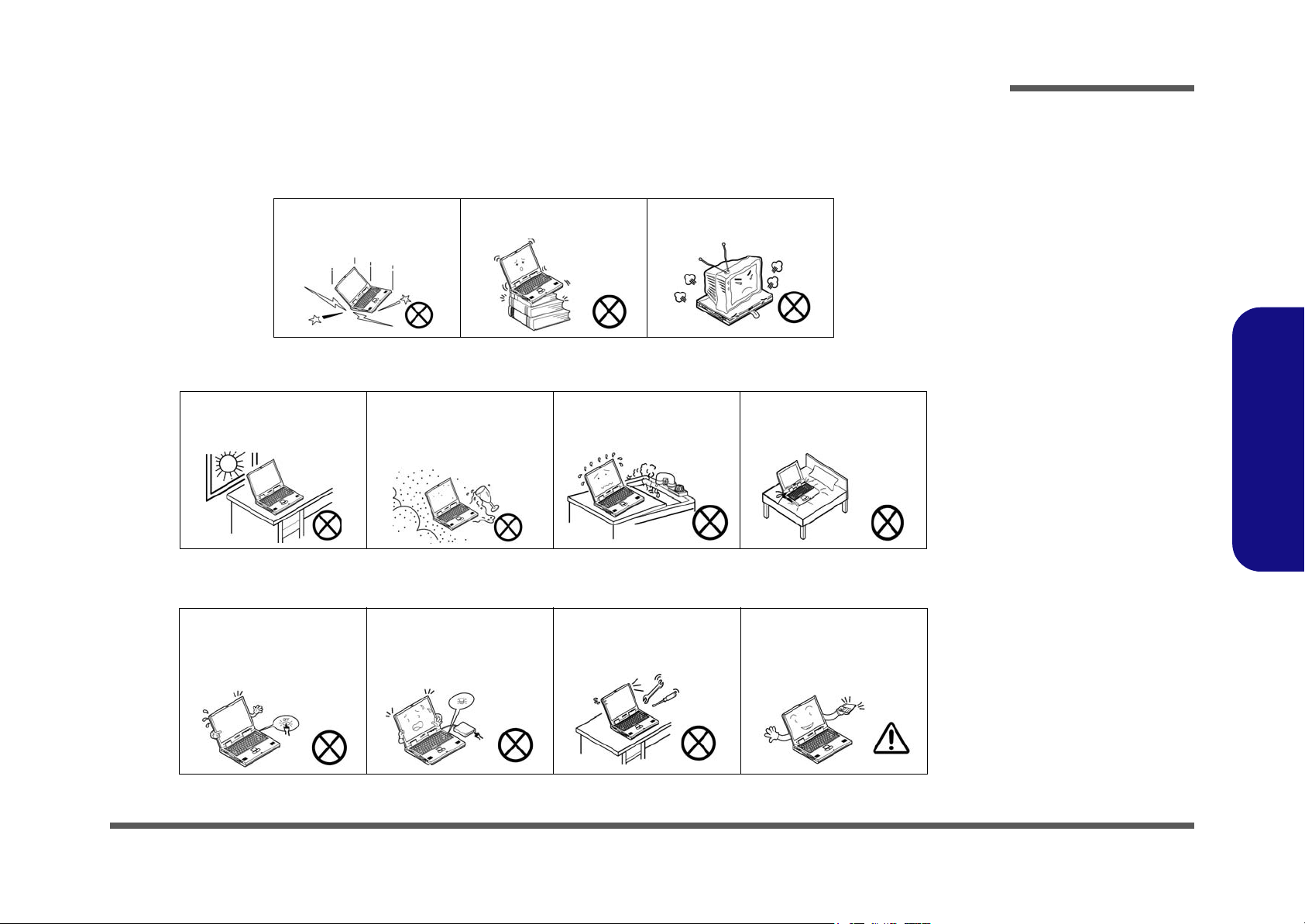

Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration. Do not place it on an unstable surface. Do not place anything heavy on the computer.
Do not expose it to excessive
heat or direct sunlight. Do not leave it in a place where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment. Do not place the computer on any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself. Perform routine maintenance on your computer.

Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals. Unplug the power cord before attaching peripheral devices.
Do not plug in the power
cord if you are wet. Do not use the power cord if it is broken. Do not place heavy objects on the power cord.

Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines). It is
advisable to also re-
move your battery in
order to prevent acci-
dentally turning the
machine on.

Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not remove any batteries from the computer while it is powered on.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.

Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of
its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal
waste stream. Check with your local solid waste officials for details in your area for recycling options or proper
disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommend-
ed by the manufacturer. Discard used battery according to the manufacturer’s instructions.

Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

Preface
IX
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
System Specifications ................................. 1-2
External Locator - Top View with LCD Panel Open ......................1-5
External Locator - Front & Right side Views .................................1-6
External Locator - Left Side & Rear View .....................................1-7
External Locator - Bottom View .....................................................1-8
Mainboard Overview - Top (M74J/M76J-Key Parts) .....................1-9
Mainboard Overview - Bottom (M74J/M76J-Key Parts) .............1-10
Mainboard Overview - Bottom (M74JU/M76JU-Key Parts) .......1-11
Mainboard Overview - Top (Connectors) .....................................1-12
Mainboard Overview - Bottom (Connectors) ...............................1-13
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Disassembly Steps ...........................................................................2-4
Removing the Battery ......................................................................2-5
Removing the Hard Disk Drive .......................................................2-6
Removing the Optical (CD/DVD) Device ......................................2-9
Removing the System Memory (RAM) ........................................2-11
Removing the Inverter Board ........................................................2-13
Removing and Installing the Processor .........................................2-14
Removing the Wireless LAN Module ...........................................2-17
Removing the Bluetooth Module ..................................................2-18
Removing the Keyboard ................................................................2-19
Removing the Modem ...................................................................2-20
Part Lists ..................................................A-1
Part List Illustration Location ........................................................ A-2
Top with Fingerprint (M740J/M740JU) ........................................ A-3
Top without Fingerprint (M740J/M740JU) ................................... A-4
Bottom (M740J) ............................................................................. A-5
Bottom (M740JU) .......................................................................... A-6
LCD (M740J/M740JU) ................................................................. A-7
HDD (M740J/M740JU) ................................................................. A-8
COMBO (M740J/M740JU) ........................................................... A-9
DVD-Dual Drive (M740J/M740JU) ............................................ A-10
Top with Fingerprint (M760J/M760JU) ...................................... A-11
Top without Fingerprint (M760J/M760JU) ................................. A-12
Bottom (M760J) ........................................................................... A-13
Bottom (M760JU) ........................................................................ A-14
LCD (M760J/M760JU) ............................................................... A-15
HDD (M760J/M760JU) ............................................................... A-16
COMBO (M760J/M760JU) ......................................................... A-17
DVD-Dual Drive (M760J/M760JU) ............................................ A-18
Schematic Diagrams.................................B-1
System Block Diagram ...................................................................B-2
Clock Generator ..............................................................................B-3
CPU-1 .............................................................................................B-4
CPU-2 .............................................................................................B-5
CPU-3 .............................................................................................B-6
CPU-4 .............................................................................................B-7
DDRII S0-DIMM 0 ........................................................................B-8
DDRII S0-DIMM 1 ........................................................................B-9
RS780M-1 .....................................................................................B-10
RS780M-2 .....................................................................................B-11
RS780M-3 .....................................................................................B-12
M82-XT-1 .....................................................................................B-13

Preface
X
Preface
M82-XT-2 ....................................................................................B-14
M82-XT-3 ....................................................................................B-15
DDRII 32MX16 ...........................................................................B-16
LVDS, INVERTER ......................................................................B-17
HDMI, CRT .................................................................................B-18
SB700-1 ........................................................................................B-19
SB700-2 .......................................................................................B-20
SB700-3 ........................................................................................B-21
SB700-4 ........................................................................................B-22
New Card, Mini PCIE ..................................................................B-23
3G, PATA ODD, eSATA ............................................................. B-24
USB, FAN, TP, FP, MULTI CON ...............................................B-25
CARD READER ..........................................................................B-26
ISATA HDD, LED, HOTKEY, BT .............................................B-27
PCIE GIGALAN RTL8111C .......................................................B-28
AUDIO CODEC ALC662 ...........................................................B-29
AUDIO AMP2056 .......................................................................B-30
KBC ITE IT8512E .......................................................................B-31
1.8VS, 3,3VS, 5VS, 1.1VS, 3.3V .................................................B-32
VGA POWER & POWER GD ....................................................B-33
VCORE VDD CORE ...................................................................B-34
VCORE VDD CORE ...................................................................B-35
1.8V, 0.9V ....................................................................................B-36
1.1VS, 1.2V, 1.2VS, 2.5V ............................................................B-37
VGA CORE 1.5VS ......................................................................B-38
VDD3, VDD5 ...............................................................................B-39
CHARGER, DC IN ......................................................................B-40
CLICK FINGER BOARD FOR M76 ..........................................B-41
MULTI FUNCTION BOARD .....................................................B-42
AUDIO BOARD ..........................................................................B-43
FINGER SENSOR BOARD ........................................................B-44
POWER SWITCH BOARD FOR M74 .......................................B-45
FINGER BOARD FOR M74 ........................................................B-46
EXTERNAL ODD BOARD FOR M76 .......................................B-47
POWER SWITCH BOARD FOR M76 ........................................B-48

Introduction
Overview 1 - 1
1.Introduction
Chapter 1: Introduction
Overview
This manual covers the information you need to service or upgrade the M740J/M740JU/M760J/M760JU series note-
book computer. Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s
Manual. Information about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the
computer.
Operating systems (e.g. Windows XP, Windows Vista, etc.) have their own manuals as do application software (e.g. word
processing and database programs). If you have questions about those programs, you should consult those manuals.
The M740J/M740JU/M760J/M760JU series notebook is designed to be upgradeable. See “Disassembly” on page 2 - 1
for a detailed description of the upgrade procedures for each specific component. Please note the warning and safety in-
formation indicated by the “” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.

Introduction
1 - 2 System Specifications
1.Introduction
System Specifications
Feature Specification
Processor AMD Turion™ X2 Ultra Dual Core Processor
(638-pin) Micro-PGA Package, Socket S1G2
ZM80/ ZM82/ ZM83/ ZM86
65nm (65 Nanometer) Process Technology
2MB L2 Cache & 800MHz FSB, TDP: 35W
2.1/ 2.2/ 2.3/ 2.4 GHz
AMD Turion™X2 Dual Core Processor
(638-pin) Micro-PGA Package, Socket S1G2
RM70/ RM72/ RM74
65nm (65 Nanometer) Process Technology
1MB L2 Cache & 800MHz FSB, TDP: 35W
2.0/ 2.1/ 2.2 GHz
AMD Turion™X2 Dual Core Processor
(638-pin) Micro-PGA Package, Socket S1G2
QL60/ QL62/ QL64
65nm (65 Nanometer) Process Technology
1MB L2 Cache & 667MHz FSB, TDP: 35W
1.9/ 2.0/ 2.1 GHz
AMD Sempron™ Processor
(638-pin) Micro-PGA Package, Socket S1G2
SI40/ SI42/ SI44
65nm (65 Nanometer) Process Technology
512KB L2 Cache & 667MHz FSB, TDP: 25W
2.0/ 2.1/ 2.2 GHz
Core Logic ATI® RS780MN + SB700
LCD M740J/M740JU:
14.1" WXGA (1280*800)/ WXGA+ (1440*900) TFT LCD
M760J/M760JU:
15.4" WXGA (1280*800)/ WXGA+ (1440*900)/ WSXGA+
(1680*1050) TFT LCD
Memory 64-bit Wide DDRII (DDR2) Data Channel
Two 200 Pin SO-DIMM Sockets Supporting DDRII (DDR2) 667MHz/ 800MHz
Memory Expandable up to 4GB (1024MB/ 2048MB DDRII Modules)
Video Adapter M740J/M760J:
ATI® RS780M Integrated Video
High Preference 2D/3D Graphic Accelerator
Shared Memory Architecture of up to 256MB
Supports DirectX®10
M740JU/M760JU:
ATI Mobility Radeon HD 3470 Hybird X2 Discrete
Video On-Board
256MB of GDDR2 Video Memory On-Board
Integrated HDMI & Unified Video Controller
Supports Cross Fire (In Windows Vista only)
Supports DirectX® 10
Security Security (Kensington® Type) Lock Slot
Fingerprint ID Reader Module (Factory Option)BIOS Password
BIOS One 8Mb SPI Flash ROM Phoenix™ BIOS

Introduction
System Specifications 1 - 3
1.Introduction
Storage One Changeable 12.7mm(h) PATA Optical Device (CD/DVD) Type Drive (see “Optional” on page 1 - 4 ) Easy
Changeable 2.5" 9.5 mm (h) SATA (Serial) HDD
Audio High Definition Audio
3D Enhanced Sound System
Sound-Blaster PRO™ Compatible
S/PDIF Digital Output
2 * Built-In Speakers
Built-In Microphone
Keyboard &
Pointing Device Winkey Keyboard Built-In TouchPad with Scrolling Function
Interface Three USB 2.0 Ports
One External Monitor Port
One HDMI-Out Port (High-Definition Multimedia Interface)
One Headphone-Out Jack
One Microphone-In Jack
One S/PDIF-Out Jack
One eSATA Port (supported in Windows Vista only):
AHCI mode supports hot swapping
IDE mode does not support hot swapping
One RJ-11 Modem Jack
One RJ-45 LAN Jack
One DC-In Jack
Card Reader Embedded 7-in-1 Card Reader (MS/ MS Pro/ SD/ Mini SD/ MMC/ RS MMC/ MS Duo) Note: MS Duo/ Mini SD/ RS
MMC Cards require a PC adapter
ExpressCard Slot One ExpressCard/34(54) Slot
Mini-Card Slots
One Mini-Card Slot for Wireless LAN Module
One Mini-Card Slot for 3.5G Module
Communication 56K Fax Modem
Built-in 10/100/1000Mb Base-TX Ethernet LAN
802.11b/g Wireless LAN Mini-Card Module with USB/PCIe Interface ( Option )
Bluetooth 2.0 + EDR (Enhanced Data Rate) Module (Factory Option)
1.3M or 2.0M Pixel PC Camera Module with USB Interface (Factory Option)
3.5G Module:
UMTS/HSPDA-based 3.5G Mini-Card Module with USB Interface (Factory Option)
Quad-band GSM/GPRS (850 MHz, 900 MHz, 1800 MHz, 1900 MHz)
UMTS WCDMA FDD (2100 MHz)
Power
Management Supports ACPI v2.0 Supports Wake on LAN
Feature Specification

UMTS Modes
Note that UMTS
modes CAN
NOT be used in
North America.

Introduction
1 - 4 System Specifications
1.Introduction
Power M740J/M760J:
Full Range AC/DC Adapter AC input 100 - 240V, 50 -
60Hz, DC Output 19V, 3.42A or 18.5V, 3.5A (65 Watts)
M740JU/M760JU:
Full Range AC/DC Adapter AC input 100 - 240V, 50 -
60Hz, DC Output 19V, 4.74A (90 Watts)
Battery 6 Cell Smart Lithium-Ion Battery Pack, 4000mAH OR 4400mAH
Environmental
Spec Temperature Operating: 5°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Dimensions
& Weight M740J/M740JU:
336mm (w) * 250mm (d) * 24.8-35.7mm (h)
Around 2.3 kg With 6 Cell Battery
M760J/M760JU:
359mm (w) * 268mm (d) * 24.8-37mm (h)
2.6 kg With 6 Cell Battery
Optional PATA Optical Drive Module Options:
DVD/CD-RW Combo Device Module
Super Multi Device Module
802.11b/g Wireless LAN Mini-Card Module with USB/PCIe
Interface
1.3M or 2.0M Pixel PC Camera Module with USB
Interface (Factory Option)
Fingerprint ID Reader Module (Factory Option)
Bluetooth 2.0 + EDR (Enhanced Data Rate) Module
(Factory Option)
UMTS/HSPDA-based 3.5G Mini-Card Module with USB
Interface (Factory Option)
Quad-band GSM/GPRS (850 MHz, 900 MHz, 1800
MHz, 1900 MHz)
UMTS WCDMA FDD (2100 MHz)
Feature Specification

UMTS Modes
Note that UMTS modes CAN NOT be used in
North America.

Introduction
External Locator - Top View with LCD Panel Open 1 - 5
1.Introduction
External Locator - Top View with LCD Panel Open Figure 1
Top View
1. Optional Built-In
PC Camera
2. LCD
3. Speakers
4. Power Button
5. Hot Key Buttons
6. Keyboard
7. Built-In
Microphone
8. Touchpad &
Buttons
9. Fingerprint
Module (Optional)
10.LED Indicators
M740J/M740JU M760J/M760JU
2
5
1
7
9
4
6
33
10 10
2
5
1
7
9
4
6
33
88
10
10

Introduction
1 - 6 External Locator - Front & Right side Views
1.Introduction
External Locator - Front & Right side Views
Figure 2
Front Views
1. LED Indicators
Figure 3
Right Side Views
1. S/PDIF-Out Jack
2. Microphone-In
Jack
3. Headphone-Out
Jack
4. USB 2.0 Port
5. Optical Device
Drive Bay
6. RJ-11 Phone
Jack
7. Security Lock
Slot
1
15 24 367

Introduction
External Locator - Left Side & Rear View 1 - 7
1.Introduction
External Locator - Left Side & Rear View Figure 4
Left Side View
1. DC-In Jack
2. External Monitor
Port
3. RJ-45 LAN Jack
4. e-SATA Port
5. HDMI-Out Port
6. Vent
7. 2 * USB 2.0 Ports
8. ExpressCard Slot
9. 7-in-1 Card
Reader
135
28
79 467
Figure 5
Rear View
1. Battery
1

Introduction
1 - 8 External Locator - Bottom View
1.Introduction
External Locator - Bottom View
Figure 6
Bottom View
1. Battery
2. Bluetooth
Module Cover
3. RAM & CPU Bay
Cover
4. Vent
5. Hard Disk Bay
Cover
6. 3.5G USIM Card
Cover

Overheating
To prevent your com-
puter from overheating
make sure nothing
blocks the vent/fan in-
takes while the com-
puter is in use.
M740J/M740JU M760J/M760JU
2
3
1
4
4
56
2
3
1
4
4
56
