Clevo P771DM User manual

Preface
I
Preface
Notebook Computer
P770DM / P771DM / P770DM-G / P771DM-G
Service Manual

Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
September 2015
Trademarks
Intel and Intel Core are trademarks of Intel Corporation.
Windows® is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective companies.

Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the P770DM /
P771DM series notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams
Appendix C, Updating the FLASH ROM BIOS

Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-
sons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC Output
of 19.5V, 11.8A (230 Watts) minimum AC/DC Adapter.

Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration.
Do not place it on an unstable
surface.
Do not place anything heavy
on the computer.
Do not expose it to excessive
heat or direct sunlight.
Do not leave it in a place
where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment.
Do not place the computer on
any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself.
Perform routine maintenance
on your computer.

Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals.
Unplug the power cord before
attaching peripheral devices.
Do not plug in the power
cord if you are wet.
Do not use the power cord if
it is broken.
Do not place heavy objects
on the power cord.
Removal Warning
When removing any
cover(s) and screw(s)
for the purposes of de-
vice upgrade, remem-
ber to replace the
cover(s) and screw(s)
before restoring power
to the system.
Also note the following
when the cover is re-
moved:
• Hazardous mov-
ing parts.
• Keep away from
moving fan blades
Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines and
power cord). You must
also remove your bat-
tery in order to prevent
accidentally turning the
machine on.

Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Guidelines
The following can also apply to any backup batteries you may have.
• If you do not use the battery for an extended period, then remove the battery from the computer for storage.
• Before removing the battery for storage charge it to 60% - 70%.
• Check stored batteries at least every 3 months and charge them to 60% - 70%.
Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-
ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste
officials for details in your area for recycling options or proper disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Discard used battery according to the manufacturer’s instructions.
Battery Level
Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%
will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.

Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on Disc
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.
System Startup
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Insert the battery and make sure it is locked in
position.
4. Securely attach any peripherals you want to use with
the computer (e.g. keyboard and mouse) to their
ports.
5. Attach the AC/DC adapter to the DC-In jack at the
rear of the computer, then plug the AC power cord
into an outlet, and connect the AC power cord to the
AC/DC adapter (make sure you use the adapter
when first setting up the computer, as to safe-
guard the computer during shipping the battery will
be locked to not power the system until first con-
nected to the AC/DC adapter).

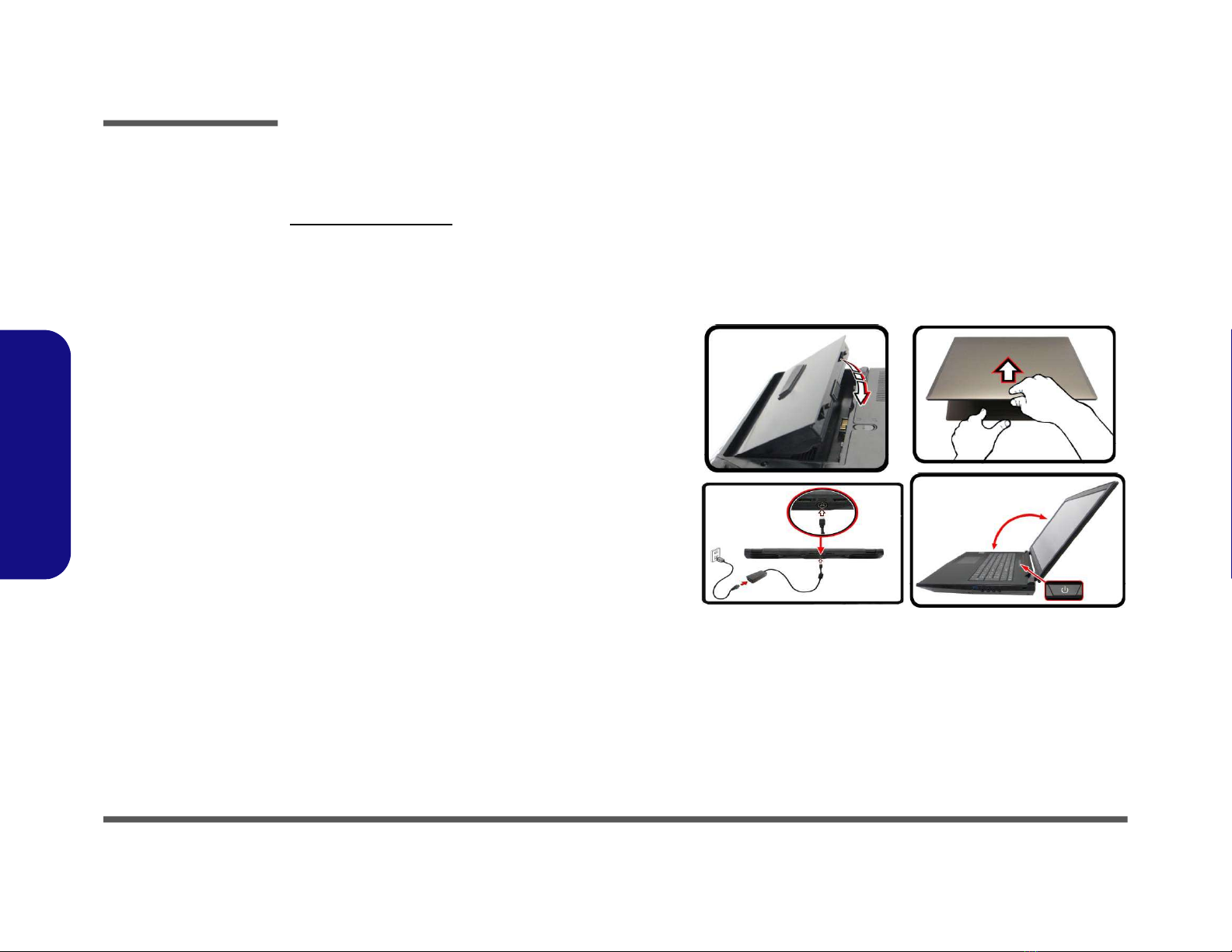

6. Use one hand to raise the lid/LCD to a comfortable
viewing angle (do not to exceed 135 degrees); use
the other hand (as illustrated in Figure 1) to support
the base of the computer (Note:Never lift the
computer by the lid/LCD).
7. Press the power button to turn the computer “on”.
Figure 1
Opening the Lid/LCD/
Computer with AC/DC
Adapter Plugged-In
135°

Preface
IX
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
External Locator - Top View with LCD Panel Open ......................1-4

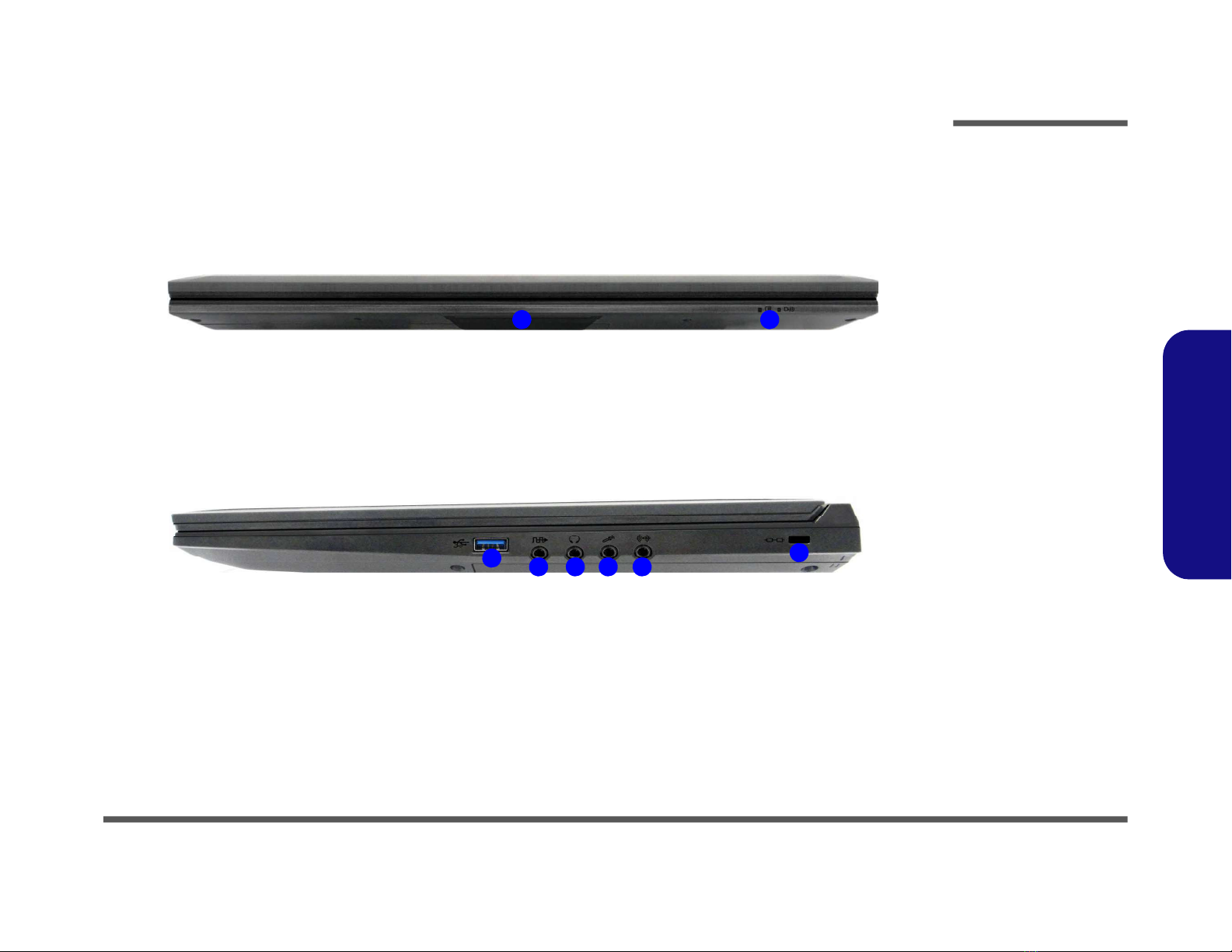

External Locator - Front & Right side Views .................................1-5

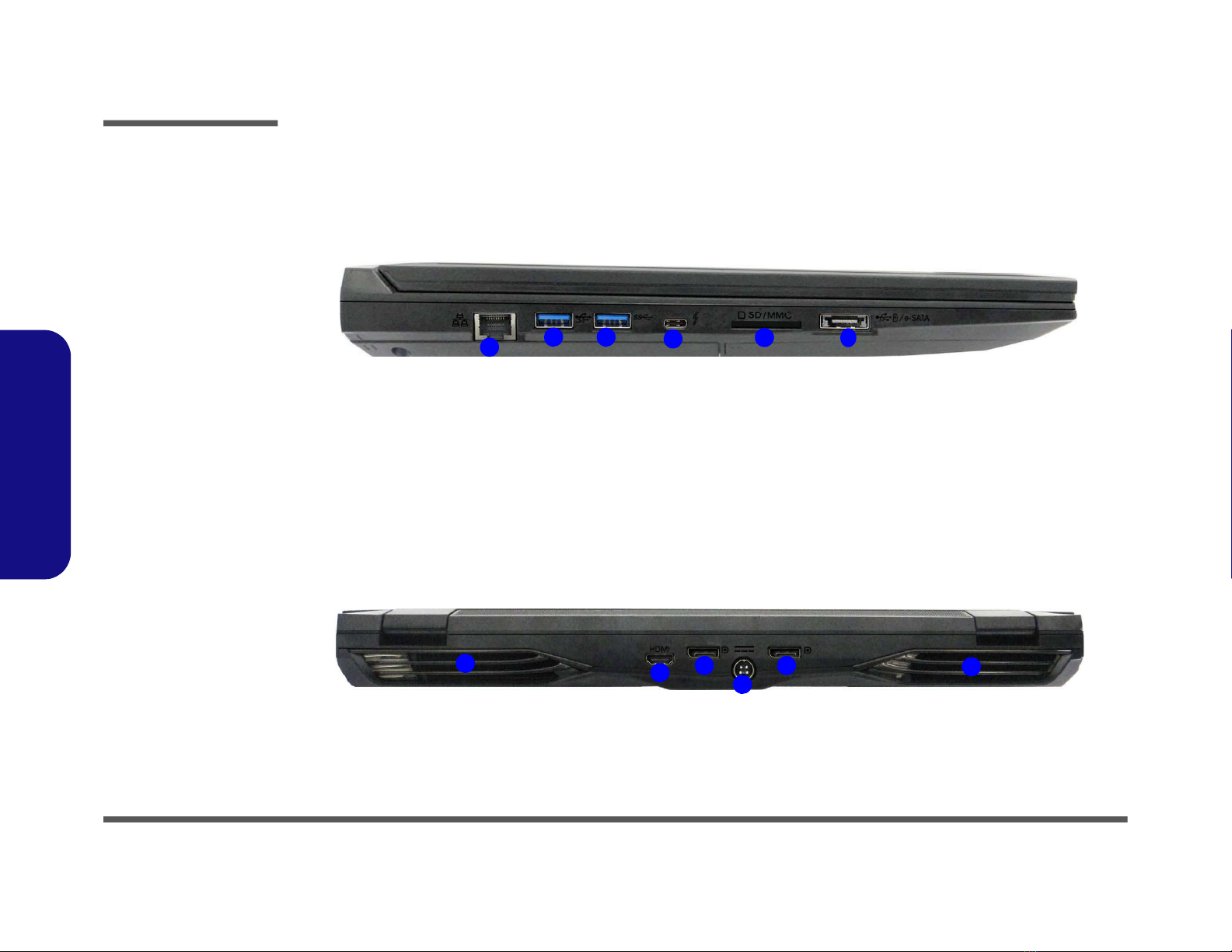

External Locator - Left Side & Rear View .....................................1-6

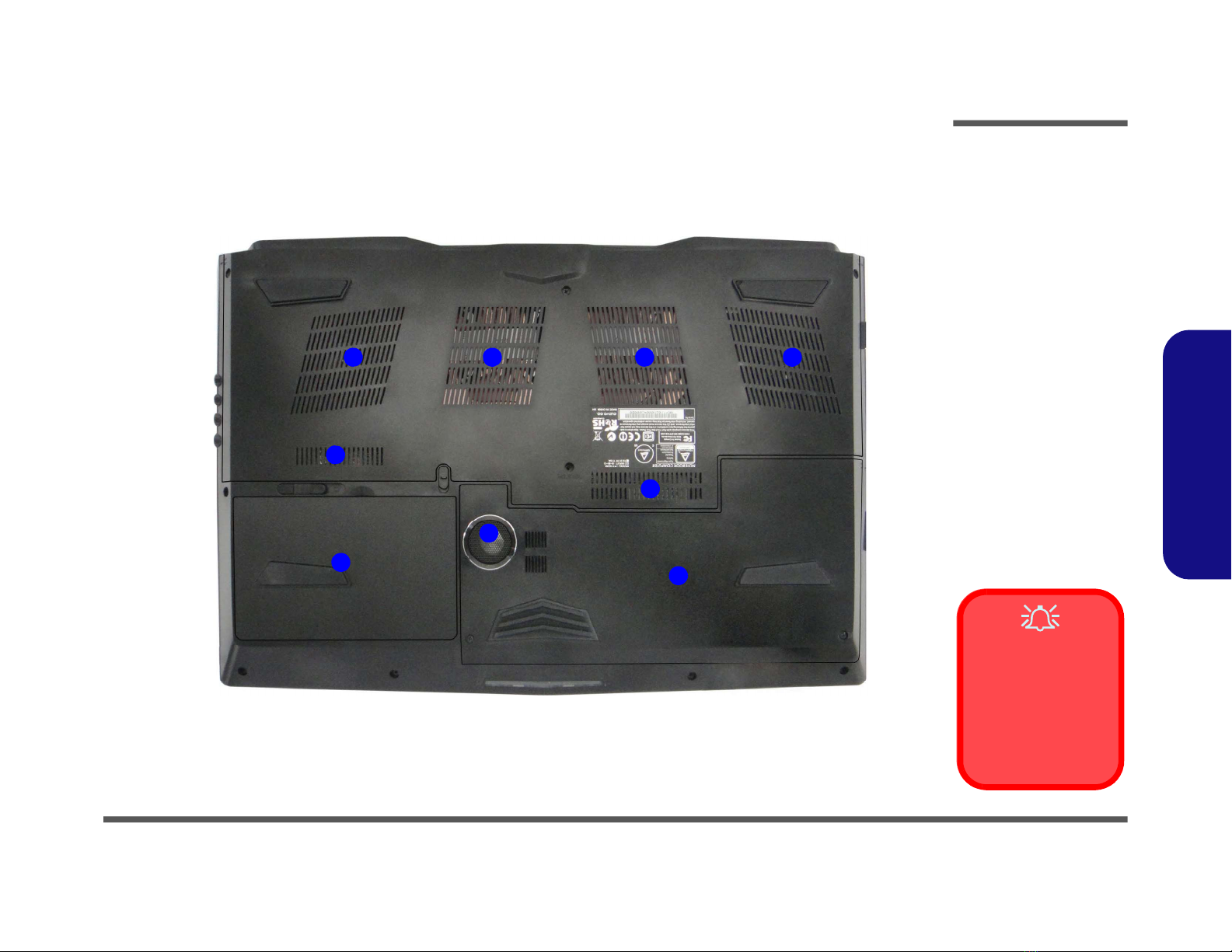

External Locator - Bottom View .....................................................1-7

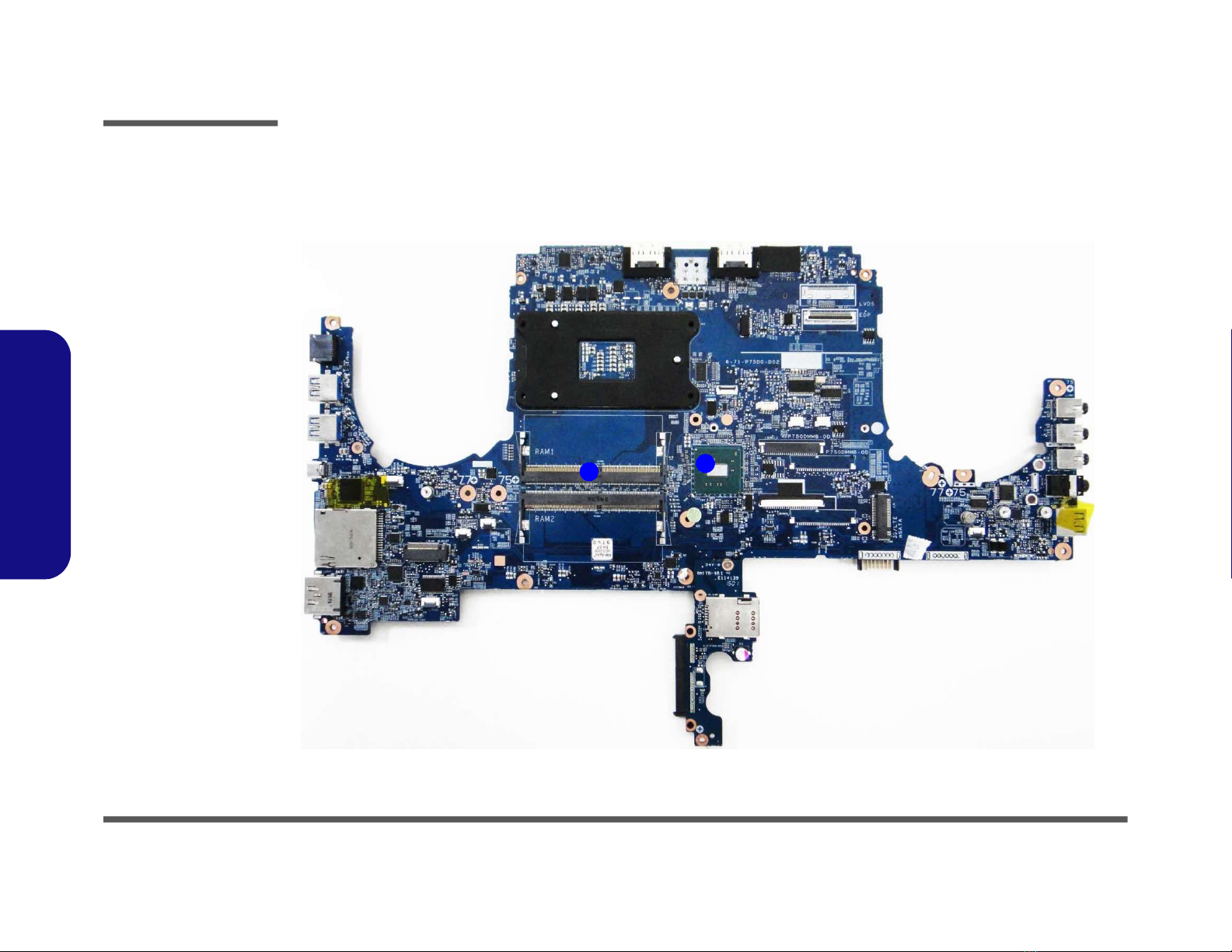

Mainboard Overview - Top (Key Parts) .........................................1-8

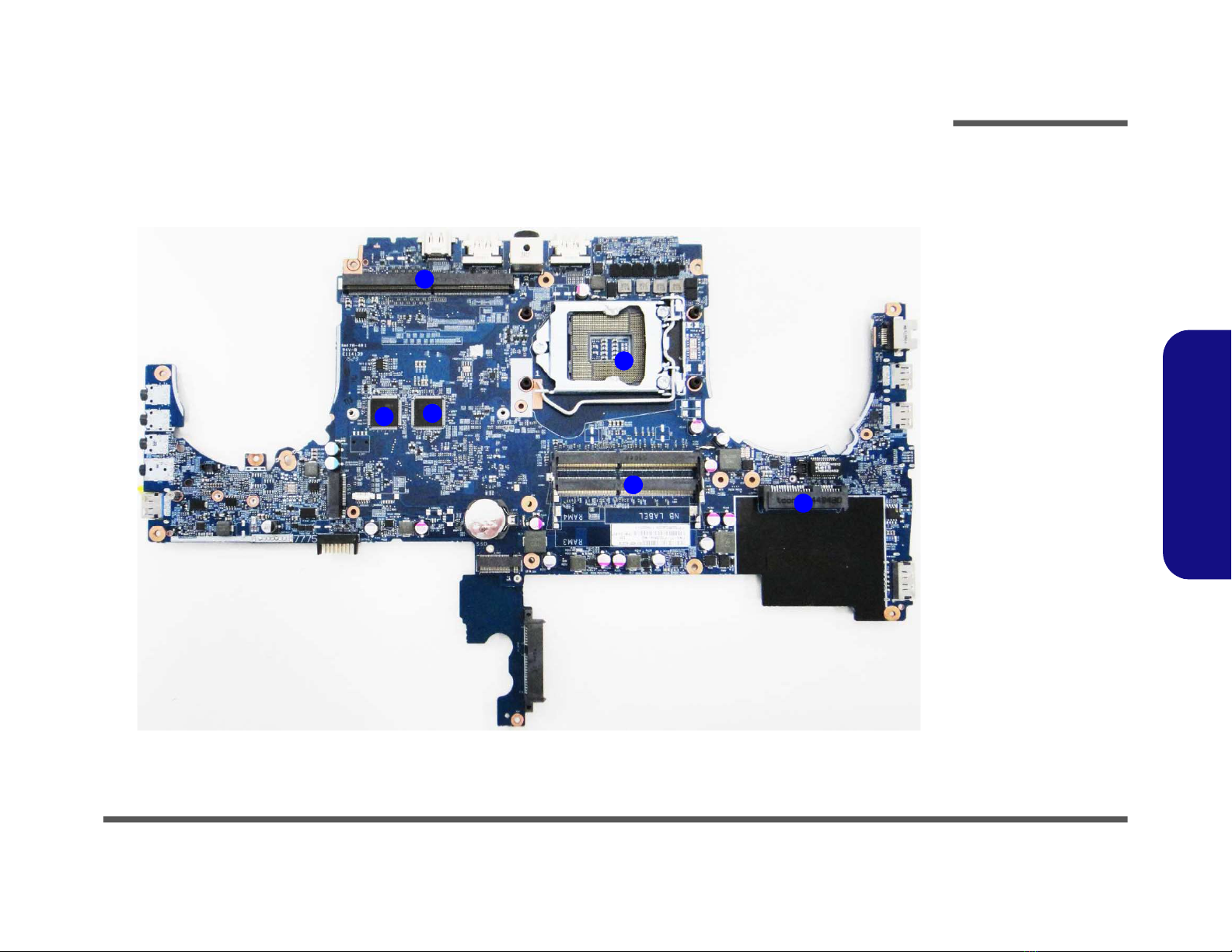

Mainboard Overview - Bottom (Key Parts) ....................................1-9
Mainboard Overview - Top (Connectors) .....................................1-10
Mainboard Overview - Bottom (Connectors) ...............................1-11
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Disassembly Steps ...........................................................................2-4
Removing the Battery ......................................................................2-5
Removing and Installing the Hard Disk Drive ................................2-6
Removing the M.2 SSD Module ...................................................2-10
Removing the Primary System Memory (RAM) .........................2-11
Removing the System Memory (RAM) from Under the Keyboard ..2-
13
Removing and Installing the Processor .........................................2-15
Removing the Wireless LAN Module ...........................................2-18
Wireless LAN, Combo Module Cables .........................................2-19
Removing the M.2 SATA Module ................................................2-20
Removing and Installing the Video Card ......................................2-22
Part Lists ..................................................A-1
Part List Illustration Location ........................................................A-2
Top ................................................................................................. A-3
Bottom .......................................................................................... A-4
LCD ............................................................................................... A-5
MB ................................................................................................. A-6
HDD ............................................................................................... A-7
Schematic Diagrams.................................B-1
Block Diagram ................................................................................B-2
Processor 1/5 ...................................................................................B-3
Processor 2/5 ...................................................................................B-4
Processor 3/5 ...................................................................................B-5
Processor 4/5 ...................................................................................B-6
Processor 5/5 ...................................................................................B-7
DDR4 CHA SO-DIMM_0 ..............................................................B-8
DDR4 CHA SO-DIMM_1 ..............................................................B-9
DDR4 CHB SO-DIMM_0 ............................................................B-10
DDR4 CHB SO-DIMM_1 ............................................................B-11
Panel, Inverter, CRT .....................................................................B-12
Display Port A ..............................................................................B-13
Display Port B ...............................................................................B-14
HDMI ............................................................................................B-15
MXM PCI-E .................................................................................B-16
Lynix Point 1/7 .............................................................................B-17
Lynix Point 2/7 .............................................................................B-18
Lynix Point 3/7 .............................................................................B-19
Lynix Point 4/7 .............................................................................B-20
Lynix Point 5/7 .............................................................................B-21
Lynix Point 6/7 .............................................................................B-22
Lynix Point 7/7 .............................................................................B-23
USB + eSATA, USB Charging ....................................................B-24
CCD, USB Port3 ...........................................................................B-25

Preface
X
Preface
M.2 3G+USB & WLAN+BT ....................................................... B-26
M.2 PCIE4X SSD1 & SSD2 ........................................................ B-27
Realtek ALC892 ........................................................................... B-28
PCM1861 + TAS5766DCA ......................................................... B-29
Subwoofer .................................................................................... B-30
Audio Jack .................................................................................... B-31
EC IT8587 .................................................................................... B-32
Second EC IT8587 ....................................................................... B-33
Backlight Keyboard ...................................................................... B-34
LID SW, Fan, LED Conn ............................................................. B-35
TP, FP, Multi-Con ........................................................................ B-36
LAN E2400 .................................................................................. B-37
PS8338B + PS8330B ................................................................... B-38
TBT .............................................................................................. B-39
Power ............................................................................................ B-40
TPS65982 ..................................................................................... B-41
Cardreader RTS5250 .................................................................... B-42
TPM SLB9655TT & NPCT420 ................................................... B-43
VCCIO / 1P0A ............................................................................. B-44
DDR 1.2V/0.6VS/VCCPLL_OC ................................................. B-45
VDD3, VDD5 ............................................................................... B-46
12V, 5VS, 3.3VS, 3.3VA ............................................................. B-47
5VS_2 ........................................................................................... B-48
VCore / VCCGT ........................................................................... B-49
VCore Output Stage ..................................................................... B-50
VCCSA / VCCGT ........................................................................ B-51
Power Charger, DC-In .................................................................. B-52
P750DM HDD Board ................................................................... B-53
P750DM Power LED Board ........................................................ B-54
P750DM Click Board ................................................................... B-55
P750DM Audio Board ................................................................. B-56
P750DM Charge LED Board ....................................................... B-57
P750DM LID Switch Board .........................................................B-58
P750DM Finger Sensor Board ......................................................B-59
P770DM Charge LED Board ........................................................B-60
P750DM BOT LED Board ...........................................................B-61
P775DM Power LED Board .........................................................B-62
Power On Sequence ......................................................................B-63
Updating the FLASH ROM BIOS......... C-1
