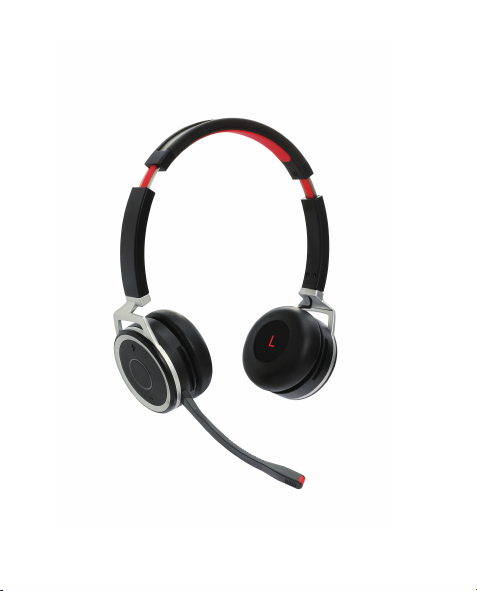

Cleyver ODNW60UC User manual

ODNW60UC / ODNW65UC
User Manual

User Manual
1. WELCOME
2. HEADSET BT OVERVIEW
3
4
4
3. HOW TO WEAR 6
4. HOW TO CHARGE THE BATTERY 9
5. HOW TO CONNECT 10
6. HOW TO USE 12
2.1 HEADSET OVERVIEW
5
2.2 OPTIONAL ACCESSORIES
6
3.1 STEREO
7
3.2 ADJUST THE HEADBAND
7
3.3 POSITION THE MICROPHONE
8
3.4 STORING THE MICROPHONE
10
5.1 CONNECT TO PC (USING USB Dongle)
11
5.2 CONNECT TO MOBILE DEVICE (USING BLUETOOTH)
13
6.1 CALLS
14
6.2 MULTIPLE CALL HANDLING
7. SUPPORT 15
8. TECHNICAL SPECIFICATION 15
9. Product Disposal Treatment and FCC statement 17
157.1 FAQ
157.2 HOW TO CARE FOR YOUR HEADSET

1. WELCOME
Thank you for using the BT Headset
Connects to PC via USB Dongle Bluetooth adapter
Connects to mobile devices via Bluetooth
Integrated busylight
Rotate the microphone boom-arm back to vertical position when not on calls
Superior music and voice capabilities
Hi-Fi Sound
3
BT HEADSET FEATURES

2. HEADSET BT OVERVIEW
2.1 HEADSET
Adjustable headband
Volume up
Power on/Power
off/Busylight indicator
Volume down
Microphone
boom-arm
USB charging port
Base Charge Point
On/off/connect
switch
Bluetooth
indicator
Multi-function button
4

Carry pouch USB cable Charging Base (Optional)
2.2 INCLUDED ACCESSORIES
5

3. HOW TO WEAR
3.1 RIGHT WEARING STYLE
The Headset BT can be worn only on the right.
6

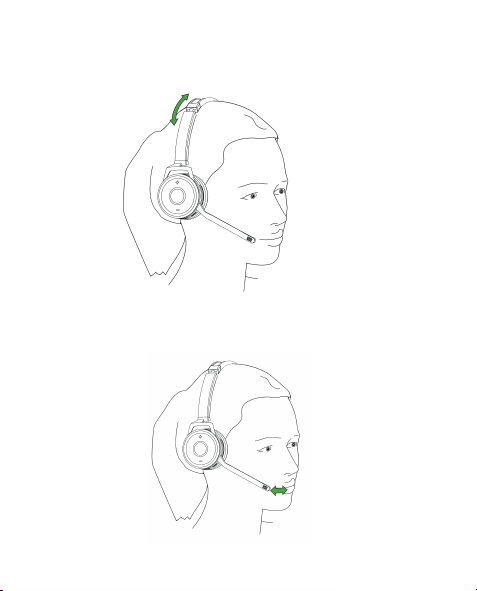

3.2 ADJUST THE HEADBAND
Adjust the headband to find the most comfortable fit.
3.3 POSITION THE MICROPHONE
It is recommended to position the microphone close to your
mouth (0.5 inches).
7

The microphone is bendable for personal preference.
3.4 STORING THE MICROPHONE
When listening to music or outdoors, the microphone boom-arm
can be rotated back to the vertical position near the headband.
8

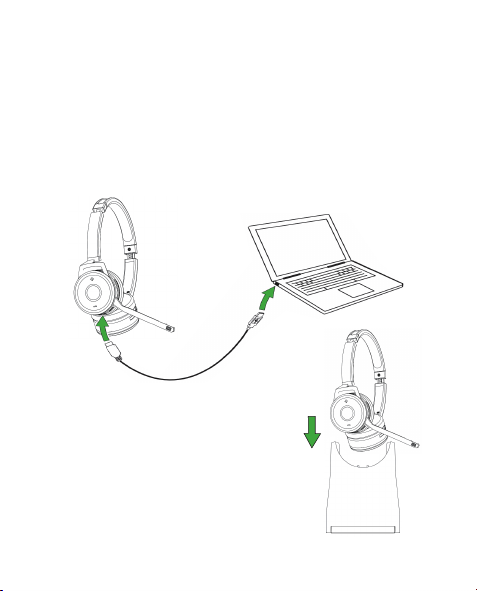

4. HOW TO CHARGE THE BATTERY
Option 1: The headset battery will charge when connected to a PC using
a USB cable, or when using any USB charger supplied with your
mobile device.
Option 2: If you have a charging base, you could plug the charging base into a
powered USB port and then dock the headset.
It takes approx. 3 hours to charge the battery.
9

5. HOW TO CONNECT
5.1 CONNECT TO PC (USING USB Dongle)
1. Ensure the headset is switched on.
2. Plug the USB Dongle dongle into a USB port on your PC. The headset
and USB Dongle are already pre-connected.
10

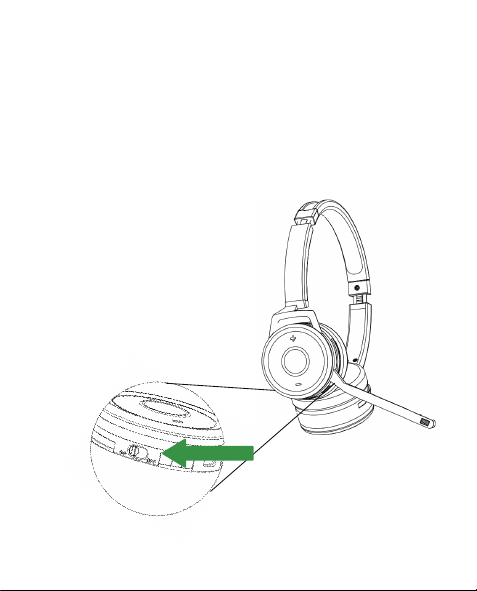

5.2 CONNECT TO MOBILE DEVICE (USING BLUETOOTH)
1. Wear the headset.
2. Hold (2 secs) the On/off/connect switch in the connect position
until you hear the voice guided instructions. The Bluetooth indicator
will flash blue.
3. Follow the voice guided instructions to connect.
11

6. HOW TO USE
Volume up
Power on/Power
off/Busylight indicator
Multi-function button Volume down
USB charging port
Base Charge Point
On/off/connect
switch
Bluetooth
indicator
12

6.1 EVERYDAY USE
Headset on Slide the on switch Green Light flash
twice in succession
Headset off
Pairing Slide the Pair Button Blue Light flash
Pairing
successfully
Blue Light flash
twice in succession
Standby
Answer/end call
Reject call
Adjust volume
Mute/unmute
microphone
Press and hold (2 secs)
the volume down button
Enable/disable
voice prompts
Tap the Multi-function
button
Double-tap the
Multi-function button
Press and hold the
Multi-function button
while turning on the headset
Tap the volume up or
volume down button
Blue Light flash
1 time per 8 secs
Slide the off switch Red Light flash
twice in succession
FUNCTION ACTION LED STATUS
13

End current call and
answer incoming call
Put current call on hold
and answer incoming call
Switch between held call
and active call
Reject incoming call,
when on a call
Double-tap
the Multi-function button
Press and hold
(2 secs) the
Multi-function
button
Press and hold
(2 secs) the
Multi-function
button
Tap the
Multi-function button
FUNCTION ACTION
6.2 MULTIPLE CALL HANDLING
The headset can accept and handle multiple calls at the same time.
14

7.1 FAQ
7.2 HOW TO CARE FOR YOUR HEADSET
View the FAQs on www.Vbet.cn
Always store the headset with the power off and safely protected.
Avoid storage at extreme temperatures (above 55°C or below -10°).
This can shorten battery life and may adversely affect the headset.
7. SUPPORT
BT HEADSET
Headset weight: 158 g
Stereo headset: L 155 mm x W 36 mm x H 180 mm
Wear Style: Headband
Talk Time: 10 hours
Charging Time: 3 hours
Charging Base: Optional
Microphones: Noise cancelling microphone
Speaker Size: 40 mm
Speaker frequency range: 20hz - 20 kHz
Cable length: Connect to PC for charge: 1500 mm
Operating temperature: -10°C to 55°C
Storage temperature: -20°C to 25°C
8. TECHNICAL SPECIFICATIONS
15

BLUETOOTH ADAPTER
(USB Dongle)
SPECIFICATION
PC connection:
Bluetooth version:
Bluetooth range:
Bluetooth profiles:
Simultaneous Bluetooth
connection:
Support SoftPhone：
Bluetooth audio bandwidth：
Visual indicators:
USB 2.0
4.2
Up to 30m (100 feet), Class 1
A2DP (V1.2), Hands free profile (V1.6)
HD voice (wideband), A2DP
Multicolor LED
1
16
Skype for Business/3CX Phone

9. Product Disposal Treatment and FCC statement
RF Warning Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. this transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
1.Dispose of in accordance with local regulations as headphones and recycling
regulations. Never treated headset as household waste. Do not dispose of the headset
in a fire, this battery may explode. If damaged, the battery may explode.
2. FCC statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
17

Made in China
MODEL: ODNW60UC / ODNW65UC
FCC ID: 2AC67-9605 BT
Declaration of Conformity can be found on
