Cleyver ODNW65UC User manual

ODNW65UC
User Manual

User Manual
1. WELCOME 3
2. ODNW65UC BT OVERVIEW 4
2.1 HEADSET OVERVIEW 4
2.2 OPTIONAL ACCESSORIES 5
3. HOW TO WEAR 6
3.1 STEREO 6
3.2 ADJUST THE HEADBAND 7
3.3 POSITION THE MICROPHONE 7
3.4 STORING THE MICROPHONE 8
4. HOW TO CHARGE THE BATTERY 9
5. HOW TO CONNECT
10
5.1 CONNECT TO PC (USING USB Dongle) 10
5.2 CONNECT TO MOBILE DEVICE (USING BLUETOOTH) 11
6. HOW TO USE
12
6.1 CALLS 13
6.2 MULTIPLE CALL HANDLING 14
7. SUPPORT
15
7.1 HOW TO CARE FOR YOUR HEADSET 15
8. TECHNICAL SPECIFICATION
15
9. Product Disposal Treatment and FCC statement
17

3
1. WELCOME
Thank you for using the ODNW65UC BT Headset. We hope you will enjoy it!
ODNW65UC BT HEADSET FEATURES
Connects to PC via USB Dongle Bluetooth adapter
Connects to mobile devices via Bluetooth
Integrated busylight
Rotate the microphone boom-arm back to vertical position when not on calls
Superior music and voice capabilities
Hi-Fi Sound

4
2. ODNW65UC BT OVERVIEW
2.1 HEADSET
Adjustable headband
Volume up
Power on/Power
off/Busylight indicator
Multi-function button
Bluetooth
indicator
Volume down
Microphone
boom-arm
On/off/connect
switch
Base Charge Point
USB charging port

5
2.2 INCLUDED ACCESSORIES
Carry pouch USB cable Charging Base (Optional)

6
3. HOW TO WEAR
3.1 RIGHT WEARING STYLE
The ODNW65UC BT DUO can be worn only on the right.

7
3.2 ADJUST THE HEADBAND
Adjust the headband to find the most comfortable fit.
3.3 POSITION THE MICROPHONE
It is recommended to position the microphone close to your
mouth (0.5 inches).

8
The microphone is bendable for personal preference.
3.4 STORING THE MICROPHONE
When listening to music or outdoors, the microphone boom-arm
can be rotated back to the vertical position near the headband.

9

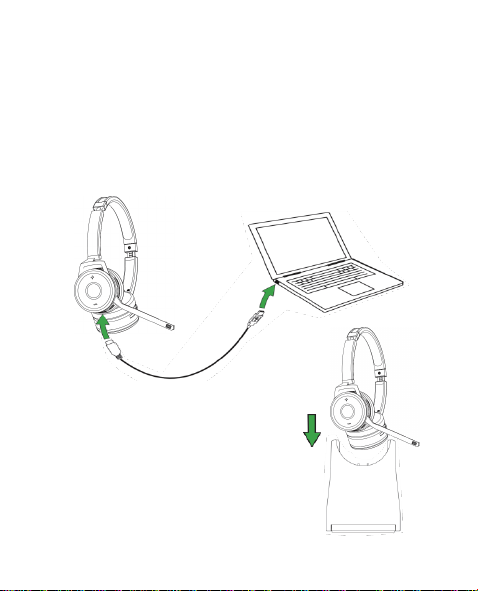

4. HOW TO CHARGE THE BATTERY
Option 1: The headset battery will charge when connected to a PC using
a USB cable, or when using any USB charger supplied with your
mobile device.
Option 2: If you have a charging base, you could plug the charging base into a
powered USB port and then dock the headset.
It takes approx. 3 hours to charge the battery.

10
5. HOW TO CONNECT
5.1 CONNECT TO PC (USING USB Dongle)
1. Ensure the headset is switched on.
2. Plug the USB Dongle dongle into a USB port on your PC. The headset
and USB Dongle are already pre-connected.

11
5.2 CONNECT TO MOBILE DEVICE (USING BLUETOOTH)
1. Wear the headset.
2. Hold (2 secs) the On/off/connect switch in the connect position
until you hear the voice guided instructions. The Bluetooth indicator
will flash blue.
3. Follow the voice guided instructions to connect.

12
6. HOW TO USE
Volume up
Power on/Power
off/Busylight indicator
Multi-function button Volume down
Bluetooth
indicator
On/off/connect
switch
Base Charge Point
USB charging port

13
6.1 EVERYDAY USE
FUNCTION ACTION LED STATUS
Pairing
successfully
Standby
Answer/end call
Tap the Multi-function
button
Blue Light flash
twice in succession
Blue Light flash
1 time per 8 secs
Enable/disable
voice prompts
Press and hold the
Multi-function button
while turning on the headset

14
6.2 MULTIPLE CALL HANDLING
The headset can accept and handle multiple calls at the same time.
FUNCTION ACTION
End current call and
answer incoming call
Put current call on hold
and answer incoming call
Switch between held call
and active call
Reject incoming call,
when on a call
Tap the
Multi-function button
Press and hold
(2 secs) the
Multi-function
button
Press and hold
(2 secs) the
Multi-function
button
Double-tap
the Multi-function button

15
7. SUPPORT
7.1 HOW TO CARE FOR YOUR HEADSET
Always store the headset with the power off and safely protected.
Avoid storage at extreme temperatures (above 55°C or below -10°).
This can shorten battery life and may adversely affect the headset.
8. TECHNICAL SPECIFICATIONS
ODNW65UC BT HEADSET
Headset weight: 158 g
Stereo headset: L 155 mm x W 36 mm x H 180 mm
Wear Style: Headband
Talk Time: 10 hours
Charging Time: 3 hours
Charging Base: Optional
Microphones: Noise cancelling microphone
Speaker Size: 40 mm
Speaker frequency range: 20hz - 20 kHz
Cable length: Connect to PC for charge: 1500 mm
Operating temperature: -10°C to 55°C
Storage temperature: -20°C to 25°C

16
BLUETOOTH ADAPTER
(USB Dongle)
SPECIFICATION
PC connection:
Bluetooth version:
Bluetooth range:
Bluetooth profiles:
Simultaneous Bluetooth
connection:
Support SoftPhone ：
USB 2.0
4.2
Up to 30m (100 feet), Class 1
A2DP (V1.2), Hands free profile (V1.6)
1
Skype for Business/3CX Phone
Bluetooth audio bandwidth ： HD voice (wideband), A2DP
Visual indicators: Multicolor LED

17
9. Product Disposal Treatment and FCC statement
1. Dispose of in accordance with local regulations as headphones and recycling
regulations. Never treated headset as household waste. Do not dispose of the headset
ina fire,thisbatterymay explode. If damaged,thebatterymayexplode.
2. FCCstatement:
Thisdevicecomplieswithpart15of theFCCRules.Operationissubjecttothefollowing
twoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevice
mustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired
operation.
Warning:Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoid theuser's authorityto operatetheequipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digitaldevice,pursuanttopart15 of theFCCRules.Theselimitsaredesignedto provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.
However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthis
equipment does cause harmful interference to radio or television reception, which can be
determinedbyturningtheequipmentoffandon,theuseris encouragedtotryto correctthe
interferenceby one or more of the followingmeasures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connecttheequipmentintoanoutleton acircuitdifferentfromthatto whichthereceiveris
connected.
Consult the dealer or an experienced radio/TV technician for help.
RF Warning Statement:
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled
environment.thistransmittermustnotbeco-locatedor operatinginconjunctionwithany
other antenna ortransmitter.

Made in China
MODEL: ODNW65UC
Declaration of Conformity can be found on
