Welcome
Welcome to Motorola’s “connected” world of Bluetooth ™ personal area wireless
networking.
You can place a call directly from your Bluetooth Wireless Headset by using your
Bluetooth capable phone and your phone’s voice activation feature. The headset
provides handsfree convenience and freedom from cables and wires. Bluetooth
technology makes all connections quickly and without any cables .
All Motorola wireless products are designed and manufactured to meet Motorola’s
rigorous specifications and world-class quality standards. During development, our
testing team took the Motorola Bluetooth Wireless Headset through rigorous
durability tests including temperature, humidity, shock, dust, vibration, and drop
tests.
We are confident that you will find your Bluetooth Wireless Headset to be a
convenient and secure way to make clear, crisp phone calls.Thank you for choosing a
Motorola Bluetooth product!

Personal Communications Sector
600 North U.S. Highway 45
Libertyville, Illinois 60048
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States)
1-800-461-4575 (Canada)
www.motorola.com
MOTOROLA, the Stylized M Logo and all other trademarks indicated as such herein
are trademarks of Motorola, Inc. ® Reg. U.S. Pat. & Tm. Off. BLUETOOTH is a
trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Motrola, Inc.
TrueSync is a trademark of Starfish, Inc., a wholly owned subsidiary of Motorola, Inc.
All other product or service names are the property of their respective owners.
© 2002 Motorola, Inc. All rights reserved. Printed in the U.S.A.
Manual number: 9887570M02-O

3
Contents
Safety and General Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Introduction
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
What Is Bluetooth Wireless Technology? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
How Can I Use My Bluetooth Wireless Headset? . . . . . . . . . . . . . . . . . . . . . . . 7
What Is Included in This Kit? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Headset Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using Your Headset
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Charging Your Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Wearing the Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Linking Your Headset and Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Controlling Headset Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Placing a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Ending a Call from the Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Transferring a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Disconnecting the Bluetooth Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Using Your Headset Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Resetting the Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4
Safety and General Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ
THIS INFORMATION BEFORE USING YOUR PHONE.
Users are not permitted to make changes or modify the device in any way. Changes
or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. See 47 CFR Sec. 15.19(3).
Electromagnetic Interference/Compatibility
Note: Nearly every electronic device is susceptible to electromagnetic interference
(EMI) if inadequately shielded, designed, or otherwise configured for
electromagnetic compatibility.
Facilities
To avoid electromagnetic interference and/or compatibility conflicts, turn off your
phone in any facility where posted notices instruct you to do so. Hospitals or health
care facilities may be using equipment that is sensitive to external RF energy.

5
Safety and General Information
Aircraft
When instructed to do so, turn off your phone when on board an aircraft.Any use of
a phone must be in accordance with applicable regulations per airline crew
instructions.
Medical Devices
Pacemakers
The Health Industry Manufacturers Association recommends that a minimum
separation of 6 inches (15 centimeters) be maintained between a handheld wireless
phone and a pacemaker. These recommendations are consistent with the
independent research by, and recommendations of, Wireless Technology Research.
Persons with pacemakers should:
•ALWAYS keep the phone and Bluetooth phone module more than six inches (15
centimeters) from your pacemaker when the phone is turned ON.
•NOT carry the phone and Bluetooth phone module in the breast pocket.
• use the ear opposite the pacemaker to minimize the potential for interference.
• turn OFF the phone immediately if you have any reason to suspect that
interference is taking place.
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In the event of
such interference, you may want to consult with your hearing aid manufacturer to
discuss alternatives.

Safety and General Information
6
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your device
to determine if it is adequately shielded from RF energy.Your physician may be able
to assist you in obtaining this information.
FCC Notice to Users
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules.These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
•Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

7
Introduction
What Is Bluetooth Wireless Technology?
Bluetooth wireless technology propels you into a new dimension in connectivity.
Bluetooth devices communicate without wires, using built-in radio transceivers that
operate on a globally available radio frequency to ensure worldwide compatibility.
Your Bluetooth Wireless Headset can communicate with other Bluetooth devices
within a range of approximately 10 meters (33 feet).
How Can I Use My Bluetooth Wireless Headset?
The Bluetooth Wireless Headset lets you connect with a Bluetooth device such as a
Motorola 280i wireless phone with attached Bluetooth module
• Use your phone hands-free.
• Handle incoming and outgoing calls with the headset multifunction control
button.
• Use voice activation to make calls.
Note: Connecting your headset requires Bluetooth Headset Profile Support. Consult
your User’s Guide for more information.

Introduction
8
What Is Included in This Kit?
This package includes the following:
• Bluetooth headset
• Motorola charger
• Headset pouch with built-in belt clip
• Lanyard option for carrying the headset

9
Introduction
Headset Features

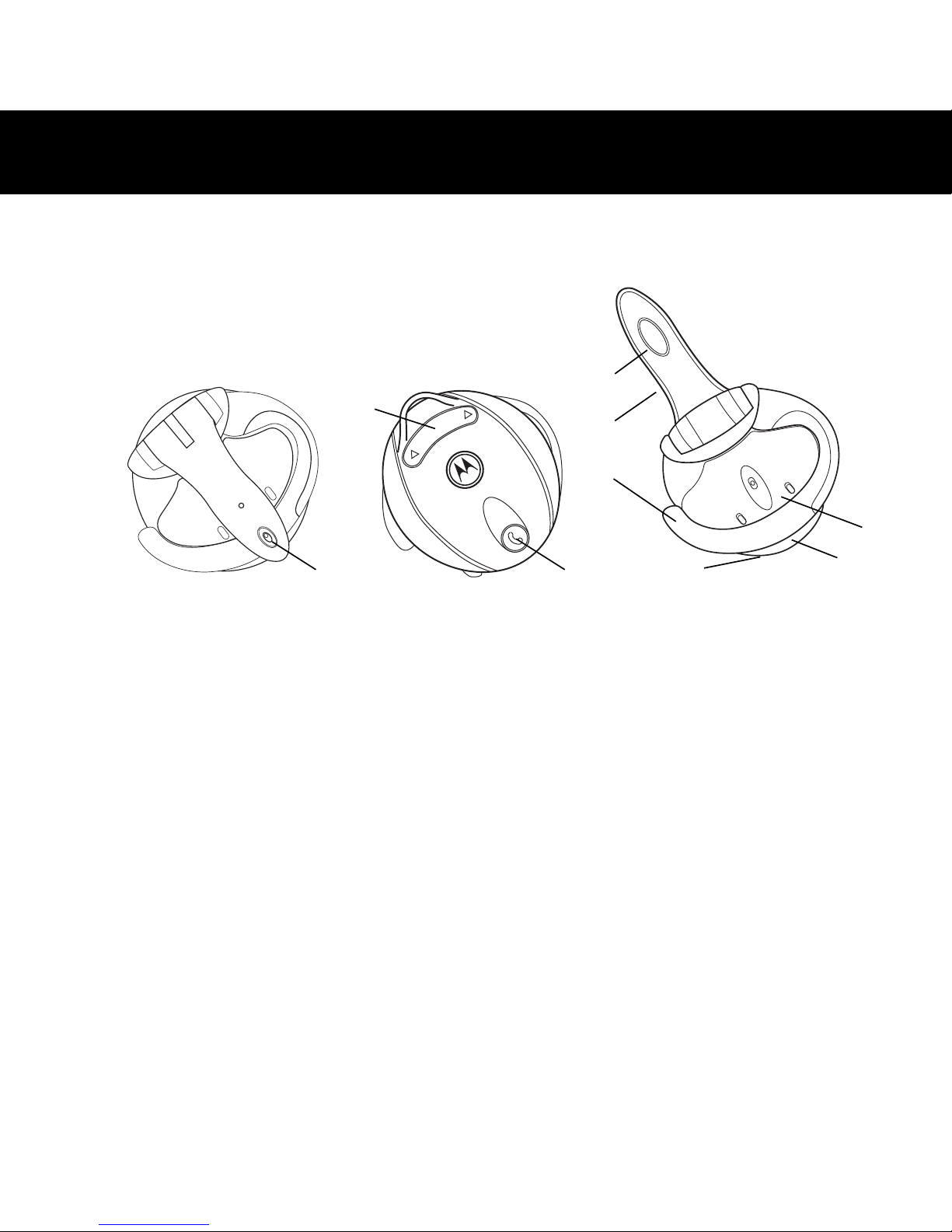

1—Headset Indicator light Provides visual cue about headset status.
2—Volume Control Adjusts speaker (receive) volume up and down.
3—Microphone Picks up your voice input.
4—Boom Contains microphone and controls power (On/Off) status of headset.
5—Earhook Attaches headset to ear.
6—Speaker Plays the sound you receive on the call.
7—Charging Port Receives the plug for your battery charger.
8—Lanyard Loop Lets you attach a lanyard to the headset, so you can wear the
headset around your neck and always keep it near.
9—Multifunction Button E Controls several headset functions.
1
2
9
3
4
5
6
7
8
Headset On
(boom open)
Headset Off
(boom closed)

10
Using Your Headset
Charging Your Headset
When to Charge
First-Time Use —Before you can use your headset, you need to charge its self-
contained battery for two hours.
Recharging —When you hear five rapid high tones through the headset speaker,
repeated at 20-second intervals, the headset battery needs to be recharged.
Over extended periods of time, batteries gradually wear down and require longer
charging times.This is normal.The more you talk on the phone with the headset, the
less standby time your battery has.
The rechargeable batteries that power this product must be disposed of
properly and may need to be recycled. Contact your local recycling center
for proper disposal methods. Never dispose of batteries in a fire because
they may explode.

11
Using Your Headset
How to Charge
Note: You can also use a Motorola Original Vehicle Power Adapter to charge the
headset while in your vehicle.
A fully charged headset battery provides approximately:
• talk time—4 hours
• standby time (boom open)—70 hours
• storage time (boom closed)—30 days
Step
1 Plug the Motorola charger into the
headset, with the charger’s release
tab and the headset both facing up.
2 Plug the other end of the charger into an electrical outlet.
During charging, the headset indicator turns on and remains lit until charging
is complete. Your headset requires approximately two hours to receive a full
charge.
3 When charging is complete (indicator is off), remove the charger from the
electrical outlet, press the release tab, and detach the charger cord from the
headset.

Using Your Headset
12
Wearing the Headset
Placing the Headset on Your Ear
When packaged, the headset is configured for wear on the right ear.
Step

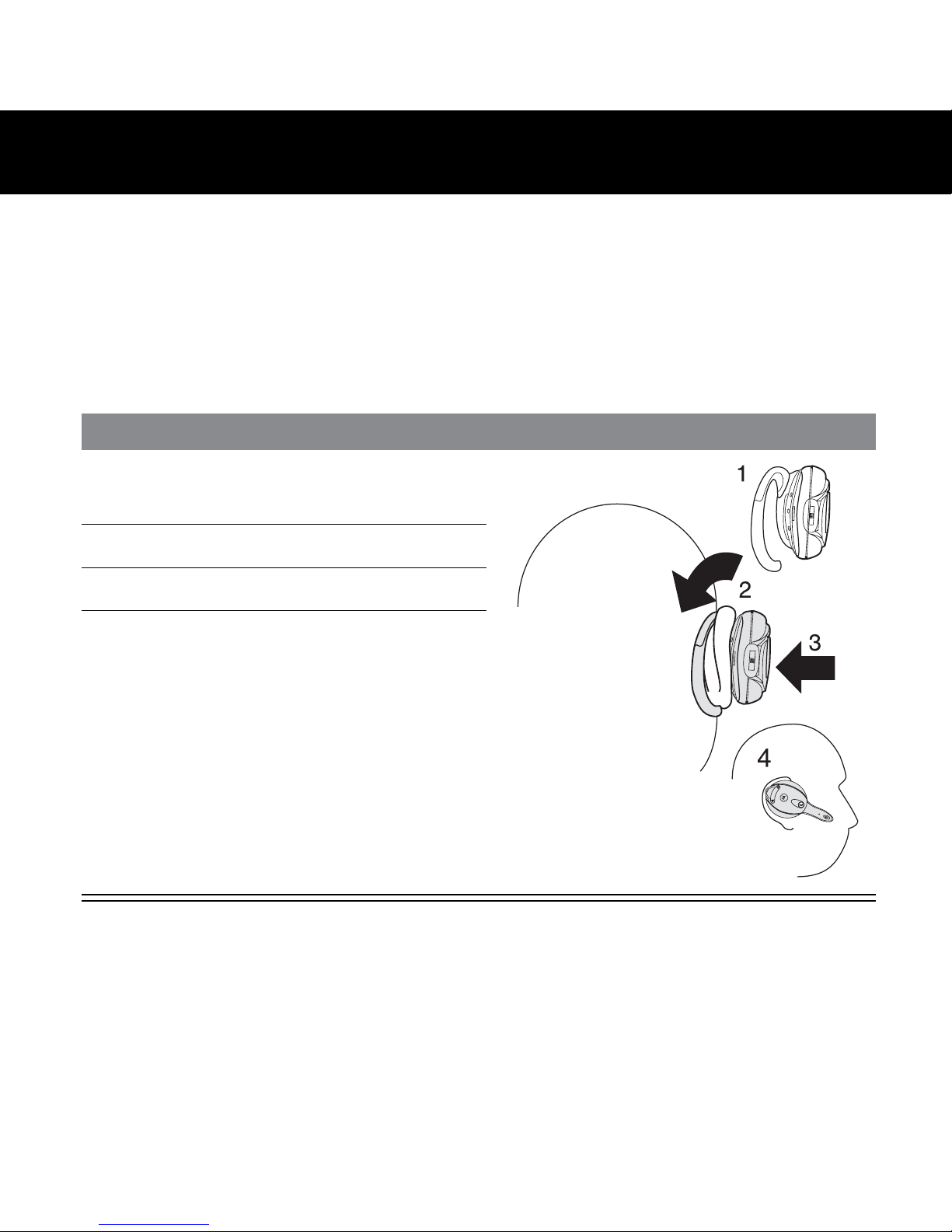

1 Open the boom, then open the
earhook (90˚ from the headset).
2 Loop the earhook over your ear.
3 Press the headset to your ear.
4 Point the boom toward your mouth.

13
Using Your Headset
Changing for Wear on the Left Ear
When packaged, the headset is configured for wear on the right ear.
To change it for wear on your left ear:
Step
1 Open the boom, then open the
earhook (90˚ from the headset).
2 Gently lift and pull the top of the
earhook up and off the upper hinge
pin. Then pull it away to remove it.
3 Flip the headset over.
4 Hook the bottom of the earhook onto the lower hinge pin, then lift and pull
the top of the earhook over the upper hinge pin.

Using Your Headset
14
Storing Your Headset in its Holster
Your headset comes with a holster where you can store it when you are not using it.
To fit your headset into its holster:
Step
Slip the headset down into the
holster, with the lanyard tab pointing
up and the earhook facing the inside
of the holster.

15
Using Your Headset
Linking Your Headset and Phone
Note: You must link your headset and phone before you can make a call.
You establish a Bluetooth link between your headset and phone with a paired link.
When you set up a paired link, the phone remembers the headset’s ID. Once your
headset and phone are paired, your headset automatically connects to your phone
any time you open the boom.
Paired Link
With the headset and phone in close proximity:
Step Result
1 With the headset’s boom closed, press
and hold the Multifunction Button E
for three seconds.
The headset indicator turns on.
2 Open the headset boom. The indicator remains lit.

Using Your Headset
16
3 Perform a device discovery from the
phone. For Motorola phones, perform
device discovery by selecting these
options:
Settings
>
Connection
>
Bluetooth Link
>
Hands Free
>
Scan All
For details on device discovery for
another phone, refer to the user’s
guide for the phone.
When the scan is complete, the
phone displays:
Bond with Motorola headset
4 Press the
YES
soft key on the phone to
bond to the headset.
It may take several seconds to
establish a connection.
5 When
Enter Bluetooth Passkey
appears, enter the passkey 0000 , then
press OK on the phone to pair the
headset with the phone.
The device ID is now stored in the
phone’s memory.
Pairing is successful when the
headset indicator flashes 10 times
rapidly.
Step Result

17
Using Your Headset
Paired Link to Additional Devices
Your headset can store pairing information for up to eight different Bluetooth
devices. Devices are stored in a “Paired Device List” in memory in chronological
order.When an attempt to pair to more than eight devices is made, the oldest paired
device is removed from the list.
Any of the eight paired devices can initiate a paired connection to the headset.
The headset will only automatically initiate a paired connection (via opening the
boom) with the last device it was connected to . If you want to connect the
headset to another device in the paired device list, you must initiate the connection
from that device.Whichever of the eight devices initiates a connection to the headset
afterwards, that device then becomes the “last connected” device.
Auto-Answer
TM
and Auto-Transfer
TM
functions will only work when attempted with
the last device the headset was connected to .
6 Press the
Link
soft key on the phone. The audio gateway is established
between your phone and headset.
7 Press the END key on the phone to exit
the Bluetooth menu
The phone returns to idle.
You can now place and receive calls.
(See “Placing a Call” on page 19
and “Receiving a Call” on page 21.)
Step Result

Using Your Headset
18
Controlling Headset Volume
Increasing and Decreasing Volume
To increase speaker volume, press the top of the volume button repeatedly until you
reach the desired volume level.
To decrease speaker volume, press the bottom of the volume button repeatedly until
you reach the desired volume level.
Note: Because the headset is equipped with Volume Orientation Technology, it does
not matter whether you wear the headset on the right or left ear. Pressing the top of
the volume key always increases the volume, and pressing the bottom always
decreases the volume.

19
Using Your Headset
Placing a Call
You can place a call with your headset in these three ways:
• using voice activation
• dialing a number from the phone
• redialing a number with the headset’s Multifunction Button E
In all three cases, you must first link your headset and phone as described in
“Linking Your Headset and Phone” on page 15.
Using Voice Activation with Motorola Phones
Note: To use voice activation, you must turn on
Voice Dial
in your phone’s
Bluetooth Link menu.
Step Result
1 Press the Multifunction Button E .Atone sounds to prompt you to
speak the name of the person you
wish to call (as entered in the
phone’s phonebook.)
2 Say the voice tag name. Your phone finds the entry, pauses
two seconds, then places the call.
