Climate+ CAC-18000NX User manual

EVAPORATIVE AIR COOLER
CAC-18000NX
www.climateplus.ae
Please read and save the instruction manual carefully before use

EVAPORATIVE AIR COOLER
CAC-18000NX
www.climateplus.ae

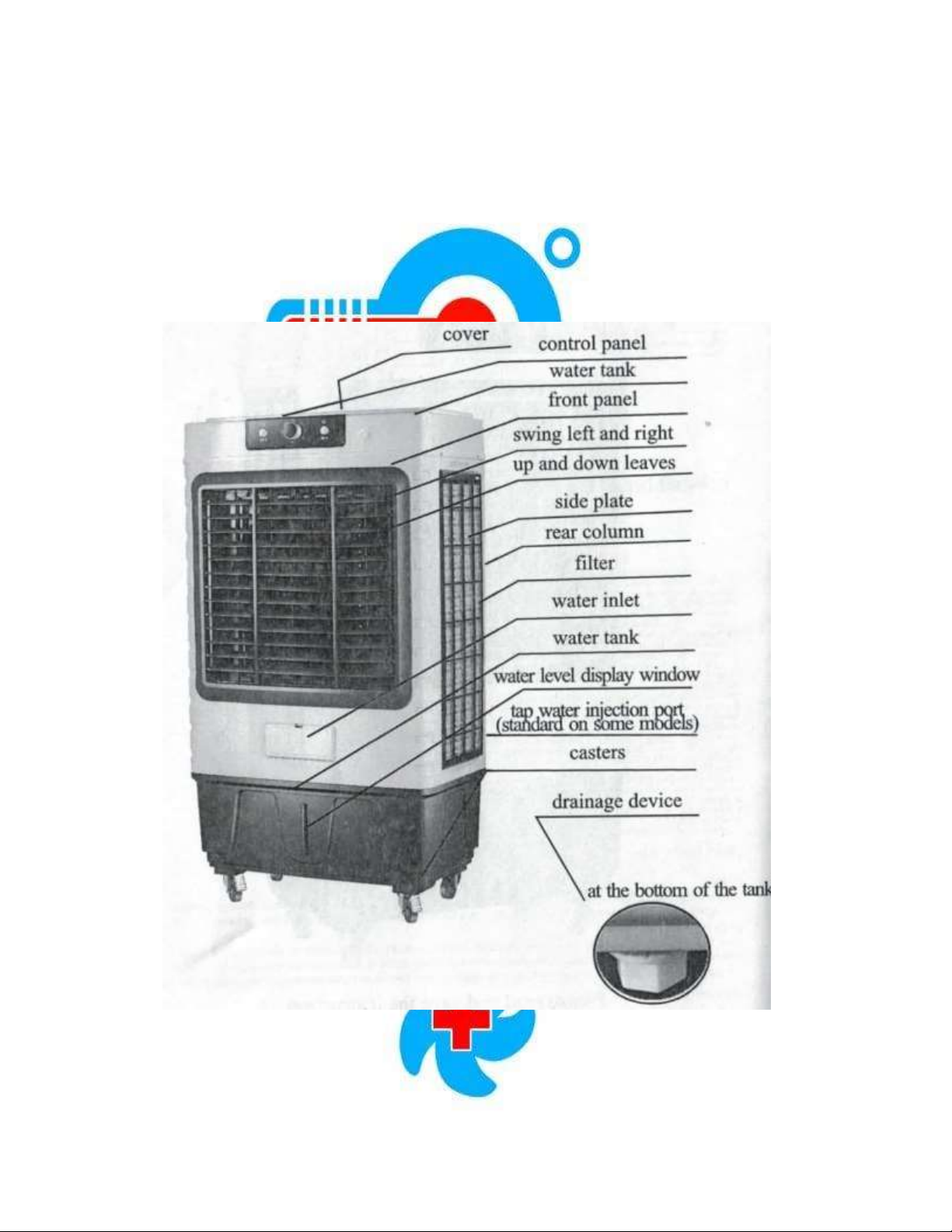

Product structure diagram
Figure 1
2

EVAPORATIVE AIR COOLER
CAC-18000NX
www.climateplus.ae
Safety Precautions
Respected user
Thank you for choosing this product. To facilities your use, please read this manual
carefully and follow the instructions. Please keep the instructions and invoices in a safe place. If
you encounter any difficulty in use, or have any opinions or suggestions on our products, you
can contact the distributor or directly call our service hotline.
Please read this manual carefully before use. Our company reserves the right to explain the
instructions. Product appearance, please prevail in kind. If you encounter product technology or
software upgrades without notice.
Safety precautions
The non-professional personnel or unauthorized repair personnel shall not repair or modify the
machine by themselves.
It is forbidden to operate with wet hands to avoid electric shock.
If the power cord is damaged, it must be replaced by the manufacturer, its maintenance
department or a similar professional in order to avoid danger.
Do not clean, repair and move the machine with power.
If you do not use the camera for a long time, unplug the power plug.
Please do not insert foreign objects into the air inlet and outlet, because the machine is
equipped with high-speed rotating wind blades to prevent accidentally injury or damage the
machine.
It is forbidden to use this machine in an environment with flammable and explosive gas.
After adding water to the water tank, do not tilt or bump it while placing or moving the unit. To
move the unit, slowly push it from the side to avoid water overflow.
The use of this unit is strictly prohibited to turn over to prevent accidents. If the unit is
accidentally dumped and there is water in the machine, unplug the power plug immediately
and allow it to dry after 24 hours.
10. Do not place objects on the unit and do not cover the outlet.
11. When cleaning the exterior of the unit, wipe it with a damp cloth (or a small amount of
detergent)
12. Do not put the air inlet and outlet of this unit close to walls, curtains, etc., otherwise it may
block the airflow and affect the air supply effect.
3

EVAPORATIVE AIR COOLER
CAC-18000NX
www.climateplus.ae
13. This machine uses a temperature range of 5-45 degrees, the water in the summer tank is
easily deteriorating and produces odor. Please pay attention to changing the water. Use
humidification of the machine in winter. If the room temperature is lower than zero, it is best to
use warm water to humidify.
14. Do not place this unit directly on the power outlet.
15. Product maintenance must be performed at the designated maintenance point.
16. It is forbidden to use the cooling function without water.

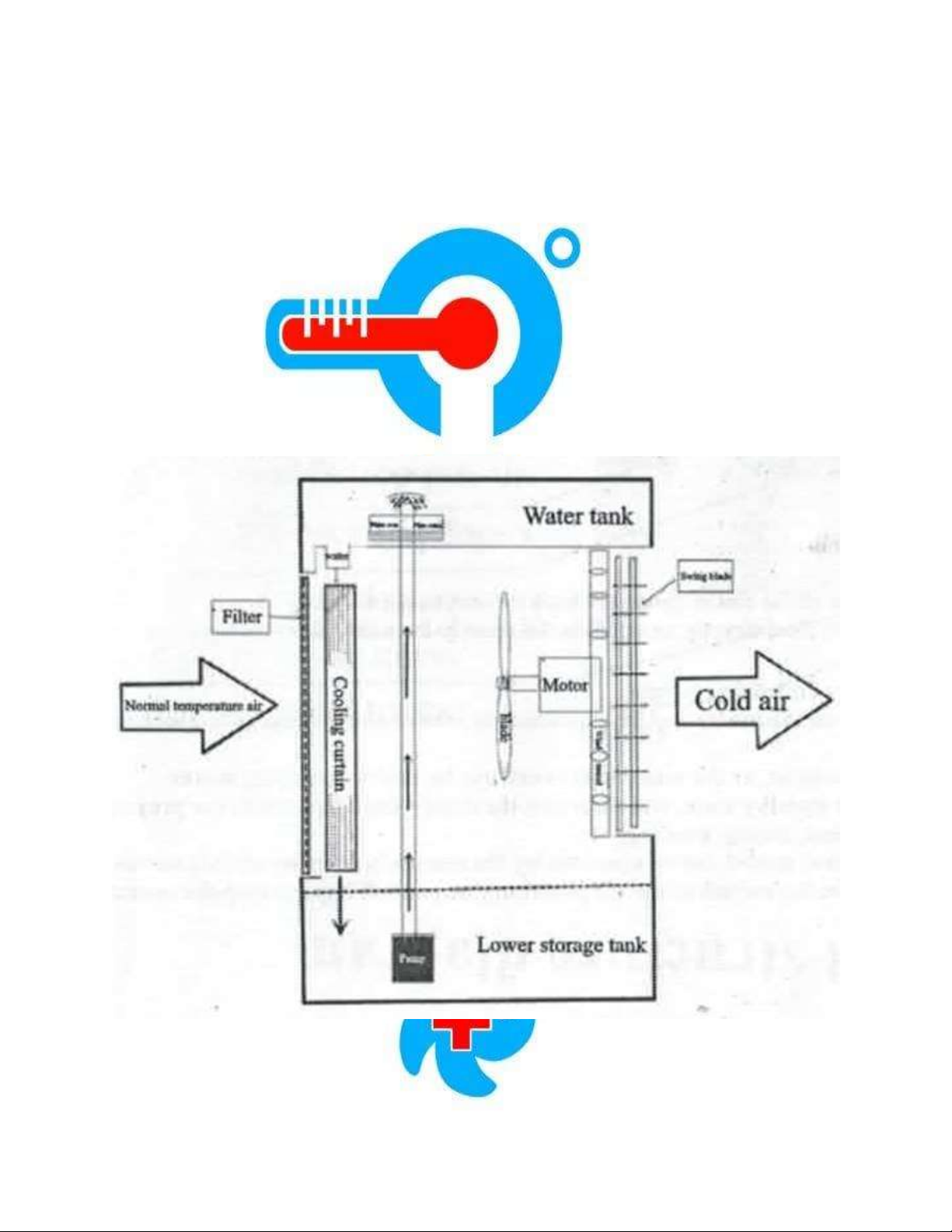

Cooling Principle
3

EVAPORATIVE AIR COOLER
CAC-18000NX
www.climateplus.ae
The evaporative cooling air cooler is a very economical German refrigeration method. This
product makes full use of the principle of “evaporation and cooling” and use a wet curtain as an
evaporator. It not only has a good cooling effect, but also filters dust from the air and improves
air quality. To prevent secondary pollution, the principle of cooling is, through the fan’s
ventilation, negative pressure is generated in the machine, and the water pump sends the
water to the water to the upper water filter, and the water is filtered twice and enters the
water separator. Example (Figure 3) The water evenly wets the surface of the entire curtain,
and the special angle of the curtain allows the water to flow directly to the side where the air
enters the wind. The hot air passes through the curtain that is wetted by water and absorbs a
large amount of heat in the air, so that the curtains passes through the wet curtain. After the
temperature of the air cools down, the fan’s rapid rotation causes the wind to produce a
cohesive force through the specially designed air duct, thus achieving the effect of farther
blowing distance and greater wind pressure, making the sent air cool, moist and fresh. The
unevaporated water falls back into the chassis and forms a water circuit.
Product Specifications
model
Rated
Voltage
Rated
Frequency
Rated
power
Electric
shock
protection
type
Product appearance
size
ZY60
220V
50Hz
240W
1
670x430x1010mm
ZY60A
220V
50Hz
240W
1
670x430x1010mm
YF60
220V
50Hz
240W
1
670x430x1010mm
ZY60-01
220V
50Hz
240W
1
670x430x1010mm
ZY60A-01
220V
50Hz
240W
1
670x430x1010mm
YF60-01
220V
50Hz
240W
1
670x430x1010mm
ZY80
220V
50Hz
280W
1
670x430x1190mm
ZY80A
220V
50Hz
280W
1
670x430x1190mm
YF80
220V
50Hz
280W
1
670x430x1190mm
ZY80-01
220V
50Hz
280W
1
670x430x1190mm
ZY80A-01
220V
50Hz
280W
1
670x430x1190mm
ZY80-01
220V
50Hz
280W
1
670x430x1190mm
ZY120
220V
50Hz
500W
1
770x500x1320mm
ZY120A
220V
50Hz
500W
1
770x500x1320mm
YF120
220V
50Hz
500W
1
770x500x1320mm
ZY120-01
220V
50Hz
500W
1
770x500x1320mm
ZY120A-01
220V
50Hz
500W
1
770x500x1320mm
YF120-01
220V
50Hz
500W
1
770x500x1320mm
4

EVAPORATIVE AIR COOLER
CAC-18000NX
www.climateplus.ae
Installation and use
Open the package and remove the machine
Install casters
Add water: Open manual water inlet of the chiller (press the buckle down to open it) and use
the tap water connection to connect the float directly, or open the lid directly from the filter
box in the upper tank. Note clear water.
When adding water, pay attention to the following points:
Remember the splash water on the motor and its surrounding area to avoid damage to
electrical components.
Add water to highest position, or the water will overflow, be sure to use clean water.
Connect the power supply, enter the standby state, and then turn the rotary knob clockwise (or
press the on/off key) to use, and set the wind speed, swing, cooling, etc.
In the running state, the remote control model can be operated by the remote controller or the
control panel. The mechanical model can rotate the switch to the off position (turn on/off key)
to stop the operation and return to the standby mode.
Product circuit diagram
ZY60 ZY80 ZY120 ZY60-01 ZY80-01 ZY120-01
ZY60A ZY80A ZY120A ZY60A-01 ZY80A-01 ZY120A-01
YF60 YF80 YF120 YF60-01 YF80-01 YF120-01
5

EVAPORATIVE AIR COOLER
CAC-18000NX
www.climateplus.ae
Repair and maintenance
Warming: The power plug must be unplugged (power off) before performing
any maintenance.
After removing the air filter and clearly rotating the detents of the
filter remove the right and left sides and the rear stencil and rinse it.
Then, reinstall it.
Disassembly of the left and right side plates and rear plate
Water tank drain
Turn the lid under the tank counterclockwise to empty the sewer. Suggestion: Better clean
water every day, so as not to put too long to produce odor. If you do not use it for a long time,
you must clean and drain the tank to prevent bacteria breeding
Maintenance and storage methods
Reminder: After the machine has been running for a long time, filters, curtains, and water tanks
will be affected by dust and other dirt blockage, dust and humidification effect, it is
recommended to clean once a week according to the actual situation.
1.Before cleaning the air filter, unplug the power plug and remove the air filter. Clean the air
filter directly with a soft brush. Rinse with water and dry it, the reinstall it on the machine.
6

EVAPORATIVE AIR COOLER
CAC-18000NX
www.climateplus.ae
2. After cleaning the water curtain, please unplug the power plug, remove plug, remove the air
filter, then remove the curtain fixing plate, rinse with fresh water, and then put it back on the
machine.
3. Please clean the water tank, unplug the power plug, remove the rear plate and the side plate,
turn the drain cover under the tank counter-clockwise, empty the sewage, wipe the scale in the
tank with a brush and dilute the detergent, and then use the water. Rinse clean and then install
the tank drain cover side plate and rear plate.
Troubleshooting
Malfunction
Cause/Solution
Cold fan cannot start
1.1 The power cord is not correctly linked.
1.2 The power switch is not turned on, please turn the switch or
touch switch key
Can not be cooled
2.1 The pump is not started, please press the cooling or touch
switch buttom
2.2 The water level is too low. Please add water and confirm that
cooling is on.
2.3 Damage to the pump or water level switch. Please replace the
water pump or water level switch
The fan does not turn
3.1 Check if the power supply is properly connected
3.2 The power switch is not turned on, please turn the switch or
touch switch key
3.3 If ground protection is connected, check for open circuit.
Leaves do not move
4.1 Please check whether the swing button is open, please open
the swing buttom
4.2 Pendulum motor damaged, please replace the blade motor
4.3 Please check if the motor is normal
Box leaving water
5.1 Please check whether the drain cover is tightened and the
cabinet is broken
6

EVAPORATIVE AIR COOLER
CAC-18000NX
www.climateplus.ae
Replaceable parts
7

EVAPORATIVE AIR COOLER
CAC-18000NX
www.climateplus.ae
Environmental instructions
This product satisfies the requirements of the “Management Measures for Restricted Use of
Harmful Substances in Electrical and Electronics Products”;
During the period of environmental protection use, consumers will not be exposed to
problems such as leakage or precipitation of harmful substances during normal use, and they
can use it safely.
The company’s product environmental protection use period is 10 years, only in the normal
conditions described in this specification when using this product, “environmental use
period” is valid.
Names and contents of harmful substances in products
Part Name
Harmful Substance
Pb
Hg
Cd
Cr (VI)
PBB
PBDE
Remarks
Plastic parts
0
0
0
0
0
X
Hardware
0
0
0
0
0
0
Components
x
0
0
0
0
X
Circuit board
assembly
x
0
0
0
0
0
Power cable
x
0
0
0
0
x
This form is based on the provision of SJ/T11364
0: Indicates that the content of the hazardous substance in all homogeneous material of the
component is below the requirements specified in GB/T 26572;
X: Indicates that the content of the hazardous substance in at least one of the homogeneous
materials of the components exceeds the limit specified in GB/T 26572;
Remarks: Among the parts marked “x” above, some containing hazardous substances
exceeding the standard are due to the current technical level of the industry, temporarily
unable to achieve replacement or reduction.
8

EVAPORATIVE AIR COOLER
CAC-18000NX
www.climateplus.ae
Warranty Card
The machine warranty is one year and the warranty period starts from the date of invoice. For
products that are out of warranty or out of warranty, paid repair services are provided.
If this product requires repair , please send it to an authorized dealer an present this warranty
card and invoice.
The following conditions are not covered by the warranty:
Damage caused by maintenance of spare parts by unspecified professionals
Failure or damage due to the use of the environment does not meet product requirements
(such as voltage instability, water pressure is too low, water contains impurities, etc)
Failure or damage due to uncontrollable factors (such as fire, earthquake)
Failure or damaged caused by improper installation or other human factors
Due to lack of normal maintenance, causing water curtain, dust net blocking caused burn
insurance, wind blade deformation, motor failure, etc.
Use beyond the scope of use of the relevant product
Please fill in the following user information
User name
Mailing address
User phone
contact
Please fill in the following purchase information
Dealer name
phone
contacts
Date of purchase
Maintenance records
Repair date
Failure and maintenance
repair location
Maintenance staff signature
8
INVOICE PASTE
Please post the purchase invoice here for maintenance and repair purposes.
Note: Please properly save the card and purchase invoice; In the regular warranty need to provide
purchase invoice, regarding the warranty terms, please refer to the warranty description.
