1. INTRODUCTION
Thank you for buying a product manufactured by CLIMER TECHNOLOGY. This product has
been manufactured according to the European Quality Standards, incorporates prime grade
materials and its correct working has been tested before it leaves our facilities.
Through this Installation and User Manual, you will be guide towards the correct and safety
installation of the product. It is necessary to carefully read this manual before making any
handling to avoid problems arising from the misuse of the product.
The company CLIMER TECHNOLOGY reserves the right to modify the information included in
this document at any time without prior notice.
2. GENERAL INDICATIONS
2.1. Safety notes
The incorrect or inappropriate use of this product could lead to hazardous situations, causing
damage or injuries to the user, third parties or even to the product itself or material goods.
-The installer has the responsibility to install the minimum safety devices (hydraulic
and electrical) set out in this Manual. In case of failure, the lack of any device may
cause burns or other injuries.
-The installer has the responsibility to inform the user about the function and
placement of the safety devices installed into the device and the installation.
-The water outlet temperature could reach 62 degrees. Do not touch the pipes while
the system is working to avoid any risk of burns.
2.2. Qualification of the installer
Since the installation of the ECOFLEX TD involves handling coolant as well as carry out
welding work, it is needed the technical staff have the official certification that accredits them
as authorized to handle coolants.
The installer must explain the user the application of the product and the use and
management of the unit, and he should provide the user all the documentation supplied
with the equipment.

INSTALLATION AND USER MANUAL
ECOFLEX TD
4 V1REV4EN0822
2.3. Package contents
The ECOFLEX system comprises the following components:
-EF04TD unit
-Thermodynamic panels
-Anchoring elements
-User Manual
2.4. Indications about transport and unpacking the unit
The unit is supplied packed into a wooden pallet properly secured to prevent damage
during transport.
The material that CLIMER TECHNOLOGY uses to the packing are recyclables, so dispose it
in an appropriate container.
Use a forklift or hand pallet truck to transport the unit to the installation site, always
introducing the forks into the bottom of the pallet being careful not to damage the unit.
In case you identify any damage at the time of the reception of the unit, it is mandatory to
register it in the reception note of the transport company, and then, submit the complaint.
For this reason, it is recommended to make a thorough visual inspection of the goods before
signing the reception note.

INSTALLATION AND USER MANUAL
ECOFLEX TD
5 V1REV4EN0822
3. TECHNICAL INFORMATION
3.1. Operating Principle
Figure 1. Operating principle
3.2. Dimension drawings
Figure 2. Dimensions
A: 560 mm
B: 505 mm
C: 370 mm

INSTALLATION AND USER MANUAL
ECOFLEX TD
6 V1REV4EN0822

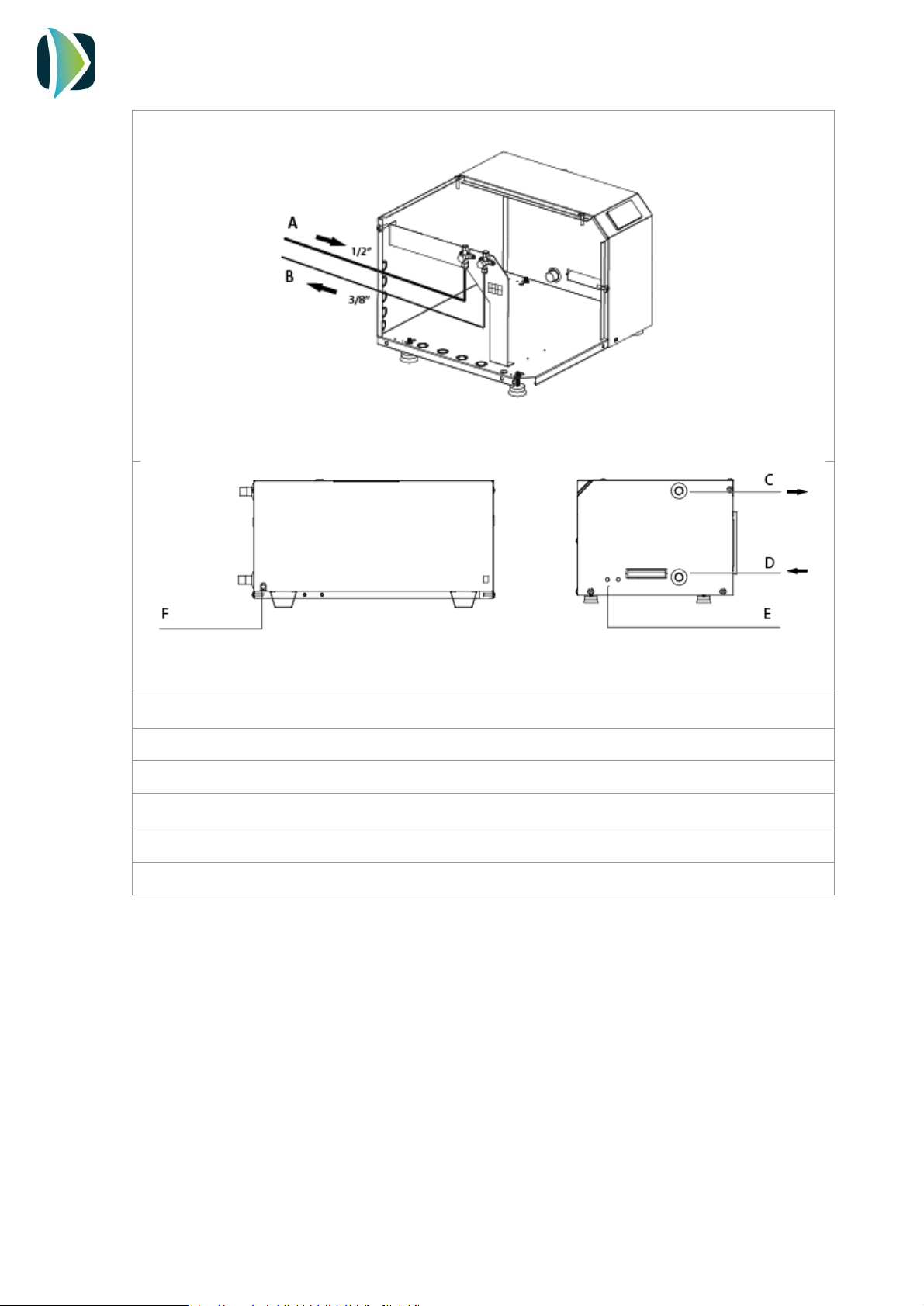

Figure 3. Connections (removing the cover)
Figure 4. Side connections
A: Refrigerant inlet (1/2")
B: Refrigerant outlet (3/8")
C: Hot water outlet (1’’)
D: Cold water inlet (1’’)
E: Temperature probe / Pump connection
F: Power supply

INSTALLATION AND USER MANUAL
ECOFLEX TD
7 V1REV4EN0822
3.3. Technical data
4. INSTALLATION STEPS
Before starting the installation, check the availability of all the necessary components and tools:
-Copper tee for gas line: 2 inlets 3/8 - 1 outlet 1/2
-Copper tee for Liquid line: 1 inlet 3/8 - 2 outlets 1/4
-High -and low- pressure manometers
-Vacuum pump
-Scales
-Nitrogen bottle
-Refrigerant quality copper pipe
-Pipe-cutter
-Tube bender
-Pipe expander
-Welder
-Copper Rods (40 % Silver)
-Insulating hose
-Drill
EF04TD
Heat pump data
Energy Efficiency Class
A
Load profile
XL
Heating capacity range*, W
2860 –5120
Input power range*, W
900 –1080
Maximum temp. HP, ºC
60
Coolant
R134A
Maximum operating pressure, bar
6
Water inlet/outlet, inch
1
Electric data
Power supply, V/ph/Hz
230/1/50
Maximum power absorbed, W
1200
Thermodynamic panel
Number of panels
2
Dimensions, mm
1700 x 800
Maximum operating pressure, bar
10
Refrigerant inlet/ outlet, inch
3/8 - 1/2

INSTALLATION AND USER MANUAL
ECOFLEX TD
8 V1REV4EN0822
-Screwdriver
-Hydraulic installation components
-Electric installation components
Once it has been checked that it is available all the necessary components and tools, the
installer should follow the next steps:
1. Placing and anchoring panels
2. Joining and welding the refrigerant pipes
3. Placing the ECOFLEX TD
4. Joining and welding liquid and suction line between ECOFLEX TD and panels
5. Nitrogen pressure test (maximum10 bar)
6. Vacuum
7. Filling refrigerant installation
8. Hydraulic installation
9. Electric installation
10. Commissioning
11. Adjustment of refrigerant load
5. THERMODYNAMIC SOLAR PANEL INSTALLATION
Site selection
The choice of the installation site of the thermodynamic panel is a key factor in the final
performance of the unit. For this reason, we recommend following the indications to achieve
the best performance:
-South orientation is indeed the best to take the maximum advantage of solar radiation.
Panel may also have other orientations, but northerly orientation is the worst to receive
solar radiation.
-Inclination: The minimum inclination of the panel is 15º to ensure the correct evaporation
of the coolant. It is recommended to install the panel with an inclination between 45º and
90º.

INSTALLATION AND USER MANUAL
ECOFLEX TD
9 V1REV4EN0822
-Orientation: It is possible to install the panel both in vertical and horizontal position
-Distances to ECOFLEX TD:
The maximum allowed distance from the panel to the ECOFLEX is 15 meters.
In the picture below is shown the dimensions of the panel:

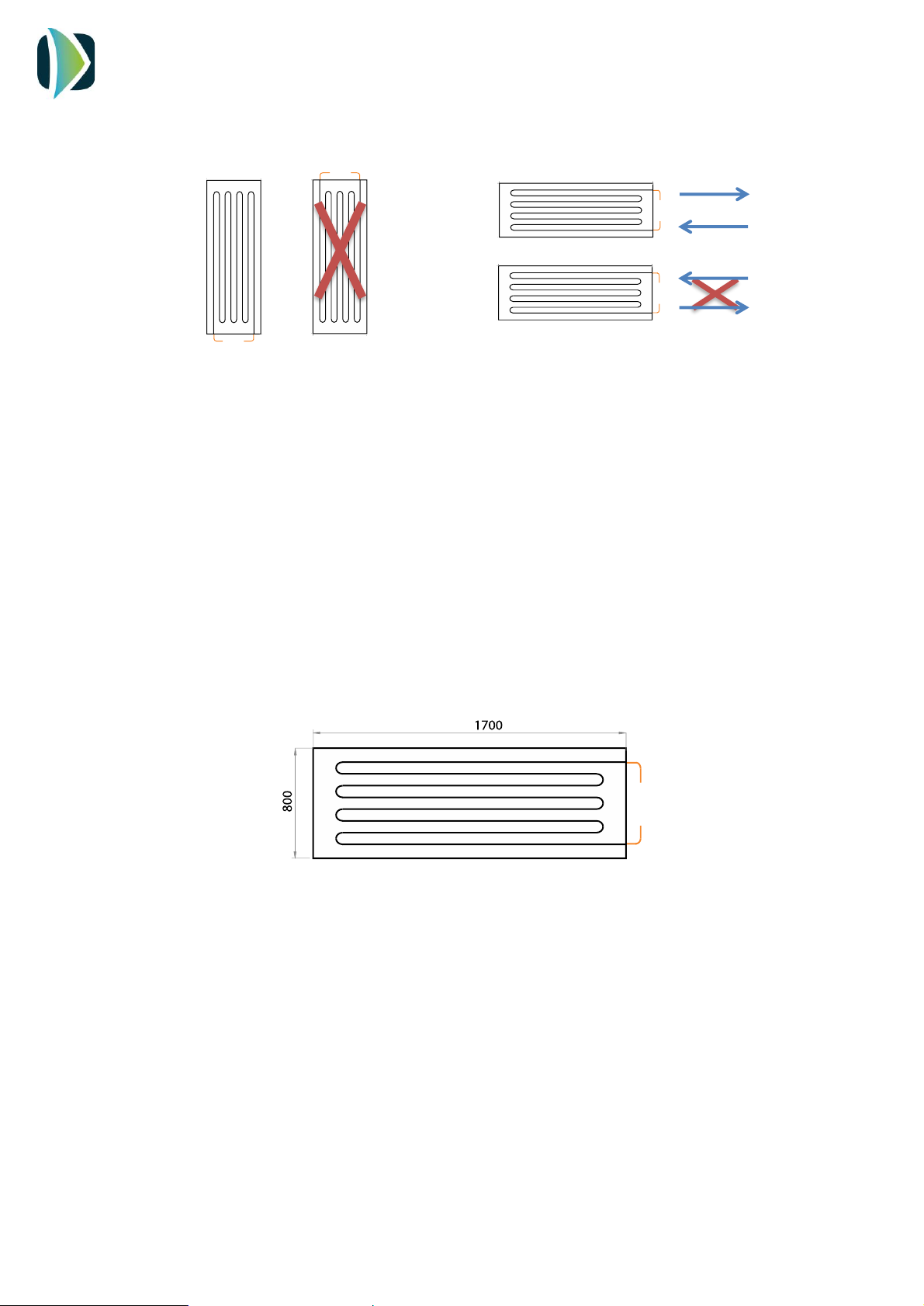

Figure 5. Thermodynamic panel dimensions
Anchoring panel
Beside the panel, it is supplied a bag with anchoring elements that contains the following
pieces:
-6 x Aluminium support (L shape)
-6 x Screws M5
-12 x Nuts M5
-18 x Washer 5
When the panel is installed in
vertical position, the inlet and
outlet connection shall be
always at the bottom. (It is not
allowed to install the reverse)
If the panel is installed at
horizontal position, refrigerant
inlet pipe should be connected
into the bottom connection.

INSTALLATION AND USER MANUAL
ECOFLEX TD
10 V1REV4EN0822
-18 x Sheet Metal Screws
-18 x Blocks M6
Anchor the panels using the lateral and front holes to the suitable surface.
6. PLACING ECOFLEX TD
The place where the system will be installed should allow an easy access to make maintenance
work or inspection.
Beside these factors, it is important to consider the following indications regards the installation
site:
-The system has been designed and manufactured for it indoors utilization.
-In case the system has to be placed outdoors, it must be protected against the adverse
weather conditions (direct solar radiation, rain, snow…)
-Try to place ECOFLEX as near as possible of the panels’ installation and near to the buffer
tank.
The equipment allows the installation on floor or on wall.
-Wall mounted: Ensure that the surface can support the total weight of the device. The
installer must fix the bracket to the wall and the insert the tabs into the corresponding
slot of the back of the ECOFLEX.
NOTE: It is recommended to install Silent blocks to avoid the transmission of vibration to the
wall.
-Floor mounted: Screw 4 leg into the holes of the bottom.
NOTE: It is recommended to install Silent blocks to avoid the transmission of vibration to the
floor.

INSTALLATION AND USER MANUAL
ECOFLEX TD
11 V1REV4EN0822

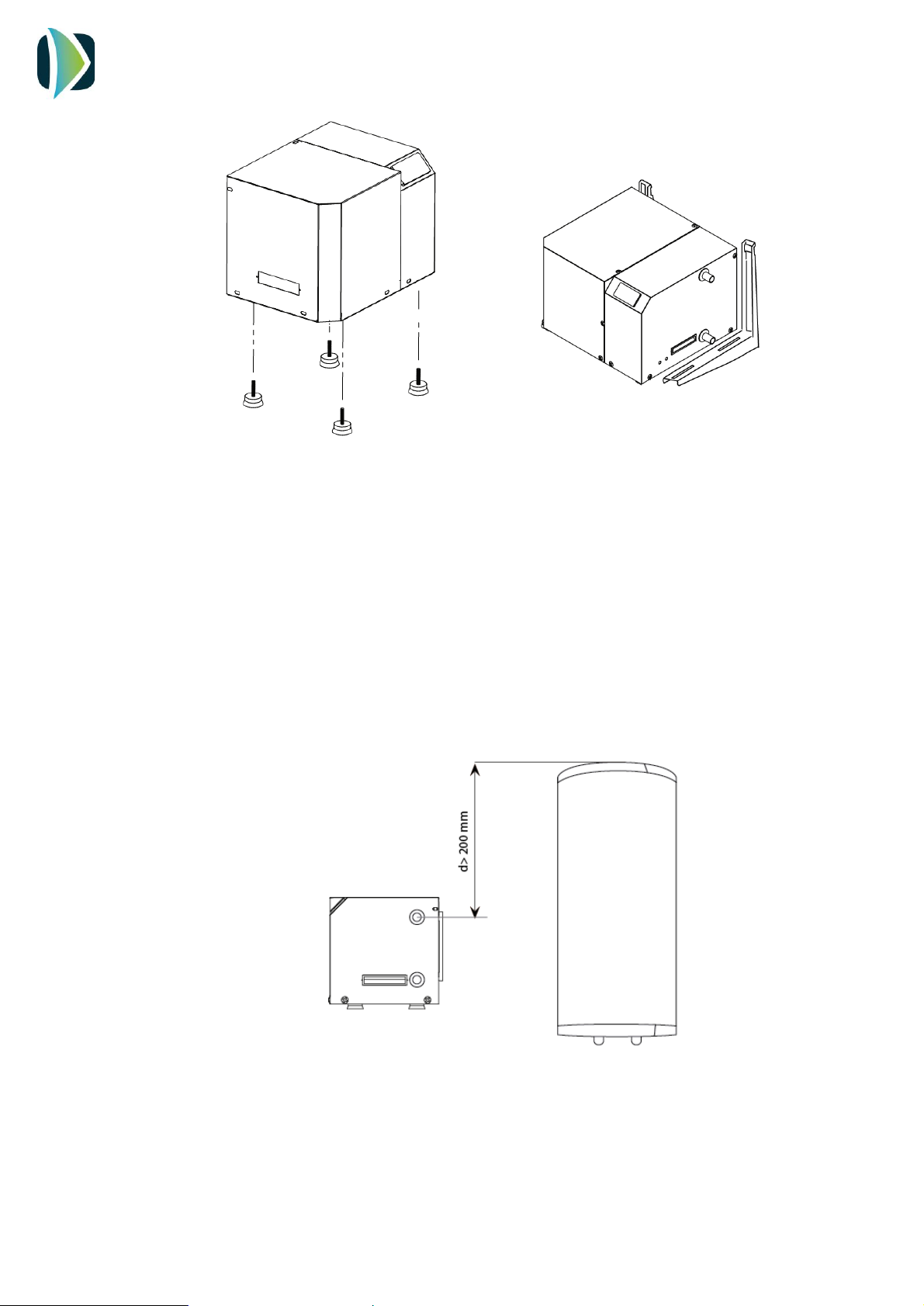

Figure 6. Floor standing
Figure 7. Wall mounted
If the equipment is to be installed in the wall, be aware that a minimum distance between the
water outlet of the tank and the outlet of ECOFLEX must be observed to ensure a good
functioning of the pump and the equipment.
Figure 8. Minimum distance from ECOFLEX TD to the water outlet of the buffer tank.

INSTALLATION AND USER MANUAL
ECOFLEX TD
12 V1REV4EN0822
7. CONNECTION BETWEEN ECOFLEX TD AND PANELS
a. Pipeline installation
First, measure the distance between Ecoflex and panels and cut the appropriate copper
pipe length. The diameter for each line is:
-Liquid line: 3/8 inch
-Gas line: ½ inch
b. Distributor/collector installation
Install a cooper tee to distribute and collect the refrigerant to/from the panels.
Its function is to ensure the homogeneous refrigerant flow in the whole panel installation.
The installer must weld a T connection of the following dimension:
-Gas line: 2 inlets 3/8 - 1 outlet 1/2
-Liquid line: 1 inlet 3/8 - 2 outlets 1/4

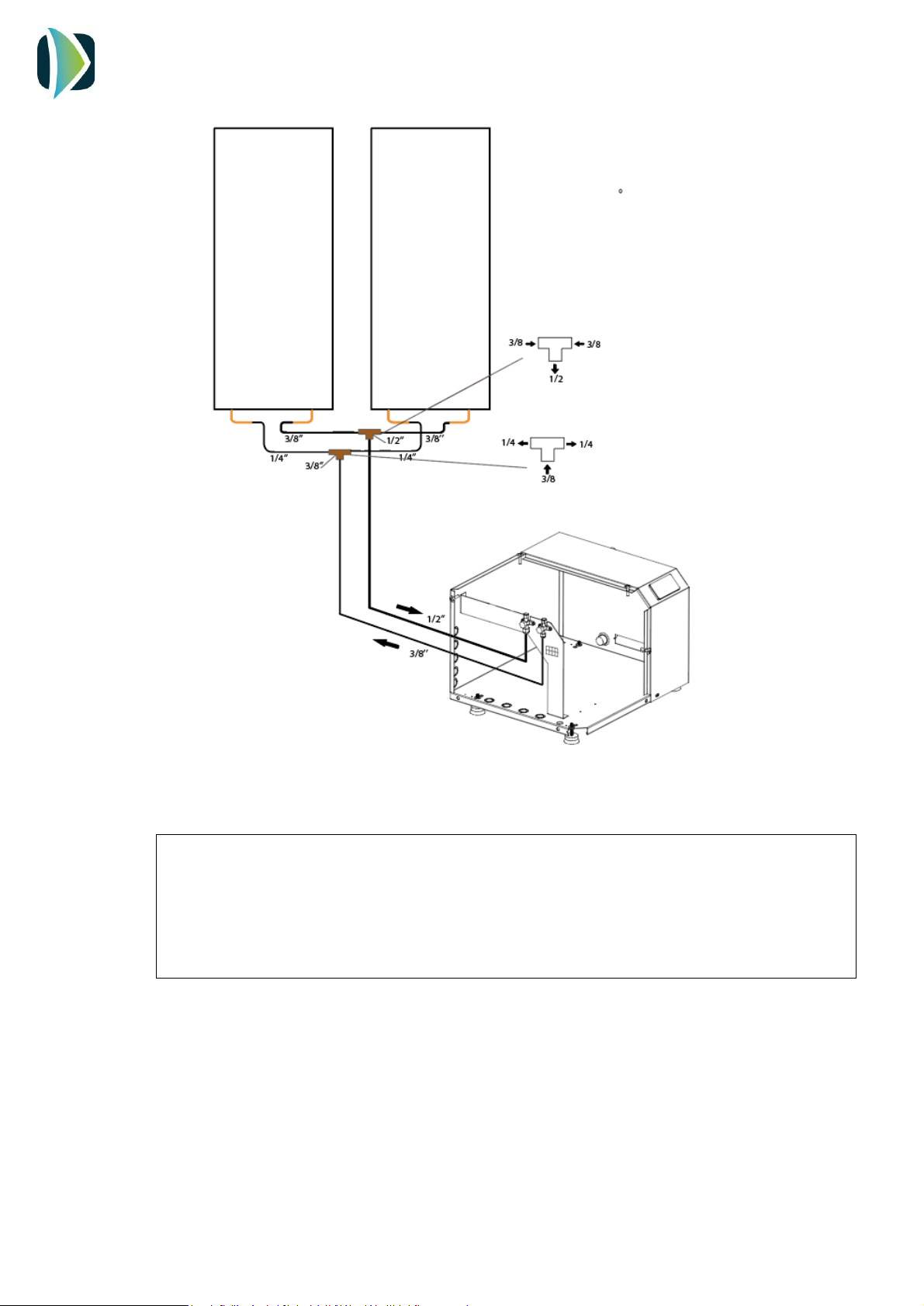

Figure 9. Panel connections
IMPORTANT: To ensure the same flow of refrigerant in every panel and consequently take
advantage of the evaporation surface entirely; you should install the same tube length from
the distributor to each panel. If a pipe is too long for the length require, it must be rolled up.

INSTALLATION AND USER MANUAL
ECOFLEX TD
13 V1REV4EN0822
Figure 10. Ecoflex TD connections
IMPORTANT: It is recommended to weld pipelines by oxyacetylene welding.
Welding is a critical step in the installation and to do it well ensures that the system will run
properly along its useful life.
Only expert staff should make this step by using proper tools and high-quality materials.
c. Join refrigerant pipes to the panels and Ecoflex TD
Panels are supplied with two nuts for the inlet and outlet connection. The inlet to each panel
is 1/4 inch diameter. The installer must insert the nut into the copper pipe, flare the pipe

INSTALLATION AND USER MANUAL
ECOFLEX TD
14 V1REV4EN0822
and then use the nut to fit it. Repeat the procedure with the outlet connection using 3/8 inch
copper pipe.
The Ecoflex TD has two service valves with threaded connections:
-Inlet: 1/2 inch
-Outlet: 3/8 inch
The installer has to insert the nut into the copper pipe, flare the pipe and then use the nut
to fit it.
d. Nitrogen test and cleaning procedure
To check the tightness, introduce nitrogen by using the pressure gauge already installed
into load ports.
CAUTION: Never exceed a nitrogen load greater than 10 bars.
Use leaking detector fluid at every welding and even in panel’s connections to verify the
absence of leaks.
e. Vacuum
Connect the vacuum pipe to the pressure gauge to carry out a vacuum of the whole
installation.
f. Coolant filling
Open the load ports to fill the circuit with the refrigerant loaded into the system.

INSTALLATION AND USER MANUAL
ECOFLEX TD
15 V1REV4EN0822
8. HYDRAULIC CONNECTION
The hydraulic connection depends on the existing buffer tank, if some type of connection for
the recirculation or coil is available.
The possible connections are detailed as follows:

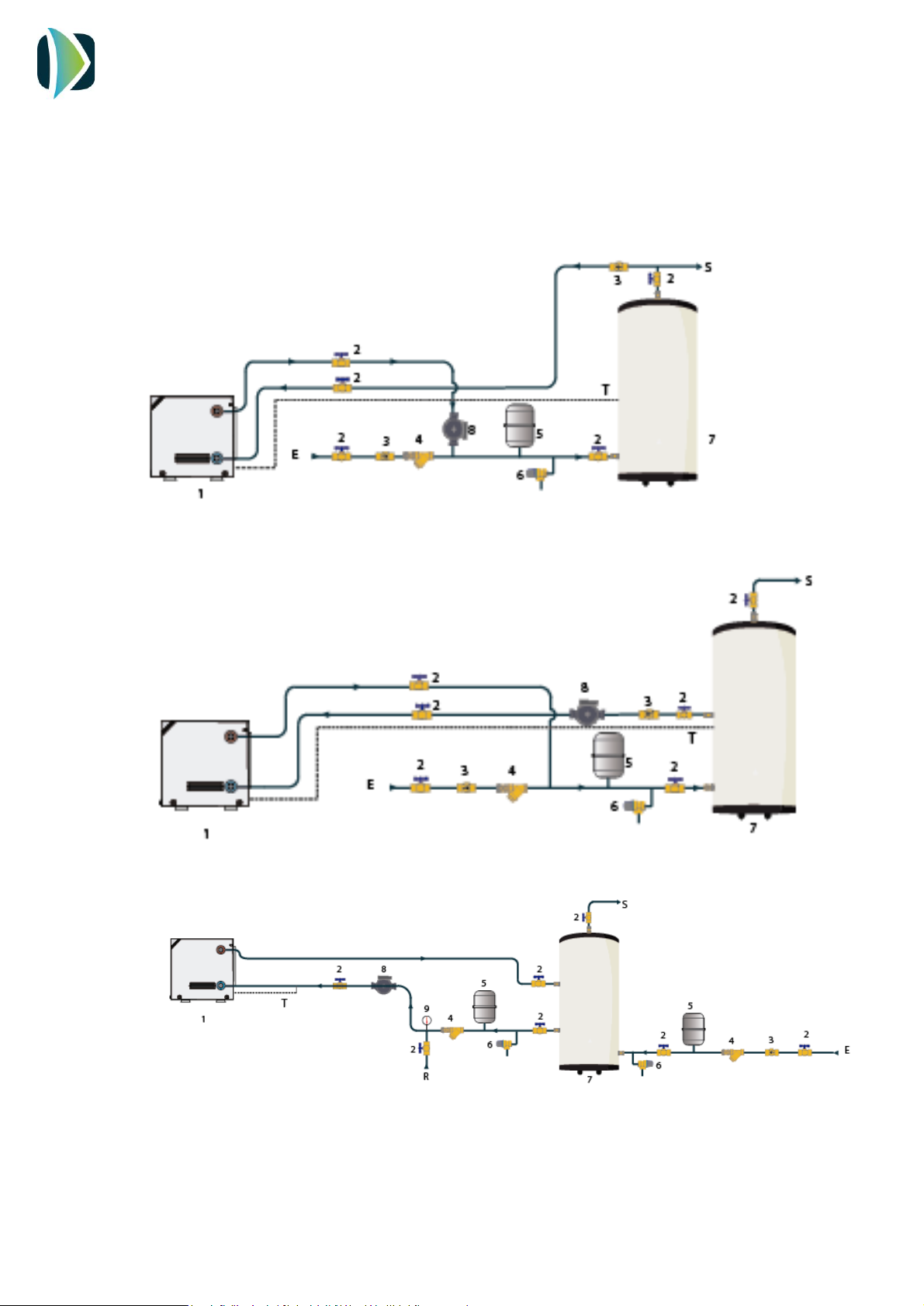

Figure 11. ECOFLEX TD connection on storage tank with two outlets
Figure 12. ECOFLEX TD connection on storage tank with a recirculation outlet
Figure 13. ECOFLEX TD connection, buffer tank with inner coil.

INSTALLATION AND USER MANUAL
ECOFLEX TD
16 V1REV4EN0822
The installer must install the following components of the hydraulic circuit:
- ECOFLEX TD (1)
- Gate valve (2)
- Check Valve (3)
- Inclined filter (4)
- Expansion vessel (5)
- Safety valve (6)
- Storage tank (7)
- Pump (8)
- Pressure gauge (9)
- Red water inlet (E)
- DHW output (S)
- Inlet water filled coil (R)
- Probe connection (T)
Once the hydraulic connections are made, purge the circuit to remove the air from the
installation.
In addition, it is necessary to install electrolytic sleeves in the water connections to prevent
galvanic corrosion in the pipes.
IMPORTANT:
- The water pipes must be at least 22 mm in diameter to avoid excessive losses in the circuit
- If the unit is to be installed on the wall, its height must not exceed half the storage tank.
a. Pump connection
For the choice of the pump, it is necessary to consider the pressure drop of the installed
pipe as well as the accessories (elbows, filters, valves...). The following table shows the flow
rate to be circulated by the equipment and the pressure drop of the installed heat
exchanger:
Minimum flow, L/h
Pressure drop, kPa
500
8

INSTALLATION AND USER MANUAL
ECOFLEX TD
17 V1REV4EN0822
b. Temperature probe connection
The equipment incorporates connected temperature probe. The installer must pass through
the indicated opening (Figure 4, E) and connect it to the buffer tank. The position of the
probe varies according to the type of buffer tank.
Follow the instructions in of the diagrams shown in Figures 11, 12 and 13.
9. ELECTRICAL CONNECTION
The power supply of the system is 230 V/1/50 Hz.
9.1. Pump
The installer must connect the electrical connection of the pump to the terminal block inside
the ECOFLEX unit, as shown in the diagram above.
IMPORTANT: It is only permitted to connect a pump with a power supply of 230 V/1ph/ 50
Hz and 3 A maximum current.

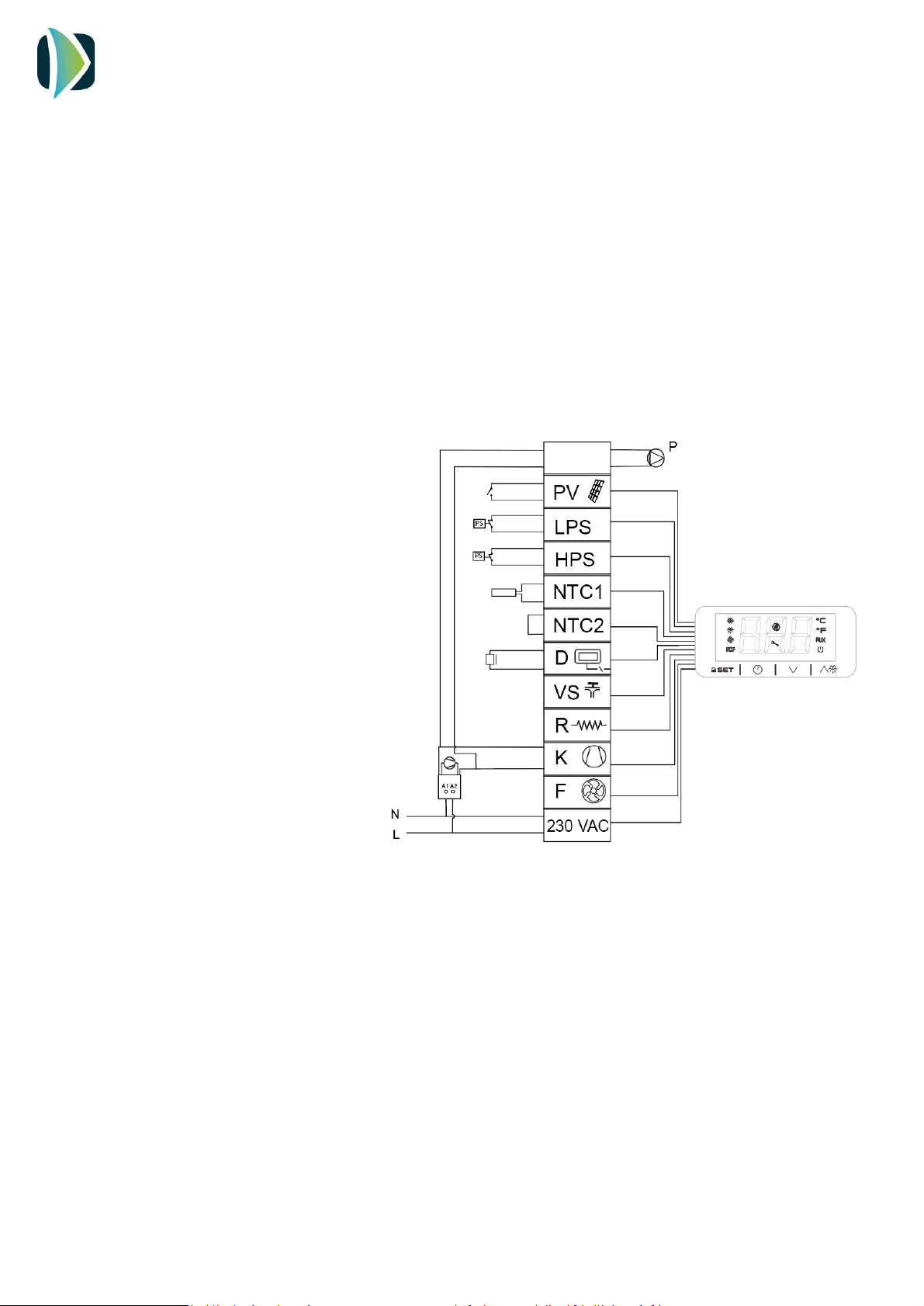

PV: Photovoltaic connection
LPS: Low pressure switch
HPS: High pressure switch
NTC1: Water temperature probe
D: Display
R: Electrical heater
K: Compressor
230 VAC: Power supply
P: Pump

INSTALLATION AND USER MANUAL
ECOFLEX TD
18 V1REV4EN0822
9.2. Electrical heater
It is possible to control the operation of an electrical heater installed inside the tank. To do
this, the installer must connect the power supply to the controller through the terminals R.
IMPORTANT: It is only allowed to connect an electrical heater of 230 V/1ph/ 50 Hz and 1500
W maximum power.
10. COMISSIONING. CONTROLLER.
10.1. User interface description
D E SC R IPT I
Symbol
Meaning when it lights
Compressor switched on
Defrost active
Fan switched on
Alarm active
Compressor working hours exceeded
Unit in °C
Unit in °F
Electric heater switched on
Stand by
SET /
Confirm
ON / Stand-by
Escape
Down / Change
mode
Up

INSTALLATION AND USER MANUAL
ECOFLEX TD
19 V1REV4EN0822
10.2. INSTALLATION- Switching on
After full installation of the water heater (power and water pipes connected) and after
the water heater tank is full of water, power can be turn ON.
10.3. Switching OFF
4 sec
1. After filling the tank of water, connect
the mains plug to the mains supply.
The screen will show the
symbol.
2. Hold the key for 4 seconds.
The display will show the icons.
3. The screen will show the water
temperature.
4 sec
To switch off the system, hold the
key for 4 seconds.

INSTALLATION AND USER MANUAL
ECOFLEX TD
20 V1REV4EN0822
10.4. Unlocking the keypad
10.5. Displaying the operating mode
At first initial power ON, the product goes, by default, in Eco mode. By touching one time
the key, the controller will show the mode in operation in this moment.
When 30 have elapsed without the keys being
pressed, the display will show the ‘’ LOC’’ label
and the keypad will lock automatically.
Touch any key until the screen shows UnL, to
unlock the keypad.
2 sec
1 click
ECO Mode: Heating only by heat pump technology
Auto Mode: Heating by heat pump and electric heater
only if the water temperature falls drastically
OverBoost Mode: Simultaneously heating by heat pump
and electrical heater to achieve the temperature setpoint
as quickly as possible
Defrost: Defrost cycle active
Photovoltaics/ Timer: Automatic working due to the
existence of surplus energy from PV installation or Off-
Peak Rate
Antilegionella: Automatic disinfection by thermal shock
