Nibe F2040-6 User guide

IHB EN 1848-8
231846
INSTALLER MANUAL
Air/water heat pump
NIBE F2040 6, 8, 12, 16 – UK 1x230V

Safety information
This manual describes installation and service proced-
ures for implementation by specialists.
The manual must be left with the customer.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given super-
vision or instruction concerning use of the
appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2018.
Symbols
NOTE
This symbol indicates danger to person or ma-
chine .
Caution
This symbol indicates important information
about what you should consider when installing
or servicing the installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
The CE mark is obligatory for most products sold in
the EU, regardless of where they are made.
CE
Classification of enclosure of electro-technical equip-
ment.
IP24
Danger to person or machine.
!
Read the User Manual.
Serial number
The serial number for F2040 can be found on the side
of the foot.
LEK
DATA
Serial number
Caution
You need the product's (14 digit) serial number
for servicing and support.
NIBE F2040Chapter 1 | Important information4
1 Important information

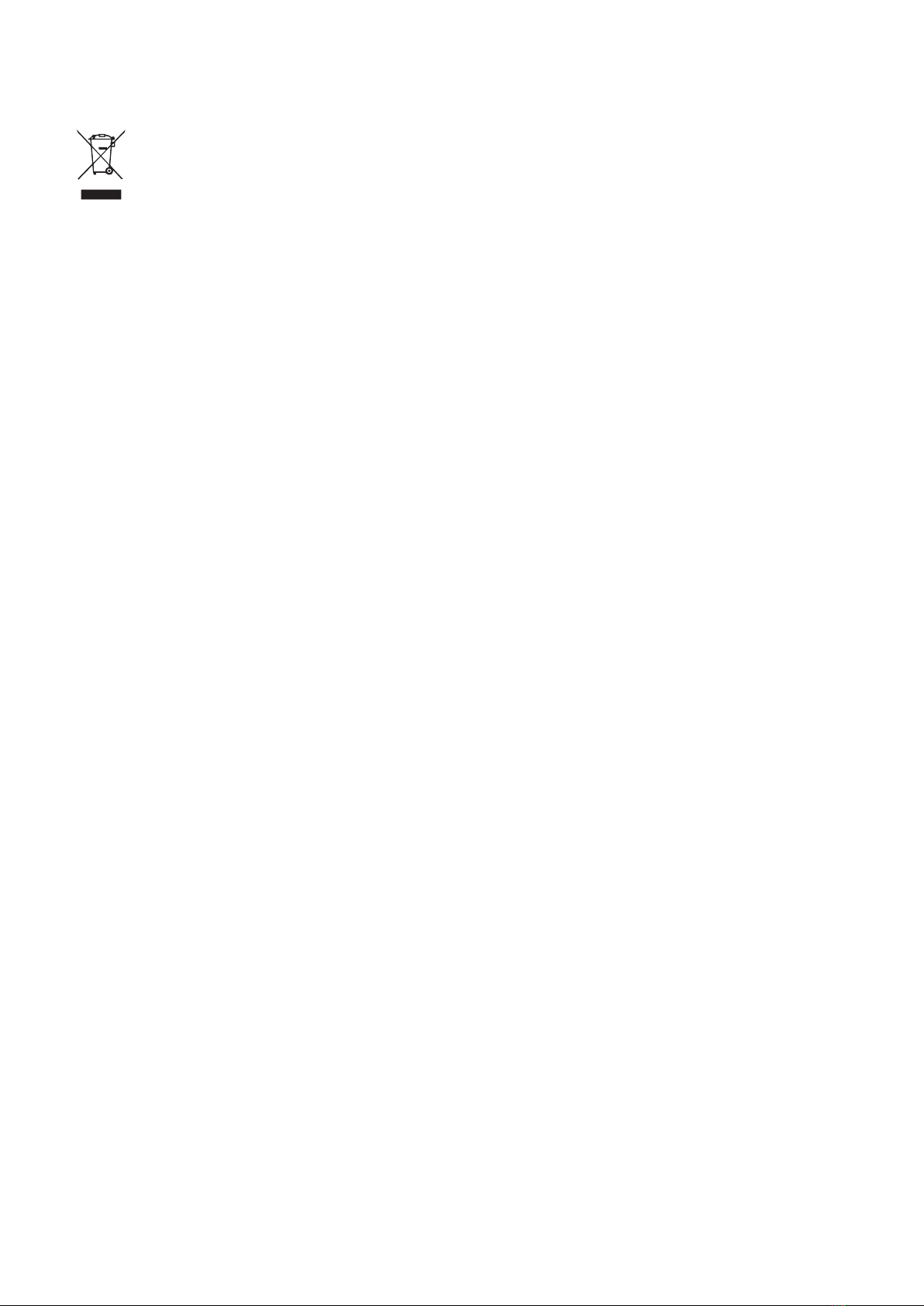

Recovery
Leave the disposal of the packaging to the in-
staller who installed the product or to special
waste stations.
Do not dispose of used products with normal
household waste. It must be disposed of at a
special waste station or dealer who provides this type
of service.
Improper disposal of the product by the user results in
administrative penalties in accordance with current le-
gislation.
Environmental
information
This unit contains a fluorinated greenhouse gas that is
covered by the Kyoto agreement.
The equipment contains R410A, a fluorinated green-
house gas with a GWP value (Global Warming Potential)
of 2088. Do not release R410A into the atmosphere.
5Chapter 1 | Important informationNIBE F2040

Country specific
information
UNITED KINGDOM
This installation is subject to building regulation approval,
notify the local Authority of intention to install.
Use only manufacturer’s recommended replacement
parts.
Benchmark places responsibilities on both manufactur-
ers and installers. The purpose is to ensure that custom-
ers are provided with the correct equipment for their
needs, that it is installed, commissioned and serviced
in accordance with the manufacturers instructions by
competent persons and that it meets the requirements
of the appropriate Building Regulations. The Benchmark
Checklist can be used to demonstrate compliance with
Building Regulations and should be provided to the
customer for future reference.
Installers are required to carry out the installation, com-
missioning and servicing work in accordance with the
Benchmark Code of practice which is available from the
Heating and Hotwater Industry Council who manage
and promote the Scheme. Visit www.centralheat-
ing.co.uk for information.
Warranty and insurance information
Thank you for installing a new NIBE heat pump in your
home.
NIBE heat pumps are manufactured in Sweden to the
very highest standard so we are pleased to offer our
customers a comprehensive guarantee.
The product is guaranteed for 24 months for parts and
labour from the date of installation or 33 months from
the date of manufacture, whichever is the shorter.
The NIBE guarantee is based on the unit being installed
and commissioned by a NIBE accredited installer, ser-
viced every year and the Benchmark documents com-
pleted. Where this condition is not met, any chargeable
spare parts or components issued within the applicable
guarantee period still benefit from a 12 month warranty
from the date of issue by the manufacturer.
We recommend the installer completes and returns as
soon as possible, your guarantee registration card or
completes the guarantee form on the NIBE website
www.nibe.co.uk.
Electrical Supply
The heat pump must be permanently connected to a
230V ac 50Hz supply.
All system components shall be of an approved type
and all wiring to current I.E.E wiring regulations.
External wiring must be correctly earthed, polarised and
in accordance with the relevant standards: Currently this
is BS 7671.
Heating System
The installation of the heat pump should follow best
practice as covered in the following:
BS 5449 Forced circulation hot water central heating
systems for domestic premises.
BS 15450 Heating systems in buildings – Design of heat
pump heating systems.
NIBE F2040Chapter 1 | Important information6

INSTALLATION AREA
The distance between F2040 and the house wall must
be at least 150 mm. Clearance in front of F2040 should
be at least one metre.
50
255
Ställbar 40-50 955
243
512
110
395
265
50
452 1075
1145
108
Ø40*
14
85
3000 mm
400 mm
Minimalt
fritt utrymme
Minimalt
fritt utrymme
Fritt utrymme
framför
150 mm
Fritt
utrymme
bakom
600mm
Minimum
free space
Minimum
free space
Free
space
behind
400 mm 600 mm
150 mm
1000 mm
Free space
in front
CONDENSATION WATER TROUGH
The condensation water trough collects and leads away
most of the condensation water from the heat pump.
NOTE
It is important to the heat pump function that
condensation water is led away and that the
drain for the condensation water run off is not
positioned so that it can cause damage to the
house.
Condensation runoff should be checked regu-
larly, especially during the autumn. Clean if
necessary.
NOTE
Pipe with heating cable for draining the con-
densation water trough is not included.
To ensure this function the accessory KVR 10
should be used.
NOTE
The electrical installation and wiring must be
carried out under the supervision of an author-
ised electrician.
• The condensation water (up to 50 litres/24 hrs) that
collects in the trough should be routed away by a pipe
to an appropriate drain, it is recommended that the
shortest outdoor stretch possible is used.
• The section of the pipe that can be affected by frost
must be heated by the heating cable to prevent
freezing.
• Route the pipe downward from F2040.
• The outlet of the condensation water pipe must be at
a depth that is frost free or alternatively indoors (with
reservation for local ordinances and regulations).
• Use a water trap for installations where air circulation
may occur in the condensation water pipe.
• The insulation must seal against the bottom of the
condensation water trough.
NIBE F2040Chapter 2 | Delivery and handling10

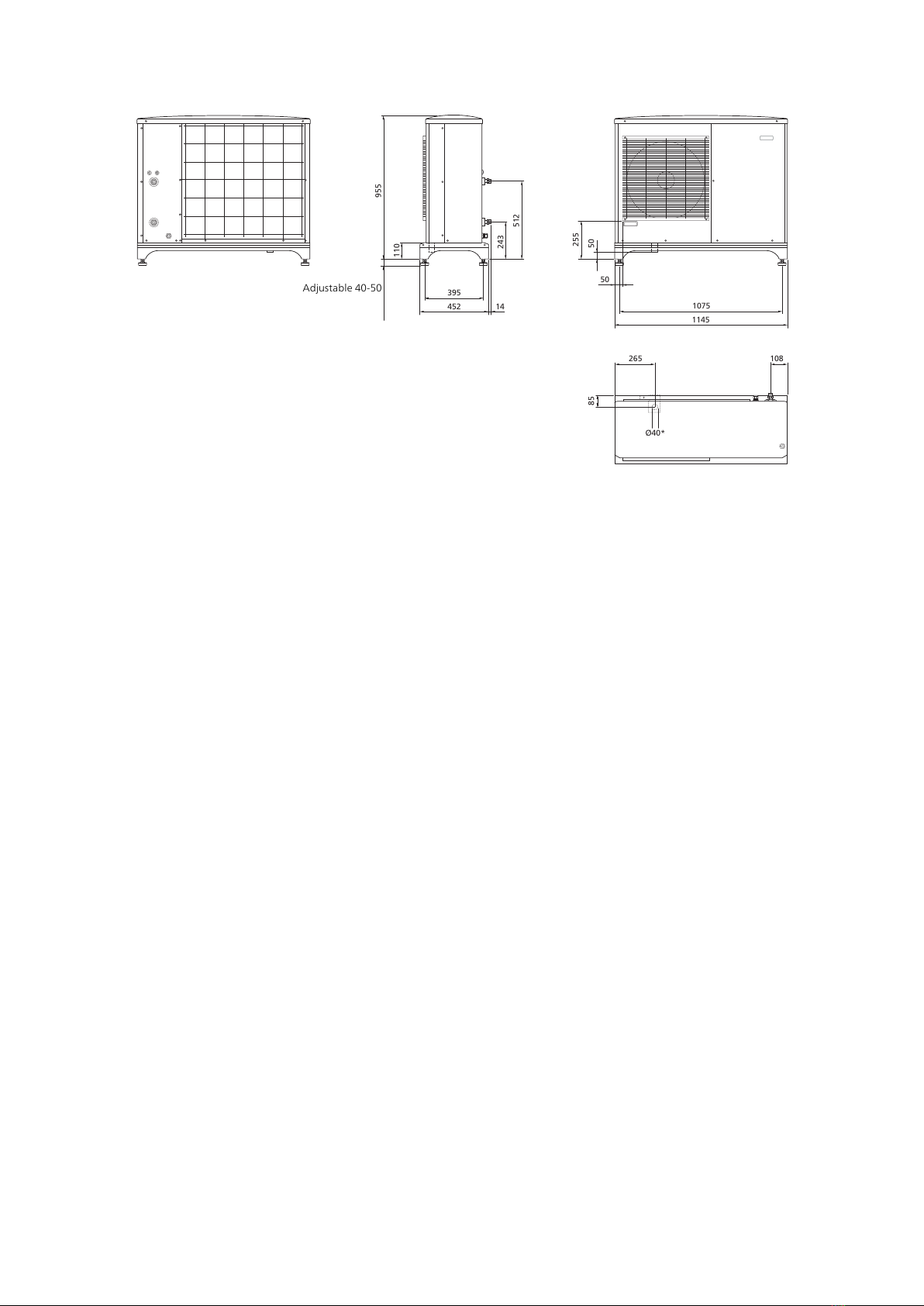

F2040-12
50
255
Ställbar 40-50 955
243
512
110
395
265
50
452 1075
1145
108
Ø40*
14
85
150 mm
Fritt utrymme bakom
Min. avstånd
vid användning
av flera F2040
600 mm
3000 mm
400 mm 600mm
Minimalt
fritt utrymme
Minimalt
fritt utrymme
Fritt utrymme
framför
Adjustable 40-50
* Accessory KVR 10 is required.
NIBE F2040Chapter 12 | Technical data62

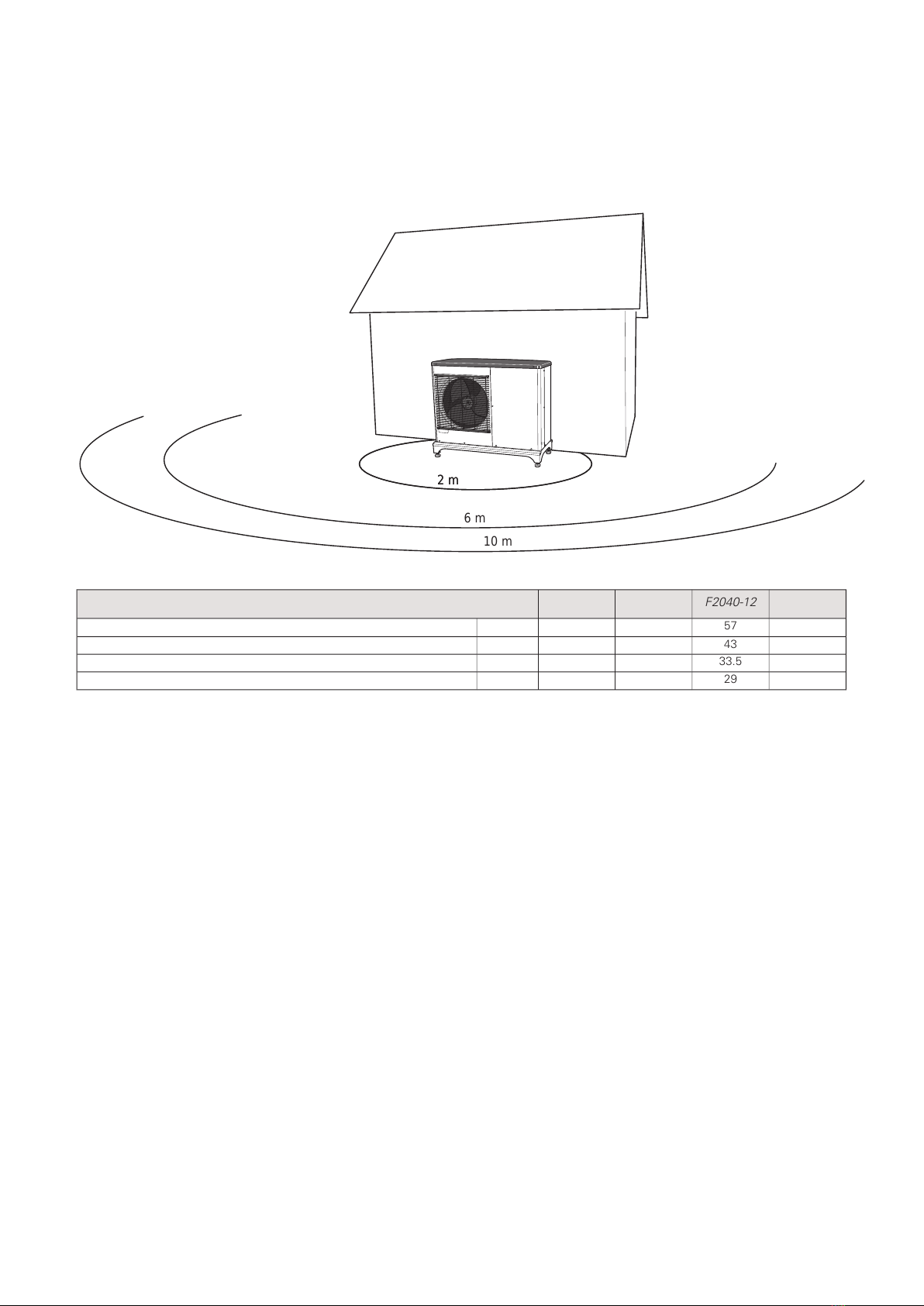

Sound pressure levels
F2040 is usually placed next to a house wall, which gives
a directed sound distribution that should be considered.
Accordingly, you should always attempt when position-
ing to choose the side that faces the least sound sens-
itive neighbouring area.
The sound pressure levels are further affected by walls,
bricks, differences in ground level, etc and should
therefore only be seen as guide values.
F2040 adjusts the fan speed depending on the ambient
temperature and evaporation temperature.
2 m
6 m
10 m
2 m
LEK
F2040-16F2040-12F2040-8F2040-6Air/water heat pump
61575450LW(A)Sound power level* According to EN12102 at 7/45 (nominal)
47434036dB(A)Sound pressure level at 2 m free standing.*
37.533.530.526.5dB(A)Sound pressure level at 6 m free standing.*
33292622dB(A)Sound pressure level at 10 m free standing.*
* Free space.
NIBE F2040Chapter 12 | Technical data64

Technical specifications
IP 21
F2040-16F2040-12F2040-8F2040-6Air/water heat pump
Outdoor temp./
Supply temp.
Output data according to EN 14511 Δ T5K
7.03/1.45/4.855.21/1.09/4.783.86/0.83/4.652.67/0.50/5.32
7/35 °C (floor)Heating
Capacity / power input / COP (kW/kW/-)
at nominal flow
9.33/2.38/3.926.91/1.79/3.865.11/1.36/3.762.32/0.55/4.20
2/35 °C (floor)
12.1/4.32/2.809.00/3.27/2.756.60/2.46/2.684.60/1.79/2.57
-7/35 °C (floor)
6.75/1.74/3.885.00/1.31/3.823.70/1.00/3.702.28/0.63/3.62
7/45 °C
9.18/2.98/3.086.80/2.24/3.045.03/1.70/2.961.93/0.67/2.88
2/45 °C
13.30/3.99/3.339.87/3.16/3.137.52/2.37/3.175.87/1.65/3.56
27/7 °CCooling
Capacity / Power input / EER (kW/kW/-)
at maximum flow
17.70/4.52/3.9111.70/3.32/3.5211.20/3.20/3.507.98/1.77/4.52
27/18 °C
13.04/4.53/2.889.45/3.41/2.777.10/2.65/2.684.86/1.86/2.61
35/7 °C
15.70/5.04/3.1211.20/3.58/3.129.19/2.98/3.087.03/2.03/3.45
35/18 °C
Electrical data
230V ~ 50Hz, 230V 2 ~ 50HzRated voltage
25231615Arms Max operating current, heat pump
24221514Arms Max operating current, compressor
5Arms Starting current
2 x 86868650WNominal output, fan
25251616Arms Fuse1)
IP24Enclosure class
Refrigerant circuit
R410AType of refrigerant
2,088GWP refrigerant
Twin RotaryType of compressor
M-MA68Compressor oil
4.02.92.551.5kgVolume
8.356.065.323.13tCO2equivalent
4.15 (41.5 bar)-MPaCut-out value pressostat HP
-4.15 (41.5 bar)Cut-out value HP
0.079 (0.79 bar)-MPaCut-out value pressostat LP
Brine
6,0004,3803,0002,530m3/hAirflow
-20 / 43°CMin. / Max. air temp.
Reverse cycleDefrosting system
Heating medium circuit
0.05/0.25 (0.5/4.5bar)MPaMin/Max system pressure heating medium
150805020lMin volume, climate system, heating/cooling
1501008050lMin volume, climate system, under floor cooling
0.790.570.380.29l/sMax flow, climate system
0.390.290.190.19l/sMin flow, climate system, at 100% circulation pump
speed (defrosting flow)
0.250.150.120.09l/sMin flow, heating
0.320.200.150.11l/sMin flow, cooling
25 / 58°CMin. / Max. HM temp continuous operation
G1"Connection heating medium ext thread
Dimensions and weight
114511451035993mmWidth
452452422364mmDepth
1450 (+50/-0)995 (+50/-0)895 (+50/-0)791 (+50/-0)mmHeight with stand
1351059066kgWeight (excl. packaging)
Miscellaneous
064 108064 092064 109064 206Part No.
1)Specified output is limited with lower fusing.
65Chapter 12 | Technical dataNIBE F2040

SCOP & PDESIGNH
SCOP & Pdesignh F2040 according to EN 14825
161286F2040
SCOPPdesignh SCOPPdesignh SCOPPdesignh SCOPPdesignh
4.4814,54.4311.54.388.24.84.8SCOP 35 Average climate
3.43143,38103.257.03.465,3SCOP 55 Average climate
3.68153.6311.53.5593,654,0SCOP 35 Cold climate
2,9162.85132.78102.975,6SCOP 55 Cold climate
5.95155.8125,786.454,2SCOP 35 Warm climate
4.8154.7124.5884.584.76SCOP 55 Warm climate
ENERGY RATING, AVERAGE CLIMATE
F2040-16F2040-12F2040-8F2040-6Model
SMOSMOSMOSMOControl module model
35 / 5535 / 5535 / 5535 / 55°CTemperature application
A++ / A++A++ / A++A++ / A++A++ / A++The product’s room heating efficiency class1)
A+++ / A++A+++ / A++A+++ / A++A+++ / A++Space heating efficiency class of the system2)
1Scale for the product’s room heating efficiency class A++ to G.
2Scale for the system’s room heating efficiency class A+++ to G.
The reported efficiency of the package also takes the controller into account. If an external supplementary boiler or solar heating is added to
the package, the overall efficiency of the package should be recalculated.
NIBE F2040Chapter 12 | Technical data66

Energy labelling
INFORMATION SHEET
NIBESupplier
F2040-16F2040-12F2040-8F2040-6Model
35 / 5535 / 5535 / 5535 / 55°CTemperature application
A++ / A++A++ / A++A++ / A++A++ / A++Seasonal space heating energy efficiency class, aver-
age climate
15 / 1412 / 108 / 75 / 5kWRated heat output (Pdesignh), average climate
6,702 / 8,4315,382 / 6,1363,882 / 4,4472,089 / 3,248kWhAnnual energy consumption space heating, average
climate
176 / 134174 / 132172 / 127188 / 131%Seasonal space heating energy efficiency, average
climate
35353535dBSound power level LWA indoors
15 / 1612 / 139 / 104 / 6kWRated heat output (Pdesignh), cold climate
15 / 1512 / 128 / 84 / 5kWRated heat output (Pdesignh), warm climate
10,040 / 13,6297,798 / 11,1976,264 / 8,8442,694 / 4,610kWhAnnual energy consumption space heating, cold cli-
mate
3,370 / 4,1832,759 / 3,4191,879 / 2,333872 / 1,398kWhAnnual energy consumption space heating, warm cli-
mate
144 / 113142 / 111139 / 108143 / 116%Seasonal space heating energy efficiency, cold climate
235 / 189229 / 185225 / 180252 / 179%Seasonal space heating energy efficiency, warm cli-
mate
61575450dBSound power level LWA outdoors
DATA FOR ENERGY EFFICIENCY OF THE PACKAGE
F2040-16F2040-12F2040-8F2040-6Model
SMOSMOSMOSMOControl module model
35 / 5535 / 5535 / 5535 / 55°CTemperature application
VIController, class
4.0%Controller, contribution to efficiency
180 / 138178 / 136176 / 131192 / 135%Seasonal space heating energy efficiency of the
package, average climate
A+++ / A++A+++ / A++A+++ / A++A+++ / A++Seasonal space heating energy efficiency class of the
package, average climate
148 / 117146 / 115143 / 112147 / 120%Seasonal space heating energy efficiency of the
package, cold climate
239 / 193233 / 189229 / 184256 / 183%Seasonal space heating energy efficiency of the
package, warm climate
The reported efficiency of the package also takes the controller into account. If an external supplementary boiler or solar heating is added to
the package, the overall efficiency of the package should be recalculated.
71Chapter 12 | Technical dataNIBE F2040
