Cloverleaf CL-PH1kW User manual

-1- -2- -3-
1. General
This heater is especially for use on Ponds.
it is very simple to install and use the Heater, But the basic safety
Precautions should always be followed.
2. Installation
The Pond Heater should be connected to the outlet of the pond
pump making sure the water is owing in the direction shown on
the Pond Heater. This Heater must be installed horizontally.
Dimensions and of the pond heater Refer to (Fig.1)
3. Heater installation (Fig.3)
Separate the connection nut, And join the feed pipe to the heater
making sure the Sealing ring is in the correct position and screw
up the compression nut (make sure not to over tighten).
Loop pipework to perventing Heater unit from draining (Fig.6).
4. Electrical Connection
4.1 The electrical installation should have an all poles disconnection
System with contact opening at least 3mm.
4.2 For continued protection against possible electric shock this
Pond Heater unit is to be mounted in accordance with
the instillation instructions.
4.3 For the protection of the system this heating unit should be wired
on to a Residual Current device (RCD) with a rated tripping current
not exceeding 30mA. The supply cable should comply with EMC
standards.
!
This item must not be disposed of into the domestic
waste. Please ensure it is disposed in an authorized place
for recycling of with electrical and electronic appliances.
Resources, And make sure the product is disposed in an
environmental friendly way.
Cloverleaf
Pond Heater
Operating Instructions
IMPORTANT : Notice Please Read
Before Installing and Power on !
1. DANGER :RISK OF ELECTRIC SHOCK
Connect only to a circuit protected by a RCD Unit.
2. Grounding is required.
3. This product must be installed by a qualied electrician.
4. Do not cover the heater when in use.
5. When using for the rst time , Ensure all pipe work is full of water
and primed before turning the power on.
7. Children should be supervised to ensure not to adjust
the heater settings.
8. Do not switch on if there is a possibility that water inside
the heater is not frozen
9. IP45 Rated
10. Save these instructions.
4.4 The electrical installation Must be carried out by a qualied
electrician Following strict standards.
4.5 Be sure that the earth cable connection is correctly made.
4.6 Wires serving as equipotential bonding conductors shall have a
cross section area between 2.5mm and 6mm.
4.7 After the unit has been wired up turn on the power and press
the reset button of the GFCI, (Ground Fault Circuit Interrupter)
the GFCI works and cut the power, Then repress the reset button
on the GFCI to reconnect the power. If the above operations do
not work check the GFCI connections, turn o the power supply
until the problem is solved and “RESET” Appears.
CAUTION: In order to avoid a hazard due to inadvertent resetting of
the thermal cut out, this Pond heater must NOT be powered
through an external switching device, such as a timer, Or connected
to a power supply circuit that is regularly switched
ON and OFF.
WARNING
!
Thermal cut-out
(Manually resettable)
Located under
screw cap.
Fig.4
www.cloverleaf.uk.net
Cloverleaf Industries Ltd
King Street, High Ongar, Essex, CM5 9NP
t:[phone]/ f: [phone]
e: clover[email protected]

4.4 The electrical installation Must be carried out by a qualied
electrician Following strict standards.
4.5 Be sure that the earth cable connection is correctly made.
4.6 Wires serving as equipotential bonding conductors shall have a
cross section area between 2.5mm and 6mm.
4.7 After the unit has been wired up turn on the power and press
the reset button of the GFCI, (Ground Fault Circuit Interrupter)
the GFCI works and cut the power, Then repress the reset button
on the GFCI to reconnect the power. If the above operations do
not work check the GFCI connections, turn o the power supply
until the problem is solved and “RESET” Appears.
CAUTION: In order to avoid a hazard due to inadvertent resetting of
the thermal cut out, this Pond heater must NOT be powered
through an external switching device, such as a timer, Or connected
to a power supply circuit that is regularly switched
ON and OFF.
-4- -5-
Edition: 2017-09 a
9. Technical Data

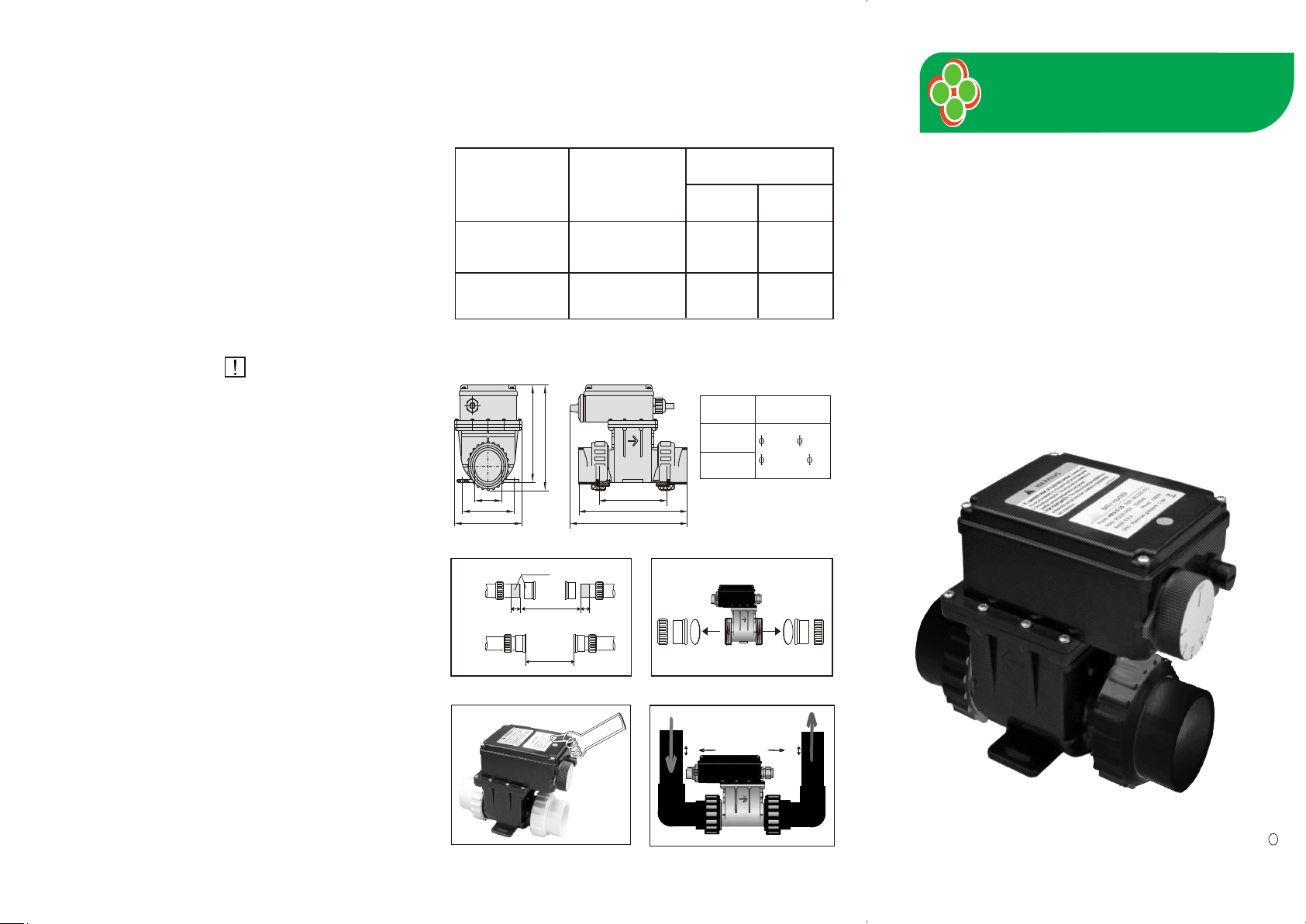

10. Heater Dimension
Fig.1
2000 2000 9080
Power
(Wattage)
1000 1000
4540
Model
Pond water
Volume
Gallon Litre
A
Model
Fig. 2 Fig. 3
130
210
30 30
Solvent Glue
32 or 33.5
48.5 or 50
15 6
207
202
130
120
94
148.5
A
5. Controls and Operations
5.1 Due to the safety ow switch that is installed on this unit, the
heating elements will not operate unless the correct amount of
ow is being pumped passed the ow switch. (A minimum of
4000Lph of water is needed to trigger this switch).
5.2 Reset Button is depressed inside the thermostat during normal
operation (Fig4)
Should for any reason the reset button pop out and cut the
power supply. The thermostat will have to be manually reset,
After rstly trouble shooting any faults if in any doubt always
consult with a qualied person.
The minimum continual operating ow rate 4000Lph is needed to
operate heater.
6. Controls Prior To Initial Start-Up
6.1 Check the direction of ow of water is set to same direction as is
indicated by a directional arrow on the side of heater unit.
6.2 Check that the mains voltage and frequency are in Accordance
with what’s on the model ID Plate. (Fig.5)
6.3 After you have nished installing your Heater it will be
necessary to check there are no leaks at any of the joins or
connections do this by turning on your system pump and allow
the pump to run for 30-60 minutes without turning on the heater
at this point to ensure that there are no leaks this will also allow all
trapped air to be expelled from the heater this will to avoid any
unwanted hot spots inside the heat exchange chamber.
7. Start Up
Turn the pump and heater on Only! when inlet and outlet pipes
are connected to the corresponding feed and return pipes.
8. Maintenance, Cleaning and Storage
8.1 The Cloverleaf Pond Heater does not require any special
maintenance or programming, If the heater is to be left idle for a
period of time. We would be recommend to disconnected and
Clean and dry the heater before storage,Store in a dry well
ventilated place.
8.2 If any reason the mains power lead gets damaged it must be
replaced by a qualied electrician.
CL-PH1kW
CL-PH2kW
CL-PH1kW
CL-PH2kW
Pond Heater
Operating Instructions
IMPORTANT : Notice Please Read
Before Installing and Turning on !
Fig. 5
Models
CL-PH1kW
CL-PH2kW
Fig. 6
Min - Water Level
TM
Cloverleaf
Simply the Best
