CLS LINA SUSPENDED RP User manual

www.cls-led.com www.cls-led.com
2
Ceiling 50.000 h120º Luxeon/Cree IP40 500 mA 6W / 25cm Phase
dimmable
3000K
CRI>92
4000K
CRI>80
5000K
CRI>80
1-10V
dimmable
2700K
CRI>92
DMX
dimmable
DRIVER
EXCLUDED
DRIVER
EXTERNAL
CLS LINA SUSPENDED RP
Manual V1.1 - August 2018
INDEX
Index 2
Safety information 2
Content 2
Technical 3
CONTENT
SAFETY INFORMATION
Always switch o mains power
of the driver before connecting
or maintaining any fixtures!
Qualified
technician
Ambiance
Max. 40º
Do not stare
into the LED
Block access
below the work
area when
maintaining
the unit
Use a source
of AC power
that complies to
local electrical
codes
Make sure all
connectors are
connected
properly
Don’t install in
a flammable
or explosive
area
Warning!
Some surfaces
can be hot
Don’t modify
or install
genuine parts
on this product
Specifications 3
Installation 4
Connection RP 5
List of symbols 6
Ceiling 50.000h120º Luxeon/Cree IP40 500mA 6W/ 25cm Phase
dimmable
3000K
CRI>92
4000K
CRI>80
5000K
CRI>80
1-10V
dimmable
2700K
CRI>92
DMX
dimmable
DRIVER
EXCLUDED
DRIVER
EXTERNAL

www.cls-led.com www.cls-led.com
3 4
2018 CLS-LED BV. All rights reserved. Information subject to change
without notice, CLS-LED BV and all aliated companies disclaim liability
for injury, damage direct or indirect loss, consequential or economic loss
or any other loss occasioned by the use of, inability to use or reliance on
the information contained in this manual. No part of this manual may be
reproduced, in any form or by any means, without permission in writing
from CLS-LED BV. Other legal information can be found in our General
conditions,found on the back of your CLS-LED BV invoice, inside the CLS
catalogue or on our website www.cls-led.com/General-Terms.pdf
28 mm
A*
AModel
1800 mm
max. cable
296 mm Lina Suspended RP 30 cm
546 mm Lina Suspended RP 55 cm
796 mm Lina Suspended RP 80 cm
1046 mm Lina Suspended RP 105 cm
Tools
TECHNICAL
SPECIFICATIONS
LED: Cree / Luxeon
Available colours: CRI>92: 2700K, 3000K
CRI>80: 4000K & 5000K
Power supply: 500mA
Power consumption: Max. 6 Watt / 25 cm
Beam angle: 120º
Housing: Blank anodised aluminum,
Black anodised aluminium,
White coated
Cable length: 180 cm
Ambient temperature: -20º C till +40º C
INSTALLATION
5 6
Max. ø 82 mm
Min. 100 mm
2
x2
x
2 x2 x
12
A
B
Make sure
both cables
are secured
Check
level
43

www.cls-led.com www.cls-led.com
65
LIST OF SYMBOLS
Multiple connection
Daisychain connectivity
Installation depth
In centimeters
Swivel
Fixture is horizontally rotatable,
indicated in degrees
Swivel
Fixture is vertically rotatable,
indicated in degrees
Installation size
In centimeters
Application area
Indoor or outdoor
Application area
Floor, wall or ceiling
Protection class
One, two or three
Cable length
Maximum cable attached
to the fixture in centimeters
Lifespan
Of the light source in hours
Driver
Inclusive or exclusive
Internal or external
Pressure
Maximum pressure on the
fixture in kg/cm2
Weight
In grams/kilograms
Curve
Minimal bending curve
in centimeters
LED pitch
Pitch between the LEDs
in millimeters
Power supply
In VDC, VAC or milliAmpere
Power consumption
In VA or Watt
IP value
Ingress Protection classifies the
degrees of protection provided against
the intrusion of the product
Cutting length
Indicated by the cutting
marks
LEDs
Kind of LED used in the
fixture
Lenses
Availble lenses,
indicated in degrees
Plug & play
Easy connection using the
SmartConnect system
White colour temperature
In dierent Kelvin values;
Cold white, neutral white, warm
white or extra warm white
Colour
Available colours;
Amber, blue, red or green
Colour changing
RGB, RGB-W, RGB-A,
AWB or Tunable White
DMX input
Fixture works on DMX512
protocol
Magno dimming
Accurate dimming from
100 - 1% by using a magnet
Dynamic Control
Dynamic Power Control or
Dynamic Temperature Control
Combined product
Compose your own fixture
Warranty
3 or 5 years warranty on
the product
Energy label
Conformité Européenne
CE marking for free marketability
of industrial goods within the EU
r
h
ø w d
Dimmable
1-10 Volt, Phase, individual,
DMX dimmable or DALI
DRIVER
INCLUDED
DRIVER
EXTERNAL
Retail & Food LED modules
Clothing, furniture, kitchens, jewellery,
shoes, bread, meat, fish and
vegetables & fruit.
Lightsource
Equipped with a CLS, Citizen or a Xicato
LED module
Bluetooth controlled
By Casambi
CLS
DYNAMIC
COLOUR
COB

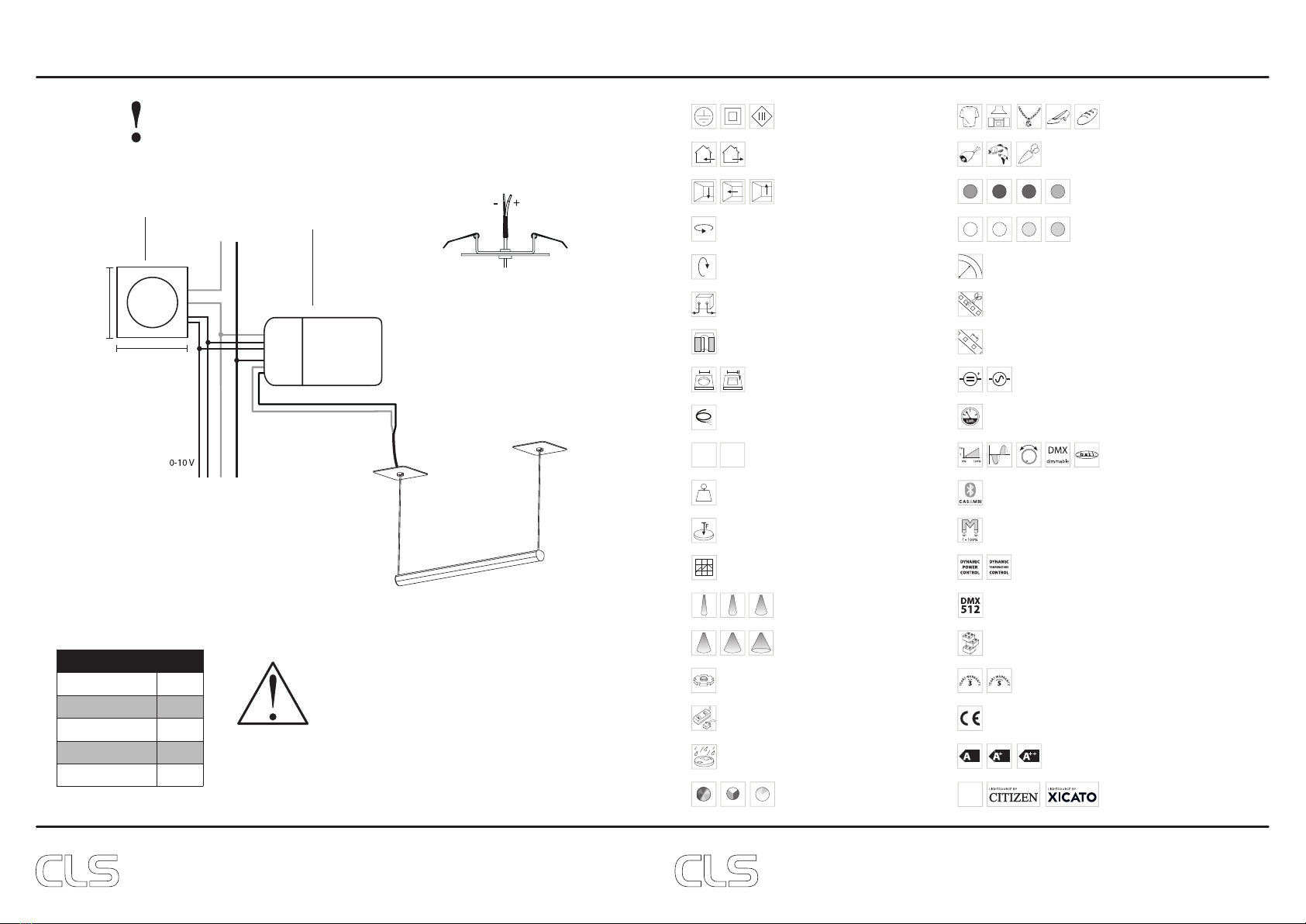

CONNECTION RP
Number of Lina Suspended RP on the CLS 1-10V LED driver
180 cm cable
See the manual of the CLS 1-10V LED Driver, to
set the driver to 500 mA and how to connect
the +and -wire.
CLS 1-10V driver
CLS 1-10V LED driver for
the Lina RP till 130 cm
# 8712039
80,5 mm (w)
80,5 mm (h)
CLS Dimmer electr. 1-10V
# 872010
LN
CLS Lina driver
Fixture #
Lina RP 30 1 - 7
Lina RP 55 1 - 3
Lina RP 80 1 - 2
Lina RP 105 1
- It is possible to combine different LINA RP length as long as the
total number of LEDs is not higher than 25.
- Total cable length should not be longer than 10 meter.
Always switch off mains power of the driver before connecting any fixtures!
